4-50 — FRONT SUSPENSION (#3042) — 71 parça

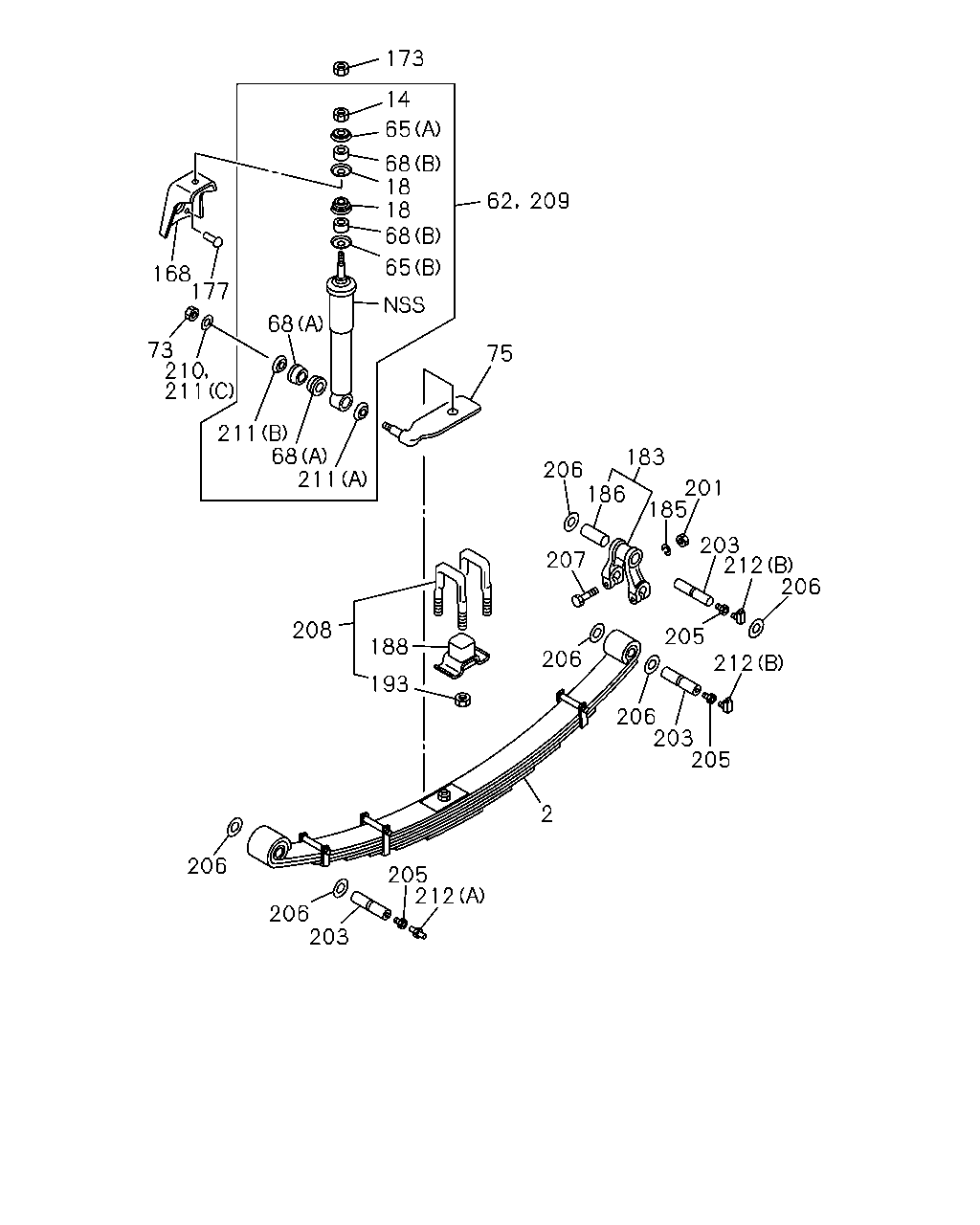

çizim 4940
205 203 206 2 212 205 203 206 206 193 188 208 207 206 205 212 206 212 203 201 185 183 186 206 75 211 68 211 211 210 73 177 168 68 65 68 18 18 68 65 14 173 62 209
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), CONCRETE PUMP<RA5> 		1-51110-513-1 02 1 9002-9306 ● ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51110-550-0 02 1 9002-9306 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. CONCRETE PUMP<RA5> 		1-51110-514-1 02 1 9002-9306 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. CONCRETE PUMP<RA5> 		1-51130-245-0 02 1 9307- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), CONCRETE PUMP<RA5> 		1-51130-207-0 02 1 9307- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. CONCRETE PUMP<RA5> NHK 		1-51110-561-2 02 1 9002-9306 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. CONCRETE PUMP<RA5> MITSUBISHI 		1-51110-562-0 02 1 9002-9306 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. CONCRETE PUMP<RA5> 7-LEAF 		1-51130-202-0 02 1 9307- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9002- ● ● ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9002- ● ● ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-053-3 01 1 9002-9306 ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), CONCRETE PUMP<RA5> 		1-51630-053-3 01 1 9002-9306 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-378-0 02 1 9307- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. CONCRETE PUMP<RA5> 		1-51630-228-1 01 1 9002-9306 ● ●
62 ABSORBER ASM; SHOCK,FRT
CONCRETE PUMP<RA5> 		1-51630-053-3 02 1 9002-9306 ●
65 WASHER; S/ABS
(A) 		9-51631-040-0 04 1 9002- ● ● ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-09503-228-0 02 1 9307- ● ●
68 BUSHING; S/ABS
(A) 		9-51631-026-0 04 1 9002- ● ● ● ●
68 BUSHING; S/ABS
(B) 		9-51631-039-0 04 1 9002- ● ● ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9002- ● ● ● ●
75 BRACKET; FRT S/ABS 1-51681-551-0 01 1 9002-9306 ● ● ●
75 BRACKET; FRT S/ABS
EXC. CONCRETE PUMP<RA5> 		1-51681-551-0 01 1 9002-9306 ●
75 BRACKET; FRT S/ABS 1-51681-550-0 01 1 9002-9306 ● ● ●
75 BRACKET; FRT S/ABS
EXC. CONCRETE PUMP<RA5> 		1-51681-550-0 01 1 9002-9306 ●
75 BRACKET; FRT S/ABS 1-51681-598-1 01 1 9307- ●
75 BRACKET; FRT S/ABS
EXC. CONCRETE PUMP<RA5> 		1-51681-598-1 01 1 9307- ●
75 BRACKET; FRT S/ABS 1-51681-597-1 01 1 9307- ●
75 BRACKET; FRT S/ABS
EXC. CONCRETE PUMP<RA5> 		1-51681-597-1 01 1 9307- ●
75 BRACKET; FRT S/ABS
CONCRETE PUMP<RA5> 		1-51681-553-0 01 1 9002-9306 ●
75 BRACKET; FRT S/ABS
CONCRETE PUMP<RA5> 		1-51681-552-0 01 1 9002-9306 ●
75 BRACKET; FRT S/ABS
CONCRETE PUMP<RA5> 		1-51681-434-0 01 1 9307- ●
75 BRACKET; FRT S/ABS
CONCRETE PUMP<RA5> 		1-51681-433-0 01 1 9307- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-130-1 02 1 9002-9306 ● ● ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9307- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9002- ● ● ● ●
177 RIVET; BRKT,S/ABS
D13X36 		1-09730-107-0 08 1 9002-9212 ● ● ● ●
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		1-09730-087-0 08 1 9301- ● ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9002- ● ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9002-9209 ● ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210-9306 ● ● ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-812-0 12 1 9307-9512 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9601- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9002- ● ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-025-1 02 1 9002-9306 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), CONCRETE PUMP<RA5> 		1-51172-025-1 02 1 9002-9306 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-086-0 02 1 9307- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. CONCRETE PUMP<RA5> 		1-51172-086-0 02 1 9307- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. CONCRETE PUMP<RA5> 		1-51172-033-1 02 1 9002-9306 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
CONCRETE PUMP<RA5> 		1-51172-049-1 02 1 9002-9306 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
CONCRETE PUMP<RA5> 		1-51172-096-0 02 1 9307- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9002- ● ● ● ●
201 NUT; PIN LK
M12 		9-99110-412-0 12 1 9002-9304 ● ● ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9305- ● ● ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9002- ● ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9002- ● ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9002- ● ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		9-91056-280-0 12 1 9002-9005 ● ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9006- ● ● ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-1 04 1 9307- ● ● ● ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=210 		1-87870-118-3 04 1 9002-9306 ● ● ● ●
208 U-BOLT SET; FRT SPRING
CONCRETE PUMP<RA5> L=210 		1-87870-118-3 04 1 9002-9306 ●
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), CONCRETE PUMP<RA5> L=190 		1-87870-163-2 04 1 9002-9306 ● ● ● ●
209 ABSORBER ASM; SHOCK 1-51630-053-3 01 1 9012-9306 ● ●
209 ABSORBER ASM; SHOCK
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), CONCRETE PUMP<RA5> 		1-51630-053-3 01 1 9012-9306 ● ●
209 ABSORBER ASM; SHOCK
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. CONCRETE PUMP<RA5> 		1-51630-228-1 01 1 9012-9306 ● ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 9307- ● ●
211 WASHER; BRKT,SHOCK
(C) ID=21 		9-09160-520-0 02 1 9002-9306 ● ● ● ●
211 WASHER; BRKT,SHOCK
(B) ID=27 		9-51631-027-0 02 1 9002- ● ● ● ●
211 WASHER; BRKT,SHOCK
(A) ID=21 		9-51631-028-0 02 1 9002- ● ● ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ● ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 9002- ● ● ● ●
