0-13 — OIL PAN AND LEVEL GAUGE
(#30415) — 26 parça
◀

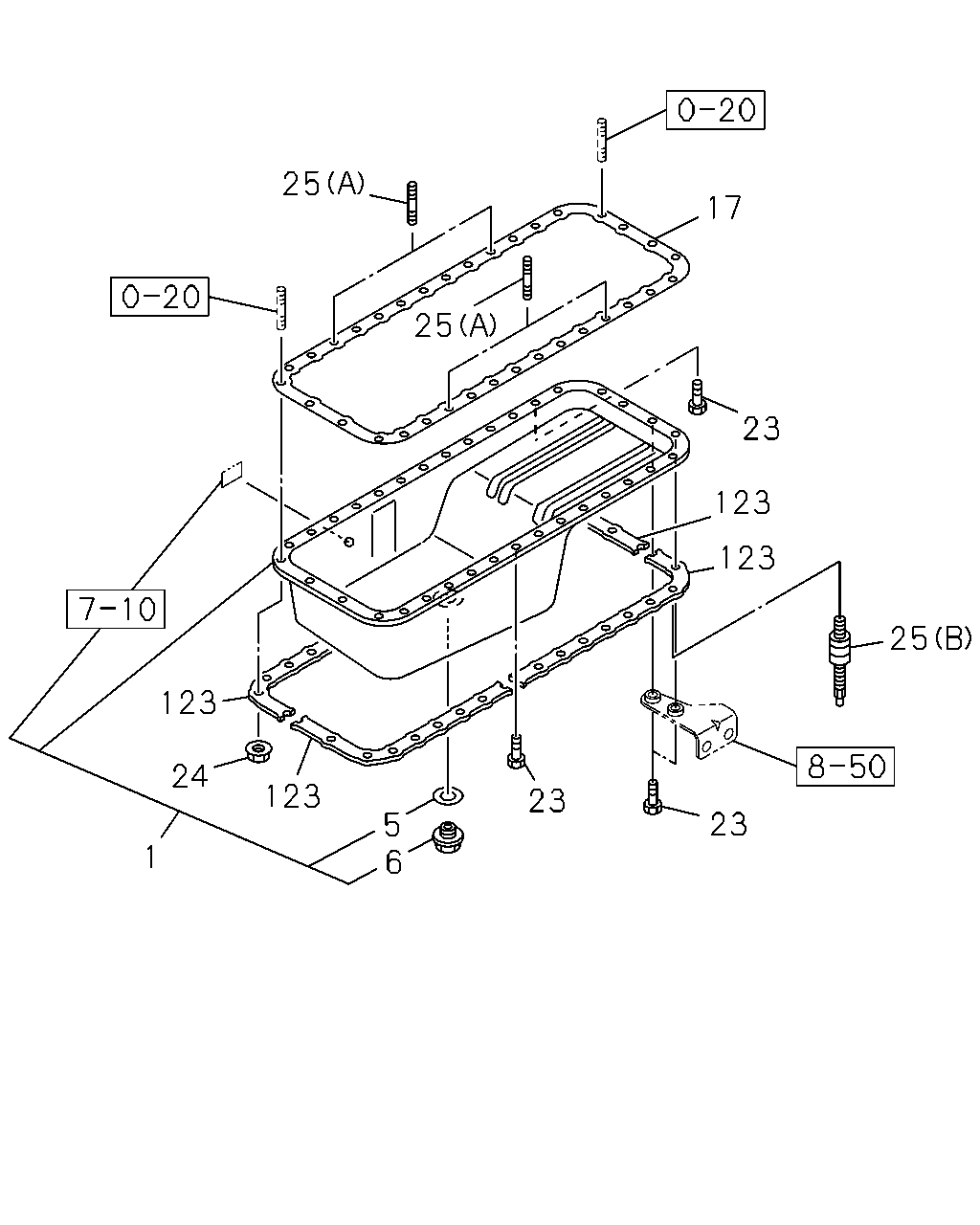

[013A] OIL PAN (14 parça)

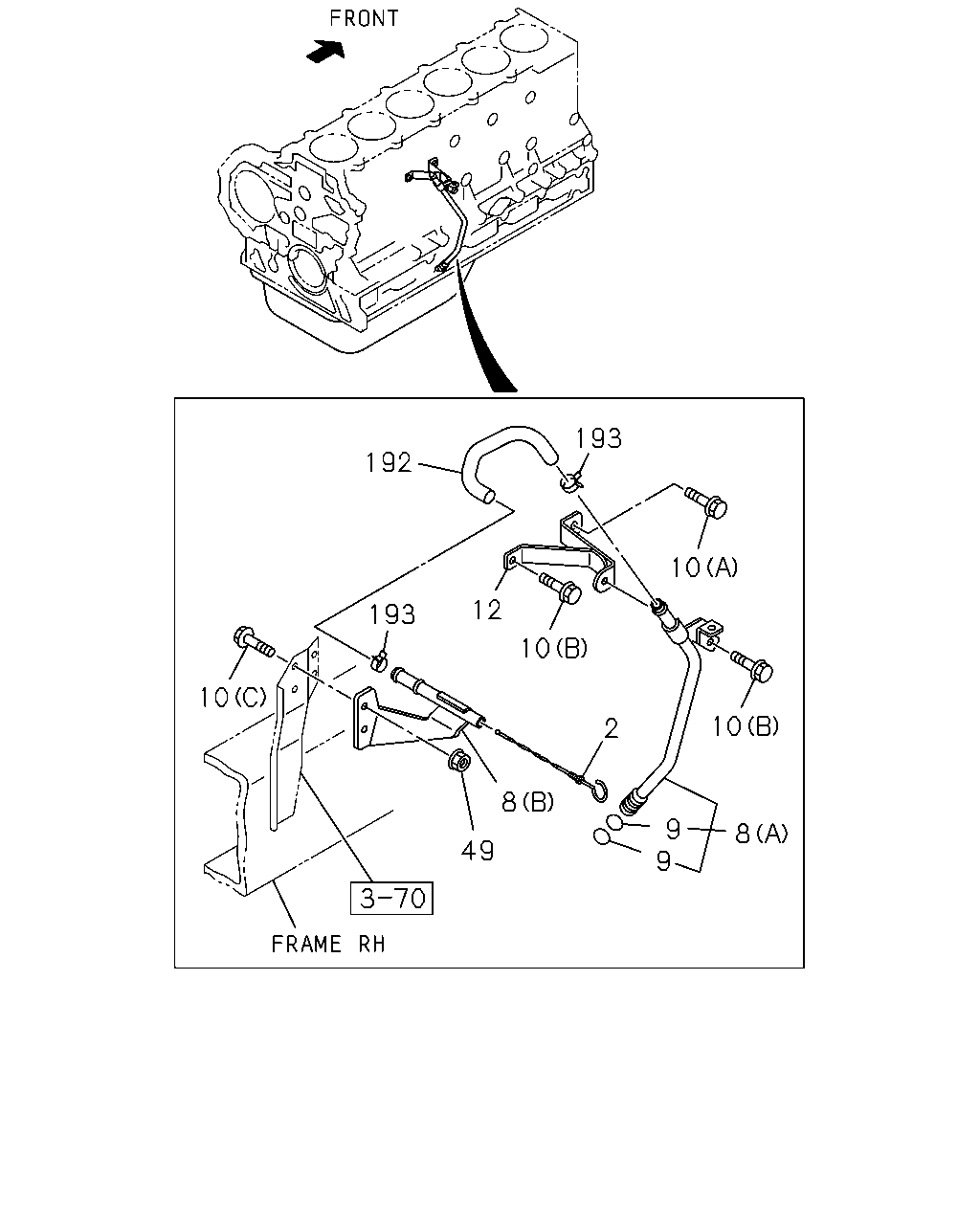

[013A] OIL GAUGE (12 parça)
▶
25
17
25
23
123
123
25
123
24
123
23
23
5
6
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-97603-410-0
01
1
0612-0612
1
PAN ASM; OIL
8-98071-467-0
01
1
0701-0904
1
PAN ASM; OIL
8-97603-410-2
01
1
0905-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0612-
6
PLUG; OIL DRAIN
9-09662-012-0
01
1
0612-
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94390-617-1
01
1
0612-
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97087-634-0
22
1
0612-
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
12
1
0612-
25
STUD; OIL PAN
(A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER
8-97087-632-2
04
1
0612-
25
STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER
8-97601-889-0
01
1
0612-
123
RUBBER; SEAL OIL
FRONT
8-94391-755-0
01
1
0612-
123
RUBBER; SEAL OIL
REAR
8-94391-757-0
01
1
0612-
123
RUBBER; SEAL OIL
REAR
8-94391-758-0
01
1
0612-
123
RUBBER; SEAL OIL
FRONT
8-94392-548-0
01
1
0612-
193
192
10
12
193
10
10
10
2
8
9
9
8
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
8-98054-703-0
01
1
0612-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98024-021-1
01
1
0612-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98041-061-0
01
1
0612-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
0612-
10
BOLT; GUIDE TUBE
(A) M8X16 FLANGE
0-28050-816-0
01
1
0612-
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE
0-28050-820-0
02
1
0612-
10
BOLT; GUIDE TUBE
(C) M8X20 FLANGE
0-28650-820-0
02
1
0612-
12
BRACKET; TUBE,OIL LEVEL GAUGE
8-98041-063-0
01
1
0612-
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
02
1
0612-
192
HOSE; GUIDE TUBE
8-98054-810-0
01
1
0612-0701
192
HOSE; GUIDE TUBE
L=300
1-09360-978-0
01
1
0702-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
0612-
