4-40 — STEERING UNIT (#3040) — 71 parça

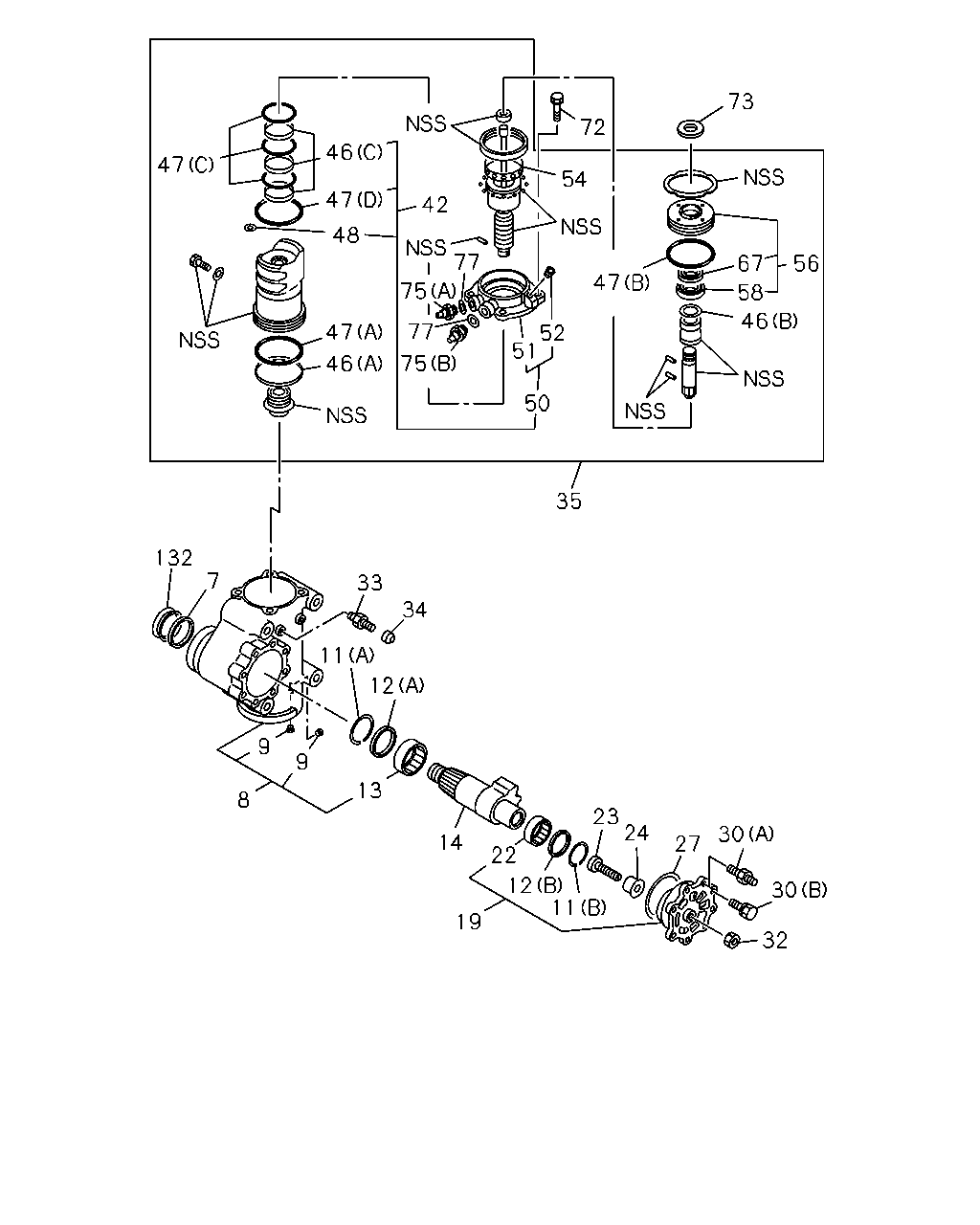

çizim 5038
32 30 30 27 24 23 11 12 19 22 14 13 8 9 9 12 11 34 33 7 132 46 47 77 75 75 77 42 48 47 46 47 72 54 47 52 51 50 35 46 58 67 56 73
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-761-3 		1-44240-040-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-765-3, D = 1-44000-826-0 		1-44240-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-805-2 		1-44240-089-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-038-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-765-3, D = 1-44000-826-0 		1-44260-006-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-805-2 		1-44260-019-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-761-3 		1-44261-031-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-105-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44269-016-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44269-007-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-761-3 		1-44150-026-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-765-3 		1-44150-029-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-805-2 		1-44150-048-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 1-44000-826-0 		1-44150-051-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3 		1-44560-039-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-44560-073-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-116-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3 		1-44560-040-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44250-006-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44259-029-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44259-036-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3 		1-44159-039-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-227-0 01 1 -

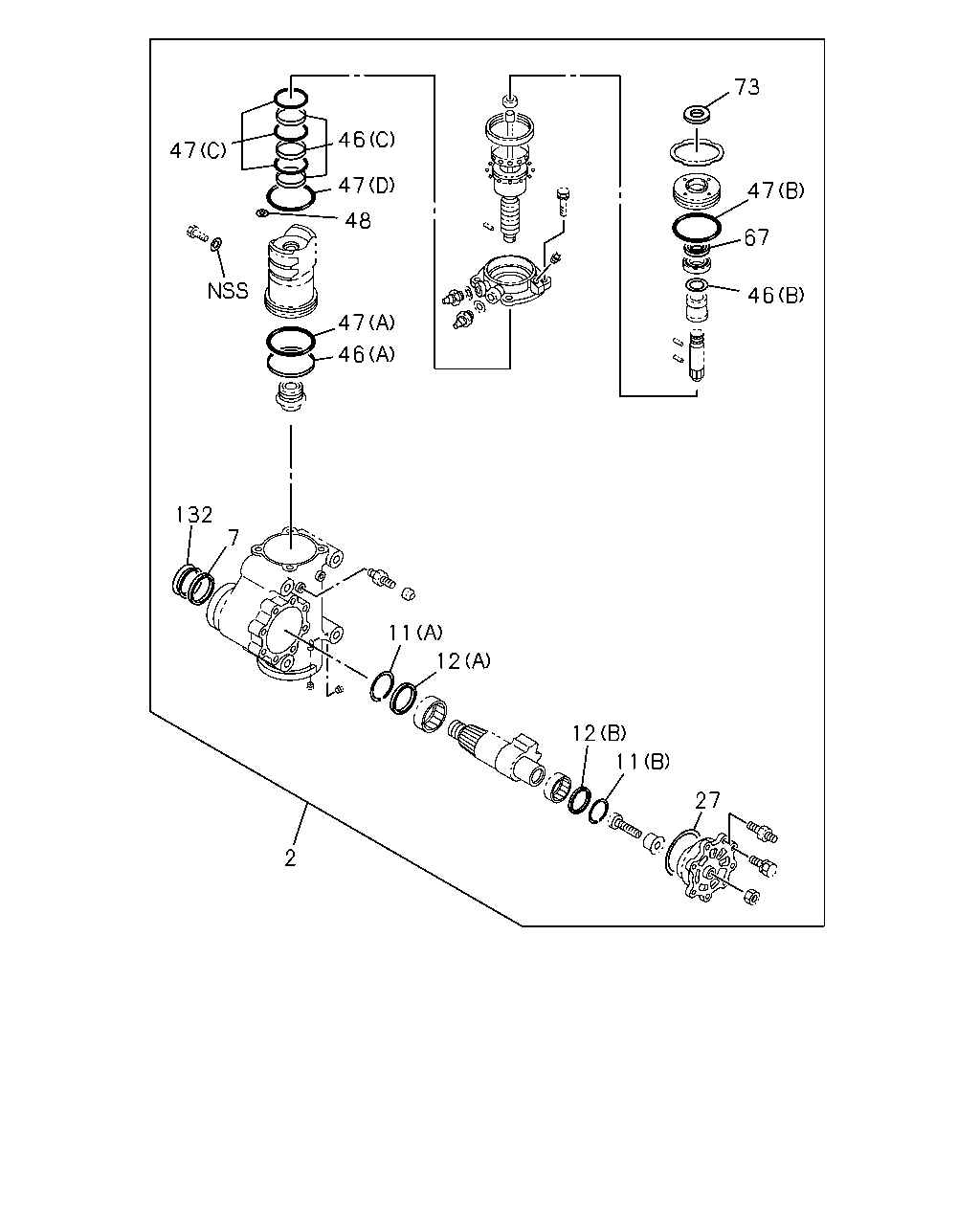

çizim 35566
27 11 12 12 11 2 7 132 46 47 48 47 46 47 73 47 67 46
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3 		1-85574-005-1 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-85574-030-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44269-016-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-116-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-097-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44259-036-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3 		1-44159-039-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-227-0 01 1 -
