Sayfa 8-28 - Isuzu EPC

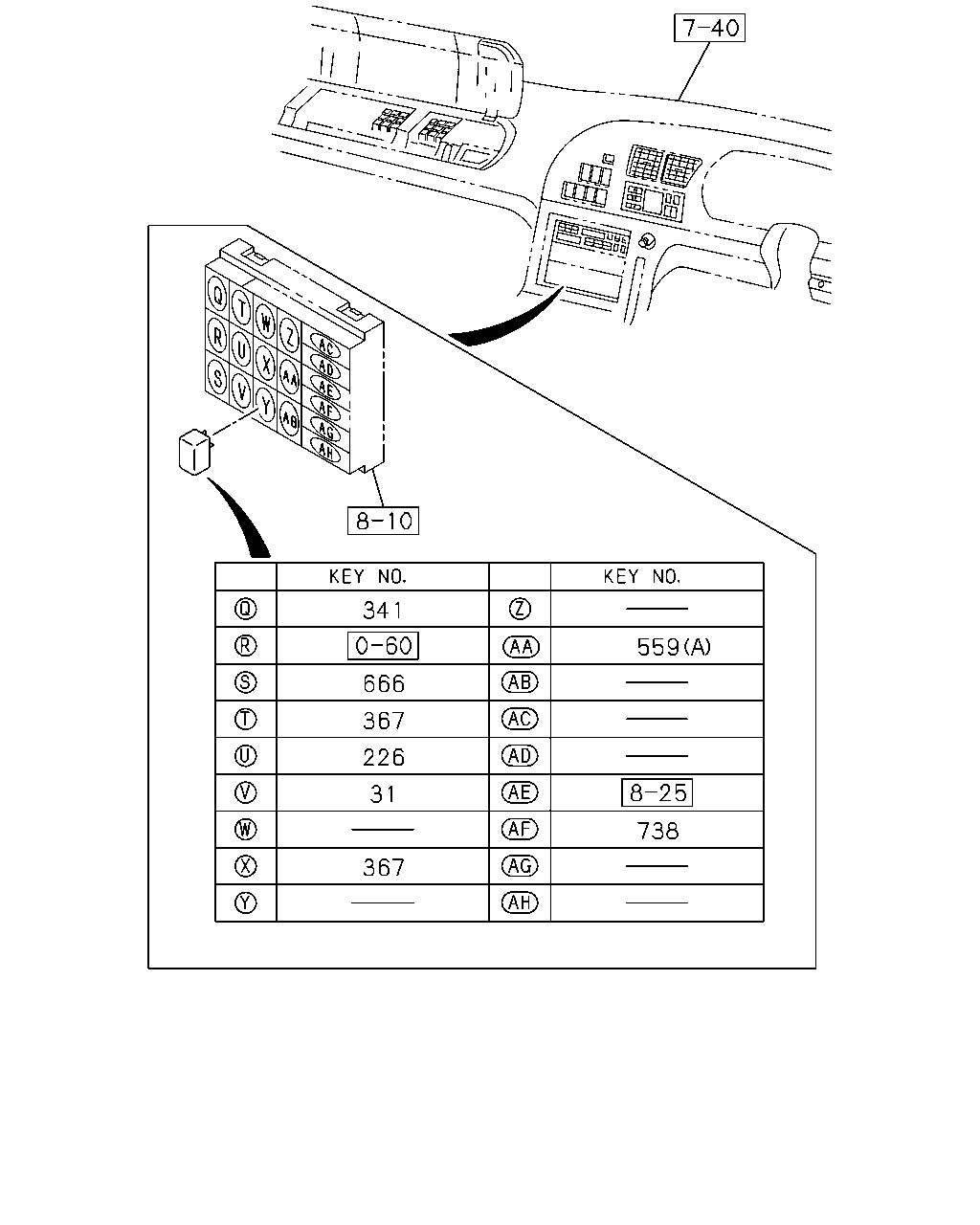

341 559 666 367 226 31 738 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
559	RELAY; MAG VLV (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
559	RELAY; MAG VLV (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
666	RELAY; STARTER 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0610-

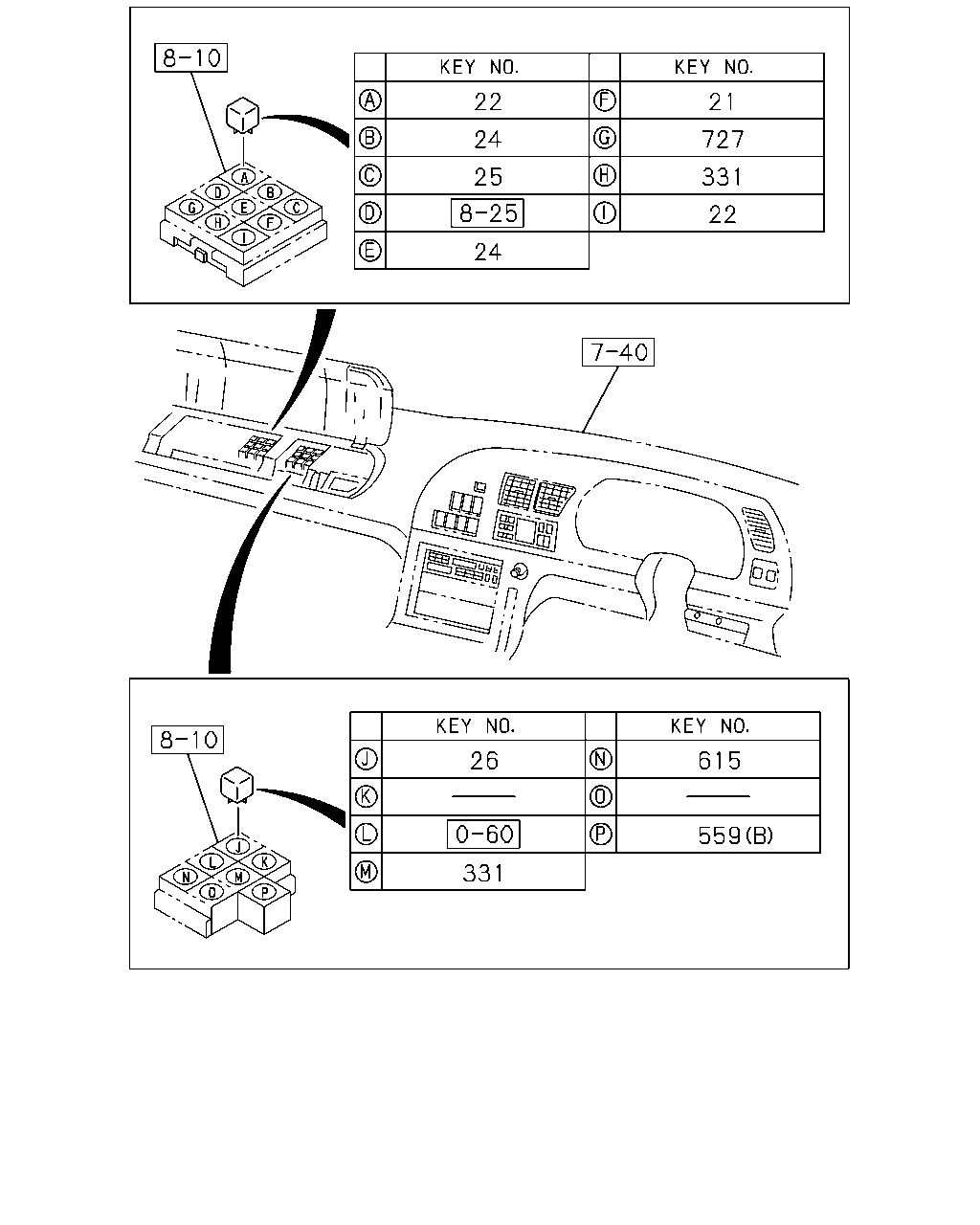

22 21 24 727 25 331 22 24 26 615 559 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0610-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0610-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0908-1312
331	RELAY; A/C ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1401-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0610-
559	RELAY; MAG VLV (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
559	RELAY; MAG VLV (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
727	RELAY; START CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0610-1306
727	RELAY; START CUT 24V 10A PANASONIC	8-98167-173-0	01	1	1307-

284 91 90 34 282 603 34 89 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0610-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0610-1205
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-094-2	01	1	0610-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-095-1	02	1	0610-
89	VALVE; MAG,DIFF LOCK (B)	1-82564-407-1	01	1	0610-
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0610-
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0610-
261	PLUG; MAG VLV (A) PT3/8	9-09204-517-0	01	1	0610-
261	PLUG; MAG VLV (B) PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV (B) PT1/4	9-99204-513-0	01	1	0610-
282	BRACKET; MAG VLV (A)	1-82569-298-0	01	1	0610-
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV (B) M6X60 FLANGE	0-28050-660-0	02	1	0610-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0610-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	0610-

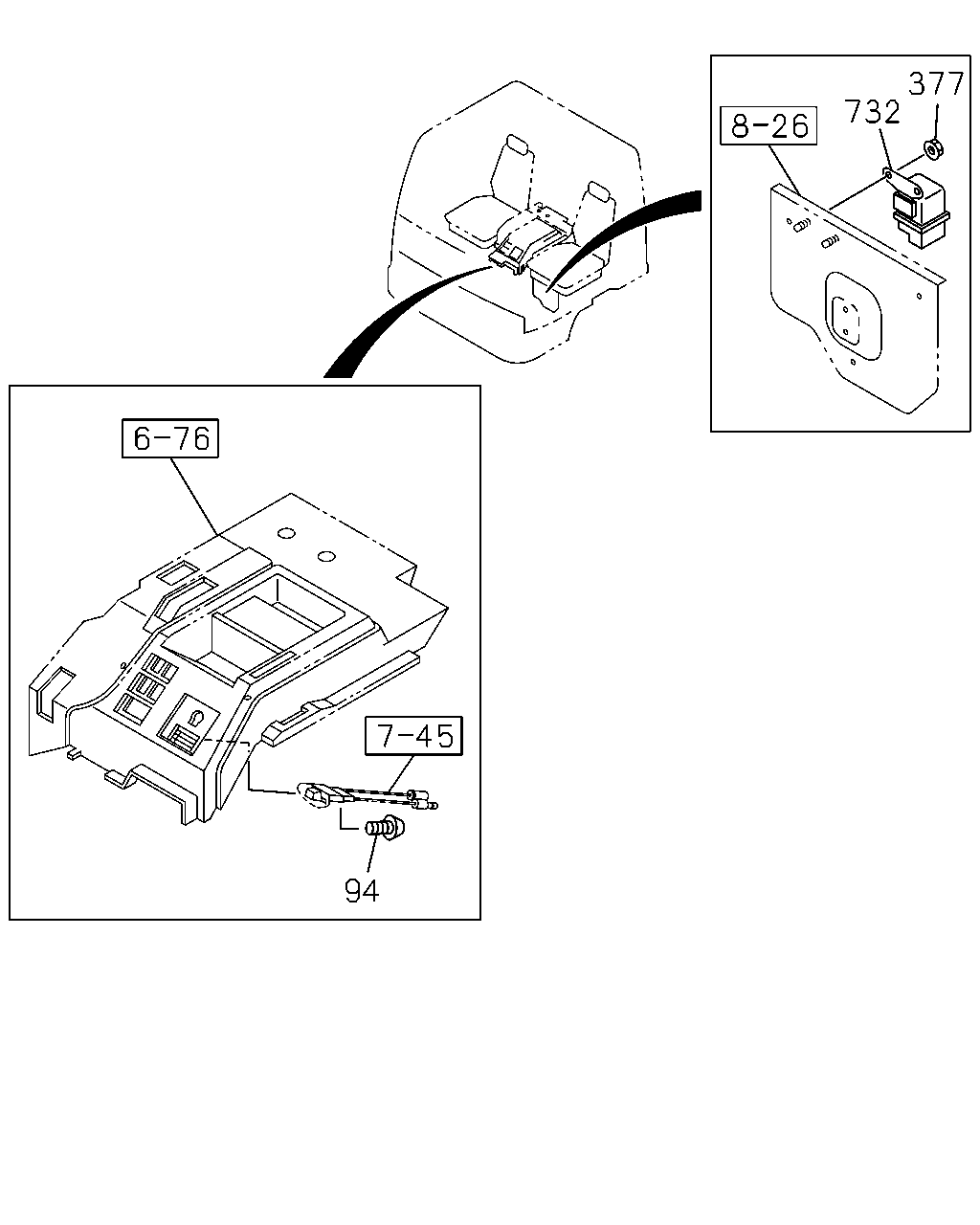

377 732 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0610-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0610-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0610-
732	RELAY; EDS	1-82550-337-1	01	1	0610-

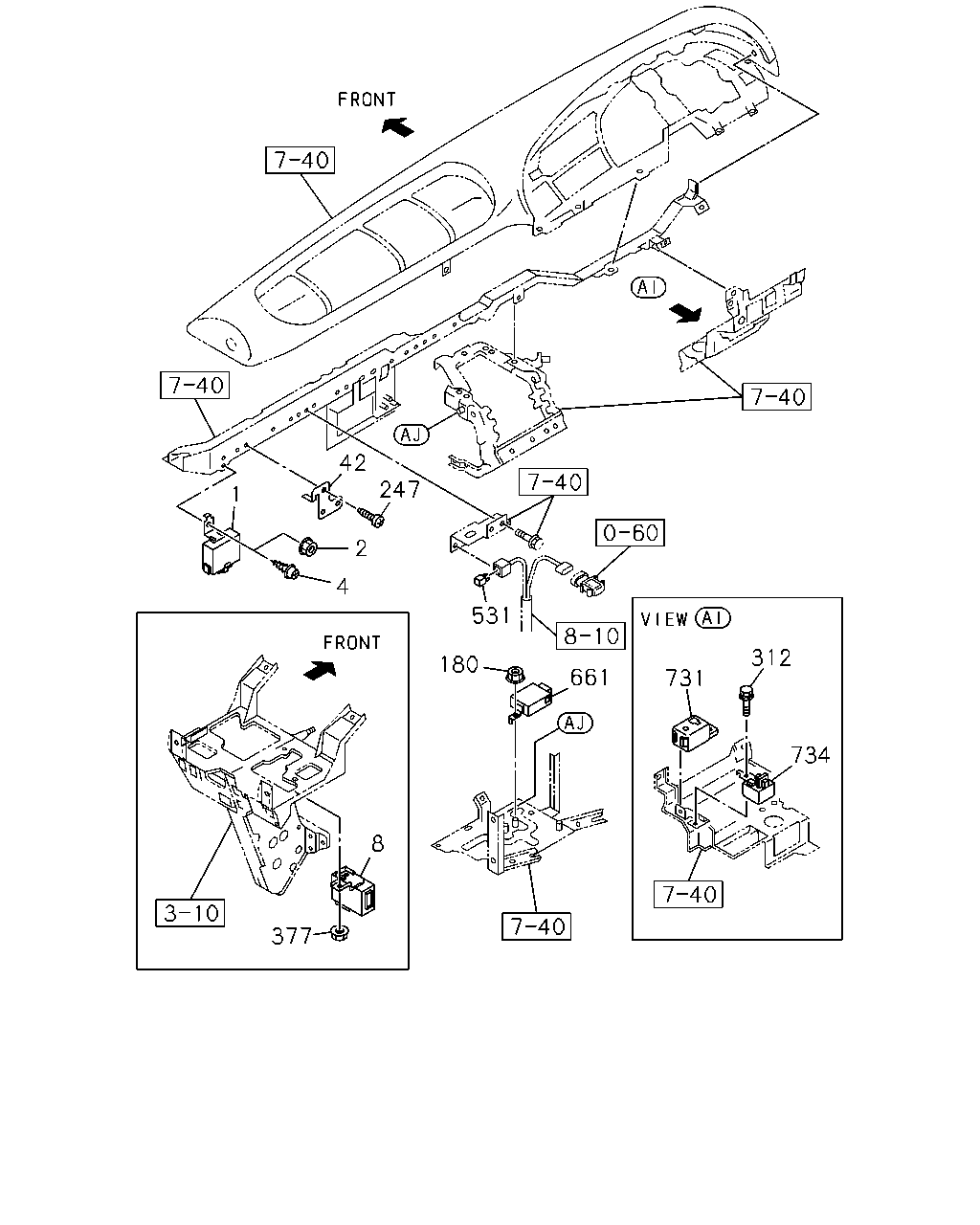

42 247 1 2 4 531 312 180 661 731 734 8 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-97613-970-1	01	1	0906-
1	UNIT; FLASHER	1-83470-062-1	01	1	0610-0905
1	UNIT; FLASHER EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-83470-062-1	01	1	0906-
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0610-0705
8	RELAY; WIPER	1-83316-002-4	01	1	0610-
42	BRACKET; RELAY	1-82698-128-2	01	1	0610-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0610-0705
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0706-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0706-
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	0610-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0610-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0610-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0610-
531	RELAY; MAIN 24V	1-82550-308-1	01	1	0610-1005
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1006-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0610-
731	ALARM; INFORMATION	1-83460-051-1	01	1	0610-
734	ALARM; MULTI	1-83460-106-0	01	1	0610-

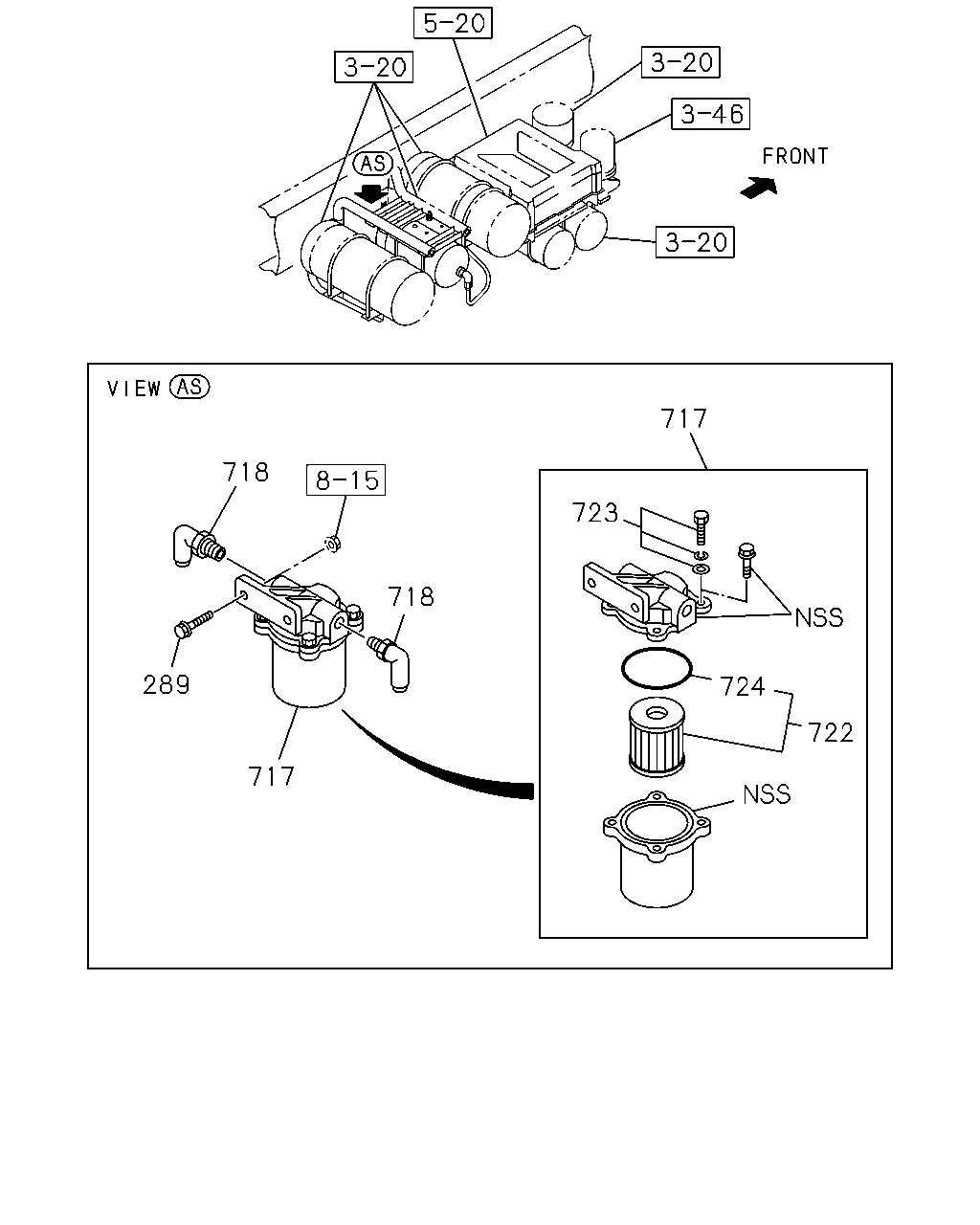

717 718 723 718 289 724 722 717

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	BOLT M8X30 FLANGE	0-28650-830-0	02	1	0610-
717	FILTER; MAG VLV	1-33779-032-0	01	1	0610-0708
717	FILTER; MAG VLV	8-98092-703-0	01	1	0709-
718	CONNECTOR; FILTER DIN8 & M16 ELBOW	1-09661-531-0	02	1	0610-
722	ELEMENT; AIR FILTER	1-33779-040-0	01	1	0610-
723	BOLT; AIR FILTER	1-33779-025-0	04	1	0610-0708
724	GASKET; AIR FILTER	5-09623-075-0	01	1	0610-

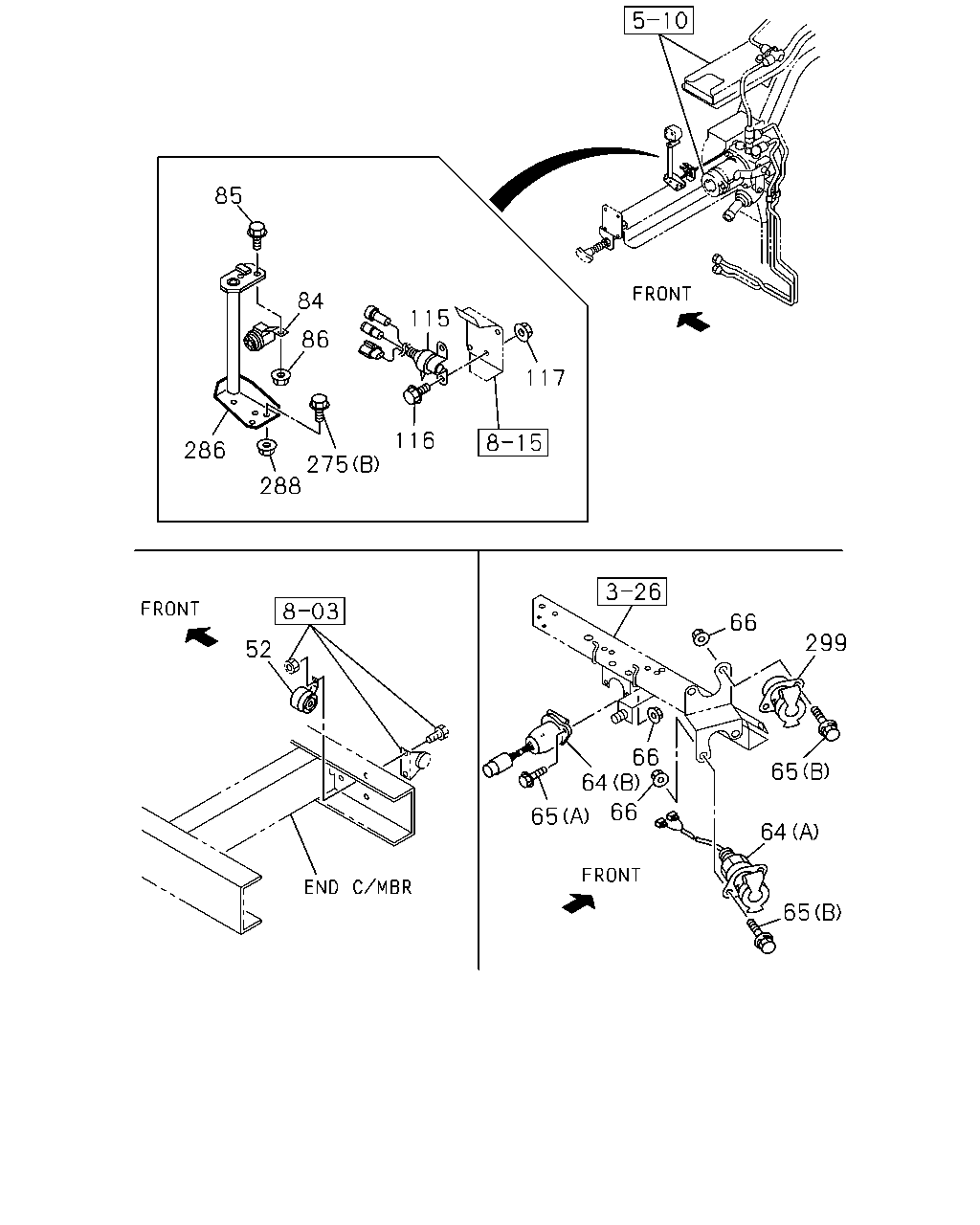

85 84 115 86 117 116 286 275 288 66 299 52 66 64 65 66 65 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK TAIL & STOP LAMPS<TR1> REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-083-0	01	1	0610-0612
52	BUZZER; BACK TAIL & STOP LAMPS<TR1> REVERSING WARNING BUZZER<YM9> METRO DENSO	8-98069-861-0	01	1	0701-
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	0610-
64	SOCKET; TRAILER (A) L=860	1-82699-449-2	01	1	0610-1008
64	SOCKET; TRAILER (A) L=860	8-98172-008-0	01	1	1009-
65	BOLT; SOCKET FIX (C) M6X16 FLANGE	0-28050-616-0	02	1	0610-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	0610-
65	BOLT; SOCKET FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	0610-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	05	1	0610-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0610-0612
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0701-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0610-
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0610-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0610-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0610-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0610-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0610-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0610-
286	BRACKET	1-82699-199-0	01	1	0610-
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0610-
299	SOCKET; PARKING	1-82699-396-2	01	1	0610-

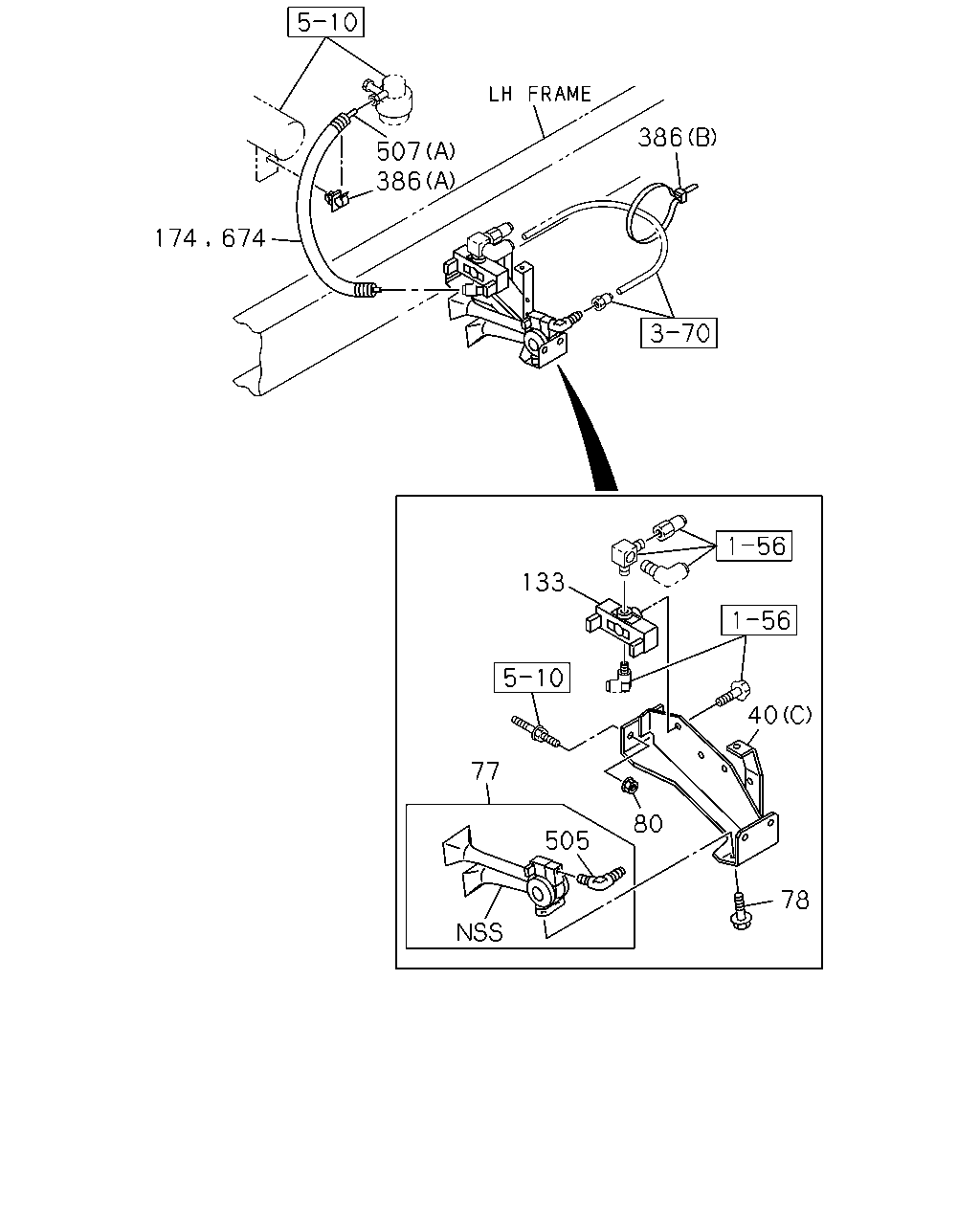

386 507 386 174 674 133 40 77 80 505 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (C)	1-53457-199-0	01	1	0610-0611
40	BRACKET; MAG VLV (C)	8-98069-778-0	01	1	0612-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0610-
40	BRACKET; MAG VLV (A)	1-82569-425-0	01	1	0610-
40	BRACKET; MAG VLV (B)	1-82698-604-0	02	1	0610-
77	HORN ASM	1-83430-041-2	01	1	0610-
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0610-
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	0610-
133	VALVE; MAG,AIR HORN	1-53458-378-2	01	1	0610-
174	COVER L=800	1-83129-031-1	01	1	0610-0806
174	COVER L=800 L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0807-
386	CLIP; HARNESS (B) L=350	1-09707-183-0	02	1	0807-
386	CLIP; HARNESS (A) ID=9.5	5-09709-020-0	01	1	0610-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0610-
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0610-0806
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0807-
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0610-
674	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0807-

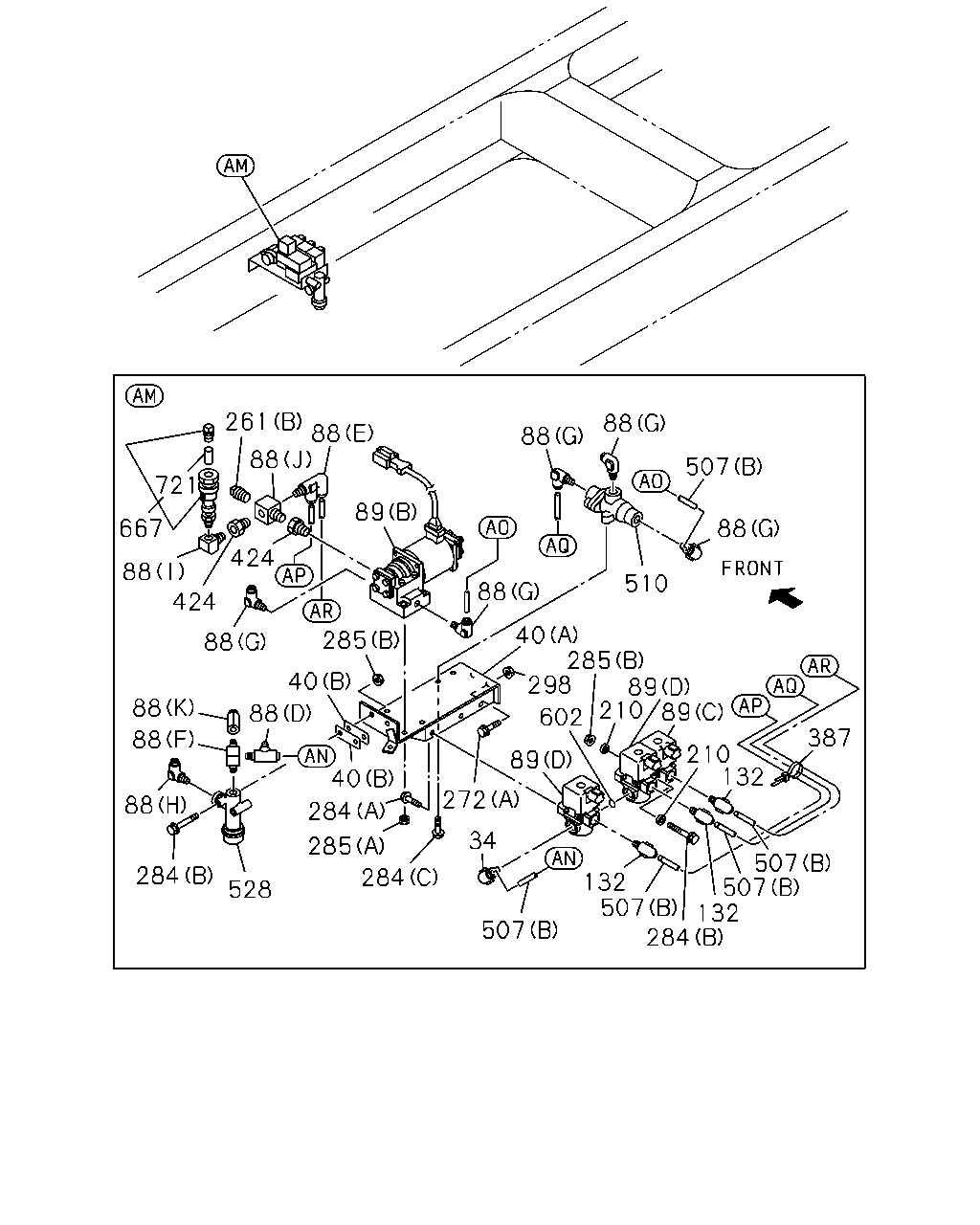

261 88 88 88 88 507 721 89 667 88 424 88 424 510 88 40 285 298 89 285 88 40 88 88 602 387 88 40 210 132 89 272 88 284 34 285 507 132 507 507 132 284 284 284 528 507

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0610-
40	BRACKET; MAG VLV (C)	1-53457-199-0	01	1	0610-0611
40	BRACKET; MAG VLV (C)	8-98069-778-0	01	1	0612-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0610-
40	BRACKET; MAG VLV (A)	1-82569-425-0	01	1	0610-
40	BRACKET; MAG VLV (B)	1-82698-604-0	02	1	0610-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0610-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0610-
88	CONNECTOR; MAG VLV (F) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0610-
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0610-
88	CONNECTOR; MAG VLV (K) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0610-
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0610-
88	CONNECTOR; MAG VLV (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0610-
88	CONNECTOR; MAG VLV (E) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0610-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-
88	CONNECTOR; MAG VLV (H) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-
88	CONNECTOR; MAG VLV (J) PT3/8 4WAY	1-09661-489-0	01	1	0610-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0610-1205
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-094-2	01	1	0610-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-095-1	02	1	0610-
89	VALVE; MAG,DIFF LOCK (B)	1-82564-407-1	01	1	0610-
132	CONNECTOR; OUTLET,MAG VLV DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0610-
261	PLUG; MAG VLV (A) PT3/8	9-09204-517-0	01	1	0610-
261	PLUG; MAG VLV (B) PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV (B) PT1/4	9-99204-513-0	01	1	0610-
272	BOLT; MAG VLV (A) M10X30 FLANGE	0-28051-030-0	01	1	0610-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0610-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV (B) M6X60 FLANGE	0-28050-660-0	02	1	0610-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0610-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-
285	NUT; MAG VLV (A) M5	0-91110-505-0	03	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	04	1	0610-
298	NUT; MAG VLV M10 FLANGE	0-91180-110-0	01	1	0610-
387	CLIP; BAND L=350	1-09707-183-0	01	1	0610-
424	ADAPTER PT3/8	1-09664-210-0	02	1	0610-
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0610-0806
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0807-
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0610-
510	VALVE; CHECK	1-48410-531-1	01	1	0610-
528	VALVE; PRESSURE REDUCING	1-48410-744-0	01	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0610-
667	LUBRICATION	1-33779-011-0	01	1	0610-0705
667	LUBRICATION	8-98063-001-0	01	1	0706-
721	ELEMENT; LUBRICATION	1-33779-028-0	01	1	0610-

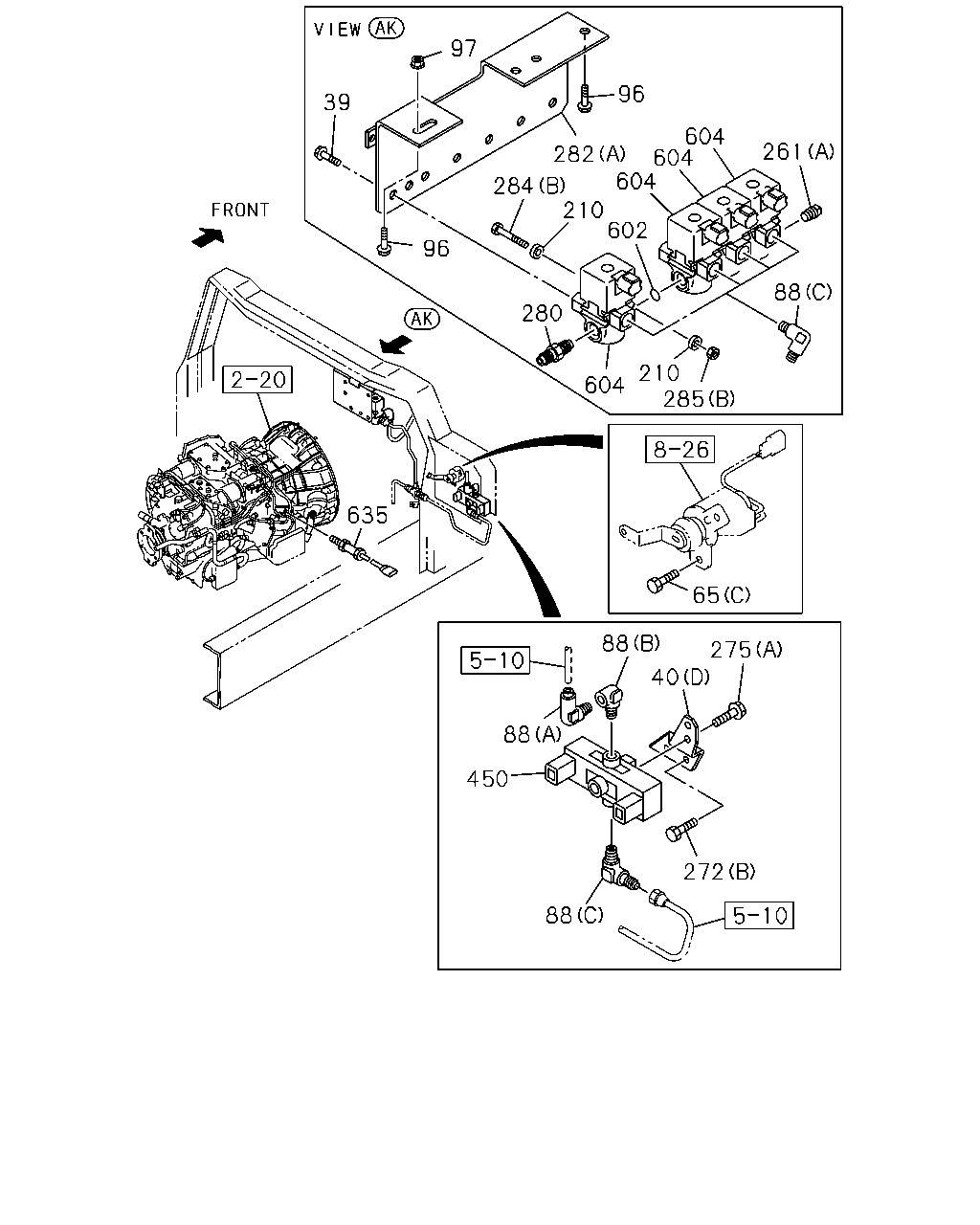

97 96 39 604 604 604 261 282 284 210 602 96 88 280 210 285 604 635 65 88 275 40 88 450 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	04	1	0610-
40	BRACKET; MAG VLV (C)	1-53457-199-0	01	1	0610-0611
40	BRACKET; MAG VLV (C)	8-98069-778-0	01	1	0612-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0610-
40	BRACKET; MAG VLV (A)	1-82569-425-0	01	1	0610-
40	BRACKET; MAG VLV (B)	1-82698-604-0	02	1	0610-
65	BOLT; SOCKET FIX (C) M6X16 FLANGE	0-28050-616-0	02	1	0610-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	0610-
65	BOLT; SOCKET FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	0610-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0610-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0610-
88	CONNECTOR; MAG VLV (F) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0610-
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0610-
88	CONNECTOR; MAG VLV (K) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0610-
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0610-
88	CONNECTOR; MAG VLV (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0610-
88	CONNECTOR; MAG VLV (E) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0610-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-
88	CONNECTOR; MAG VLV (H) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-
88	CONNECTOR; MAG VLV (J) PT3/8 4WAY	1-09661-489-0	01	1	0610-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0610-
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	0610-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	03	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0610-
261	PLUG; MAG VLV (A) PT3/8	9-09204-517-0	01	1	0610-
261	PLUG; MAG VLV (B) PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV (B) PT1/4	9-99204-513-0	01	1	0610-
272	BOLT; MAG VLV (A) M10X30 FLANGE	0-28051-030-0	01	1	0610-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0610-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0610-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0610-
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0610-
282	BRACKET; MAG VLV (A)	1-82569-298-0	01	1	0610-
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV (B) M6X60 FLANGE	0-28050-660-0	02	1	0610-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0610-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-
285	NUT; MAG VLV (A) M5	0-91110-505-0	03	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	04	1	0610-
450	VALVE; MAG	1-53458-378-2	01	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0610-
604	VALVE; MAG,ENG CONT	1-82563-871-2	04	1	0610-
635	SENSOR; PICK UP,INPUT SHAFT	1-81510-736-1	01	1	0610-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
