Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#30391) — 557 parça

119 524 219 294 340 515 552 423 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	0610-
219	NUT M8 FLANGE	0-91180-108-0	11	1	0807-1409
219	NUT M8 FLANGE	0-91180-108-0	10	1	1410-
219	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0610-1409
219	NUT M8 FLANGE	0-91180-108-0	01	1	0610-1409
219	NUT M8 FLANGE	0-91180-108-0	01	1	0610-1409
219	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1410-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1410-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1410-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1410-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0610-
219	NUT M8 FLANGE	0-91180-108-0	05	1	0610-
219	NUT M8 FLANGE	0-91180-108-0	14	1	0610-0806
219	NUT M8 FLANGE	0-91180-108-0	04	1	0807-
294	NUT M8 FLANGE	0-91180-108-0	03	1	0610-
294	NUT M8 FLANGE	0-91180-108-0	04	1	0610-
340	NUT; HARNESS CAB TO FRAME EXC. FACE LIFT<6NL> (A) M8 FLANGE	0-91180-108-0	01	1	0806-
340	NUT; HARNESS CAB TO FRAME (A) M8 FLANGE	0-91180-108-0	02	1	0610-0610
340	NUT; HARNESS CAB TO FRAME (A) M8 FLANGE	0-91180-108-0	01	1	0611-0805
340	NUT; HARNESS CAB TO FRAME FACE LIFT<6NL> (A) M8 FLANGE	0-91180-108-0	05	1	0806-0811
340	NUT; HARNESS CAB TO FRAME FACE LIFT<6NL> (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	0812-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	0610-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	0610-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0610-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0610-
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	0610-

516 139 38 242 528 139 150 38 242 38 242 313 38 38 242 480 38 64 313 38 86 139 242 313 38 64 242 139 239 38 358 88 133 358 239 38 358 88

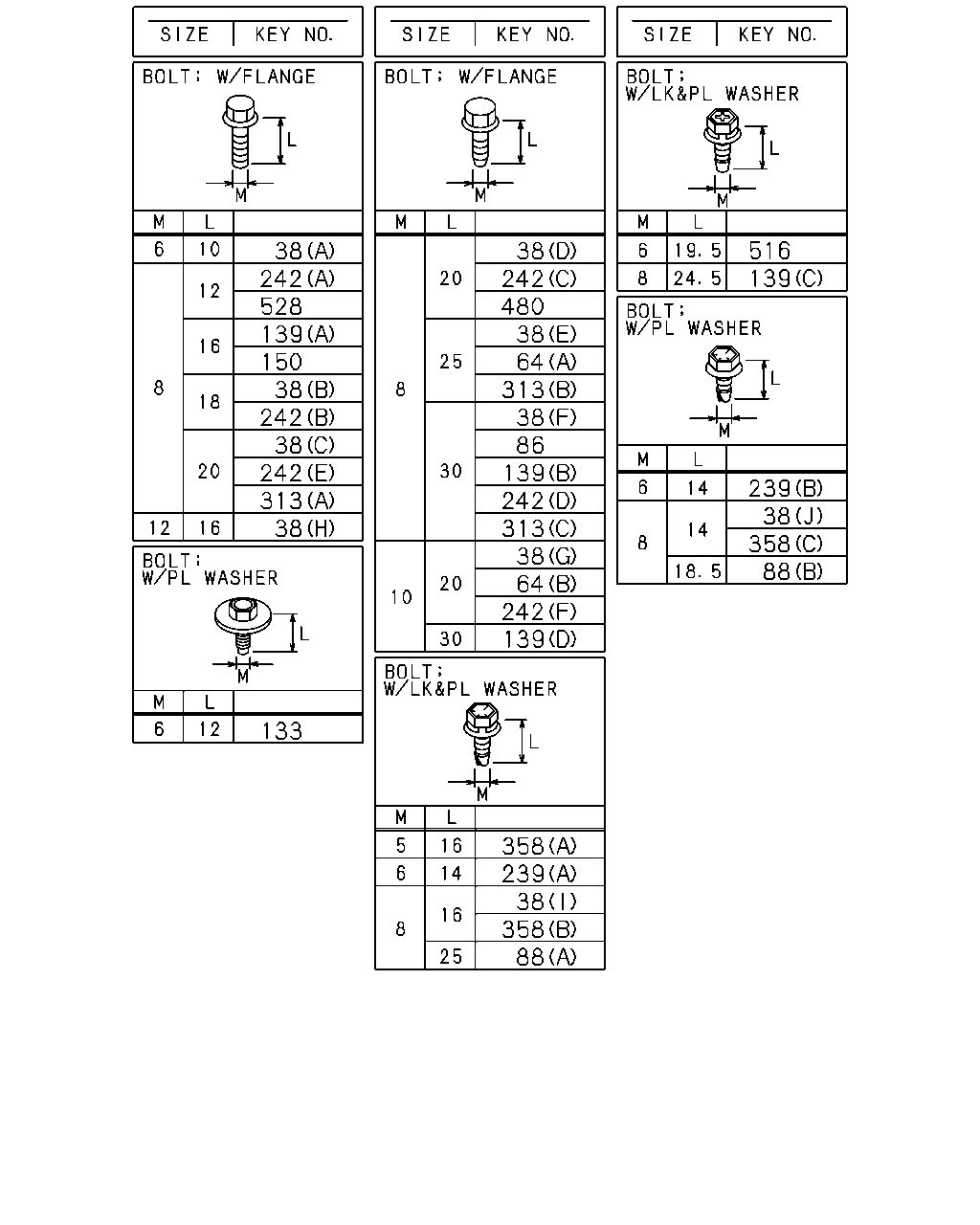

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1410-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1410-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1410-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1410-
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	0610-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	04	1	0610-
38	BOLT; CLIP,HARNESS (B) M8X18 FLANGE	0-28080-818-0	03	1	0610-0806
38	BOLT; CLIP,HARNESS (B) M8X18 FLANGE	0-28080-818-0	04	1	0807-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	05	1	0610-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	0610-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	02	1	0610-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	03	1	0610-
38	BOLT; CLIP,HARNESS (F) M8X30 FLANGE	0-28650-830-0	02	1	0610-
38	BOLT; CLIP,HARNESS (G) M10X20 FLANGE	0-28751-020-0	01	1	0610-
38	BOLT; CLIP,HARNESS (H) M12X16 FLANGE	1-09044-079-0	01	1	0610-1105
38	BOLT; CLIP,HARNESS (H) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (I) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0610-1201
38	BOLT; CLIP,HARNESS (J) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0610-1409
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0610-1409
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0610-1409
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0610-1409
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0610-1409
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1410-
64	SCREW; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0610-0711
64	SCREW; CLIP (B) M10X20 FLANGE	0-28751-020-0	01	1	0610-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	03	1	0610-
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0610-1007
88	BOLT; DOOR HARNESS EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0610-
139	BOLT; BRKT (D) M10X30 FLANGE	0-28151-030-0	01	1	1112-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0610-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0610-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	0610-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0610-0904
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
150	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	13	1	0610-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0610-1007
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS FACE LIFT<6NL> (E) M8X20 FLANGE	0-28050-820-0	04	1	0806-
242	BOLT; BRKT,HARNESS FACE LIFT<6NL> (F) M10X20 FLANGE	0-28651-020-0	02	1	0806-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	0610-
242	BOLT; BRKT,HARNESS (B) M8X18 FLANGE	0-28080-818-0	01	1	0610-0805
242	BOLT; BRKT,HARNESS EXC. FACE LIFT<6NL> (B) M8X18 FLANGE	0-28080-818-0	01	1	0806-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	02	1	0610-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	03	1	0610-
242	BOLT; BRKT,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	0610-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0610-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	05	1	0610-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0610-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0610-
358	BOLT; EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0610-1201
358	BOLT; EARTH (C) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-
480	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0610-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0610-
528	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	01	1	0610-

530 224 1 1 1 1 178 178 178 178 178 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (D) ID=17 OD=21 L=40	1-09337-012-0	01	1	0610-
1	SLEEVE; RUBBER (B) ID=18 OD=22 L=25	8-94412-773-0	01	1	0610-
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=38.1 L=50	5-09360-835-0	01	1	0610-
1	SLEEVE; RUBBER (A) ID=14 OD=18 L=60	1-09337-030-0	01	1	0610-0610
178	GROMMET; HARNESS INSPECTION LAMP<T95> (D) ID=19 OD=23 T=18	9-09956-130-1	01	1	0610-
178	GROMMET; HARNESS (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	0610-
178	GROMMET; HARNESS (F) ID=32 OD=40 T=18	1-09891-003-0	02	1	0610-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	04	1	0610-
178	GROMMET; HARNESS (A) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	0610-
178	GROMMET; HARNESS (A) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	0610-
178	GROMMET; HARNESS (E) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0610-0610
178	GROMMET; HARNESS (G) ID=15 OD=20 T=26	1-09332-132-0	01	1	0610-
224	SLEEVE; RUBBER,HARNESS ID=6 L=30	5-09360-352-0	01	1	0610-0904
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	0610-
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	0610-

16 104 223 16 16 104 212 16 16 16 148 16 162 470 16 16 16 16 104 168 116 168 421 16 16 462 16 16

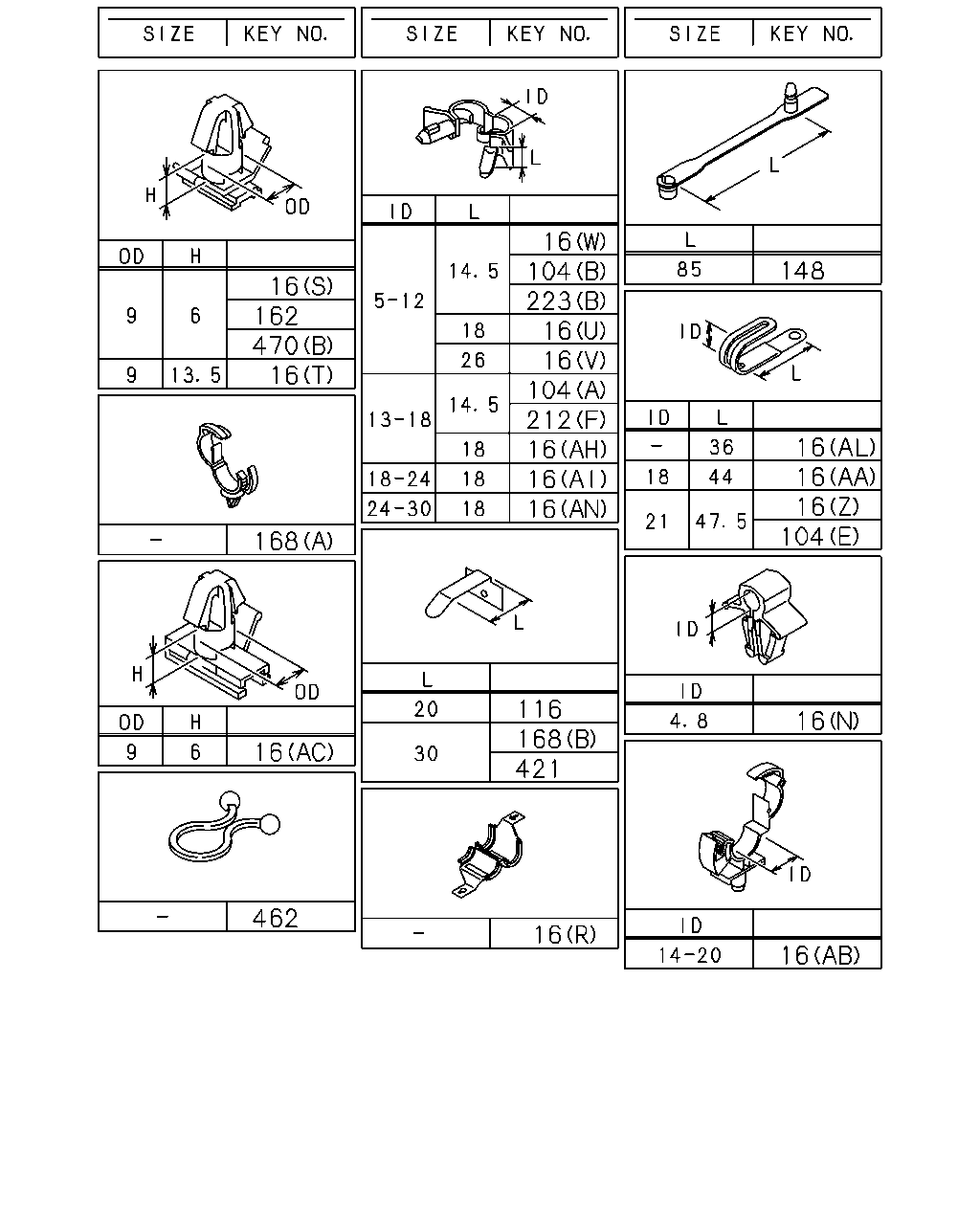

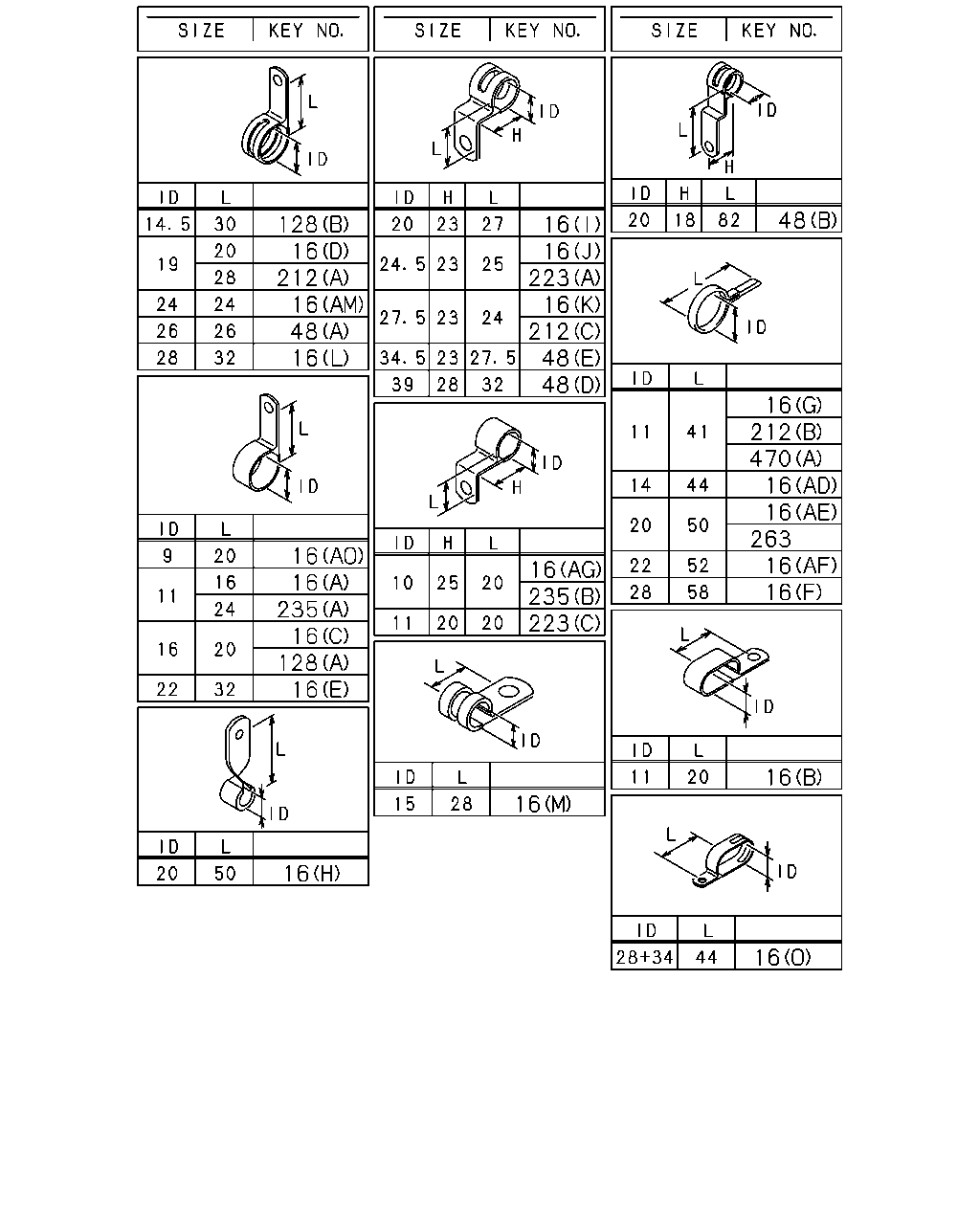

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AO) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	0905-1409
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1410-
16	CLIP; HARNESS (AN) ID=24-30 L=18	1-09709-297-0	01	1	0808-
16	CLIP; HARNESS (AL) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	02	1	0702-
16	CLIP; HARNESS (U) ID=5-12 L=18	1-09709-287-0	04	1	0611-
16	CLIP; HARNESS (AH) ID=13-18 L=18	1-09709-291-0	01	1	0611-
16	CLIP; HARNESS (AI) ID=18-24 L=18	1-09709-294-0	02	1	0611-
16	CLIP; HARNESS (AJ) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS (P) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (P) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	05	1	0611-
16	CLIP; HARNESS (B) ID=11 L=20	0-95235-035-0	05	1	0610-1105
16	CLIP; HARNESS (B) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (C) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0610-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	03	1	0610-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	12	1	0610-0610
16	CLIP; HARNESS (X) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (X) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (X) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (X) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (Z) ID=21 L=47.5	8-94178-108-0	03	1	0610-
16	CLIP; HARNESS (AA) ID=18 L=44	8-94225-185-0	05	1	0610-0801
16	CLIP; HARNESS (AA) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (K) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (K) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS INSPECTION LAMP<T95> (P) L=180	1-09707-162-1	01	1	0610-0610
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0610-
16	CLIP; HARNESS (C) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0610-
16	CLIP; HARNESS (C) T=0.8 ID=16 L=20	0-95235-535-0	02	1	0610-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (E) ID=22 L=32	1-09700-126-1	01	1	0806-1002
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1003-
16	CLIP; HARNESS (F) ID=28 L=58	1-09700-400-0	04	1	0610-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	01	1	0610-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	02	1	0610-1409
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	08	1	1410-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	09	1	0610-0610
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	10	1	0611-0806
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	12	1	0807-1409
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	04	1	1410-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	04	1	1410-
16	CLIP; HARNESS (H) ID=20 L=50	1-09700-679-1	01	1	0610-
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0610-
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	04	1	0610-1409
16	CLIP; HARNESS (K) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-1105
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	03	1	1106-
16	CLIP; HARNESS (L) ID=28 L=32	1-09701-107-1	02	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (L) ID=28 L=32	1-09701-107-1	02	1	0806-1002
16	CLIP; HARNESS (N) ID=4.8	1-09701-218-0	01	1	0610-1409
16	CLIP; HARNESS (O) ID=28+34 L=44	1-09701-311-0	01	1	0610-
16	CLIP; HARNESS (P) L=180	1-09707-162-1	08	1	0610-0610
16	CLIP; HARNESS (P) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (Q) L=350	1-09707-183-0	05	1	0610-
16	CLIP; HARNESS (R) W/SPONGE RUBBER	1-09709-150-0	01	1	0610-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	06	1	0610-1409
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	07	1	0610-
16	CLIP; HARNESS (T) OD=9 H=13.5	1-09709-180-0	01	1	0610-
16	CLIP; HARNESS (U) ID=5-12 L=18	1-09709-287-0	03	1	0610-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	0610-0611
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0610-0702
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	0703-0904
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0905-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	0610-0702
16	CLIP; HARNESS (X) L=250	5-09707-030-1	01	1	0610-0705
16	CLIP; HARNESS (X) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (X) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	02	1	0610-0805
16	CLIP; HARNESS (X) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (X) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	04	1	0610-0805
16	CLIP; HARNESS FACE LIFT<6NL> (AM) ID=24 L=24	1-09701-001-1	01	1	0806-1002
16	CLIP; HARNESS (Y) L=140	5-09707-031-1	01	1	0610-
16	CLIP; HARNESS (AB) ID=14-20	8-97061-603-0	03	1	0610-
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	01	1	0610-
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	03	1	0610-
16	CLIP; HARNESS (AD) ID=14 L=44	9-09917-427-0	03	1	0610-0610
16	CLIP; HARNESS (P) L=180	1-09707-162-1	04	1	0611-
16	CLIP; HARNESS (AD) ID=14 L=44	9-09917-427-0	05	1	0610-0610
16	CLIP; HARNESS (AK) L=175	1-09707-176-1	01	1	0611-
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	07	1	0610-1409
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	03	1	1410-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	02	1	0610-1409
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	02	1	1410-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	02	1	1410-
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	02	1	0610-0701
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	02	1	0610-0701
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (M) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (M) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	03	1	0610-1409
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	03	1	0610-1409
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	01	1	1410-
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	01	1	1410-
16	CLIP; HARNESS (AG) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=5-12 L=14.5	1-09987-221-0	04	1	0707-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=5-12 L=14.5	1-09987-221-0	04	1	0610-0610
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0610-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) L=250	5-09707-030-1	02	1	0610-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) L=140	5-09707-031-1	06	1	0610-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (E) ID=21 L=47.5	8-94178-108-0	02	1	0610-0710
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	0610-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	0610-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	0610-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	06	1	0610-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	0610-
212	CLIP; HORN HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	0610-
212	CLIP; HORN HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0610-
212	CLIP; HORN HARNESS (C) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-
212	CLIP; HORN HARNESS (D) L=300	1-09707-001-1	01	1	0610-
212	CLIP; HORN HARNESS (F) ID=13-18 L=14.5	1-09709-290-0	01	1	0610-
212	CLIP; HORN HARNESS (G) L=140	5-09707-031-1	01	1	0610-0904
212	CLIP; HORN HARNESS (G) L=140	5-09707-031-1	03	1	0610-
212	CLIP; HORN HARNESS (E) L=350	1-09707-183-0	01	1	0610-
212	CLIP; HORN HARNESS (E) L=350	1-09707-183-0	01	1	0610-
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0610-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	0610-
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	5-09700-351-0	04	1	0610-0707
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
421	CLIP; FLOOR HARNESS L=30 SET=10 PIECE	1-09987-265-0	05	1	0610-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20	1-09709-068-0	02	1	0610-
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	03	1	0907-1111
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	05	1	1112-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41	1-09700-403-0	01	1	0907-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6	1-09709-178-0	01	1	0907-

16 51 81 104 206 212 305 369 16 102 104 111 142 171 194 369 380 470 16 16 14 194 212 14 16 48 171 194 212 16 33 51 142 194 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	0802-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0610-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	02	1	0610-
16	CLIP; HARNESS (AO) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	0905-1409
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1410-
16	CLIP; HARNESS (AN) ID=24-30 L=18	1-09709-297-0	01	1	0808-
16	CLIP; HARNESS (AL) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	02	1	0702-
16	CLIP; HARNESS (U) ID=5-12 L=18	1-09709-287-0	04	1	0611-
16	CLIP; HARNESS (AH) ID=13-18 L=18	1-09709-291-0	01	1	0611-
16	CLIP; HARNESS (AI) ID=18-24 L=18	1-09709-294-0	02	1	0611-
16	CLIP; HARNESS (AJ) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS (P) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (P) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	05	1	0611-
16	CLIP; HARNESS (B) ID=11 L=20	0-95235-035-0	05	1	0610-1105
16	CLIP; HARNESS (B) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (C) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0610-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	03	1	0610-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	12	1	0610-0610
16	CLIP; HARNESS (X) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (X) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (X) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (X) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (Z) ID=21 L=47.5	8-94178-108-0	03	1	0610-
16	CLIP; HARNESS (AA) ID=18 L=44	8-94225-185-0	05	1	0610-0801
16	CLIP; HARNESS (AA) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (K) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (K) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS INSPECTION LAMP<T95> (P) L=180	1-09707-162-1	01	1	0610-0610
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0610-
16	CLIP; HARNESS (C) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0610-
16	CLIP; HARNESS (C) T=0.8 ID=16 L=20	0-95235-535-0	02	1	0610-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (E) ID=22 L=32	1-09700-126-1	01	1	0806-1002
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1003-
16	CLIP; HARNESS (F) ID=28 L=58	1-09700-400-0	04	1	0610-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	01	1	0610-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	02	1	0610-1409
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	08	1	1410-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	09	1	0610-0610
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	10	1	0611-0806
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	12	1	0807-1409
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	04	1	1410-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	04	1	1410-
16	CLIP; HARNESS (H) ID=20 L=50	1-09700-679-1	01	1	0610-
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0610-
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	04	1	0610-1409
16	CLIP; HARNESS (K) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-1105
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	03	1	1106-
16	CLIP; HARNESS (L) ID=28 L=32	1-09701-107-1	02	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (L) ID=28 L=32	1-09701-107-1	02	1	0806-1002
16	CLIP; HARNESS (N) ID=4.8	1-09701-218-0	01	1	0610-1409
16	CLIP; HARNESS (O) ID=28+34 L=44	1-09701-311-0	01	1	0610-
16	CLIP; HARNESS (P) L=180	1-09707-162-1	08	1	0610-0610
16	CLIP; HARNESS (P) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (Q) L=350	1-09707-183-0	05	1	0610-
16	CLIP; HARNESS (R) W/SPONGE RUBBER	1-09709-150-0	01	1	0610-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	06	1	0610-1409
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	07	1	0610-
16	CLIP; HARNESS (T) OD=9 H=13.5	1-09709-180-0	01	1	0610-
16	CLIP; HARNESS (U) ID=5-12 L=18	1-09709-287-0	03	1	0610-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	0610-0611
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0610-0702
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	0703-0904
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0905-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	0610-0702
16	CLIP; HARNESS (X) L=250	5-09707-030-1	01	1	0610-0705
16	CLIP; HARNESS (X) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (X) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	02	1	0610-0805
16	CLIP; HARNESS (X) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (X) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	04	1	0610-0805
16	CLIP; HARNESS FACE LIFT<6NL> (AM) ID=24 L=24	1-09701-001-1	01	1	0806-1002
16	CLIP; HARNESS (Y) L=140	5-09707-031-1	01	1	0610-
16	CLIP; HARNESS (AB) ID=14-20	8-97061-603-0	03	1	0610-
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	01	1	0610-
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	03	1	0610-
16	CLIP; HARNESS (AD) ID=14 L=44	9-09917-427-0	03	1	0610-0610
16	CLIP; HARNESS (P) L=180	1-09707-162-1	04	1	0611-
16	CLIP; HARNESS (AD) ID=14 L=44	9-09917-427-0	05	1	0610-0610
16	CLIP; HARNESS (AK) L=175	1-09707-176-1	01	1	0611-
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	07	1	0610-1409
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	03	1	1410-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	02	1	0610-1409
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	02	1	1410-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	02	1	1410-
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	02	1	0610-0701
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	02	1	0610-0701
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (M) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (M) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	03	1	0610-1409
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	03	1	0610-1409
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	01	1	1410-
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	01	1	1410-
16	CLIP; HARNESS (AG) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-
33	CLIP; HARNESS,VLV L=180	1-09707-162-1	01	1	0610-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0610-0610
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0610-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	10	1	0610-0610
48	CLIP; FRAME HARNESS (D) ID=39 H=28 L=32	1-09701-263-0	01	1	0611-0706
48	CLIP; FRAME HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0707-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	0610-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0610-
81	CLIP; HARNESS L=140	5-09707-031-1	02	1	0610-
102	CLIP; BAND L=250	5-09707-030-1	01	1	0610-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=5-12 L=14.5	1-09987-221-0	04	1	0707-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=5-12 L=14.5	1-09987-221-0	04	1	0610-0610
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0610-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) L=250	5-09707-030-1	02	1	0610-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) L=140	5-09707-031-1	06	1	0610-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (E) ID=21 L=47.5	8-94178-108-0	02	1	0610-0710
111	CLIP; STOP LAMP SW HARNESS L=250	5-09707-030-1	01	1	0610-
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	01	1	0610-1207
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG (B) L=250	5-09707-030-1	01	1	0610-1205
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	01	1	1206-
171	CLIP; STARTER HARNESS FACE LIFT<6NL> (B) L=350	1-09707-183-0	02	1	0806-
171	CLIP; STARTER HARNESS EXC. FACE LIFT<6NL> (A) L=250	5-09707-030-1	05	1	0806-
171	CLIP; STARTER HARNESS (A) L=250	5-09707-030-1	05	1	0610-0805
171	CLIP; STARTER HARNESS FACE LIFT<6NL> (A) L=250	5-09707-030-1	04	1	0806-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	0610-
194	CLIP; BAND (B) L=180	1-09707-162-1	01	1	0610-1001
194	CLIP; BAND (C) L=350	1-09707-183-0	09	1	0610-1202
194	CLIP; BAND (C) L=350	1-09707-183-0	10	1	1203-
194	CLIP; BAND (D) L=250	5-09707-030-1	05	1	0610-0610
194	CLIP; BAND (D) L=250	5-09707-030-1	05	1	0610-0610
194	CLIP; BAND (D) L=250	5-09707-030-1	05	1	0610-0610
194	CLIP; BAND (D) L=250	5-09707-030-1	06	1	0610-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0610-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> L=180	1-09707-162-1	01	1	0610-
212	CLIP; HORN HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	0610-
212	CLIP; HORN HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0610-
212	CLIP; HORN HARNESS (C) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-
212	CLIP; HORN HARNESS (D) L=300	1-09707-001-1	01	1	0610-
212	CLIP; HORN HARNESS (F) ID=13-18 L=14.5	1-09709-290-0	01	1	0610-
212	CLIP; HORN HARNESS (G) L=140	5-09707-031-1	01	1	0610-0904
212	CLIP; HORN HARNESS (G) L=140	5-09707-031-1	03	1	0610-
212	CLIP; HORN HARNESS (E) L=350	1-09707-183-0	01	1	0610-
212	CLIP; HORN HARNESS (E) L=350	1-09707-183-0	01	1	0610-
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	0610-
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	01	1	0610-1409
369	CLIP; BAND EDS HARNESS (B) L=140	5-09707-031-1	01	1	1410-
380	CLIP; EARTH HARNESS L=250	5-09707-030-1	03	1	0610-0610
380	CLIP; EARTH HARNESS L=250	5-09707-030-1	01	1	0611-
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	03	1	0907-1111
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	05	1	1112-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41	1-09700-403-0	01	1	0907-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6	1-09709-178-0	01	1	0907-

48 128 16 212 16 48 16 16 16 223 16 212 48 48 16 212 470 16 16 263 16 16 16 16 235 16 128 16 16 235 223 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AO) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	0905-1409
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1410-
16	CLIP; HARNESS (AN) ID=24-30 L=18	1-09709-297-0	01	1	0808-
16	CLIP; HARNESS (AL) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	02	1	0702-
16	CLIP; HARNESS (U) ID=5-12 L=18	1-09709-287-0	04	1	0611-
16	CLIP; HARNESS (AH) ID=13-18 L=18	1-09709-291-0	01	1	0611-
16	CLIP; HARNESS (AI) ID=18-24 L=18	1-09709-294-0	02	1	0611-
16	CLIP; HARNESS (AJ) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS (P) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (P) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	05	1	0611-
16	CLIP; HARNESS (B) ID=11 L=20	0-95235-035-0	05	1	0610-1105
16	CLIP; HARNESS (B) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (C) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0610-
16	CLIP; HARNESS (D) ID=19 L=20	0-95235-836-0	03	1	0610-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	12	1	0610-0610
16	CLIP; HARNESS (X) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (X) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (X) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (X) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (Z) ID=21 L=47.5	8-94178-108-0	03	1	0610-
16	CLIP; HARNESS (AA) ID=18 L=44	8-94225-185-0	05	1	0610-0801
16	CLIP; HARNESS (AA) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (K) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (K) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS INSPECTION LAMP<T95> (P) L=180	1-09707-162-1	01	1	0610-0610
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0610-
16	CLIP; HARNESS (C) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0610-
16	CLIP; HARNESS (C) T=0.8 ID=16 L=20	0-95235-535-0	02	1	0610-
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (E) ID=22 L=32	1-09700-126-1	01	1	0806-1002
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1003-
16	CLIP; HARNESS (F) ID=28 L=58	1-09700-400-0	04	1	0610-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	01	1	0610-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	02	1	0610-1409
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	08	1	1410-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	09	1	0610-0610
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	10	1	0611-0806
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	12	1	0807-1409
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	04	1	1410-
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	04	1	1410-
16	CLIP; HARNESS (H) ID=20 L=50	1-09700-679-1	01	1	0610-
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0610-
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	04	1	0610-1409
16	CLIP; HARNESS (K) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-1105
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	03	1	1106-
16	CLIP; HARNESS (L) ID=28 L=32	1-09701-107-1	02	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (L) ID=28 L=32	1-09701-107-1	02	1	0806-1002
16	CLIP; HARNESS (N) ID=4.8	1-09701-218-0	01	1	0610-1409
16	CLIP; HARNESS (O) ID=28+34 L=44	1-09701-311-0	01	1	0610-
16	CLIP; HARNESS (P) L=180	1-09707-162-1	08	1	0610-0610
16	CLIP; HARNESS (P) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (Q) L=350	1-09707-183-0	05	1	0610-
16	CLIP; HARNESS (R) W/SPONGE RUBBER	1-09709-150-0	01	1	0610-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	06	1	0610-1409
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (S) OD=9 H=6	1-09709-178-0	07	1	0610-
16	CLIP; HARNESS (T) OD=9 H=13.5	1-09709-180-0	01	1	0610-
16	CLIP; HARNESS (U) ID=5-12 L=18	1-09709-287-0	03	1	0610-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	0610-0611
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0610-0702
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	0703-0904
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0905-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	0610-0702
16	CLIP; HARNESS (X) L=250	5-09707-030-1	01	1	0610-0705
16	CLIP; HARNESS (X) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (X) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	02	1	0610-0805
16	CLIP; HARNESS (X) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (X) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS (X) L=250	5-09707-030-1	04	1	0610-0805
16	CLIP; HARNESS FACE LIFT<6NL> (AM) ID=24 L=24	1-09701-001-1	01	1	0806-1002
16	CLIP; HARNESS (Y) L=140	5-09707-031-1	01	1	0610-
16	CLIP; HARNESS (AB) ID=14-20	8-97061-603-0	03	1	0610-
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	01	1	0610-
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	03	1	0610-
16	CLIP; HARNESS (AD) ID=14 L=44	9-09917-427-0	03	1	0610-0610
16	CLIP; HARNESS (P) L=180	1-09707-162-1	04	1	0611-
16	CLIP; HARNESS (AD) ID=14 L=44	9-09917-427-0	05	1	0610-0610
16	CLIP; HARNESS (AK) L=175	1-09707-176-1	01	1	0611-
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	07	1	0610-1409
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	03	1	1410-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	02	1	0610-1409
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	02	1	1410-
16	CLIP; HARNESS (AF) ID=22 L=52	9-09917-431-0	02	1	1410-
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	02	1	0610-0701
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	02	1	0610-0701
16	CLIP; HARNESS (I) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (M) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (M) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	03	1	0610-1409
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	03	1	0610-1409
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	01	1	1410-
16	CLIP; HARNESS (AE) ID=20 L=50	9-09917-430-0	01	1	1410-
16	CLIP; HARNESS (AG) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0610-0610
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0610-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	10	1	0610-0610
48	CLIP; FRAME HARNESS (D) ID=39 H=28 L=32	1-09701-263-0	01	1	0611-0706
48	CLIP; FRAME HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0707-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0610-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0610-
212	CLIP; HORN HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	0610-
212	CLIP; HORN HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0610-
212	CLIP; HORN HARNESS (C) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-
212	CLIP; HORN HARNESS (D) L=300	1-09707-001-1	01	1	0610-
212	CLIP; HORN HARNESS (F) ID=13-18 L=14.5	1-09709-290-0	01	1	0610-
212	CLIP; HORN HARNESS (G) L=140	5-09707-031-1	01	1	0610-0904
212	CLIP; HORN HARNESS (G) L=140	5-09707-031-1	03	1	0610-
212	CLIP; HORN HARNESS (E) L=350	1-09707-183-0	01	1	0610-
212	CLIP; HORN HARNESS (E) L=350	1-09707-183-0	01	1	0610-
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0610-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	0610-
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	5-09700-351-0	04	1	0610-0707
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=24	0-95235-045-0	01	1	0610-0610
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-0610
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0610-
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	03	1	0907-1111
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	05	1	1112-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41	1-09700-403-0	01	1	0907-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6	1-09709-178-0	01	1	0907-

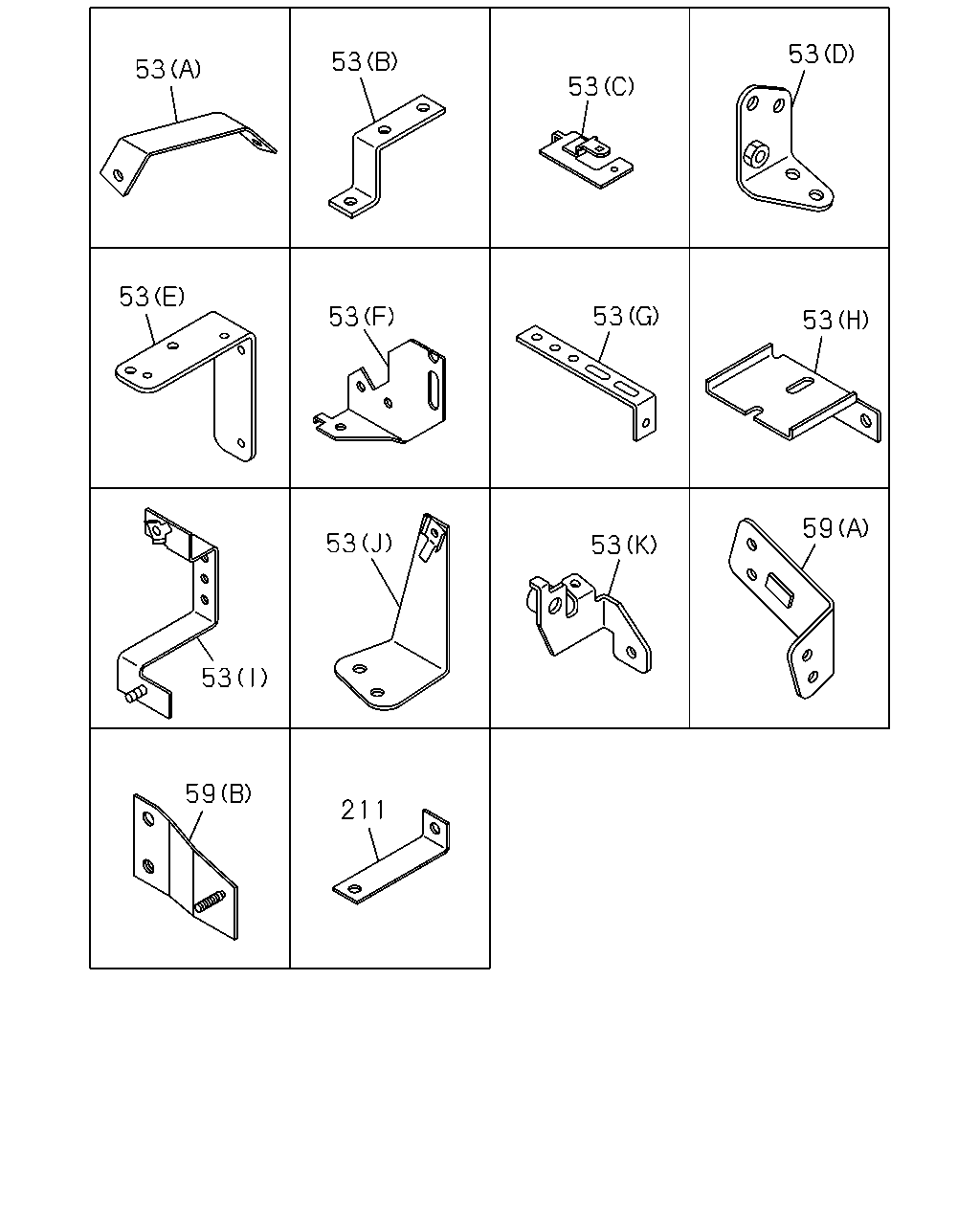

53 53 53 53 53 53 53 53 59 53 53 53 59 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (K)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-98124-778-0	01	1	0908-
53	BRACKET; HARNESS FACE LIFT<6NL> (H)	8-98032-696-0	01	1	0806-
53	BRACKET; HARNESS FACE LIFT<6NL> (I)	8-98050-989-0	01	1	0806-
53	BRACKET; HARNESS FACE LIFT<6NL> (J)	8-98052-592-0	01	1	0806-
53	BRACKET; HARNESS (D)	8-97610-339-1	01	1	0610-
53	BRACKET; HARNESS (E)	8-97610-340-1	01	1	0610-
53	BRACKET; HARNESS (G) L=160 H=30	1-47479-759-0	01	1	0610-
53	BRACKET; HARNESS (B)	1-82698-382-0	01	1	0610-0907
53	BRACKET; HARNESS EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-82698-382-0	01	1	0908-
53	BRACKET; HARNESS (C)	1-82698-495-2	01	1	0610-
53	BRACKET; HARNESS (F)	8-97610-991-0	01	1	0610-0805
53	BRACKET; HARNESS EXC. FACE LIFT<6NL> (F)	8-97610-991-0	01	1	0806-
53	BRACKET; HARNESS (A)	1-47479-537-0	05	1	0610-
53	BRACKET; HARNESS (A)	1-47479-537-0	05	1	0610-
59	BRACKET; FRAME HARNESS FACE LIFT<6NL> (B)	8-98061-135-1	01	1	0810-
59	BRACKET; FRAME HARNESS FACE LIFT<6NL> (B)	8-98061-135-1	01	1	0806-0807
59	BRACKET; FRAME HARNESS (A)	1-82698-531-0	01	1	0610-
211	BRACKET; AXLE HARNESS L=95	1-82699-085-0	02	1	0610-

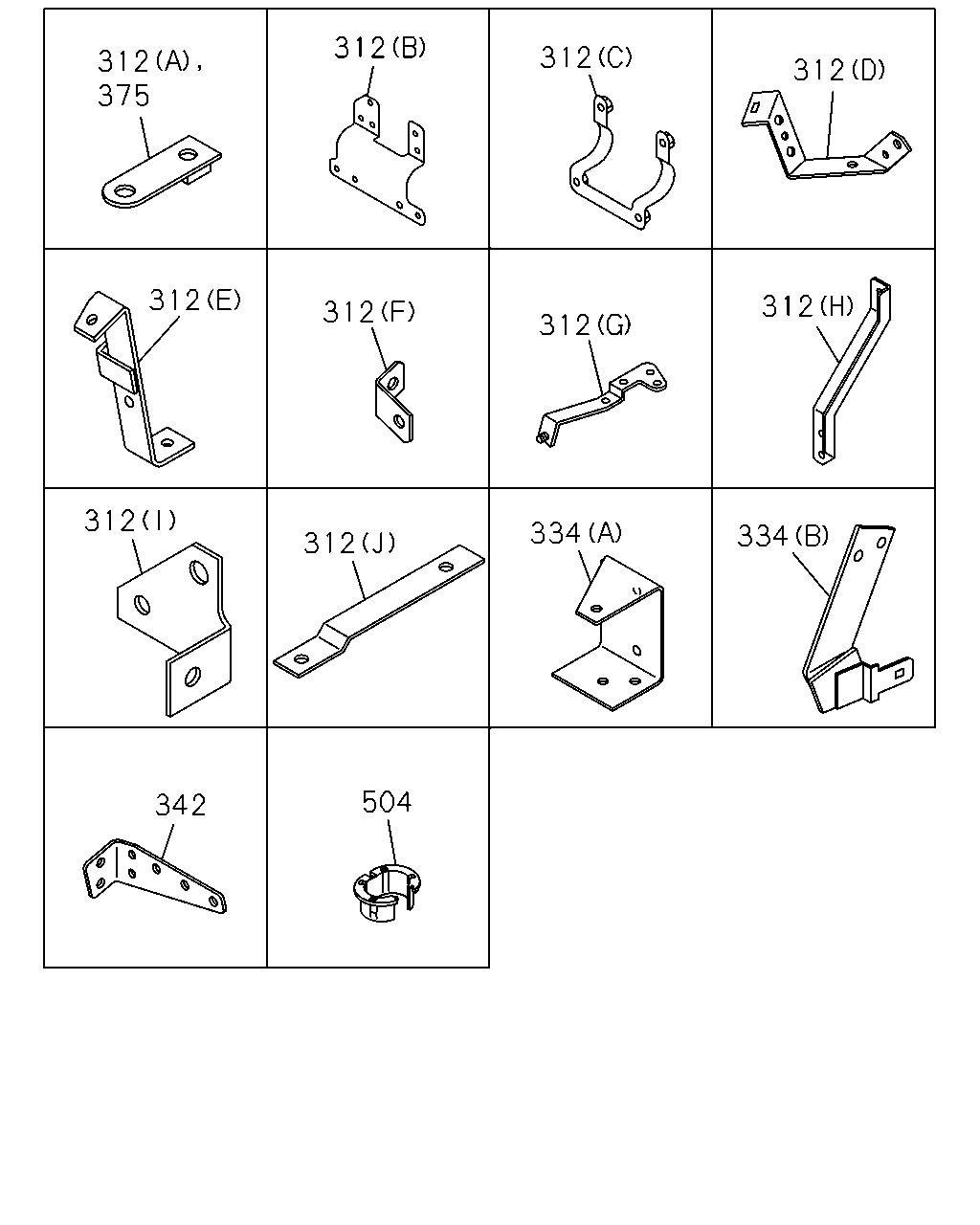

312 312 312 375 312 312 312 312 312 312 334 334 312 504 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
312	BRACKET; CLIP HARNESS FACE LIFT<6NL> (J)	8-98035-927-1	01	1	0806-
312	BRACKET; CLIP HARNESS FACE LIFT<6NL> (H)	8-98052-591-0	01	1	0806-
312	BRACKET; CLIP HARNESS (B)	1-82698-474-1	01	1	0610-0805
312	BRACKET; CLIP HARNESS EXC. FACE LIFT<6NL> (B)	1-82698-474-1	01	1	0806-
312	BRACKET; CLIP HARNESS (C)	1-82698-476-0	01	1	0610-0805
312	BRACKET; CLIP HARNESS EXC. FACE LIFT<6NL> (C)	1-82698-476-0	01	1	0806-
312	BRACKET; CLIP HARNESS (E) L=195.5	1-82698-502-0	01	1	0610-
312	BRACKET; CLIP HARNESS (D)	1-82698-556-0	01	1	0610-
312	BRACKET; CLIP HARNESS (I)	1-82698-570-0	01	1	0610-
312	BRACKET; CLIP HARNESS (A)	1-82699-182-0	01	1	0610-
312	BRACKET; CLIP HARNESS (F)	1-82699-199-0	01	1	0610-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G)	1-82698-443-0	01	1	0610-
334	BRACKET (A)	1-53457-153-2	01	1	0610-
334	BRACKET (B)	1-82698-650-0	01	1	0610-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	0610-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0610-
504	PROTECTOR; HARNESS MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL>	1-82698-391-0	02	1	0806-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
