4-36 — POWER STEERING CONTROL; ENGINE SIDE (#3039) — 23 parça

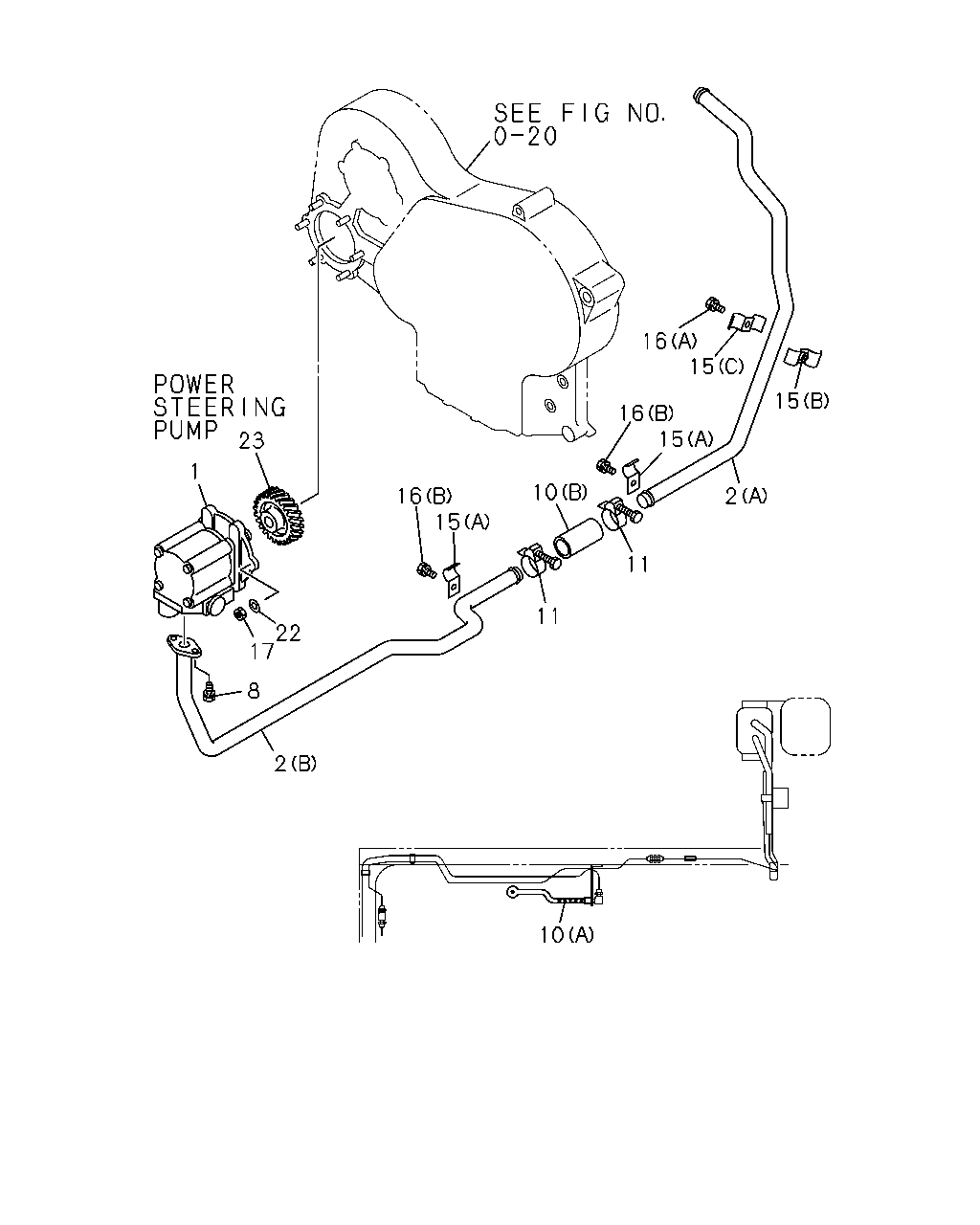

çizim 36242
10 2 8 17 22 1 23 16 15 11 11 10 16 15 2 15 15 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6QA1 STD ENG(L24) 		1-19500-344-4 01 1 9002-9306 ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6RB1 STD ENG(07L) 		1-19500-310-4 01 1 9002-9306 ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-444-1 01 1 9307-9401 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-344-4 01 1 9402- ● ●
2 PIPE ASM; OIL,SUCTION
(B) 		1-21112-581-1 01 1 9002-9306 ● ● ● ●
2 PIPE ASM; OIL,SUCTION
(B) 		1-21114-163-0 01 1 9307-9401 ● ●
2 PIPE ASM; OIL,SUCTION
(B) 		1-21112-581-1 01 1 9402- ● ●
2 PIPE ASM; OIL,SUCTION
6QA1 STD ENG(L24) (A) 		1-21111-964-0 01 1 9002- ● ● ● ●
2 PIPE ASM; OIL,SUCTION
6RB1 STD ENG(07L) (A) 		1-21112-048-0 01 1 9002-9306 ● ● ● ●
8 BOLT; OIL PIPE
6RB1 STD ENG(07L) M8X18 W/LK WASHER 		9-01910-818-0 02 1 9002-9005 ● ● ● ●
8 BOLT; OIL PIPE
6RB1 STD ENG(07L) M8X18 W/LK WASHER 		0-50040-818-0 02 1 9006-9306 ● ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
(B) L=75 		1-09360-524-0 01 1 9002- ● ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
(A) L=380 		1-09364-459-0 01 1 9002- ● ● ● ●
11 CLIP; FLEX HOSE
ID=38 		9-09915-666-1 02 1 9002- ● ● ● ●
15 CLIP; OIL PIPE SUCTION
(A) ID=23.6 L=35 		1-09700-634-0 04 1 9002- ● ● ● ●
15 CLIP; OIL PIPE SUCTION
(B) W/NUT 		9-09917-564-0 01 1 9002- ● ● ● ●
15 CLIP; OIL PIPE SUCTION
(C) WO/NUT 		9-09917-565-0 01 1 9002- ● ● ● ●
16 BOLT; STAY,P/S OIL PUMP
(B) M10X20 W/LK WASHER 		0-50041-020-0 04 1 9002- ● ● ● ●
16 BOLT; STAY,P/S OIL PUMP
(A) M8X22 		9-01910-822-0 01 1 9002-9005 ● ● ● ●
16 BOLT; STAY,P/S OIL PUMP
(A) M8X22 W/LK WASHER 		0-50040-822-0 01 1 9006- ● ● ● ●
17 NUT; POWER STRG PUMP
M8 		9-09110-408-0 05 1 9002- ● ● ● ●
22 WASHER; LK,OIL PUMP,P/S
ID=8.2 		9-09150-508-0 05 1 9002- ● ● ● ●
23 GEAR; OIL PUMP 1-19581-006-3 01 1 9002- ● ● ● ●
