Sayfa 8-03 - Isuzu EPC

8-03 — LAMP; REAR AND REAR SIDE (#30388) — 65 parça

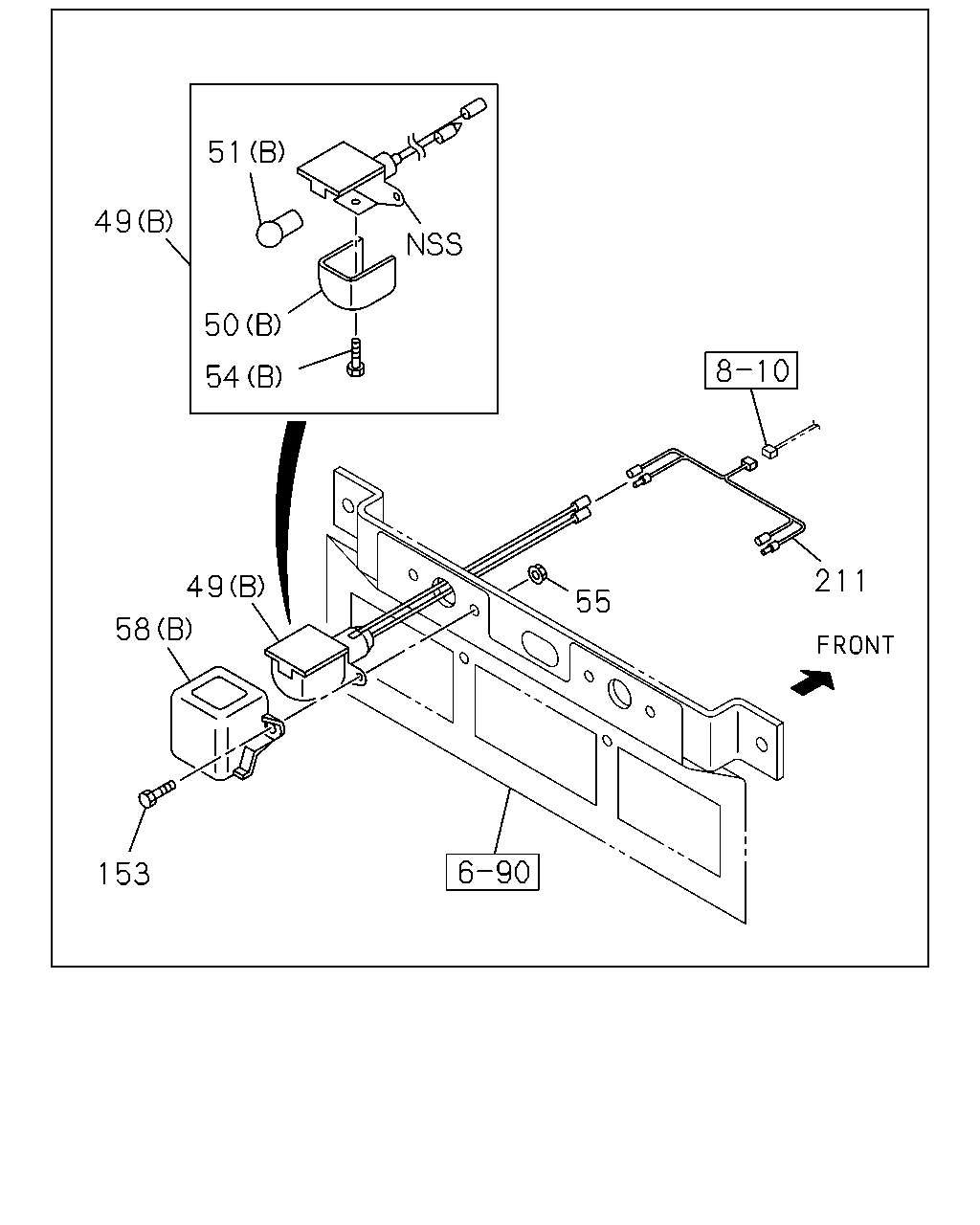

51 49 50 54 211 49 55 58 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	LAMP; LICENSE PLATE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W	8-97105-380-0	02	1	0906-
49	LAMP; LICENSE PLATE (A)	1-82120-020-1	01	1	0610-0905
49	LAMP; LICENSE PLATE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-82120-020-1	01	1	0906-
50	LENS; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-97108-212-0	02	1	0906-
50	LENS; LICENSE PLATE LAMP (A)	1-82235-006-0	01	1	0610-0905
50	LENS; LICENSE PLATE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-82235-006-0	01	1	0906-
51	BULB; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W	1-82194-039-0	02	1	0906-
51	BULB; LICENSE PLATE LAMP (A) 24V 12W	1-82194-030-0	01	1	0610-0905
51	BULB; LICENSE PLATE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 24V 12W	1-82194-030-0	01	1	0906-
54	SCREW; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) M4X8	8-94419-312-0	02	1	0906-
54	SCREW; LICENSE PLATE LAMP (A) M5X20	1-82129-007-0	02	1	0610-0905
54	SCREW; LICENSE PLATE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) M5X20	1-82129-007-0	02	1	0906-
55	NUT; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M5 FLANGE	8-94153-039-0	04	1	0906-1111
58	COVER; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-97076-590-1	02	1	0906-
58	COVER; LICENSE PLATE LAMP (A)	1-82129-005-0	01	1	0610-0905
58	COVER; LICENSE PLATE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-82129-005-0	01	1	0906-
153	BOLT; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M5X20	9-93490-520-0	04	1	0906-
211	HARNESS; EXT ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98131-066-0	01	1	0906-

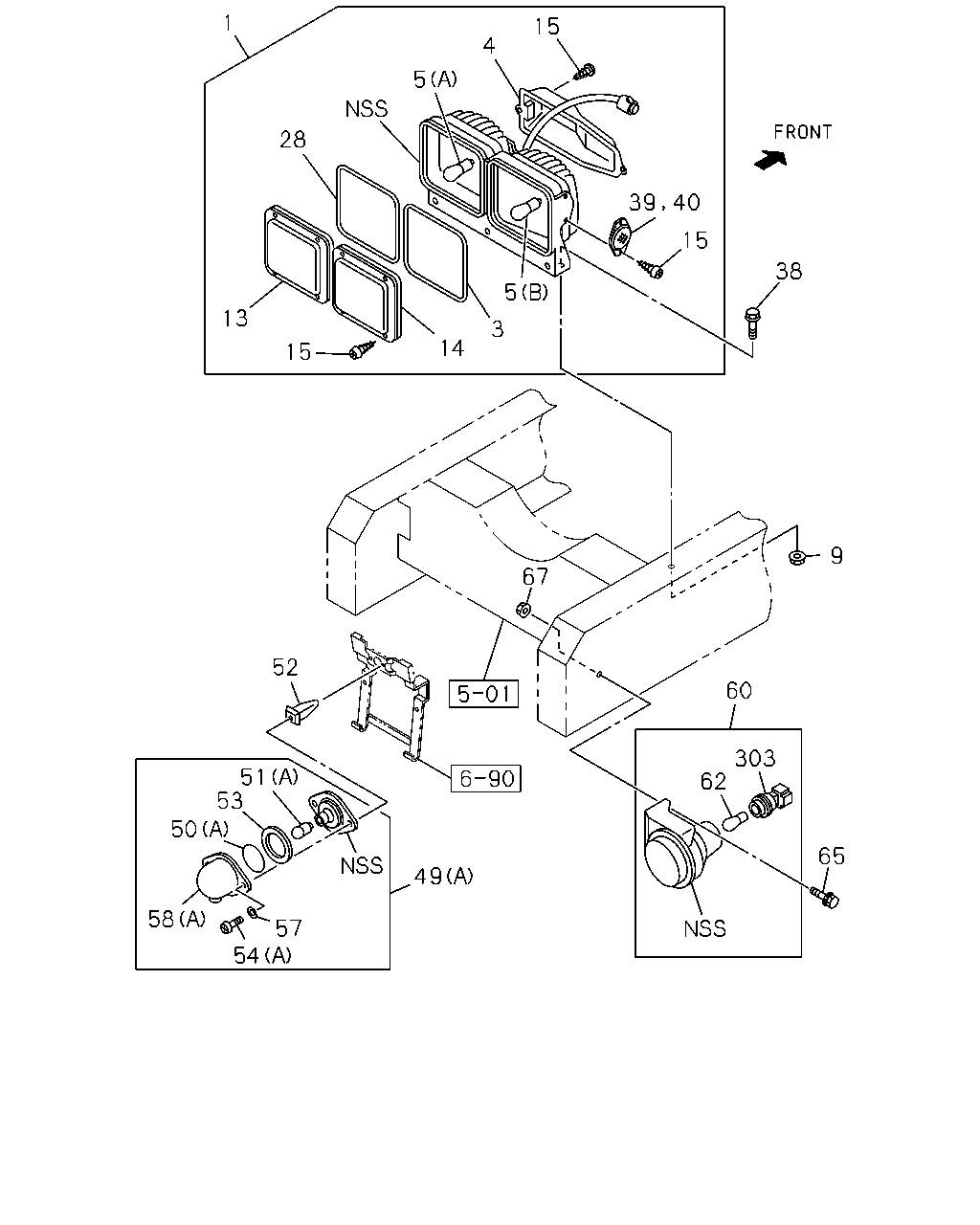

1 15 4 5 28 15 38 5 13 3 14 15 9 67 52 60 303 62 51 53 50 65 49 58 57 54 39 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; RR COMB TAIL & STOP LAMPS<TR1>	1-82230-203-6	01	1	0610-
1	LAMP ASM; RR COMB TAIL & STOP LAMPS<TR1>	1-82230-204-5	01	1	0610-
3	GASKET; RR COMB LAMP TAIL & STOP LAMPS<TR1>	1-82236-008-0	02	1	0610-
4	COVER; RR,RR COMB LAMP TAIL & STOP LAMPS<TR1>	1-82239-011-0	02	1	0610-
5	BULB; RR COMB LAMP TAIL & STOP LAMPS<TR1> (A) 24V 21W	1-82194-108-0	02	1	0610-
5	BULB; RR COMB LAMP TAIL & STOP LAMPS<TR1> (B) 24V 21/5W	1-82194-109-0	02	1	0610-
9	NUT; LAMP,RR COMB TAIL & STOP LAMPS<TR1> M8 FLANGE	0-91180-108-0	02	1	0610-
13	LENS; TURN SIGNAL TAIL & STOP LAMPS<TR1>	1-82235-036-0	02	1	0610-
14	LENS; TAIL & STOP,RR COMB LAMP TAIL & STOP LAMPS<TR1>	1-82235-035-0	02	1	0610-
15	SCREW; RR COMB LAMP TAIL & STOP LAMPS<TR1>	1-82239-012-0	26	1	0610-
28	GASKET; TURN,LAMP TAIL & STOP LAMPS<TR1>	1-82236-008-0	02	1	0610-
38	BOLT; LAMP,RR COMB TAIL & STOP LAMPS<TR1> M8X35 W/LK&PL WASHER	1-09030-073-0	02	1	0610-
39	REFLECTOR; REFLEX RH TAIL & STOP LAMPS<TR1>	8-97608-772-0	01	1	0610-0610
39	REFLECTOR; REFLEX RH TAIL & STOP LAMPS<TR1>	8-97608-772-0	02	1	0610-
40	REFLECTOR; REFLEX TAIL & STOP LAMPS<TR1>	8-97608-772-0	01	1	0610-0610
49	LAMP; LICENSE PLATE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W	8-97105-380-0	02	1	0906-
49	LAMP; LICENSE PLATE (A)	1-82120-020-1	01	1	0610-0905
49	LAMP; LICENSE PLATE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-82120-020-1	01	1	0906-
50	LENS; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-97108-212-0	02	1	0906-
50	LENS; LICENSE PLATE LAMP (A)	1-82235-006-0	01	1	0610-0905
50	LENS; LICENSE PLATE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-82235-006-0	01	1	0906-
51	BULB; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W	1-82194-039-0	02	1	0906-
51	BULB; LICENSE PLATE LAMP (A) 24V 12W	1-82194-030-0	01	1	0610-0905
51	BULB; LICENSE PLATE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 24V 12W	1-82194-030-0	01	1	0906-
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0610-0905
52	GROMMET; SCREW,LICENSE PLATE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0906-
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	0610-0905
53	GASKET; LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-82126-005-0	01	1	0906-
54	SCREW; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) M4X8	8-94419-312-0	02	1	0906-
54	SCREW; LICENSE PLATE LAMP (A) M5X20	1-82129-007-0	02	1	0610-0905
54	SCREW; LICENSE PLATE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) M5X20	1-82129-007-0	02	1	0906-
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	0610-0905
57	WASHER; PL,LICENSE PLATE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-82129-008-0	02	1	0906-
58	COVER; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-97076-590-1	02	1	0906-
58	COVER; LICENSE PLATE LAMP (A)	1-82129-005-0	01	1	0610-0905
58	COVER; LICENSE PLATE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-82129-005-0	01	1	0906-
60	LAMP; BACKUP TAIL & STOP LAMPS<TR1>	1-82130-025-0	01	1	0610-
62	BULB; BACKUP LAMP TAIL & STOP LAMPS<TR1> 24V 21W	1-82194-104-0	01	1	0610-
65	BOLT; LAMP,BACKUP TAIL & STOP LAMPS<TR1> M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0610-
67	NUT; FLANGE TAIL & STOP LAMPS<TR1> M10 FLANGE	0-91180-210-0	02	1	0610-
303	SOCKET ASM; BACKUP LAMP TAIL & STOP LAMPS<TR1>	1-82135-006-0	01	1	0610-

250 253 255 254 256 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
250	LAMP ASM; SEARCH LIGHT INSPECTION LAMP<T95>	1-82180-012-0	01	1	0610-
253	BULB; SEARCH LIGHT INSPECTION LAMP<T95>	9-82691-605-0	01	1	0610-
254	LENS; SEARCH LIGHT INSPECTION LAMP<T95>	9-82681-207-0	01	1	0610-
255	GASKET; SEARCH LIGHT INSPECTION LAMP<T95>	9-82681-706-0	01	1	0610-
256	RIM; SEARCH LIGHT INSPECTION LAMP<T95>	9-82681-402-0	01	1	0610-
257	NUT; SEARCH LIGHT INSPECTION LAMP<T95> M10 FLANGE	0-91180-110-0	01	1	0610-
