◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11039 - EXZ RHD EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#30387) — 121 parça
çizim 140660
12 5 13 340 211 14 23 1 18 202 4 202 13
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-403-2 01 1 0610-0711
1 LAMP ASM; HEAD 8-98097-198-0 01 1 0712-
1 LAMP ASM; HEAD 1-82110-404-2 01 1 0610-0711
1 LAMP ASM; HEAD 8-98097-199-0 01 1 0712-
4 HEADLAMP UNIT 1-82119-173-0 01 1 0610-
4 HEADLAMP UNIT 1-82119-174-0 01 1 0610-
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0610-
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0610-
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 04 1 0610-0711
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0712-
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0610-
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0610-
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0610-
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0610-
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0610-
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0610-0711
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0610-0711
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0610-0906
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0610-
427 NUT; TURN SIGNAL LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M6 FLANGE 		0-91180-106-0 02 1 1307-

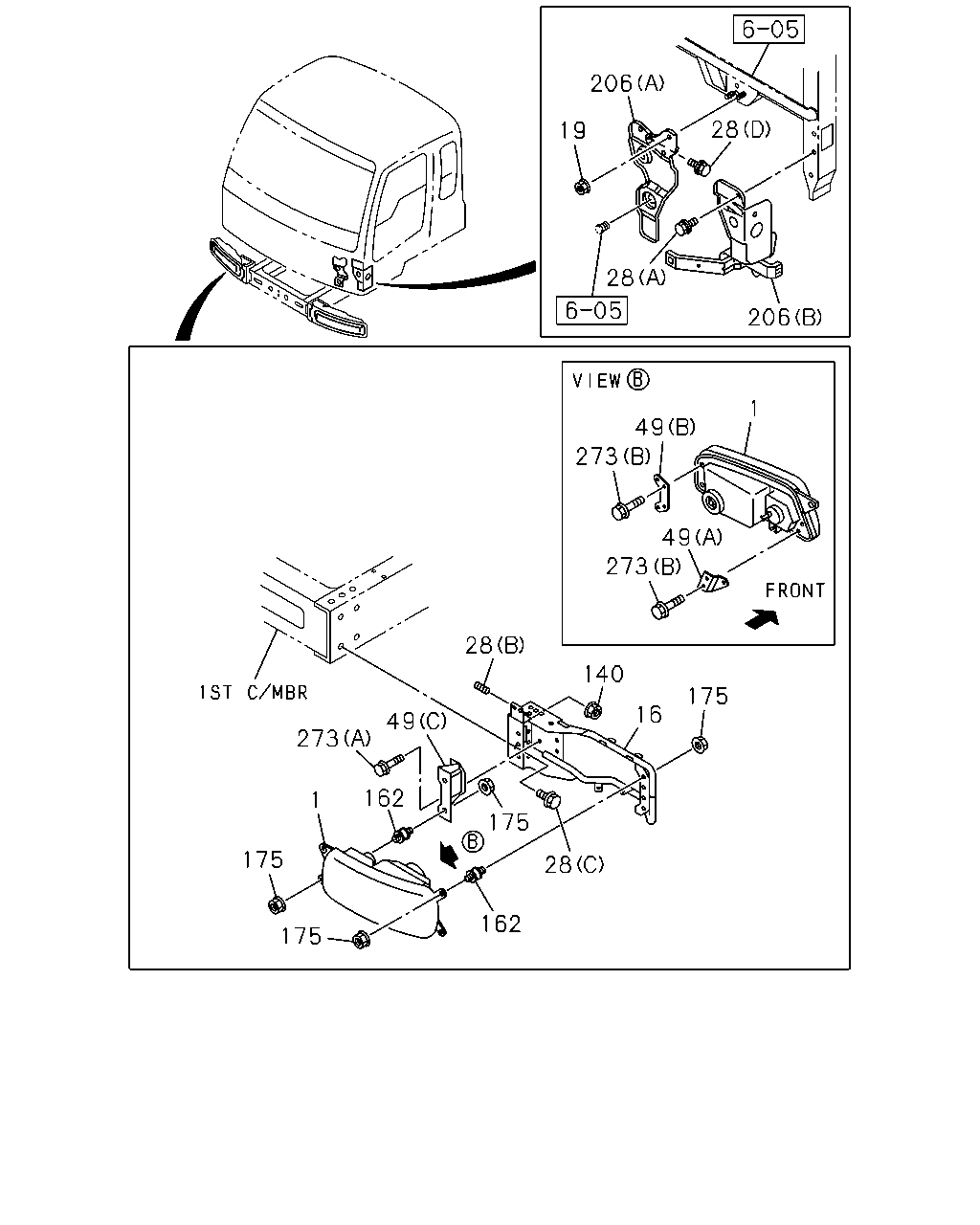

çizim 140670
206 28 19 28 206 1 49 49 28 140 175 16 49 273 162 1 175 175 28 162 175 273 273
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-403-2 01 1 0610-0711
1 LAMP ASM; HEAD 8-98097-198-0 01 1 0712-
1 LAMP ASM; HEAD 1-82110-404-2 01 1 0610-0711
1 LAMP ASM; HEAD 8-98097-199-0 01 1 0712-
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 0610-
16 BRACKET; HEADLAMP 8-97608-506-2 01 1 0610-0806
16 BRACKET; HEADLAMP 8-97613-935-0 01 1 0807-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0610-
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 0610-
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0610-
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0610-
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0610-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0610-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0610-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0610-
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0610-
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0610-
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0610-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0610-
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 0610-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0610-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0610-
206 HOLDER; HEADLAMP
FACE LIFT<6NL> (A) 		1-65671-817-0 01 1 0806-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0610-0805
206 HOLDER; HEADLAMP
EXC. FACE LIFT<6NL> (A) 		1-65671-569-5 01 1 0806-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0610-
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0610-
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0610-
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 0610-
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 0610-
427 NUT; TURN SIGNAL LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M6 FLANGE 		0-91180-106-0 02 1 1307-

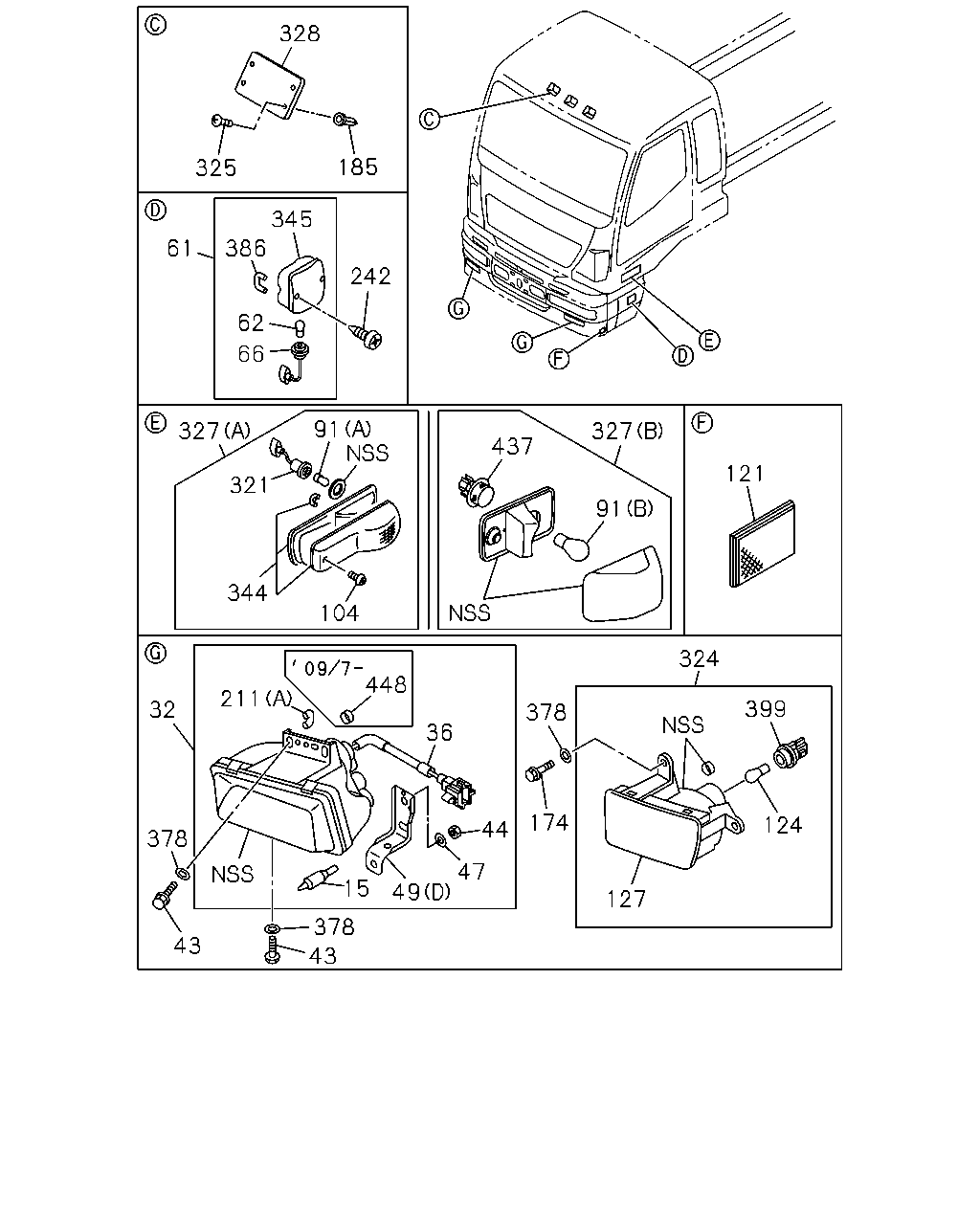

çizim 140694
399 124 127 174 324 378 36 44 47 49 15 378 43 43 378 32 211 448 104 344 321 327 91 437 91 327 121 242 62 66 61 386 345 185 325 328
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0610-
32 LAMP ASM; FOG 1-82110-453-0 01 1 0610-0712
32 LAMP ASM; FOG 1-82110-475-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-149-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-064-1 01 1 1302-
32 LAMP ASM; FOG 1-82110-454-0 01 1 0610-0712
32 LAMP ASM; FOG 1-82110-476-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-150-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-065-1 01 1 1302-
36 CORD; FOG LAMP 1-82118-015-0 01 1 0610-
36 CORD; FOG LAMP 1-82118-016-0 01 1 0610-
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 04 1 0610-
43 BOLT; FOG LAMP
M8X20 FLANGE 		0-28650-820-0 02 1 0610-
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205-
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0610-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0610-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0610-
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0610-
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0610-
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0610-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0610-
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-388-1 01 1 0610-
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-389-1 01 1 0610-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 02 1 0610-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 02 1 0610-
91 BULB; SIDE TURN SIGNAL
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 21W 		8-98051-495-0 02 1 0906-
91 BULB; SIDE TURN SIGNAL
(A) 24V 10W 		1-82194-037-0 02 1 0610-0905
91 BULB; SIDE TURN SIGNAL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 24V 10W 		1-82194-037-0 02 1 0906-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0610-0905
104 SCREW; SIDE TURN SIGNAL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-86830-149-0 02 1 0906-
121 REFLECTOR; REFLEX 8-98013-990-1 02 1 0610-
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 0610-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 0610-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 0610-
174 BOLT
M6X20 FLANGE 		0-28650-620-0 04 1 0610-
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0610-
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0610-0711
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0610-0711
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0610-0906
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0610-
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0610-0905
321 HARNESS; SIDE FLASHER LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-86830-253-0 02 1 0906-
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 0610-
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 0610-
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 0610-
327 LAMP ASM; SIDE TURN SIGNAL
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-97410-180-4 01 1 0906-
327 LAMP ASM; SIDE TURN SIGNAL
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-97410-181-3 01 1 0906-
327 LAMP ASM; SIDE TURN SIGNAL
(A) 		1-86830-264-2 01 1 0610-0905
327 LAMP ASM; SIDE TURN SIGNAL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-86830-264-2 01 1 0906-
327 LAMP ASM; SIDE TURN SIGNAL
(A) 		1-86830-265-2 01 1 0610-0905
327 LAMP ASM; SIDE TURN SIGNAL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-86830-265-2 01 1 0906-
328 COVER; LAMP 1-76217-122-1 03 1 0610-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-266-2 01 1 0610-0905
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-86830-266-2 01 1 0906-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-267-1 01 1 0610-0905
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-86830-267-1 01 1 0906-
345 LAMP UNIT; CORNERING
CORNERING LAMP<TDS> 		8-98004-041-0 01 1 0610-
345 LAMP UNIT; CORNERING
CORNERING LAMP<TDS> 		8-98004-042-0 01 1 0610-
378 WASHER; PL
ID=6.4 		0-91610-606-0 04 1 0610-
378 WASHER; PL
ID=6.4 		0-91610-606-0 04 1 0610-
386 TUBE; CORNERING LAMP
CORNERING LAMP<TDS> 		8-94451-175-0 02 1 0610-
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 0610-
427 NUT; TURN SIGNAL LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M6 FLANGE 		0-91180-106-0 02 1 1307-
437 SOCKET; SIDE,TURN
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98051-390-0 02 1 0906-
448 CAP ASM; LAMP 8-97378-874-0 02 1 0907-
