4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#3038) — 169 parça

45 48 49 75 74 31 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	9002-	●	●	●	●
34	HOSE; P/S OIL TANK,OUTLET 6QA1 STD ENG(L24)	1-21112-096-0	01	1	9002-9306	●	●	●	●
34	HOSE; P/S OIL TANK,OUTLET 6RB1 STD ENG(07L)	1-21112-037-2	01	1	9002-9306	●	●	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21112-096-0	01	1	9307-		●		●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-485-0	01	1	9002-9002	●	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-762-0	01	1	9003-9008	●	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-809-0	01	1	9009-9306	●	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21114-726-0	01	1	9307-		●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-685-0	01	1	9002-9002			●	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-686-0	01	1	9003-			●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21113-481-0	01	1	9002-9006	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21113-799-0	01	1	9007-9306	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21114-724-0	01	1	9307-9308		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21114-971-0	01	1	9309-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT CONCRETE PUMP<RA5>	1-21114-437-1	01	1	9307-9310				●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT CONCRETE PUMP<RA5>	1-21115-022-0	01	1	9311-				●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. CONCRETE PUMP<RA5>	1-21114-434-1	01	1	9307-9310				●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. CONCRETE PUMP<RA5>	1-21115-021-0	01	1	9311-				●
49	PIPE; OIL,FLEX HOSE TO UNION	1-21113-479-0	01	1	9002-9306			●
49	PIPE; OIL,FLEX HOSE TO UNION EXC. CONCRETE PUMP<RA5>	1-21113-479-0	01	1	9002-9306				●
49	PIPE; OIL,FLEX HOSE TO UNION CONCRETE PUMP<RA5>	1-21113-480-0	01	1	9002-9306				●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L=1279	1-21113-099-0	01	1	9002-	●	●	●	●
75	PIPE; OIL,P/S,UNION TO UNION	1-21112-904-0	01	1	9002-			●	●

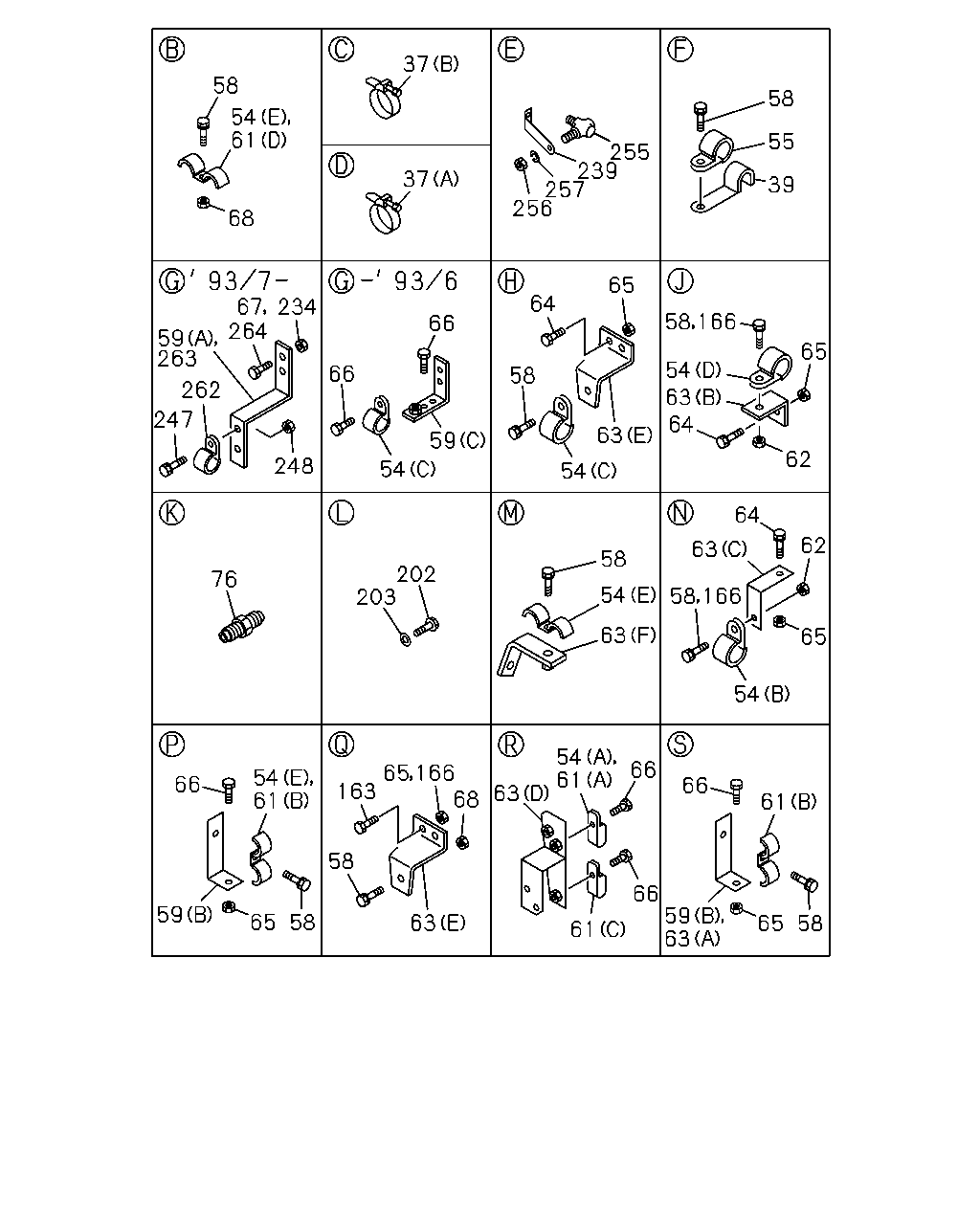

58 65 59 63 61 66 61 66 66 54 61 63 68 166 65 163 58 63 58 65 59 66 54 61 76 203 202 58 54 63 54 65 62 64 63 58 166 62 65 166 58 54 63 64 63 54 58 64 65 39 55 58 255 239 257 256 37 37 58 54 61 68 66 59 54 66 248 247 262 263 59 264 67 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
37	CLIP; HOSE,P/S (A) ID=38	9-09915-666-1	02	1	9002-	●	●	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	9002-	●	●	●	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	9002-	●	●	●	●
54	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-9303	●	●	●	●
54	CLIP; OIL PIPE (B) ID=16 L=50	9-09525-586-0	01	1	9304-	●	●	●	●
54	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	02	1	9002-9306	●	●	●	●
54	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	9307-		●		●
54	CLIP; OIL PIPE (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9306			●	●
54	CLIP; OIL PIPE (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9307-				●
54	CLIP; OIL PIPE (A) ID=13 L=28	9-09525-256-0	01	1	9002-9306			●	●
54	CLIP; OIL PIPE (D) ID=16	9-09525-525-0	01	1	9307-		●		●
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	9002-	●	●	●	●
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9002-9302	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●	●
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	04	1	9002-9302	●	●	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9303-	●	●	●	●
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-		●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9307-		●		●
58	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9307-9506		●		●
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	01	1	9507-		●		●
58	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9002-9302			●	●
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	05	1	9002-9302			●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-			●	●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9303-			●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-47475-081-4	01	1	9002-9306	●	●	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-963-1	01	1	9307-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-519-0	03	1	9002-9306			●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-519-0	01	1	9307-				●
61	CLIP; OIL PIPE (D) 16X13	1-09700-658-0	01	1	9002-	●	●
61	CLIP; OIL PIPE (C) ID=16	9-09525-525-0	01	1	9002-	●	●	●	●
61	CLIP; OIL PIPE (B) 16X13	1-09700-668-0	03	1	9002-9306			●	●
61	CLIP; OIL PIPE (B) 16X13	1-09700-668-0	02	1	9307-				●
61	CLIP; OIL PIPE (C) ID=16	9-09525-556-0	01	1	9002-			●	●
61	CLIP; OIL PIPE (A) ID=13	9-09525-255-0	01	1	9307-				●
62	NUT; CLIP FIX M8	9-09110-408-0	03	1	9002-	●	●	●	●
63	BRACKET; CLIP,P/S (E)	1-47475-298-0	01	1	9002-	●	●	●	●
63	BRACKET; CLIP,P/S (C)	1-47475-369-0	02	1	9002-	●	●	●	●
63	BRACKET; CLIP,P/S (F)	1-47476-164-0	01	1	9002-9004	●	●	●	●
63	BRACKET; CLIP,P/S (B)	1-34656-004-0	01	1	9005-9303	●	●	●	●
63	BRACKET; CLIP,P/S (D)	1-47476-031-1	01	1	9002-			●	●
63	BRACKET; CLIP,P/S (A)	1-47475-519-0	02	1	9307-				●
64	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204	●	●	●	●
64	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9302	●	●	●	●
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	04	1	9303-	●	●	●	●
64	BOLT; CLIP BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-				●
66	BOLT; BRKT,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●	●	●
66	BOLT; BRKT,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9303-9306	●	●	●	●
66	BOLT; BRKT,OIL PIPE M8X30 W/LK WASHER	0-50040-830-0	05	1	9002-9302			●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	05	1	9303-9306			●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9307-		●		●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9307-				●
67	NUT; BRKT M8	9-09110-408-0	02	1	9307-9307				●
67	NUT; BRKT M8	9-09110-408-0	02	1	9308-				●
67	NUT; BRKT CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9308-				●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-9306	●	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9307-		●		●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	05	1	9002-9306			●	●
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	9002-	●	●	●	●
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	9002-			●	●
163	BOLT; OIL PIPE 6QA1 STD ENG(L24) M8X18 W/LK WASHER	9-01910-818-0	02	1	9002-9005	●	●	●	●
163	BOLT; OIL PIPE 6QA1 STD ENG(L24) M8X18 W/LK WASHER	0-50040-818-0	02	1	9006-	●	●	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9307-		●		●
202	BOLT; EYE,OIL PIPE M18X39	1-09675-114-0	01	1	9002-9310	●	●	●	●
202	BOLT; EYE,OIL PIPE M18X36	1-09675-205-0	01	1	9311-		●		●
203	GASKET; EYE BOLT ID=18.2 OD=24.4	1-09630-087-0	02	1	9002-	●	●	●	●
234	NUT; PIPE CLIP,P/S M8	9-09110-408-0	03	1	9307-		●		●
239	BRACKET; FLEX HOSE	1-47475-412-0	01	1	9002-	●	●	●
239	BRACKET; FLEX HOSE EXC. CONCRETE PUMP<RA5>	1-47475-412-0	01	1	9002-				●
239	BRACKET; FLEX HOSE CONCRETE PUMP<RA5>	1-47475-367-1	01	1	9002-				●
247	BOLT; BRKT,CLIP M8X30 FLANGE	0-28080-830-0	01	1	9307-				●
248	NUT; BRKT,CLIP M8	9-09110-408-0	01	1	9307-				●
255	UNION; FLEX HOSE M20 & M22 ELBOW	1-09654-154-1	01	1	9002-	●	●	●	●
256	NUT; UNION M22	9-09111-422-0	01	1	9002-	●	●	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9002-	●	●	●	●
262	CLIP; P/S PIPE ID=16	9-09525-525-0	01	1	9307-		●		●
263	BRACKET; P/S PIPE	1-47475-963-1	01	1	9307-				●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28080-830-0	02	1	9307-				●

34 31 74 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	9002-	●	●	●	●
34	HOSE; P/S OIL TANK,OUTLET 6QA1 STD ENG(L24)	1-21112-096-0	01	1	9002-9306	●	●	●	●
34	HOSE; P/S OIL TANK,OUTLET 6RB1 STD ENG(07L)	1-21112-037-2	01	1	9002-9306	●	●	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21112-096-0	01	1	9307-		●		●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-485-0	01	1	9002-9002	●	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-762-0	01	1	9003-9008	●	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-809-0	01	1	9009-9306	●	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21114-726-0	01	1	9307-		●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-685-0	01	1	9002-9002			●	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-686-0	01	1	9003-			●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21113-481-0	01	1	9002-9006	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21113-799-0	01	1	9007-9306	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21114-724-0	01	1	9307-9308		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21114-971-0	01	1	9309-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT CONCRETE PUMP<RA5>	1-21114-437-1	01	1	9307-9310				●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT CONCRETE PUMP<RA5>	1-21115-022-0	01	1	9311-				●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. CONCRETE PUMP<RA5>	1-21114-434-1	01	1	9307-9310				●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. CONCRETE PUMP<RA5>	1-21115-021-0	01	1	9311-				●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L=1279	1-21113-099-0	01	1	9002-	●	●	●	●

26 191 25 1 4 21 22 12 20 8 3 2 26 25 5 3 2 1 15 19 12 19 20 8 7 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; OIL,P/S (A)	1-21210-127-5	01	1	9002-9202	●	●
1	TANK ASM; OIL,P/S EXC. DESERT ZONE PACKAGE(W01) (A)	1-21210-127-5	01	1	9002-9202			●	●
1	TANK ASM; OIL,P/S (A)	1-21210-195-1	01	1	9203-9306	●	●
1	TANK ASM; OIL,P/S EXC. DESERT ZONE PACKAGE(W01) (A)	1-21210-195-1	01	1	9203-9306			●	●
1	TANK ASM; OIL,P/S (A)	1-21210-195-2	01	1	9307-		●		●
1	TANK ASM; OIL,P/S DESERT ZONE PACKAGE(W01) (B)	1-21210-203-0	01	1	9002-9306			●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9002-9306	●	●
2	CAP; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01) (A) WO/GAUGE	1-21241-003-5	01	1	9002-9306			●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9002-9306	●	●
2	CAP; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01) (B) W/GAUGE	1-21241-006-3	01	1	9002-9306			●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9307-		●		●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9307-		●		●
2	CAP; OIL TANK,P/S DESERT ZONE PACKAGE(W01) (C)	1-21241-009-0	01	1	9002-9306			●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9002-9306	●	●
3	GASKET; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21249-006-2	01	1	9002-9306			●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9307-		●		●
3	GASKET; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-09630-106-0	01	1	9002-9306			●	●
4	FILTER; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21231-002-0	01	1	9002-9306			●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9002-9306	●	●
5	STRAINER; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21235-006-1	01	1	9002-9306			●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9307-		●		●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9002-9306	●	●
7	RING; GASKET,OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21249-005-0	01	1	9002-9306			●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9307-		●		●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9002-9306	●	●
8	SPRING; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-09580-319-1	01	1	9002-9306			●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9307-		●		●
8	SPRING; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-09580-365-0	01	1	9002-9306			●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9002-9306	●	●
12	FILTER; MICROBON,OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21235-004-1	01	1	9002-9306			●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9307-		●		●
12	FILTER; MICROBON,OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21235-005-0	01	1	9002-9306			●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9002-9306	●	●
15	PLATE; FILTER,OIL TANK EXC. DESERT ZONE PACKAGE(W01)	1-21249-007-1	04	1	9002-9306			●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9307-		●		●
19	SEAT; OIL TANK	1-21262-001-0	02	1	9002-9306	●	●
19	SEAT; OIL TANK EXC. DESERT ZONE PACKAGE(W01)	1-21262-001-0	02	1	9002-9306			●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	9307-		●		●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9002-9306	●	●
20	HOLDER; FILTER,OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21239-001-2	01	1	9002-9306			●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9307-		●		●
20	HOLDER; FILTER,OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21239-005-0	01	1	9002-9306			●	●
21	GASKET; OIL GAUGE,P/S TANK DESERT ZONE PACKAGE(W01)	1-09630-095-1	01	1	9002-9306			●	●
22	GAUGE; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21240-001-1	01	1	9002-9306			●	●
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	9-01910-820-0	04	1	9002-9005	●	●	●	●
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9006-9302	●	●	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9303-	●	●	●	●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9002-	●	●	●	●
191	FILTER; BREATHER,P/S TANK DESERT ZONE PACKAGE(W01)	1-21219-076-1	01	1	9002-9306			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
