Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#30379) — 420 parça

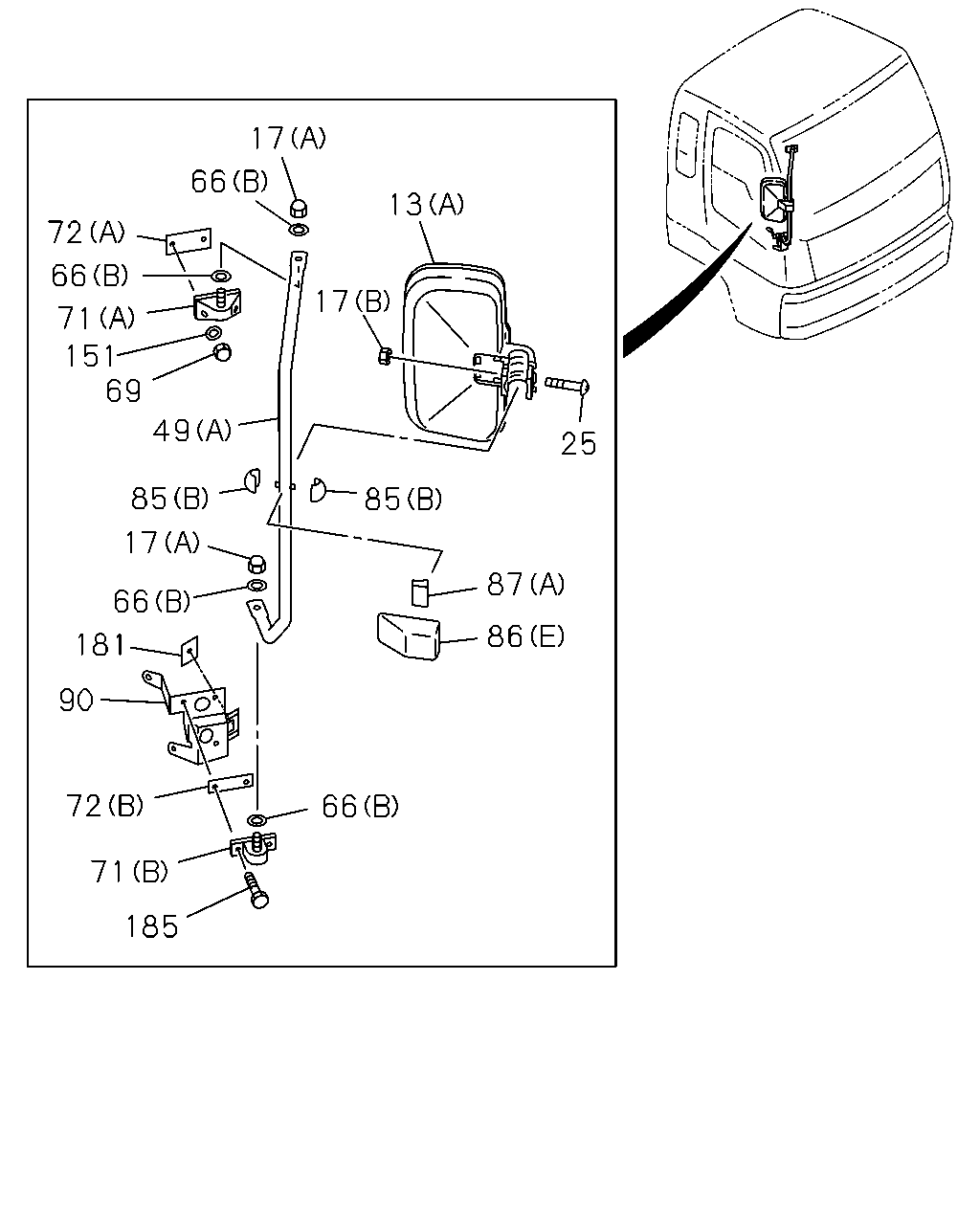

17 66 13 72 66 17 71 151 69 49 25 85 85 17 87 66 86 181 90 72 66 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-181-0	01	1	0806-1504
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98288-715-1	01	1	1505-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-182-0	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71737-917-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (B)	1-71737-917-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0610-0805
17	NUT; CAP,MIRROR STAY EXC. FACE LIFT<6NL> (B) M5	1-09984-124-0	02	1	0806-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	06	1	0610-0805
17	NUT; CAP,MIRROR STAY EXC. FACE LIFT<6NL> (B) M5	1-09984-124-0	06	1	0806-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	0610-0805
17	NUT; CAP,MIRROR STAY EXC. FACE LIFT<6NL> (A) M10 CAP NUT	1-09984-134-0	02	1	0806-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> M6X40	1-71707-223-0	04	1	0806-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
25	SCREW; OUTSIDE MIRROR EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-175-1	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-177-1	01	1	0806-
49	STAY; MIRROR SIDE (B)	1-71797-896-2	01	1	0610-0707
49	STAY; MIRROR SIDE (B)	1-71797-896-3	01	1	0708-0805
49	STAY; MIRROR SIDE EXC. FACE LIFT<6NL> (B)	1-71797-896-3	01	1	0806-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0610-0805
49	STAY; MIRROR SIDE EXC. FACE LIFT<6NL> (A)	1-71798-490-3	01	1	0806-
66	WASHER; PL FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0806-
66	WASHER; PL FACE LIFT<6NL> (D) ID=12.5	1-09985-334-0	04	1	0806-
66	WASHER; PL EXC. FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0806-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0610-0805
66	WASHER; PL EXC. FACE LIFT<6NL> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0806-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0610-0805
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0806-
69	NUT; CAP M8	1-09984-187-0	02	1	0610-0805
69	NUT; CAP EXC. FACE LIFT<6NL> M8	1-09984-187-0	02	1	0806-0809
69	NUT; CAP EXC. FACE LIFT<6NL> M8 CAP NUT	8-98059-914-0	02	1	0810-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-224-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (E)	1-71797-809-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (F)	1-71798-309-4	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) UPPER	1-71798-484-1	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) LOWER	1-71798-486-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (C)	1-71798-581-3	01	1	0806-
72	SHEET (A) UPPER	1-71798-487-3	01	1	0610-0805
72	SHEET EXC. FACE LIFT<6NL> (A) UPPER	1-71798-487-3	01	1	0806-
72	SHEET (B) LOWER	1-71798-488-1	01	1	0610-0805
72	SHEET EXC. FACE LIFT<6NL> (B) LOWER	1-71798-488-1	01	1	0806-
85	PIVOT; MAIN MIRROR (A) ID=22.2	1-71736-489-2	02	1	0610-0805
85	PIVOT; MAIN MIRROR EXC. FACE LIFT<6NL> (A) ID=22.2	1-71736-489-2	02	1	0806-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	0610-0805
85	PIVOT; MAIN MIRROR EXC. FACE LIFT<6NL> (B) ID=19.1	1-71737-633-2	02	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (C) BLACK	1-71737-649-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (D) BLACK	1-71737-652-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (A)	1-71798-732-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-733-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
87	SPACER (B)	1-71737-646-2	02	1	0610-
87	SPACER (A)	1-71737-704-0	01	1	0610-0805
87	SPACER (A)	1-71737-704-0	01	1	0610-0805
87	SPACER EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
87	SPACER EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0610-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0610-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0806-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0610-0805
151	WASHER; PL,MIRROR EXC. FACE LIFT<6NL> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0806-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0610-
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	02	1	0610-0805
185	BOLT; BRKT EXC. FACE LIFT<6NL> M8X35 FLANGE	8-98046-876-0	02	1	0806-

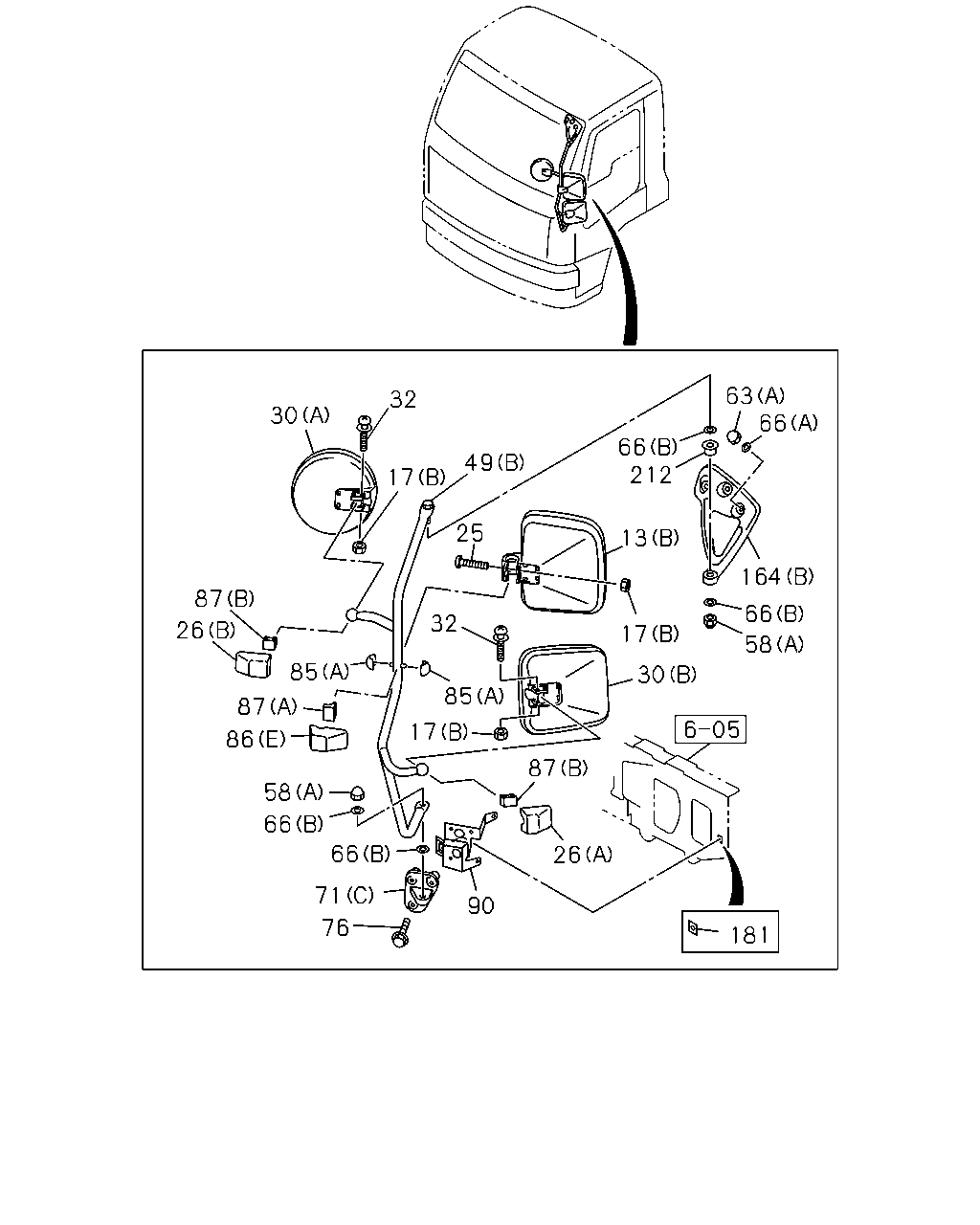

63 66 32 30 66 212 49 17 25 13 164 87 66 32 26 17 58 85 30 85 87 17 86 87 58 66 66 26 71 90 76 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-181-0	01	1	0806-1504
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98288-715-1	01	1	1505-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-182-0	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71737-917-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (B)	1-71737-917-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0610-0805
17	NUT; CAP,MIRROR STAY EXC. FACE LIFT<6NL> (B) M5	1-09984-124-0	02	1	0806-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	06	1	0610-0805
17	NUT; CAP,MIRROR STAY EXC. FACE LIFT<6NL> (B) M5	1-09984-124-0	06	1	0806-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	0610-0805
17	NUT; CAP,MIRROR STAY EXC. FACE LIFT<6NL> (A) M10 CAP NUT	1-09984-134-0	02	1	0806-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> M6X40	1-71707-223-0	04	1	0806-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
25	SCREW; OUTSIDE MIRROR EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-221-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-222-0	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (D)	1-71798-316-2	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (D)	1-71798-695-0	01	1	0806-
26	COVER; OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) BLACK	1-71737-649-1	01	1	0806-
26	COVER; OUTSIDE MIRROR (A) BLACK	1-71737-652-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) BLACK	1-71737-652-1	01	1	0806-
30	MIRROR; UNDER FACE LIFT<6NL> (C)	1-71797-853-1	01	1	0806-
30	MIRROR; UNDER (A)	1-71798-591-1	01	1	0610-0805
30	MIRROR; UNDER EXC. FACE LIFT<6NL> (A)	1-71798-591-1	01	1	0806-
30	MIRROR; UNDER (B)	1-71798-592-1	01	1	0610-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	04	1	0610-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-175-1	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-177-1	01	1	0806-
49	STAY; MIRROR SIDE (B)	1-71797-896-2	01	1	0610-0707
49	STAY; MIRROR SIDE (B)	1-71797-896-3	01	1	0708-0805
49	STAY; MIRROR SIDE EXC. FACE LIFT<6NL> (B)	1-71797-896-3	01	1	0806-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0610-0805
49	STAY; MIRROR SIDE EXC. FACE LIFT<6NL> (A)	1-71798-490-3	01	1	0806-
58	NUT; MIRROR STAY FACE LIFT<6NL> (B) M12	1-09984-178-1	02	1	0806-
58	NUT; MIRROR STAY FACE LIFT<6NL> (C) M12	1-09984-184-1	01	1	0806-
58	NUT; MIRROR STAY (A) M10	1-09985-342-0	02	1	0610-0805
58	NUT; MIRROR STAY EXC. FACE LIFT<6NL> (A) M10	1-09985-342-0	02	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B) M8	1-71798-603-1	02	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (C) M10 CAP NUT	1-71798-859-0	01	1	0806-
63	NUT; STAY FACE LIFT<6NL> (D) M14	0-91110-514-0	01	1	0806-
63	NUT; STAY EXC. FACE LIFT<6NL> (A) M8	1-09984-187-0	03	1	0806-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	0610-0805
63	NUT; STAY FACE LIFT<6NL> (A) M8	1-09984-187-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0806-
66	WASHER; PL FACE LIFT<6NL> (D) ID=12.5	1-09985-334-0	04	1	0806-
66	WASHER; PL EXC. FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0806-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0610-0805
66	WASHER; PL EXC. FACE LIFT<6NL> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0806-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0610-0805
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-224-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (E)	1-71797-809-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (F)	1-71798-309-4	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) UPPER	1-71798-484-1	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) LOWER	1-71798-486-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (C)	1-71798-581-3	01	1	0806-
76	BOLT; STAY BRKT FACE LIFT<6NL> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0806-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0610-0805
76	BOLT; STAY BRKT EXC. FACE LIFT<6NL> M8X30 W/LK WASHER	8-94279-183-1	03	1	0806-
85	PIVOT; MAIN MIRROR (A) ID=22.2	1-71736-489-2	02	1	0610-0805
85	PIVOT; MAIN MIRROR EXC. FACE LIFT<6NL> (A) ID=22.2	1-71736-489-2	02	1	0806-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	0610-0805
85	PIVOT; MAIN MIRROR EXC. FACE LIFT<6NL> (B) ID=19.1	1-71737-633-2	02	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (C) BLACK	1-71737-649-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (D) BLACK	1-71737-652-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (A)	1-71798-732-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-733-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
87	SPACER (B)	1-71737-646-2	02	1	0610-
87	SPACER (A)	1-71737-704-0	01	1	0610-0805
87	SPACER (A)	1-71737-704-0	01	1	0610-0805
87	SPACER EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
87	SPACER EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0610-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0610-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A)	1-71798-602-1	01	1	0806-
164	STAY; ROOF FACE LIFT<6NL> (C)	1-71707-090-0	01	1	0806-
164	STAY; ROOF (B)	1-71798-299-4	01	1	0610-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0610-
212	BUSHING; MIRROR	1-09983-175-1	01	1	0610-0805
212	BUSHING; MIRROR EXC. FACE LIFT<6NL>	1-09983-175-1	01	1	0806-

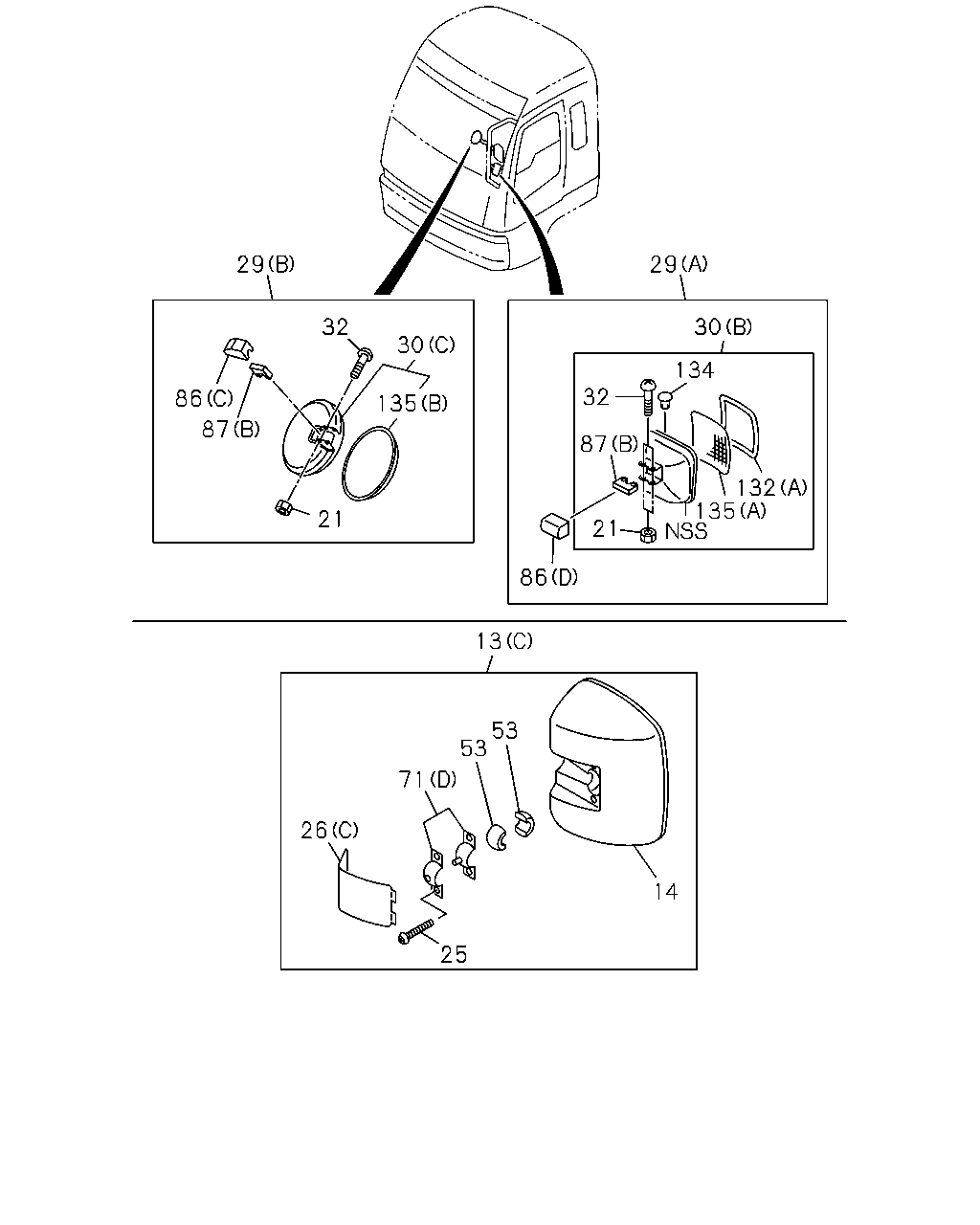

13 133 132 134 13 133 134 132 30 135 134 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-181-0	01	1	0806-1504
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98288-715-1	01	1	1505-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-182-0	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71737-917-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (B)	1-71737-917-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
30	MIRROR; UNDER FACE LIFT<6NL> (C)	1-71797-853-1	01	1	0806-
30	MIRROR; UNDER (A)	1-71798-591-1	01	1	0610-0805
30	MIRROR; UNDER EXC. FACE LIFT<6NL> (A)	1-71798-591-1	01	1	0806-
30	MIRROR; UNDER (B)	1-71798-592-1	01	1	0610-
132	RING; MIRROR (B)	1-71737-933-0	01	1	0610-0805
132	RING; MIRROR EXC. FACE LIFT<6NL> (B)	1-71737-933-0	01	1	0806-
132	RING; MIRROR (C)	1-71737-934-0	01	1	0610-0805
132	RING; MIRROR EXC. FACE LIFT<6NL> (C)	1-71737-934-0	01	1	0806-
132	RING; MIRROR (A)	1-71737-935-0	01	1	0610-
133	LENS; MIRROR,OUTSIDE (B)	1-71737-926-0	01	1	0610-0805
133	LENS; MIRROR,OUTSIDE EXC. FACE LIFT<6NL> (B)	1-71737-926-0	01	1	0806-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0610-0805
133	LENS; MIRROR,OUTSIDE EXC. FACE LIFT<6NL> (A)	1-71737-927-0	01	1	0806-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0610-
134	CLIP; MIRROR LENS	1-71737-936-0	02	1	0610-0805
134	CLIP; MIRROR LENS EXC. FACE LIFT<6NL>	1-71737-936-0	02	1	0806-
135	LENS; MIRROR,SIDE UNDER FACE LIFT<6NL> (B)	1-71707-130-0	01	1	0806-
135	LENS; MIRROR,SIDE UNDER (A)	1-71737-929-0	01	1	0610-

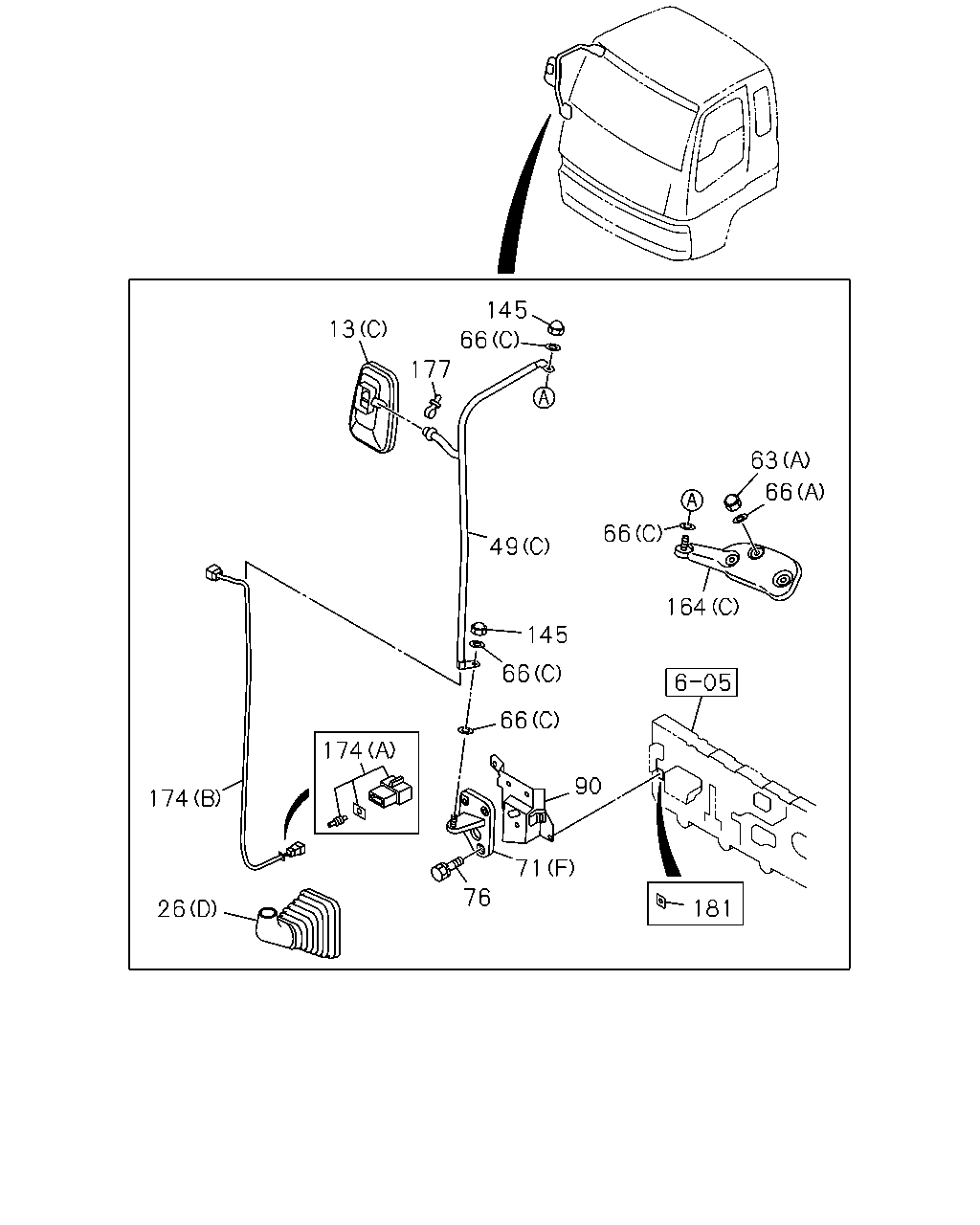

145 13 66 177 63 66 66 49 164 145 66 66 174 90 174 71 76 181 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-181-0	01	1	0806-1504
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98288-715-1	01	1	1505-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-182-0	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71737-917-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (B)	1-71737-917-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-221-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-222-0	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (D)	1-71798-316-2	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (D)	1-71798-695-0	01	1	0806-
26	COVER; OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) BLACK	1-71737-649-1	01	1	0806-
26	COVER; OUTSIDE MIRROR (A) BLACK	1-71737-652-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) BLACK	1-71737-652-1	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-175-1	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-177-1	01	1	0806-
49	STAY; MIRROR SIDE (B)	1-71797-896-2	01	1	0610-0707
49	STAY; MIRROR SIDE (B)	1-71797-896-3	01	1	0708-0805
49	STAY; MIRROR SIDE EXC. FACE LIFT<6NL> (B)	1-71797-896-3	01	1	0806-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0610-0805
49	STAY; MIRROR SIDE EXC. FACE LIFT<6NL> (A)	1-71798-490-3	01	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B) M8	1-71798-603-1	02	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (C) M10 CAP NUT	1-71798-859-0	01	1	0806-
63	NUT; STAY FACE LIFT<6NL> (D) M14	0-91110-514-0	01	1	0806-
63	NUT; STAY EXC. FACE LIFT<6NL> (A) M8	1-09984-187-0	03	1	0806-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	0610-0805
63	NUT; STAY FACE LIFT<6NL> (A) M8	1-09984-187-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0806-
66	WASHER; PL FACE LIFT<6NL> (D) ID=12.5	1-09985-334-0	04	1	0806-
66	WASHER; PL EXC. FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0806-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0610-0805
66	WASHER; PL EXC. FACE LIFT<6NL> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0806-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0610-0805
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-224-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (E)	1-71797-809-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (F)	1-71798-309-4	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) UPPER	1-71798-484-1	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) LOWER	1-71798-486-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (C)	1-71798-581-3	01	1	0806-
76	BOLT; STAY BRKT FACE LIFT<6NL> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0806-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0610-0805
76	BOLT; STAY BRKT EXC. FACE LIFT<6NL> M8X30 W/LK WASHER	8-94279-183-1	03	1	0806-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0610-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0610-
145	NUT; CAP,SUB STAY FACE LIFT<6NL> M10	1-09984-183-0	02	1	0806-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A)	1-71798-602-1	01	1	0806-
164	STAY; ROOF FACE LIFT<6NL> (C)	1-71707-090-0	01	1	0806-
164	STAY; ROOF (B)	1-71798-299-4	01	1	0610-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-82662-365-1	02	1	0806-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (B)	8-97610-652-0	01	1	0806-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (B)	8-97610-653-0	01	1	0806-
177	CLIP; HARNESS MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> L=140	5-09707-031-1	02	1	0806-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0610-

150 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73117-033-1	01	1	0711-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0711-
150	PLUG; MIRROR HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0610-0710

29 29 32 30 30 134 32 86 135 87 87 132 135 21 21 86 13 53 53 71 26 14 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-181-0	01	1	0806-1504
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98288-715-1	01	1	1505-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-182-0	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71737-917-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (B)	1-71737-917-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
14	MIRROR ASM; OUTSIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL>	1-71707-230-0	01	1	0806-1504
14	MIRROR ASM; OUTSIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL>	8-98288-714-0	01	1	1505-
14	MIRROR ASM; OUTSIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL>	1-71707-231-0	01	1	0806-
21	NUT; MIRROR FACE LIFT<6NL> M5	1-09984-124-0	04	1	0806-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> M6X40	1-71707-223-0	04	1	0806-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
25	SCREW; OUTSIDE MIRROR EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-221-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-222-0	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (D)	1-71798-316-2	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (D)	1-71798-695-0	01	1	0806-
26	COVER; OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) BLACK	1-71737-649-1	01	1	0806-
26	COVER; OUTSIDE MIRROR (A) BLACK	1-71737-652-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) BLACK	1-71737-652-1	01	1	0806-
29	MIRROR ASM; UNDER FACE LIFT<6NL> (B)	1-71797-137-1	01	1	0806-
29	MIRROR ASM; UNDER FACE LIFT<6NL> (A)	1-71798-421-1	01	1	0806-
30	MIRROR; UNDER FACE LIFT<6NL> (C)	1-71797-853-1	01	1	0806-
30	MIRROR; UNDER (A)	1-71798-591-1	01	1	0610-0805
30	MIRROR; UNDER EXC. FACE LIFT<6NL> (A)	1-71798-591-1	01	1	0806-
30	MIRROR; UNDER (B)	1-71798-592-1	01	1	0610-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	04	1	0610-
53	PIVOT; SIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> ID=22.2	1-71736-489-2	04	1	0806-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-224-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (E)	1-71797-809-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (F)	1-71798-309-4	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) UPPER	1-71798-484-1	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) LOWER	1-71798-486-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (C)	1-71798-581-3	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (C) BLACK	1-71737-649-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (D) BLACK	1-71737-652-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (A)	1-71798-732-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-733-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
87	SPACER (B)	1-71737-646-2	02	1	0610-
87	SPACER (A)	1-71737-704-0	01	1	0610-0805
87	SPACER (A)	1-71737-704-0	01	1	0610-0805
87	SPACER EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
87	SPACER EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
132	RING; MIRROR (B)	1-71737-933-0	01	1	0610-0805
132	RING; MIRROR EXC. FACE LIFT<6NL> (B)	1-71737-933-0	01	1	0806-
132	RING; MIRROR (C)	1-71737-934-0	01	1	0610-0805
132	RING; MIRROR EXC. FACE LIFT<6NL> (C)	1-71737-934-0	01	1	0806-
132	RING; MIRROR (A)	1-71737-935-0	01	1	0610-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0610-
134	CLIP; MIRROR LENS	1-71737-936-0	02	1	0610-0805
134	CLIP; MIRROR LENS EXC. FACE LIFT<6NL>	1-71737-936-0	02	1	0806-
135	LENS; MIRROR,SIDE UNDER FACE LIFT<6NL> (B)	1-71707-130-0	01	1	0806-
135	LENS; MIRROR,SIDE UNDER (A)	1-71737-929-0	01	1	0610-

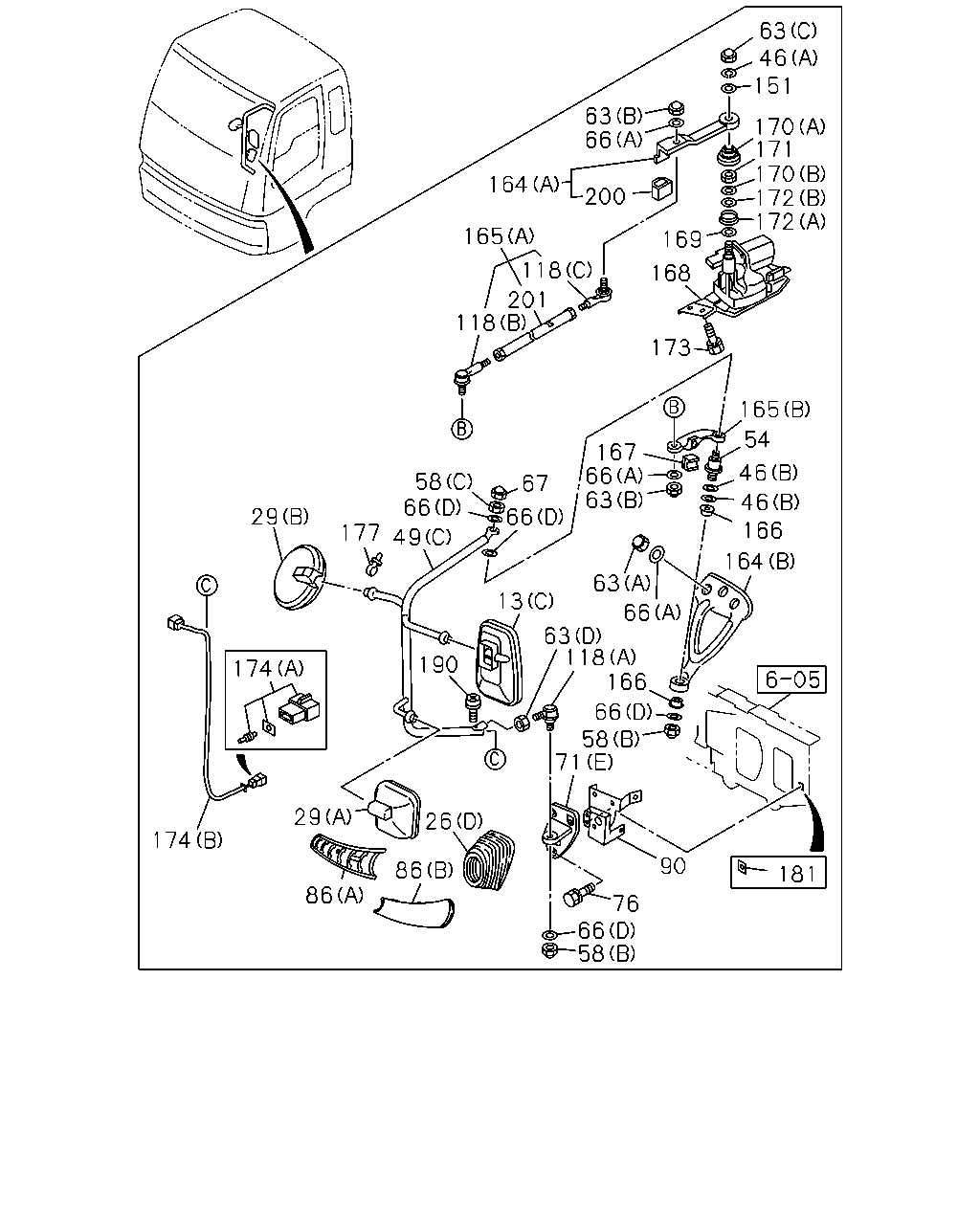

63 46 151 63 66 170 171 170 172 172 164 200 165 169 118 168 201 118 173 165 54 167 66 63 46 58 66 67 46 166 66 29 177 49 164 63 13 66 63 118 166 190 174 66 58 71 26 29 174 90 86 181 86 76 66 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-181-0	01	1	0806-1504
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98288-715-1	01	1	1505-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-182-0	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71737-917-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (B)	1-71737-917-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-221-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-222-0	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (D)	1-71798-316-2	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (D)	1-71798-695-0	01	1	0806-
26	COVER; OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) BLACK	1-71737-649-1	01	1	0806-
26	COVER; OUTSIDE MIRROR (A) BLACK	1-71737-652-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) BLACK	1-71737-652-1	01	1	0806-
29	MIRROR ASM; UNDER FACE LIFT<6NL> (B)	1-71797-137-1	01	1	0806-
29	MIRROR ASM; UNDER FACE LIFT<6NL> (A)	1-71798-421-1	01	1	0806-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A) ID=10	1-09985-345-0	01	1	0806-
46	WASHER; LK,STAY FACE LIFT<6NL> (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-175-1	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-177-1	01	1	0806-
49	STAY; MIRROR SIDE (B)	1-71797-896-2	01	1	0610-0707
49	STAY; MIRROR SIDE (B)	1-71797-896-3	01	1	0708-0805
49	STAY; MIRROR SIDE EXC. FACE LIFT<6NL> (B)	1-71797-896-3	01	1	0806-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0610-0805
49	STAY; MIRROR SIDE EXC. FACE LIFT<6NL> (A)	1-71798-490-3	01	1	0806-
54	BOLT; STAY FACE LIFT<6NL>	1-09980-618-0	01	1	0806-
58	NUT; MIRROR STAY FACE LIFT<6NL> (B) M12	1-09984-178-1	02	1	0806-
58	NUT; MIRROR STAY FACE LIFT<6NL> (C) M12	1-09984-184-1	01	1	0806-
58	NUT; MIRROR STAY (A) M10	1-09985-342-0	02	1	0610-0805
58	NUT; MIRROR STAY EXC. FACE LIFT<6NL> (A) M10	1-09985-342-0	02	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B) M8	1-71798-603-1	02	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (C) M10 CAP NUT	1-71798-859-0	01	1	0806-
63	NUT; STAY FACE LIFT<6NL> (D) M14	0-91110-514-0	01	1	0806-
63	NUT; STAY EXC. FACE LIFT<6NL> (A) M8	1-09984-187-0	03	1	0806-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	0610-0805
63	NUT; STAY FACE LIFT<6NL> (A) M8	1-09984-187-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0806-
66	WASHER; PL FACE LIFT<6NL> (D) ID=12.5	1-09985-334-0	04	1	0806-
66	WASHER; PL EXC. FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0806-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0610-0805
66	WASHER; PL EXC. FACE LIFT<6NL> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0806-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0610-0805
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0806-
67	NUT; STAY FACE LIFT<6NL> M12	1-09984-178-1	01	1	0806-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-224-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (E)	1-71797-809-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (F)	1-71798-309-4	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) UPPER	1-71798-484-1	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) LOWER	1-71798-486-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (C)	1-71798-581-3	01	1	0806-
76	BOLT; STAY BRKT FACE LIFT<6NL> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0806-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0610-0805
76	BOLT; STAY BRKT EXC. FACE LIFT<6NL> M8X30 W/LK WASHER	8-94279-183-1	03	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (C) BLACK	1-71737-649-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (D) BLACK	1-71737-652-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (A)	1-71798-732-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-733-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0610-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0610-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (C) RH THREAD	1-71798-819-2	01	1	0806-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B) LH THREAD	1-71798-820-2	01	1	0806-
118	JOINT ASM; BALL FACE LIFT<6NL> (A)	1-71797-805-1	01	1	0806-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0806-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0610-0805
151	WASHER; PL,MIRROR EXC. FACE LIFT<6NL> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0806-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A)	1-71798-602-1	01	1	0806-
164	STAY; ROOF FACE LIFT<6NL> (C)	1-71707-090-0	01	1	0806-
164	STAY; ROOF (B)	1-71798-299-4	01	1	0610-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B)	1-71798-600-1	01	1	0806-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A)	1-71798-782-2	01	1	0806-
166	BUSHING; STAY FACE LIFT<6NL>	1-09983-179-0	02	1	0806-
167	RUBBER; STOPPER MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL>	1-71798-308-0	01	1	0806-
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL>	1-86855-031-0	01	1	0806-1311
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL>	8-98251-163-0	01	1	1312-
169	WASHER; PL,POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL>	1-86855-011-1	01	1	0806-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A)	1-86855-012-0	01	1	0806-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B)	1-86855-014-1	01	1	0806-
171	NUT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL>	1-86855-013-1	01	1	0806-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A)	1-79928-003-1	01	1	0806-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B)	1-86855-015-0	01	1	0806-
173	BOLT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0806-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-82662-365-1	02	1	0806-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (B)	8-97610-652-0	01	1	0806-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (B)	8-97610-653-0	01	1	0806-
177	CLIP; HARNESS MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> L=140	5-09707-031-1	02	1	0806-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0610-
190	SCREW; COVER FACE LIFT<6NL> M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0806-
200	STOPPER; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL>	1-71798-597-0	01	1	0806-
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL>	1-71798-821-0	01	1	0806-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
