Isuzu WW
▶
TRUCKS
▶
CVR
▶
10661 - CVR
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶
4-33 — STEERING LINKAGE
(#3037) — 50 parça
Tümü
A - CVR5MC
B - CVR5MF
C - CVR6MC
D - CVR6MF
◀

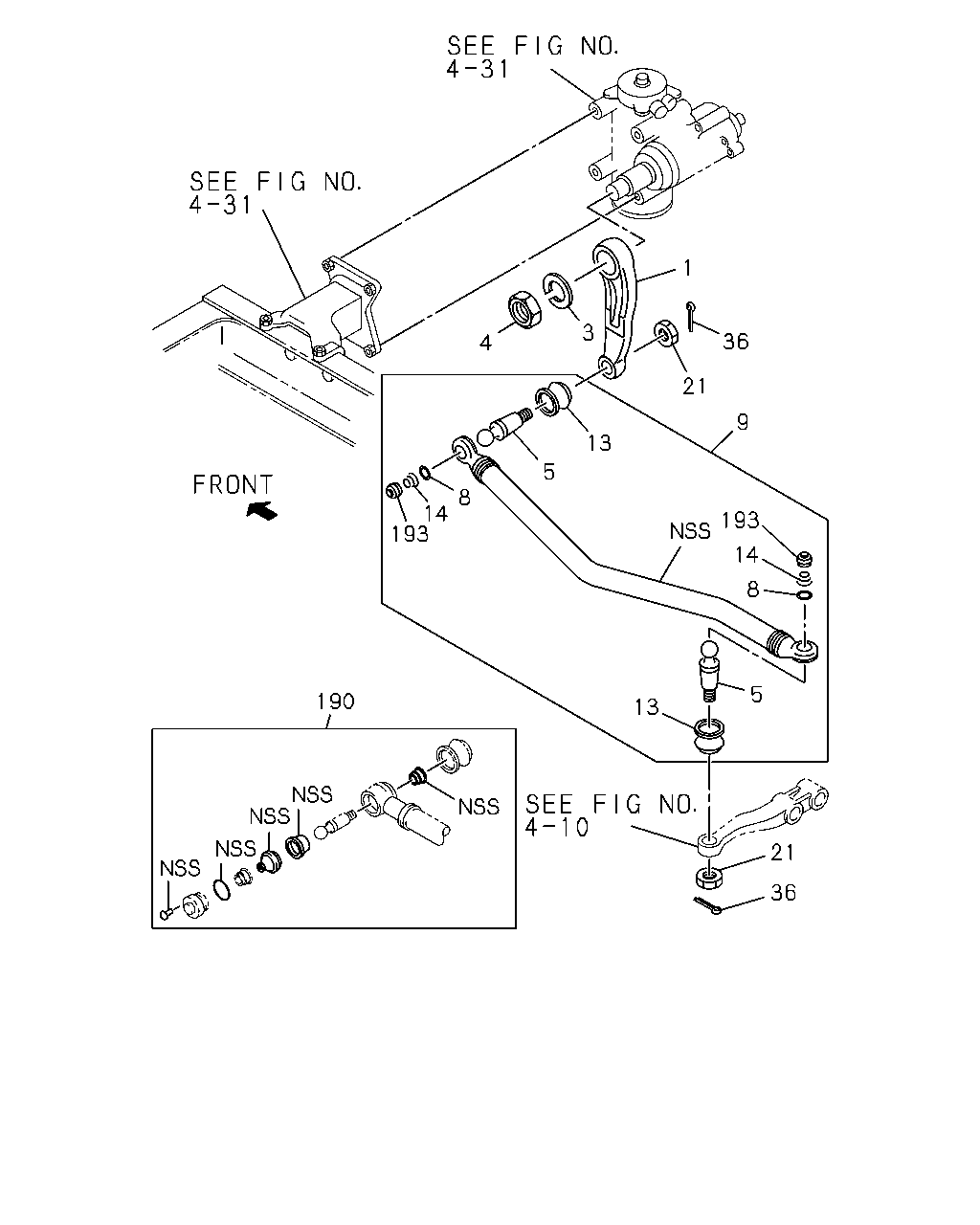

[433A] '93/7- (25 parça)
[433A] -'93/6 (25 parça)
▶
36
21
5
13
8
14
193
9
21
36
1
3
4
13
5
8
14
193
190
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
ARM; PITMAN,STRG
1-44341-371-0
01
1
9002-9306
●
●
1
ARM; PITMAN,STRG
1-44341-377-0
01
1
9307-
●
1
ARM; PITMAN,STRG
1-44341-373-0
01
1
9002-9306
●
●
1
ARM; PITMAN,STRG
1-44341-426-0
01
1
9307-
●
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
9002-
●
●
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
9002-
●
●
●
●
5
BALL; JOINT,DRAG LINK
1-44361-105-1
02
1
9307-
●
●
8
SEAT; SPR,ROD END
9-09881-696-0
04
1
9002-9306
●
●
●
●
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
9307-
●
●
9
LINK; DRAG
1-44350-682-2
01
1
9002-9306
●
●
9
LINK; DRAG
1-44380-051-0
01
1
9307-9410
●
●
9
LINK; DRAG
1-44380-109-2
01
1
9411-
●
9
LINK; DRAG
1-44350-586-3
01
1
9002-9306
●
●
9
LINK; DRAG
1-44380-052-0
01
1
9307-9410
●
●
9
LINK; DRAG
1-44380-110-2
01
1
9411-
●
13
BOOT; DRAG LINK
1-43159-078-0
02
1
9307-
●
●
14
SPRING; COIL,DRAG LINK
1-09580-033-3
02
1
9002-9306
●
●
●
●
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
9307-
●
●
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
01
1
9002-9306
●
●
●
●
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
9307-
●
●
36
PIN; SPLIT,DRAG LINK
9-08115-065-0
02
1
9002-9306
●
●
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
9307-
●
●
190
REPAIR KIT; DRAG LINK
1-85574-041-0
02
1
9307-
●
●
●
●
193
PLUG; END,DRAG LINK
1-43159-072-0
02
1
9307-9410
●
●
●
●
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
9411-
●
●
8
8
14
7
17
36
11
9
17
11
8
8
14
7
36
4
3
1
20
21
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
ARM; PITMAN,STRG
1-44341-371-0
01
1
9002-9306
●
●
1
ARM; PITMAN,STRG
1-44341-377-0
01
1
9307-
●
1
ARM; PITMAN,STRG
1-44341-373-0
01
1
9002-9306
●
●
1
ARM; PITMAN,STRG
1-44341-426-0
01
1
9307-
●
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
9002-
●
●
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
9002-
●
●
●
●
7
SCREW; ADJ,JOINT
9-44375-029-1
02
1
9002-9306
●
●
●
●
8
SEAT; SPR,ROD END
9-09881-696-0
04
1
9002-9306
●
●
●
●
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
9307-
●
●
9
LINK; DRAG
1-44350-682-2
01
1
9002-9306
●
●
9
LINK; DRAG
1-44380-051-0
01
1
9307-9410
●
●
9
LINK; DRAG
1-44380-109-2
01
1
9411-
●
9
LINK; DRAG
1-44350-586-3
01
1
9002-9306
●
●
9
LINK; DRAG
1-44380-052-0
01
1
9307-9410
●
●
9
LINK; DRAG
1-44380-110-2
01
1
9411-
●
11
NIPPLE; GREASE,DRAG LINK
PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
02
1
9002-9306
●
●
●
●
14
SPRING; COIL,DRAG LINK
1-09580-033-3
02
1
9002-9306
●
●
●
●
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
9307-
●
●
17
GUARD; MUD,DRAG LINK
1-44365-033-1
02
1
9002-9306
●
●
●
●
20
JOINT; BALL,PITMAN ARM
1-44361-100-0
01
1
9002-9306
●
●
●
●
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
01
1
9002-9306
●
●
●
●
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
9307-
●
●
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35
9-08115-035-0
01
1
9002-9306
●
●
●
●
36
PIN; SPLIT,DRAG LINK
9-08115-065-0
02
1
9002-9306
●
●
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
9307-
●
●
