6-70 — FLOOR PANEL (#30368) — 26 parça

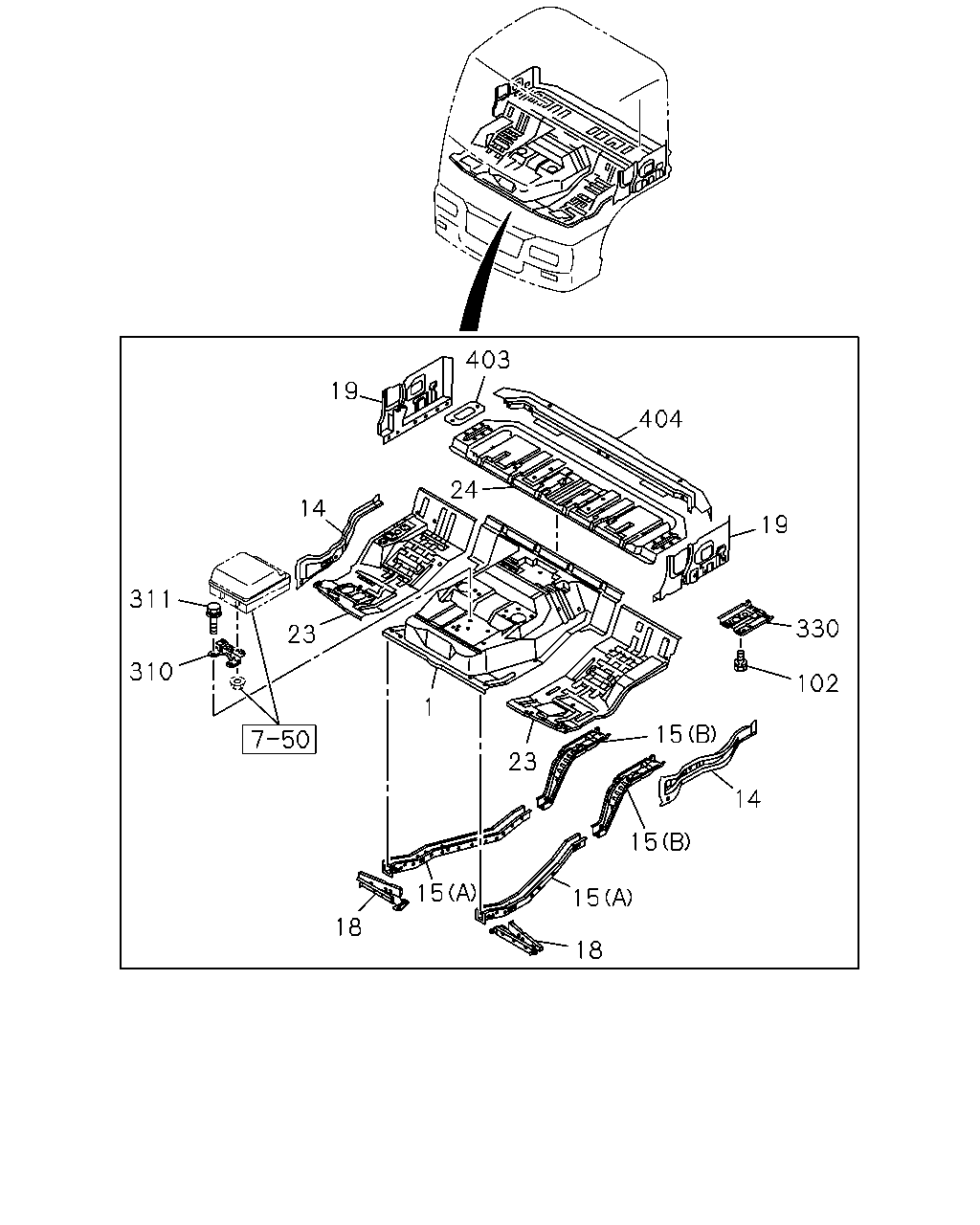

çizim 140619
403 19 404 24 14 19 311 330 23 310 102 1 15 23 14 15 15 15 18 18
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 1-62172-885-0 01 1 0610-0805
1 PANEL; FLOOR 8-98097-806-0 01 1 0806-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0610-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0610-
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0610-
15 FRAME; UNDER
(A) 		1-62472-603-9 01 1 0610-
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0610-
15 FRAME; UNDER
(A) 		1-62472-766-1 01 1 0610-
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 0610-
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-3 01 1 0610-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0610-
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 0610-
23 PANEL; FLOOR,SIDE 1-62172-866-0 01 1 0610-
23 PANEL; FLOOR,SIDE 1-62172-798-0 01 1 0610-
24 PANEL; BED PAN 1-62172-540-9 01 1 0610-
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0610-
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0610-0904
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
310 BRACKET; SEAT STAND
EXC. CENTER SEAT DELETE(SP9) 		1-76397-015-0 01 1 0610-
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0610-0904
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0610-
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 0610-
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 0610-
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0610-
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 0610-
