4-31 — STEERING COLUMN AND SHAFT (#3036) — 179 parça

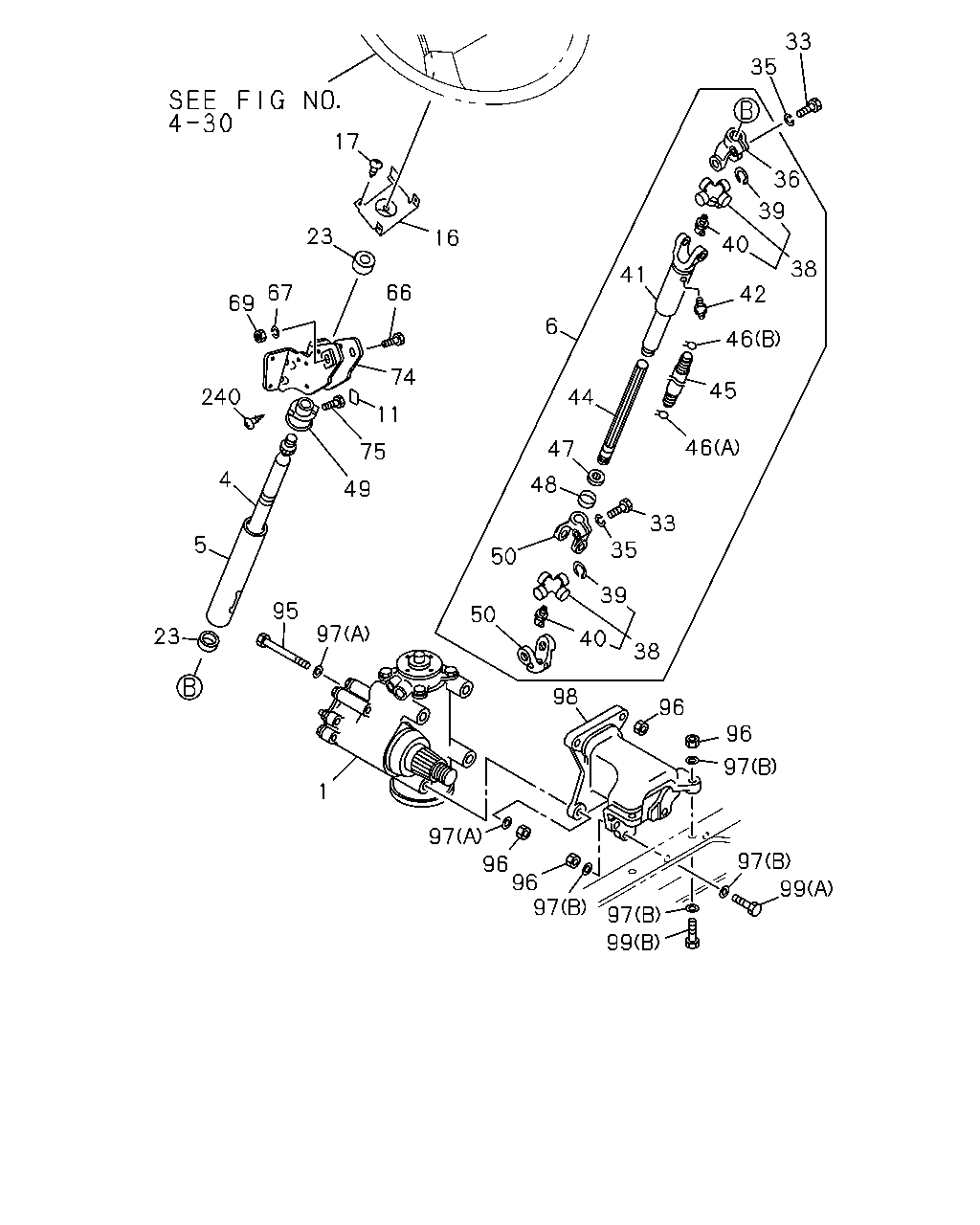

çizim 4878
99 97 99 97 97 96 96 97 1 97 95 23 5 4 49 75 11 74 240 69 67 66 23 16 17 33 35 36 39 40 38 42 46 45 46 33 35 39 40 41 6 44 47 48 50 50 98 38 96 96 97
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-761-3 01 1 9002-9306 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-805-2 01 1 9307- ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-765-3 01 1 9002-9306 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-826-0 01 1 9307- ● ●
4 SHAFT; STRG 1-44131-118-1 01 1 9002- ● ● ● ●
5 COLUMN; STRG 1-44211-043-1 01 1 9002- ● ●
5 COLUMN; STRG
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44211-043-1 01 1 9002- ● ●
5 COLUMN; STRG
STEERING COLUMN WO/TILT<WV6> 		1-44211-045-0 01 1 9002- ● ●
6 SHAFT; STRG LWR 1-44130-352-2 01 1 9002- ● ●
6 SHAFT; STRG LWR 1-44130-399-1 01 1 9002- ● ●
11 SEAL; JOURNAL,STRG
STEERING COLUMN WO/TILT<WV6> 		1-44139-077-0 02 1 9002- ● ●
16 BRACKET; COMB SW 1-44227-074-2 01 1 9002- ● ● ● ●
17 SCREW; BRKT
M5X10 PAN-HD 		9-93490-510-0 03 1 9002- ● ●
17 SCREW; BRKT
EXC. STEERING COLUMN WO/TILT<WV6> M5X10 PAN-HD 		9-93490-510-0 03 1 9002- ● ●
17 SCREW; BRKT
STEERING COLUMN WO/TILT<WV6> M5X10 W/LK WASHER 		9-03910-510-0 03 1 9002- ● ●
23 BEARING; BALL,STRG SHAFT 1-09800-157-0 02 1 9002- ● ● ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9002-9304 ● ● ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9002-9304 ● ●
33 BOLT; STRG SHAFT TO UNIT
EXC. STEERING COLUMN WO/TILT<WV6> M10X35 		1-09009-126-1 01 1 9002-9304 ● ●
33 BOLT; STRG SHAFT TO UNIT
STEERING COLUMN WO/TILT<WV6> M10X35 		1-09009-126-1 02 1 9002-9304 ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9305- ● ● ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9305- ● ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9002-9304 ● ● ● ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9002-9304 ● ●
35 WASHER; LK,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> ID=10.2 		9-09150-810-0 01 1 9002-9304 ● ●
35 WASHER; LK,STRG SHAFT
STEERING COLUMN WO/TILT<WV6> ID=10.2 		9-09150-810-0 02 1 9002-9304 ● ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9305- ● ● ● ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9305- ● ●
36 YOKE; STRG SHAFT 1-44135-179-0 01 1 9002- ● ● ● ●
38 JOURNAL; STRG SHAFT 1-44135-098-0 02 1 9002- ● ● ● ●
39 RING; SNAP,JOURNAL
T=1.2 		1-09587-061-1 08 1 9002- ● ● ● ●
40 NIPPLE; GREASE,JOURNAL 1-09380-004-0 02 1 9002- ● ● ● ●
41 YOKE; SLEEVE,STRG 1-44135-143-0 01 1 9002- ● ●
41 YOKE; SLEEVE,STRG 1-44135-156-0 01 1 9002- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
M6 STRAIGHT 		9-09031-006-0 01 1 9002- ● ● ● ●
44 SHAFT; SPLINE,STRG 1-44131-109-2 01 1 9002- ● ● ● ●
45 BOOT; STRG SHAFT 1-44139-064-0 01 1 9002- ● ●
46 CLIP; BOOT
(A) 		1-09704-086-1 01 1 9002- ● ●
46 CLIP; BOOT
(B) 		1-09704-087-2 01 1 9002- ● ●
47 WASHER; CORK,STRG SHAFT 1-44139-050-0 01 1 9002- ● ● ● ●
48 RETAINER; FELT RING SLEEVE 1-44139-075-0 01 1 9002- ● ● ● ●
49 COVER; UPR,STRG SHAFT
STEERING COLUMN WO/TILT<WV6> 		1-44139-108-0 01 1 9002- ● ●
50 YOKE; SPLINE,STRG SHAFT
(A) 		1-44135-090-1 01 1 9002- ● ●
50 YOKE; SPLINE,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> (A) 		1-44135-090-1 01 1 9002- ● ●
50 YOKE; SPLINE,STRG SHAFT
(B) 		1-44135-179-0 01 1 9002- ● ●
50 YOKE; SPLINE,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> (B) 		1-44135-179-0 01 1 9002- ● ●
50 YOKE; SPLINE,STRG SHAFT
STEERING COLUMN WO/TILT<WV6> 		1-44135-179-0 02 1 9002- ● ●
66 BOLT; STRG COLUMN
M6X20 W/LK WASHER 		9-01900-620-0 03 1 9002-9204 ● ●
66 BOLT; STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> M6X20 W/LK WASHER 		9-01900-620-0 03 1 9002-9204 ● ●
66 BOLT; STRG COLUMN
M6X20 W/LK WASHER 		0-50040-620-0 03 1 9205- ● ●
66 BOLT; STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> M6X20 W/LK WASHER 		0-50040-620-0 03 1 9205- ● ●
66 BOLT; STRG COLUMN
STEERING COLUMN WO/TILT<WV6> M12X75 		9-91056-275-0 02 1 9002-9005 ● ●
66 BOLT; STRG COLUMN
STEERING COLUMN WO/TILT<WV6> M12X75 		0-10806-275-0 02 1 9006- ● ●
67 WASHER; LK,BRKT,STRG COLUMN 1-44227-082-0 02 1 9002- ● ●
67 WASHER; LK,BRKT,STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-082-0 02 1 9002- ● ●
67 WASHER; LK,BRKT,STRG COLUMN
STEERING COLUMN WO/TILT<WV6> ID=12.2 		9-09150-512-0 02 1 9002- ● ●
69 NUT; TILT CENTER
STEERING COLUMN WO/TILT<WV6> M12 		9-99110-412-0 02 1 9002- ● ●
74 BRACKET; SUPPORT,STRG 1-44221-047-1 01 1 9002- ● ●
74 BRACKET; SUPPORT,STRG
STEERING COLUMN WO/TILT<WV6> 		1-44221-045-1 01 1 9002- ● ●
74 BRACKET; SUPPORT,STRG
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44221-049-1 01 1 9002- ● ●
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		9-01970-825-0 04 1 9002-9005 ● ● ● ●
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9006- ● ● ● ●
95 BOLT; STRG UNIT
M16X177 		1-09000-426-0 02 1 9002- ● ● ● ●
95 BOLT; STRG UNIT
M16X166 		1-09000-427-0 02 1 9002- ● ● ● ●
96 NUT; STRG UNIT
M14 		9-99110-514-0 06 1 9002- ● ● ● ●
96 NUT; STRG UNIT
M16 		9-99110-516-0 02 1 9002- ● ● ● ●
97 WASHER; PL,STRG UNIT
(A) ID=16.2 		1-09503-223-0 06 1 9002- ● ● ● ●
97 WASHER; PL,STRG UNIT
(B) ID=15 		9-09651-069-0 12 1 9002- ● ● ● ●
98 BRACKET; STRG GEAR BOX 1-44226-108-3 01 1 9002- ● ●
98 BRACKET; STRG GEAR BOX 1-44226-109-3 01 1 9002- ● ●
99 BOLT; BRKT TO FRAME
(B) M14X55 		1-09000-425-0 04 1 9002- ● ● ● ●
99 BOLT; BRKT TO FRAME
(A) M14X55 		9-92061-455-0 02 1 9002- ● ● ● ●
240 SCREW; CLIP
M6X8 W/LK WASHER 		1-09981-040-0 01 1 9002- ● ● ● ●

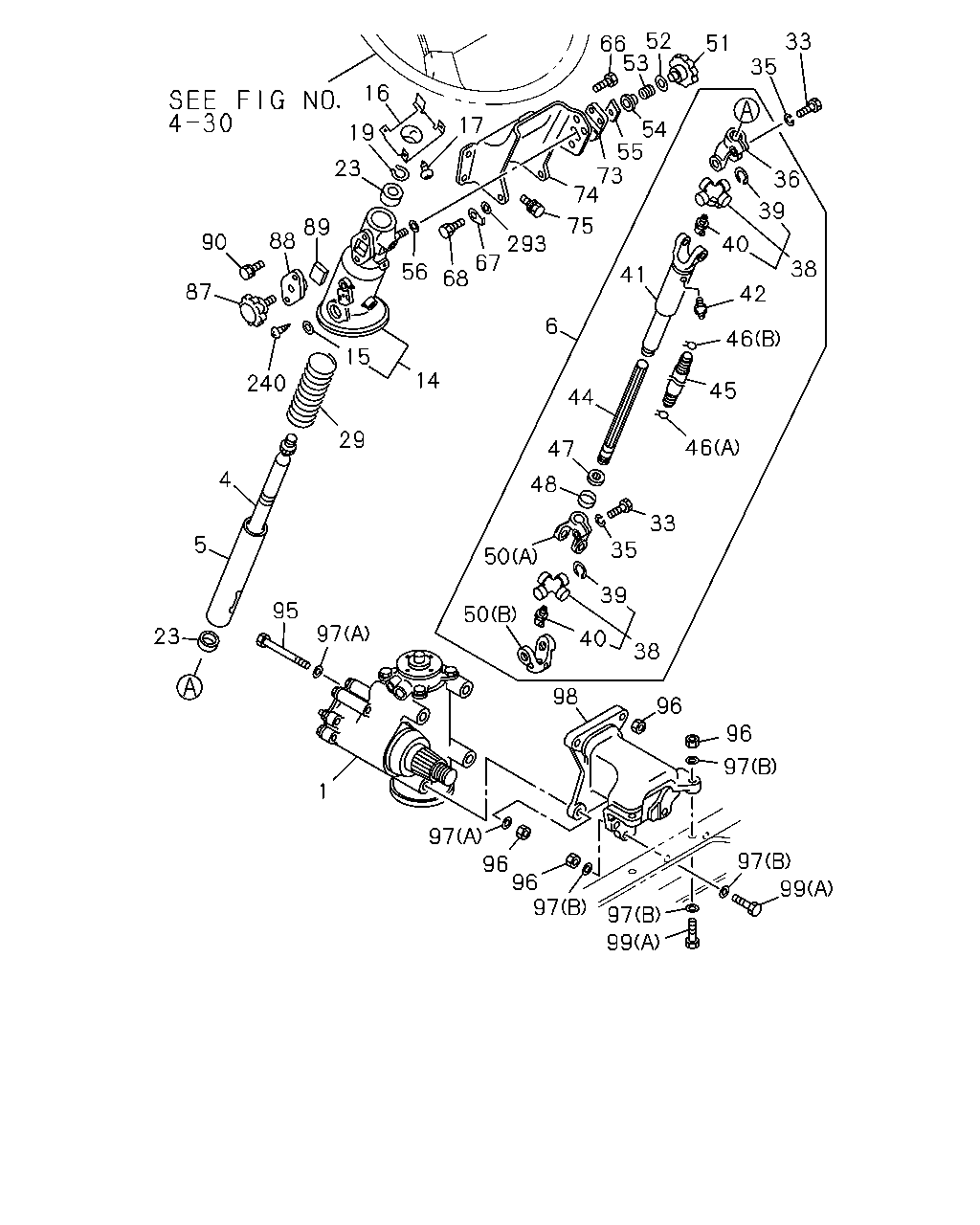

çizim 6701
99 97 99 97 97 96 96 98 97 96 96 97 1 97 95 23 5 4 240 29 15 14 87 90 88 89 56 68 67 293 6 75 74 73 55 54 51 52 66 53 16 19 17 23 33 35 36 39 40 38 42 46 45 46 41 44 47 48 33 35 39 40 38 50 50
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-761-3 01 1 9002-9306 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-805-2 01 1 9307- ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-765-3 01 1 9002-9306 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-826-0 01 1 9307- ● ●
4 SHAFT; STRG 1-44131-118-1 01 1 9002- ● ● ● ●
5 COLUMN; STRG 1-44211-043-1 01 1 9002- ● ●
5 COLUMN; STRG
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44211-043-1 01 1 9002- ● ●
5 COLUMN; STRG
STEERING COLUMN WO/TILT<WV6> 		1-44211-045-0 01 1 9002- ● ●
6 SHAFT; STRG LWR 1-44130-352-2 01 1 9002- ● ●
6 SHAFT; STRG LWR 1-44130-399-1 01 1 9002- ● ●
14 CASE ASM; STRG SHAFT 1-44221-046-3 01 1 9002- ● ●
14 CASE ASM; STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44221-046-3 01 1 9002- ● ●
15 WASHER; TILT CENTER 1-44227-077-1 02 1 9002- ● ●
15 WASHER; TILT CENTER
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-077-1 02 1 9002- ● ●
16 BRACKET; COMB SW 1-44227-074-2 01 1 9002- ● ● ● ●
17 SCREW; BRKT
M5X10 PAN-HD 		9-93490-510-0 03 1 9002- ● ●
17 SCREW; BRKT
EXC. STEERING COLUMN WO/TILT<WV6> M5X10 PAN-HD 		9-93490-510-0 03 1 9002- ● ●
17 SCREW; BRKT
STEERING COLUMN WO/TILT<WV6> M5X10 W/LK WASHER 		9-03910-510-0 03 1 9002- ● ●
19 RING; SNAP,STRG SHAFT
ID=23.4 T=1.5 		1-09588-140-0 02 1 9002- ● ●
19 RING; SNAP,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> ID=23.4 T=1.5 		1-09588-140-0 02 1 9002- ● ●
23 BEARING; BALL,STRG SHAFT 1-09800-157-0 02 1 9002- ● ● ● ●
29 SPRING; COLUMN 1-09583-223-0 01 1 9002- ● ●
29 SPRING; COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> 		1-09583-223-0 01 1 9002- ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9002-9304 ● ● ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9002-9304 ● ●
33 BOLT; STRG SHAFT TO UNIT
EXC. STEERING COLUMN WO/TILT<WV6> M10X35 		1-09009-126-1 01 1 9002-9304 ● ●
33 BOLT; STRG SHAFT TO UNIT
STEERING COLUMN WO/TILT<WV6> M10X35 		1-09009-126-1 02 1 9002-9304 ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9305- ● ● ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 9305- ● ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9002-9304 ● ● ● ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9002-9304 ● ●
35 WASHER; LK,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> ID=10.2 		9-09150-810-0 01 1 9002-9304 ● ●
35 WASHER; LK,STRG SHAFT
STEERING COLUMN WO/TILT<WV6> ID=10.2 		9-09150-810-0 02 1 9002-9304 ● ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9305- ● ● ● ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9305- ● ●
36 YOKE; STRG SHAFT 1-44135-179-0 01 1 9002- ● ● ● ●
38 JOURNAL; STRG SHAFT 1-44135-098-0 02 1 9002- ● ● ● ●
39 RING; SNAP,JOURNAL
T=1.2 		1-09587-061-1 08 1 9002- ● ● ● ●
40 NIPPLE; GREASE,JOURNAL 1-09380-004-0 02 1 9002- ● ● ● ●
41 YOKE; SLEEVE,STRG 1-44135-143-0 01 1 9002- ● ●
41 YOKE; SLEEVE,STRG 1-44135-156-0 01 1 9002- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
M6 STRAIGHT 		9-09031-006-0 01 1 9002- ● ● ● ●
44 SHAFT; SPLINE,STRG 1-44131-109-2 01 1 9002- ● ● ● ●
45 BOOT; STRG SHAFT 1-44139-064-0 01 1 9002- ● ●
46 CLIP; BOOT
(A) 		1-09704-086-1 01 1 9002- ● ●
46 CLIP; BOOT
(B) 		1-09704-087-2 01 1 9002- ● ●
47 WASHER; CORK,STRG SHAFT 1-44139-050-0 01 1 9002- ● ● ● ●
48 RETAINER; FELT RING SLEEVE 1-44139-075-0 01 1 9002- ● ● ● ●
50 YOKE; SPLINE,STRG SHAFT
(A) 		1-44135-090-1 01 1 9002- ● ●
50 YOKE; SPLINE,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> (A) 		1-44135-090-1 01 1 9002- ● ●
50 YOKE; SPLINE,STRG SHAFT
(B) 		1-44135-179-0 01 1 9002- ● ●
50 YOKE; SPLINE,STRG SHAFT
EXC. STEERING COLUMN WO/TILT<WV6> (B) 		1-44135-179-0 01 1 9002- ● ●
50 YOKE; SPLINE,STRG SHAFT
STEERING COLUMN WO/TILT<WV6> 		1-44135-179-0 02 1 9002- ● ●
51 KNOB; TILT 1-44227-099-0 01 1 9002- ● ●
51 KNOB; TILT
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-099-0 01 1 9002- ● ●
52 WASHER; PL,ADJ LEVER 1-44227-086-0 01 1 9002- ● ●
52 WASHER; PL,ADJ LEVER
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-086-0 01 1 9002- ● ●
53 SPRING; TILT KNOB 1-09580-343-0 01 1 9002- ● ●
53 SPRING; TILT KNOB
EXC. STEERING COLUMN WO/TILT<WV6> 		1-09580-343-0 01 1 9002- ● ●
54 GUIDE; SPR 1-44227-072-0 01 1 9002- ● ●
54 GUIDE; SPR
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-072-0 01 1 9002- ● ●
55 PLATE; GUIDE 1-44227-091-0 01 1 9002- ● ●
55 PLATE; GUIDE
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-091-0 01 1 9002- ● ●
56 WASHER; LOCATING PLATE 1-09503-127-1 01 1 9002- ● ●
56 WASHER; LOCATING PLATE
EXC. STEERING COLUMN WO/TILT<WV6> 		1-09503-127-1 01 1 9002- ● ●
66 BOLT; STRG COLUMN
M6X20 W/LK WASHER 		9-01900-620-0 03 1 9002-9204 ● ●
66 BOLT; STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> M6X20 W/LK WASHER 		9-01900-620-0 03 1 9002-9204 ● ●
66 BOLT; STRG COLUMN
M6X20 W/LK WASHER 		0-50040-620-0 03 1 9205- ● ●
66 BOLT; STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> M6X20 W/LK WASHER 		0-50040-620-0 03 1 9205- ● ●
66 BOLT; STRG COLUMN
STEERING COLUMN WO/TILT<WV6> M12X75 		9-91056-275-0 02 1 9002-9005 ● ●
66 BOLT; STRG COLUMN
STEERING COLUMN WO/TILT<WV6> M12X75 		0-10806-275-0 02 1 9006- ● ●
67 WASHER; LK,BRKT,STRG COLUMN 1-44227-082-0 02 1 9002- ● ●
67 WASHER; LK,BRKT,STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-082-0 02 1 9002- ● ●
67 WASHER; LK,BRKT,STRG COLUMN
STEERING COLUMN WO/TILT<WV6> ID=12.2 		9-09150-512-0 02 1 9002- ● ●
68 PIN; TILT CENTER 1-44227-080-1 02 1 9002- ● ●
68 PIN; TILT CENTER
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-080-1 02 1 9002- ● ●
73 PLATE; LOCATING 1-44227-092-0 01 1 9002- ● ●
73 PLATE; LOCATING
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-092-0 01 1 9002- ● ●
74 BRACKET; SUPPORT,STRG 1-44221-047-1 01 1 9002- ● ●
74 BRACKET; SUPPORT,STRG
STEERING COLUMN WO/TILT<WV6> 		1-44221-045-1 01 1 9002- ● ●
74 BRACKET; SUPPORT,STRG
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44221-049-1 01 1 9002- ● ●
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		9-01970-825-0 04 1 9002-9005 ● ● ● ●
75 BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9006- ● ● ● ●
87 KNOB; TELESCOPIC 1-44227-098-0 01 1 9002- ● ●
87 KNOB; TELESCOPIC
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-098-0 01 1 9002- ● ●
88 FLANGE; KNOB 1-44227-056-1 01 1 9002- ● ●
88 FLANGE; KNOB
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-056-1 01 1 9002- ● ●
89 PLUNGER; STRG COLUMN 1-44227-093-0 01 1 9002- ● ●
89 PLUNGER; STRG COLUMN
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-093-0 01 1 9002- ● ●
90 BOLT; FLANGE
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204 ● ●
90 BOLT; FLANGE
EXC. STEERING COLUMN WO/TILT<WV6> M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204 ● ●
90 BOLT; FLANGE
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205- ● ●
90 BOLT; FLANGE
EXC. STEERING COLUMN WO/TILT<WV6> M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205- ● ●
95 BOLT; STRG UNIT
M16X177 		1-09000-426-0 02 1 9002- ● ● ● ●
95 BOLT; STRG UNIT
M16X166 		1-09000-427-0 02 1 9002- ● ● ● ●
96 NUT; STRG UNIT
M14 		9-99110-514-0 06 1 9002- ● ● ● ●
96 NUT; STRG UNIT
M16 		9-99110-516-0 02 1 9002- ● ● ● ●
97 WASHER; PL,STRG UNIT
(A) ID=16.2 		1-09503-223-0 06 1 9002- ● ● ● ●
97 WASHER; PL,STRG UNIT
(B) ID=15 		9-09651-069-0 12 1 9002- ● ● ● ●
98 BRACKET; STRG GEAR BOX 1-44226-108-3 01 1 9002- ● ●
98 BRACKET; STRG GEAR BOX 1-44226-109-3 01 1 9002- ● ●
99 BOLT; BRKT TO FRAME
(B) M14X55 		1-09000-425-0 04 1 9002- ● ● ● ●
99 BOLT; BRKT TO FRAME
(A) M14X55 		9-92061-455-0 02 1 9002- ● ● ● ●
240 SCREW; CLIP
M6X8 W/LK WASHER 		1-09981-040-0 01 1 9002- ● ● ● ●
293 WASHER; TILT CENTER 1-44227-077-1 02 1 9002- ● ●
293 WASHER; TILT CENTER
EXC. STEERING COLUMN WO/TILT<WV6> 		1-44227-077-1 02 1 9002- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
