4-30 — STEERING WHEEL AND COWL (#3035) — 78 parça

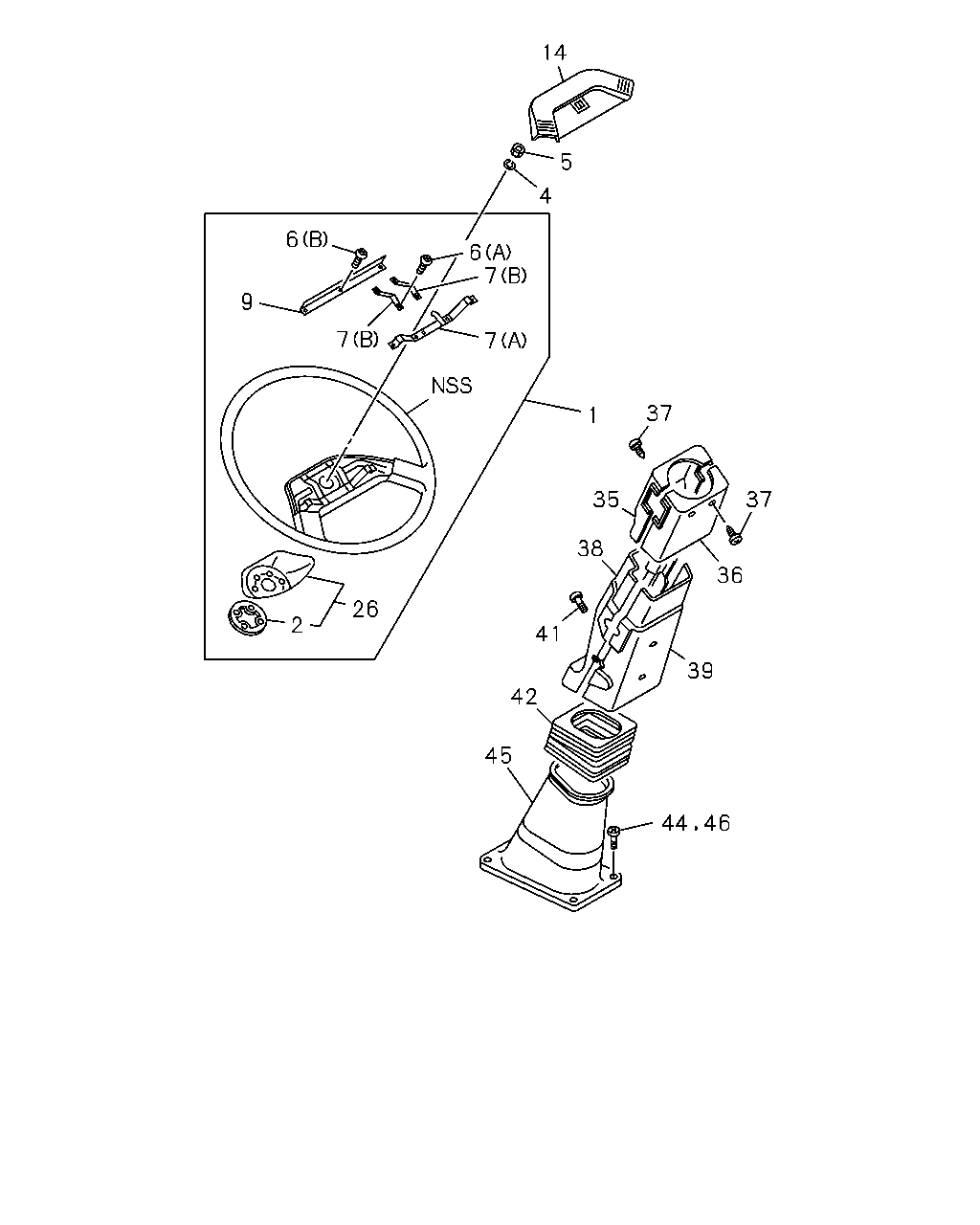

44 46 45 42 41 38 35 37 37 36 39 1 7 7 6 4 5 14 6 9 7 2 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	WHEEL; STRG STEERING WHEEL 2SPOKES DELUXE<N32>	1-44110-064-4	01	1	9002-	●	●
1	WHEEL; STRG EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	1-44110-048-3	01	1	9002-	●	●
1	WHEEL; STRG STEERING WHEEL 2SPOKES DELUXE<N32>	1-44110-084-2	01	1	9002-			●	●
1	WHEEL; STRG EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	1-44110-053-2	01	1	9002-			●	●
2	RING; HORN CONTACT	1-44129-020-2	01	1	9002-	●	●	●	●
4	WASHER; LK,STRG WHEEL ID=20.2	9-09150-520-0	01	1	9002-	●	●	●	●
5	NUT; STRG WHEEL TO SHAFT M20	9-99110-420-0	01	1	9002-	●	●	●	●
6	SCREW; HORN SPR CONTACT STEERING WHEEL 2SPOKES DELUXE<N32> (A) M4X10	1-44129-034-0	01	1	9002-	●	●	●	●
6	SCREW; HORN SPR CONTACT STEERING WHEEL 2SPOKES DELUXE<N32> (B)	1-44129-035-0	06	1	9002-	●	●	●	●
6	SCREW; HORN SPR CONTACT EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	9-07076-310-0	06	1	9002-	●	●	●	●
7	SPRING; HORN CONTACT STEERING WHEEL 2SPOKES DELUXE<N32> (A)	1-44129-032-1	01	1	9002-	●	●	●	●
7	SPRING; HORN CONTACT STEERING WHEEL 2SPOKES DELUXE<N32> (B)	1-44129-033-0	02	1	9002-	●	●	●	●
7	SPRING; HORN CONTACT EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	1-44129-026-0	02	1	9002-	●	●	●	●
9	PLATE; HORN CONTACT STEERING WHEEL 2SPOKES DELUXE<N32>	1-44129-031-0	01	1	9002-9312	●	●	●	●
9	PLATE; HORN CONTACT STEERING WHEEL 2SPOKES DELUXE<N32>	1-44129-038-0	01	1	9401-		●		●
9	PLATE; HORN CONTACT EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	1-44126-002-0	02	1	9002-	●	●	●	●
14	BUTTON; HORN,STRG WHEEL STEERING WHEEL 2SPOKES DELUXE<N32>	1-44120-019-1	01	1	9002-	●	●	●	●
14	BUTTON; HORN,STRG WHEEL EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	1-44120-016-3	01	1	9002-	●	●	●	●
26	COVER; STRG WHEEL,LWR STEERING WHEEL 2SPOKES DELUXE<N32>	1-44120-021-1	01	1	9002-	●	●	●	●
35	COWL; STRG,UPR FRT	1-79997-097-3	01	1	9002-	●	●
35	COWL; STRG,UPR FRT	1-79997-098-3	01	1	9002-			●	●
36	COWL; STRG,UPR RR	1-79997-099-2	01	1	9002-	●	●	●	●
37	SCREW; STRG COWL UPR M5X12 TAPPING	9-09829-321-1	04	1	9002-	●	●	●	●
38	COWL; STRG,LWR FRT	1-79997-102-2	01	1	9002-	●	●
38	COWL; STRG,LWR FRT EXC. STEERING COLUMN WO/TILT<WV6>	1-79997-102-2	01	1	9002-			●	●
38	COWL; STRG,LWR FRT STEERING COLUMN WO/TILT<WV6>	1-79997-103-2	01	1	9002-			●	●
39	COWL; STRG,LWR RR	1-79997-106-1	01	1	9002-	●	●
39	COWL; STRG,LWR RR EXC. STEERING COLUMN WO/TILT<WV6>	1-79997-106-1	01	1	9002-			●	●
39	COWL; STRG,LWR RR STEERING COLUMN WO/TILT<WV6>	1-79997-107-1	01	1	9002-			●	●
41	SCREW; STRG COWL LWR M6X12 W/PL WASHER	1-09981-380-0	02	1	9002-	●	●	●	●
41	SCREW; STRG COWL LWR M6X12	9-03494-612-0	02	1	9002-	●	●	●	●
42	BOOT; STEERING COLUMN	1-44219-044-0	01	1	9002-	●	●
42	BOOT; STEERING COLUMN EXC. STEERING COLUMN WO/TILT<WV6>	1-44219-044-0	01	1	9002-			●	●
42	BOOT; STEERING COLUMN STEERING COLUMN WO/TILT<WV6>	1-79997-112-0	01	1	9002-			●	●
44	SCREW; STRG COWL M6X16	1-09981-425-0	04	1	9002-9207	●	●	●	●
45	BOOT; STRG SHAFT	1-79998-184-1	01	1	9002-	●	●
45	BOOT; STRG SHAFT	1-79997-154-1	01	1	9002-			●	●
46	SCREW; STRG SHAFT BOOT M6X16 W/PL WASHER	1-09981-505-0	04	1	9208-	●	●	●	●

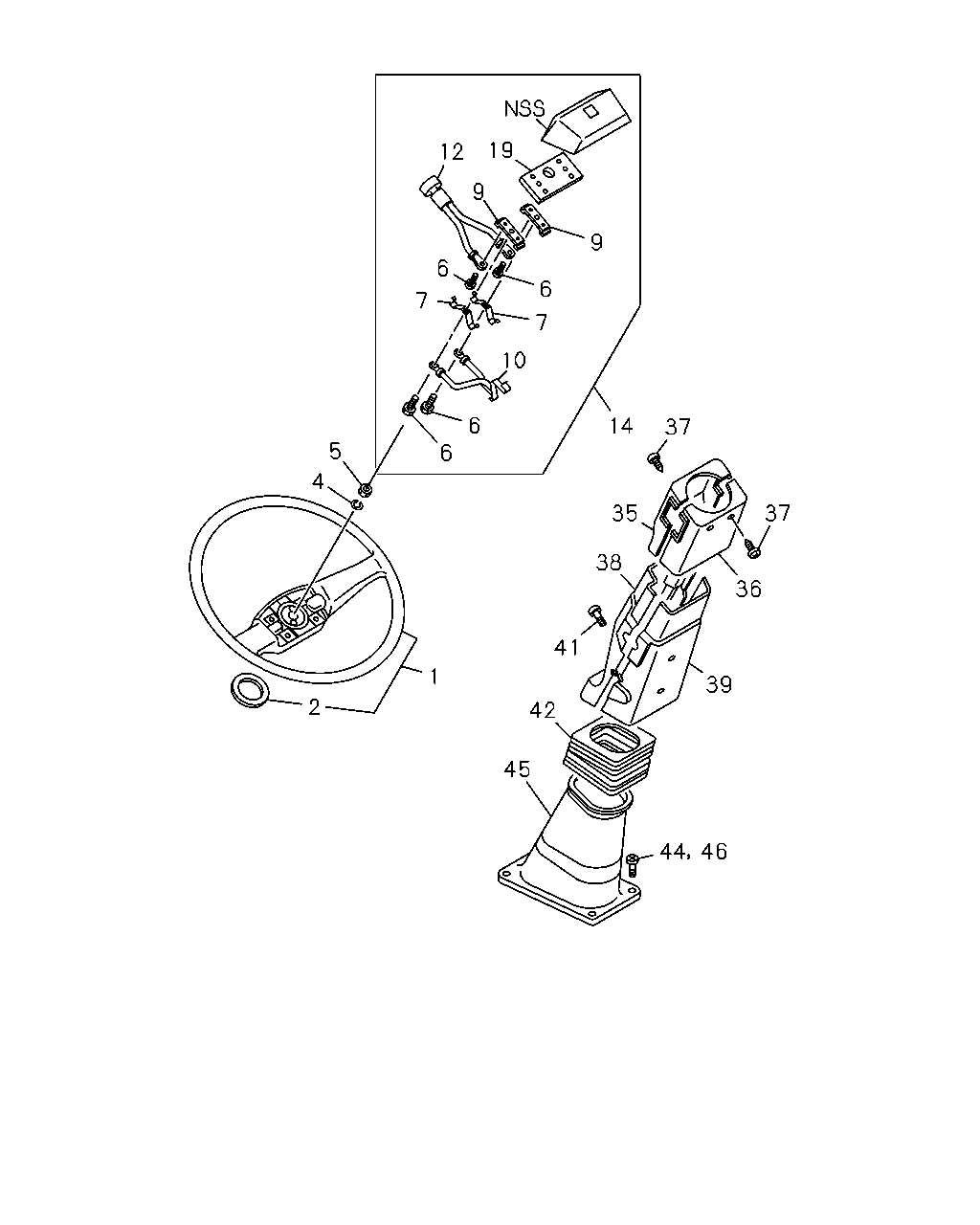

44 46 45 42 41 38 35 36 37 39 37 14 1 2 4 5 6 6 10 7 6 9 19 12 9 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	WHEEL; STRG STEERING WHEEL 2SPOKES DELUXE<N32>	1-44110-064-4	01	1	9002-	●	●
1	WHEEL; STRG EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	1-44110-048-3	01	1	9002-	●	●
1	WHEEL; STRG STEERING WHEEL 2SPOKES DELUXE<N32>	1-44110-084-2	01	1	9002-			●	●
1	WHEEL; STRG EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	1-44110-053-2	01	1	9002-			●	●
2	RING; HORN CONTACT	1-44129-020-2	01	1	9002-	●	●	●	●
4	WASHER; LK,STRG WHEEL ID=20.2	9-09150-520-0	01	1	9002-	●	●	●	●
5	NUT; STRG WHEEL TO SHAFT M20	9-99110-420-0	01	1	9002-	●	●	●	●
6	SCREW; HORN SPR CONTACT STEERING WHEEL 2SPOKES DELUXE<N32> (A) M4X10	1-44129-034-0	01	1	9002-	●	●	●	●
6	SCREW; HORN SPR CONTACT STEERING WHEEL 2SPOKES DELUXE<N32> (B)	1-44129-035-0	06	1	9002-	●	●	●	●
6	SCREW; HORN SPR CONTACT EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	9-07076-310-0	06	1	9002-	●	●	●	●
7	SPRING; HORN CONTACT STEERING WHEEL 2SPOKES DELUXE<N32> (A)	1-44129-032-1	01	1	9002-	●	●	●	●
7	SPRING; HORN CONTACT STEERING WHEEL 2SPOKES DELUXE<N32> (B)	1-44129-033-0	02	1	9002-	●	●	●	●
7	SPRING; HORN CONTACT EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	1-44129-026-0	02	1	9002-	●	●	●	●
9	PLATE; HORN CONTACT STEERING WHEEL 2SPOKES DELUXE<N32>	1-44129-031-0	01	1	9002-9312	●	●	●	●
9	PLATE; HORN CONTACT STEERING WHEEL 2SPOKES DELUXE<N32>	1-44129-038-0	01	1	9401-		●		●
9	PLATE; HORN CONTACT EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	1-44126-002-0	02	1	9002-	●	●	●	●
10	SPRING ASM; LEAD EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	1-44129-027-2	01	1	9002-	●	●	●	●
12	CORD; HORN EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	1-44127-003-0	01	1	9002-	●	●	●	●
14	BUTTON; HORN,STRG WHEEL STEERING WHEEL 2SPOKES DELUXE<N32>	1-44120-019-1	01	1	9002-	●	●	●	●
14	BUTTON; HORN,STRG WHEEL EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	1-44120-016-3	01	1	9002-	●	●	●	●
19	SEAT; HORN EXC. STEERING WHEEL 2SPOKES DELUXE<N32>	1-44129-028-3	01	1	9002-	●	●	●	●
35	COWL; STRG,UPR FRT	1-79997-097-3	01	1	9002-	●	●
35	COWL; STRG,UPR FRT	1-79997-098-3	01	1	9002-			●	●
36	COWL; STRG,UPR RR	1-79997-099-2	01	1	9002-	●	●	●	●
37	SCREW; STRG COWL UPR M5X12 TAPPING	9-09829-321-1	04	1	9002-	●	●	●	●
38	COWL; STRG,LWR FRT	1-79997-102-2	01	1	9002-	●	●
38	COWL; STRG,LWR FRT EXC. STEERING COLUMN WO/TILT<WV6>	1-79997-102-2	01	1	9002-			●	●
38	COWL; STRG,LWR FRT STEERING COLUMN WO/TILT<WV6>	1-79997-103-2	01	1	9002-			●	●
39	COWL; STRG,LWR RR	1-79997-106-1	01	1	9002-	●	●
39	COWL; STRG,LWR RR EXC. STEERING COLUMN WO/TILT<WV6>	1-79997-106-1	01	1	9002-			●	●
39	COWL; STRG,LWR RR STEERING COLUMN WO/TILT<WV6>	1-79997-107-1	01	1	9002-			●	●
41	SCREW; STRG COWL LWR M6X12 W/PL WASHER	1-09981-380-0	02	1	9002-	●	●	●	●
41	SCREW; STRG COWL LWR M6X12	9-03494-612-0	02	1	9002-	●	●	●	●
42	BOOT; STEERING COLUMN	1-44219-044-0	01	1	9002-	●	●
42	BOOT; STEERING COLUMN EXC. STEERING COLUMN WO/TILT<WV6>	1-44219-044-0	01	1	9002-			●	●
42	BOOT; STEERING COLUMN STEERING COLUMN WO/TILT<WV6>	1-79997-112-0	01	1	9002-			●	●
44	SCREW; STRG COWL M6X16	1-09981-425-0	04	1	9002-9207	●	●	●	●
45	BOOT; STRG SHAFT	1-79998-184-1	01	1	9002-	●	●
45	BOOT; STRG SHAFT	1-79997-154-1	01	1	9002-			●	●
46	SCREW; STRG SHAFT BOOT M6X16 W/PL WASHER	1-09981-505-0	04	1	9208-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
