Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11039 - EXZ RHD EURO4
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#30347) — 61 parça
◀

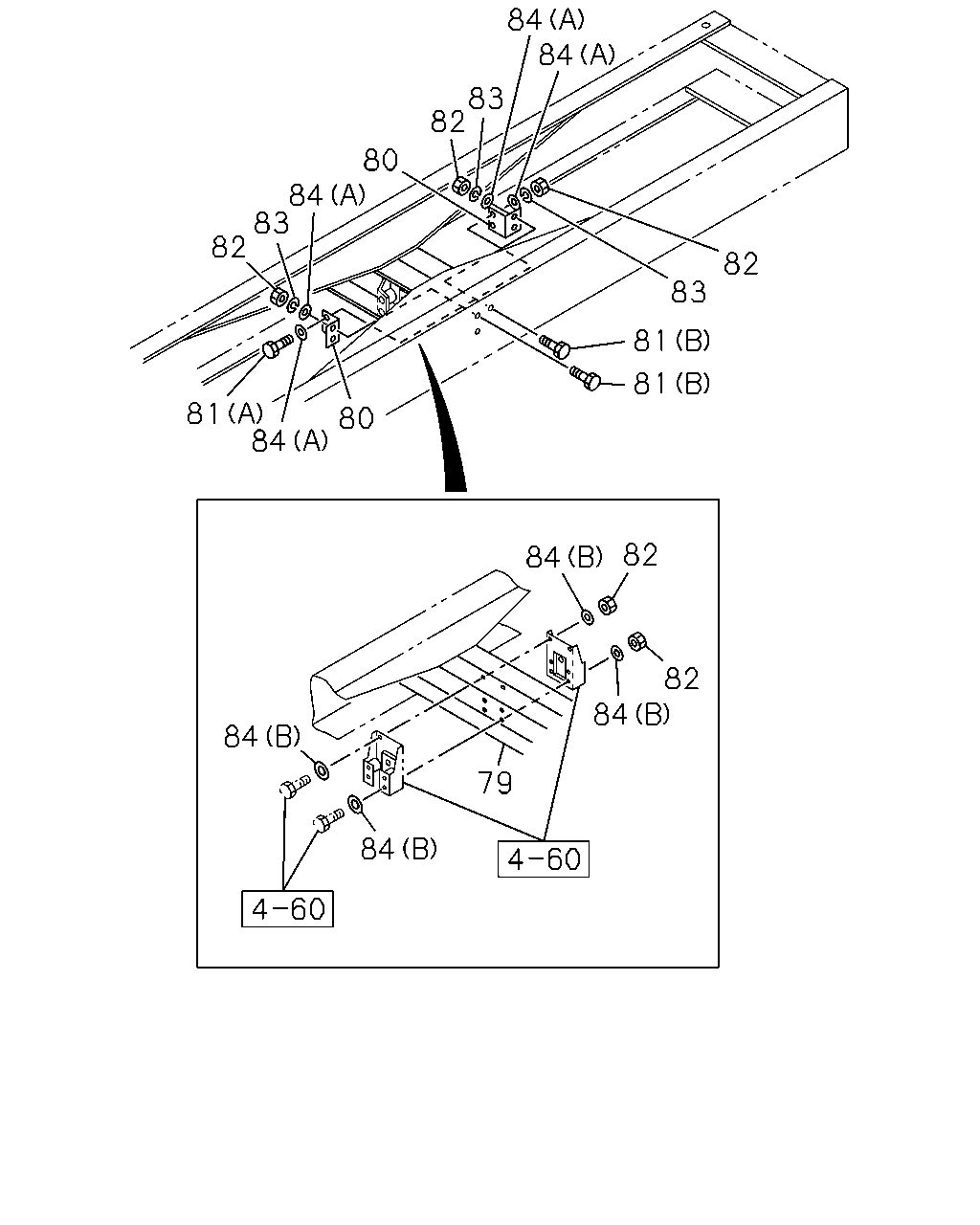

[501A] BRACKET;REAR (11 parça)

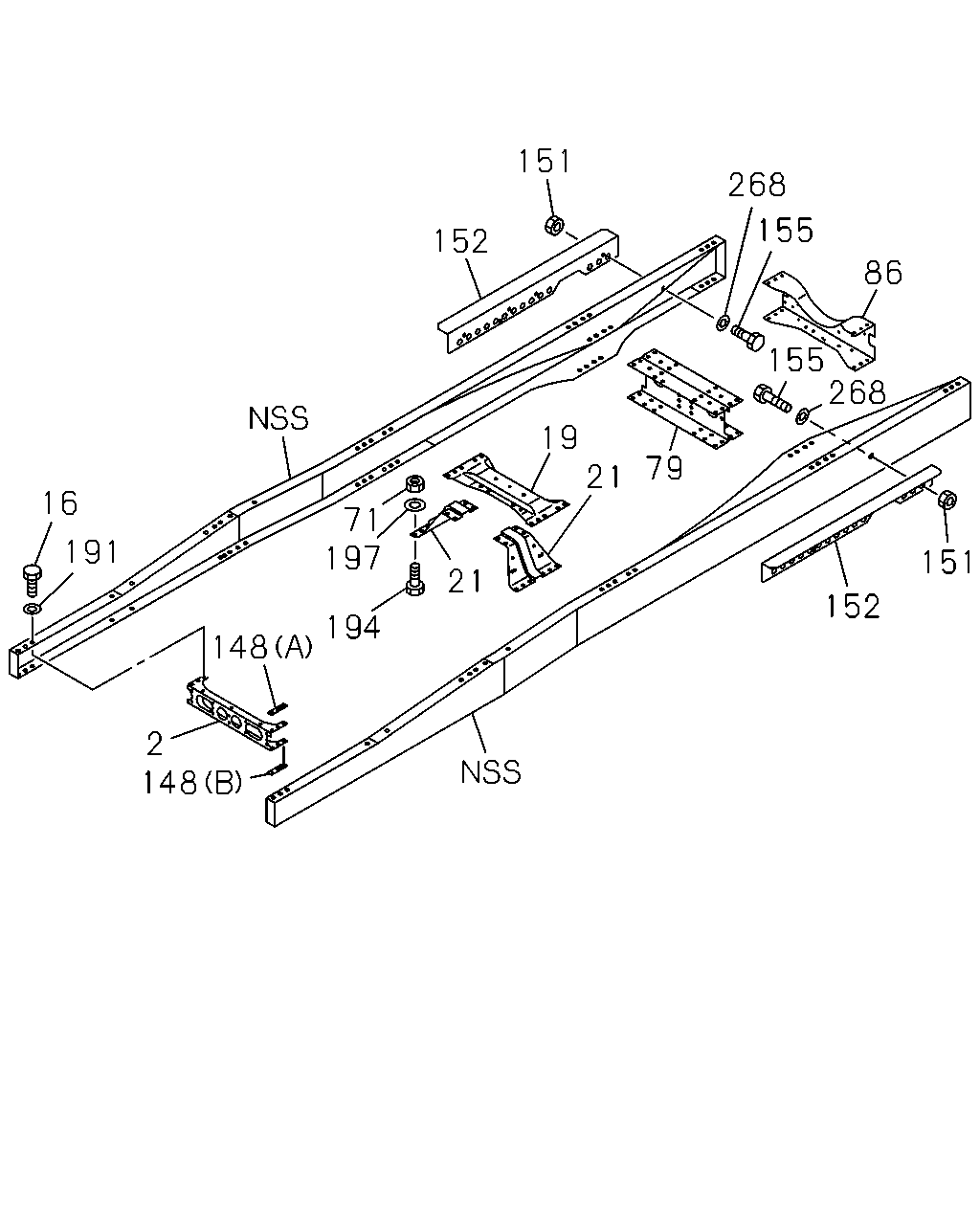

[501A] CROSS MEMBER (20 parça)

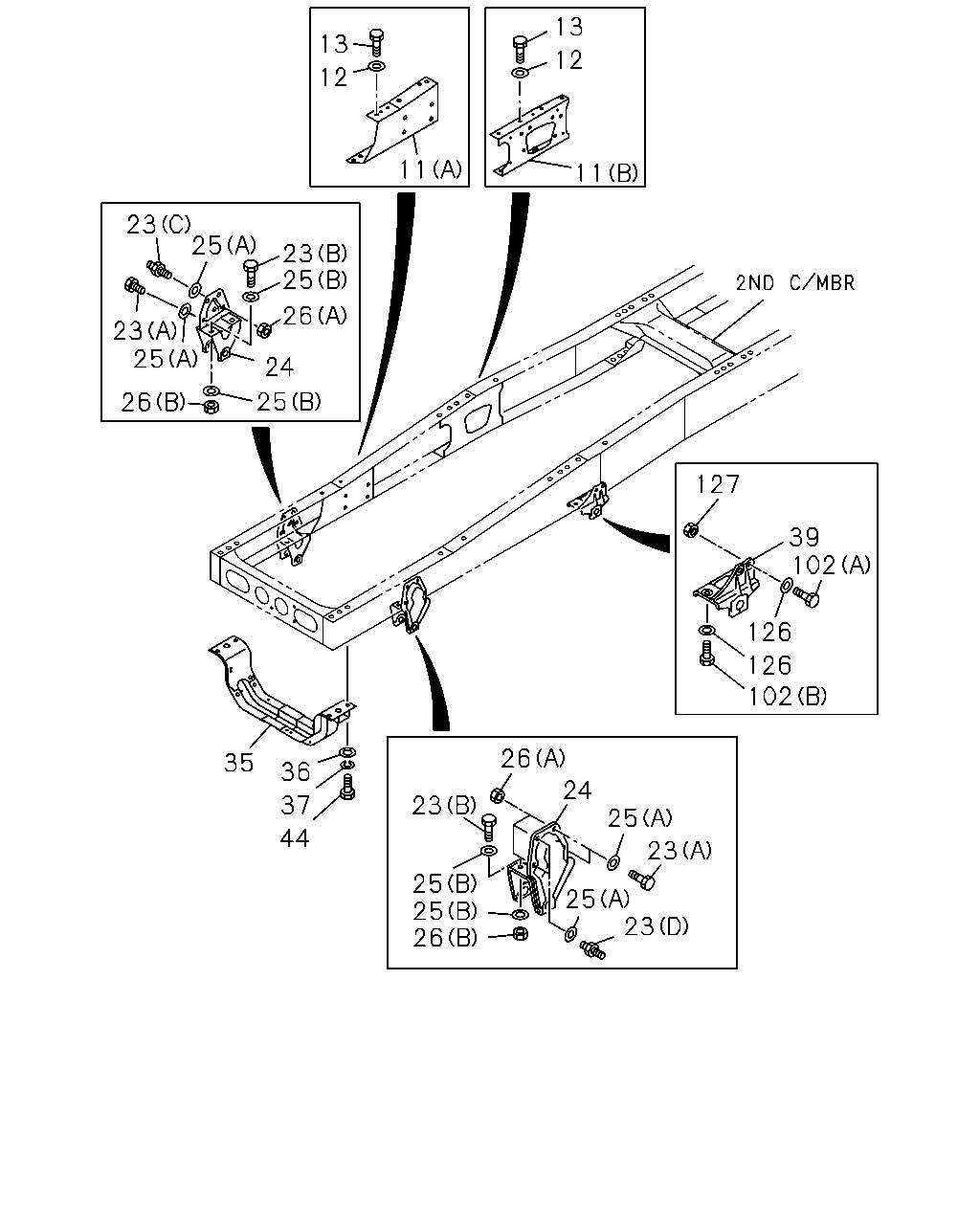

[501A] BRACKET;FRONT AND UNDER MEMBER (30 parça)
▶
84
84
83
82
80
84
83
82
82
83
81
81
84
81
80
82
84
82
84
84
79
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
79
MEMBER; CROSS,TRUNNION ASM
1-53181-729-6
01
1
0610-
80
BRACKET; C/MBR
1-53167-610-0
04
1
0610-
81
BOLT; BRKT
(B) M14X40
0-20951-440-0
08
1
0610-
81
BOLT; BRKT
(A) M14X55
9-91066-455-0
04
1
0610-
82
NUT; BRKT
M14
0-91110-514-0
04
1
0610-
82
NUT; BRKT
M14
0-91110-514-0
12
1
0610-
83
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
12
1
0610-
84
WASHER; PL,BRKT
(A) ID=15 OD=26
9-09164-514-0
16
1
0610-1104
84
WASHER; PL,BRKT
(A) ID=15 OD=26
0-91614-514-0
16
1
1105-
84
WASHER; PL,BRKT
(B) ID=15
9-09651-069-0
08
1
0610-1201
84
WASHER; PL,BRKT
(B) ID=15
8-98010-627-1
08
1
1202-
151
268
155
152
86
155
268
19
21
79
16
71
197
191
21
151
152
194
148
2
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97604-959-3
01
1
0610-
16
BOLT; 1ST C/MBR TO S/MBR
M14X40
0-20951-440-0
02
1
0610-
19
MEMBER; CROSS,2ND
1-53174-265-0
01
1
0610-
21
GUSSET; 2ND CROSS
1-53164-226-1
01
1
0610-
21
GUSSET; 2ND CROSS
1-53164-227-1
01
1
0610-
71
NUT; 2ND C/MBR
M14
0-91110-514-0
08
1
0610-
79
MEMBER; CROSS,TRUNNION ASM
1-53181-729-6
01
1
0610-
86
MEMBER; CROSS,RR SUSP RR
8-98047-518-0
01
1
0610-
148
SPACER; C/MBR
(A)
1-53168-400-1
02
1
0610-
148
SPACER; C/MBR
(B)
1-53168-403-1
02
1
0610-
151
NUT; OUTRIGGER
M16
0-91110-516-0
28
1
0610-
152
OUTRIGGER
1-53456-355-1
01
1
0610-
152
OUTRIGGER
1-53456-356-1
01
1
0610-
155
BOLT; OUTRIGGER
M16X50
0-20951-650-0
28
1
0610-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=15
9-09651-069-0
02
1
0610-1201
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=15
8-98010-627-1
02
1
1202-
194
BOLT; 2ND C/MBR
M14X60
0-20951-460-0
08
1
0610-
197
WASHER; PL,2ND C/MBR
ID=15
9-09651-069-0
08
1
0610-1201
197
WASHER; PL,2ND C/MBR
ID=15
8-98010-627-1
08
1
1202-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
28
1
0610-
13
13
12
12
11
11
23
25
23
25
23
25
26
24
25
26
127
39
102
126
126
102
26
35
36
24
37
23
25
44
23
25
25
26
25
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
0610-
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
0610-
11
BRACKET; ENG MTG
(B)
8-98056-611-1
01
1
0610-
11
BRACKET; ENG MTG
(B)
8-98056-612-0
01
1
0610-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
06
1
0610-1201
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
06
1
1202-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
06
1
0610-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
05
1
0610-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0610-
23
BOLT; BRKT,SPR
(C) M12X35,M14X45 L=100
1-09029-075-0
01
1
0610-
23
BOLT; BRKT,SPR
(D) M12X25,M14X45 L=81
1-09029-103-0
02
1
0610-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
0610-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
0610-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0610-1504
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1505-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
08
1
0610-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
08
1
1202-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
08
1
0610-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0610-
35
MEMBER; UNDER
1-53174-263-2
01
1
0610-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0610-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0610-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
0610-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
0610-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
0610-
102
BOLT; BRKT,RR SPR
(A) M14X40
0-20951-440-0
04
1
0610-
102
BOLT; BRKT,RR SPR
(B) M14X50
0-20951-450-0
04
1
0610-
126
WASHER; PL,BRKT
ID=15
9-09651-069-0
08
1
0610-1201
126
WASHER; PL,BRKT
ID=15
8-98010-627-1
08
1
1202-
127
NUT; BRKT
M14
0-91110-514-0
04
1
0610-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
