◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25B - REAR FINAL DRIVE ▶
4-25B — REAR FINAL DRIVE (#3034) — 101 parça

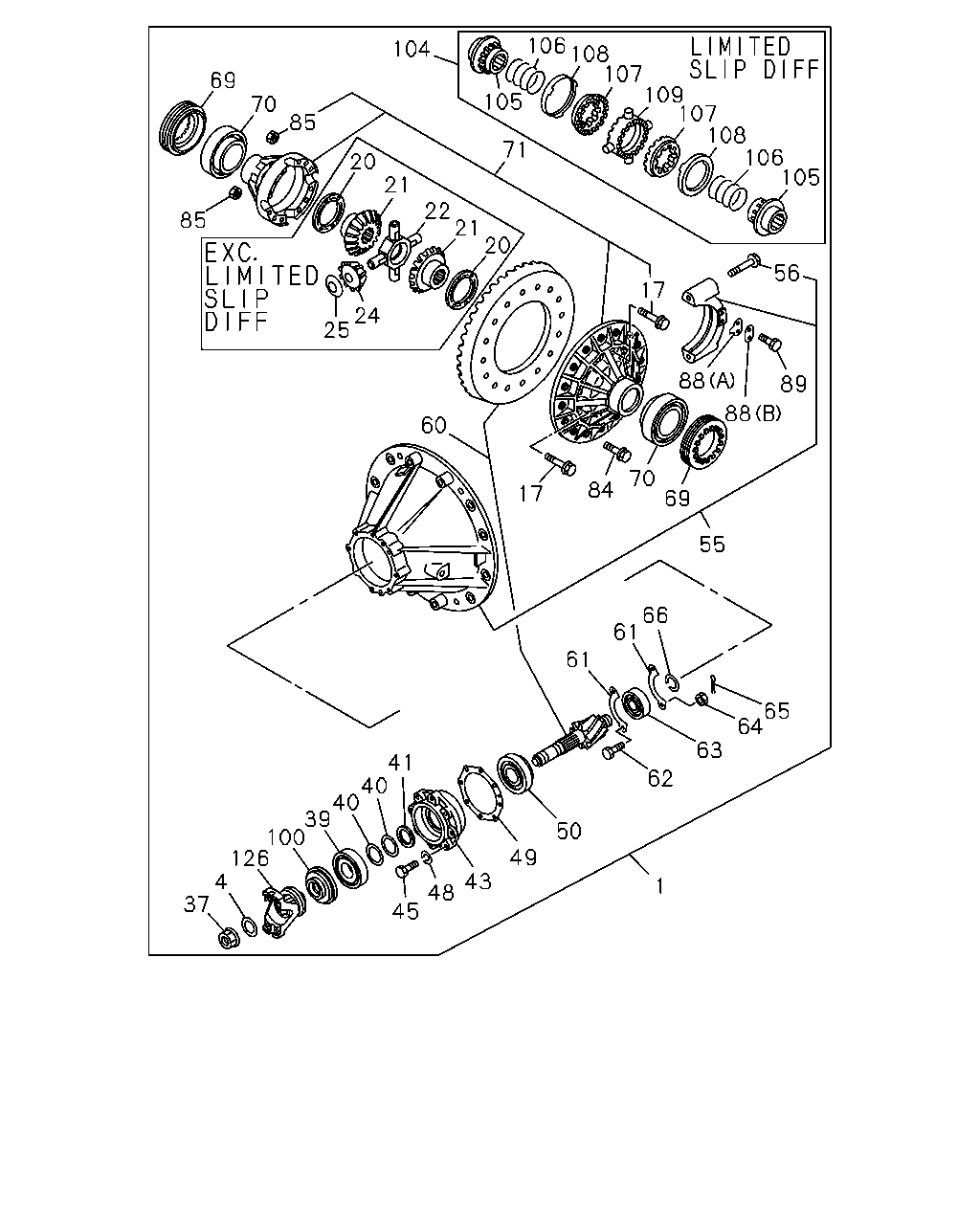

çizim 5632
1 65 64 63 62 50 49 43 48 45 37 4 126 100 39 40 40 41 61 61 66 55 69 70 84 17 60 25 24 20 21 22 21 20 85 70 69 85 71 104 105 106 108 107 109 107 108 106 105 56 17 89 88 88
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
43/6 		1-41001-380-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 43/6 		1-41001-485-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 43/6 		1-41001-380-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
45/7 		1-41001-381-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 45/7 		1-41001-486-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 45/7 		1-41001-381-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 43/7 		1-41001-487-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 43/7 		1-41001-382-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
39/7 		1-41001-383-0 01 1 9307- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 39/7 		1-41001-488-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 39/7 		1-41001-383-0 01 1 9002-9306 ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 9002- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 9002- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 9002- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.8 		1-41562-112-0 AR 1 9002- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.9 		1-41562-113-0 AR 1 9002- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.0 		1-41562-114-0 AR 1 9002- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.1 		1-41562-115-0 AR 1 9002- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.2 		1-41562-116-0 AR 1 9002- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.3 		1-41562-117-0 AR 1 9002- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.4 		1-41562-118-0 AR 1 9002- ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=16 		1-41561-086-0 02 1 9002- ● ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF(G86) OD=35 		1-41521-037-0 01 1 9002- ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=10 		1-41551-025-0 04 1 9002- ● ● ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF(G86) T=1.6 		1-41552-017-0 04 1 9002- ● ● ● ●
37 NUT; DRIVING PINION
M46 		1-09449-062-0 01 1 9002-9110 ● ● ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 9111- ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 9002- ● ● ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-076-0 01 1 9002- ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9002- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9002- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9002- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9002- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9002- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9002- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9002- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9002- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9002- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9002- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9002- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9002- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9002- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9002- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9002- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9002- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9002- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9002- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9002- ● ● ● ●
43 CAGE; FINAL PINION
T=81 		1-41151-030-0 01 1 9002- ● ● ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 9002- ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 9002- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-024-0 AR 1 9002- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-025-0 AR 1 9002- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-057-0 AR 1 9002- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-058-0 AR 1 9002- ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-0 01 1 9002- ● ● ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-074-1 01 1 9002- ● ● ● ●
55 CARRIER; DIFF 1-41110-071-1 01 1 9002-9602 ● ● ● ●
55 CARRIER; DIFF 1-41110-109-0 01 1 9603- ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9002- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
43/6 		1-41210-406-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
43/6 		1-41210-461-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
45/7 		1-41210-407-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
45/7 		1-41210-463-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-408-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-464-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-409-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-465-0 01 1 9311- ●
61 RETAINER; PILOT BRG,PINION 1-41227-003-0 02 1 9002-9204 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9205- ● ● ● ●
62 BOLT; RET
M8X38 		9-01145-838-0 02 1 9002-9005 ● ● ● ●
62 BOLT; RET
M8X38 		1-09042-036-0 02 1 9006-9204 ● ● ● ●
62 BOLT; RET
M8X40 		1-09042-038-1 02 1 9205- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9002- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9002- ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9002- ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9002- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9002- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9002- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9002- ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7 		1-09812-156-0 02 1 9002- ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=39.7 		1-09812-158-0 02 1 9002- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9002- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9002- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9002- ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) 		1-41124-006-0 02 1 9002- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) 		9-41124-005-0 02 1 9002- ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9002- ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 9002- ● ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF(G86) 		1-41530-023-0 01 1 9002-9306 ● ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF(G86) 		1-41530-023-0 01 1 9307- ●
105 GEAR; SIDE
LIMITED SLIP DIFF(G86) Z=24 		1-41539-028-0 02 1 9002-9306 ● ● ● ●
105 GEAR; SIDE
LIMITED SLIP DIFF(G86) Z=24 		1-41539-028-0 02 1 9307- ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF(G86) 		1-41535-004-0 02 1 9002- ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF(G86) 		1-41532-006-0 02 1 9002-9306 ● ● ● ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF(G86) 		1-41532-006-0 02 1 9002- ●
108 RING; HOLD OUT
LIMITED SLIP DIFF(G86) 		1-41539-024-0 02 1 9002-9306 ● ● ● ●
108 RING; HOLD OUT
LIMITED SLIP DIFF(G86) 		1-41539-024-0 02 1 9307- ●
109 SPIDER; DIFF
LIMITED SLIP DIFF(G86) 		1-41539-027-0 01 1 9002-9306 ● ● ● ●
109 SPIDER; DIFF
LIMITED SLIP DIFF(G86) 		1-41539-027-0 01 1 9307- ●
126 COUPLING; DRIVING PINION 1-37245-143-2 01 1 9002- ● ● ● ●
