◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11039 - EXZ RHD EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#30338) — 95 parça

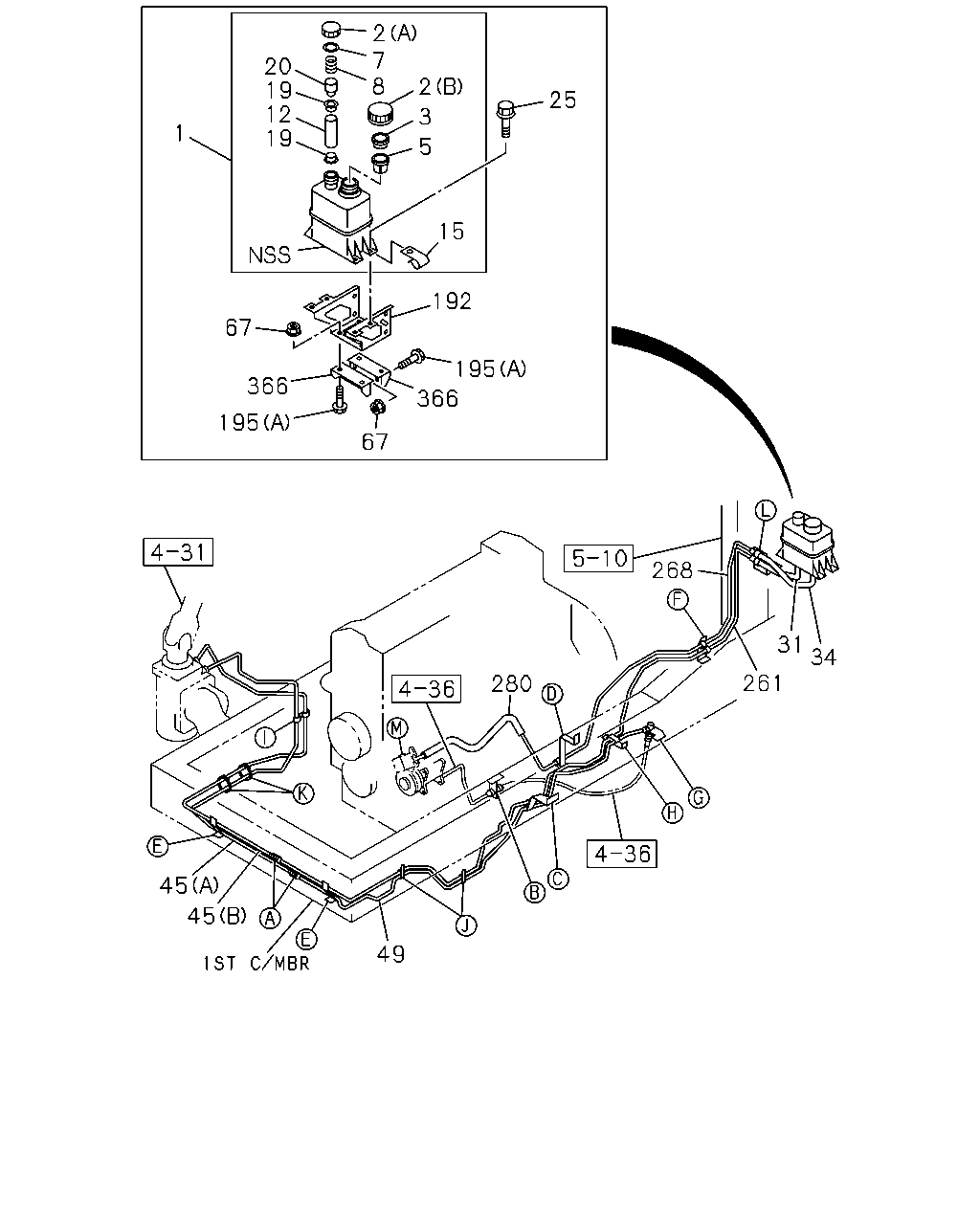

çizim 140558
31 34 261 268 280 49 45 45 366 195 67 195 366 67 15 25 3 2 5 19 12 19 20 1 2 8 7 192
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-235-1 01 1 0610-
2 CAP; OIL TANK,P/S
(A) WO/GAUGE 		1-21241-003-6 01 1 0610-
2 CAP; OIL TANK,P/S
(B) W/GAUGE 		1-21241-006-4 01 1 0610-
3 GASKET; OIL TANK,P/S 1-21249-006-2 01 1 0610-
5 STRAINER; OIL TANK,P/S 1-21235-006-1 01 1 0610-
7 RING; GASKET,OIL TANK,P/S 1-21249-005-0 01 1 0610-
8 SPRING; OIL TANK,P/S 1-09580-599-0 01 1 0610-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-004-1 01 1 0610-
15 PLATE; FILTER,OIL TANK 1-21249-016-0 04 1 0610-
19 SEAT; OIL TANK 1-21262-001-0 02 1 0610-
20 HOLDER; FILTER,OIL TANK,P/S 1-21239-001-2 01 1 0610-
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0610-
31 HOSE; P/S OIL TANK,INL 8-98034-999-0 01 1 0610-
34 HOSE; P/S OIL TANK,OUTLET 8-98035-000-0 01 1 0610-
45 PIPE; OIL,P/S UNIT TO UNION
(A) 		8-98056-504-0 01 1 0610-
45 PIPE; OIL,P/S UNIT TO UNION
(B) 		8-98056-505-0 01 1 0610-1309
45 PIPE; OIL,P/S UNIT TO UNION
(B) 		8-98257-649-0 01 1 1310-
49 PIPE; OIL,FLEX HOSE TO UNION
L=2074 		1-21117-850-0 01 1 0610-
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0610-
192 BRACKET; P/S OIL TANK 1-21489-200-1 01 1 0610-
195 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0610-
195 BOLT; BRKT
(C) M10X35 FLANGE 		0-28151-035-0 01 1 0610-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 0610-
195 BOLT; BRKT
(D) M10X20 FLANGE 		0-28651-020-0 02 1 0610-
261 PIPE; OIL,UNION TO HOSE 8-98034-831-0 01 1 0610-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE
L=1340 		8-98034-832-0 01 1 0610-
280 HOSE; P/S OIL PUMP,INL 1-21117-301-0 01 1 0610-
366 SPACER; BRKT TO MEMBER 1-21489-196-1 02 1 0610-

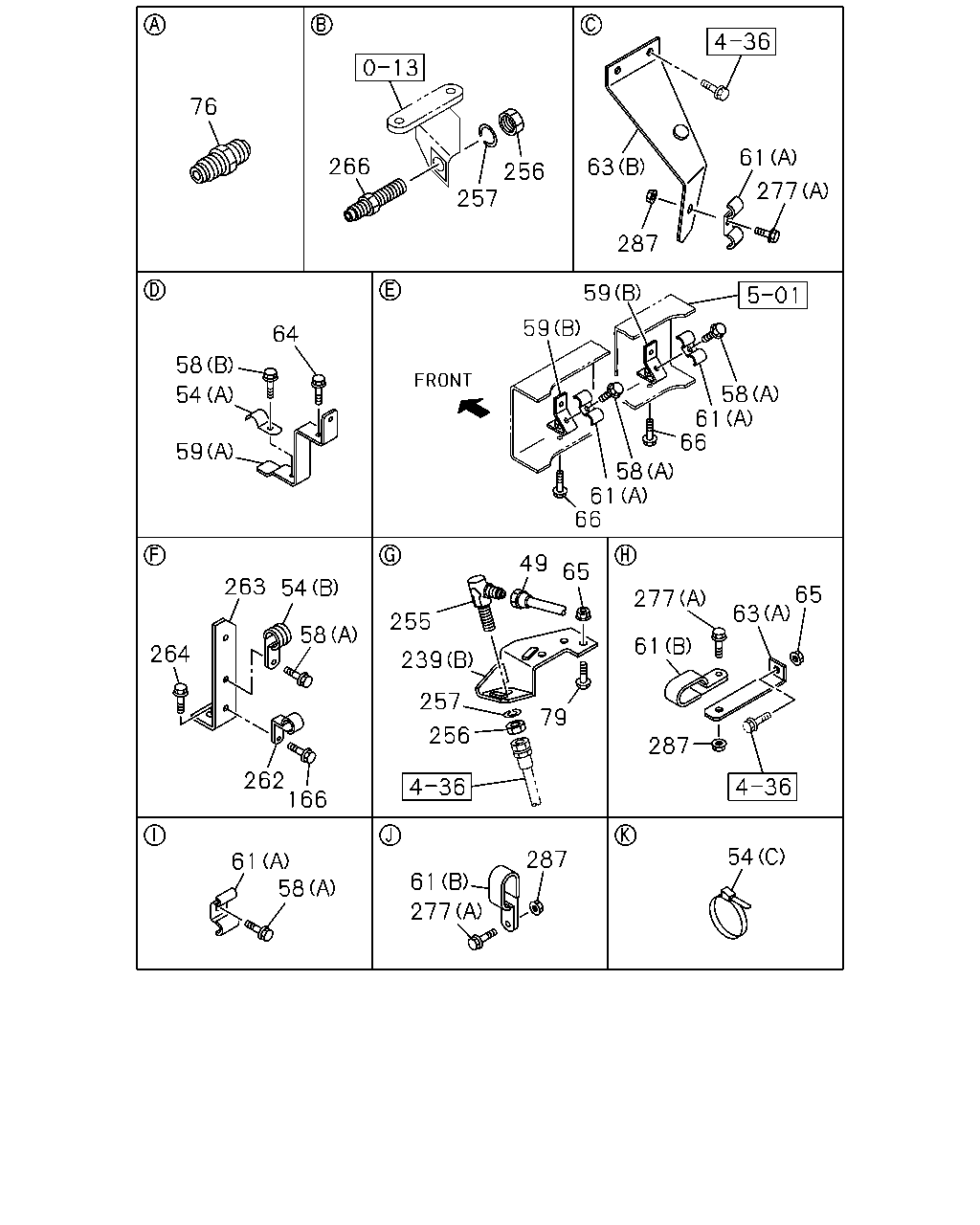

çizim 140578
76 266 257 256 63 287 61 277 64 58 54 59 59 59 58 61 66 58 61 66 49 65 277 63 65 61 287 54 287 61 277 61 58 166 262 264 263 54 58 255 239 257 256 79
BalonParca AdiParca NoAdetTipApplied Date
49 PIPE; OIL,FLEX HOSE TO UNION
L=2074 		1-21117-850-0 01 1 0610-
54 CLIP; OIL PIPE
(C) L=350 		1-09707-183-0 02 1 1310-
54 CLIP; OIL PIPE
(A) ID=23.6 L=35 		1-09700-634-0 01 1 0610-
54 CLIP; OIL PIPE
(B) ID=26 L=27 		1-09701-006-0 01 1 0610-
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0610-0610
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0611-
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0611-
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0610-0610
58 BOLT; CLIP
(B) M10X20 FLANGE 		0-28651-020-0 02 1 0610-0610
59 BRACKET; CLIP,OIL PIPE
(A) 		1-47471-183-0 01 1 0610-
59 BRACKET; CLIP,OIL PIPE
(B) 		1-47479-521-0 02 1 0610-
61 CLIP; OIL PIPE
(B) ID=16X2 L=20 		0-95325-535-0 03 1 0610-
61 CLIP; OIL PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0610-
61 CLIP; OIL PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 03 1 0610-
63 BRACKET; CLIP,P/S
(B) 		1-47471-146-0 01 1 0610-
63 BRACKET; CLIP,P/S
(A) L=112 		1-47475-694-1 01 1 0610-
64 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28050-825-0 01 1 0610-0610
64 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28050-830-0 01 1 0611-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0610-
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 0610-
76 UNION; OIL PIPE
M22 L=51 		0-92123-015-0 01 1 0610-
76 UNION; OIL PIPE
M22 L=51 		0-92123-015-0 01 1 0610-
79 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0610-
166 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0610-
239 BRACKET; FLEX HOSE
(A) 		1-21464-780-0 01 1 0610-
239 BRACKET; FLEX HOSE
(B) 		1-47471-227-0 01 1 0610-
255 UNION; FLEX HOSE
M22 & M22 ELBOW 		1-09654-163-1 01 1 0610-
256 NUT; UNION
M22 		0-91111-522-0 01 1 0610-
256 NUT; UNION
M22 		0-91111-522-0 01 1 0610-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0610-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0610-
262 CLIP; P/S PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0610-
263 BRACKET; P/S PIPE 1-47471-191-1 01 1 0610-
264 BOLT; PIPE BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0610-
266 UNION; OIL PIPE,P/S
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0610-
277 BOLT; HOSE CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0610-
277 BOLT; HOSE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0610-
287 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0610-

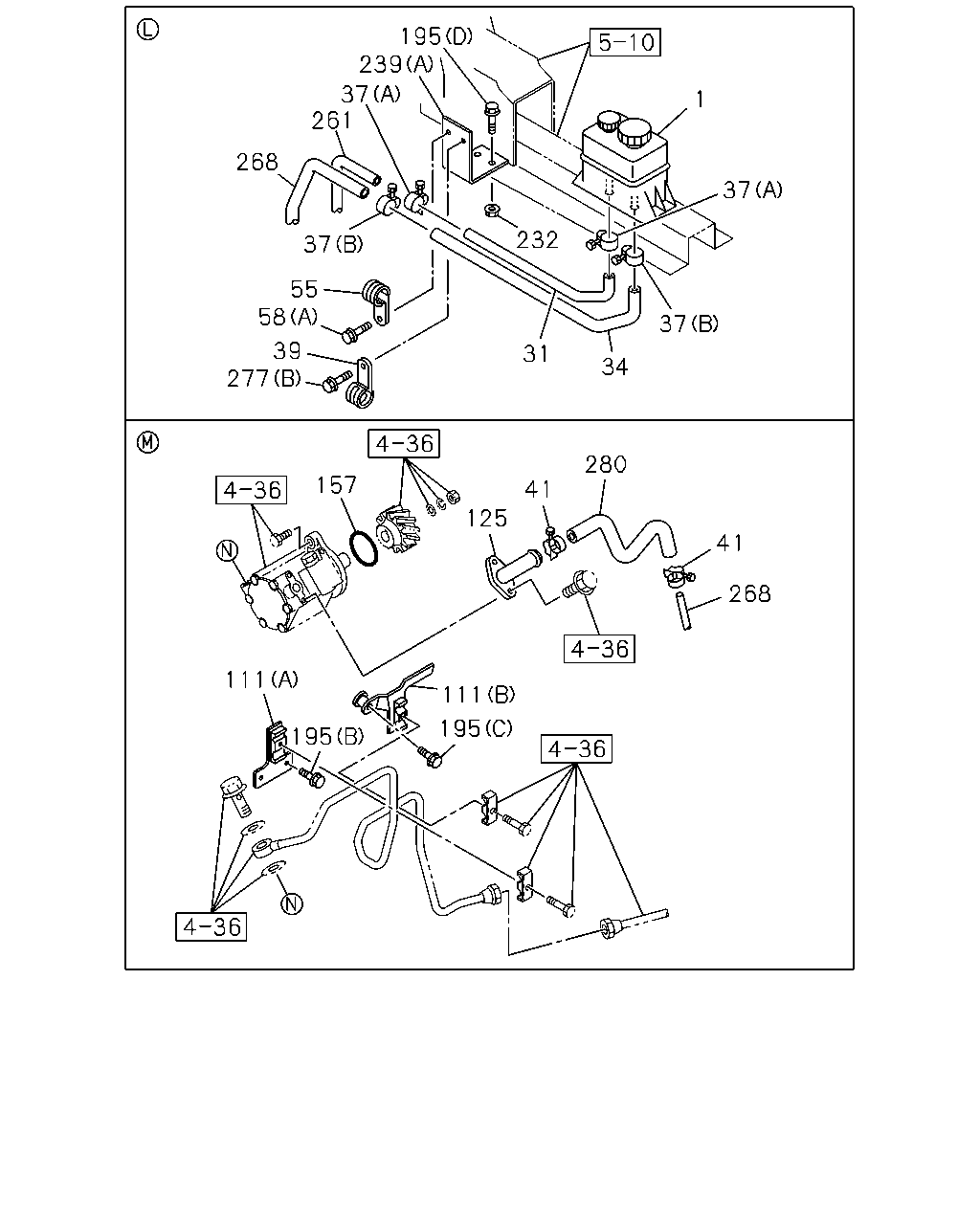

çizim 140587
1 37 37 34 31 232 195 239 37 261 268 37 55 58 39 277 41 268 280 41 125 157 111 195 111 195
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-235-1 01 1 0610-
31 HOSE; P/S OIL TANK,INL 8-98034-999-0 01 1 0610-
34 HOSE; P/S OIL TANK,OUTLET 8-98035-000-0 01 1 0610-
37 CLIP; HOSE,P/S
(B) ID=38 		9-09915-041-1 02 1 0610-
37 CLIP; HOSE,P/S
(A) ID=28 		9-09915-672-1 02 1 0610-
39 CLIP; FLEX HOSE
ID=37 L=35 		1-09701-109-0 01 1 0610-
41 CLIP; HOSE,P/S
ID=38 		9-09915-041-1 02 1 0610-
55 CLIP; P/S RUBBER HOSE
ID=28 L=32 		1-09701-107-1 01 1 0610-
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0610-0610
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0611-
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0611-
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0610-0610
58 BOLT; CLIP
(B) M10X20 FLANGE 		0-28651-020-0 02 1 0610-0610
111 BRACKET; OIL PIPE
(A) 		1-13345-186-0 01 1 0610-
111 BRACKET; OIL PIPE
(B) 		1-13345-187-0 01 1 0610-
125 CONNECTOR; P/S PUMP 1-13313-532-0 01 1 0610-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6 		1-09623-421-0 01 1 0610-
195 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0610-
195 BOLT; BRKT
(C) M10X35 FLANGE 		0-28151-035-0 01 1 0610-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 0610-
195 BOLT; BRKT
(D) M10X20 FLANGE 		0-28651-020-0 02 1 0610-
232 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0610-
239 BRACKET; FLEX HOSE
(A) 		1-21464-780-0 01 1 0610-
239 BRACKET; FLEX HOSE
(B) 		1-47471-227-0 01 1 0610-
261 PIPE; OIL,UNION TO HOSE 8-98034-831-0 01 1 0610-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE
L=1340 		8-98034-832-0 01 1 0610-
277 BOLT; HOSE CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0610-
277 BOLT; HOSE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0610-
280 HOSE; P/S OIL PUMP,INL 1-21117-301-0 01 1 0610-
