Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11039 - EXZ RHD EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶
4-31 — STEERING COLUMN AND SHAFT
(#30336) — 89 parça
◀

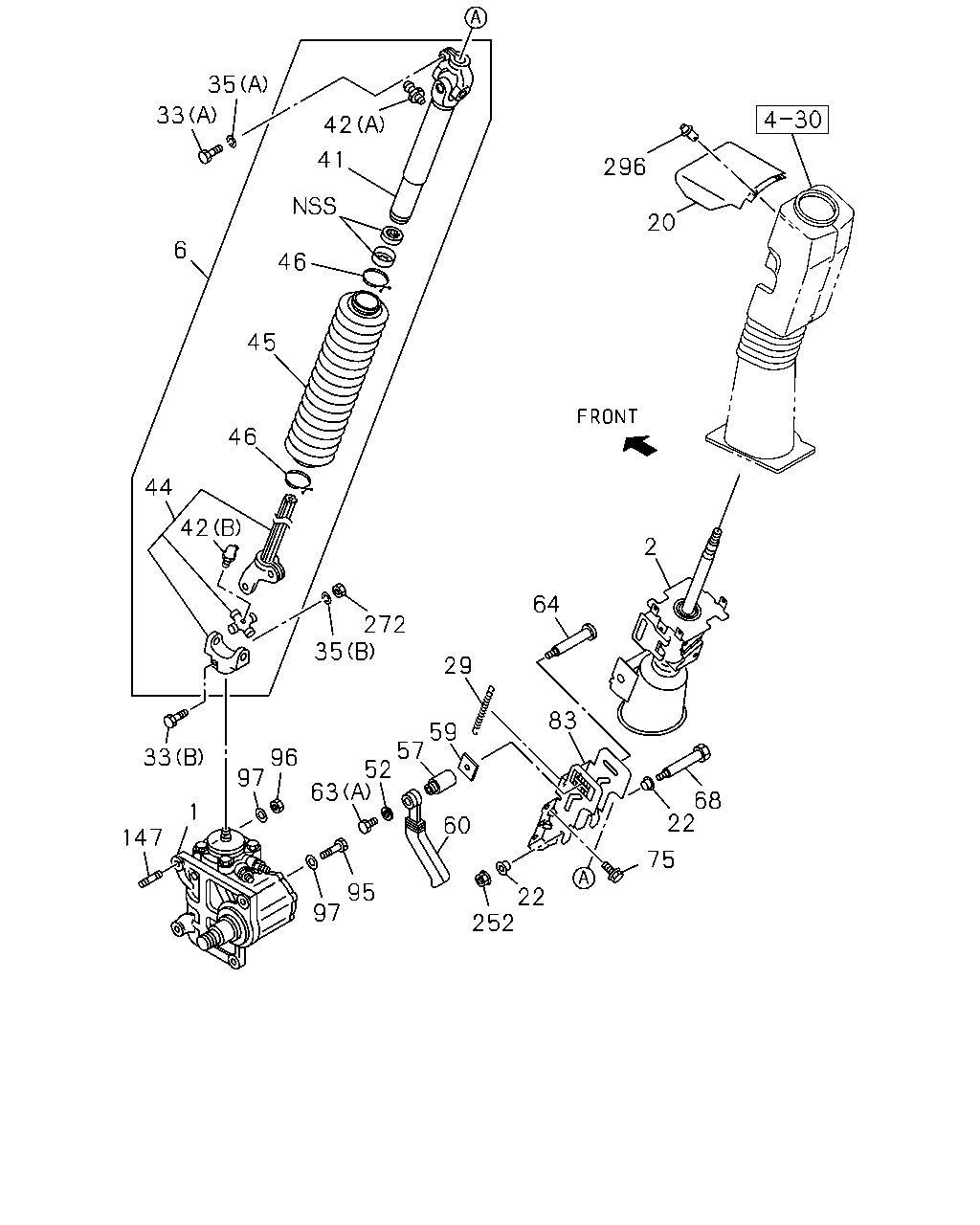

[431A] -'07/11 (46 parça)

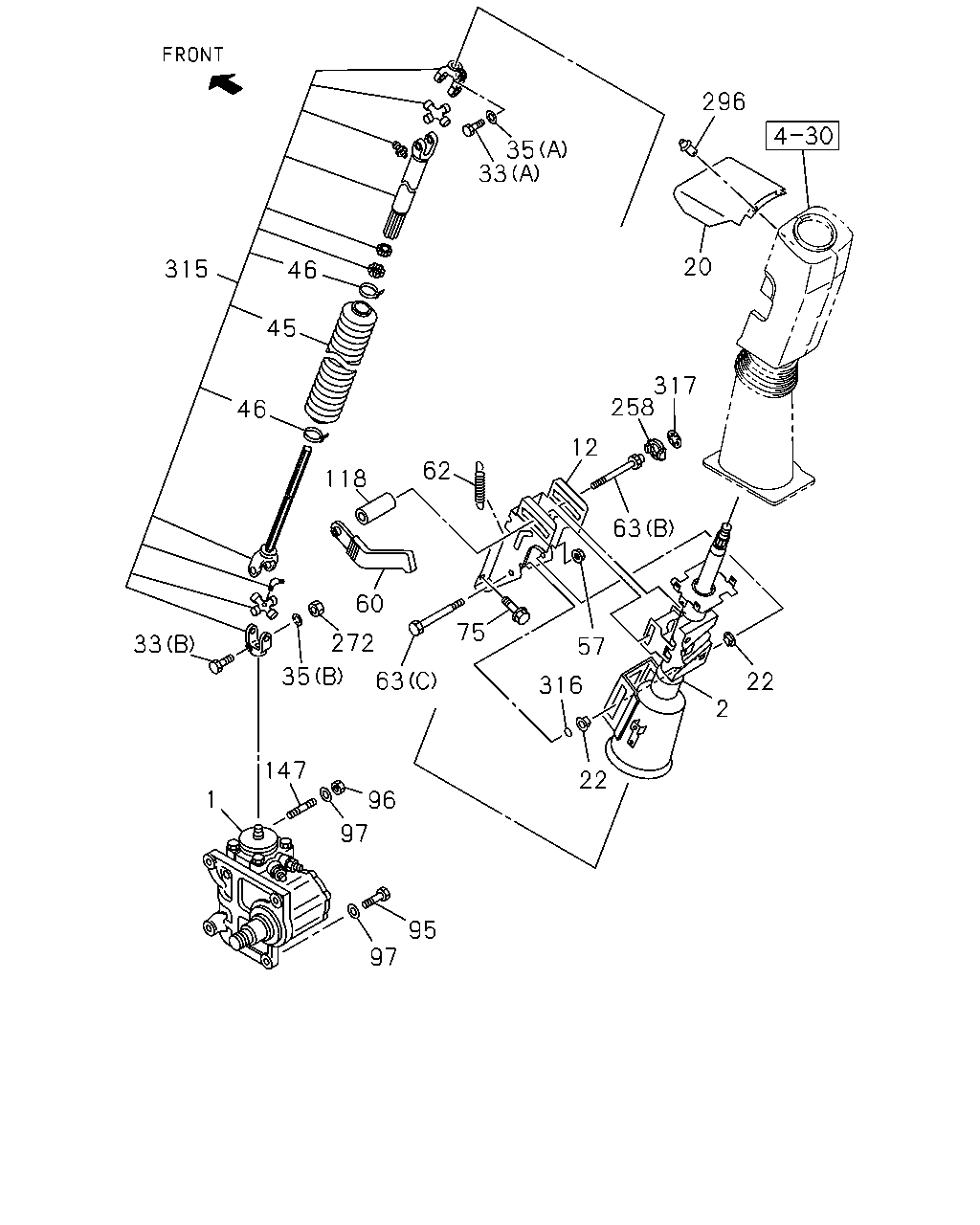

[431A] '07/12- (43 parça)
▶
35
33
42
41
296
20
6
46
45
46
44
42
2
64
272
35
29
83
59
57
52
33
96
97
63
68
22
1
60
147
75
95
97
22
252
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-904-0
01
1
0610-0703
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-942-2
01
1
0704-
2
SHAFT ASM; STRG
1-44130-783-0
01
1
0610-0711
2
SHAFT ASM; STRG
1-44130-823-1
01
1
0712-
6
SHAFT; STRG LWR
1-44135-385-0
01
1
0610-0711
20
COVER; STRG SHAFT
1-72438-121-3
01
1
0610-
22
BUSHING; STRG COLUMN
1-44227-165-0
02
1
0610-0711
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
0712-
29
SPRING; COLUMN
1-44227-136-0
01
1
0610-0711
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-489-0
01
1
0610-0707
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-786-0
01
1
0708-
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-141-0
01
1
0610-0711
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-153-0
01
1
0712-
35
WASHER; LK,STRG SHAFT
(B) ID=10.2
0-91510-810-0
01
1
0610-
35
WASHER; LK,STRG SHAFT
(A)
1-44139-142-0
01
1
0610-0711
35
WASHER; LK,STRG SHAFT
(A)
1-44139-154-0
01
1
0712-
41
YOKE; SLEEVE,STRG
1-44135-359-0
01
1
0610-0711
42
NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT
0-90301-406-0
01
1
0610-0711
42
NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW
0-90301-610-0
01
1
0610-0711
44
SHAFT; SPLINE,STRG
1-44135-316-0
01
1
0610-0711
45
BOOT; STRG SHAFT
1-44139-138-0
01
1
0610-0711
45
BOOT; STRG SHAFT
1-44139-163-0
01
1
0712-1409
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
1410-
46
CLIP; BOOT
8-98019-551-0
02
1
0610-0711
46
CLIP; BOOT
1-44139-156-0
02
1
0712-
52
WASHER; PL,ADJ LEVER
1-44227-154-0
01
1
0610-0711
57
NUT; ADJ BOLT
1-44227-159-0
01
1
0610-0711
57
NUT; ADJ BOLT
1-44227-151-0
01
1
0712-
59
COLLAR; DIST,ADJ BOLT
1-44227-127-0
01
1
0610-0711
60
LEVER; ADJ,STRG COLUMN
1-44227-160-0
01
1
0610-0711
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
0712-
63
BOLT; ADJ LEVER,TILT STRG
(C)
1-44227-149-0
01
1
0712-
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-126-0
01
1
0610-0711
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-145-0
01
1
0712-
64
BOLT; ADJ,PROTECTOR
1-44227-156-0
01
1
0610-0711
68
PIN; TILT CENTER
8-97163-920-1
01
1
0610-0711
75
BOLT; STRG COLUMN
M8X20 FLANGE
0-28650-820-0
04
1
0610-
83
BRACKET; TILT STRG UPR
1-44227-166-0
01
1
0610-0711
95
BOLT; STRG UNIT
M18X60
9-91066-860-0
03
1
0610-0805
95
BOLT; STRG UNIT
M18X60
8-98036-497-0
03
1
0806-
96
NUT; STRG UNIT
M18
0-91110-518-0
01
1
0610-
97
WASHER; PL,STRG UNIT
ID=18
9-09851-862-0
04
1
0610-
147
STUD; STRG UNIT
M18X49 L=76
1-09300-107-0
01
1
0610-
252
NUT; TILT CENTER BOLT
1-44227-135-0
01
1
0610-0711
272
NUT; SHAFT TO YOKE
M10
0-91110-510-0
01
1
0610-
296
CLIP; COVER
D6X12.5
8-94146-425-0
02
1
0610-
296
35
33
20
315
46
45
317
258
46
12
62
118
63
60
75
272
33
57
35
63
22
316
2
147
22
1
96
97
95
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-904-0
01
1
0610-0703
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-942-2
01
1
0704-
2
SHAFT ASM; STRG
1-44130-783-0
01
1
0610-0711
2
SHAFT ASM; STRG
1-44130-823-1
01
1
0712-
12
BRACKET; LWR,STRG COLUMN
1-44227-143-0
01
1
0712-0806
12
BRACKET; LWR,STRG COLUMN
1-44227-167-0
01
1
0807-
20
COVER; STRG SHAFT
1-72438-121-3
01
1
0610-
22
BUSHING; STRG COLUMN
1-44227-165-0
02
1
0610-0711
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
0712-
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-489-0
01
1
0610-0707
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-786-0
01
1
0708-
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-141-0
01
1
0610-0711
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-153-0
01
1
0712-
35
WASHER; LK,STRG SHAFT
(B) ID=10.2
0-91510-810-0
01
1
0610-
35
WASHER; LK,STRG SHAFT
(A)
1-44139-142-0
01
1
0610-0711
35
WASHER; LK,STRG SHAFT
(A)
1-44139-154-0
01
1
0712-
45
BOOT; STRG SHAFT
1-44139-138-0
01
1
0610-0711
45
BOOT; STRG SHAFT
1-44139-163-0
01
1
0712-1409
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
1410-
46
CLIP; BOOT
8-98019-551-0
02
1
0610-0711
46
CLIP; BOOT
1-44139-156-0
02
1
0712-
57
NUT; ADJ BOLT
1-44227-159-0
01
1
0610-0711
57
NUT; ADJ BOLT
1-44227-151-0
01
1
0712-
60
LEVER; ADJ,STRG COLUMN
1-44227-160-0
01
1
0610-0711
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
0712-
62
SPRING; LK,LEVER
1-44227-153-0
01
1
0712-
63
BOLT; ADJ LEVER,TILT STRG
(C)
1-44227-149-0
01
1
0712-
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-126-0
01
1
0610-0711
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-145-0
01
1
0712-
75
BOLT; STRG COLUMN
M8X20 FLANGE
0-28650-820-0
04
1
0610-
95
BOLT; STRG UNIT
M18X60
9-91066-860-0
03
1
0610-0805
95
BOLT; STRG UNIT
M18X60
8-98036-497-0
03
1
0806-
96
NUT; STRG UNIT
M18
0-91110-518-0
01
1
0610-
97
WASHER; PL,STRG UNIT
ID=18
9-09851-862-0
04
1
0610-
118
NUT; LEVER,TILT BOLT
1-44227-163-0
01
1
0712-
147
STUD; STRG UNIT
M18X49 L=76
1-09300-107-0
01
1
0610-
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
0712-
272
NUT; SHAFT TO YOKE
M10
0-91110-510-0
01
1
0610-
296
CLIP; COVER
D6X12.5
8-94146-425-0
02
1
0610-
315
JOINT; SPLINE
1-44135-388-0
01
1
0712-1409
315
JOINT; SPLINE
1-44135-345-2
01
1
1410-
316
RING
1-44227-152-0
01
1
0712-
317
NUT; PUSH
1-44227-148-0
01
1
0712-
