4-20 — REAR AXLE CASE AND SHAFT (#30333) — 81 parça

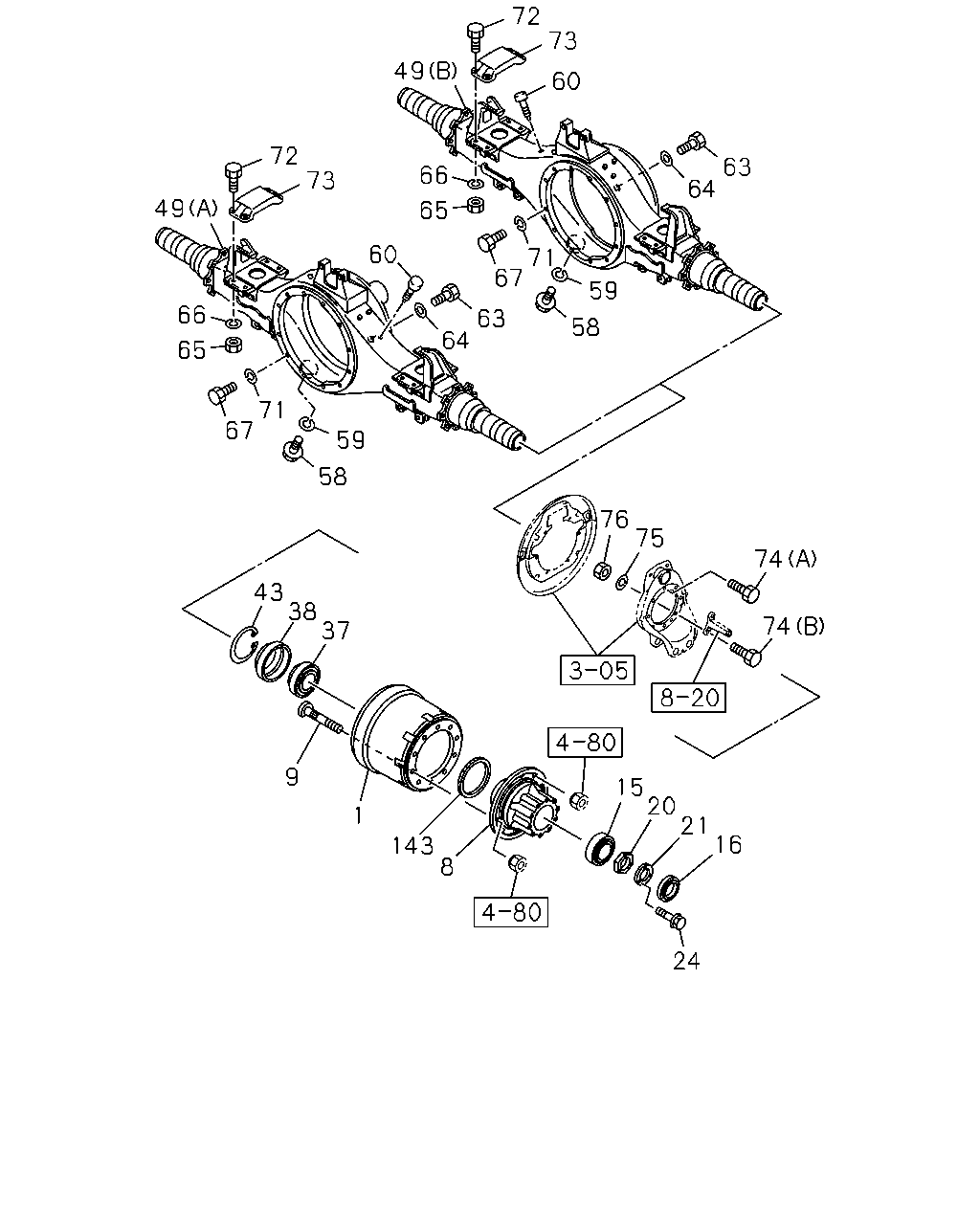

çizim 140572
72 73 49 60 72 73 63 64 66 49 65 71 67 60 59 66 63 64 58 65 71 67 59 58 76 75 74 43 38 37 74 9 15 20 21 1 16 143 8 24
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR 1-42315-377-2 02 1 0610-
1 DRUM; BRK,RR 1-42315-377-2 02 1 0610-
8 HUB; RR AXLE
FORWARD 		1-42311-085-0 02 1 0610-
8 HUB; RR AXLE
REARWARD 		1-42311-094-0 02 1 0610-
9 PIN; WHEEL,RR AXLE
M22X93 RH THREAD 		1-42337-066-2 20 1 0610-
9 PIN; WHEEL,RR AXLE
M22X93 RH THREAD 		1-42337-066-2 20 1 0610-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0610-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0610-
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1209-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0610-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0610-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0610-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0610-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0610-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0610-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0610-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0610-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0610-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0610-
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 0610-
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 0610-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0610-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0610-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0610-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0610-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0610-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0610-
49 CASE; RR AXLE
(A) 		1-42190-514-3 01 1 0610-
49 CASE; RR AXLE
(B) 		1-42190-538-2 01 1 0610-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0610-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0610-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0610-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0610-
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 0610-1412
60 BREATHER; RR AXLE CASE 1-09893-003-0 02 1 1501-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0610-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0610-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0610-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0610-
65 NUT
M14 		0-91110-514-0 08 1 0610-
65 NUT
M14 		0-91110-514-0 08 1 0610-
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0610-
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0610-
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 07 1 0610-
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 08 1 0610-
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0610-
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0610-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0610-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0610-
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0610-0805
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0610-0805
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806-
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0610-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0610-
74 BOLT; RR BRK ASM SETTING
(A) REARWARD M14X50 		1-09040-066-0 12 1 0610-
74 BOLT; RR BRK ASM SETTING
(A) FORWARD M14X50 		1-09040-066-0 16 1 0610-
74 BOLT; RR BRK ASM SETTING
(B) REARWARD M14X80 		9-92621-480-0 04 1 0610-1504
74 BOLT; RR BRK ASM SETTING
(B) REARWARD M14X60 		1-09040-084-0 04 1 1505-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0610-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0610-
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0610-
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0610-
143 RING; EXCITER
REARWARD 		1-42319-173-0 02 1 0610-

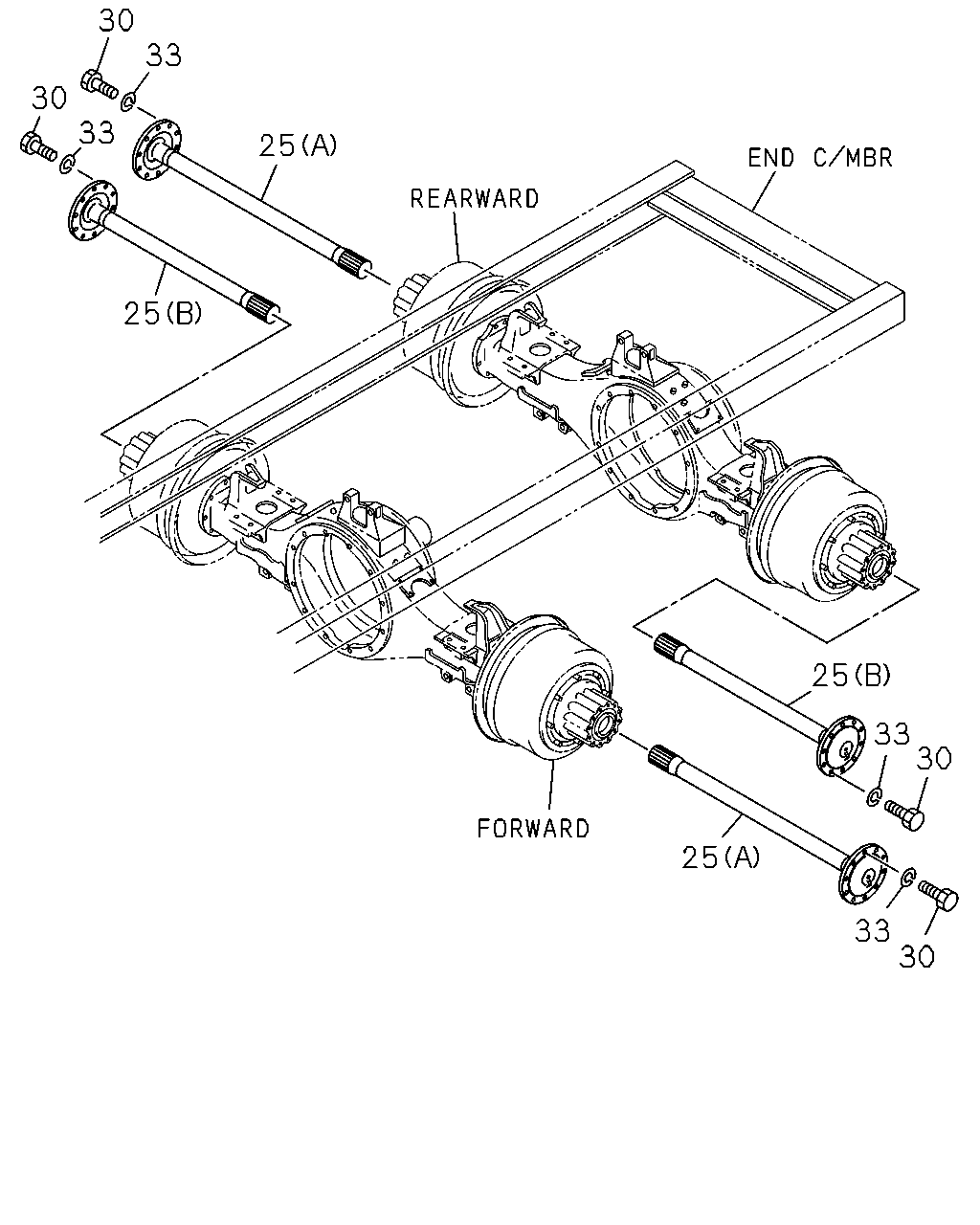

çizim 140600
30 33 30 33 25 25 25 33 30 25 33 30
BalonParca AdiParca NoAdetTipApplied Date
25 SHAFT; AXLE,RR
(B) L=976 		1-42171-356-0 01 1 0610-0910
25 SHAFT; AXLE,RR
(B) L=976 		1-42171-356-0 01 1 0610-0910
25 SHAFT; AXLE,RR
(B) L=990 		8-98146-166-0 01 1 0911-
25 SHAFT; AXLE,RR
(B) L=990 		8-98146-166-0 01 1 0911-
25 SHAFT; AXLE,RR
(A) L=1106 		1-42171-357-0 01 1 0610-0910
25 SHAFT; AXLE,RR
(A) L=1106 		1-42171-357-0 01 1 0610-0910
25 SHAFT; AXLE,RR
(A) L=1110 		8-98146-167-0 01 1 0911-
25 SHAFT; AXLE,RR
(A) L=1110 		8-98146-167-0 01 1 0911-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0610-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0610-
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0610-
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0610-
