Sayfa 4-25A - Isuzu EPC

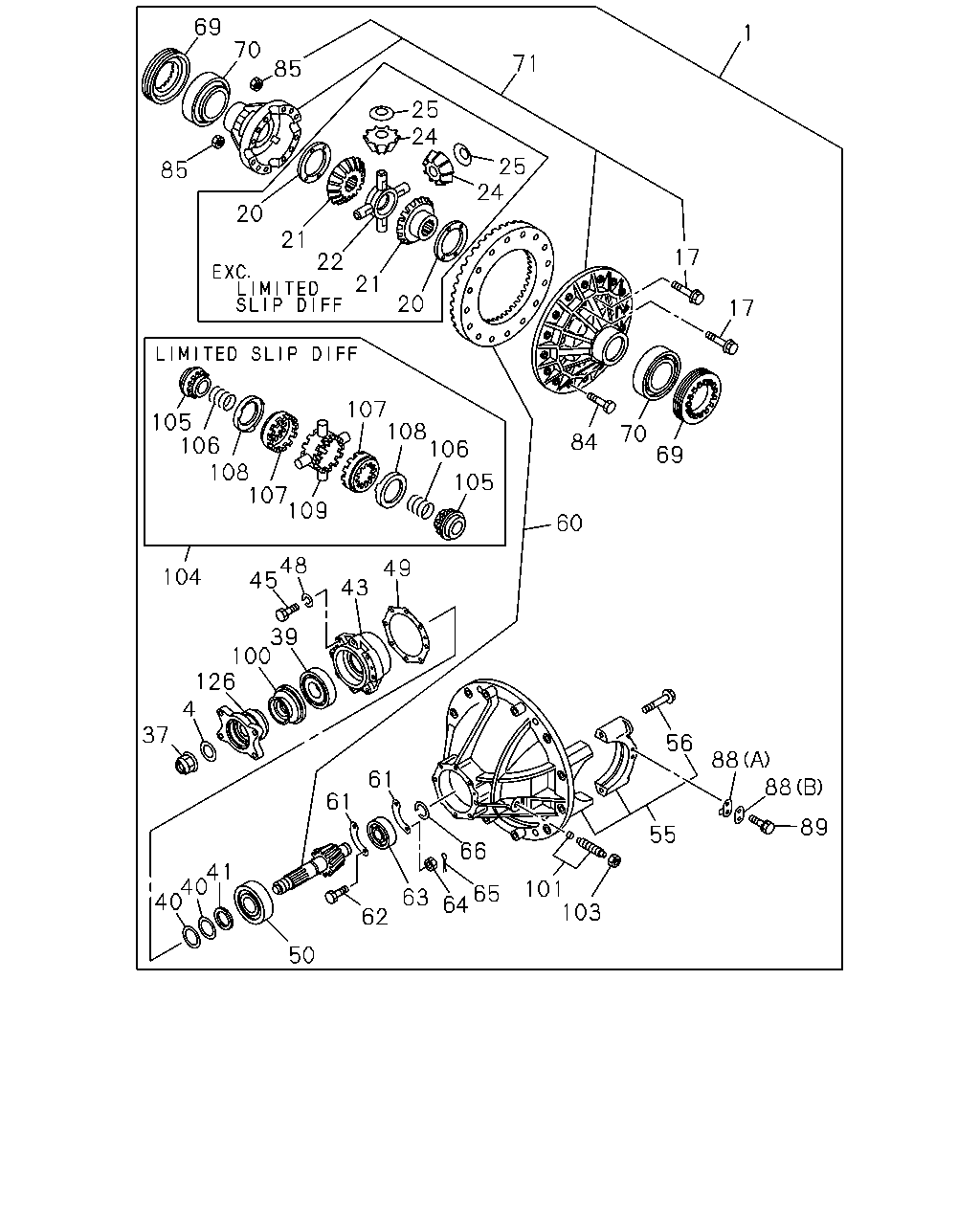

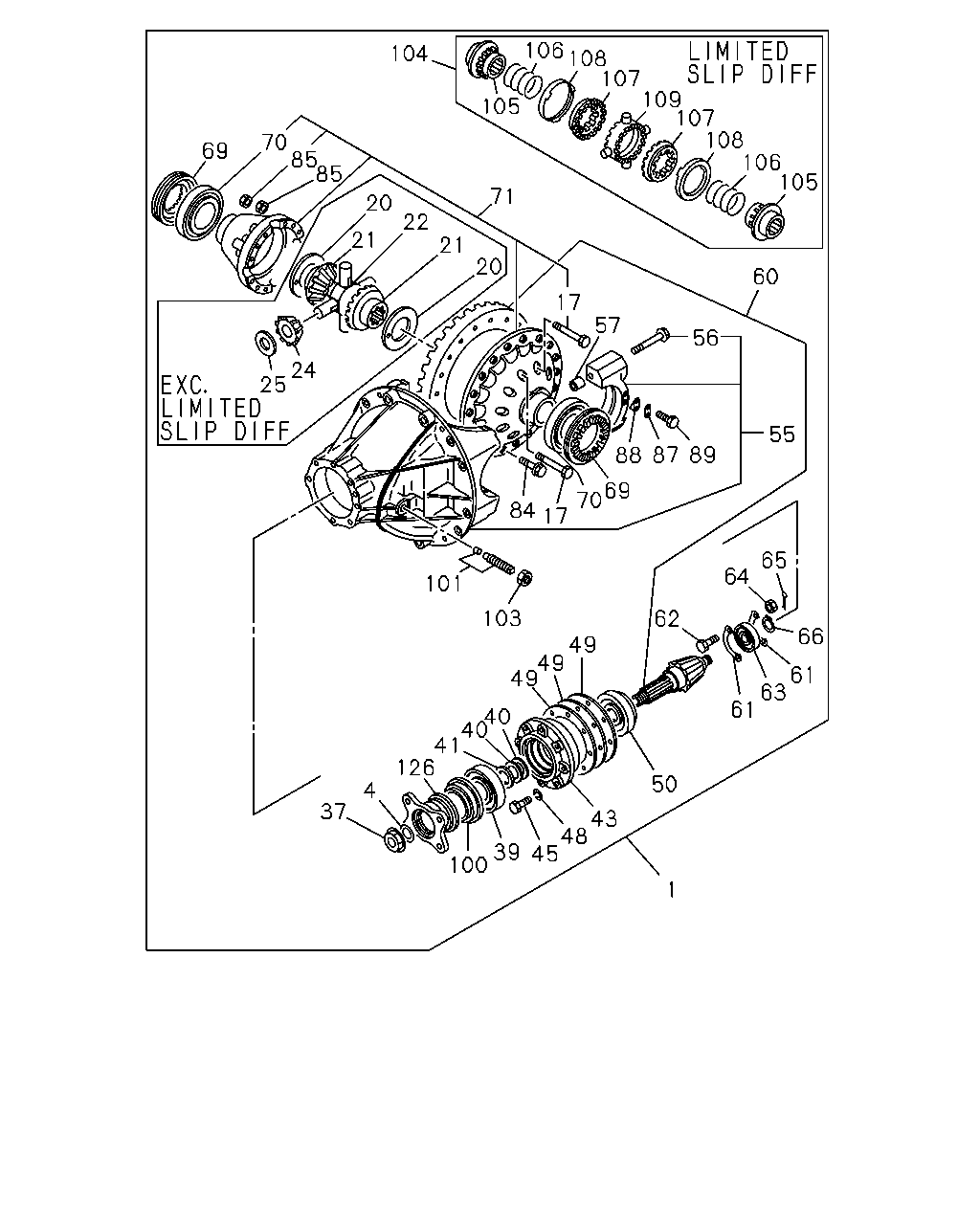

4-25A — REAR FINAL DRIVE (#3033) — 366 parça

89 88 88 56 55 103 101 65 66 64 63 62 50 41 40 40 61 60 61 37 49 43 48 45 104 126 4 39 100 109 107 108 106 105 105 106 108 107 69 70 84 17 17 71 1 25 24 24 25 20 21 22 21 20 85 85 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/7	1-41000-492-0	01	1	9002-9306	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/7	1-41000-378-0	01	1	9002-9306	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/7	1-41001-137-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/7	1-41001-136-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 38/7	1-41001-042-0	01	1	9012-9306			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 38/7	1-41000-853-0	01	1	9012-9306			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 37/6	1-41001-040-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 37/6	1-41000-854-0	01	1	9002-9306				●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9002-9306	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	9002-9306			●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	9002-9306	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9002-9306	●	●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	9002-9306			●	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	9002-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-169-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-170-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-171-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-172-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-173-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-174-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-175-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-169-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-170-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-171-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-172-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-173-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-174-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-175-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-183-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-260-0	AR	1	9010-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-184-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-261-0	AR	1	9010-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-185-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-262-0	AR	1	9010-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-186-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-263-0	AR	1	9010-9011				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-263-0	AR	1	9012-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-187-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-264-0	AR	1	9010-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-188-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-265-0	AR	1	9010-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-189-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-266-0	AR	1	9010-9306			●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-076-0	02	1	9002-9306	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86)	1-41561-081-0	02	1	9002-9306			●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-002-0	01	1	9002-9306	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-005-0	01	1	9002-9306			●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-022-0	04	1	9002-9306	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86)	1-41551-023-0	04	1	9002-9306			●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86) T=1.6	1-41552-001-0	04	1	9002-9306	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86) T=1.6	1-41552-003-0	04	1	9002-9306			●	●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	9002-9306	●	●
37	NUT; DRIVING PINION M46	1-09449-062-0	01	1	9002-9110			●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	9111-9306			●	●
39	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	9002-9306	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-070-0	01	1	9002-9306	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9002-9306			●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-0	01	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	9002-9306	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	9002-9306	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	9002-9306	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	9002-9306	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	9002-9306	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	9002-9306			●	●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	9002-9306	●	●
43	CAGE; FINAL PINION	1-41151-036-0	01	1	9002-9111			●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9112-9306			●	●
45	BOLT; FINAL PINION CAGE M14X50	9-91656-450-0	08	1	9002-9005	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9006-9306	●	●
45	BOLT; FINAL PINION CAGE M16X55	9-91656-655-0	08	1	9002-9005			●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	9006-9306			●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9002-9306	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	9002-9306			●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	9002-9306	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	9002-9306	●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-011-0	AR	1	9002-9306	●	●
49	SHIM; FINAL PINION CAGE T=0.150	1-41154-012-0	AR	1	9002-9306	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-007-0	AR	1	9002-9111			●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-077-0	AR	1	9112-9306			●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-008-0	AR	1	9002-9111			●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	9112-9306			●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-060-0	AR	1	9002-9111			●	●
49	SHIM; FINAL PINION CAGE T=0.300	1-41154-079-0	AR	1	9112-9306			●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-061-0	AR	1	9002-9111			●	●
49	SHIM; FINAL PINION CAGE T=0.400	1-41154-080-0	AR	1	9112-9306			●	●
50	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	9002-9306	●	●
50	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	9002-9306	●	●
50	BEARING; FINAL PINION KOYO	9-00093-206-1	01	1	9002-9306	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-0	01	1	9002-9306			●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-0	01	1	9002-9306			●	●
55	CARRIER; DIFF	1-41110-070-0	01	1	9002-9306	●	●
55	CARRIER; DIFF	1-41110-072-0	01	1	9002-9111			●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	9112-9306			●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9002-9306	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	9002-9306			●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-373-2	01	1	9002-9306	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-379-2	01	1	9002-9306		●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-319-1	01	1	9012-9306			●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-320-1	01	1	9002-9306				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9002-9306	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	9002-9306			●	●
62	BOLT; RET M8X36	9-01145-836-0	02	1	9002-9005	●	●
62	BOLT; RET M8X36	1-09042-035-0	02	1	9006-9306	●	●
62	BOLT; RET M8X42	9-01155-842-0	02	1	9002-9005			●	●
62	BOLT; RET M8X42	1-09042-037-0	02	1	9006-9306			●	●
63	BEARING; PINION PILOT JTEKT	1-09810-007-0	01	1	9002-9306	●	●
63	BEARING; PINION PILOT NSK	1-09810-015-0	01	1	9002-9306	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	9002-9306			●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	9002-9306			●	●
64	NUT; RET M8	9-09117-408-0	02	1	9002-9306	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9002-9306	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9002-9306	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	9002-9306			●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	9002-9306	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	9002-9306	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	9002-9306			●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	9002-9306			●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=39.7	1-09812-156-0	02	1	9002-9306	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=39.7	1-09812-158-0	02	1	9002-9306	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	9002-9306			●	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	9002-9306			●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-046-0	01	1	9002-9306	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-155-0	01	1	9002-9306			●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9002-9306	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	9002-9306			●	●
85	NUT; DIFF CAGE SETTING M14	9-99110-514-0	12	1	9002-9306	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	9002-9306			●	●
88	PLATE; LK,ADJ NUT (A)	1-41124-006-0	02	1	9002-9306	●	●
88	PLATE; LK,ADJ NUT (B)	9-41124-005-0	02	1	9002-9306	●	●
88	PLATE; LK,ADJ NUT	1-41124-001-0	01	1	9002-9306			●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	01	1	9002-9306			●	●
89	BOLT; LK PLATE M8X16	9-02040-816-0	04	1	9002-9204	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9205-9306	●	●
89	BOLT; LK PLATE M10X20	9-02341-020-0	04	1	9002-9204			●	●
89	BOLT; LK PLATE M10X20	0-23801-020-0	04	1	9205-9306			●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9002-9306	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	9002-9306			●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9002-9306	●	●	●	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9002-9306	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41500-001-0	01	1	9002-9306	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-022-0	01	1	9002-9306			●	●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41561-005-0	02	1	9002-9306	●	●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-026-0	02	1	9002-9306			●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41535-001-0	02	1	9002-9306	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41535-004-0	02	1	9002-9306			●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-001-0	02	1	9002-9306	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-006-0	02	1	9002-9306			●	●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-024-0	02	1	9002-9306			●	●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	8-98319-954-0	02	1	9002-9306	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-023-0	01	1	9002-9306			●	●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	8-98319-953-0	01	1	9002-9306	●	●
126	COUPLING; DRIVING PINION	1-37245-023-3	01	1	9002-9306	●	●
126	COUPLING; DRIVING PINION	1-37245-143-2	01	1	9002-9306			●	●

1 50 43 48 45 39 100 37 4 126 41 40 40 49 49 49 62 64 65 66 61 63 61 103 101 84 17 70 69 88 87 89 55 56 60 57 17 20 21 22 71 21 20 85 85 70 69 24 25 104 105 106 108 107 109 107 108 106 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/7	1-41000-492-0	01	1	9002-9306	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/7	1-41000-378-0	01	1	9002-9306	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/7	1-41001-137-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/7	1-41001-136-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 38/7	1-41001-042-0	01	1	9012-9306			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 38/7	1-41000-853-0	01	1	9012-9306			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 37/6	1-41001-040-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 37/6	1-41000-854-0	01	1	9002-9306				●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9002-9306	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	9002-9306			●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	9002-9306	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9002-9306	●	●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	9002-9306			●	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	9002-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-169-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-170-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-171-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-172-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-173-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-174-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-175-0	AR	1	9002-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-169-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-170-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-171-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-172-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-173-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-174-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-175-0	AR	1	9110-9306		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-183-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-260-0	AR	1	9010-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-184-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-261-0	AR	1	9010-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-185-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-262-0	AR	1	9010-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-186-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-263-0	AR	1	9010-9011				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-263-0	AR	1	9012-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-187-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-264-0	AR	1	9010-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-188-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-265-0	AR	1	9010-9306			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-189-0	AR	1	9002-9009				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-266-0	AR	1	9010-9306			●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-076-0	02	1	9002-9306	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86)	1-41561-081-0	02	1	9002-9306			●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-002-0	01	1	9002-9306	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-005-0	01	1	9002-9306			●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-022-0	04	1	9002-9306	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86)	1-41551-023-0	04	1	9002-9306			●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86) T=1.6	1-41552-001-0	04	1	9002-9306	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86) T=1.6	1-41552-003-0	04	1	9002-9306			●	●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	9002-9306	●	●
37	NUT; DRIVING PINION M46	1-09449-062-0	01	1	9002-9110			●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	9111-9306			●	●
39	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	9002-9306	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-070-0	01	1	9002-9306	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9002-9306			●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-0	01	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	9002-9306	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	9002-9306			●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	9002-9306	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	9002-9306	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	9002-9306	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	9002-9306	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	9002-9306	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	9002-9306			●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	9002-9306			●	●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	9002-9306	●	●
43	CAGE; FINAL PINION	1-41151-036-0	01	1	9002-9111			●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9112-9306			●	●
45	BOLT; FINAL PINION CAGE M14X50	9-91656-450-0	08	1	9002-9005	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9006-9306	●	●
45	BOLT; FINAL PINION CAGE M16X55	9-91656-655-0	08	1	9002-9005			●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	9006-9306			●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9002-9306	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	9002-9306			●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	9002-9306	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	9002-9306	●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-011-0	AR	1	9002-9306	●	●
49	SHIM; FINAL PINION CAGE T=0.150	1-41154-012-0	AR	1	9002-9306	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-007-0	AR	1	9002-9111			●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-077-0	AR	1	9112-9306			●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-008-0	AR	1	9002-9111			●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	9112-9306			●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-060-0	AR	1	9002-9111			●	●
49	SHIM; FINAL PINION CAGE T=0.300	1-41154-079-0	AR	1	9112-9306			●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-061-0	AR	1	9002-9111			●	●
49	SHIM; FINAL PINION CAGE T=0.400	1-41154-080-0	AR	1	9112-9306			●	●
50	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	9002-9306	●	●
50	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	9002-9306	●	●
50	BEARING; FINAL PINION KOYO	9-00093-206-1	01	1	9002-9306	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-0	01	1	9002-9306			●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-0	01	1	9002-9306			●	●
55	CARRIER; DIFF	1-41110-070-0	01	1	9002-9306	●	●
55	CARRIER; DIFF	1-41110-072-0	01	1	9002-9111			●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	9112-9306			●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9002-9306	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	9002-9306			●	●
57	DOWEL; BRG CAP	9-41119-033-0	04	1	9002-9306			●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-373-2	01	1	9002-9306	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-379-2	01	1	9002-9306		●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-319-1	01	1	9012-9306			●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-320-1	01	1	9002-9306				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9002-9306	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	9002-9306			●	●
62	BOLT; RET M8X36	9-01145-836-0	02	1	9002-9005	●	●
62	BOLT; RET M8X36	1-09042-035-0	02	1	9006-9306	●	●
62	BOLT; RET M8X42	9-01155-842-0	02	1	9002-9005			●	●
62	BOLT; RET M8X42	1-09042-037-0	02	1	9006-9306			●	●
63	BEARING; PINION PILOT JTEKT	1-09810-007-0	01	1	9002-9306	●	●
63	BEARING; PINION PILOT NSK	1-09810-015-0	01	1	9002-9306	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	9002-9306			●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	9002-9306			●	●
64	NUT; RET M8	9-09117-408-0	02	1	9002-9306	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9002-9306	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9002-9306	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	9002-9306			●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	9002-9306	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	9002-9306	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	9002-9306			●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	9002-9306			●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=39.7	1-09812-156-0	02	1	9002-9306	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=39.7	1-09812-158-0	02	1	9002-9306	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	9002-9306			●	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	9002-9306			●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-046-0	01	1	9002-9306	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-155-0	01	1	9002-9306			●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9002-9306	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	9002-9306			●	●
85	NUT; DIFF CAGE SETTING M14	9-99110-514-0	12	1	9002-9306	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	9002-9306			●	●
87	WASHER; LK	9-41124-014-0	02	1	9002-9306			●	●
88	PLATE; LK,ADJ NUT (A)	1-41124-006-0	02	1	9002-9306	●	●
88	PLATE; LK,ADJ NUT (B)	9-41124-005-0	02	1	9002-9306	●	●
88	PLATE; LK,ADJ NUT	1-41124-001-0	01	1	9002-9306			●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	01	1	9002-9306			●	●
89	BOLT; LK PLATE M8X16	9-02040-816-0	04	1	9002-9204	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9205-9306	●	●
89	BOLT; LK PLATE M10X20	9-02341-020-0	04	1	9002-9204			●	●
89	BOLT; LK PLATE M10X20	0-23801-020-0	04	1	9205-9306			●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9002-9306	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	9002-9306			●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9002-9306	●	●	●	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9002-9306	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41500-001-0	01	1	9002-9306	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-022-0	01	1	9002-9306			●	●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41561-005-0	02	1	9002-9306	●	●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-026-0	02	1	9002-9306			●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41535-001-0	02	1	9002-9306	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41535-004-0	02	1	9002-9306			●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-001-0	02	1	9002-9306	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-006-0	02	1	9002-9306			●	●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-024-0	02	1	9002-9306			●	●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	8-98319-954-0	02	1	9002-9306	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-023-0	01	1	9002-9306			●	●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	8-98319-953-0	01	1	9002-9306	●	●
126	COUPLING; DRIVING PINION	1-37245-023-3	01	1	9002-9306	●	●
126	COUPLING; DRIVING PINION	1-37245-143-2	01	1	9002-9306			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
