Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11039 - EXZ RHD EURO4
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#30328) — 28 parça
◀

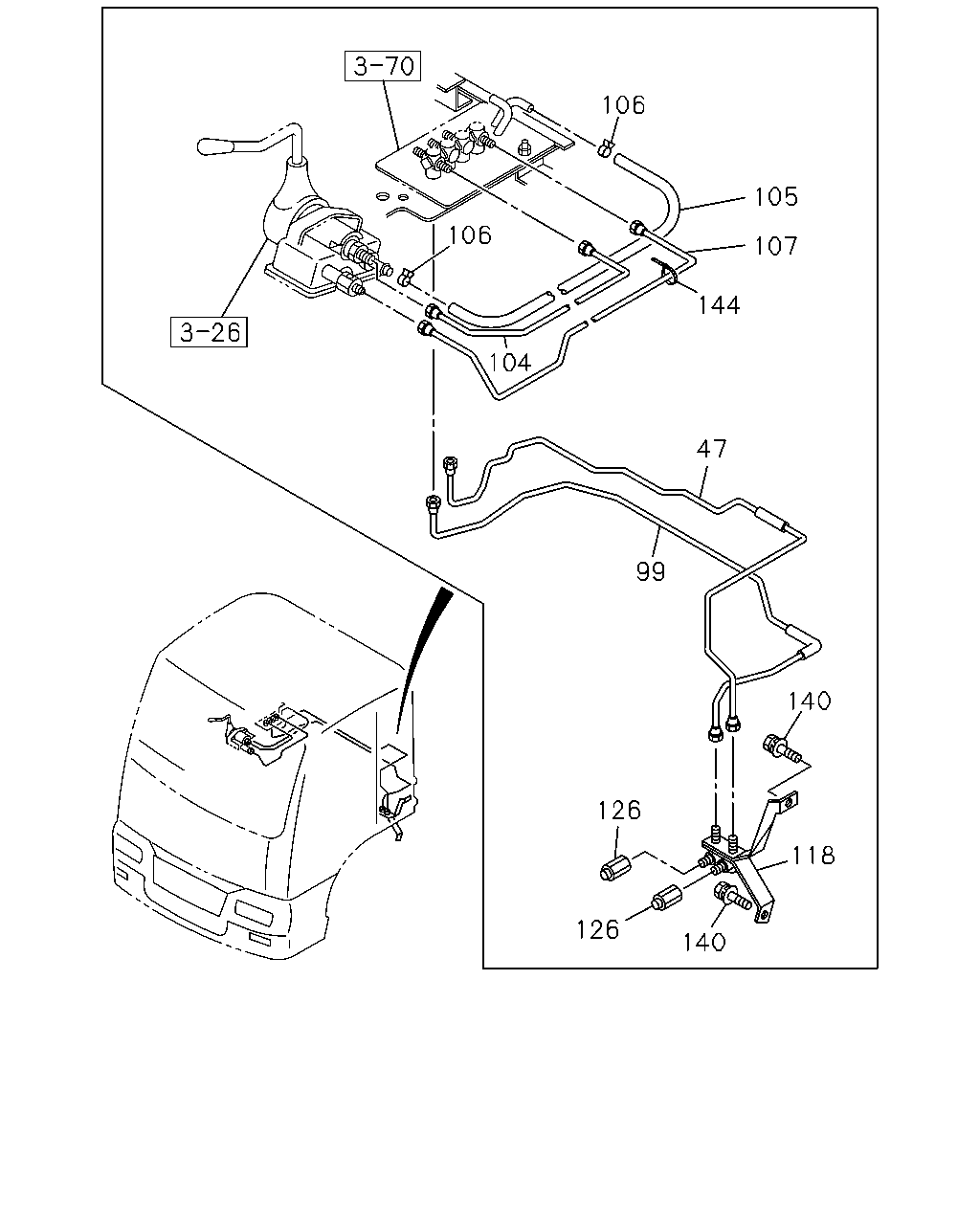

[380A] CAB SIDE (12 parça)
[380A] SPIRAL TUBE (16 parça)
▶
106
105
106
107
144
104
47
99
140
126
118
126
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
PIPE; AIR,UNION TO UNION
L=1910 SERVICED BY L=1950
1-47428-854-0
01
1
0610-
99
PIPE; AIR,JOINT TO JOINT
1-49122-057-1
01
1
0610-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49121-477-0
01
1
0610-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
0610-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
0610-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
0610-
118
JOINT; AIR PIPE
1-47470-608-1
01
1
0610-
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0610-
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0610-
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0610-0904
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
144
CLIP; BAND
L=140
5-09707-031-1
01
1
0610-
42
18
91
91
16
18
168
157
75
16
148
13
91
91
125
91
91
91
91
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HOSE; FLEX,TRAILER SERVICE
1-49222-064-0
01
1
0610-
16
UNION; AIR PIPE
(A)
1-09650-003-1
01
1
0610-
16
UNION; AIR PIPE
(B) DIN12 & M20 STRAIGHT
1-09660-877-0
01
1
0610-
18
NUT; UNION
M20
0-91111-520-0
02
1
0610-
42
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0610-
75
HOSE; FLEX,TRAILER EMERGENCY
1-49222-064-0
01
1
0610-
91
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0610-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0610-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0610-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0610-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0610-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
0610-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0610-
148
ADAPTER; NYLON TUBE
1-09660-078-0
01
1
0610-
157
ADAPTER
1-09660-078-0
01
1
0610-
168
BRACKET; UNION
1-47478-483-0
01
1
0610-
