Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#30327) — 255 parça

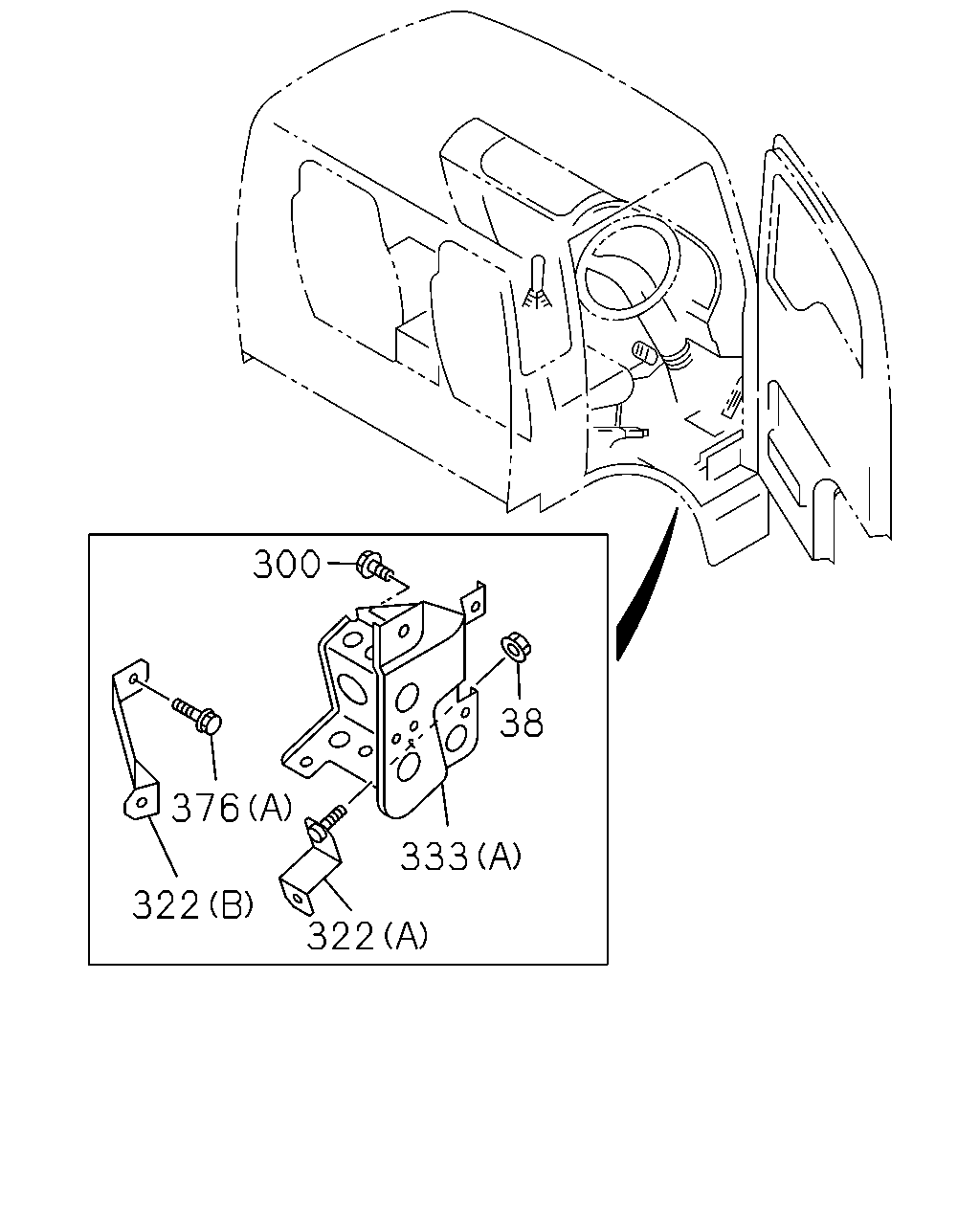

300 38 376 333 322 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0610-0702
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0610-0904
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
322	BRACKET; CLIP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-98152-740-1	01	1	0908-
322	BRACKET; CLIP (A)	1-79996-659-1	01	1	0610-0702
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0610-
333	BRACKET; BRK AIR PIPE (A)	1-79997-360-6	01	1	0610-0702
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-
376	BOLT; BRKT ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) M8X20 FLANGE	0-28650-820-0	01	1	0908-
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0610-

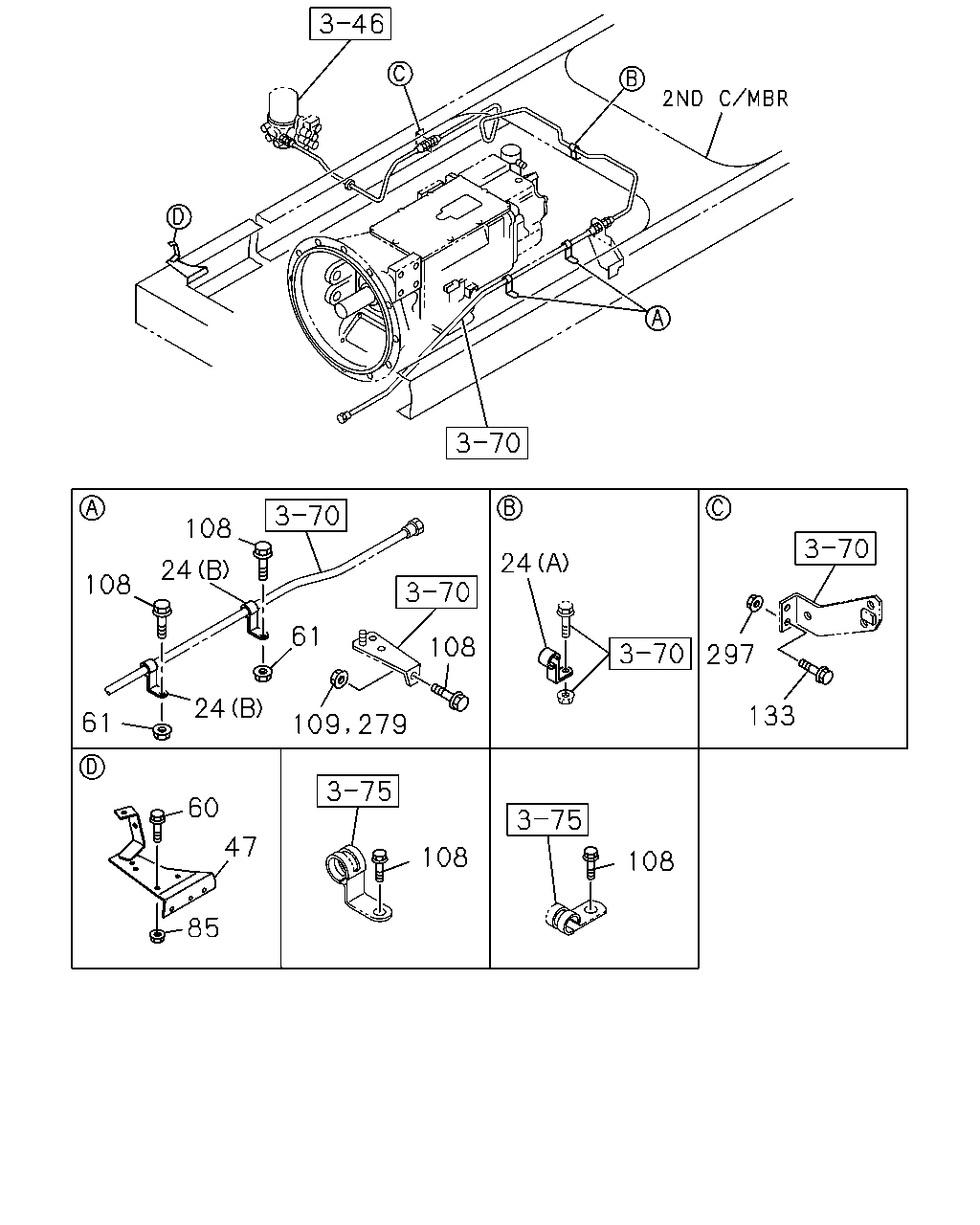

108 24 24 108 61 108 297 24 133 61 60 47 108 108 85 109 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0610-
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0610-
47	BRACKET; PIPE CLIP	1-47471-389-0	01	1	0610-
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	02	1	0610-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0610-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0610-
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0610-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0610-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0610-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0610-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0610-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0610-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0610-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	0610-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	0610-
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0610-
133	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	0610-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0610-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	07	1	0610-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0610-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0610-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0610-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0610-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0610-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0610-1504
279	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1505-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0610-1504
279	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1505-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0610-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0610-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0610-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0610-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0610-
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0610-

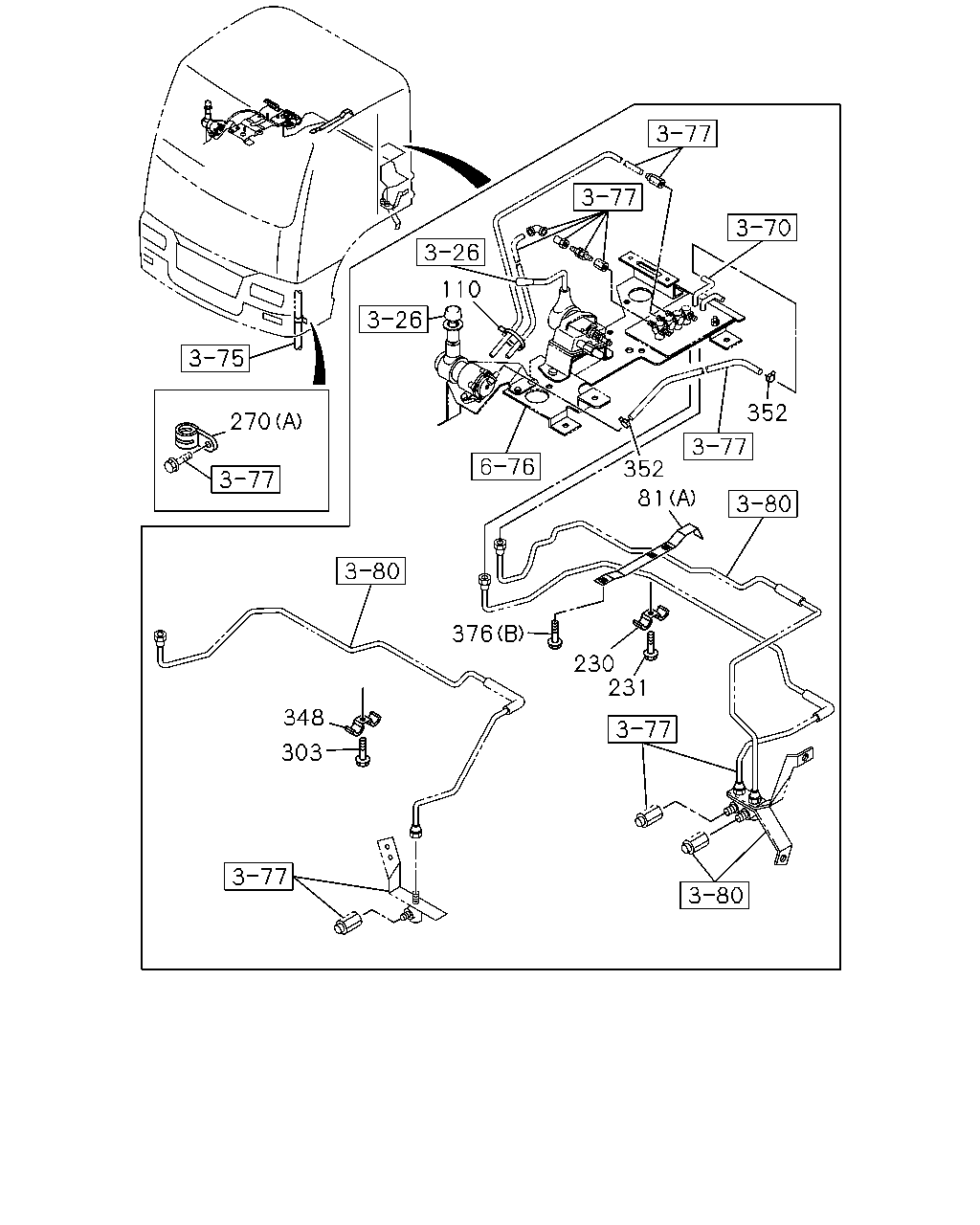

110 352 270 352 81 376 230 231 348 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BRACKET; CLIP (E) L=150	1-47471-217-0	02	1	0610-
81	BRACKET; CLIP (B)	1-47471-274-0	01	1	0610-
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0610-
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	01	1	0610-
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	02	1	0610-
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0610-
81	BRACKET; CLIP (D)	8-98052-412-0	01	1	0610-
81	BRACKET; CLIP (H)	8-98052-413-0	01	1	0610-
81	BRACKET; CLIP (I)	8-98052-414-0	01	1	0610-
81	BRACKET; CLIP (G)	8-98052-415-0	01	1	0610-
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	01	1	0610-
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0610-
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0610-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0610-
270	CLIP; NYLON TUBE (C) ID=16 H=25 L=25	1-09701-162-0	02	1	0610-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0610-
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0610-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0610-
376	BOLT; BRKT ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) M8X20 FLANGE	0-28650-820-0	01	1	0908-
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0610-

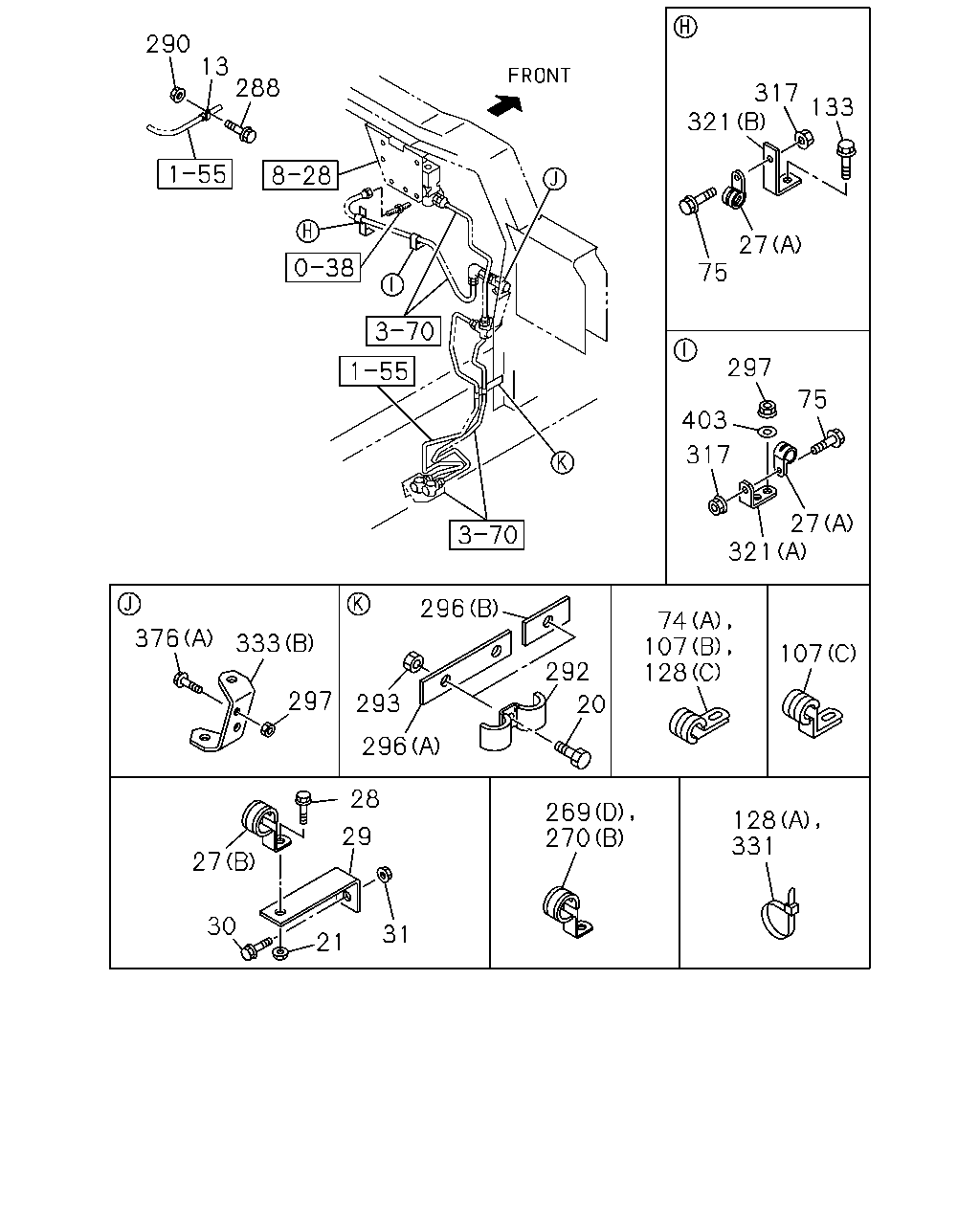

290 13 288 321 317 133 27 75 297 75 403 317 27 321 107 74 107 128 20 292 296 293 296 297 333 376 27 30 21 31 29 28 269 270 128 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0610-0610
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0610-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0610-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	06	1	0610-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0610-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0610-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0610-
27	CLIP; FLEX HOSE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0610-
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	0610-
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	0610-
29	BRACKET; CLIP,AIR PIPE L=60	1-47476-217-0	01	1	0610-
29	BRACKET; CLIP,AIR PIPE L=60	1-47476-217-0	01	1	0610-
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0610-
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0610-
31	NUT; CLIP BRKT M10 FLANGE	0-91180-210-0	01	1	0610-
74	CLIP; NYLON TUBE (A) ID=13	1-09701-030-1	08	1	0610-
74	CLIP; NYLON TUBE (C) ID=11X2 L=42	1-09701-306-0	01	1	0610-
74	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	14	1	0610-
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0610-
107	CLIP; NYLON TUBE (B) ID=24 L=27	1-09700-809-0	01	1	0610-0810
107	CLIP; NYLON TUBE (B) ID=28 L=40	1-09700-995-1	01	1	0811-
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	0610-
107	CLIP; NYLON TUBE (B) ID=25 L=50	1-09701-019-0	01	1	0610-
107	CLIP; NYLON TUBE (C) ID=39 H=28 L=32	1-09701-263-0	02	1	0610-
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	0610-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	0610-
128	CLIP; NYLON TUBE (C) ID=24.5 L=27	1-09701-049-0	01	1	0610-
128	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	0610-
128	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	09	1	0610-
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0610-
133	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	0610-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0610-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	07	1	0610-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0610-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0610-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0610-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0610-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0610-
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	05	1	0610-
269	CLIP; BAND,NYLON TUBE (D) ID=15 L=22 H=30	1-09701-215-1	02	1	0610-
269	CLIP; BAND,NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	03	1	0610-
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	02	1	0610-
269	CLIP; BAND,NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	02	1	0610-
269	CLIP; BAND,NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	02	1	0610-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0610-
270	CLIP; NYLON TUBE (C) ID=16 H=25 L=25	1-09701-162-0	02	1	0610-
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	01	1	0610-0610
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-208-0	01	1	0610-0610
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0610-
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0610-0610
293	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0611-
296	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0610-
296	BRACKET; CLIP (B)	1-47475-648-0	01	1	0610-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0610-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0610-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0610-
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0610-
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0610-
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	0610-
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	0610-
331	CLIP; NYLON TUBE L=350	1-09707-183-0	02	1	0610-
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0610-
333	BRACKET; BRK AIR PIPE (A)	1-79997-360-6	01	1	0610-0702
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-
376	BOLT; BRKT ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) M8X20 FLANGE	0-28650-820-0	01	1	0908-
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0610-
403	WASHER; PL D=12	0-91614-612-0	01	1	1212-

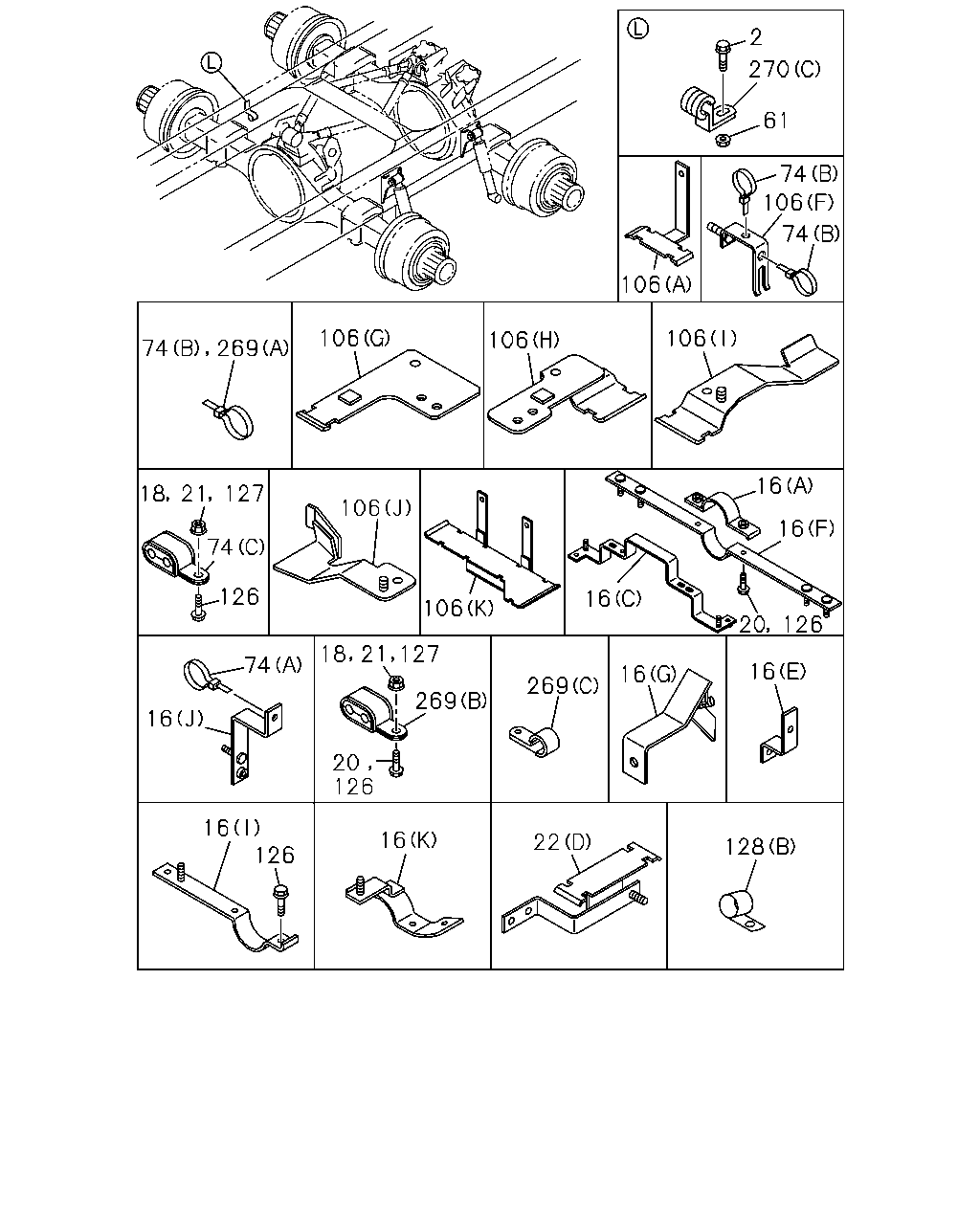

2 270 61 74 106 74 106 106 106 106 16 18 21 127 106 16 74 126 16 106 20 126 127 74 16 16 269 269 16 20 126 16 126 16 22 128 74 269 18 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	0610-
16	BRACKET; PIPE CLIP (G)	1-47471-309-0	01	1	0610-
16	BRACKET; PIPE CLIP (E) L=85 H=40	1-47476-676-0	01	1	0610-
16	BRACKET; PIPE CLIP (D) L=100 H=30	1-47477-645-2	05	1	0610-
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	0610-
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	0610-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	0610-
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	01	1	0610-
16	BRACKET; PIPE CLIP (I)	1-47479-856-0	01	1	0610-
16	BRACKET; PIPE CLIP (K)	1-47479-857-0	01	1	0610-
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	0610-
16	BRACKET; PIPE CLIP (H)	8-98054-389-0	01	1	0610-
18	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0610-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0610-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0610-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	06	1	0610-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0610-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0610-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0610-
22	BRACKET; CLIP (C)	1-46147-101-0	02	1	0610-
22	BRACKET; CLIP (D)	1-47471-308-0	01	1	0610-
22	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	06	1	0610-
22	BRACKET; CLIP (B)	1-47479-554-0	01	1	0610-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0610-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0610-
74	CLIP; NYLON TUBE (A) ID=13	1-09701-030-1	08	1	0610-
74	CLIP; NYLON TUBE (C) ID=11X2 L=42	1-09701-306-0	01	1	0610-
74	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	14	1	0610-
106	BRACKET; TUBE CLIP (C)	1-47471-108-0	01	1	0610-
106	BRACKET; TUBE CLIP (D)	1-47471-274-0	01	1	0610-1504
106	BRACKET; TUBE CLIP (L)	8-98302-600-0	01	1	1505-
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0610-
106	BRACKET; TUBE CLIP (F)	1-47479-381-2	02	1	0610-
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	0610-
106	BRACKET; TUBE CLIP (A)	1-47479-870-0	01	1	0610-
106	BRACKET; TUBE CLIP (K)	8-97615-493-0	01	1	0610-
106	BRACKET; TUBE CLIP (G)	8-98052-408-0	01	1	0610-1412
106	BRACKET; TUBE CLIP (G)	8-98297-188-0	01	1	1501-
106	BRACKET; TUBE CLIP (H)	8-98052-409-0	01	1	0610-
106	BRACKET; TUBE CLIP (I)	8-98052-410-0	01	1	0610-
106	BRACKET; TUBE CLIP (J)	8-98052-411-0	01	1	0610-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	03	1	0610-
126	BOLT; CLIP BRKT M8X45 FLANGE	0-28060-845-0	01	1	0610-0703
126	BOLT; CLIP BRKT M8X45 FLANGE	0-28050-845-0	01	1	0704-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	10	1	0610-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	0610-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	0610-
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	10	1	0610-
128	CLIP; NYLON TUBE (C) ID=24.5 L=27	1-09701-049-0	01	1	0610-
128	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	0610-
128	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	09	1	0610-
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	05	1	0610-
269	CLIP; BAND,NYLON TUBE (D) ID=15 L=22 H=30	1-09701-215-1	02	1	0610-
269	CLIP; BAND,NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	03	1	0610-
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	02	1	0610-
269	CLIP; BAND,NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	02	1	0610-
269	CLIP; BAND,NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	02	1	0610-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0610-
270	CLIP; NYLON TUBE (C) ID=16 H=25 L=25	1-09701-162-0	02	1	0610-

81 133 16 22 81 106 106 106 106 106 81 81 81 81 81 106 22 16 11 22 16 81 107 107 71 81 107 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0610-
16	BRACKET; PIPE CLIP (G)	1-47471-309-0	01	1	0610-
16	BRACKET; PIPE CLIP (E) L=85 H=40	1-47476-676-0	01	1	0610-
16	BRACKET; PIPE CLIP (D) L=100 H=30	1-47477-645-2	05	1	0610-
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	0610-
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	0610-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	0610-
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	01	1	0610-
16	BRACKET; PIPE CLIP (I)	1-47479-856-0	01	1	0610-
16	BRACKET; PIPE CLIP (K)	1-47479-857-0	01	1	0610-
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	0610-
16	BRACKET; PIPE CLIP (H)	8-98054-389-0	01	1	0610-
22	BRACKET; CLIP (C)	1-46147-101-0	02	1	0610-
22	BRACKET; CLIP (D)	1-47471-308-0	01	1	0610-
22	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	06	1	0610-
22	BRACKET; CLIP (B)	1-47479-554-0	01	1	0610-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0610-
71	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0610-
81	BRACKET; CLIP (E) L=150	1-47471-217-0	02	1	0610-
81	BRACKET; CLIP (B)	1-47471-274-0	01	1	0610-
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0610-
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	01	1	0610-
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	02	1	0610-
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0610-
81	BRACKET; CLIP (D)	8-98052-412-0	01	1	0610-
81	BRACKET; CLIP (H)	8-98052-413-0	01	1	0610-
81	BRACKET; CLIP (I)	8-98052-414-0	01	1	0610-
81	BRACKET; CLIP (G)	8-98052-415-0	01	1	0610-
106	BRACKET; TUBE CLIP (C)	1-47471-108-0	01	1	0610-
106	BRACKET; TUBE CLIP (D)	1-47471-274-0	01	1	0610-1504
106	BRACKET; TUBE CLIP (L)	8-98302-600-0	01	1	1505-
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0610-
106	BRACKET; TUBE CLIP (F)	1-47479-381-2	02	1	0610-
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	0610-
106	BRACKET; TUBE CLIP (A)	1-47479-870-0	01	1	0610-
106	BRACKET; TUBE CLIP (K)	8-97615-493-0	01	1	0610-
106	BRACKET; TUBE CLIP (G)	8-98052-408-0	01	1	0610-1412
106	BRACKET; TUBE CLIP (G)	8-98297-188-0	01	1	1501-
106	BRACKET; TUBE CLIP (H)	8-98052-409-0	01	1	0610-
106	BRACKET; TUBE CLIP (I)	8-98052-410-0	01	1	0610-
106	BRACKET; TUBE CLIP (J)	8-98052-411-0	01	1	0610-
107	CLIP; NYLON TUBE (B) ID=24 L=27	1-09700-809-0	01	1	0610-0810
107	CLIP; NYLON TUBE (B) ID=28 L=40	1-09700-995-1	01	1	0811-
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	0610-
107	CLIP; NYLON TUBE (B) ID=25 L=50	1-09701-019-0	01	1	0610-
107	CLIP; NYLON TUBE (C) ID=39 H=28 L=32	1-09701-263-0	02	1	0610-
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	0610-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	0610-
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0610-
133	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	0610-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0610-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	07	1	0610-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0610-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0610-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0610-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0610-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0610-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
