3-75 — BRAKE PIPING; AIR,FRONT (#30325) — 61 parça

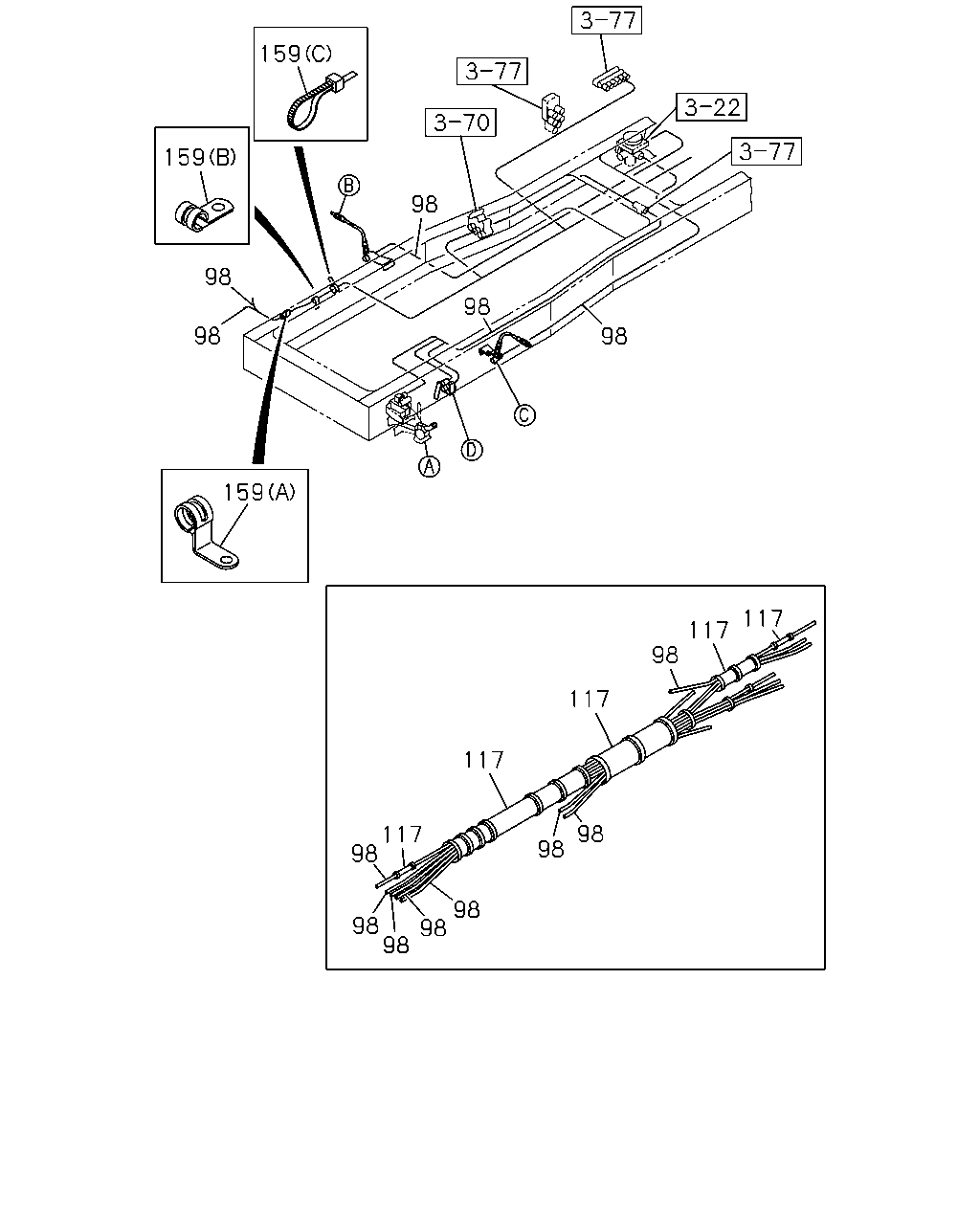

çizim 140530
159 159 98 98 98 98 98 159 117 117 98 117 117 98 117 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date
98 TUBE; NYLON
L=170 OD=12 		1-49222-063-0 02 1 0610-
98 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1008-
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0610-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0610-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0610-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0610-
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=13 		1-87411-023-0 AR 1 0610-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1008-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0610-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0610-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0610-
159 CLIP; NYLON TUBE
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0907-
159 CLIP; NYLON TUBE
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) ID=35 L=33 		1-09700-945-0 03 1 0907-
159 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 03 1 0610-0906
159 CLIP; NYLON TUBE
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) ID=35 L=33 		1-09700-945-0 04 1 0907-
159 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09700-947-0 03 1 0610-
159 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 01 1 0610-0906
159 CLIP; NYLON TUBE
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=28 H=45 L=30 		1-09700-948-0 01 1 0907-
159 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 02 1 0610-
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 02 1 0610-0906
159 CLIP; NYLON TUBE
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=31 H=30 L=35 		1-09700-994-0 02 1 0907-
159 CLIP; NYLON TUBE
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0610-
159 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 02 1 0610-
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 24 1 0610-

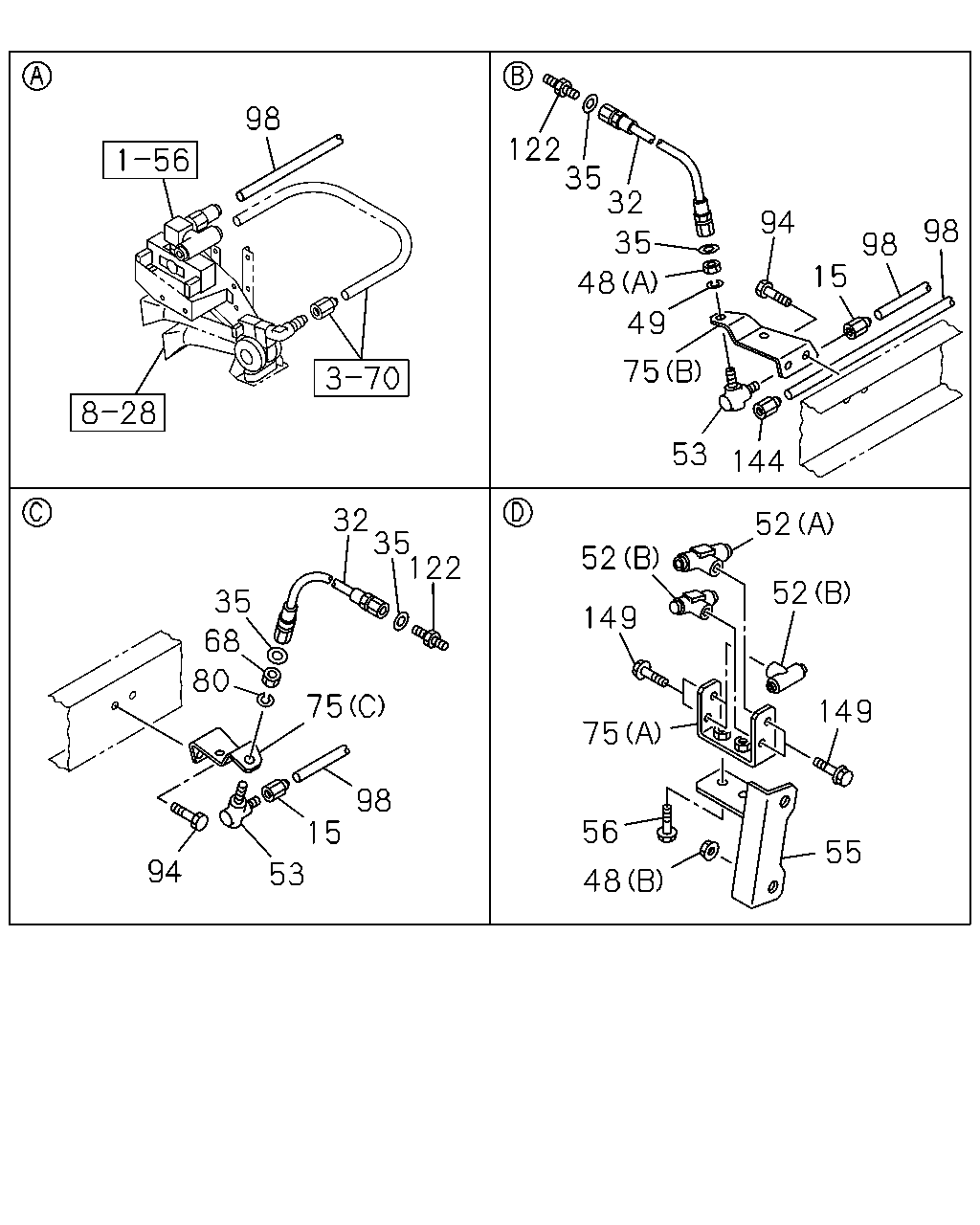

çizim 140548
98 122 35 32 94 98 35 98 15 48 49 75 53 144 32 35 122 52 52 52 35 149 68 80 75 149 75 98 56 15 55 94 53 48
BalonParca AdiParca NoAdetTipApplied Date
15 CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0610-
32 HOSE; FLEX,FRT 0-87847-430-1 02 1 0610-
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0610-
48 NUT; UNION BRKT
(A) M20 		0-91111-520-0 01 1 0610-
48 NUT; UNION BRKT
(B) M12 FLANGE 		0-91180-212-0 02 1 0610-
49 WASHER; LK,UNION BRKT
ID=20.2 		0-91510-520-0 01 1 0610-
52 CONNECTOR; NYLON TUBE
(A) 		1-09661-128-0 01 1 0610-
52 CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 0610-
53 UNION; ELBOW 1-09654-128-1 02 1 0610-
55 BRACKET; TUBE UNION 1-47478-381-1 01 1 0610-
56 BOLT; UNION BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0610-
68 NUT; UNION
M20 		0-91111-520-0 01 1 0610-
75 BRACKET; UNION
(A) 		1-47478-382-0 01 1 0610-
75 BRACKET; UNION
(C) 		1-47479-765-1 01 1 0610-
75 BRACKET; UNION
(B) 		1-47479-766-1 01 1 0610-
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 01 1 0610-
94 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0610-
98 TUBE; NYLON
L=170 OD=12 		1-49222-063-0 02 1 0610-
98 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1008-
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0610-
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-1 02 1 0610-
144 ADAPTER
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0610-
149 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 04 1 0610-
