4-20 — REAR AXLE CASE AND SHAFT (#3032) — 75 parça

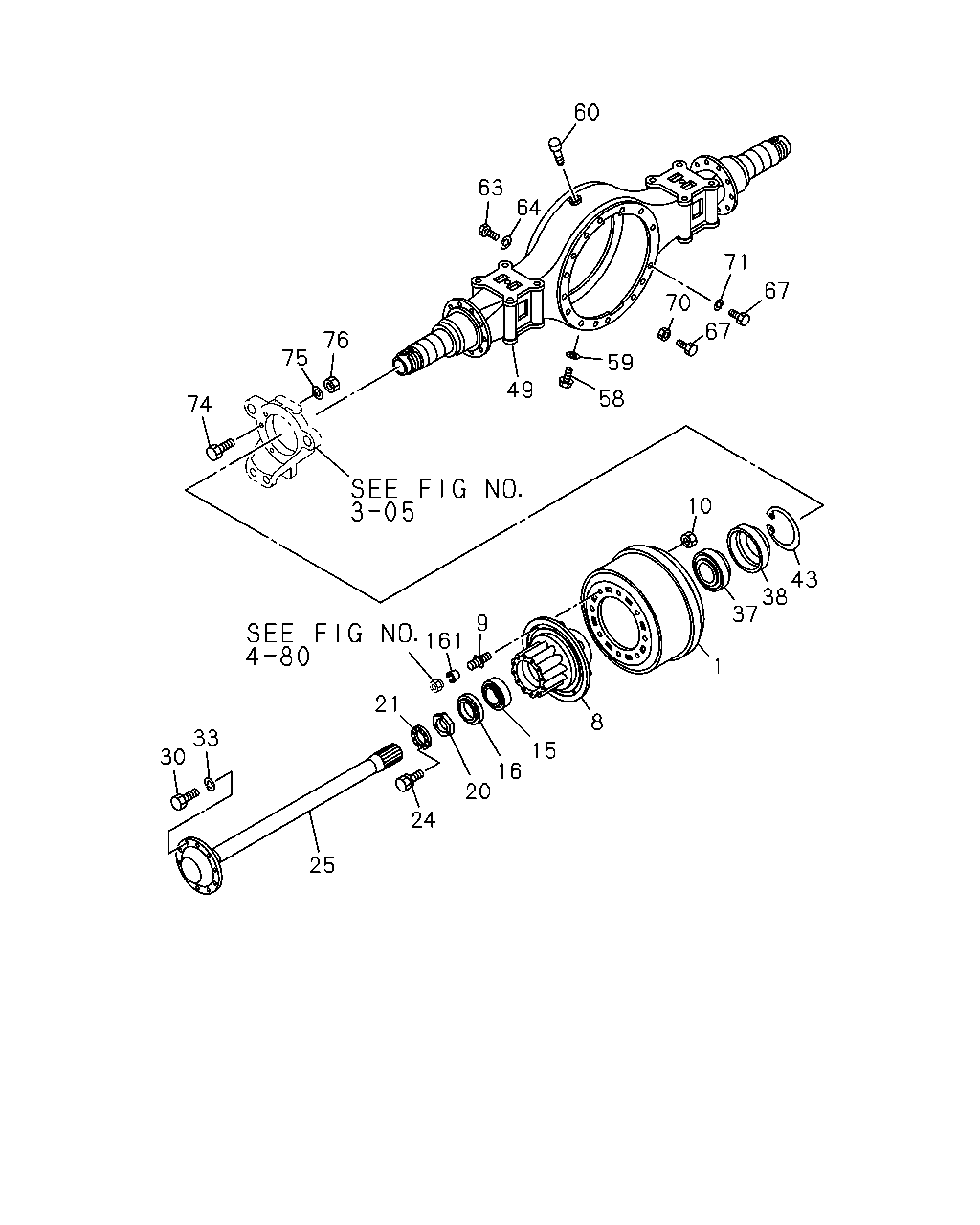

çizim 37849
25 33 30 24 20 16 15 8 21 161 9 1 37 38 43 10 58 59 49 76 75 74 63 64 60 71 70 67 67
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRUM; BRK,RR 1-42315-220-4 02 1 9002- ● ●
1 DRUM; BRK,RR
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42315-220-4 02 1 9002- ● ●
1 DRUM; BRK,RR
WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42315-194-4 02 1 9002- ● ●
8 HUB; RR AXLE 1-42311-033-4 02 1 9002- ● ●
8 HUB; RR AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42311-033-4 02 1 9002- ● ●
8 HUB; RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> H=237.5 		1-42311-032-4 02 1 9002-9508 ● ●
8 HUB; RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42311-100-0 02 1 9509- ●
9 PIN; WHEEL,RR AXLE 1-42331-041-0 20 1 9002-9111 ● ●
9 PIN; WHEEL,RR AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42331-041-0 20 1 9002-9111 ● ●
9 PIN; WHEEL,RR AXLE 1-42331-136-0 20 1 9112- ● ●
9 PIN; WHEEL,RR AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42331-136-0 20 1 9112- ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42332-110-0 08 1 9002- ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42331-110-0 08 1 9002- ● ●
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-037-0 20 1 9002-9111 ● ●
10 NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-09400-037-0 20 1 9002-9111 ● ●
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 9112- ● ●
10 NUT; WHEEL PIN,RR AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-09400-071-0 20 1 9112- ● ●
10 NUT; WHEEL PIN,RR AXLE
WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		9-09110-522-0 16 1 9002- ● ●
15 BEARING; HUB OUTER,RR AXLE
NACHI 		1-09812-166-0 02 1 9002- ● ● ● ●
15 BEARING; HUB OUTER,RR AXLE
NSK 		1-09812-079-0 02 1 9002- ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		1-09625-226-1 02 1 9002- ● ● ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 9002- ● ● ● ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 9002- ● ● ● ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 9002- ● ● ● ●
24 BOLT; LK WASHER
M6X16 W/LK WASHER 		9-01910-616-0 06 1 9002-9005 ● ● ● ●
24 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 06 1 9006- ● ● ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 17.5"<B5D> 		1-42171-314-1 01 1 9002-9306 ● ● ● ●
25 SHAFT; AXLE,RR 1-42171-314-1 01 1 9307-9405 ● ●
25 SHAFT; AXLE,RR
L=980 		1-42171-392-0 01 1 9406- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 17.5"<B5D> 		1-42171-313-1 01 1 9002-9306 ● ● ● ●
25 SHAFT; AXLE,RR 1-42171-313-1 01 1 9307-9405 ● ●
25 SHAFT; AXLE,RR
L=1110 		1-42171-391-0 01 1 9406- ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 18.5"<C1C> L=1050 		1-42171-291-1 02 1 9002-9306 ● ● ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 16.5"<B2Y> 		1-42171-186-3 01 1 9002-9306 ● ●
25 SHAFT; AXLE,RR
FINAL GEAR 16.5"<B2Y> 		1-42171-185-3 01 1 9002-9306 ● ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09020-095-1 20 1 9002- ● ● ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-614-0 20 1 9002-9408 ● ● ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 9409- ● ●
37 BEARING; HUB INNER,RR AXLE
NSK 		1-09812-077-0 02 1 9002- ● ● ● ●
37 BEARING; HUB INNER,RR AXLE
NACHI 		1-09812-165-0 02 1 9002- ● ● ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 9002- ● ● ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 9002- ● ● ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 9002- ● ● ● ●
49 CASE; RR AXLE
FINAL GEAR 17.5"<B5D> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42130-611-5 01 1 9002-9306 ● ● ● ●
49 CASE; RR AXLE
FINAL GEAR 18.5"<C1C> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42130-412-9 01 1 9002-9306 ● ● ● ●
49 CASE; RR AXLE 1-42130-611-5 01 1 9307- ●
49 CASE; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-42130-611-5 01 1 9307- ●
49 CASE; RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-42150-329-3 01 1 9002- ● ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 9002- ● ● ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 9002- ● ● ● ●
60 BREATHER; RR AXLE CASE
FINAL GEAR 18.5"<C1C> EXC. DESERT ZONE PACKAGE(W01) 		1-09893-011-1 01 1 9002-9306 ● ● ● ●
60 BREATHER; RR AXLE CASE
EXC. FINAL GEAR 18.5"<C1C>,DESERT ZONE PACKAGE(W01) 		1-09893-003-0 01 1 9002-9306 ● ● ● ●
60 BREATHER; RR AXLE CASE 1-09893-011-1 01 1 9307- ● ●
60 BREATHER; RR AXLE CASE
DESERT ZONE PACKAGE(W01) 		9-36122-015-1 01 1 9002-9306 ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-021-0 01 1 9002-9307 ● ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 9308- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=24.5 OD=32.5 		9-09920-392-0 01 1 9002-9307 ● ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 9308- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91056-670-0 04 1 9002-9003 ● ● ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 9004- ● ● ● ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92051-640-0 08 1 9002-9003 ● ● ● ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 08 1 9004- ● ● ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 37/6 18.5"(W3F) M16X45 		9-92061-645-0 08 1 9002-9004 ● ● ● ●
67 BOLT; FINAL DRIVE SETTING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FINAL GEAR 16.5"<B2Y> M16X65 		9-91056-665-0 04 1 9002-9003 ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y> M16X45 		9-92041-645-0 04 1 9002-9204 ● ●
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y> M16X45 		0-20801-645-0 04 1 9205-9306 ● ●
70 NUT; CARRIER
FINAL GEAR 16.5"<B2Y> M16 		9-99111-416-0 04 1 9002-9306 ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-516-0 12 1 9002-9003 ● ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 9004- ● ● ● ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 9002- ● ● ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-614-0 16 1 9002-9401 ● ● ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 9402- ● ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 9002- ● ● ● ●
161 RING; SPRING,REAR WHEEL 1-42339-025-1 20 1 9002- ● ●
161 RING; SPRING,REAR WHEEL
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42339-025-1 20 1 9002- ● ●
