Isuzu WW
▶
TRUCKS
▶
EXD
▶
11038 - EXD RHD EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-71 - AIR SUSPENSION PIPING
▶

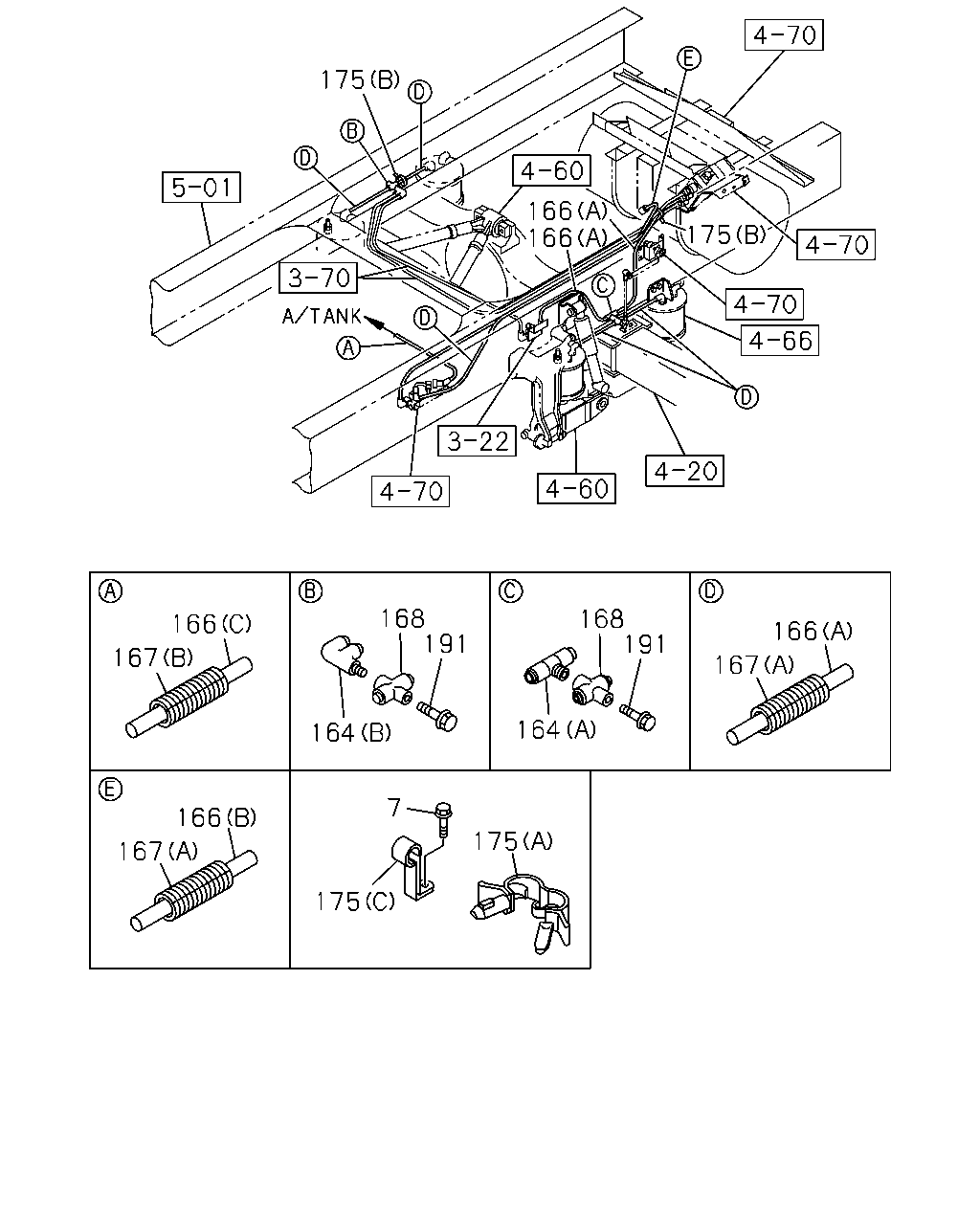

4-71 — AIR SUSPENSION PIPING
(#30316) — 13 parça
175
166
166
175
168
191
168
191
166
166
167
167
164
164
7
166
175
167
175
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0610-
164
CONNECTOR
(A) DIN8X2 & R3/8 3WAY
1-09660-996-0
01
1
0610-
164
CONNECTOR
(B) DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
01
1
0610-
166
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
07
1
0610-
166
TUBE; NYLON
(B) SERVICED BY L=4000 OD=8
1-87411-007-0
01
1
0610-
166
TUBE; NYLON
(C) SERVICED BY L=4000 OD=12
1-87411-012-0
01
1
0610-
167
TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10
1-87411-019-0
07
1
0610-
167
TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13
1-87411-022-0
01
1
0610-
168
UNION; 3WAY
DIN8 & RC3/8 3WAY
1-09661-129-0
02
1
0610-
175
CLIP
(A) ID=18-24 L=14.5
1-09709-298-0
01
1
0610-0610
175
CLIP
(C) ID=18 L=25 H=50
1-09701-096-0
01
1
0610-
175
CLIP
(B) L=350
1-09707-183-0
02
1
0610-
191
BOLT; UNION
M8X25 FLANGE
0-28650-825-0
02
1
0610-
