◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10944 - FVZ(THAI)EURO2 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26B - MANUAL TRANSMISSION GEAR ▶
2-26B — MANUAL TRANSMISSION GEAR (#30300) — 138 parça

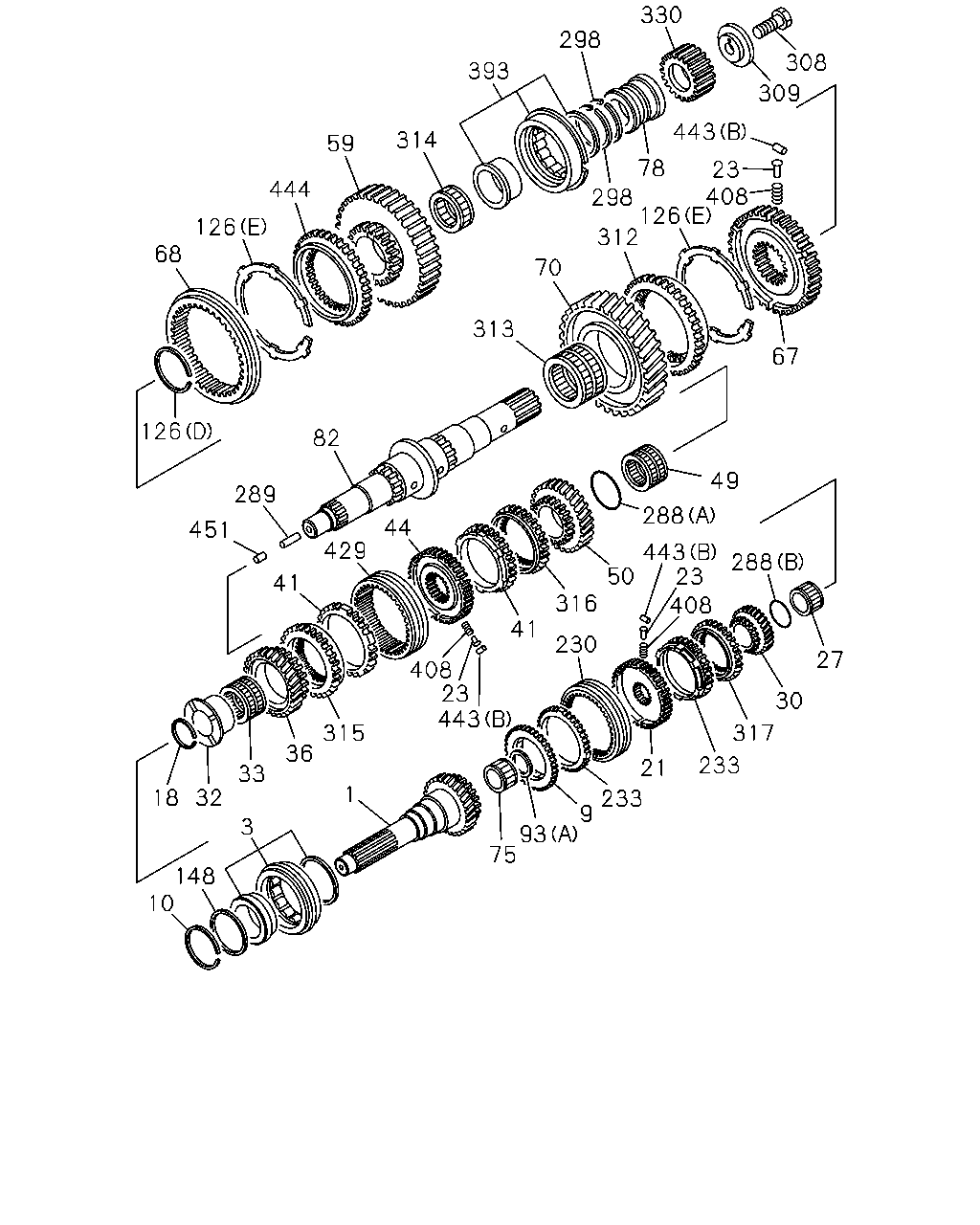

çizim 25738
330 298 308 393 309 443 314 59 78 23 298 408 126 312 444 126 68 70 313 67 126 82 49 289 288 44 451 429 443 50 23 288 41 316 408 41 230 27 408 23 443 30 315 317 36 233 21 33 1 32 18 233 9 3 93 75 148 10
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33211-983-0 01 1 0407-
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 0407-
9 CLUTCH; DOG,TOP GEAR 1-33265-561-0 01 1 0407-
10 RING; SNAP,PILOT BRG 1-33219-268-0 01 1 0407-
18 RING; SNAP,CLU HUB
T=2.00 		1-33269-064-0 01 1 0407-
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 0407-
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0407-
27 BEARING; 4TH GEAR 1-33259-079-0 01 1 0407-
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 0407-
32 COLLAR; 3RD GEAR 1-33259-070-0 01 1 0407-
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 0407-
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 0407-
41 RING; BLOCK,2ND & 3RD 1-33265-560-0 02 1 0407-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0407-
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 0407-
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 0407-
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0407-
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0407-
68 SLEEVE; 1ST TO REV 1-33262-198-0 01 1 0407-
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0407-
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0407-
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-279-0 01 1 0407-
82 SHAFT; MAIN,TRANS 1-33231-294-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(A) T=2.12 		1-33239-238-0 02 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(A) T=2.07 		1-33239-239-0 02 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(A) T=2.02 		1-33239-240-0 02 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(B) T=1.97 		1-33319-146-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(B) T=1.92 		1-33319-147-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(B) T=1.87 		1-33319-148-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(B) T=1.82 		1-33319-149-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(B) T=1.77 		1-33319-150-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0407-
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0407-
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0407-
126 RING; SNAP,CLU HUB
(E) 		1-33269-065-0 02 1 0407-
126 RING; SNAP,CLU HUB
(D) T=2.10 		1-33269-066-0 01 1 0407-
126 RING; SNAP,CLU HUB
(D) T=2.05 		1-33269-067-0 01 1 0407-
126 RING; SNAP,CLU HUB
(D) T=2.00 		1-33269-068-0 01 1 0407-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.10 		1-33219-259-0 01 1 0407-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.15 		1-33219-260-0 01 1 0407-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.20 		1-33219-261-0 01 1 0407-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.25 		1-33219-262-0 01 1 0407-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.30 		1-33219-263-0 01 1 0407-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.35 		1-33219-264-0 01 1 0407-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.40 		1-33219-265-0 01 1 0407-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.45 		1-33219-266-0 01 1 0407-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.50 		1-33219-267-0 01 1 0407-
230 SLEEVE; 4TH TO 5TH 1-33262-197-0 01 1 0407-
233 RING; BLOCK 4TH TO 5TH 1-33265-560-0 02 1 0407-
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 0407-
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 0407-
289 PIN; MAINSHAFT 1-33239-242-0 01 1 0407-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33239-245-0 02 1 0407-
308 BOLT; MAINSHAFT 1-33239-247-0 01 1 0407-
309 PLATE; MAINSHAFT 1-33239-317-0 01 1 0407-
312 CLUTCH; DOG,1ST GEAR 1-33265-596-0 01 1 0407-
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0407-
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0407-
315 CLUTCH; DOG,2ND GEAR 1-33265-561-0 01 1 0407-
316 CLUTCH; DOG,3RD GEAR 1-33265-561-0 01 1 0407-
317 CLUTCH; DOG,4TH GEAR 1-33265-561-0 01 1 0407-
330 GEAR; SUN 1-34311-004-0 01 1 0407-
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 0407-
408 SPRING 1-33264-039-0 18 1 0407-
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0407-
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0407-
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0407-
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 0407-
451 RESTRICTOR; MAIN SHAFT 1-33239-275-0 01 1 0407-

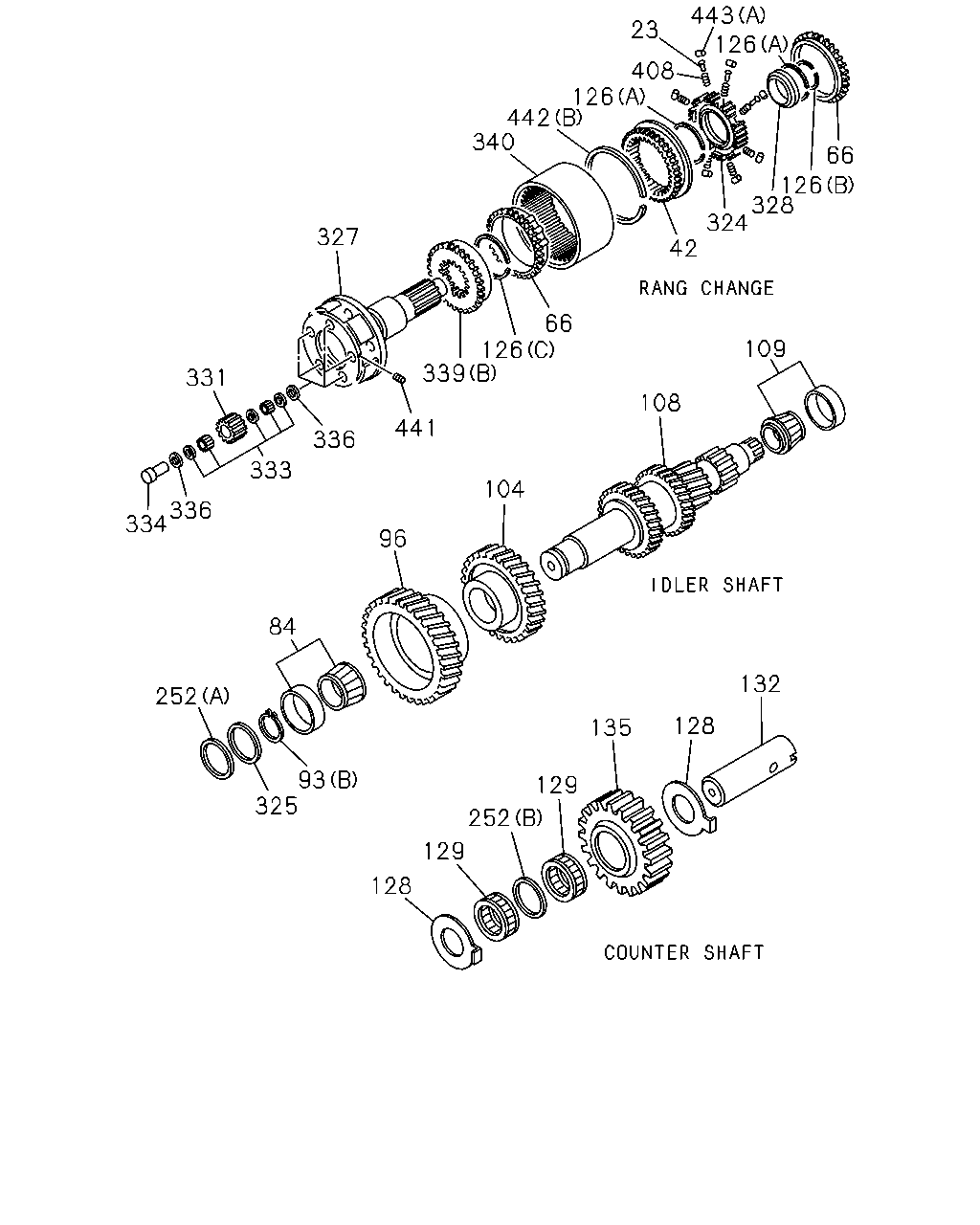

çizim 25857
443 126 23 408 126 442 340 66 126 328 324 42 327 66 126 339 109 331 108 441 336 333 104 336 334 96 84 132 252 128 135 93 325 129 252 129 128
BalonParca AdiParca NoAdetTipApplied Date
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0407-
42 SLEEVE 1-33262-196-0 01 1 0407-
66 RING; BLOCK,SYN 1-33265-557-0 02 1 0407-
84 BEARING; COUNTER SHAFT,FRT 1-33319-145-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(A) T=2.12 		1-33239-238-0 02 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(A) T=2.07 		1-33239-239-0 02 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(A) T=2.02 		1-33239-240-0 02 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(B) T=1.97 		1-33319-146-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(B) T=1.92 		1-33319-147-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(B) T=1.87 		1-33319-148-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(B) T=1.82 		1-33319-149-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
(B) T=1.77 		1-33319-150-0 01 1 0407-
96 GEAR; COUNTER DRIVE 1-33331-242-0 01 1 0407-
104 GEAR; 4TH,COUNTER 1-33338-392-0 01 1 0407-
108 SHAFT; COUNTER 1-33311-303-0 01 1 0407-
109 BEARING; COUNTER SHAFT,RR 1-33319-145-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0407-
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0407-
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0407-
126 RING; SNAP,CLU HUB
(E) 		1-33269-065-0 02 1 0407-
126 RING; SNAP,CLU HUB
(D) T=2.10 		1-33269-066-0 01 1 0407-
126 RING; SNAP,CLU HUB
(D) T=2.05 		1-33269-067-0 01 1 0407-
126 RING; SNAP,CLU HUB
(D) T=2.00 		1-33269-068-0 01 1 0407-
128 WASHER; THRUST,REV SHAFT 1-33359-004-0 02 1 0407-
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0407-
132 SHAFT; REV 1-33351-037-0 01 1 0407-
135 GEAR; REV IDLER 1-33361-078-0 01 1 0407-
252 SPACER
(A) 		1-33319-151-0 01 1 0407-
252 SPACER
(B) 		1-33359-006-0 01 1 0407-
324 HUB; CLU 1-33261-234-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0407-
327 CARRIER; PLANETARY GEAR 1-33231-293-0 01 1 0407-
328 BEARING; CARRIER 1-33269-060-0 01 1 0407-
331 GEAR SET; PLANETARY 1-33239-277-0 05 1 0407-
333 ROLLER; PLANETARY GEAR 1-33239-280-0 05 1 0407-
334 SHAFT; PLANETARY GEAR 1-33239-278-0 05 1 0407-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-276-0 10 1 0407-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0407-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0407-
340 GEAR; RING 1-33339-052-0 01 1 0407-
408 SPRING 1-33264-039-0 18 1 0407-
441 SCREW; STOPPER,PIN 1-33239-251-0 05 1 0407-
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0407-
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0407-
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0407-
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0407-

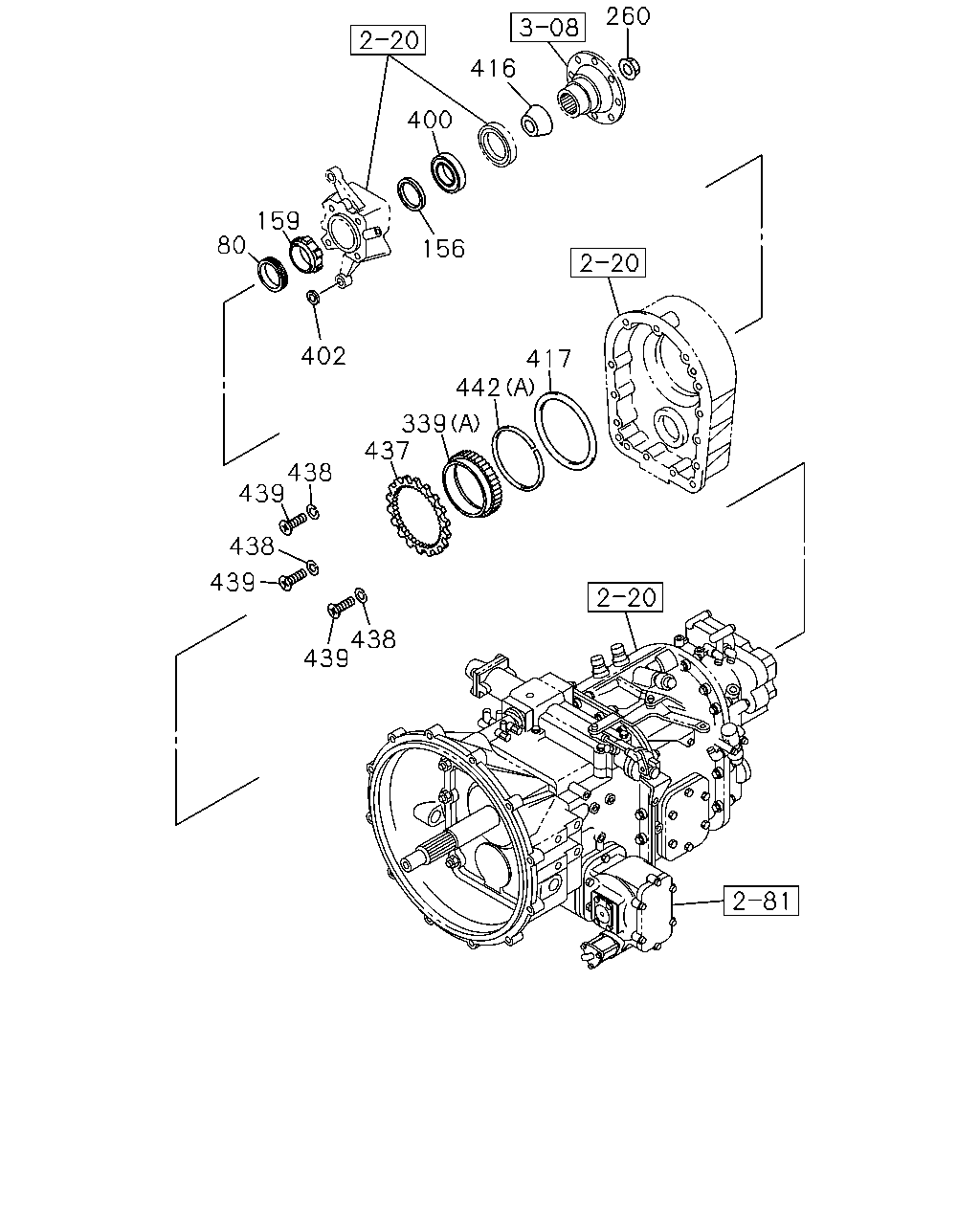

çizim 86876
260 416 400 159 80 156 402 417 442 339 437 438 439 438 439 438 439
BalonParca AdiParca NoAdetTipApplied Date
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 0407-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.70 		1-37249-169-0 01 1 0407-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.77 		1-37249-170-0 01 1 0407-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.83 		1-37249-171-0 01 1 0407-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.89 		1-37249-172-0 01 1 0407-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.95 		1-37249-173-0 01 1 0407-
159 SPACER; SPD DRIVE GEAR 1-33159-054-0 01 1 0407-
260 NUT; MAINSHAFT END 1-33239-281-0 01 1 0407-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0407-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0407-
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 0407-
402 SHIM
T=0.005" 		1-33159-050-0 01 1 0407-
402 SHIM
T=0.10" 		1-33159-051-0 01 1 0407-
416 BUSHING; OUTPUT SHAFT 1-37249-168-0 01 1 0407-
417 SPACER; OUTPUT SHAFT 1-33269-053-0 01 1 0407-
437 PLATE; LOCK 1-33269-054-0 01 1 0407-
438 WASHER; LOCK PLATE 1-33269-056-0 03 1 0407-
439 SCREW; LOCK PLATE 1-33269-057-0 03 1 0407-
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0407-
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0407-
