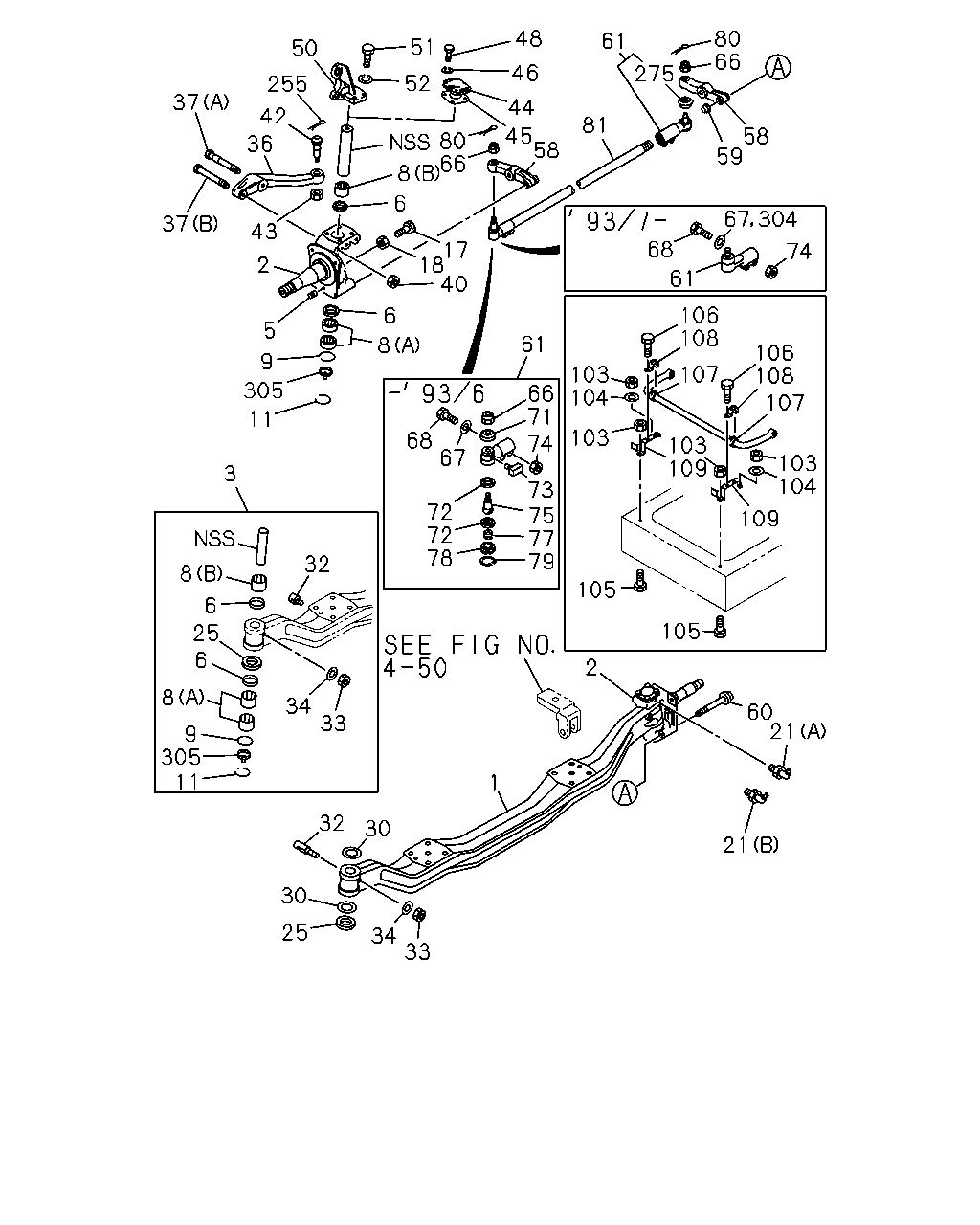

4-10 — FRONT AXLE (#3030) — 117 parça

33 34 25 30 32 30 1 2 60 21 21 105 105 109 104 103 109 103 103 104 103 107 107 108 106 108 106 61 71 74 73 75 77 79 78 72 72 67 68 32 34 33 11 305 9 8 6 25 6 8 3 11 305 9 5 6 8 40 18 17 6 2 43 37 37 36 42 255 50 51 52 8 66 80 58 45 44 46 48 61 81 275 80 66 58 59 67 304 74 61 68 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	AXLE; FRT	1-43111-051-4	01	1	9002-9306	●	●	●	●
1	AXLE; FRT	1-43111-107-3	01	1	9307-		●		●
2	KNUCKLE; FRT AXLE	1-43132-046-3	01	1	9002-9404	●	●	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9405-		●		●
2	KNUCKLE; FRT AXLE	1-43131-046-4	01	1	9002-9404	●	●	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9405-		●		●
3	KING PIN SET	1-87830-039-5	02	1	9002-9306	●	●	●	●
3	KING PIN SET	1-87830-640-0	02	1	9307-9404		●		●
3	KING PIN SET	1-87830-738-0	02	1	9405-		●		●
5	PIN; KNUCKLE TO DRUM COVER	9-09878-625-0	02	1	9002-9404	●	●	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9405-		●		●
6	SEAL; KING PIN	9-09926-024-0	04	1	9002-	●	●	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	9002-	●	●	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	9002-	●	●	●	●
9	PLUG; KNUCKLE	9-09201-363-0	02	1	9002-9404	●	●	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9002-	●	●	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9002-	●	●	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9002-	●	●	●	●
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9002-	●	●	●	●
21	NIPPLE; GREASE,KING PIN (B)	9-09031-210-0	02	1	9002-	●	●	●	●
25	BEARING; THRUST,KING PIN	1-09829-027-1	02	1	9002-9203	●	●	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9204-	●	●	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9002-	●	●	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9002-	●	●	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9002-	●	●	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9002-	●	●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9002-	●	●	●	●
36	ARM; KNUCKLE	1-43133-050-1	01	1	9002-9306	●	●	●	●
36	ARM; KNUCKLE	1-43133-057-1	01	1	9307-9404		●		●
36	ARM; KNUCKLE	1-43133-063-1	01	1	9405-		●		●
37	BOLT; KNUCKLE ARM (A) M22X167	1-09000-153-0	01	1	9002-9111	●	●	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	9112-	●	●	●	●
37	BOLT; KNUCKLE ARM (B) M22X179	9-09806-848-1	01	1	9002-9111	●	●	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	9112-	●	●	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9002-	●	●	●	●
42	JOINT; BALL,KNUCKLE ARM	1-44361-100-0	01	1	9002-9306	●	●	●	●
43	NUT; JOINT BALL,KNUCKLE ARM M24 SLOTTED	1-09442-020-0	01	1	9002-9306	●	●	●	●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	9002-			●	●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-044-0	02	1	9002-			●	●
46	WASHER; LK,COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	08	1	9002-9108			●	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X18	9-92051-218-0	08	1	9002-9006			●	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X18	0-20801-218-0	08	1	9007-9108			●	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X20 W/LK WASHER	0-50041-220-0	08	1	9109-9501			●	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	9502-				●
50	BRACKET; POWER CHAMBER	1-43145-010-2	01	1	9002-	●	●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-010-2	01	1	9002-			●	●
50	BRACKET; POWER CHAMBER	1-43145-009-2	01	1	9002-	●	●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-009-2	01	1	9002-			●	●
51	BOLT; POWER CHAMBER BRKT M12X60	9-91056-260-0	02	1	9002-9005	●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60	9-91056-260-0	02	1	9002-9005			●	●
51	BOLT; POWER CHAMBER BRKT M12X60	0-10806-260-0	02	1	9006-	●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60	0-10806-260-0	02	1	9006-			●	●
51	BOLT; POWER CHAMBER BRKT M12X28	9-92051-228-0	06	1	9002-9005	●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X28	9-92051-228-0	06	1	9002-9005			●	●
51	BOLT; POWER CHAMBER BRKT M12X28	0-20801-228-0	06	1	9006-	●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X28	0-20801-228-0	06	1	9006-			●	●
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	9002-	●	●
52	WASHER; LK,POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	08	1	9002-			●	●
58	ARM; TIE ROD	1-43135-021-1	01	1	9002-9306	●		●
58	ARM; TIE ROD	1-43134-021-1	01	1	9002-9306	●		●
58	ARM; TIE ROD	1-43135-036-0	01	1	9002-9404		●		●
58	ARM; TIE ROD	1-43135-043-0	01	1	9405-		●		●
58	ARM; TIE ROD	1-43134-036-0	01	1	9002-9404		●		●
58	ARM; TIE ROD	1-43134-043-0	01	1	9405-		●		●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9002-	●	●	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9002-	●	●	●	●
61	ROD END; TIE ROD	1-43150-436-1	01	1	9002-9306	●	●	●	●
61	ROD END; TIE ROD	1-43150-435-1	01	1	9002-9306	●	●	●	●
61	ROD END; TIE ROD	1-43150-631-2	01	1	9307-		●		●
61	ROD END; TIE ROD	1-43150-630-2	01	1	9307-		●		●
66	NUT; TIE ROD END M24	9-09844-669-2	02	1	9002-9306	●	●	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9307-		●		●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9002-9207	●	●	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9208-9410	●	●	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9002-	●	●	●	●
71	BOOT; TIE ROD END ID=31 & 49	1-43159-038-0	02	1	9002-9306	●	●	●	●
72	SEAT; BALL,TIE ROD JOINT	1-44371-012-1	04	1	9002-9306	●	●	●	●
73	NIPPLE; GREASE,TIE ROD END PT1/8 STRAIGHT	9-09031-010-0	02	1	9002-9306	●	●	●	●
74	NUT; TIE ROD END M12	9-99110-412-0	04	1	9002-9207	●	●	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9208-9509	●	●	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9510-		●		●
75	JOINT; BALL,DRAG LINK	9-44361-169-3	02	1	9002-9306	●	●	●	●
77	SPRING; TIE ROD END	9-09941-272-0	02	1	9002-9306	●	●	●	●
78	PLUG; ADJ,ROD END	1-44375-014-0	02	1	9002-9306	●	●	●	●
79	RING; SNAP,ADJ PLUG	1-09589-006-0	02	1	9002-9306	●	●	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9307-		●		●
81	ROD; TIE L=1600	9-43151-118-1	01	1	9002-9306	●		●
81	ROD; TIE L=1648	9-43151-121-1	01	1	9002-9306		●		●
81	ROD; TIE L=1650	1-43151-066-0	01	1	9307-		●		●
103	NUT; BRKT FIX EXC. CAB SUSPENSION RIGID<W71> M10	9-09110-510-0	02	1	9002-	●	●	●	●
103	NUT; BRKT FIX EXC. CAB SUSPENSION RIGID<W71> M14	9-99110-514-0	02	1	9002-	●	●	●	●
104	WASHER; LK,BRKT EXC. CAB SUSPENSION RIGID<W71> ID=14.2	9-09150-614-0	02	1	9002-	●	●	●	●
105	BOLT; BRKT FIX EXC. CAB SUSPENSION RIGID<W71> M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-	●	●	●	●
106	BOLT; CAP FIX EXC. CAB SUSPENSION RIGID<W71> M8X25 W/LK WASHER	9-01910-825-0	02	1	9002-9005	●	●	●	●
106	BOLT; CAP FIX EXC. CAB SUSPENSION RIGID<W71> M8X25 W/LK WASHER	0-50040-825-0	02	1	9006-9302	●	●	●	●
106	BOLT; CAP FIX EXC. CAB SUSPENSION RIGID<W71> M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●	●
107	BUSHING; STABILIZER BAR EXC. CAB SUSPENSION RIGID<W71>	1-53459-860-0	02	1	9002-	●	●	●	●
108	CAP EXC. CAB SUSPENSION RIGID<W71>	1-53459-392-1	02	1	9002-	●	●	●	●
109	BUFFER; STAB BAR EXC. CAB SUSPENSION RIGID<W71>	1-53459-532-0	01	1	9002-	●	●	●	●
109	BUFFER; STAB BAR EXC. CAB SUSPENSION RIGID<W71>	1-53459-533-0	01	1	9002-	●	●	●	●
255	PIN; SPLIT,JOINT BALL OD=4.6 L=35	9-08115-035-0	01	1	9002-9306	●	●	●	●
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9307-		●		●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	9411-		●		●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9405-		●		●
