2-26A — MANUAL TRANSMISSION GEAR (#30299) — 224 parça

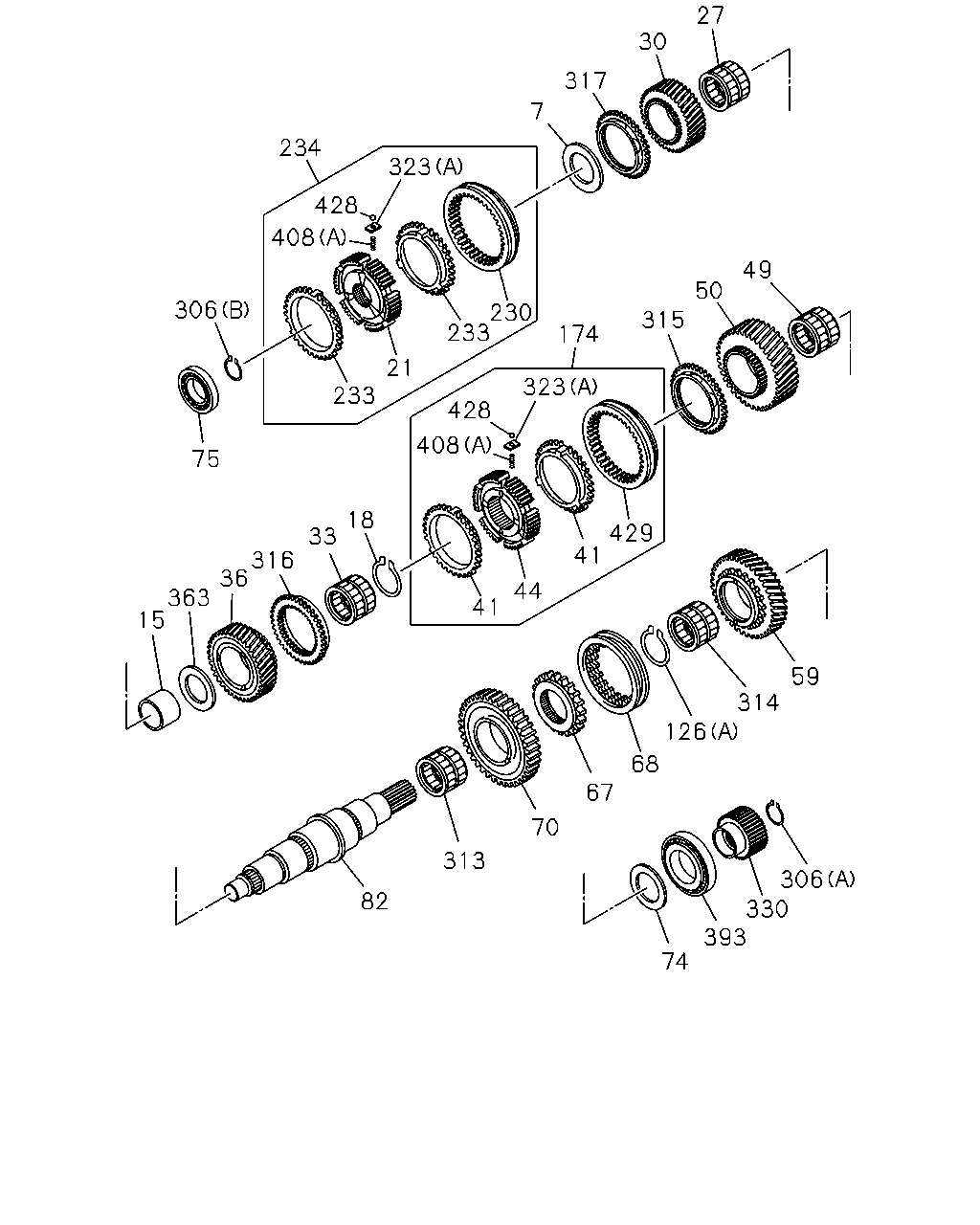

çizim 23647
27 30 317 7 234 323 428 408 49 50 306 230 233 315 174 21 323 233 428 408 75 18 429 33 41 316 36 363 15 44 41 59 314 126 68 67 70 313 306 82 330 393 74
BalonParca AdiParca NoAdetTipApplied Date
7 WASHER; THRUST,MAINSHAFT 1-33239-159-0 01 1 0407-
15 COLLAR; 4TH GEAR 1-33259-037-0 01 1 0407-
18 RING; SNAP,CLU HUB
T=2.80 		1-33259-024-0 01 1 0407-
18 RING; SNAP,CLU HUB
T=2.75 		1-33259-025-0 01 1 0407-
18 RING; SNAP,CLU HUB
T=2.70 		1-33259-026-0 01 1 0407-
18 RING; SNAP,CLU HUB
T=2.65 		1-33259-027-0 01 1 0407-
18 RING; SNAP,CLU HUB
T=2.60 		1-33259-028-0 01 1 0407-
18 RING; SNAP,CLU HUB
T=2.55 		1-33259-029-0 01 1 0407-
18 RING; SNAP,CLU HUB
T=2.50 		1-33259-030-0 01 1 0407-
21 HUB; CLU,4TH & 5TH 1-33261-246-0 01 1 0407-
27 BEARING; 4TH GEAR 1-33259-036-0 01 1 0407-
30 GEAR; 4TH,MAINSHAFT 1-33252-429-0 01 1 0407-
33 BEARING; NEEDLE,3RD GEAR 1-33259-036-0 01 1 0407-
36 GEAR; 3RD,MAINSHAFT 1-33252-428-0 01 1 0407-
41 RING; BLOCK,2ND & 3RD 1-33265-512-0 02 1 0407-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-247-0 01 1 0407-
49 BEARING; NEEDLE,2ND GEAR 1-33259-035-0 01 1 0407-
50 GEAR; 2ND,MAINSHAFT 1-33251-339-0 01 1 0407-
59 GEAR; REV MAINSHAFT 1-33257-071-0 01 1 0407-
67 HUB; CLU,1ST TO REV 1-33259-022-0 01 1 0407-
68 SLEEVE; 1ST TO REV 1-33259-075-0 01 1 0407-
70 GEAR; 1ST,MAINSHAFT 1-33251-377-0 01 1 0407-
74 WASHER; THRUST,REV GEAR 1-33259-033-0 01 1 0407-
75 BEARING; MAINSHAFT 1-33239-169-0 01 1 0407-
82 SHAFT; MAIN,TRANS 1-33231-272-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.80 		1-33259-024-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.75 		1-33259-025-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.70 		1-33259-026-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.65 		1-33259-027-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.60 		1-33259-028-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.55 		1-33259-029-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.50 		1-33259-030-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.45 		1-33259-031-0 01 1 0407-
126 RING; SNAP,CLU HUB
(B) T=3.00 		1-33269-043-0 01 1 0407-
126 RING; SNAP,CLU HUB
(B) T=3.10 		1-33269-069-0 01 1 0407-
126 RING; SNAP,CLU HUB
(B) T=3.20 		1-33269-070-0 01 1 0407-
126 RING; SNAP,CLU HUB
(B) T=2.90 		1-33269-080-0 01 1 0407-
174 SYNCHRONIZER ASM; 2ND-3RD 1-33260-148-0 01 1 0407-
230 SLEEVE; 4TH TO 5TH 1-33262-199-0 01 1 0407-
233 RING; BLOCK 4TH TO 5TH 1-33265-513-0 02 1 0407-
234 SYNCHRONIZER ASM; 4TH TO 5TH 1-33260-147-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33239-149-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33239-150-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33239-151-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33239-152-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33239-153-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33239-154-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33239-155-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33239-156-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33239-157-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33239-158-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(B) T=2.80 		1-33239-160-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(B) T=2.75 		1-33239-161-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(B) T=2.70 		1-33239-162-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(B) T=2.65 		1-33239-163-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(B) T=2.60 		1-33239-164-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(B) T=2.55 		1-33239-165-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(B) T=2.50 		1-33239-166-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(B) T=2.45 		1-33239-167-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(B) T=2.40 		1-33239-168-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33239-253-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33239-254-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33239-255-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=3.30 		1-33239-256-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=3.40 		1-33239-257-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(A) T=3.50 		1-33239-258-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(B) T=2.90 		1-33239-259-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(B) T=3.00 		1-33239-260-0 01 1 0407-
306 RING; SNAP,MAINSHAFT
(B) T=3.10 		1-33239-261-0 01 1 0407-
313 BEARING; NEEDLE,LOW GEAR 1-33259-021-0 01 1 0407-
314 BEARING; NEEDLE,REV GEAR 1-33259-032-0 01 1 0407-
315 CLUTCH; DOG,2ND GEAR 1-33265-420-0 01 1 0407-
316 CLUTCH; DOG,3RD GEAR 1-33265-420-0 01 1 0407-
317 CLUTCH; DOG,4TH GEAR 1-33219-068-0 01 1 0407-
323 INSERT
(A) 		1-33263-028-0 06 1 0407-
323 INSERT
(B) 		1-33263-029-0 03 1 0407-
330 GEAR; SUN 1-33259-034-0 01 1 0407-
363 WASHER; THRUST,3RD-4TH 1-33239-159-0 01 1 0407-
393 BEARING; MAINSHAFT END 1-33239-148-0 01 1 0407-
408 SPRING
(A) 		1-33269-041-0 06 1 0407-
408 SPRING
(B) 		1-33269-042-0 03 1 0407-
428 BALL; LK,SLEEVE 1-33269-040-0 06 1 0407-
429 SLEEVE; 2ND & 3RD 1-33262-200-0 01 1 0407-

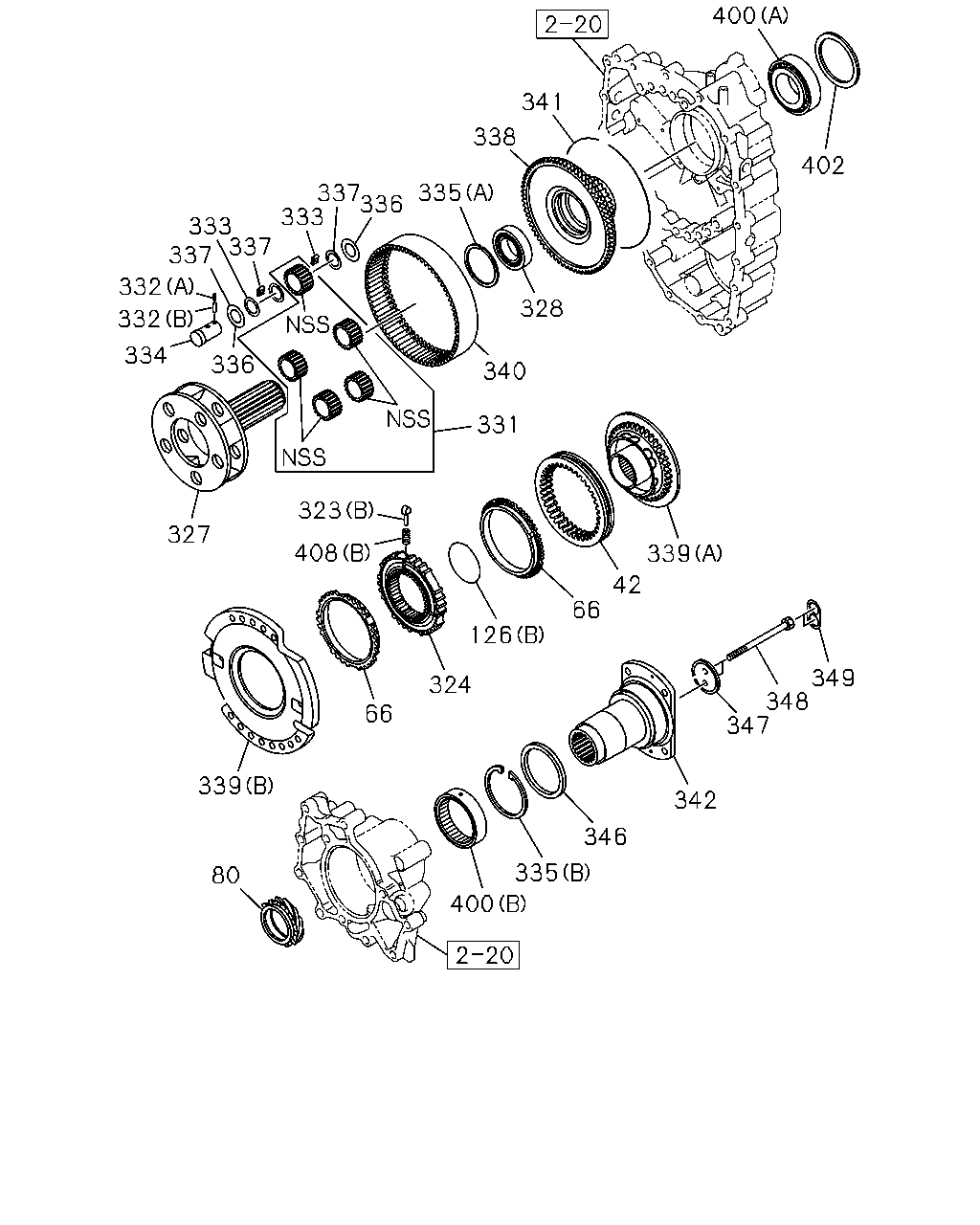

çizim 25464
400 341 338 402 335 337 336 333 333 337 337 332 328 332 334 336 340 331 323 327 408 339 42 66 126 349 348 347 324 66 339 342 346 335 80 400
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE 1-33262-172-0 01 1 0407-
66 RING; BLOCK,SYN 1-33265-498-0 02 1 0407-
80 GEAR; SPD DRIVE 1-33371-060-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.80 		1-33259-024-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.75 		1-33259-025-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.70 		1-33259-026-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.65 		1-33259-027-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.60 		1-33259-028-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.55 		1-33259-029-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.50 		1-33259-030-0 01 1 0407-
126 RING; SNAP,CLU HUB
(A) T=2.45 		1-33259-031-0 01 1 0407-
126 RING; SNAP,CLU HUB
(B) T=3.00 		1-33269-043-0 01 1 0407-
126 RING; SNAP,CLU HUB
(B) T=3.10 		1-33269-069-0 01 1 0407-
126 RING; SNAP,CLU HUB
(B) T=3.20 		1-33269-070-0 01 1 0407-
126 RING; SNAP,CLU HUB
(B) T=2.90 		1-33269-080-0 01 1 0407-
323 INSERT
(A) 		1-33263-028-0 06 1 0407-
323 INSERT
(B) 		1-33263-029-0 03 1 0407-
324 HUB; CLU 1-33261-215-0 01 1 0407-
327 CARRIER; PLANETARY GEAR 1-33231-300-0 01 1 0407-
328 BEARING; CARRIER 1-33339-030-0 01 1 0407-
331 GEAR SET; PLANETARY 1-33239-173-0 01 1 0407-
332 PIN; LOCK,SHAFT
(C) 		1-33211-955-0 01 1 0407-
332 PIN; LOCK,SHAFT
(B) 		1-33239-178-0 05 1 0407-
332 PIN; LOCK,SHAFT
(A) 		1-33239-179-0 05 1 0407-
333 ROLLER; PLANETARY GEAR 1-33239-175-0 AR 1 0407-
334 SHAFT; PLANETARY GEAR 1-33239-177-0 05 1 0407-
335 RING; SNAP,BEARING
(A) T=2.0 		1-33339-031-0 01 1 0407-
335 RING; SNAP,BEARING
(A) T=1.9 		1-33339-032-0 01 1 0407-
335 RING; SNAP,BEARING
(A) T=1.8 		1-33339-034-0 01 1 0407-
335 RING; SNAP,BEARING
(B) 		1-33339-037-0 01 1 0407-
335 RING; SNAP,BEARING
(A) T=2.10 		1-33339-054-0 01 1 0407-
335 RING; SNAP,BEARING
(A) T=2.20 		1-33339-055-0 01 1 0407-
335 RING; SNAP,BEARING
(A) T=1.80 		1-33339-072-0 01 1 0407-
335 RING; SNAP,BEARING
(A) T=1.90 		1-33339-073-0 01 1 0407-
335 RING; SNAP,BEARING
(A) T=2.00 		1-33339-074-0 01 1 0407-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 10 1 0407-
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 15 1 0407-
338 CARRIER; RING GEAR 1-33331-232-0 01 1 0407-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-499-0 01 1 0407-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-511-0 01 1 0407-
340 GEAR; RING 1-33339-033-0 01 1 0407-
341 WIRE; LOCK,CARRIER 1-33339-035-0 01 1 0407-
342 FLANGE; OUTPUT 1-37243-310-0 01 1 0407-
346 GASKET; FLANGE 1-33339-056-0 01 1 0407-
347 WASHER; FLANGE 1-37249-135-0 01 1 0407-
348 BOLT; SHAFT 1-09009-170-0 02 1 0407-
349 WASHER; LK,SHAFT 1-37249-065-0 01 1 0407-
400 BEARING; OUTPUT SHAFT RR
(A) 		1-33139-097-0 01 1 0407-
400 BEARING; OUTPUT SHAFT RR
(B) 		1-33339-036-0 01 1 0407-
402 SHIM
T=1.80 		1-33139-039-0 01 1 0407-
402 SHIM
T=1.70 		1-33139-041-0 01 1 0407-
402 SHIM
T=1.60 		1-33139-042-0 01 1 0407-
402 SHIM
T=1.50 		1-33139-043-0 01 1 0407-
402 SHIM
T=1.40 		1-33139-045-0 01 1 0407-
402 SHIM
T=1.30 		1-33139-046-0 01 1 0407-
402 SHIM
T=1.20 		1-33139-047-0 01 1 0407-
402 SHIM
T=1.10 		1-33139-050-0 01 1 0407-
408 SPRING
(A) 		1-33269-041-0 06 1 0407-
408 SPRING
(B) 		1-33269-042-0 03 1 0407-

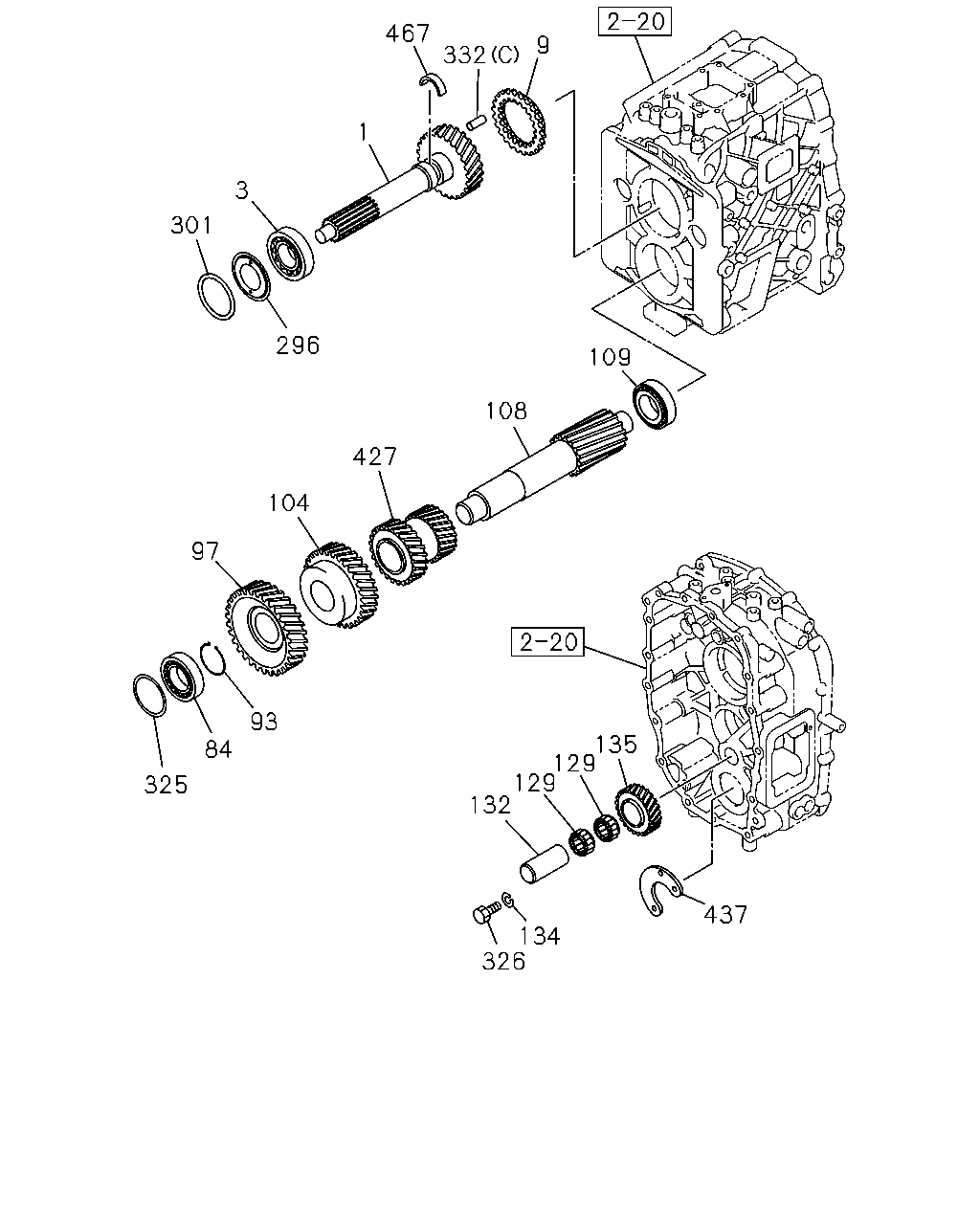

çizim 83326
467 9 332 1 3 301 296 109 108 427 104 97 93 135 129 129 132 84 325 437 134 326
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33211-929-0 01 1 0407-
3 BEARING; TOP GEAR SHAFT 1-33219-069-0 01 1 0407-
9 CLUTCH; DOG,TOP GEAR 1-33219-068-0 01 1 0407-
84 BEARING; COUNTER SHAFT,FRT 1-33312-004-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
T=1.80 		1-33269-081-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
T=1.90 		1-33269-082-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
T=1.70 		1-33269-083-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-101-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-102-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-103-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-104-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
T=2.10 		1-33319-105-0 01 1 0407-
93 RING; SNAP,COUNTER FRT BRG
T=2.00 		1-33319-106-0 01 1 0407-
97 GEAR; 5TH,COUNTER 1-33338-327-0 01 1 0407-
104 GEAR; 4TH,COUNTER 1-33338-326-0 01 1 0407-
108 SHAFT; COUNTER 1-33311-277-0 01 1 0407-
109 BEARING; COUNTER SHAFT,RR 1-33312-003-0 01 1 0407-
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 0407-
132 SHAFT; REV 1-33351-024-0 01 1 0407-
134 WASHER; LK,REV SHAFT 1-33549-159-0 01 1 0407-
135 GEAR; REV IDLER 1-33361-072-0 01 1 0407-
296 WASHER; THRUST 1-33219-070-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-077-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-078-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-079-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33219-080-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33219-081-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33219-082-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33219-083-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33219-084-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33219-085-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33219-086-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33219-087-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33219-088-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33219-089-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33219-090-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33219-091-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33219-092-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33219-093-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33219-094-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33219-095-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=0.85 		1-33219-096-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=0.80 		1-33219-097-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=0.75 		1-33219-098-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=0.70 		1-33219-099-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=0.65 		1-33219-100-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33219-195-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33219-196-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33219-197-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33219-198-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33219-199-0 01 1 0407-
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33219-200-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33315-031-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33315-032-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33315-033-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33315-034-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33315-035-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33315-036-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33315-037-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33315-038-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33315-039-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33315-040-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33315-041-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33315-069-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33315-070-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33315-071-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33315-072-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33315-073-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33315-074-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33315-075-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33315-076-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33315-077-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33315-078-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33315-079-0 01 1 0407-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33315-080-0 01 1 0407-
326 BOLT; REV SHAFT 1-33119-296-0 03 1 0407-
332 PIN; LOCK,SHAFT
(C) 		1-33211-955-0 01 1 0407-
332 PIN; LOCK,SHAFT
(B) 		1-33239-178-0 05 1 0407-
332 PIN; LOCK,SHAFT
(A) 		1-33239-179-0 05 1 0407-
427 GEAR; 2ND & 3RD,COUNTER 1-33332-115-0 01 1 0407-
437 PLATE; LOCK 1-33119-279-0 01 1 0407-
467 COLLAR; SHAFT 1-33211-956-0 01 1 0407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
