Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10944 - FVZ(THAI)EURO2
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20B - MANUAL TRANSMISSION ASM AND CASE
▶
2-20B — MANUAL TRANSMISSION ASM AND CASE
(#30296) — 58 parça
◀

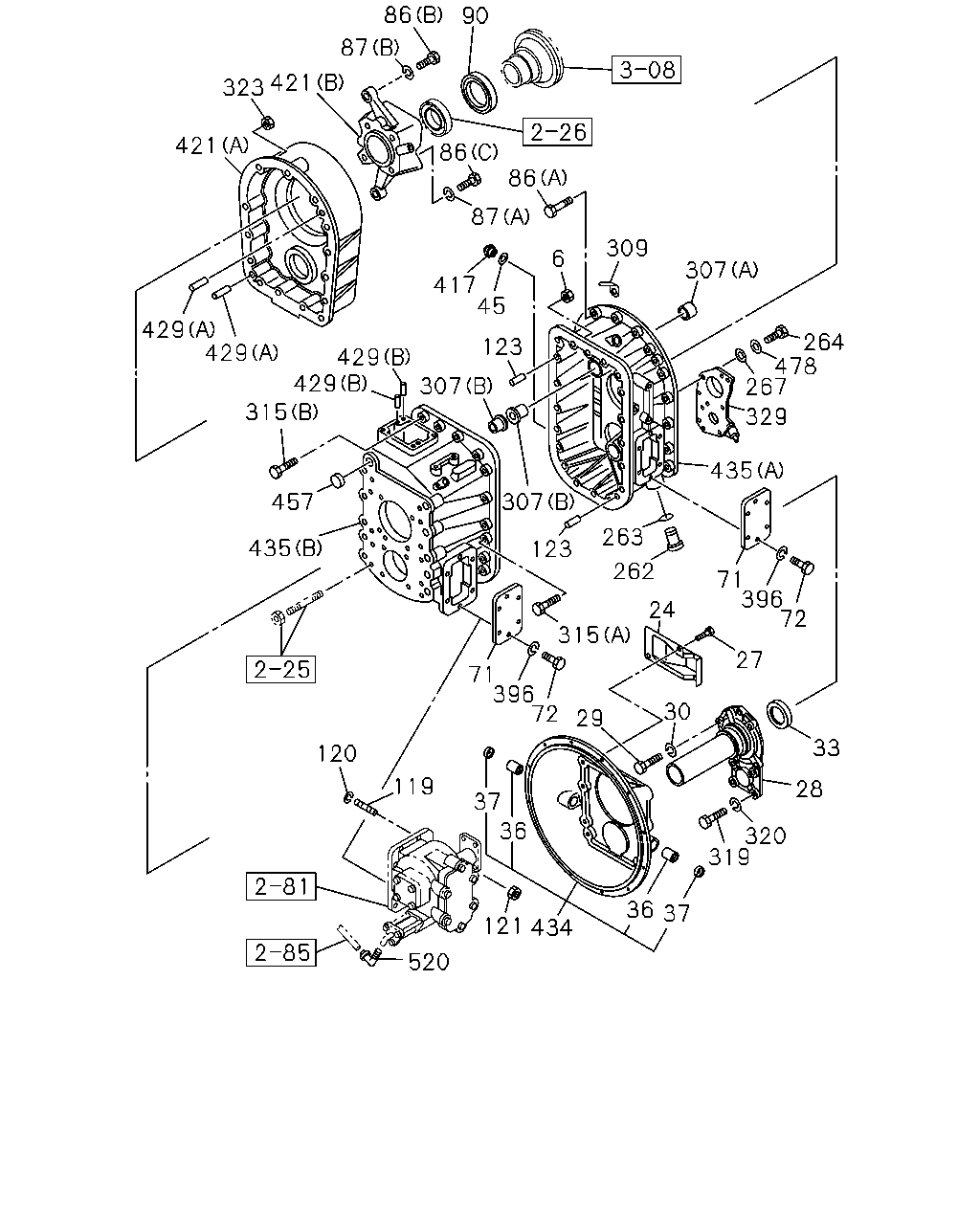

[220B] CASE AND OTHER PARTS (49 parça)
[220B] ASM (9 parça)
▶
86
90
87
421
323
421
86
86
87
309
6
307
417
45
429
429
264
478
267
123
429
429
307
315
329
435
307
457
263
435
123
262
71
396
72
24
315
27
71
396
72
30
29
33
120
119
28
37
36
320
319
36
37
121
434
520
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
NUT; CASE,TRANS
1-33119-457-0
14
1
0407-
24
COVER; CHECK HOLE,DUST
1-31131-041-0
01
1
0407-
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28080-816-0
02
1
0407-
28
COVER; FRT,TRANS CASE
1-33121-144-0
01
1
0407-
29
BOLT; FRT COVER
1-33129-012-0
05
1
0407-
30
WASHER; LK,FRT COVER
1-34159-096-0
05
1
0407-
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
1-33219-194-0
01
1
0407-
36
BEARING; NEEDLE,CLU HSG
NTN
1-09811-002-1
02
1
0407-
37
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-002-0
02
1
0407-
45
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-459-0
01
1
0407-
71
COVER; SIDE,TRANS CASE
1-33141-046-0
02
1
0407-
72
BOLT; SIDE COVER
1-33149-019-0
12
1
0407-
86
BOLT; RR COVER
(A)
1-33119-456-0
17
1
0407-
86
BOLT; RR COVER
(B) M16X70
1-33159-053-0
02
1
0407-
86
BOLT; RR COVER
(C) M12X60
1-33159-055-0
04
1
0407-
87
WASHER; LK,RR COVER
(A)
1-33159-057-0
04
1
0407-
87
WASHER; LK,RR COVER
(B)
1-34159-077-0
02
1
0407-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
1-33159-046-0
01
1
0407-
119
STUD; PTO FIX
M10X30 L=45
9-04411-030-0
06
1
0407-0604
119
STUD; PTO FIX
M10X30 L=45
0-44011-030-0
06
1
0605-
120
WASHER; LK,PTO
ID=10.2
9-09150-510-0
06
1
0407-
121
NUT; PTO FIX
M10
9-09110-410-0
06
1
0407-0512
121
NUT; PTO FIX
M10 THA
0-91110-510-0
06
1
0601-
123
DOWEL; TRANS CASE
1-33119-305-0
02
1
0407-
262
STRAINER; OIL PUMP
1-33119-324-0
01
1
0407-
263
GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-428-0
01
1
0407-
264
BOLT; OIL PUMP
1-34159-065-0
08
1
0407-
267
WASHER; PL
1-33119-424-0
08
1
0407-
307
BUSHING; SHIFT FORK SHAFT
(A)
1-33119-303-0
01
1
0407-
307
BUSHING; SHIFT FORK SHAFT
(B)
1-33119-304-0
02
1
0407-
309
EYE; LIFTING
1-33119-319-0
01
1
0407-
315
BOLT; CASE
(A)
1-33119-455-0
04
1
0407-
315
BOLT; CASE
(B)
1-33119-456-0
14
1
0407-
319
BOLT; COVER
1-33159-056-0
04
1
0407-
320
WASHER; COVER
1-33159-057-0
04
1
0407-
323
NUT; RR COVER
1-33119-457-0
17
1
0407-
329
PUMP ASM; OIL
1-34150-075-0
01
1
0407-
396
WASHER; LK,SIDE COVER
1-34159-096-0
12
1
0407-
417
PLUG; OIL FILLER,TRANS
1-33119-431-0
01
1
0407-
421
COVER; RR,TRANS
(A)
1-33131-222-0
01
1
0407-
421
COVER; RR,TRANS
(B)
1-33159-048-0
01
1
0407-
429
PIN; STRAIGHT
(A)
1-33119-305-0
02
1
0407-
429
PIN; STRAIGHT
(B)
1-33119-311-0
02
1
0407-
434
HOUSING; CLU
TRANSMISSION SIDE PTO WO/LEVER<SH5>
1-31110-188-1
01
1
0407-
435
CASE; TRANS
(A)
1-33111-320-0
01
1
0407-
435
CASE; TRANS
(B)
1-33111-341-0
01
1
0407-
457
CUP; SEALING,CASE
1-33119-471-0
01
1
0407-
478
WASHER; LK,OIL PUMP
1-34159-096-0
08
1
0407-
520
CONNECTOR
DIN8 & R1/8 ELBOW
1-09660-702-0
01
1
0407-
199
400
265
1
431
431
431
198
436
199
400
265
303
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
1-33043-641-0
01
1
0407-
198
ADAPTER; NYLON TUBE
1-09660-911-0
01
1
0407-
199
CLIP; NYLON TUBE
(A)
1-33119-475-0
01
1
0407-
199
CLIP; NYLON TUBE
(B)
1-33119-476-0
01
1
0407-
265
BOLT; CLIP
1-33149-019-0
02
1
0407-
303
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
0407-
400
WASHER; LK,CLIP
1-33119-424-0
02
1
0407-
431
TUBE; NYLON
1-33119-474-0
03
1
0407-
436
CONNECTOR; AIR HOSE,SUPPLY
1-33549-381-0
01
1
0407-
