2-20A — MANUAL TRANSMISSION ASM AND CASE (#30295) — 70 parça

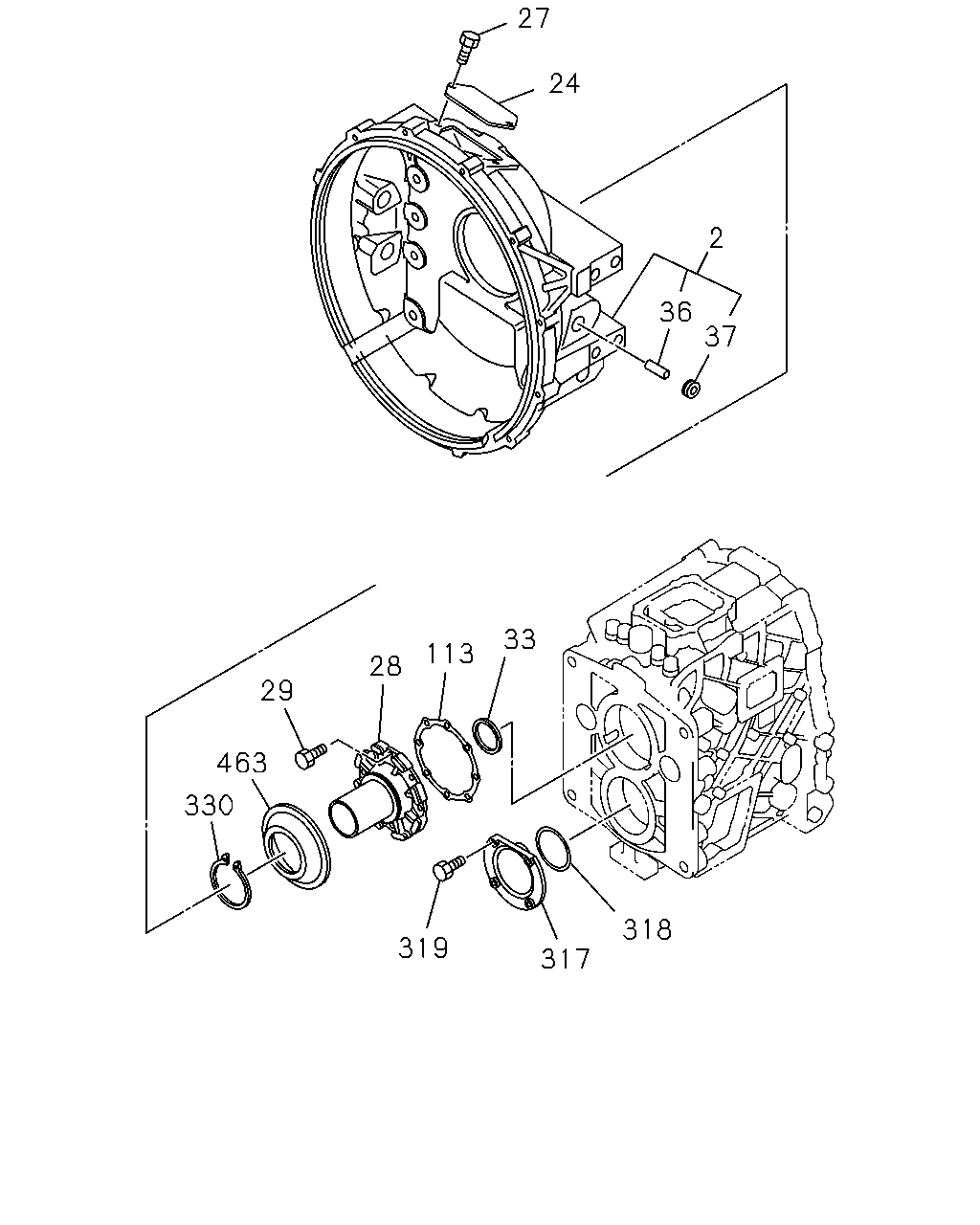

27 24 2 36 37 33 113 28 29 463 330 318 319 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-170-0	01	1	0407-
24	COVER; CHECK HOLE,DUST	1-31119-020-0	01	1	0407-
27	BOLT; COVER TO CLU HSG	1-31119-025-0	02	1	0407-
28	COVER; FRT,TRANS CASE	1-33121-127-0	01	1	0407-
29	BOLT; FRT COVER	1-33129-003-0	08	1	0407-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-101-0	01	1	0407-
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0407-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0407-
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-017-0	01	1	0407-
317	COVER; CASE	1-33119-408-0	01	1	0407-
318	GASKET; COVER	1-33119-403-0	01	1	0407-
319	BOLT; COVER	1-33119-406-0	04	1	0407-
330	RING; RET	1-33129-005-0	01	1	0407-
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	0407-

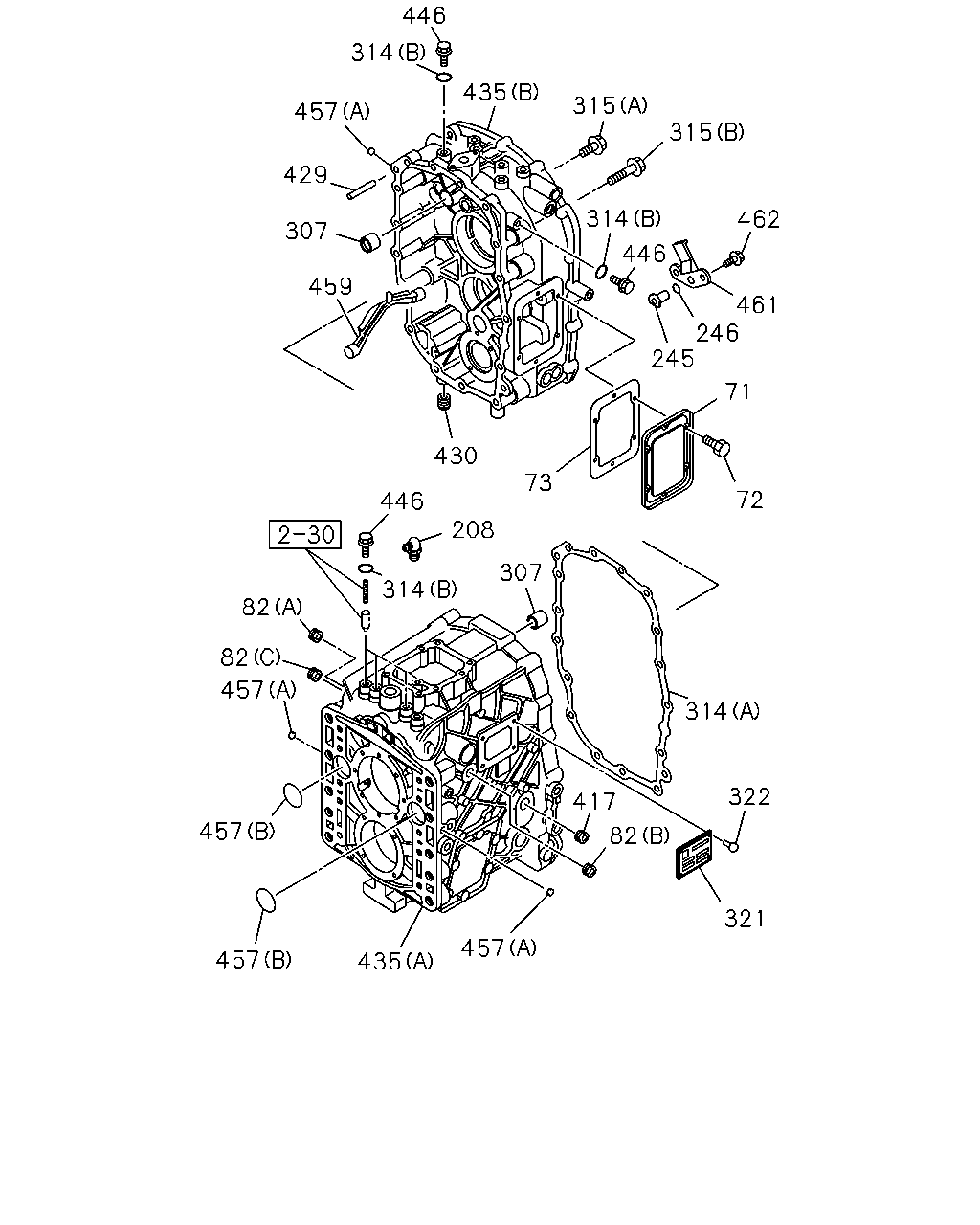

446 314 435 315 457 315 429 314 462 307 446 459 461 246 245 71 430 73 72 446 208 307 314 82 82 457 314 322 417 457 82 321 457 457 435

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	COVER; SIDE,TRANS CASE	1-33119-407-0	01	1	0407-
72	BOLT; SIDE COVER	1-33119-236-0	06	1	0407-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-237-0	01	1	0407-
82	PLUG; SCREW,CASE (A)	1-36119-003-0	01	1	0407-
82	PLUG; SCREW,CASE (B)	1-36259-018-0	02	1	0407-
82	PLUG; SCREW,CASE (C)	1-36259-021-0	01	1	0407-
208	NIPPLE; GREASE,CLU HSG PT1/8 ELBOW	9-09031-210-0	01	1	0407-0512
208	NIPPLE; GREASE,CLU HSG PT1/8 ELBOW	0-90301-610-0	01	1	0601-
245	PIPE; OIL	1-33119-243-0	01	1	0407-
246	GASKET; OIL PIPE	1-33119-244-0	01	1	0407-
307	BUSHING; SHIFT FORK SHAFT	1-33119-232-0	02	1	0407-
314	GASKET; CASE (A)	1-33119-334-0	01	1	0407-
314	GASKET; CASE (B)	1-33549-170-0	05	1	0407-
315	BOLT; CASE (B) M8X70	1-33119-241-0	10	1	0407-
315	BOLT; CASE (A) M8X45	1-33119-242-0	06	1	0407-
321	PLATE; NAME	1-33119-277-0	01	1	0407-
322	RIVET; NAME PLATE	1-33119-398-0	04	1	0407-
417	PLUG; OIL FILLER,TRANS	1-36119-004-0	01	1	0407-
429	PIN; STRAIGHT	1-33119-367-0	04	1	0407-
430	PLUG; OIL DRAIN	1-36119-014-0	01	1	0407-
435	CASE; TRANS (B)	1-33111-280-0	01	1	0407-
435	CASE; TRANS (A)	1-33111-283-0	01	1	0407-
446	PLUG; CASE,TRANS	1-33119-261-0	05	1	0407-
457	CUP; SEALING,CASE (A)	1-33119-335-0	03	1	0407-
457	CUP; SEALING,CASE (B)	1-33119-341-0	02	1	0407-
459	PLATE; OIL	1-33119-256-0	01	1	0407-
461	TUBE; OIL	1-33119-240-0	01	1	0407-
462	BOLT; TUBE M6X12	1-33119-404-0	02	1	0407-

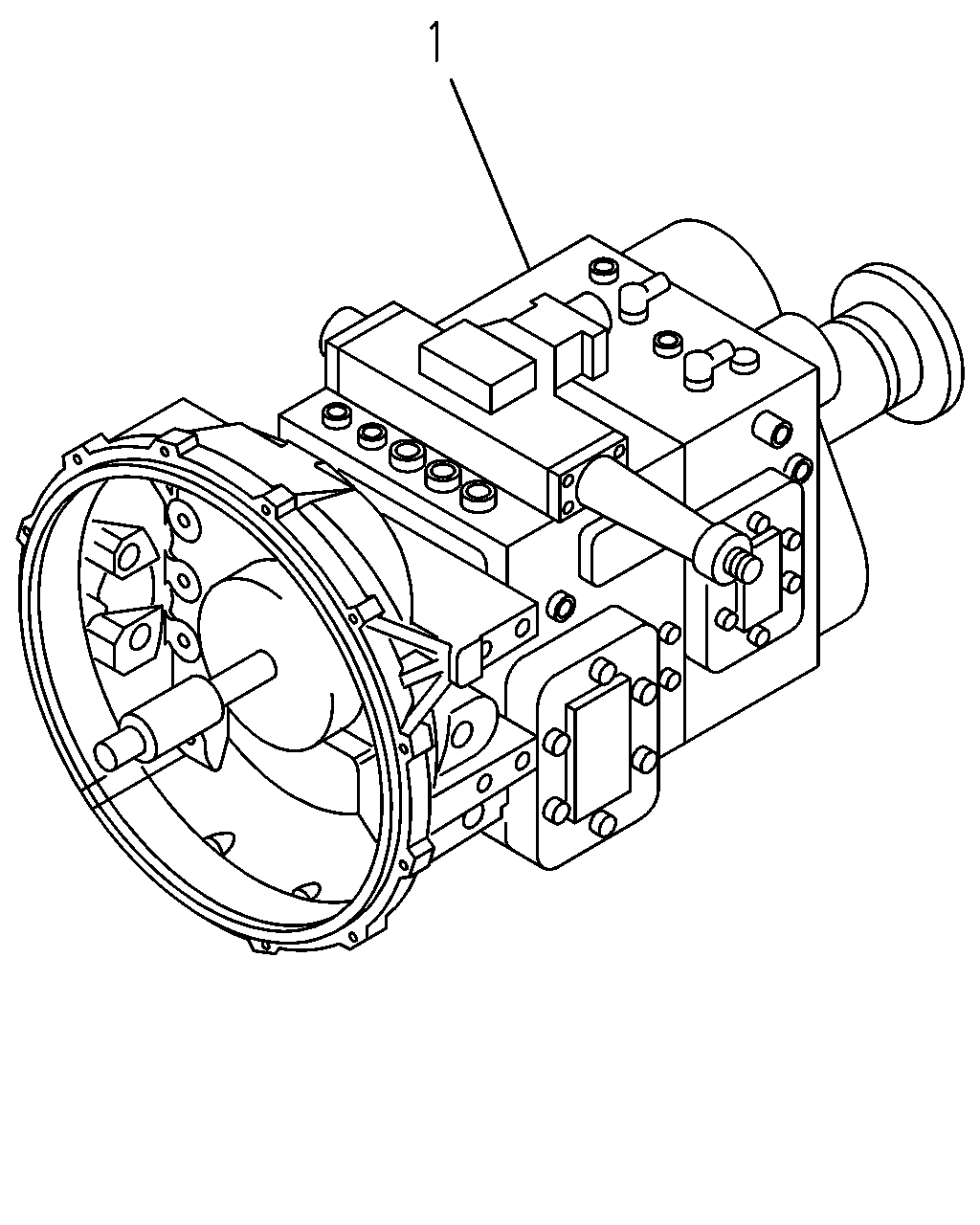

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	TRANSMISSION ASM; MANUAL	1-33040-998-3	01	1	0407-0407
	1	TRANSMISSION ASM; MANUAL	1-33043-776-0	01	1	0407-

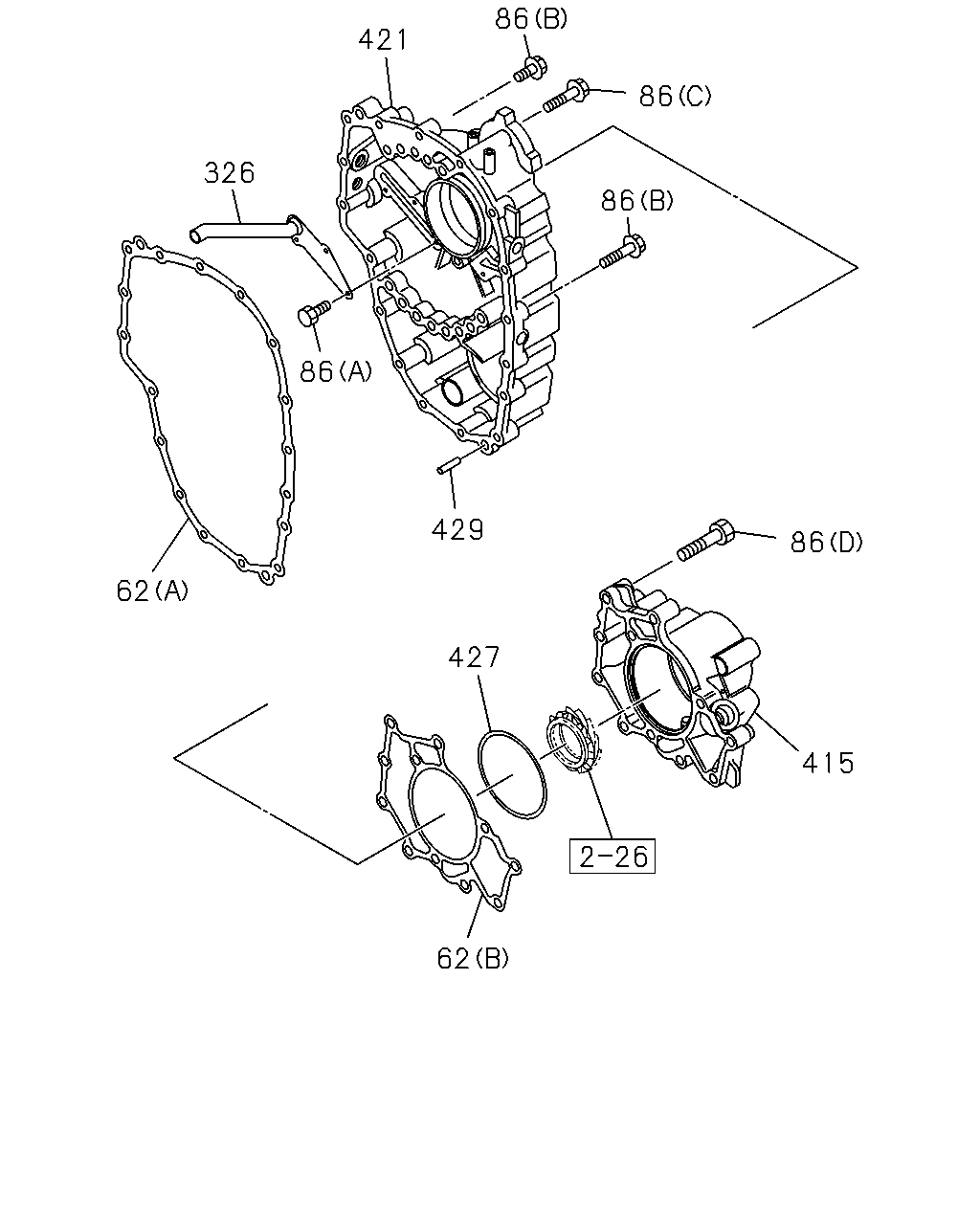

86 421 86 326 86 86 429 86 62 427 415 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33132-062-0	01	1	0407-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33132-063-0	01	1	0407-
86	BOLT; RR COVER (C) M8X45	1-33119-242-0	01	1	0407-
86	BOLT; RR COVER (A)	1-33119-405-0	03	1	0407-
86	BOLT; RR COVER (B) M8X60	1-33139-035-0	16	1	0407-
86	BOLT; RR COVER (D) M12X70	1-33139-048-0	11	1	0407-
326	NOZZLE; OIL,OUTLET	1-33139-040-0	01	1	0407-
415	COVER; BRG	1-33131-232-0	01	1	0407-
421	COVER; RR,TRANS	1-33131-231-0	01	1	0407-
427	GASKET; RR COVER	1-33132-064-0	01	1	0407-
429	PIN; STRAIGHT	1-33119-367-0	04	1	0407-

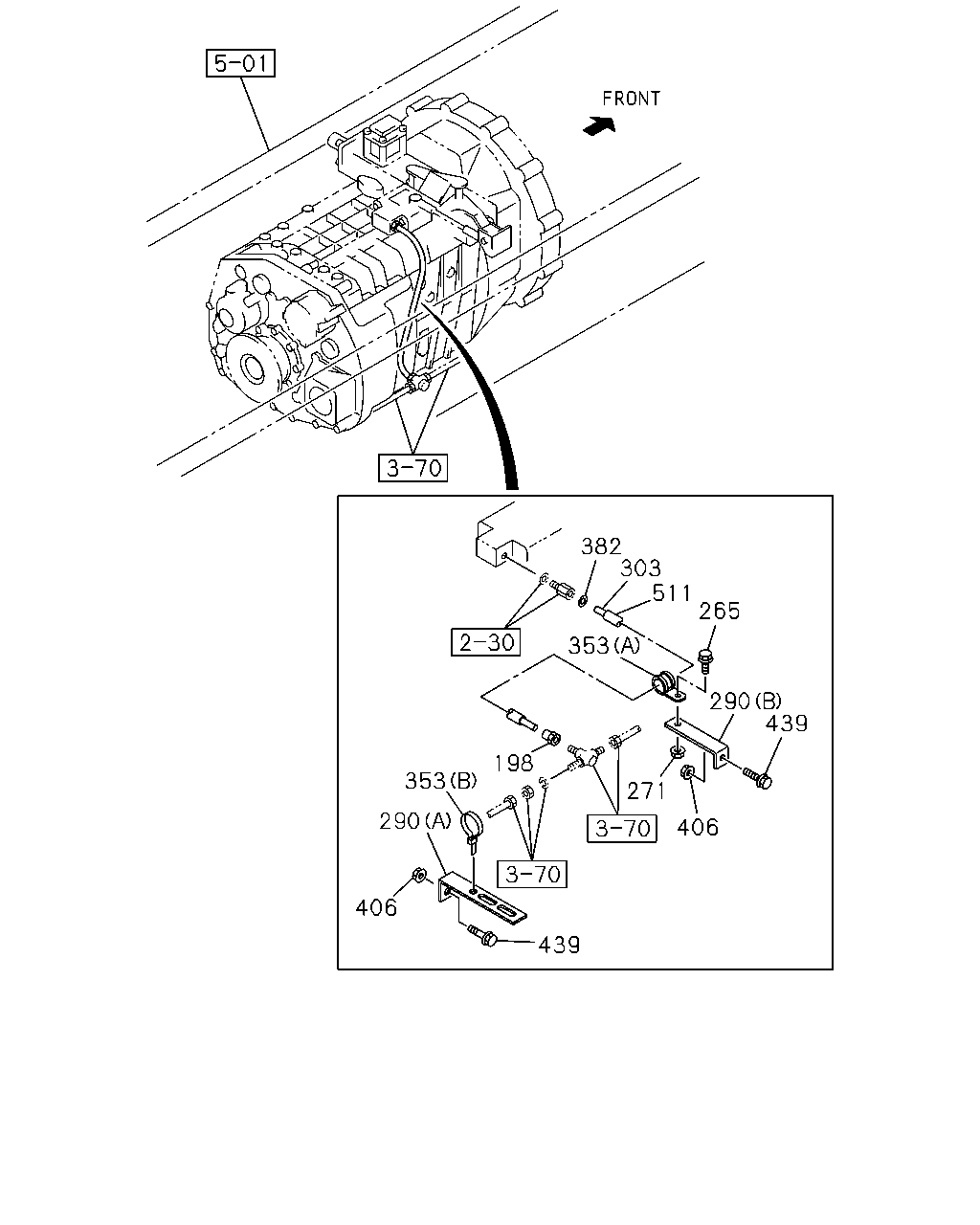

382 303 511 265 353 290 439 198 353 271 290 406 406 439

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
198	ADAPTER; NYLON TUBE DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0407-0407
198	ADAPTER; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0408-
265	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0407-0512
265	BOLT; CLIP M8X16 FLANGE THA	0-28050-816-0	01	1	0601-
271	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-
290	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	01	1	0407-
290	BRACKET; CLIP (B) L=95 THA	1-82699-085-0	01	1	0407-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0407-
353	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0407-
353	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0407-
382	GASKET; ADAPTER ID=11 OD=18	9-09572-510-0	01	1	0407-0407
406	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-
439	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0407-0611
439	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0612-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0407-
