◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10944 - FVZ(THAI)EURO2 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07A - CLUTCH BOOSTER; MINIPACK ▶
2-07A — CLUTCH BOOSTER; MINIPACK (#30290) — 53 parça

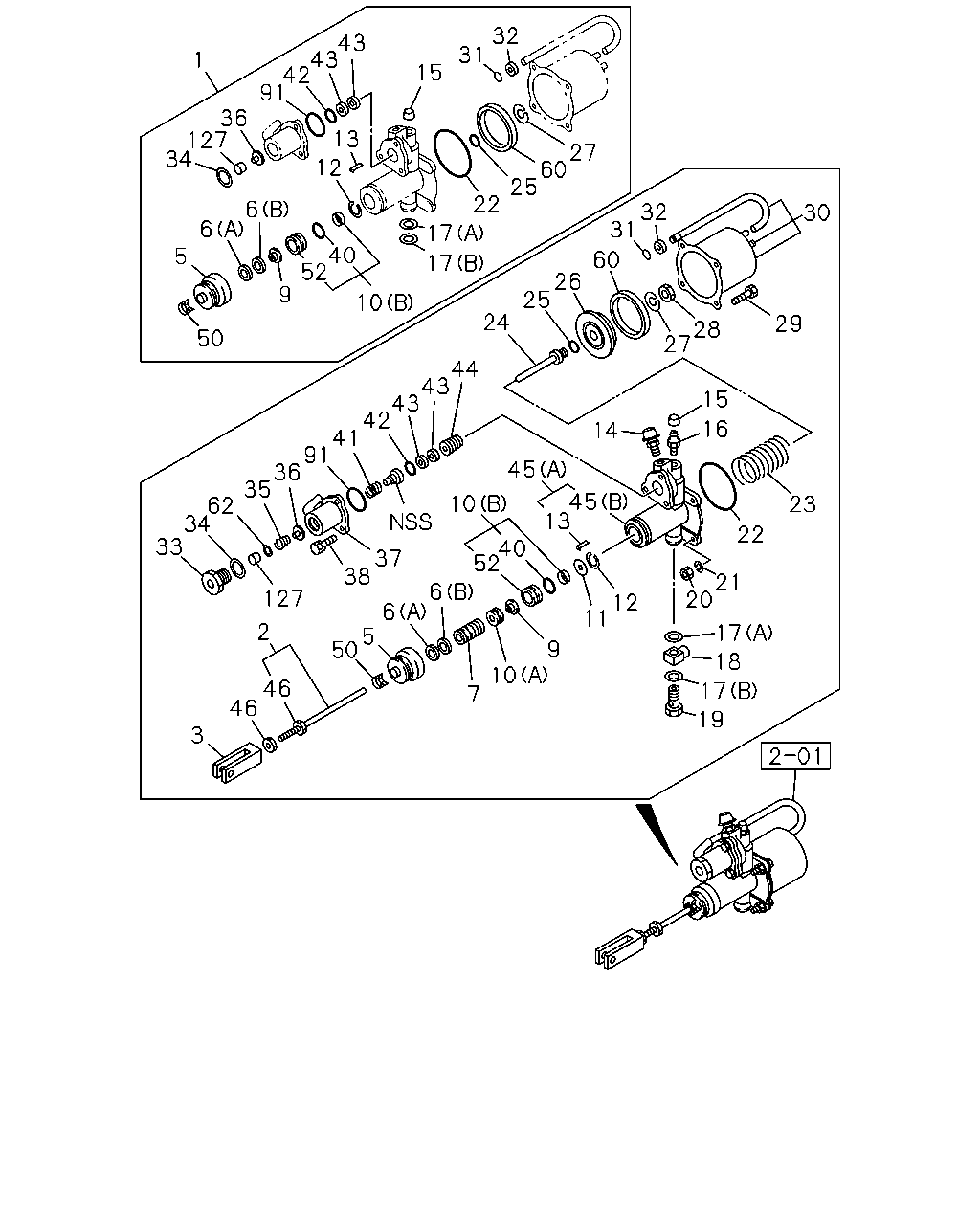

çizim 25948
32 43 43 42 91 31 1 15 36 127 34 13 27 60 25 12 22 6 32 31 30 6 17 40 52 5 60 17 26 25 9 10 24 29 28 27 50 44 43 43 42 41 91 36 35 15 16 14 45 45 13 10 23 62 34 33 22 40 52 37 38 21 20 6 127 12 11 6 5 50 2 17 9 18 10 46 46 17 7 19 3
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-542-0 01 1 0407-
2 ROD; PUSH,CLU BOOSTER 1-31824-223-0 01 1 0407-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0407-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0407-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0407-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0407-
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0407-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0407-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 0407-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-428-0 01 1 0407-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0407-
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0407-
13 PIN; SPR 1-31829-109-0 01 1 0407-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0407-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0407-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0407-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0407-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0407-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0407-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0407-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0407-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0407-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0407-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0407-
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 0407-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0407-
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0407-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0407-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0407-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0407-
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0407-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0407-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0407-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0407-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0407-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0407-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0407-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-138-0 01 1 0407-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0407-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0407-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0407-
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0407-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0407-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-089-0 01 1 0407-
45 PLATE; END,CLU BOOSTER
(B) 		1-31811-019-0 01 1 0407-
45 PLATE; END,CLU BOOSTER
(A) 		1-31811-062-0 01 1 0407-
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0407-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0407-
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0407-
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0407-
62 RETAINER; POPPET 1-31829-489-0 01 1 0407-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0407-
127 FILTER; POPPET 1-31829-495-0 01 1 0407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
