◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#3029) — 803 parça

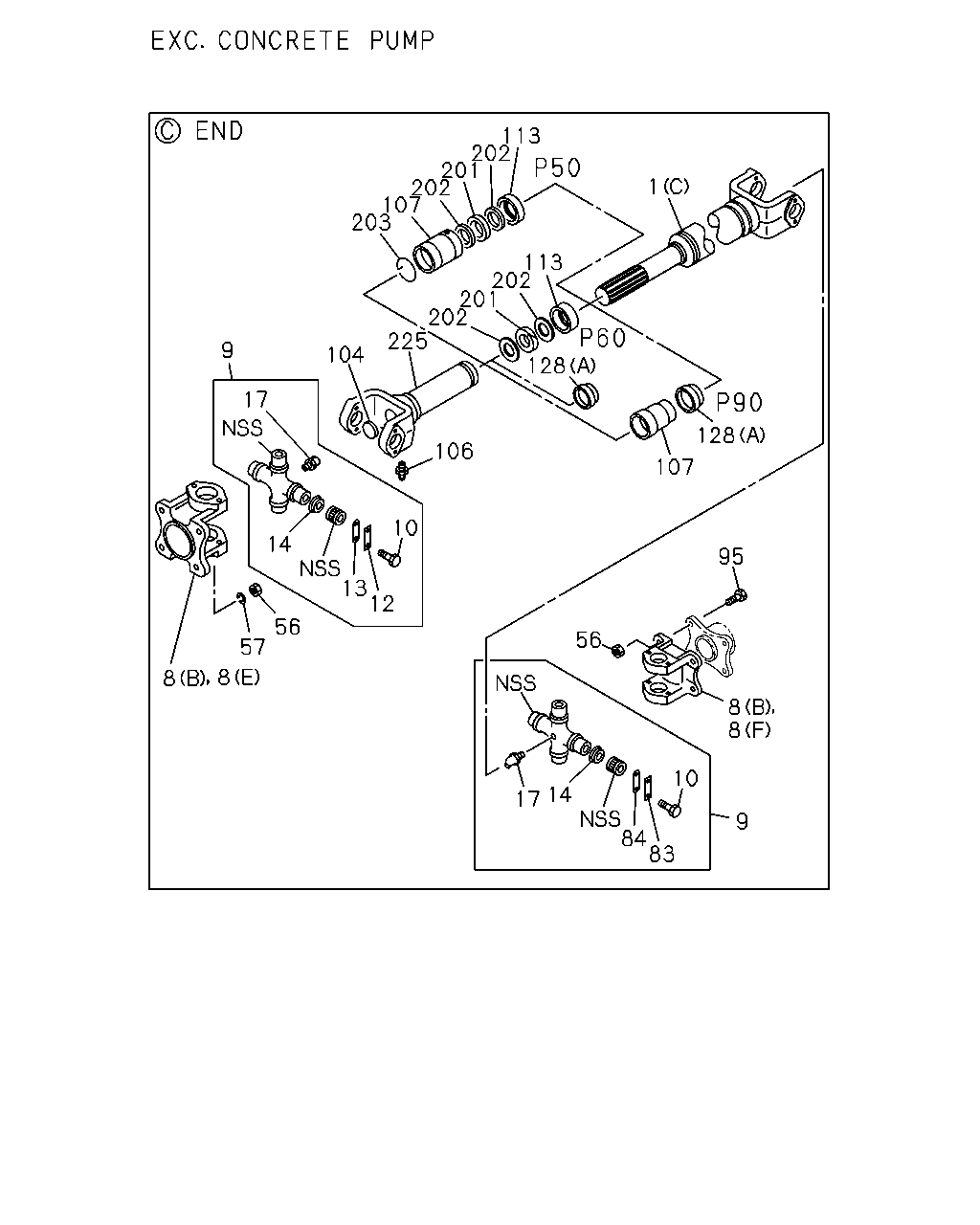

çizim 4877
9 10 83 84 14 17 8 8 95 56 8 8 12 13 56 57 14 10 106 225 104 17 9 203 107 202 201 202 113 1 113 202 201 202 128 128 107
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P50 PROP SHAFT(B2L) (C) L=623 		1-37122-948-0 01 1 9002-9306 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> P50 PROP SHAFT(B2L) (C) L=608 		1-37122-424-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. MIXER TRUCK<RA2> (A) L=959 		1-37112-790-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8),MIXER TRUCK<RA2> (A) L=964 		1-37117-174-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=849 		1-37112-785-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=854 		1-37116-039-0 01 1 9002-9306 ●
1 SHAFT; PROP
P50 PROP SHAFT(B2L) MIXER TRUCK<RA2> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=889 		1-37112-222-0 01 1 9002-9306 ●
1 SHAFT; PROP
P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) MIXER TRUCK<RA2> (A) L=879 		1-37111-785-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (C) L=566 		1-37123-358-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (C) L=566 		1-37123-257-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=840 		1-37116-866-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=845 		1-37116-882-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=535 		1-37171-093-0 01 1 9002-9006 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=545 		1-37117-735-0 01 1 9007-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=878 		1-37117-546-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=888 		1-37117-545-0 01 1 9002-9306 ●
1 SHAFT; PROP
CONCRETE PUMP<RA5> (D) L=1100 		1-37112-511-0 01 1 9002-9306 ●
1 SHAFT; PROP
CONCRETE PUMP<RA5> (E) L=836 		1-37123-214-0 01 1 9307- ●
1 SHAFT; PROP
CONCRETE PUMP<RA5> (D) L=565 		1-37123-306-0 01 1 9307- ●
1 SHAFT; PROP
EXC. CONCRETE PUMP<RA5> (C) L=1356 		1-37123-193-0 01 1 9307- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (C) L=1403 		1-37122-428-0 01 1 9002-9306 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (C) L=1393 		1-37122-591-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (C) L=1351 		1-37123-360-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (C) L=1351 		1-37123-250-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF5 M/T<X9P> PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. CONCRETE PUMP<RA5> (A) L=1115 		1-37116-864-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF5 M/T<X9P> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), CONCRETE PUMP<RA5> (A) L=1125 		1-37116-865-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. CONCRETE PUMP<RA5> (A) L=1124 		1-37112-014-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), CONCRETE PUMP<RA5> (A) L=1134 		1-37116-052-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1005 		1-37116-863-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1015 		1-37116-850-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. CONCRETE PUMP<RA5> (A) L=1014 		1-37116-046-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), CONCRETE PUMP<RA5> (A) L=1024 		1-37116-049-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P60 PROP SHAFT<C2M> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1005 		1-37116-863-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P60 PROP SHAFT<C2M> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1015 		1-37116-850-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
(B) L=1185 		1-37116-845-0 01 1 9307- ●
1 SHAFT; PROP
(C) L=851 		1-37123-251-0 01 1 9307- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P50 PROP SHAFT(B2L) (C) L=903 		1-37131-081-0 01 1 9002-9306 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> P50 PROP SHAFT(B2L) (C) L=888 		1-37121-728-0 01 1 9002-9306 ●
1 SHAFT; PROP
P50 PROP SHAFT(B2L) (B) L=1189 		1-37122-418-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1185 		1-37116-845-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (C) L=846 		1-37123-359-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (C) L=846 		1-37123-258-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=913 		1-37117-577-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1183 		1-37123-610-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=817 		1-37131-260-0 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) (D) 		1-37211-041-0 01 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) (E) 		1-37211-042-0 01 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) (E) 		1-37211-042-0 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (F) 		1-37211-020-0 01 1 9002-9010 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (E) 		1-37211-040-0 01 1 9011-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37211-040-0 02 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-040-0 01 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-040-0 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37211-050-1 02 1 9002-9306 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37211-050-1 01 1 9002-9306 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37211-050-1 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
CONCRETE PUMP<RA5> (B) 		1-37211-020-0 02 1 9002-9010 ●
8 YOKE; FLANGE,PROP SHAFT
CONCRETE PUMP<RA5> (B) 		1-37211-040-0 02 1 9011-9306 ●
8 YOKE; FLANGE,PROP SHAFT
CONCRETE PUMP<RA5> (G) 		1-37211-040-0 04 1 9307- ●
8 YOKE; FLANGE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> (B) 		1-37211-040-0 02 1 9307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-040-0 02 1 9307- ●
8 YOKE; FLANGE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> (A) 		1-37211-040-0 01 1 9307- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-040-0 01 1 9307- ●
9 JOURNAL ASM; PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37300-083-0 AR 1 9002-9306 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> 		1-37300-056-0 AR 1 9002-9306 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37300-082-0 AR 1 9002-9306 ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37300-086-0 AR 1 9307- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-086-0 AR 1 9307- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-056-0 AR 1 9307- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-056-0 AR 1 9307- ●
10 BOLT; UJT
EXC. CONCRETE PUMP<RA5> M8X20 		9-09802-702-0 08 1 9002- ● ● ●
10 BOLT; UJT
M8X20 		9-09802-702-0 08 1 9002- ●
10 BOLT; UJT
EXC. CONCRETE PUMP<RA5> M8X20 		9-09802-702-0 16 1 9002- ● ● ●
10 BOLT; UJT
CONCRETE PUMP<RA5> M8X20 		9-09802-702-0 32 1 9002- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37356-004-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37356-004-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37356-004-0 04 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37356-004-0 08 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		9-37356-007-0 08 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37355-002-1 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37355-002-1 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37355-002-1 04 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37355-002-1 08 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37355-011-0 08 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-011-0 04 1 9307- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> 		9-37352-023-0 08 1 9002-9306 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> 		9-37352-023-0 04 1 9002-9306 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> 		9-37352-023-0 04 1 9002-9306 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-130-0 08 1 9105-9306 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-130-0 04 1 9105-9306 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-130-0 04 1 9105-9306 ●
14 COVER; DUST,SPIDER
CONCRETE PUMP<RA5> 		9-37352-023-0 16 1 9307- ●
14 COVER; DUST,SPIDER
EXC. CONCRETE PUMP<RA5> 		9-37352-023-0 08 1 9307- ●
14 COVER; DUST,SPIDER 9-37352-023-0 08 1 9307- ●
14 COVER; DUST,SPIDER
EXC. CONCRETE PUMP<RA5> 		9-37352-023-0 04 1 9307- ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 04 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9002-9306 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
CONCRETE PUMP<RA5> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 9002- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9002- ● ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9002- ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9307- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9002-9306 ● ● ●
56 NUT; YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 9002-9306 ● ● ●
56 NUT; YOKE
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> M14 		9-99110-514-0 04 1 9002-9306 ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9307- ● ●
56 NUT; YOKE
EXC. CONCRETE PUMP<RA5> M16 FLANGE 		1-09449-065-0 04 1 9307- ● ●
57 WASHER; LK,YOKE
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> ID=14.2 		9-09150-614-0 04 1 9002-9306 ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> EXC. CONCRETE PUMP<RA5> 		9-37356-007-0 04 1 9002-9306 ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ● ●
83 PLATE; LK,UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		9-37356-007-0 08 1 9002- ●
83 PLATE; LK,UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		9-37356-007-0 04 1 9307- ●
83 PLATE; LK,UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
84 COVER; UJT,PROP SHAFT
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> EXC. CONCRETE PUMP<RA5> T=4.5 		1-37355-011-0 04 1 9002-9306 ● ● ●
84 COVER; UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> T=4.5 		1-37355-011-0 04 1 9307- ●
84 COVER; UJT,PROP SHAFT
T=4.5 		1-37355-011-0 04 1 9307- ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ● ●
84 COVER; UJT,PROP SHAFT
CONCRETE PUMP<RA5> T=4.5 		1-37355-011-0 08 1 9002- ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9002- ● ● ●
104 PLUG; SLEEVE YOKE
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-09600-033-0 01 1 9002-9306 ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M> 		9-09860-507-0 01 1 9002-9306 ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> 		1-09600-067-0 01 1 9002-9306 ● ●
104 PLUG; SLEEVE YOKE
CONCRETE PUMP<RA5> 		1-09600-033-0 02 1 9002-9306 ●
104 PLUG; SLEEVE YOKE
CONCRETE PUMP<RA5> 		9-09860-507-0 02 1 9307- ●
104 PLUG; SLEEVE YOKE
EXC. CONCRETE PUMP<RA5> 		9-09860-507-0 01 1 9307- ●
104 PLUG; SLEEVE YOKE 9-09860-507-0 01 1 9307- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
CONCRETE PUMP<RA5> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9002- ●
107 COVER; RET,SLEEVE
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37249-019-0 01 1 9002-9306 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT<C5T> 		1-37249-039-1 01 1 9002-9306 ● ●
107 COVER; RET,SLEEVE
CONCRETE PUMP<RA5> 		1-37249-019-0 02 1 9002-9306 ●
113 RETAINER; OIL SEAL,SLEEVE
P50 PROP SHAFT(B2L) 		1-37248-004-0 01 1 9002-9306 ● ● ●
113 RETAINER; OIL SEAL,SLEEVE
CONCRETE PUMP<RA5> 		1-37248-004-0 01 1 9002-9306 ●
113 RETAINER; OIL SEAL,SLEEVE
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		9-37248-013-0 01 1 9002-9306 ● ● ●
113 RETAINER; OIL SEAL,SLEEVE
CONCRETE PUMP<RA5> 		9-37248-013-0 02 1 9307- ●
113 RETAINER; OIL SEAL,SLEEVE
EXC. CONCRETE PUMP<RA5> 		9-37248-013-0 01 1 9307- ●
113 RETAINER; OIL SEAL,SLEEVE 9-37248-013-0 01 1 9307- ●
128 SEAL; SLEEVE
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (A) 		1-37247-012-0 01 1 9002-9306 ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (B) 		1-37247-016-0 01 1 9002-9306 ● ●
201 RING; FELT,SLEEVE
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-09620-007-0 01 1 9002-9306 ● ● ●
201 RING; FELT,SLEEVE
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		9-09922-121-0 01 1 9002-9306 ● ● ●
201 RING; FELT,SLEEVE
CONCRETE PUMP<RA5> 		1-09620-007-0 02 1 9002-9306 ●
201 RING; FELT,SLEEVE
CONCRETE PUMP<RA5> 		9-09922-121-0 02 1 9307- ●
201 RING; FELT,SLEEVE
EXC. CONCRETE PUMP<RA5> 		9-09922-121-0 01 1 9307- ●
201 RING; FELT,SLEEVE 9-09922-121-0 01 1 9307- ●
202 RING; FELT SEAL,SLEEVE
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37249-017-0 02 1 9002-9306 ● ● ●
202 RING; FELT SEAL,SLEEVE
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		9-37249-105-0 02 1 9002-9306 ● ● ●
202 RING; FELT SEAL,SLEEVE
CONCRETE PUMP<RA5> 		1-37249-017-0 04 1 9002-9306 ●
202 RING; FELT SEAL,SLEEVE
CONCRETE PUMP<RA5> 		9-37249-105-0 04 1 9307- ●
202 RING; FELT SEAL,SLEEVE
EXC. CONCRETE PUMP<RA5> 		9-37249-105-0 02 1 9307- ●
202 RING; FELT SEAL,SLEEVE 9-37249-105-0 02 1 9307- ●
203 RING; SNAP,SLEEVE
P50 PROP SHAFT(B2L) 		1-09589-008-0 01 1 9002-9306 ● ● ●
203 RING; SNAP,SLEEVE
CONCRETE PUMP<RA5> 		1-09589-008-0 01 1 9002-9306 ●
225 YOKE; SLEEVE,PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37241-039-1 01 1 9002-9306 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) 		1-37241-071-0 01 1 9002-9306 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		1-37241-024-0 01 1 9002-9106 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		1-37241-100-0 01 1 9107-9306 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37241-090-1 01 1 9002-9106 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37241-090-1 01 1 9107-9306 ●
225 YOKE; SLEEVE,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37241-100-0 02 1 9307- ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37241-100-0 01 1 9307- ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-100-0 01 1 9307- ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37241-097-0 01 1 9107-9306 ●

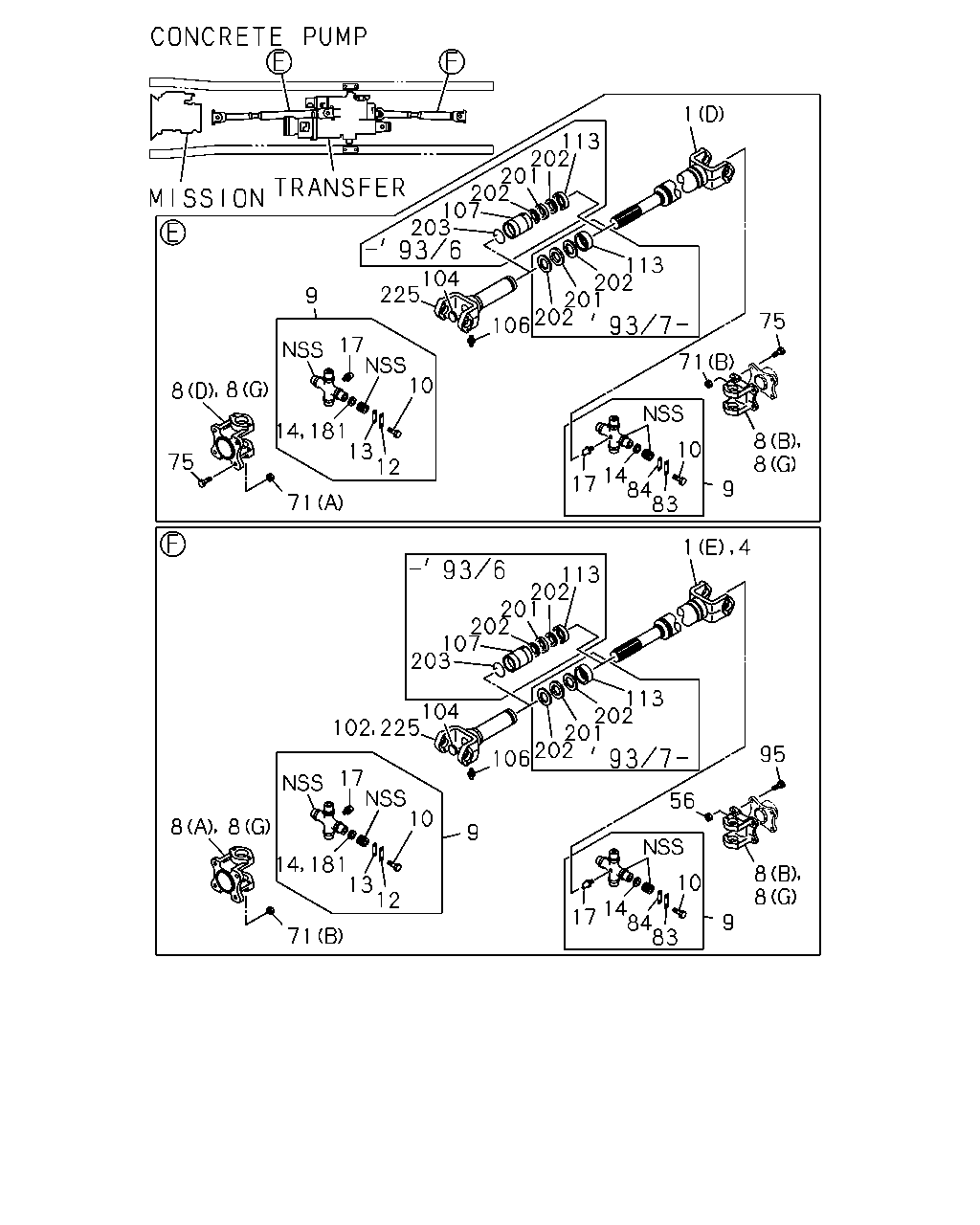

çizim 5336
9 8 8 10 83 84 14 17 56 1 113 202 95 9 10 17 12 13 181 14 71 8 8 102 225 104 106 202 201 202 113 4 1 113 202 201 202 107 203 83 9 8 8 10 84 14 17 71 75 113 202 201 202 106 104 225 9 17 10 12 13 181 14 71 75 8 8 203 107 202 201
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P50 PROP SHAFT(B2L) (C) L=623 		1-37122-948-0 01 1 9002-9306 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> P50 PROP SHAFT(B2L) (C) L=608 		1-37122-424-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. MIXER TRUCK<RA2> (A) L=959 		1-37112-790-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8),MIXER TRUCK<RA2> (A) L=964 		1-37117-174-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=849 		1-37112-785-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=854 		1-37116-039-0 01 1 9002-9306 ●
1 SHAFT; PROP
P50 PROP SHAFT(B2L) MIXER TRUCK<RA2> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=889 		1-37112-222-0 01 1 9002-9306 ●
1 SHAFT; PROP
P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) MIXER TRUCK<RA2> (A) L=879 		1-37111-785-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (C) L=566 		1-37123-358-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (C) L=566 		1-37123-257-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=840 		1-37116-866-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=845 		1-37116-882-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=535 		1-37171-093-0 01 1 9002-9006 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=545 		1-37117-735-0 01 1 9007-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=878 		1-37117-546-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=888 		1-37117-545-0 01 1 9002-9306 ●
1 SHAFT; PROP
CONCRETE PUMP<RA5> (D) L=1100 		1-37112-511-0 01 1 9002-9306 ●
1 SHAFT; PROP
CONCRETE PUMP<RA5> (E) L=836 		1-37123-214-0 01 1 9307- ●
1 SHAFT; PROP
CONCRETE PUMP<RA5> (D) L=565 		1-37123-306-0 01 1 9307- ●
1 SHAFT; PROP
EXC. CONCRETE PUMP<RA5> (C) L=1356 		1-37123-193-0 01 1 9307- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (C) L=1403 		1-37122-428-0 01 1 9002-9306 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (C) L=1393 		1-37122-591-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (C) L=1351 		1-37123-360-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (C) L=1351 		1-37123-250-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF5 M/T<X9P> PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. CONCRETE PUMP<RA5> (A) L=1115 		1-37116-864-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF5 M/T<X9P> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), CONCRETE PUMP<RA5> (A) L=1125 		1-37116-865-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. CONCRETE PUMP<RA5> (A) L=1124 		1-37112-014-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), CONCRETE PUMP<RA5> (A) L=1134 		1-37116-052-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1005 		1-37116-863-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1015 		1-37116-850-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. CONCRETE PUMP<RA5> (A) L=1014 		1-37116-046-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), CONCRETE PUMP<RA5> (A) L=1024 		1-37116-049-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P60 PROP SHAFT<C2M> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1005 		1-37116-863-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P60 PROP SHAFT<C2M> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1015 		1-37116-850-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
(B) L=1185 		1-37116-845-0 01 1 9307- ●
1 SHAFT; PROP
(C) L=851 		1-37123-251-0 01 1 9307- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P50 PROP SHAFT(B2L) (C) L=903 		1-37131-081-0 01 1 9002-9306 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> P50 PROP SHAFT(B2L) (C) L=888 		1-37121-728-0 01 1 9002-9306 ●
1 SHAFT; PROP
P50 PROP SHAFT(B2L) (B) L=1189 		1-37122-418-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1185 		1-37116-845-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (C) L=846 		1-37123-359-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (C) L=846 		1-37123-258-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=913 		1-37117-577-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1183 		1-37123-610-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=817 		1-37131-260-0 01 1 9002-9306 ●
4 SHAFT; PROP
CONCRETE PUMP<RA5> L=868 		1-37121-721-0 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) (D) 		1-37211-041-0 01 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) (E) 		1-37211-042-0 01 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) (E) 		1-37211-042-0 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (F) 		1-37211-020-0 01 1 9002-9010 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (E) 		1-37211-040-0 01 1 9011-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37211-040-0 02 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-040-0 01 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-040-0 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37211-050-1 02 1 9002-9306 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37211-050-1 01 1 9002-9306 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37211-050-1 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
CONCRETE PUMP<RA5> (B) 		1-37211-020-0 02 1 9002-9010 ●
8 YOKE; FLANGE,PROP SHAFT
CONCRETE PUMP<RA5> (B) 		1-37211-040-0 02 1 9011-9306 ●
8 YOKE; FLANGE,PROP SHAFT
CONCRETE PUMP<RA5> (G) 		1-37211-040-0 04 1 9307- ●
8 YOKE; FLANGE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> (B) 		1-37211-040-0 02 1 9307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-040-0 02 1 9307- ●
8 YOKE; FLANGE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> (A) 		1-37211-040-0 01 1 9307- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-040-0 01 1 9307- ●
9 JOURNAL ASM; PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37300-083-0 AR 1 9002-9306 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> 		1-37300-056-0 AR 1 9002-9306 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37300-082-0 AR 1 9002-9306 ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37300-086-0 AR 1 9307- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-086-0 AR 1 9307- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-056-0 AR 1 9307- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-056-0 AR 1 9307- ●
10 BOLT; UJT
EXC. CONCRETE PUMP<RA5> M8X20 		9-09802-702-0 08 1 9002- ● ● ●
10 BOLT; UJT
M8X20 		9-09802-702-0 08 1 9002- ●
10 BOLT; UJT
EXC. CONCRETE PUMP<RA5> M8X20 		9-09802-702-0 16 1 9002- ● ● ●
10 BOLT; UJT
CONCRETE PUMP<RA5> M8X20 		9-09802-702-0 32 1 9002- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37356-004-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37356-004-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37356-004-0 04 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37356-004-0 08 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		9-37356-007-0 08 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37355-002-1 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37355-002-1 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37355-002-1 04 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37355-002-1 08 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37355-011-0 08 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-011-0 04 1 9307- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> 		9-37352-023-0 08 1 9002-9306 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> 		9-37352-023-0 04 1 9002-9306 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> 		9-37352-023-0 04 1 9002-9306 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-130-0 08 1 9105-9306 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-130-0 04 1 9105-9306 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-130-0 04 1 9105-9306 ●
14 COVER; DUST,SPIDER
CONCRETE PUMP<RA5> 		9-37352-023-0 16 1 9307- ●
14 COVER; DUST,SPIDER
EXC. CONCRETE PUMP<RA5> 		9-37352-023-0 08 1 9307- ●
14 COVER; DUST,SPIDER 9-37352-023-0 08 1 9307- ●
14 COVER; DUST,SPIDER
EXC. CONCRETE PUMP<RA5> 		9-37352-023-0 04 1 9307- ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 04 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9002-9306 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
CONCRETE PUMP<RA5> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 9002- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9002- ● ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9002- ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9307- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9002-9306 ● ● ●
56 NUT; YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 9002-9306 ● ● ●
56 NUT; YOKE
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> M14 		9-99110-514-0 04 1 9002-9306 ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9307- ● ●
56 NUT; YOKE
EXC. CONCRETE PUMP<RA5> M16 FLANGE 		1-09449-065-0 04 1 9307- ● ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 9002- ● ● ●
71 NUT; YOKE
CONCRETE PUMP<RA5> (B) M16 FLANGE 		1-09449-065-0 08 1 9002- ●
75 BOLT; PROP SHAFT TO TRANS
CONCRETE PUMP<RA5> M16X48 		1-09000-383-0 04 1 9002- ●
83 PLATE; LK,UJT,PROP SHAFT
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> EXC. CONCRETE PUMP<RA5> 		9-37356-007-0 04 1 9002-9306 ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ● ●
83 PLATE; LK,UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		9-37356-007-0 08 1 9002- ●
83 PLATE; LK,UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		9-37356-007-0 04 1 9307- ●
83 PLATE; LK,UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
84 COVER; UJT,PROP SHAFT
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> EXC. CONCRETE PUMP<RA5> T=4.5 		1-37355-011-0 04 1 9002-9306 ● ● ●
84 COVER; UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> T=4.5 		1-37355-011-0 04 1 9307- ●
84 COVER; UJT,PROP SHAFT
T=4.5 		1-37355-011-0 04 1 9307- ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ● ●
84 COVER; UJT,PROP SHAFT
CONCRETE PUMP<RA5> T=4.5 		1-37355-011-0 08 1 9002- ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9002- ● ● ●
102 YOKE; TRANSFER TO AXLE
CONCRETE PUMP<RA5> 		1-37241-039-1 01 1 9002-9306 ●
104 PLUG; SLEEVE YOKE
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-09600-033-0 01 1 9002-9306 ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M> 		9-09860-507-0 01 1 9002-9306 ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> 		1-09600-067-0 01 1 9002-9306 ● ●
104 PLUG; SLEEVE YOKE
CONCRETE PUMP<RA5> 		1-09600-033-0 02 1 9002-9306 ●
104 PLUG; SLEEVE YOKE
CONCRETE PUMP<RA5> 		9-09860-507-0 02 1 9307- ●
104 PLUG; SLEEVE YOKE
EXC. CONCRETE PUMP<RA5> 		9-09860-507-0 01 1 9307- ●
104 PLUG; SLEEVE YOKE 9-09860-507-0 01 1 9307- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
CONCRETE PUMP<RA5> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9002- ●
107 COVER; RET,SLEEVE
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37249-019-0 01 1 9002-9306 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT<C5T> 		1-37249-039-1 01 1 9002-9306 ● ●
107 COVER; RET,SLEEVE
CONCRETE PUMP<RA5> 		1-37249-019-0 02 1 9002-9306 ●
113 RETAINER; OIL SEAL,SLEEVE
P50 PROP SHAFT(B2L) 		1-37248-004-0 01 1 9002-9306 ● ● ●
113 RETAINER; OIL SEAL,SLEEVE
CONCRETE PUMP<RA5> 		1-37248-004-0 01 1 9002-9306 ●
113 RETAINER; OIL SEAL,SLEEVE
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		9-37248-013-0 01 1 9002-9306 ● ● ●
113 RETAINER; OIL SEAL,SLEEVE
CONCRETE PUMP<RA5> 		9-37248-013-0 02 1 9307- ●
113 RETAINER; OIL SEAL,SLEEVE
EXC. CONCRETE PUMP<RA5> 		9-37248-013-0 01 1 9307- ●
113 RETAINER; OIL SEAL,SLEEVE 9-37248-013-0 01 1 9307- ●
181 COVER; BRG,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		9-37352-023-0 04 1 9002-9306 ● ● ●
181 COVER; BRG,PROP SHAFT
CONCRETE PUMP<RA5> 		9-37352-023-0 08 1 9002-9306 ●
201 RING; FELT,SLEEVE
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-09620-007-0 01 1 9002-9306 ● ● ●
201 RING; FELT,SLEEVE
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		9-09922-121-0 01 1 9002-9306 ● ● ●
201 RING; FELT,SLEEVE
CONCRETE PUMP<RA5> 		1-09620-007-0 02 1 9002-9306 ●
201 RING; FELT,SLEEVE
CONCRETE PUMP<RA5> 		9-09922-121-0 02 1 9307- ●
201 RING; FELT,SLEEVE
EXC. CONCRETE PUMP<RA5> 		9-09922-121-0 01 1 9307- ●
201 RING; FELT,SLEEVE 9-09922-121-0 01 1 9307- ●
202 RING; FELT SEAL,SLEEVE
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37249-017-0 02 1 9002-9306 ● ● ●
202 RING; FELT SEAL,SLEEVE
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		9-37249-105-0 02 1 9002-9306 ● ● ●
202 RING; FELT SEAL,SLEEVE
CONCRETE PUMP<RA5> 		1-37249-017-0 04 1 9002-9306 ●
202 RING; FELT SEAL,SLEEVE
CONCRETE PUMP<RA5> 		9-37249-105-0 04 1 9307- ●
202 RING; FELT SEAL,SLEEVE
EXC. CONCRETE PUMP<RA5> 		9-37249-105-0 02 1 9307- ●
202 RING; FELT SEAL,SLEEVE 9-37249-105-0 02 1 9307- ●
203 RING; SNAP,SLEEVE
P50 PROP SHAFT(B2L) 		1-09589-008-0 01 1 9002-9306 ● ● ●
203 RING; SNAP,SLEEVE
CONCRETE PUMP<RA5> 		1-09589-008-0 01 1 9002-9306 ●
225 YOKE; SLEEVE,PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37241-039-1 01 1 9002-9306 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) 		1-37241-071-0 01 1 9002-9306 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		1-37241-024-0 01 1 9002-9106 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		1-37241-100-0 01 1 9107-9306 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37241-090-1 01 1 9002-9106 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37241-090-1 01 1 9107-9306 ●
225 YOKE; SLEEVE,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37241-100-0 02 1 9307- ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37241-100-0 01 1 9307- ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-100-0 01 1 9307- ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37241-097-0 01 1 9107-9306 ●
çizim 36087
52 49 8 8 17 14 13 12 10 9 1 92 93 94 25 46 51 21 22 23 24 21 20 74 66 69 70 91
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P50 PROP SHAFT(B2L) (C) L=623 		1-37122-948-0 01 1 9002-9306 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> P50 PROP SHAFT(B2L) (C) L=608 		1-37122-424-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. MIXER TRUCK<RA2> (A) L=959 		1-37112-790-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8),MIXER TRUCK<RA2> (A) L=964 		1-37117-174-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=849 		1-37112-785-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=854 		1-37116-039-0 01 1 9002-9306 ●
1 SHAFT; PROP
P50 PROP SHAFT(B2L) MIXER TRUCK<RA2> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=889 		1-37112-222-0 01 1 9002-9306 ●
1 SHAFT; PROP
P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) MIXER TRUCK<RA2> (A) L=879 		1-37111-785-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (C) L=566 		1-37123-358-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (C) L=566 		1-37123-257-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=840 		1-37116-866-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=845 		1-37116-882-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=535 		1-37171-093-0 01 1 9002-9006 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=545 		1-37117-735-0 01 1 9007-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=878 		1-37117-546-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=888 		1-37117-545-0 01 1 9002-9306 ●
1 SHAFT; PROP
CONCRETE PUMP<RA5> (D) L=1100 		1-37112-511-0 01 1 9002-9306 ●
1 SHAFT; PROP
CONCRETE PUMP<RA5> (E) L=836 		1-37123-214-0 01 1 9307- ●
1 SHAFT; PROP
CONCRETE PUMP<RA5> (D) L=565 		1-37123-306-0 01 1 9307- ●
1 SHAFT; PROP
EXC. CONCRETE PUMP<RA5> (C) L=1356 		1-37123-193-0 01 1 9307- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (C) L=1403 		1-37122-428-0 01 1 9002-9306 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (C) L=1393 		1-37122-591-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (C) L=1351 		1-37123-360-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (C) L=1351 		1-37123-250-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF5 M/T<X9P> PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. CONCRETE PUMP<RA5> (A) L=1115 		1-37116-864-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF5 M/T<X9P> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), CONCRETE PUMP<RA5> (A) L=1125 		1-37116-865-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. CONCRETE PUMP<RA5> (A) L=1124 		1-37112-014-0 01 1 9002-9306 ● ●

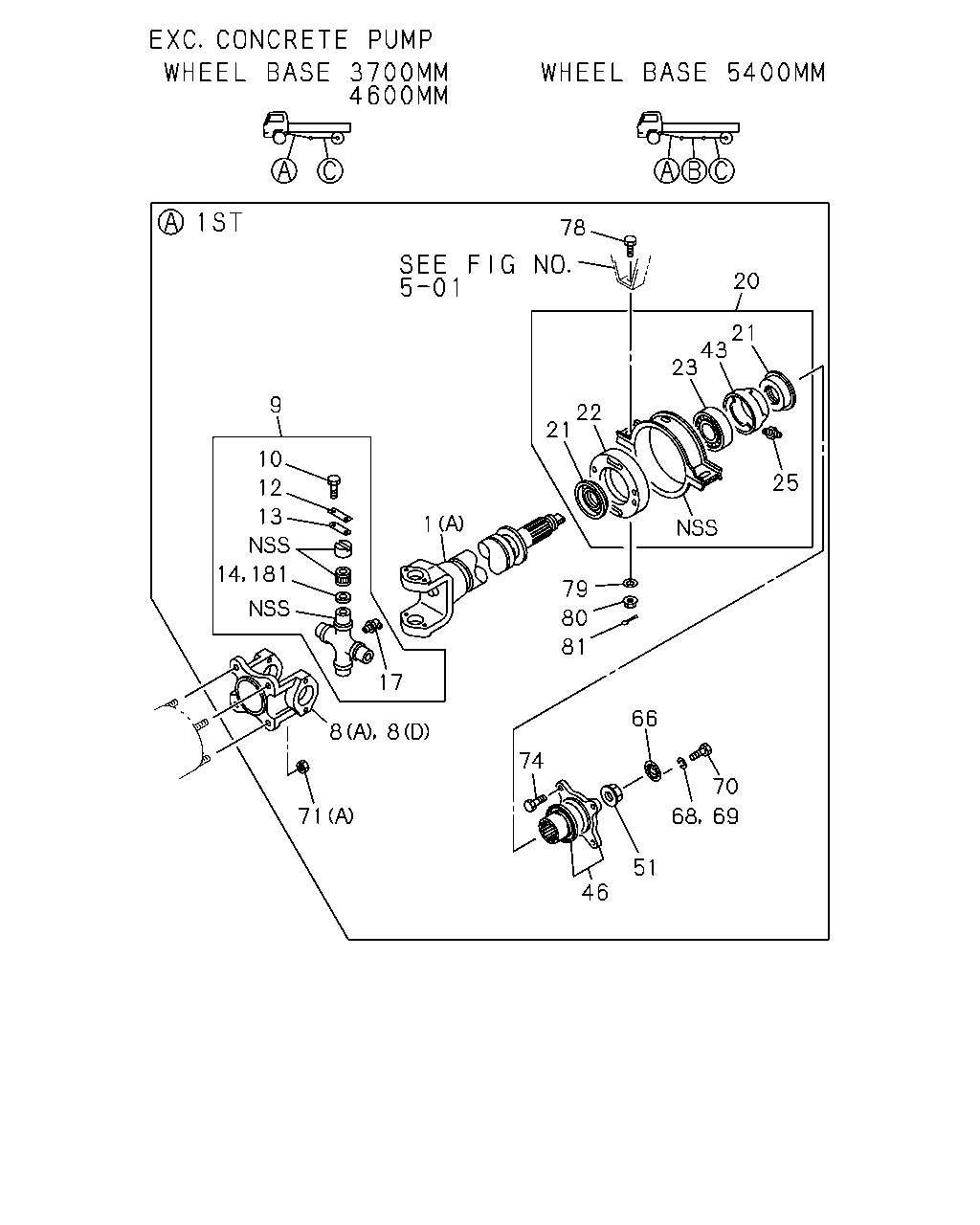

1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), CONCRETE PUMP<RA5> (A) L=1134 		1-37116-052-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1005 		1-37116-863-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1015 		1-37116-850-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. CONCRETE PUMP<RA5> (A) L=1014 		1-37116-046-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), CONCRETE PUMP<RA5> (A) L=1024 		1-37116-049-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P60 PROP SHAFT<C2M> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1005 		1-37116-863-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P60 PROP SHAFT<C2M> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1015 		1-37116-850-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
(B) L=1185 		1-37116-845-0 01 1 9307- ●
1 SHAFT; PROP
(C) L=851 		1-37123-251-0 01 1 9307- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P50 PROP SHAFT(B2L) (C) L=903 		1-37131-081-0 01 1 9002-9306 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> P50 PROP SHAFT(B2L) (C) L=888 		1-37121-728-0 01 1 9002-9306 ●
1 SHAFT; PROP
P50 PROP SHAFT(B2L) (B) L=1189 		1-37122-418-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1185 		1-37116-845-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (C) L=846 		1-37123-359-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (C) L=846 		1-37123-258-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=913 		1-37117-577-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1183 		1-37123-610-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=817 		1-37131-260-0 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) (D) 		1-37211-041-0 01 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) (E) 		1-37211-042-0 01 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) (E) 		1-37211-042-0 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (F) 		1-37211-020-0 01 1 9002-9010 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (E) 		1-37211-040-0 01 1 9011-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37211-040-0 02 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-040-0 01 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-040-0 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37211-050-1 02 1 9002-9306 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37211-050-1 01 1 9002-9306 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37211-050-1 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
CONCRETE PUMP<RA5> (B) 		1-37211-020-0 02 1 9002-9010 ●
8 YOKE; FLANGE,PROP SHAFT
CONCRETE PUMP<RA5> (B) 		1-37211-040-0 02 1 9011-9306 ●
8 YOKE; FLANGE,PROP SHAFT
CONCRETE PUMP<RA5> (G) 		1-37211-040-0 04 1 9307- ●
8 YOKE; FLANGE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> (B) 		1-37211-040-0 02 1 9307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-040-0 02 1 9307- ●
8 YOKE; FLANGE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> (A) 		1-37211-040-0 01 1 9307- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-040-0 01 1 9307- ●
9 JOURNAL ASM; PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37300-083-0 AR 1 9002-9306 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> 		1-37300-056-0 AR 1 9002-9306 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37300-082-0 AR 1 9002-9306 ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37300-086-0 AR 1 9307- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-086-0 AR 1 9307- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-056-0 AR 1 9307- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-056-0 AR 1 9307- ●
10 BOLT; UJT
EXC. CONCRETE PUMP<RA5> M8X20 		9-09802-702-0 08 1 9002- ● ● ●
10 BOLT; UJT
M8X20 		9-09802-702-0 08 1 9002- ●
10 BOLT; UJT
EXC. CONCRETE PUMP<RA5> M8X20 		9-09802-702-0 16 1 9002- ● ● ●
10 BOLT; UJT
CONCRETE PUMP<RA5> M8X20 		9-09802-702-0 32 1 9002- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37356-004-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37356-004-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37356-004-0 04 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37356-004-0 08 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		9-37356-007-0 08 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37355-002-1 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37355-002-1 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37355-002-1 04 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37355-002-1 08 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37355-011-0 08 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-011-0 04 1 9307- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> 		9-37352-023-0 08 1 9002-9306 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> 		9-37352-023-0 04 1 9002-9306 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> 		9-37352-023-0 04 1 9002-9306 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-130-0 08 1 9105-9306 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-130-0 04 1 9105-9306 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-130-0 04 1 9105-9306 ●
14 COVER; DUST,SPIDER
CONCRETE PUMP<RA5> 		9-37352-023-0 16 1 9307- ●
14 COVER; DUST,SPIDER
EXC. CONCRETE PUMP<RA5> 		9-37352-023-0 08 1 9307- ●
14 COVER; DUST,SPIDER 9-37352-023-0 08 1 9307- ●
14 COVER; DUST,SPIDER
EXC. CONCRETE PUMP<RA5> 		9-37352-023-0 04 1 9307- ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 04 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9002-9306 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
CONCRETE PUMP<RA5> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 9002- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9002- ● ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9002- ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9307- ●
20 BEARING ASM; CTR,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37510-092-3 01 1 9002-9306 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37510-092-3 01 1 9002-9306 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37510-093-3 01 1 9002-9306 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37510-093-3 01 1 9002-9306 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9002-9306 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9002-9306 ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37510-093-3 01 1 9307- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 9307- ●
21 SEAL; OIL,CENTER BRG
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-09625-130-0 02 1 9002-9306 ● ● ●
21 SEAL; OIL,CENTER BRG
P50 PROP SHAFT(B2L) 		1-09625-130-0 02 1 9002-9306 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> D=120 		1-09625-126-0 02 1 9002-9306 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> D=120 		1-09625-126-0 02 1 9002-9306 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9002-9306 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9002-9306 ●
21 SEAL; OIL,CENTER BRG
EXC. CONCRETE PUMP<RA5> D=120 		1-09625-126-0 02 1 9307- ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 9307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37516-046-2 01 1 9002-9306 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P50 PROP SHAFT(B2L) 		1-37516-046-2 01 1 9002-9306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37516-047-2 01 1 9002-9306 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37516-047-2 01 1 9002-9306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9002-9306 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9002-9306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
EXC. CONCRETE PUMP<RA5> 		1-37516-047-2 01 1 9307- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 9307- ●
23 BEARING; CENTER,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		9-00090-048-0 01 1 9002-9306 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P50 PROP SHAFT(B2L) 		9-00090-048-0 01 1 9002-9306 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-00090-292-0 01 1 9002-9306 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-00090-292-0 01 1 9002-9306 ●
23 BEARING; CENTER,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		9-00090-292-0 01 1 9307- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 9307- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9002-9306 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9002-9306 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37529-039-0 01 1 9002-9306 ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37529-039-0 01 1 9002-9306 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9002-9306 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9002-9306 ●
24 RETAINER; CENTER BRG,1ST
EXC. CONCRETE PUMP<RA5> 		1-37529-039-0 01 1 9307- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 9307- ●
24 RETAINER; CENTER BRG,1ST
P50 PROP SHAFT(B2L) 		1-37529-040-0 01 1 9002-9306 ●
25 NIPPLE; GREASE,CENTER BRG
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> MT6 STRAIGHT 		1-09380-006-0 01 1 9002-9306 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> MT6 STRAIGHT 		1-09380-006-0 01 1 9002-9306 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9002-9306 ●
25 NIPPLE; GREASE,CENTER BRG
EXC. CONCRETE PUMP<RA5> MT6 STRAIGHT 		1-09380-006-0 01 1 9307- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37245-060-0 01 1 9002-9306 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P50 PROP SHAFT(B2L) 		1-37245-060-0 01 1 9002-9306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37240-081-1 01 1 9002-9306 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37240-081-1 01 1 9002-9306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-052-0 01 1 9002-9306 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-052-0 01 1 9002-9306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. CONCRETE PUMP<RA5> 		1-37245-051-0 01 1 9307-9408 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-051-0 01 1 9307-9408 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. CONCRETE PUMP<RA5> 		1-37245-283-1 01 1 9409- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 9409- ●
49 NUT; YOKE
P50 PROP SHAFT(B2L) M14 		9-99110-514-0 04 1 9002-9306 ●
49 NUT; YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 9002-9306 ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9307- ●
51 NUT; FLANGE,SPLINED
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> EXC. CONCRETE PUMP<RA5> M33 		1-09449-001-0 01 1 9002-9306 ● ● ●
51 NUT; FLANGE,SPLINED
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> M33 		1-09449-001-0 01 1 9002-9306 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 		1-09440-035-0 01 1 9002-9306 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 		1-09440-035-0 01 1 9002-9306 ●
51 NUT; FLANGE,SPLINED
EXC. CONCRETE PUMP<RA5> M33 		1-09449-001-0 01 1 9307- ● ●
51 NUT; FLANGE,SPLINED
M33 		1-09449-001-0 01 1 9307- ●
52 WASHER; LK,YOKE
P50 PROP SHAFT(B2L) ID=14.2 		9-09150-614-0 04 1 9002-9306 ●
66 WASHER
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> EXC. CONCRETE PUMP<RA5> 		1-09509-001-0 01 1 9002-9306 ● ● ●
66 WASHER
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> 		1-09509-001-0 01 1 9002-9306 ●
66 WASHER
EXC. CONCRETE PUMP<RA5> 		1-09509-001-0 01 1 9307- ● ●
66 WASHER 1-09509-001-0 01 1 9307- ●
69 WASHER; LK,SPLINED
P60 PROP SHAFT<C2M> ID=6.1 		9-09150-606-0 03 1 9002-9306 ● ● ●
69 WASHER; LK,SPLINED
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> ID=6.1 		9-09150-606-0 03 1 9002-9306 ●
69 WASHER; LK,SPLINED
EXC. CONCRETE PUMP<RA5> ID=6.1 		9-09150-606-0 03 1 9307- ● ●
69 WASHER; LK,SPLINED
ID=6.1 		9-09150-606-0 03 1 9307- ●
70 SCREW; FLANGE,SPLINED
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> EXC. CONCRETE PUMP<RA5> M8X18 		9-03460-618-0 03 1 9002-9306 ● ● ●
70 SCREW; FLANGE,SPLINED
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> M8X18 		9-03460-618-0 03 1 9002-9306 ●
70 SCREW; FLANGE,SPLINED
EXC. CONCRETE PUMP<RA5> M8X18 		9-03460-618-0 03 1 9307-9501 ● ●
70 SCREW; FLANGE,SPLINED
M8X18 		9-03460-618-0 03 1 9307-9501 ●
70 SCREW; FLANGE,SPLINED
MAF6 M/T<X9V> EXC. CONCRETE PUMP<RA5> M8X18 		9-03460-618-0 03 1 9502- ● ●
70 SCREW; FLANGE,SPLINED
M8X18 		9-03460-618-0 03 1 9502- ●
74 BOLT; YOKE,TRANS
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> M14X45 		9-09801-107-0 04 1 9002-9306 ● ● ●
74 BOLT; YOKE,TRANS
P50 PROP SHAFT(B2L) M14X45 		9-09801-107-0 04 1 9002-9306 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48 		1-09000-383-0 04 1 9002-9306 ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48 		1-09000-383-0 04 1 9002-9306 ●
74 BOLT; YOKE,TRANS
EXC. CONCRETE PUMP<RA5> M16X48 		1-09000-383-0 04 1 9307- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9307- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 9002- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 9002- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 9002- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9002- ●
çizim 36738
46 51 68 69 70 66 74 71 8 8 17 14 181 13 12 10 9 1 79 80 81 25 21 22 23 43 21 20 78
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P50 PROP SHAFT(B2L) (C) L=623 		1-37122-948-0 01 1 9002-9306 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> P50 PROP SHAFT(B2L) (C) L=608 		1-37122-424-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. MIXER TRUCK<RA2> (A) L=959 		1-37112-790-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8),MIXER TRUCK<RA2> (A) L=964 		1-37117-174-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=849 		1-37112-785-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=854 		1-37116-039-0 01 1 9002-9306 ●
1 SHAFT; PROP
P50 PROP SHAFT(B2L) MIXER TRUCK<RA2> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=889 		1-37112-222-0 01 1 9002-9306 ●
1 SHAFT; PROP
P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) MIXER TRUCK<RA2> (A) L=879 		1-37111-785-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (C) L=566 		1-37123-358-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (C) L=566 		1-37123-257-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=840 		1-37116-866-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=845 		1-37116-882-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=535 		1-37171-093-0 01 1 9002-9006 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=545 		1-37117-735-0 01 1 9007-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=878 		1-37117-546-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=888 		1-37117-545-0 01 1 9002-9306 ●
1 SHAFT; PROP
CONCRETE PUMP<RA5> (D) L=1100 		1-37112-511-0 01 1 9002-9306 ●
1 SHAFT; PROP
CONCRETE PUMP<RA5> (E) L=836 		1-37123-214-0 01 1 9307- ●
1 SHAFT; PROP
CONCRETE PUMP<RA5> (D) L=565 		1-37123-306-0 01 1 9307- ●
1 SHAFT; PROP
EXC. CONCRETE PUMP<RA5> (C) L=1356 		1-37123-193-0 01 1 9307- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (C) L=1403 		1-37122-428-0 01 1 9002-9306 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (C) L=1393 		1-37122-591-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (C) L=1351 		1-37123-360-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (C) L=1351 		1-37123-250-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAF5 M/T<X9P> PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. CONCRETE PUMP<RA5> (A) L=1115 		1-37116-864-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF5 M/T<X9P> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), CONCRETE PUMP<RA5> (A) L=1125 		1-37116-865-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. CONCRETE PUMP<RA5> (A) L=1124 		1-37112-014-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF5 M/T<X9P> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), CONCRETE PUMP<RA5> (A) L=1134 		1-37116-052-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1005 		1-37116-863-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1015 		1-37116-850-0 01 1 9307- ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. CONCRETE PUMP<RA5> (A) L=1014 		1-37116-046-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P50 PROP SHAFT(B2L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), CONCRETE PUMP<RA5> (A) L=1024 		1-37116-049-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P60 PROP SHAFT<C2M> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1005 		1-37116-863-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAF6 M/T<X9V> P60 PROP SHAFT<C2M> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1015 		1-37116-850-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
(B) L=1185 		1-37116-845-0 01 1 9307- ●
1 SHAFT; PROP
(C) L=851 		1-37123-251-0 01 1 9307- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P50 PROP SHAFT(B2L) (C) L=903 		1-37131-081-0 01 1 9002-9306 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> P50 PROP SHAFT(B2L) (C) L=888 		1-37121-728-0 01 1 9002-9306 ●
1 SHAFT; PROP
P50 PROP SHAFT(B2L) (B) L=1189 		1-37122-418-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1185 		1-37116-845-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (C) L=846 		1-37123-359-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (C) L=846 		1-37123-258-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=913 		1-37117-577-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1183 		1-37123-610-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=817 		1-37131-260-0 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) (D) 		1-37211-041-0 01 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) (E) 		1-37211-042-0 01 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) (E) 		1-37211-042-0 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (F) 		1-37211-020-0 01 1 9002-9010 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> (E) 		1-37211-040-0 01 1 9011-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37211-040-0 02 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-040-0 01 1 9002-9306 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-040-0 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37211-050-1 02 1 9002-9306 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37211-050-1 01 1 9002-9306 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37211-050-1 01 1 9002-9306 ●
8 YOKE; FLANGE,PROP SHAFT
CONCRETE PUMP<RA5> (B) 		1-37211-020-0 02 1 9002-9010 ●
8 YOKE; FLANGE,PROP SHAFT
CONCRETE PUMP<RA5> (B) 		1-37211-040-0 02 1 9011-9306 ●
8 YOKE; FLANGE,PROP SHAFT
CONCRETE PUMP<RA5> (G) 		1-37211-040-0 04 1 9307- ●
8 YOKE; FLANGE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> (B) 		1-37211-040-0 02 1 9307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-040-0 02 1 9307- ●
8 YOKE; FLANGE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> (A) 		1-37211-040-0 01 1 9307- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-040-0 01 1 9307- ●
9 JOURNAL ASM; PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37300-083-0 AR 1 9002-9306 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> 		1-37300-056-0 AR 1 9002-9306 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37300-082-0 AR 1 9002-9306 ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37300-086-0 AR 1 9307- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-086-0 AR 1 9307- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-056-0 AR 1 9307- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-056-0 AR 1 9307- ●
10 BOLT; UJT
EXC. CONCRETE PUMP<RA5> M8X20 		9-09802-702-0 08 1 9002- ● ● ●
10 BOLT; UJT
M8X20 		9-09802-702-0 08 1 9002- ●
10 BOLT; UJT
EXC. CONCRETE PUMP<RA5> M8X20 		9-09802-702-0 16 1 9002- ● ● ●
10 BOLT; UJT
CONCRETE PUMP<RA5> M8X20 		9-09802-702-0 32 1 9002- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37356-004-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37356-004-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37356-004-0 04 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002-9306 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37356-004-0 08 1 9002-9306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		9-37356-007-0 08 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37355-002-1 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37355-002-1 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37355-002-1 04 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002-9306 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37355-002-1 08 1 9002-9306 ●
13 COVER; FRT UJT,PROP SHAFT
CONCRETE PUMP<RA5> 		1-37355-011-0 08 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-011-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-011-0 04 1 9307- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> 		9-37352-023-0 08 1 9002-9306 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> 		9-37352-023-0 04 1 9002-9306 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> 		9-37352-023-0 04 1 9002-9306 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-130-0 08 1 9105-9306 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-130-0 04 1 9105-9306 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> 		1-37249-130-0 04 1 9105-9306 ●
14 COVER; DUST,SPIDER
CONCRETE PUMP<RA5> 		9-37352-023-0 16 1 9307- ●
14 COVER; DUST,SPIDER
EXC. CONCRETE PUMP<RA5> 		9-37352-023-0 08 1 9307- ●
14 COVER; DUST,SPIDER 9-37352-023-0 08 1 9307- ●
14 COVER; DUST,SPIDER
EXC. CONCRETE PUMP<RA5> 		9-37352-023-0 04 1 9307- ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 04 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9002-9306 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
CONCRETE PUMP<RA5> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 9002- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9002- ● ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9002- ●
17 NIPPLE; GREASE,PROP SHAFT
EXC. CONCRETE PUMP<RA5> PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9307- ●
20 BEARING ASM; CTR,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37510-092-3 01 1 9002-9306 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P50 PROP SHAFT(B2L) 		1-37510-092-3 01 1 9002-9306 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37510-093-3 01 1 9002-9306 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37510-093-3 01 1 9002-9306 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9002-9306 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9002-9306 ●
20 BEARING ASM; CTR,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		1-37510-093-3 01 1 9307- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 9307- ●
21 SEAL; OIL,CENTER BRG
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-09625-130-0 02 1 9002-9306 ● ● ●
21 SEAL; OIL,CENTER BRG
P50 PROP SHAFT(B2L) 		1-09625-130-0 02 1 9002-9306 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> D=120 		1-09625-126-0 02 1 9002-9306 ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> D=120 		1-09625-126-0 02 1 9002-9306 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9002-9306 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9002-9306 ●
21 SEAL; OIL,CENTER BRG
EXC. CONCRETE PUMP<RA5> D=120 		1-09625-126-0 02 1 9307- ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 9307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37516-046-2 01 1 9002-9306 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P50 PROP SHAFT(B2L) 		1-37516-046-2 01 1 9002-9306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37516-047-2 01 1 9002-9306 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37516-047-2 01 1 9002-9306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9002-9306 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9002-9306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
EXC. CONCRETE PUMP<RA5> 		1-37516-047-2 01 1 9307- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 9307- ●
23 BEARING; CENTER,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		9-00090-048-0 01 1 9002-9306 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P50 PROP SHAFT(B2L) 		9-00090-048-0 01 1 9002-9306 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-00090-292-0 01 1 9002-9306 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-00090-292-0 01 1 9002-9306 ●
23 BEARING; CENTER,PROP SHAFT
EXC. CONCRETE PUMP<RA5> 		9-00090-292-0 01 1 9307- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 9307- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9002-9306 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9002-9306 ●
25 NIPPLE; GREASE,CENTER BRG
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> MT6 STRAIGHT 		1-09380-006-0 01 1 9002-9306 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> MT6 STRAIGHT 		1-09380-006-0 01 1 9002-9306 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9002-9306 ●
25 NIPPLE; GREASE,CENTER BRG
EXC. CONCRETE PUMP<RA5> MT6 STRAIGHT 		1-09380-006-0 01 1 9307- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9307- ●
43 CASE; CENTER BRG,RR
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37529-040-0 01 1 9002-9306 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		1-37245-060-0 01 1 9002-9306 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P50 PROP SHAFT(B2L) 		1-37245-060-0 01 1 9002-9306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37240-081-1 01 1 9002-9306 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37240-081-1 01 1 9002-9306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-052-0 01 1 9002-9306 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-052-0 01 1 9002-9306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. CONCRETE PUMP<RA5> 		1-37245-051-0 01 1 9307-9408 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-051-0 01 1 9307-9408 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. CONCRETE PUMP<RA5> 		1-37245-283-1 01 1 9409- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 9409- ●
51 NUT; FLANGE,SPLINED
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> EXC. CONCRETE PUMP<RA5> M33 		1-09449-001-0 01 1 9002-9306 ● ● ●
51 NUT; FLANGE,SPLINED
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> M33 		1-09449-001-0 01 1 9002-9306 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 		1-09440-035-0 01 1 9002-9306 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 		1-09440-035-0 01 1 9002-9306 ●
51 NUT; FLANGE,SPLINED
EXC. CONCRETE PUMP<RA5> M33 		1-09449-001-0 01 1 9307- ● ●
51 NUT; FLANGE,SPLINED
M33 		1-09449-001-0 01 1 9307- ●
66 WASHER
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> EXC. CONCRETE PUMP<RA5> 		1-09509-001-0 01 1 9002-9306 ● ● ●
66 WASHER
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> 		1-09509-001-0 01 1 9002-9306 ●
66 WASHER
EXC. CONCRETE PUMP<RA5> 		1-09509-001-0 01 1 9307- ● ●
66 WASHER 1-09509-001-0 01 1 9307- ●
68 WASHER; LK,FLANGE,SPLINED
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> ID=6.1 		9-09150-606-0 03 1 9002-9306 ● ● ●
69 WASHER; LK,SPLINED
P60 PROP SHAFT<C2M> ID=6.1 		9-09150-606-0 03 1 9002-9306 ● ● ●
69 WASHER; LK,SPLINED
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> ID=6.1 		9-09150-606-0 03 1 9002-9306 ●
69 WASHER; LK,SPLINED
EXC. CONCRETE PUMP<RA5> ID=6.1 		9-09150-606-0 03 1 9307- ● ●
69 WASHER; LK,SPLINED
ID=6.1 		9-09150-606-0 03 1 9307- ●
70 SCREW; FLANGE,SPLINED
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> EXC. CONCRETE PUMP<RA5> M8X18 		9-03460-618-0 03 1 9002-9306 ● ● ●
70 SCREW; FLANGE,SPLINED
P50 PROP SHAFT(B2L),P60 PROP SHAFT<C2M> M8X18 		9-03460-618-0 03 1 9002-9306 ●
70 SCREW; FLANGE,SPLINED
EXC. CONCRETE PUMP<RA5> M8X18 		9-03460-618-0 03 1 9307-9501 ● ●
70 SCREW; FLANGE,SPLINED
M8X18 		9-03460-618-0 03 1 9307-9501 ●
70 SCREW; FLANGE,SPLINED
MAF6 M/T<X9V> EXC. CONCRETE PUMP<RA5> M8X18 		9-03460-618-0 03 1 9502- ● ●
70 SCREW; FLANGE,SPLINED
M8X18 		9-03460-618-0 03 1 9502- ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 9002- ● ● ●
71 NUT; YOKE
CONCRETE PUMP<RA5> (B) M16 FLANGE 		1-09449-065-0 08 1 9002- ●
74 BOLT; YOKE,TRANS
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> M14X45 		9-09801-107-0 04 1 9002-9306 ● ● ●
74 BOLT; YOKE,TRANS
P50 PROP SHAFT(B2L) M14X45 		9-09801-107-0 04 1 9002-9306 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48 		1-09000-383-0 04 1 9002-9306 ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48 		1-09000-383-0 04 1 9002-9306 ●
74 BOLT; YOKE,TRANS
EXC. CONCRETE PUMP<RA5> M16X48 		1-09000-383-0 04 1 9307- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9307- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 9002- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
EXC. CONCRETE PUMP<RA5> M16X45 		1-09042-030-0 02 1 9002- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 9002- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
EXC. CONCRETE PUMP<RA5> ID=17 		1-09503-241-0 02 1 9002- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 9002- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
EXC. CONCRETE PUMP<RA5> M16 SLOTTED 		9-99116-516-0 02 1 9002- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9002- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
EXC. CONCRETE PUMP<RA5> OD=3.7 L=25 		9-08114-025-0 02 1 9002- ●
181 COVER; BRG,PROP SHAFT
P50 PROP SHAFT(B2L) EXC. CONCRETE PUMP<RA5> 		9-37352-023-0 04 1 9002-9306 ● ● ●
181 COVER; BRG,PROP SHAFT
CONCRETE PUMP<RA5> 		9-37352-023-0 08 1 9002-9306 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
