2-05A — CLUTCH PIPING (#30288) — 79 parça

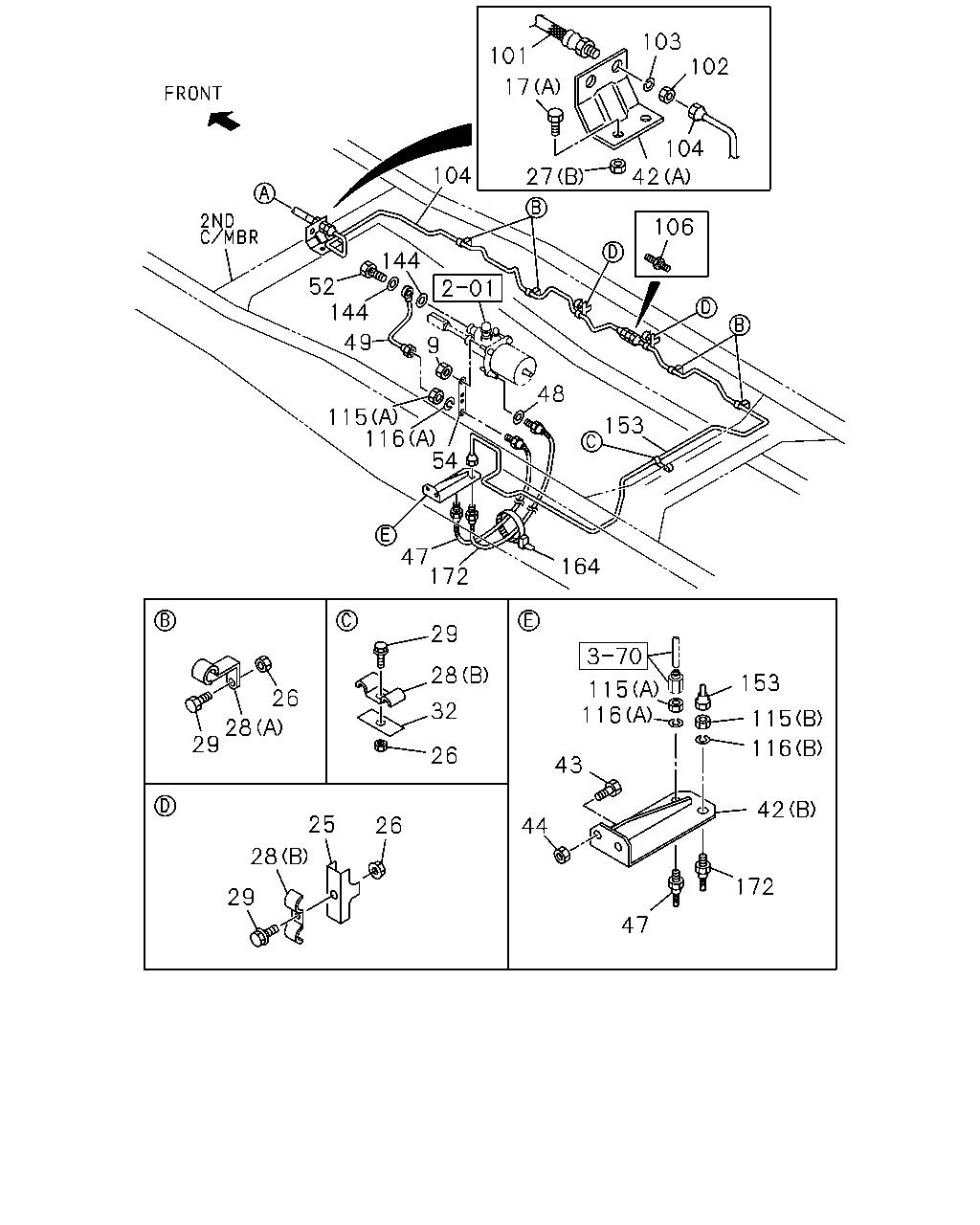

çizim 25465
103 101 102 17 104 42 104 27 106 144 52 144 9 49 48 115 116 153 54 47 172 164 29 28 153 115 116 26 32 115 28 29 116 26 43 42 25 26 44 28 172 29 47
BalonParca AdiParca NoAdetTipApplied Date
9 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
9 NUT; BRKT,FLEX HOSE
M8 FLANGE THA 		0-91180-108-0 02 1 0603-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0407-
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611
17 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0612-
25 BRACKET; OIL PIPE 1-47475-427-1 02 1 0407-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0407-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 06 1 0407-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0407-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0407-
28 CLIP; OIL PIPE
(B) ID=7 & 9 L=17.5 & 17.5 THA 		1-09700-746-0 01 1 0407-
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 THA 		1-09700-604-0 04 1 0407-
28 CLIP; OIL PIPE
(B) ID=7 & 9 L=17.5 & 17.5 THA 		1-09700-746-0 02 1 0407-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 04 1 0407-0611
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE THA 		0-28650-830-0 04 1 0612-
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0512
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0601-
29 BOLT; CLIP,OIL PIPE
M8X45 FLANGE 		0-28080-845-0 02 1 0407-0512
29 BOLT; CLIP,OIL PIPE
M8X45 FLANGE THA 		0-28050-845-0 02 1 0601-
32 BRACKET; CLIP OIL PIPE
L=50 THA 		1-47475-299-2 01 1 0407-
42 BRACKET; FLEX HOSE,CLU CONT
(A) THA 		1-47476-781-0 01 1 0407-
42 BRACKET; FLEX HOSE,CLU CONT
(B) THA 		1-47476-912-1 01 1 0407-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28680-835-0 02 1 0407-0611
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE THA 		0-28650-835-0 02 1 0612-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 0407-
47 HOSE; FLEX,CLU CONT
L=470 		1-09363-716-0 01 1 0407-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 THA 		9-09571-410-0 01 1 0407-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=233 		1-47494-317-0 01 1 0407-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0407-
54 BRACKET; AIR,FLEX HOSE 1-47465-890-0 01 1 0407-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 0407-0703
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0704-
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 0407-0512
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601-
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 0407-0603
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
THA 		8-97919-220-0 01 1 0407-
106 UNION; OIL PIPE
M14 STRAIGHT 		9-09223-008-1 01 1 0407-0607
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 0608-
115 NUT; FLEX HOSE,CLU CONT
(A) M12 		9-09840-280-0 02 1 0407-
115 NUT; FLEX HOSE,CLU CONT
(B) M14 		9-99111-414-0 01 1 0407-0512
115 NUT; FLEX HOSE,CLU CONT
(B) M14 		0-91111-514-0 01 1 0601-
116 WASHER; FLEX HOSE,CLU CONT
(A) ID=12.2 		9-09150-512-0 02 1 0407-0603
116 WASHER; FLEX HOSE,CLU CONT
(A) ID=12.2 		0-91510-512-0 02 1 0604-
116 WASHER; FLEX HOSE,CLU CONT
(B) ID=14.2 		9-09150-514-0 01 1 0407-0603
116 WASHER; FLEX HOSE,CLU CONT
(B) ID=14.2 		0-91510-514-0 01 1 0604-
144 GASKET; AIR PIPE
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0407-
153 PIPE ASM; CLU,UNION TO FLEX
L=2703 SERVICED BY L=3000 		1-47426-397-0 01 1 0407-
164 CLIP; BAND,FLEX HOSE
L=140 		5-09707-031-1 01 1 0407-
172 HOSE; FLEX,CLU BOOSTER
L=450 		1-09364-369-0 01 1 0407-

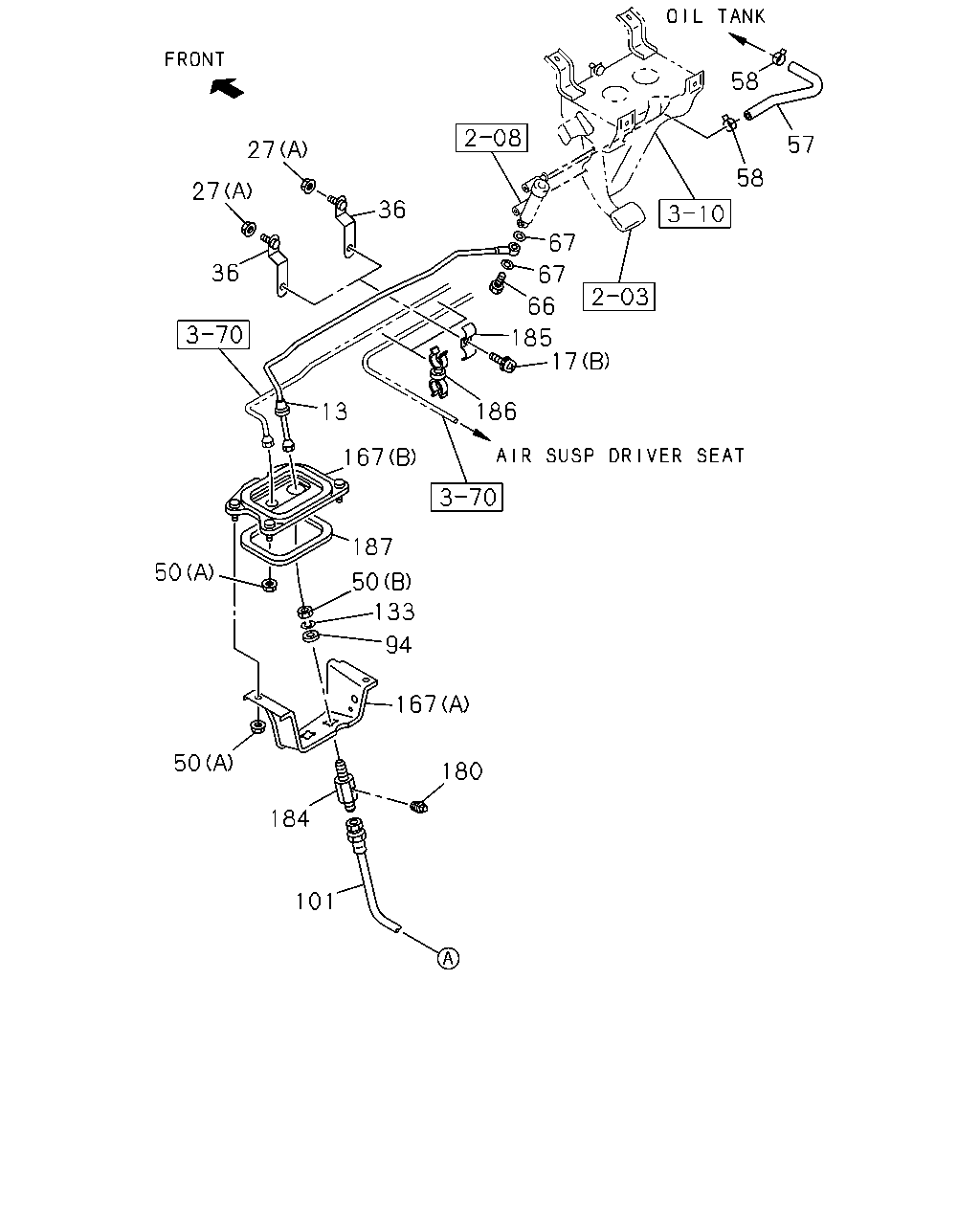

çizim 82303
58 57 27 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 180 184 101
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL
THA 		8-97916-209-0 01 1 0407-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0407-
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611
17 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0612-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0407-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0407-
36 BRACKET; CLIP
THA 		1-79738-186-1 02 1 0407-
50 NUT; UNION
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0407-
50 NUT; UNION
(B) M14 		9-99111-414-0 01 1 0407-0512
50 NUT; UNION
(B) M14 		0-91111-514-0 01 1 0601-
57 HOSE; CLU M/CYL TO OIL TANK
THA 		8-97916-100-0 01 1 0407-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 0407-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 0407-0805
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 0806-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0407-
94 WASHER; PL,UNION
ID=15 		9-09160-514-0 01 1 0407-0605
94 WASHER; PL,UNION
ID=15 		0-91610-514-0 01 1 0606-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 0407-0703
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0704-
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 0407-0603
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0604-
167 BRACKET; UNION
(A) THA 		1-79738-193-6 01 1 0407-
167 BRACKET; UNION
(B) 		1-79738-845-1 01 1 0407-
180 PLUG; PIPE 9-09204-510-0 01 1 0407-0804
184 UNION; FLEX HOSE 1-09656-679-0 01 1 0407-0804
184 UNION; FLEX HOSE 1-09654-435-0 01 1 0805-
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 0407-
186 HOLDER; CLIP
AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8 THA 		8-94313-325-0 02 1 0407-
187 SEAL; BRKT 1-79738-190-0 01 1 0407-
