Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10944 - FVZ(THAI)EURO2
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01B - CLUTCH
▶
2-01B — CLUTCH
(#30286) — 55 parça
◀

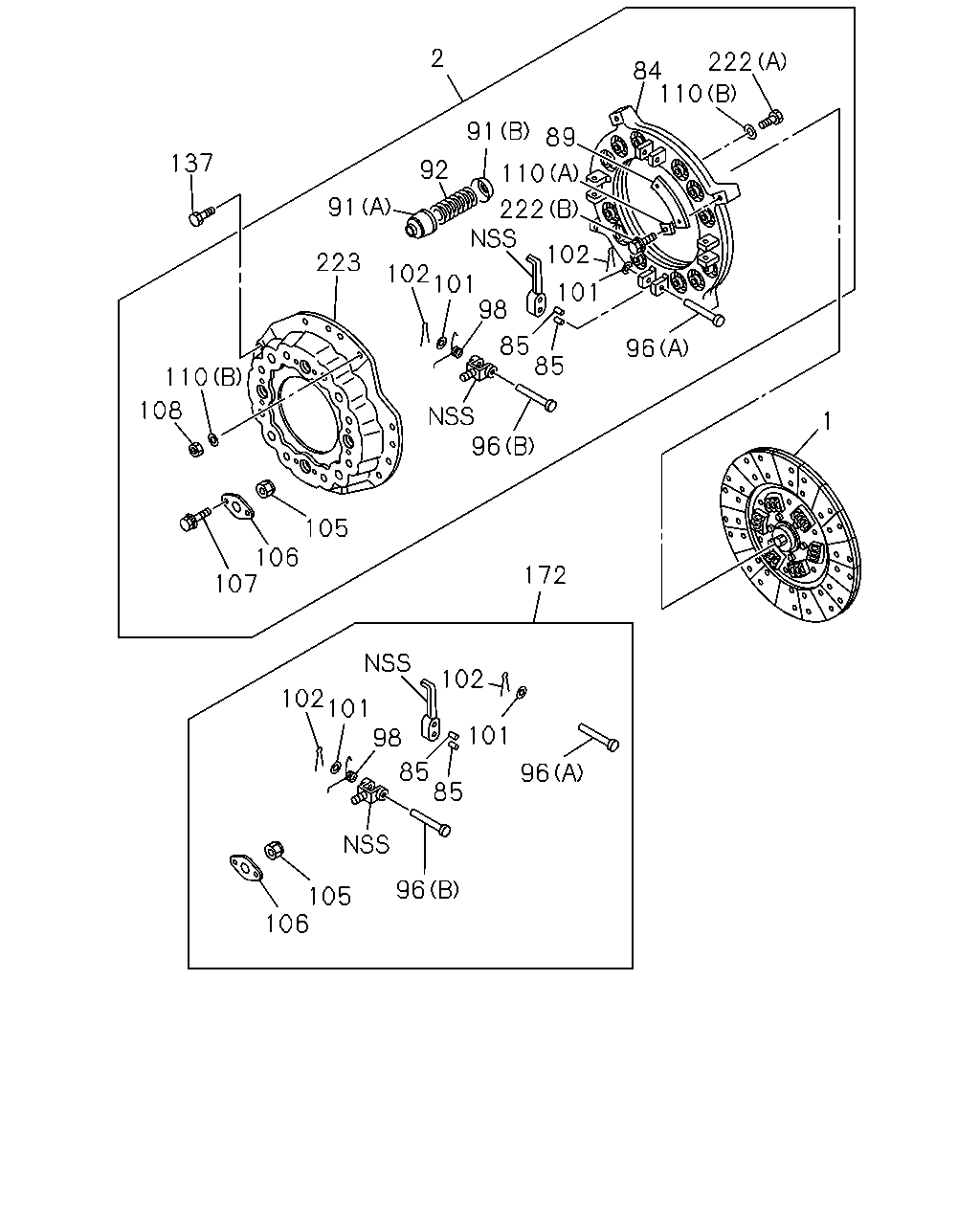

[201B] DISC AND PLATE (25 parça)

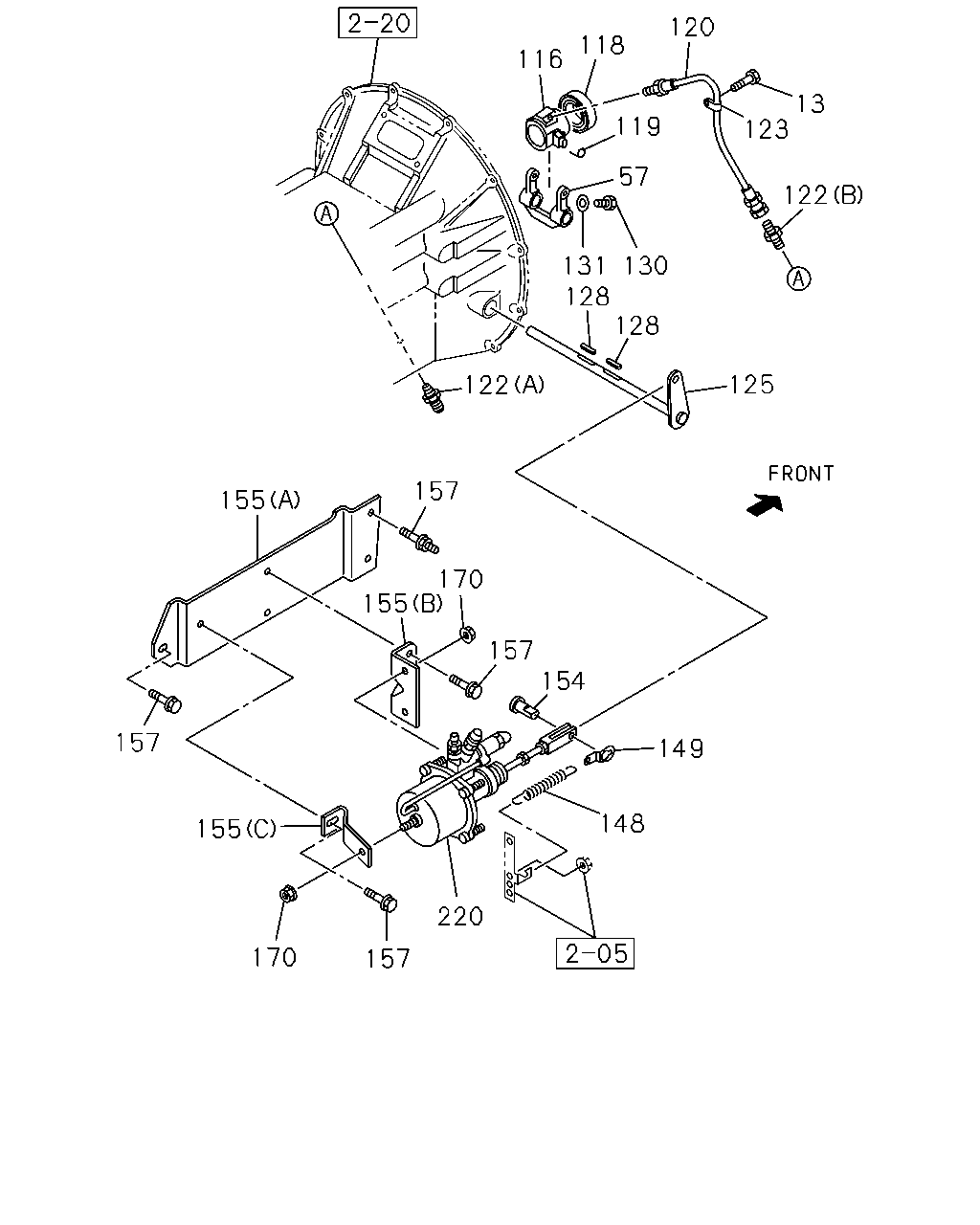

[201B] CLUTCH BOOSTER FIXING (30 parça)
▶
2
222
84
110
91
89
137
92
110
91
222
102
223
102
101
98
101
85
85
96
110
108
96
1
105
106
107
172
102
102
101
98
101
85
85
96
96
105
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
15" THA
8-97917-734-1
01
1
0407-
2
PLATE ASM; PRESSURE,CLU
1-31220-379-2
01
1
0407-
84
PLATE; PRESSURE
1-31221-094-1
01
1
0407-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
0407-
89
PLATE; STRAP
1-31229-050-0
16
1
0407-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
0407-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
0407-
92
SPRING; CLU
1-31214-050-0
12
1
0407-
96
PIN; RELEASE LEVER
(B) L=49.0
1-31232-005-0
04
1
0407-
96
PIN; RELEASE LEVER
(A) L=57.0
1-31232-014-0
04
1
0407-
98
SPRING; RETURN
1-31233-003-0
04
1
0407-
101
WASHER; RELEASE LEVER
1-31239-058-0
08
1
0407-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
0407-
105
NUT; SUPPORT
1-31235-014-0
04
1
0407-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
0407-
107
BOLT; LK PLATE
1-31239-061-0
08
1
0407-
108
NUT; STRAP
1-09449-036-0
04
1
0407-
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
0407-
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
0407-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28181-020-0
12
1
0407-0512
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
0601-
172
LEVER KIT; RELEASE,CLU
1-87831-170-1
01
1
0407-
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
0407-
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
0407-
223
COVER; CLU
1-31211-019-1
01
1
0407-
120
118
116
13
123
119
57
122
131
128
128
130
125
122
157
155
170
155
157
154
157
149
148
155
220
170
157
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0407-
57
FORK; SHIFT,CLU
1-31341-036-0
01
1
0407-
116
BLOCK; SHIFT,CLU
1-31321-077-0
01
1
0407-
118
BEARING; CLU RELEASE
1-09820-117-0
01
1
0407-
119
SPRING; SHIFT FORK
1-31329-014-0
01
1
0407-
119
SPRING; SHIFT FORK
1-31329-015-0
01
1
0407-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
0407-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 L=23
1-09660-710-0
01
1
0407-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT
9-09031-010-0
01
1
0407-0512
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT
0-90301-410-0
01
1
0601-
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
9-09524-835-0
01
1
0407-0606
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
0-95234-835-0
01
1
0607-
125
SHAFT; CLU
1-31342-300-0
01
1
0407-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
0407-
130
SCREW; SHIFT FORK
9-06120-816-0
01
1
0407-
131
WASHER; LK,SHIFT FORK
ID=8.2
9-09150-508-0
01
1
0407-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
0407-
149
EYE; SPRING,RETURN SPRING
1-31426-041-0
01
1
0407-
154
PIN; JAW JOINT
1-31424-009-0
01
1
0407-
155
BRACKET; MINIPACK
(B)
1-31429-066-0
01
1
0407-
155
BRACKET; MINIPACK
(C)
1-31429-322-0
01
1
0407-
155
BRACKET; MINIPACK
(A)
1-31429-390-0
01
1
0407-
157
BOLT; BRKT
M10X25 FLANGE
0-28181-025-0
04
1
0407-0512
157
BOLT; BRKT
M10X25 FLANGE THA
0-28151-025-0
04
1
0601-
157
BOLT; BRKT
M12X20 FLANGE
0-28181-220-0
01
1
0407-0512
157
BOLT; BRKT
M12X20 FLANGE
0-28151-220-0
01
1
0601-
157
BOLT; BRKT
M10X18,M12X25 L=54.7
1-09029-087-0
01
1
0407-
170
NUT; BOOSTER FIX
TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE
0-91150-208-0
03
1
0407-0602
170
NUT; BOOSTER FIX
M8 FLANGE THA
0-91180-208-0
03
1
0603-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-388-2
01
1
0407-
