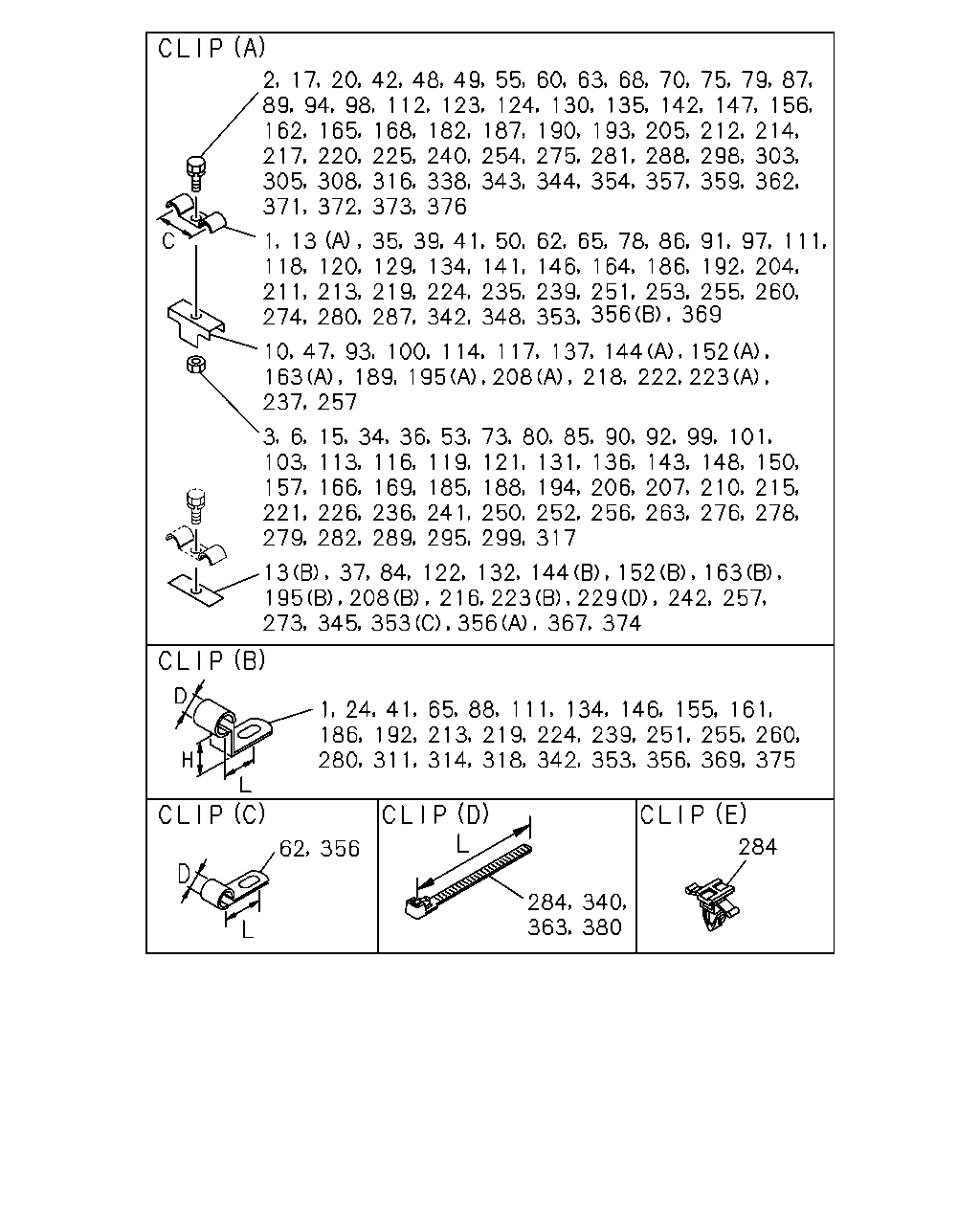

3-78 — FIXING PARTS; AIR PIPING (#3028) — 674 parça

2 17 20 42 48 49 55 60 63 68 70 75 79 87 156 147 142 135 130 124 123 112 98 94 89 162 165 168 182 187 190 193 205 212 214 303 298 288 281 275 254 240 225 220 217 305 308 316 338 343 344 354 357 359 362 376 373 372 371 1 13 35 39 41 50 62 65 78 86 91 97 111 204 192 186 164 146 141 134 129 120 118 211 213 219 224 235 239 251 253 255 260 369 356 353 348 342 287 280 274 10 47 93 100 114 117 137 144 152 223 222 218 208 195 189 163 237 257 3 6 15 34 36 53 73 80 85 90 92 99 101 150 148 143 136 131 121 119 116 113 103 157 166 169 185 188 194 206 207 210 215 278 276 263 256 252 250 241 236 226 221 279 282 289 295 299 317 13 37 84 122 132 144 152 163 257 242 229 223 216 208 195 273 345 353 356 367 374 1 24 41 65 88 111 134 146 155 161 260 255 251 239 224 219 213 192 186 280 311 314 318 342 353 356 369 375 284 340 380 363 284 356 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-9306	●	●	●	●
1	CLIP; AIR PIPE MIXER TRUCK<RA2> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-9306	●		●
1	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (A) ID=11 & 7 L=15 & 15	1-09700-659-0	01	1	9002-	●	●	●	●
1	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9307-		●		●
1	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> (A) ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9002-			●	●
2	BOLT; CLIP FIX M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●
2	BOLT; CLIP FIX MIXER TRUCK<RA2> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●		●
2	BOLT; CLIP FIX M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●	●
2	BOLT; CLIP FIX MIXER TRUCK<RA2> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●		●
2	BOLT; CLIP FIX EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●	●
2	BOLT; CLIP FIX EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●	●	●	●
2	BOLT; CLIP FIX CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204				●
2	BOLT; CLIP FIX CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-				●
3	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9002-	●	●	●	●
3	NUT; CLIP,AIR PIPE EXC. MIXER TRUCK<RA2> M8	9-09110-408-0	01	1	9002-	●		●
3	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9002-		●		●
6	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9002-	●	●	●	●
10	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	02	1	9002-9306	●		●
10	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	04	1	9002-		●		●
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (B)	1-47466-005-0	01	1	9002-			●	●
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (A) ID=5 & 8	5-09700-165-0	01	1	9002-			●	●
15	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-9306	●	●	●	●
15	NUT; PIPE CLIP FIRE TRUCK<RA9> GOVERNOR CONTROL<W69> M8	9-09110-408-0	01	1	9002-9306		●		●
15	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9307-		●		●
17	BOLT; CLIP BRKT CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204				●
17	BOLT; CLIP BRKT CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-				●
17	BOLT; CLIP BRKT CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204				●
17	BOLT; CLIP BRKT CONCRETE PUMP<RA5> M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-				●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306	●	●	●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9307-		●		●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●	●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●	●	●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	02	1	9307-		●		●
24	CLIP; PIPE CONCRETE PUMP<RA5> ID=16	1-09700-463-0	01	1	9002-				●
34	NUT; BRKT M8	9-09110-408-0	02	1	9002-	●	●	●	●
35	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=16 & 7 L=18 & 15	1-09700-661-0	02	1	9002-	●	●	●	●
35	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9002-	●	●	●	●
36	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8	9-09110-408-0	03	1	9002-	●	●	●	●
37	BRACKET; PIPE CLIP EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9002-	●	●	●	●
37	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=50	1-47475-299-2	01	1	9002-			●	●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> ID=16X7 L=38	1-09700-675-0	01	1	9002-	●	●	●	●
39	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=16X7 L=38	1-09700-675-0	01	1	9002-			●	●
39	CLIP; AIR PIPE CONCRETE PUMP<RA5> ID=16X7 L=33	1-09700-661-0	01	1	9002-				●
41	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9003-9306	●	●	●	●
41	CLIP; AIR PIPE FIRE TRUCK<RA9> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-9306		●		●
42	BOLT; CLIP,AIR PIPE DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204			●	●
42	BOLT; CLIP,AIR PIPE DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301			●	●
42	BOLT; CLIP,AIR PIPE DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302			●	●
42	BOLT; CLIP,AIR PIPE DUAL AIR GAUGE<UG2> M6X16 FLANGE	0-28080-616-0	01	1	9303-9306			●	●
42	BOLT; CLIP,AIR PIPE DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-				●
47	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	02	1	9002-	●	●	●	●
48	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204			●	●
48	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-			●	●
49	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●	●
49	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●	●	●	●
49	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	01	1	9303-	●	●	●	●
50	CLIP; AIR PIPE ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9002-	●	●
53	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6	1-09984-073-0	01	1	9002-9302			●	●
53	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6 FLANGE	0-91150-106-0	01	1	9303-9410			●	●
53	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HONG KONG EQUIPMENT(PQ1) M6 FLANGE	0-91150-106-0	01	1	9411-		●		●
53	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6 FLANGE	0-91150-106-0	01	1	9411-		●
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 W/LK WASHER	9-01900-835-0	01	1	9002-9204	●	●	●	●
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 W/LK WASHER	0-50040-835-0	01	1	9205-	●	●	●	●
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●	●	●	●
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●	●	●	●
60	BOLT; CLIP FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●	●	●	●
60	BOLT; CLIP FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9302	●	●	●	●
60	BOLT; CLIP FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	02	1	9303-	●	●	●	●
62	CLIP; AIR PIPE (A) ID=13 & 13 L=16 & 16	1-09700-072-0	02	1	9002-	●	●
62	CLIP; AIR PIPE (A) ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9002-			●	●
62	CLIP; AIR PIPE (A) ID=11 & 13 L=15 & 16	1-09700-077-0	01	1	9002-			●	●
62	CLIP; AIR PIPE (C) ID=11 L=16	9-09525-025-0	01	1	9002-			●	●
63	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●	●
63	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●	●	●	●
63	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 FLANGE	0-28080-816-0	01	1	9303-	●	●	●	●
65	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9002-	●	●	●	●
65	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9002-	●	●	●	●
65	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-9306	●		●
65	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 & 11 L=18 & 17	1-09700-657-0	03	1	9002-		●		●
68	BOLT; CLIP,AIR PIPE EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28010-820-0	01	1	9002-9204	●	●	●	●
68	BOLT; CLIP,AIR PIPE EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●
68	BOLT; CLIP,AIR PIPE ISUZU M/T<X9A> EXC. CONCRETE PUMP<RA5>,TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●
68	BOLT; CLIP,AIR PIPE EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●	●	●
68	BOLT; CLIP,AIR PIPE EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●	●
68	BOLT; CLIP,AIR PIPE ISUZU M/T<X9A> EXC. CONCRETE PUMP<RA5>,TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●	●
70	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●
70	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●	●
73	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-			●	●
75	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28010-816-0	01	1	9002-9204	●	●	●	●
75	BOLT; CLIP DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=13 & 7 L=16 & 14	1-09700-665-0	03	1	9002-9005	●	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=13 & 7 L=16 & 14	1-09700-665-0	02	1	9006-	●	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9010-		●		●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-			●	●
78	CLIP; AIR PIPE CONCRETE PUMP<RA5> ID=16 & 13 L=15 & 12	1-09700-668-0	01	1	9002-				●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9005	●	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	02	1	9006-9204	●	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306	●	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	02	1	9307-		●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9302	●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	02	1	9303-9306	●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	04	1	9002-9204		●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	04	1	9205-9302		●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	04	1	9303-		●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9009			●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	01	1	9010-9204	●	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	9-01900-816-0	01	1	9010-9204			●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302			●	●
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9303-9306	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9303-9306			●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9303-9306			●	●
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9307-		●		●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8	9-09110-408-0	03	1	9002-9005	●	●	●	●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9010-9306	●	●	●	●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9010-9306			●	●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8	9-09110-408-0	02	1	9006-	●	●	●	●
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9307-		●		●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-9009			●	●
84	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	9002-			●	●
85	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9002-	●	●	●	●
86	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-	●	●	●	●
86	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16 & 16	1-09700-674-0	01	1	9002-	●	●	●	●
87	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●	●	●	●
87	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●	●	●	●
88	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-	●	●	●	●
89	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9003-9204	●	●	●	●
89	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●	●	●	●
89	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●
89	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●	●
89	BOLT; PIPE CLIP FIRE TRUCK<RA9> M8X20 FLANGE	0-28010-820-0	01	1	9002-9204		●		●
89	BOLT; PIPE CLIP FIRE TRUCK<RA9> M8X20 FLANGE	0-28080-820-0	01	1	9205-9306		●		●
90	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9002-	●	●	●	●
91	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 7 L=15 & 15	1-09700-659-0	02	1	9002-	●	●	●	●
91	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9002-	●	●	●	●
92	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9002-	●	●	●	●
93	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	02	1	9002-	●	●	●	●
94	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	02	1	9002-9204	●	●	●	●
94	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●	●	●
97	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 9 L=15 & 15	1-09700-655-0	02	1	9002-	●	●	●	●
97	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9002-	●	●	●	●
98	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	03	1	9002-9204	●	●	●	●
98	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-	●	●	●	●
99	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	03	1	9002-	●	●	●	●
100	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	03	1	9002-	●	●	●	●
101	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	04	1	9002-9306	●	●	●	●
103	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9002-	●	●	●	●
111	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09700-606-0	01	1	9002-	●	●	●	●
111	CLIP; AIR PIPE WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09700-606-0	01	1	9002-		●		●
111	CLIP; AIR PIPE WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09700-657-0	01	1	9002-		●		●
112	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●
112	BOLT; PIPE CLIP WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204		●		●
112	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●	●
112	BOLT; PIPE CLIP WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-		●		●
112	BOLT; PIPE CLIP WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204		●		●
112	BOLT; PIPE CLIP WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9302		●		●
112	BOLT; PIPE CLIP WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	01	1	9303-		●		●
113	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9002-	●	●	●	●
113	NUT; PIPE CLIP WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9002-		●		●
114	BRACKET; PIPE CLIP WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	01	1	9002-		●		●
116	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9002-9306	●		●
116	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	04	1	9002-		●		●
117	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	02	1	9002-	●	●	●	●
118	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16 & 11 L=18 & 17	1-09700-657-0	02	1	9002-	●	●	●	●
119	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9002-	●	●	●	●
120	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9002-	●	●	●	●
121	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9002-	●	●	●	●
122	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=50	1-47475-299-2	01	1	9002-	●	●	●	●
123	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204				●
123	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-				●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204	●	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301	●	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302	●	●	●	●
124	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9303-9305	●	●
124	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9306-9306	●	●	●	●
124	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	9-01910-616-0	02	1	9002-9005	●	●	●	●
124	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	02	1	9006-9006	●	●	●	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	03	1	9002-9204			●	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	03	1	9205-9301			●	●
124	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	03	1	9302-9305			●	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-9306			●	●
124	BOLT; PIPE CLIP BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	9-01910-616-0	01	1	9002-9005			●	●
124	BOLT; PIPE CLIP BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	01	1	9006-9006			●	●
124	BOLT; PIPE CLIP BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005			●	●
124	BOLT; PIPE CLIP BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-9006			●	●
124	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 W/LK WASHER	0-50040-816-0	02	1	9007-9306	●	●	●	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-		●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	03	1	9307-				●
129	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=13 & 7 L=16 & 14	1-09700-665-0	01	1	9002-			●	●
130	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204			●	●
130	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-			●	●
131	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-			●	●
132	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=50	1-47475-299-2	01	1	9002-			●	●
134	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> (A) ID=11 & 13 L=21.5 & 21.5	1-09700-688-0	01	1	9002-9112	●	●	●	●
134	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> (A) ID=11 & 13 L=21.5 & 21.5	1-09700-688-0	01	1	9201-9306	●		●
134	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 & 13 L=21.5 & 21.5	1-09700-688-0	01	1	9201-9306		●		●
134	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CONCRETE PUMP<RA5> (A) ID=11 & 13 L=21.5 & 21.5	1-09700-688-0	01	1	9307-		●		●
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9002-			●	●
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) ID=13 & 7 L=16 & 14	1-09700-665-0	01	1	9002-9002			●	●
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) ID=13 & 13 L=21.5 & 21.5	1-09700-689-0	01	1	9002-			●	●
134	CLIP; AIR PIPE CONCRETE PUMP<RA5> (B) ID=12 H=24 L=20	1-09700-605-0	03	1	9002-				●
134	CLIP; AIR PIPE CONCRETE PUMP<RA5> (A) ID=13 & 9 L=18 & 17	1-09700-667-0	01	1	9002-				●
134	CLIP; AIR PIPE CONCRETE PUMP<RA5> (A) ID=11 & 13 L=15 & 16	1-09700-670-0	03	1	9002-				●
135	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9112	●		●
135	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9112		●		●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9112			●	●
135	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X45 W/LK WASHER	9-01900-845-0	01	1	9201-9204	●		●
135	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	01	1	9201-9204		●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	9-01900-845-0	01	1	9201-9204			●
135	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9201-9204				●
135	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306	●		●
135	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306		●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306			●
135	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306				●
135	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9307-		●		●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	01	1	9002-9002			●	●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	02	1	9003-9204			●	●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	02	1	9205-			●	●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9002			●	●
135	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	03	1	9002-9204				●
135	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	03	1	9205-				●
135	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204				●
135	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-				●
136	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9002-9002	●	●	●	●
136	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-9002	●	●	●	●
136	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9003-9306	●	●	●	●
136	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9003-	●	●	●	●
136	NUT; PIPE CLIP EXC. REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	02	1	9307-		●		●
136	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9002-				●
137	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9002-9306	●	●	●	●
137	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-47475-427-1	01	1	9002-9306			●	●
137	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9307-		●		●
137	BRACKET; PIPE CLIP CONCRETE PUMP<RA5>	1-47475-427-1	02	1	9002-				●
141	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 13 L=15 & 16	1-09700-670-0	03	1	9002-	●	●	●	●
141	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=13 & 13 L=16 & 16	1-09700-666-0	03	1	9002-			●	●
141	CLIP; AIR PIPE CONCRETE PUMP<RA5> ID=13 & 7 L=16 & 14	1-09700-665-0	01	1	9002-				●
142	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●	●
142	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204			●	●
142	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●	●
142	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-			●	●
142	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●
142	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204				●
142	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●	●	●	●
142	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204				●
142	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-				●
143	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9002-	●	●	●	●
143	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-				●
144	BRACKET; PIPE CLIP EXC. CONCRETE PUMP<RA5> (B) L=50	1-47475-299-2	01	1	9002-	●	●	●	●
144	BRACKET; PIPE CLIP EXC. CONCRETE PUMP<RA5> (A)	1-47475-427-1	02	1	9002-	●	●	●	●
146	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLEVERTICAL<N28> (B) ID=11 H=20 L=20	5-09700-351-0	02	1	9002-9306	●	●	●	●
146	CLIP; AIR PIPE EXC. CONCRETE PUMP<RA5> (A) ID=13 & 13 L=16 & 16	1-09700-666-0	04	1	9002-	●	●	●	●
146	CLIP; AIR PIPE EXC. CONCRETE PUMP<RA5> (A) ID=13 & 13 L=21.5 & 21.5	1-09700-689-0	01	1	9002-	●	●	●	●
146	CLIP; AIR PIPE EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (A) ID=13 & 7 L=16 & 14	1-09700-665-0	02	1	9002-	●	●	●	●
146	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 H=20 L=20	5-09700-351-0	02	1	9307-		●		●
146	CLIP; AIR PIPE CONCRETE PUMP<RA5> (A) ID=11 & 13 L=15 & 16	1-09700-670-0	03	1	9002-				●
146	CLIP; AIR PIPE CONCRETE PUMP<RA5> (A) ID=11 & 13 L=21.5 & 21.5	1-09700-688-0	02	1	9002-				●
147	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9204	●	●	●	●
147	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-	●	●	●	●
147	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X22	9-01900-822-0	02	1	9002-9204	●	●	●	●
147	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X22 W/LK WASHER	0-50040-822-0	02	1	9205-	●	●	●	●
147	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204	●	●	●	●
147	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●	●	●	●
147	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●	●	●	●
147	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-	●	●	●	●
147	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204				●
147	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-				●
147	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204				●
147	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-				●
147	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204				●
147	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-				●
148	NUT; PIPE CLIP M10	9-09110-510-0	04	1	9002-	●	●
148	NUT; PIPE CLIP M10	9-09110-510-0	03	1	9002-			●	●
148	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	05	1	9002-	●	●	●	●
148	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> M8	9-09110-408-0	02	1	9002-	●	●	●	●
148	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9002-				●
150	NUT; CLIP BRKT CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-				●
152	BRACKET; PIPE CLIP (C)	1-47475-485-2	01	1	9002-	●	●	●	●
152	BRACKET; PIPE CLIP EXC. CONCRETE PUMP<RA5> (B) L=50	1-47475-299-2	03	1	9002-	●	●	●	●
152	BRACKET; PIPE CLIP EXC. CONCRETE PUMP<RA5> (A)	1-47475-427-1	01	1	9002-	●	●	●	●
152	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-427-1	01	1	9002-	●	●	●	●
152	BRACKET; PIPE CLIP EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (B) L=50	1-47475-299-2	02	1	9002-	●	●	●	●
152	BRACKET; PIPE CLIP CONCRETE PUMP<RA5> (A)	1-47475-427-1	02	1	9002-				●
155	CLIP; AIR PIPE CONCRETE PUMP<RA5> ID=11 H=20 L=20	5-09700-351-0	03	1	9002-				●
156	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	03	1	9002-9204				●
156	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	03	1	9205-				●
157	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9002-				●
161	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=12 H=24 L=20	1-09700-605-0	01	1	9002-			●	●
162	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204			●	●
162	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9205-			●	●
163	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50	1-47475-299-2	01	1	9002-			●	●
163	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A)	1-47475-427-1	01	1	9002-			●	●
164	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-			●	●
164	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=13 & 7 L=16 & 14	1-09700-665-0	01	1	9002-			●	●
165	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204			●	●
165	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-			●	●
165	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204				●
165	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-				●
166	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-			●	●
166	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-				●
168	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204			●	●
168	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9306			●	●
168	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204			●	●
168	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-			●	●
168	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9307-				●
169	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-			●	●
169	NUT; CLIP BRKT CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-				●
182	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204			●	●
182	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301			●	●
182	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302			●	●
182	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	01	1	9303-9306			●	●
182	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-				●
185	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-				●
186	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9002-	●	●	●	●
186	CLIP; AIR PIPE EXC. CONCRETE PUMP<RA5> (A) ID=11 & 13 L=15 & 16	1-09700-670-0	02	1	9002-	●	●	●	●
186	CLIP; AIR PIPE CONCRETE PUMP<RA5> (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9002-				●
186	CLIP; AIR PIPE CONCRETE PUMP<RA5> (A) ID=13 & 13 L=16 & 16	1-09700-666-0	01	1	9002-				●
187	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●
187	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●	●
187	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●	●	●	●
187	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●	●	●	●
187	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204				●
187	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-				●
188	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	04	1	9002-9112	●	●	●	●
188	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	03	1	9201-	●	●	●	●
188	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-			●	●
188	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-				●
189	BRACKET; PIPE CLIP EXC. CONCRETE PUMP<RA5>	1-47475-427-1	02	1	9002-	●	●	●	●
189	BRACKET; PIPE CLIP CONCRETE PUMP<RA5>	1-47475-427-1	01	1	9002-				●
190	BOLT; CLIP BRKT CONCRETE PUMP<RA5> M8X35 W/LK WASHER	9-01900-835-0	01	1	9002-9204				●
190	BOLT; CLIP BRKT CONCRETE PUMP<RA5> M8X35 W/LK WASHER	0-50040-835-0	01	1	9205-9306				●
190	BOLT; CLIP BRKT CONCRETE PUMP<RA5> M8X35 FLANGE	0-28080-835-0	01	1	9307-				●
192	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-	●	●	●	●
192	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9002-	●	●	●	●
192	CLIP; AIR PIPE CONCRETE PUMP<RA5> (A) ID=13 & 13 L=16 & 16	1-09700-666-0	01	1	9002-				●
193	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●
193	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●	●
193	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204				●
193	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-				●
194	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	05	1	9002-9112	●	●	●	●
194	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-				●
195	BRACKET; PIPE CLIP CONCRETE PUMP<RA5> (B) L=50	1-47475-299-2	03	1	9002-				●
195	BRACKET; PIPE CLIP CONCRETE PUMP<RA5> (A)	1-47475-427-1	01	1	9002-				●
204	CLIP; AIR PIPE EXC. CONCRETE PUMP<RA5> ID=11 & 13 L=15 & 16	1-09700-670-0	02	1	9002-	●	●	●	●
204	CLIP; AIR PIPE CONCRETE PUMP<RA5> ID=13 & 13 L=16 & 16	1-09700-666-0	03	1	9002-				●
204	CLIP; AIR PIPE CONCRETE PUMP<RA5> ID=13 & 13 L=21.5 & 21.5	1-09700-689-0	01	1	9002-				●
205	BOLT; PIPE CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●	●	●
205	BOLT; PIPE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-	●	●	●	●
205	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204	●	●	●	●
205	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●	●	●	●
205	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204				●
205	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-				●
206	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-	●	●	●	●
207	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-	●	●	●	●
207	NUT; PIPE CLIP CONCRETE PUMP<RA5> M10	9-09110-510-0	03	1	9002-				●
207	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	05	1	9002-				●
208	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9002-	●	●	●
208	BRACKET; PIPE CLIP EXC. CONCRETE PUMP<RA5> (A)	1-47475-427-1	01	1	9002-				●
208	BRACKET; PIPE CLIP CONCRETE PUMP<RA5> (B) L=50	1-47475-299-2	01	1	9002-				●
210	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9002-	●	●	●	●
211	CLIP; AIR PIPE CONCRETE PUMP<RA5> 13X7	1-09700-665-0	03	1	9002-				●
212	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204				●
212	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-				●
213	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9002-			●	●
213	CLIP; AIR PIPE CONCRETE PUMP<RA5> (A) ID=13 & 13 L=16 & 16	1-09700-666-0	02	1	9002-				●
214	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204			●	●
214	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9205-			●	●
214	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204				●
214	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-				●
214	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204				●
214	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-				●
215	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-			●	●
215	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-				●
216	BRACKET; PIPE CLIP CONCRETE PUMP<RA5> L=50	1-47475-299-2	02	1	9002-				●
217	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9112	●	●	●	●
217	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204	●	●	●	●
217	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●	●	●	●
218	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	01	1	9002-	●	●	●	●
219	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 & 9 L=15 & 15	1-09700-655-0	01	1	9002-9306	●		●
219	CLIP; AIR PIPE CONCRETE PUMP<RA5> (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9002-				●
220	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204	●		●
220	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306	●		●
220	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204				●
220	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9205-				●
221	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9002-	●		●
221	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-				●
222	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	01	1	9002-9306	●		●
223	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-427-1	01	1	9002-		●		●
223	BRACKET; PIPE CLIP CONCRETE PUMP<RA5> (B) L=50	1-47475-299-2	01	1	9002-				●
224	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 & 9 L=15 & 15	1-09700-655-0	01	1	9002-		●		●
224	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) ID=11 & 7 L=15 & 15	1-09700-659-0	01	1	9002-			●	●
224	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9002-			●	●
224	CLIP; AIR PIPE CONCRETE PUMP<RA5> (A) ID=13 & 13 L=16 & 16	1-09700-666-0	01	1	9002-				●
225	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204		●		●
225	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-		●		●
225	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204			●	●
225	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9205-			●	●
225	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204				●
225	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-				●
226	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-		●		●
226	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-			●
229	BRACKET; PIPE CLIP (B)	1-47475-391-0	01	1	9002-	●	●
229	BRACKET; PIPE CLIP (A)	1-47475-644-0	01	1	9002-	●	●
229	BRACKET; PIPE CLIP (E)	1-47465-169-1	01	1	9002-			●	●
229	BRACKET; PIPE CLIP (D) W/NUT M6	1-47466-005-0	01	1	9002-			●	●
229	BRACKET; PIPE CLIP (C)	1-47475-454-3	01	1	9002-			●	●
229	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (D) W/O NUT L=50	1-47475-299-2	01	1	9002-			●	●
235	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-	●	●	●	●
236	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	01	1	9002-	●	●	●	●
237	BRACKET; PIPE CLIP HONG KONG EQUIPMENT(PQ1)	1-47475-427-1	03	1	9002-		●
237	BRACKET; PIPE CLIP WHEEL BASE 4600MM(46W) HONG KONG EQUIPMENT(PQ1)	1-47475-427-1	01	1	9002-		●
237	BRACKET; PIPE CLIP WHEEL BASE 5400MM(54W) HONG KONG EQUIPMENT(PQ1)	1-47475-427-1	02	1	9002-		●
239	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) ID=11 & 9 L=15 & 15	1-09700-655-0	04	1	9002-	●	●	●	●
239	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) ID=11 H=20 L=20	5-09700-351-0	02	1	9002-	●	●	●	●
240	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X25 FLANGE	0-28010-825-0	02	1	9002-9204	●	●	●	●
240	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●	●	●
240	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9204	●	●	●	●
240	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9302	●	●	●	●
240	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 FLANGE	0-28080-816-0	04	1	9303-	●	●	●	●
241	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	06	1	9002-	●	●	●	●
242	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-47475-299-2	03	1	9002-	●	●	●	●
250	NUT; PIPE CLIP WHEEL BASE 4600MM(46W) HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	9002-		●
250	NUT; PIPE CLIP WHEEL BASE 5400MM(54W) HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-		●
251	CLIP; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 9 L=18 & 17	1-09700-669-0	03	1	9002-		●
251	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-		●		●
251	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9002-		●		●
252	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-9306		●
252	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	01	1	9002-9306				●
252	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9307-		●		●
252	NUT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	03	1	9002-		●
252	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-		●		●
253	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) HONG KONG EQUIPMENT(PQ1) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9002-		●
253	CLIP; AIR PIPE WHEEL BASE 5400MM(54W) HONG KONG EQUIPMENT(PQ1) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	9002-		●
254	BOLT; PIPE CLIP M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9002-	●	●	●	●
254	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W) HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204		●
254	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W) HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302		●
254	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W) HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	01	1	9303-		●
254	BOLT; PIPE CLIP WHEEL BASE 5400MM(54W) HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204		●
254	BOLT; PIPE CLIP WHEEL BASE 5400MM(54W) HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302		●
254	BOLT; PIPE CLIP WHEEL BASE 5400MM(54W) HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	02	1	9303-		●
255	CLIP; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	9002-9306	●
255	CLIP; AIR PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9002-	●	●	●	●
255	CLIP; AIR PIPE WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9002-		●		●
256	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-	●
256	NUT; PIPE CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-		●	●	●
256	NUT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	9002-	●	●
256	NUT; PIPE CLIP WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	03	1	9002-		●		●
257	BRACKET; PIPE CLIP HONG KONG EQUIPMENT(PQ1)	1-47475-427-1	02	1	9002-9306	●
260	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) ID=11 & 11 L=15 & 15	1-09700-063-0	02	1	9002-9006	●	●	●	●
260	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9007-9007	●	●	●	●
260	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) ID=11 & 11 L=15 & 15	1-09700-656-0	02	1	9008-9306	●	●	●	●
260	CLIP; AIR PIPE BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) ID=11 & 11 L=15 & 15	1-09700-063-0	01	1	9002-9006			●	●
260	CLIP; AIR PIPE BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9007-9007			●	●
260	CLIP; AIR PIPE BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9008-9306			●	●
260	CLIP; AIR PIPE BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) ID=11 H=30 L=17	1-09700-113-0	01	1	9002-9306			●	●
263	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	02	1	9008-9306	●	●	●	●
263	NUT; PIPE CLIP BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	01	1	9008-9306			●	●
273	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	9002-			●	●
274	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=11 & 7 L=15 & 15	1-09700-659-0	01	1	9002-			●	●
274	CLIP; AIR PIPE CONCRETE PUMP<RA5> ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	03	1	9002-				●
275	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204			●	●
275	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-			●	●
275	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204				●
275	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-				●
276	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-			●	●
276	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9002-				●
278	NUT; CLIP,AIR PIPE EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-	●	●	●	●
278	NUT; CLIP,AIR PIPE ISUZU M/T<X9A> EXC. CONCRETE PUMP<RA5>,TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09110-408-0	01	1	9002-	●	●	●	●
279	NUT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09110-408-0	02	1	9002-9306	●	●	●	●
279	NUT; BRKT FULLER M/T<X9B> M8	9-09110-408-0	02	1	9002-9306	●	●	●	●
279	NUT; BRKT EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-9306	●	●	●	●
279	NUT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09110-408-0	02	1	9307-		●		●
279	NUT; BRKT EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9307-		●		●
280	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●	●		●
280	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-			●	●
280	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9307-		●		●
281	BOLT; CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●
281	BOLT; CLIP EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204			●	●
281	BOLT; CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204				●
281	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
281	BOLT; CLIP EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28080-825-0	01	1	9205-			●	●
281	BOLT; CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9205-				●
282	NUT; CLIP M8	9-09110-408-0	01	1	9002-	●	●
282	NUT; CLIP EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> M8	9-09110-408-0	01	1	9002-			●	●
282	NUT; CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-				●
284	CLIP; FLEX HOSE (D)	5-09707-030-1	01	1	9002-	●	●	●	●
284	CLIP; FLEX HOSE (E) L=175	1-09707-178-0	01	1	9307-		●		●
287	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> ID=13 & 7 L=16 & 14	1-09700-665-0	01	1	9002-9009	●	●	●	●
288	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9003	●	●	●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	01	1	9004-9009	●	●	●	●
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-9009	●	●	●	●
295	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-9306	●	●	●	●
295	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-9306			●	●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9307-		●		●
295	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9307-		●		●
295	NUT; CLIP,AIR PIPE AIR SUSP DRIVER SEAT W/ARM REST(SGP) M8	9-09110-408-0	01	1	9307-		●
295	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9307-				●
298	BOLT; CLIP AIR DRYER<PS7> M8X20 FLANGE	0-28010-820-0	01	1	9002-9204	●	●	●	●
298	BOLT; CLIP AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●	●	●
299	NUT; CLIP AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-	●	●	●	●
303	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●
303	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●
303	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●
303	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●
303	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●
303	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●	●	●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●	●	●	●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	01	1	9303-9305	●	●	●	●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-9306	●	●	●	●
303	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M8X45	0-28010-845-0	02	1	9002-9204	●	●	●	●
303	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M8X45 FLANGE	0-28080-845-0	02	1	9205-	●	●	●	●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-9501		●		●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	01	1	9502-		●		●
303	BOLT; PIPE CLIP WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X45	0-28010-845-0	03	1	9002-9204		●		●
303	BOLT; PIPE CLIP WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X45 FLANGE	0-28080-845-0	03	1	9205-		●		●
305	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204	●	●
305	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301	●	●
305	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302	●	●
305	BOLT; CLIP BRKT M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●	●
305	BOLT; CLIP BRKT M6X16	1-09980-296-0	02	1	9002-	●	●
305	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50000-616-0	03	1	9002-9204			●	●
305	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50080-616-0	03	1	9205-9301			●	●
305	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50040-616-0	03	1	9302-9302			●	●
305	BOLT; CLIP BRKT M6X16 FLANGE	0-28080-616-0	03	1	9303-9306			●	●
305	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-		●
305	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50040-616-0	03	1	9307-				●
308	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28010-816-0	01	1	9002-9204	●	●
308	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
308	BOLT; CLIP,AIR PIPE AIR SUSP DRIVER SEAT W/ARM REST(SGP) M8X20 FLANGE	0-28080-820-0	02	1	9307-		●
308	BOLT; CLIP,AIR PIPE EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	02	1	9307-				●
308	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28010-820-0	02	1	9002-9204			●
308	BOLT; CLIP,AIR PIPE EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28010-820-0	02	1	9002-9204				●
308	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	02	1	9205-9306			●
308	BOLT; CLIP,AIR PIPE EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	02	1	9205-9306				●
308	BOLT; CLIP,AIR PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	02	1	9002-9204				●
308	BOLT; CLIP,AIR PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	02	1	9205-				●
311	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●	●	●	●
314	CLIP; AIR PIPE EXC. CONCRETE PUMP<RA5> ID=6 H=20 L=20	1-09700-603-0	02	1	9002-	●	●	●	●
314	CLIP; AIR PIPE ISUZU M/T<X9A> EXC. CONCRETE PUMP<RA5>,TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●	●	●	●
316	BOLT; CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●
316	BOLT; CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●	●
317	NUT; CLIP EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-	●	●	●	●
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●	●	●	●
338	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●
338	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●	●
338	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302	●	●
338	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9303-9306	●	●
338	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-		●
340	CLIP; BAND,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=250	5-09707-030-0	01	1	9002-9306	●	●	●	●
340	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	01	1	9307-		●		●
340	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	01	1	9307-		●
340	CLIP; BAND,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	01	1	9307-				●
342	CLIP; AIR PIPE (A) ID=6 & 13 L=15 & 15	1-09700-751-0	01	1	9002-	●	●
342	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A) ID=6 & 13 L=15 & 15	1-09700-751-0	01	1	9002-	●	●
342	CLIP; AIR PIPE (B) ID=13 H=24 L=20	9-09527-012-0	01	1	9002-	●	●
343	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204	●	●
343	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301	●	●
343	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302	●	●
343	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●	●
343	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-		●
344	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●
344	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●	●
344	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302	●	●
344	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> M6X16 FLANGE	0-28080-616-0	01	1	9303-9306	●	●
344	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-		●
345	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> W/NUT M6	1-47466-005-0	01	1	9002-	●	●
348	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9002-9306	●	●	●	●
348	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HONG KONG EQUIPMENT(PQ1) ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9307-		●		●
348	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9307-		●
353	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9002-	●	●	●	●
353	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (A) ID=11 & 9 L=15 & 15	1-09700-062-0	01	1	9002-	●	●	●	●
353	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (C)	1-47466-005-0	01	1	9002-	●	●	●	●
353	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9002-	●	●	●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	9-01900-616-0	01	1	9002-9204	●	●	●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9302	●	●	●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	01	1	9303-9305	●	●	●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-9410	●	●	●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	01	1	9411-9501		●		●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	01	1	9411-9501		●		●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	01	1	9502-		●		●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	01	1	9502-		●		●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●	●	●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●	●	●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-9305	●	●	●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9306-9410	●	●	●	●
356	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (B) ID=6 H=20 L=20	9-09527-005-0	01	1	9002-	●	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (C)	9-09524-515-0	01	1	9002-	●	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-47466-005-0	01	1	9407-				●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (B) ID=5 & 8	5-09700-165-0	01	1	9407-				●
357	BOLT; CLIP FIX DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●
357	BOLT; CLIP FIX DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9208	●	●
357	BOLT; CLIP FIX M6X16 W/LK WASHER	0-50080-616-0	01	1	9209-9301	●	●
357	BOLT; CLIP FIX M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302	●	●
357	BOLT; CLIP FIX M6X16 FLANGE	0-28080-616-0	01	1	9303-9306	●	●
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204	●	●
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301	●	●
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302	●	●
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●	●
357	BOLT; CLIP FIX M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-9406		●
357	BOLT; CLIP FIX M6X16 W/LK WASHER	0-50040-616-0	01	1	9407-		●
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	01	1	9407-				●
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-		●
359	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●	●	●	●
359	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●	●	●	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●	●	●	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●	●	●	●
363	CLIP; BAND,CORRUGATE AIR SUSP DRIVER SEAT W/ARM REST(SGP) L=140	5-09707-031-1	02	1	9307-		●
367	BRACKET ASM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=50	1-47475-299-2	03	1	9307-		●		●
367	BRACKET ASM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> L=50	1-47475-299-2	01	1	9307-		●		●
369	CLIP; AIR PIPE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B) ID=6 H=20 L=20	1-09700-603-0	02	1	9307-		●
369	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	02	1	9307-				●
369	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	02	1	9002-9306			●	●
369	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●	●
369	CLIP; AIR PIPE CONCRETE PUMP<RA5> (A) ID=6 H=45 L=20	1-09700-824-0	01	1	9002-				●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306	●	●	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9307-		●		●
371	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204			●	●
371	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9306			●	●
371	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9307-				●
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204	●	●	●	●
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9306	●	●	●	●
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	9307-		●		●
373	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204		●
373	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204				●
373	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-		●
373	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X25 FLANGE	0-28080-825-0	01	1	9205-				●
373	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	03	1	9002-9204		●
373	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	0-50040-830-0	03	1	9205-9302		●
373	BOLT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	03	1	9303-		●
373	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28010-825-0	02	1	9002-9204		●		●
373	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●		●
374	BRACKET; PIPE CLIP	1-47466-005-0	01	1	9002-	●	●
375	CLIP; AIR PIPE AIR DRYER<PS7> ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●	●	●	●
376	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	01	1	9307-		●
376	BOLT; BRKT AIR SUSP DRIVER SEAT W/ARM REST(SGP) M8X25 FLANGE	0-28080-825-0	01	1	9307-		●
376	BOLT; BRKT EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9307-				●
376	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-		●		●
380	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	9307-		●		●
380	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	9307-		●
380	BAND; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=175	1-09707-178-0	01	1	9307-				●

370 361 361 361 333 349 352 360 229 229 229 229 51 149 152 167 370

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
51	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-47475-564-0	01	1	9002-			●	●
149	BRACKET; PIPE CLIP CONCRETE PUMP<RA5>	1-47475-298-0	01	1	9002-				●
152	BRACKET; PIPE CLIP (C)	1-47475-485-2	01	1	9002-	●	●	●	●
152	BRACKET; PIPE CLIP EXC. CONCRETE PUMP<RA5> (B) L=50	1-47475-299-2	03	1	9002-	●	●	●	●
152	BRACKET; PIPE CLIP EXC. CONCRETE PUMP<RA5> (A)	1-47475-427-1	01	1	9002-	●	●	●	●
152	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-427-1	01	1	9002-	●	●	●	●
152	BRACKET; PIPE CLIP EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (B) L=50	1-47475-299-2	02	1	9002-	●	●	●	●
152	BRACKET; PIPE CLIP CONCRETE PUMP<RA5> (A)	1-47475-427-1	02	1	9002-				●
167	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=55	1-47475-304-0	01	1	9002-			●	●
229	BRACKET; PIPE CLIP (B)	1-47475-391-0	01	1	9002-	●	●
229	BRACKET; PIPE CLIP (A)	1-47475-644-0	01	1	9002-	●	●
229	BRACKET; PIPE CLIP (E)	1-47465-169-1	01	1	9002-			●	●
229	BRACKET; PIPE CLIP (D) W/NUT M6	1-47466-005-0	01	1	9002-			●	●
229	BRACKET; PIPE CLIP (C)	1-47475-454-3	01	1	9002-			●	●
229	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (D) W/O NUT L=50	1-47475-299-2	01	1	9002-			●	●
333	BRACKET; BRK AIR PIPE	1-65670-793-4	01	1	9002-	●	●	●	●
333	BRACKET; BRK AIR PIPE	1-65670-780-1	01	1	9002-	●	●	●	●
349	WASHER; LK,PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-09985-118-0	01	1	9002-9302			●	●
352	CLIP; EXH HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=15	9-09715-098-0	02	1	9002-	●	●	●	●
360	CLIP; HOSE & CABLE EXC. DUAL AIR GAUGE<UG2> ID=8.3 & 12	1-09987-122-0	01	1	9002-	●	●	●	●
360	CLIP; HOSE & CABLE ID=8.3 & 12	1-09987-122-0	01	1	9002-	●	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> (B) ID=17	1-09987-105-1	01	1	9002-	●	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE (B) ID=17	1-09987-105-1	01	1	9002-	●	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> (C) ID=14	8-94157-443-0	04	1	9002-9306	●	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> (C) ID=14	8-94157-443-0	02	1	9307-		●		●
361	CLIP; FLEX HOSE,AIR PRESS GAGE (A) L=140	5-09707-031-1	01	1	9002-			●	●
370	BRACKET; PIPE CLIP (A) 25X37	1-34656-004-0	01	1	9002-	●	●
370	BRACKET; PIPE CLIP AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B) L=55	1-47475-304-0	01	1	9307-		●
370	BRACKET; PIPE CLIP EXC. CONCRETE PUMP<RA5> (B) L=55	1-47475-304-0	01	1	9307-				●
370	BRACKET; PIPE CLIP (B) L=55	1-47475-304-0	01	1	9002-9306			●
370	BRACKET; PIPE CLIP EXC. CONCRETE PUMP<RA5> (B) L=55	1-47475-304-0	01	1	9002-9306				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
