Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10944 - FVZ(THAI)EURO2
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

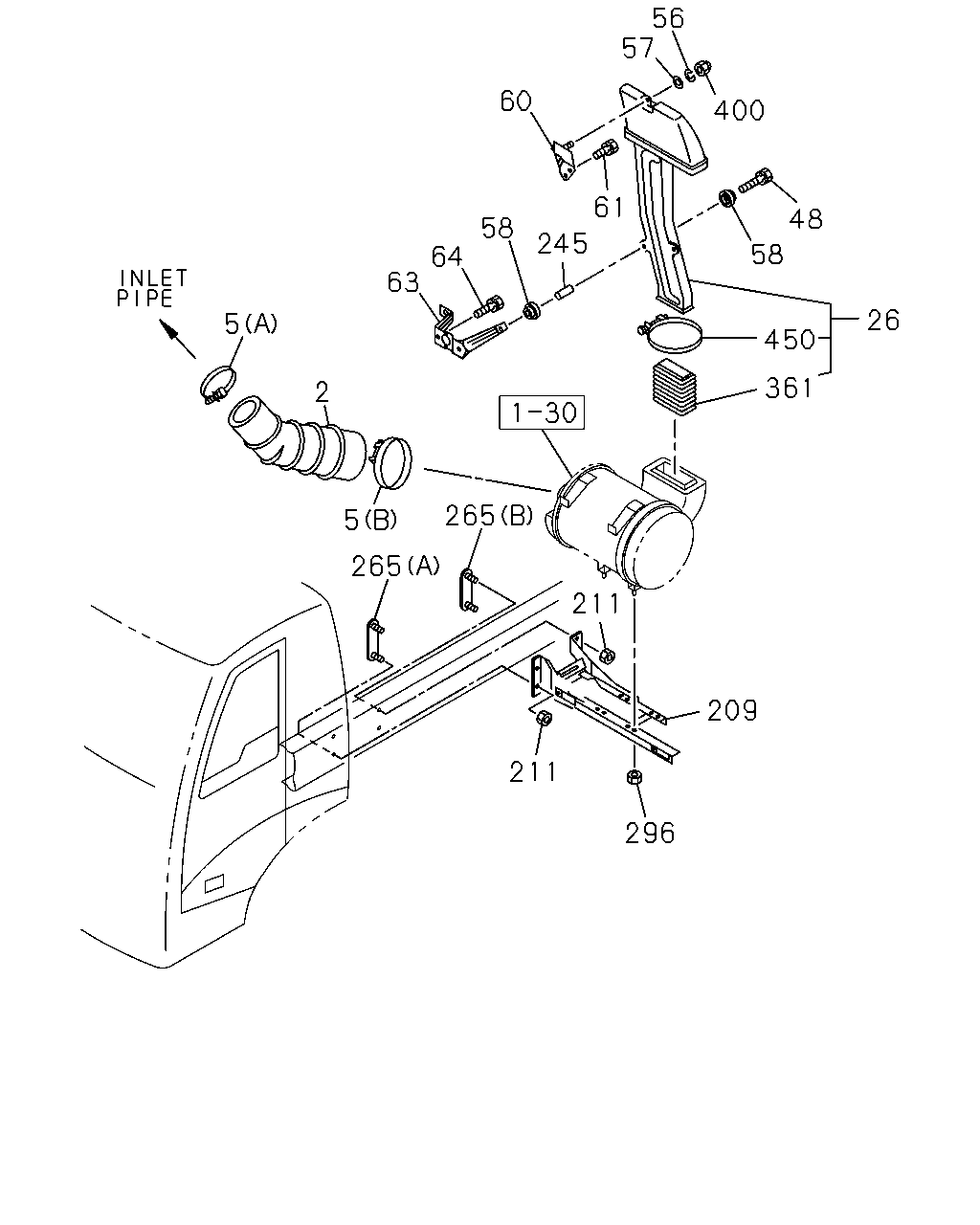

1-31 — AIR DUCT
(#30278) — 23 parça
56
57
60
400
61
48
58
245
58
64
63
26
5
450
361
2
265
5
265
211
209
211
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
1-14232-007-0
01
1
0407-
5
CLIP; AIR DUCT
(A) ID=87-113
1-09707-199-0
01
1
0407-
5
CLIP; AIR DUCT
(B) ID=104-139
1-09707-200-0
01
1
0407-
26
DUCT; AIR INT
1-14230-177-2
01
1
0407-0611
26
DUCT; AIR INT
8-98064-761-0
01
1
0612-
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
0407-
56
WASHER; LK,AIR INT DUCT
M10
1-09500-046-0
01
1
0407-
57
WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6
1-09985-184-0
01
1
0407-
58
SUPPORT; AIR INL DUCT
OD=40 T=18.5
1-14119-267-0
04
1
0407-
60
BRACKET; AIR DUCT,UPR
THA
8-97914-643-0
01
1
0407-
61
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0407-
63
BRACKET; AIR DUCT,LWR
THA
8-97914-645-0
01
1
0407-
64
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0407-
209
BRACKET; ACL
THA
8-97916-140-0
01
1
0407-
211
NUT; BRKT
M12 FLANGE
0-91150-212-0
04
1
0407-0605
211
NUT; BRKT
M12 FLANGE THA
0-91180-212-0
04
1
0606-
245
PIECE; DIST,AIR DUCT
THA
1-79998-228-0
02
1
0407-
265
BRACKET; STUD,ACL
(A) THA
1-53497-454-1
01
1
0407-
265
BRACKET; STUD,ACL
(B)
1-53497-627-0
01
1
0407-
296
NUT; ACL
M8 FLANGE
0-91150-108-0
04
1
0407-
361
RUBBER; CUSHION,AIR DUCT
1-14231-973-1
01
1
0407-
400
NUT; CAP,AIR DUCT
M10
1-09984-145-0
01
1
0407-
450
CLAMP; HOSE
9-09915-504-1
01
1
0407-
