Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10944 - FVZ(THAI)EURO2
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#30275) — 42 parça
◀

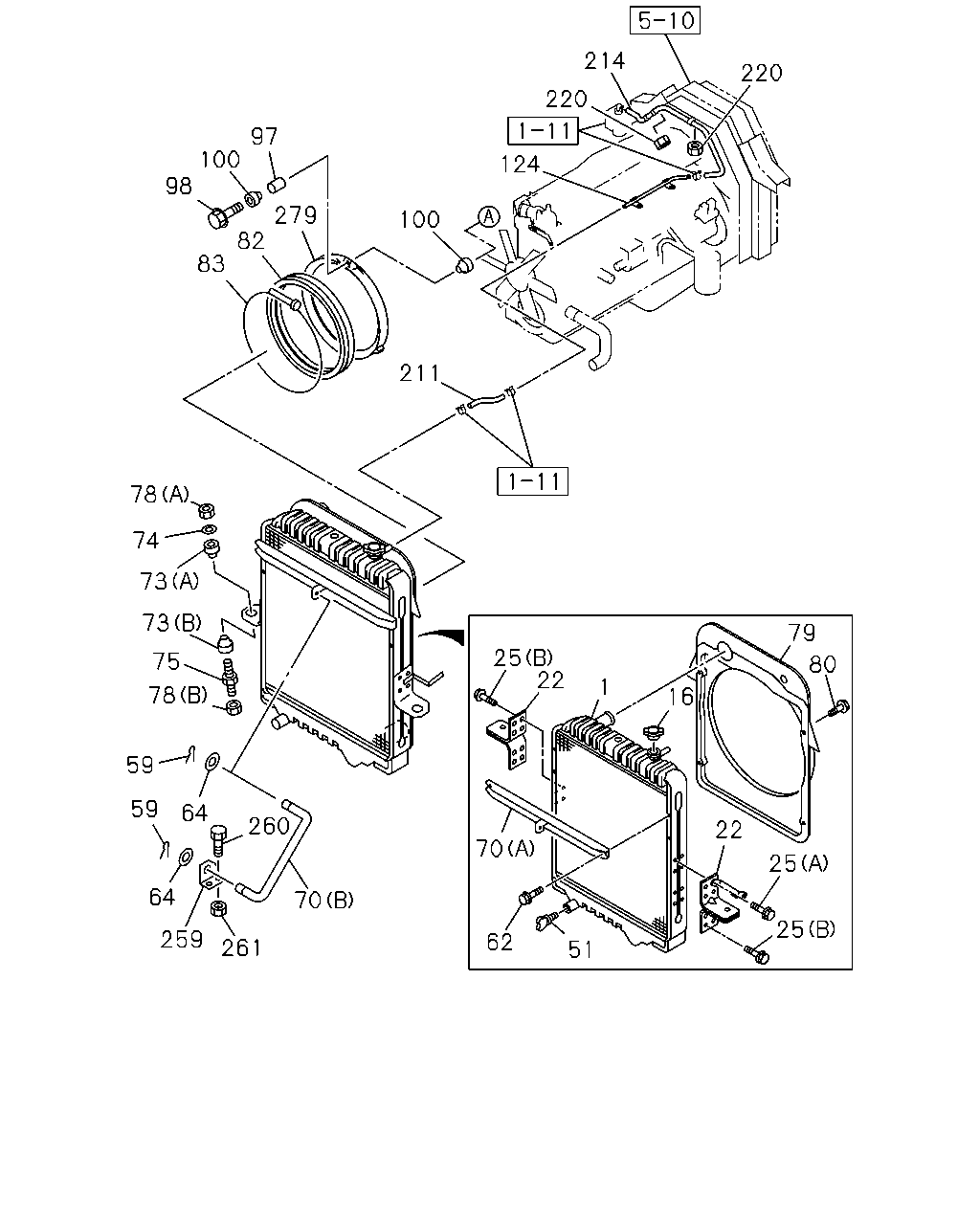

[110A] FIXING;RADIATOR (37 parça)
[110A] FAN GUIDE STAY (5 parça)
▶
214
220
220
97
100
98
124
279
82
100
83
211
78
74
73
73
79
25
22
75
80
1
78
16
59
59
64
260
22
70
25
64
70
25
259
62
261
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
THA
8-97918-354-0
01
1
0407-
16
CAP; RAD
THA
8-97918-146-0
01
1
0407-
22
BRACKET; RAD MTG
THA
8-97918-365-0
01
1
0407-
22
BRACKET; RAD MTG
THA
8-97918-366-0
01
1
0407-
25
BOLT; BRKT
(B) M8X15 THA
8-97918-357-0
15
1
0407-
25
BOLT; BRKT
(A) M8X20 THA
8-97918-405-0
01
1
0407-
51
PLUG; DRAIN
THA
8-97918-361-0
01
1
0407-
59
PIN; SNAP,STAY
1-09987-158-1
02
1
0407-
62
BOLT; STAY
M8X15 THA
8-97918-357-0
02
1
0407-
64
WASHER; STAY TO RAD
ID=12.5
9-09160-512-0
02
1
0407-0605
64
WASHER; STAY TO RAD
ID=12.5 OD=22
0-91610-512-0
02
1
0606-
70
STAY; RAD
(B) THA
1-21522-070-0
01
1
0407-
70
STAY; RAD
(A) THA
8-97918-360-0
01
1
0407-
73
RUBBER; CUSHION,RAD MTG
(A) THA
8-97916-015-0
02
1
0407-
73
RUBBER; CUSHION,RAD MTG
(B) THA
8-97916-016-0
02
1
0407-
74
WASHER; PL,CUSHION RUBBER
OD=55
9-09852-169-0
02
1
0407-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
0407-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
5-09440-006-0
02
1
0407-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91150-212-0
02
1
0407-0605
78
NUT; CUSHION RUBBER
(B) M12 FLANGE THA
0-91180-212-0
02
1
0606-
79
GUIDE; FAN,RAD
THA
8-97918-358-0
01
1
0407-
80
BOLT; FAN GUIDE
THA
8-97918-359-0
04
1
0407-
82
COVER; FAN,RAD
1-21559-340-0
01
1
0407-
83
CLIP; FAN COVER
1-09707-177-2
01
1
0407-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
0407-
98
BOLT; RAD FAN GUIDE
M8X30 FLANGE
0-28680-830-0
03
1
0407-0611
98
BOLT; RAD FAN GUIDE
M8X30 FLANGE THA
0-28650-830-0
03
1
0612-
100
RUBBER; MTG
8-94395-766-0
06
1
0407-
124
PIPE; WATER,TANK TO RAD
8-94392-986-0
01
1
0407-
211
HOSE; RAD TO PIPE
L=540 SERVICED BY L=3000
0-03557-300-0
01
1
0407-
214
HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000
0-03557-300-0
01
1
0407-
220
NUT; CLIP
M8 FLANGE
0-91150-108-0
04
1
0407-
259
BRACKET; RAD STAY
THA
1-21523-025-0
01
1
0407-
260
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0407-0611
260
BOLT; BRKT
M8X20 FLANGE THA
0-28650-820-0
02
1
0612-
261
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0407-
279
BELL MOUTH
8-94394-808-2
01
1
0407-
87
87
96
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(A)
8-94394-775-0
01
1
0407-
87
STAY; FAN GUIDE
(B)
8-94396-496-1
01
1
0407-
87
STAY; FAN GUIDE
(C)
8-94397-395-1
01
1
0407-
96
BOLT; STAY FIX
M10X16 FLANGE
0-28181-016-0
02
1
0407-0512
96
BOLT; STAY FIX
M10X16 FLANGE
0-28151-016-0
02
1
0601-
