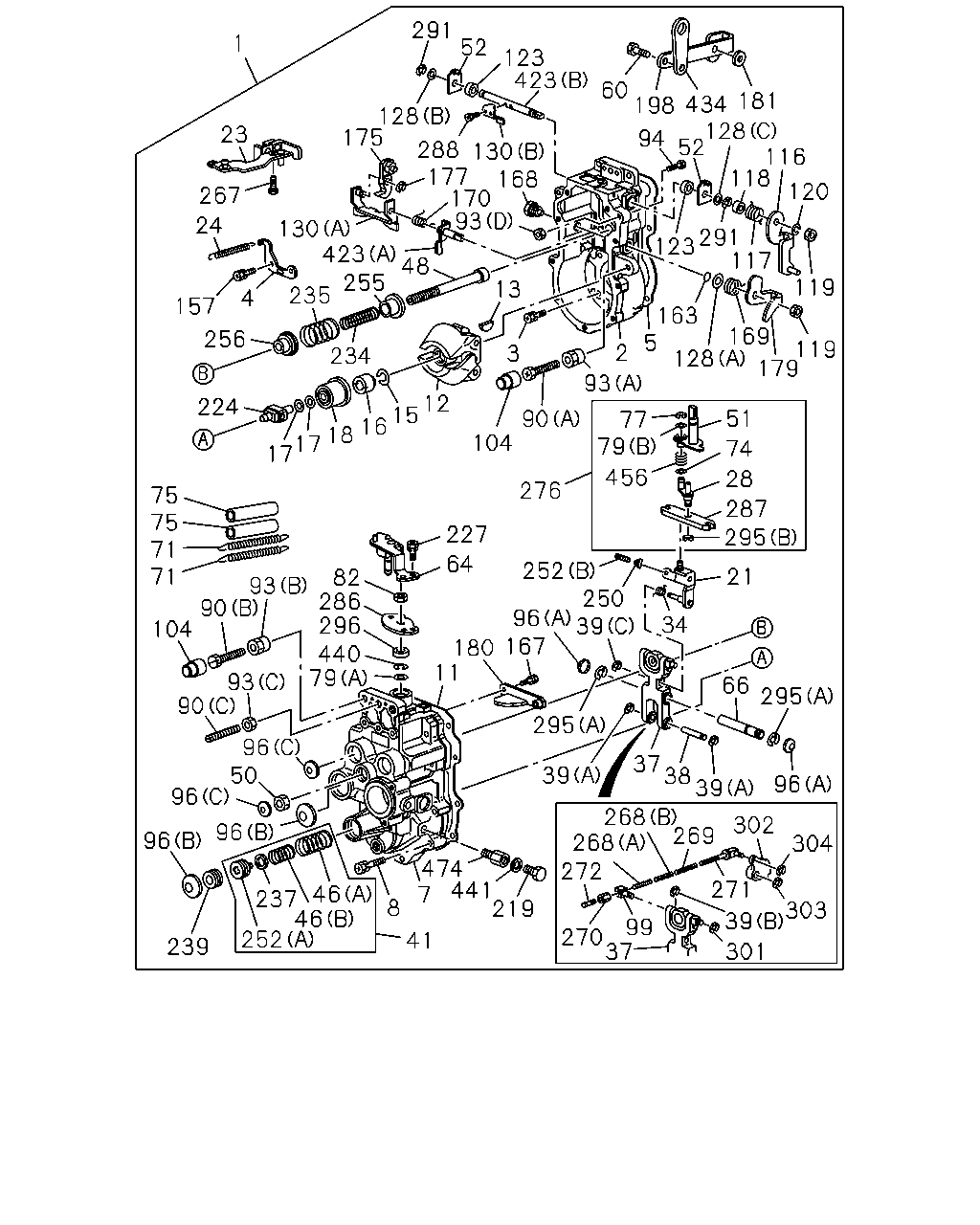

0-81 — GOVERNOR; INJECTION PUMP (#30270) — 142 parça

291 1 52 123 423 60 198 181 434 128 2 116 118 128 175 177 168 170 93 23 94 291 123 117 120 267 24 130 423 48 255 4 119 13 235 157 163 5 169 128 256 119 179 2 3 234 93 12 15 16 18 17 17 224 51 90 104 77 79 74 456 28 276 75 75 71 71 287 227 295 64 252 250 39 21 82 286 296 440 79 93 90 104 96 167 34 180 11 66 93 90 96 50 96 295 295 37 38 39 39 96 96 268 269 268 272 302 96 304 474 441 7 219 99 270 37 271 46 237 46 252 8 303 39 41 239 301 288 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-94392-231-8	1-15790-020-6	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 8-94392-231-8	1-15721-343-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: A = 8-94392-231-8	1-15779-226-0	08	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 8-94392-231-8	1-15779-524-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-94392-231-8	1-15779-529-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-94392-231-8	1-15721-356-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 8-94392-231-8	5-15729-033-0	09	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-94392-231-8	1-15779-251-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-94392-231-8	1-15722-024-0	01	1	-
13	KEY; FLYWEIGHT,GOV 13MM ASM PART: A = 8-94392-231-8	9-81325-030-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-94392-231-8	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-94392-231-8	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-94392-231-8	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-94392-231-8	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-94392-231-8	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-94392-231-8	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-94392-231-8	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-94392-231-8	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-94392-231-8	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-94392-231-8	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-94392-231-8	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-94392-231-8	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 8-94392-231-8	1-15725-899-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-94392-231-8	1-15725-900-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 8-94392-231-8	1-15723-450-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 8-94392-231-8	1-15725-780-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-94392-231-8	1-15723-549-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 8-94392-231-8	1-15725-898-1	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 8-94392-231-8	1-15779-271-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: A = 8-94392-231-8	1-09588-170-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (A) ASM PART: A = 8-94392-231-8	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (C), ID=4 ASM PART: A = 8-94392-231-8	9-09185-404-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-94392-231-8	1-15723-484-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-94392-231-8	1-15723-480-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-94392-231-8	1-15723-481-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-94392-231-8	1-15779-240-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-94392-231-8	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-94392-231-8	1-15779-528-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 8-94392-231-8	1-15779-269-0	02	1	-
60	BOLT; COVER FIX,GOV COVER ASM PART: A = 8-94392-231-8	1-15789-098-0	02	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 8-94392-231-8	1-15725-897-0	01	1	-
66	SHAFT; LEVER ASM PART: A = 8-94392-231-8	1-15779-234-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-94392-231-8	1-15723-552-0	02	1	-
74	WASHER; LEVER SPR ASM PART: A = 8-94392-231-8	1-15779-232-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 8-94392-231-8	1-15779-284-0	02	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 8-94392-231-8	5-15729-023-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-94392-231-8	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: A = 8-94392-231-8	1-15779-232-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-94392-231-8	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: A = 8-94392-231-8	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: A = 8-94392-231-8	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: A = 8-94392-231-8	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 8-94392-231-8	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: A = 8-94392-231-8	1-15779-248-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-94392-231-8	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-94392-231-8	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: A = 8-94392-231-8	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D), THA ASM PART: A = 8-94392-231-8	9-88410-525-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV ASM PART: A = 8-94392-231-8	1-15779-233-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-94392-231-8	1-15779-293-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-94392-231-8	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-94392-231-8	8-94171-148-0	03	1	-
99	PIN; TENSION LEVER,GOV ASM PART: A = 8-94392-231-8	1-15779-286-1	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 8-94392-231-8	8-97085-022-0	02	1	-
116	LEVER; ENG STOP,GOV ASM PART: A = 8-94392-231-8	1-15725-896-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 8-94392-231-8	1-15723-471-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 8-94392-231-8	1-15779-389-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 8-94392-231-8	1-15729-236-0	02	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 8-94392-231-8	1-83579-492-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 8-94392-231-8	1-15779-282-0	02	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.60 ASM PART: A = 8-94392-231-8	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.80 ASM PART: A = 8-94392-231-8	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.90 ASM PART: A = 8-94392-231-8	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: A = 8-94392-231-8	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.20 ASM PART: A = 8-94392-231-8	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C) ASM PART: A = 8-94392-231-8	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.50 ASM PART: A = 8-94392-231-8	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.30 ASM PART: A = 8-94392-231-8	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.40 ASM PART: A = 8-94392-231-8	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.25 ASM PART: A = 8-94392-231-8	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.35 ASM PART: A = 8-94392-231-8	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.20 ASM PART: A = 8-94392-231-8	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (B) ASM PART: A = 8-94392-231-8	1-15725-775-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: A = 8-94392-231-8	1-15725-895-0	01	1	-
157	BOLT; START SPRING PLATE,GOV ASM PART: A = 8-94392-231-8	1-15779-226-0	02	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 8-94392-231-8	1-15779-227-0	01	1	-
167	BOLT; PLATE M6X16 ASM PART: A = 8-94392-231-8	5-15729-071-0	02	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-94392-231-8	1-15779-285-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 8-94392-231-8	1-15723-548-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-94392-231-8	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 8-94392-231-8	1-15725-893-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 8-94392-231-8	8-94324-735-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 8-94392-231-8	1-15725-894-0	01	1	-
180	PLATE; GOV COVER ASM PART: A = 8-94392-231-8	1-15779-532-0	01	1	-
181	SPACER; BRKT ASM PART: A = 8-94392-231-8	1-15779-531-0	01	1	-
198	BRACKET; COVER ASM PART: A = 8-94392-231-8	1-15779-530-0	01	1	-
219	PLUG; GOV ASM PART: A = 8-94392-231-8	1-15779-609-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-94392-231-8	1-15779-334-0	01	1	-
227	BOLT; GOV LEVER ASM PART: A = 8-94392-231-8	1-15719-005-0	03	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-94392-231-8	1-15723-479-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-94392-231-8	1-15723-478-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: A = 8-94392-231-8	1-15729-891-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: A = 8-94392-231-8	1-15729-892-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: A = 8-94392-231-8	1-15729-893-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-94392-231-8	5-15729-286-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: A = 8-94392-231-8	5-15729-287-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-94392-231-8	9-81325-088-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-94392-231-8	9-81325-551-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-94392-231-8	9-81325-552-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94392-231-8	9-81325-553-0	AR	1	-
239	SCREW; GOV ASM PART: A = 8-94392-231-8	1-15779-239-0	01	1	-
250	NUT; GUIDE SCREW,GOV SHAFT ASM PART: A = 8-94392-231-8	1-15779-287-0	01	1	-
252	SCREW; GUIDE (A) ASM PART: A = 8-94392-231-8	1-15779-238-0	01	1	-
252	SCREW; GUIDE (B) ASM PART: A = 8-94392-231-8	1-15779-288-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-94392-231-8	1-15779-241-0	01	1	-
256	SEAT; GOV SPRING ASM PART: A = 8-94392-231-8	1-15779-242-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-94392-231-8	1-15749-747-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: A = 8-94392-231-8	1-15723-445-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: A = 8-94392-231-8	1-15723-446-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 8-94392-231-8	1-15723-459-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 8-94392-231-8	1-15779-272-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 8-94392-231-8	1-15779-235-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-94392-231-8	1-15779-289-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 8-94392-231-8	1-15725-901-0	01	1	-
286	LEVER; GOV ASM PART: A = 8-94392-231-8	1-15725-782-0	01	1	-
287	LEVER; GOV ASM PART: A = 8-94392-231-8	1-15725-781-0	01	1	-
288	BOLT; LEVER ASM PART: A = 8-94392-231-8	1-15729-197-0	02	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 8-94392-231-8	1-15779-196-0	02	1	-
295	RING; SNAP (A) ASM PART: A = 8-94392-231-8	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: A = 8-94392-231-8	5-15729-023-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 8-94392-231-8	8-97024-879-0	01	1	-
301	RING; SNAP ID=4 ASM PART: A = 8-94392-231-8	9-09185-404-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 8-94392-231-8	1-15779-619-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 8-94392-231-8	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 8-94392-231-8	9-09185-404-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 8-94392-231-8	1-15779-525-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: A = 8-94392-231-8	1-15779-607-0	01	1	-
434	HANGER; GOV ASM PART: A = 8-94392-231-8	1-15619-347-0	01	1	-
440	RING; SNAP,LEVER ASM PART: A = 8-94392-231-8	1-15729-989-0	01	1	-
441	GASKET; ADAPTER L=96 ASM PART: A = 8-94392-231-8	1-15729-066-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: A = 8-94392-231-8	1-15723-551-0	01	1	-
474	ADAPTER; GOVERNOR,INJ PUMP ASM PART: A = 8-94392-231-8	1-15779-608-0	01	1	-
