3-77 — BRAKE PIPING; AIR,REAR (#3027) — 425 parça

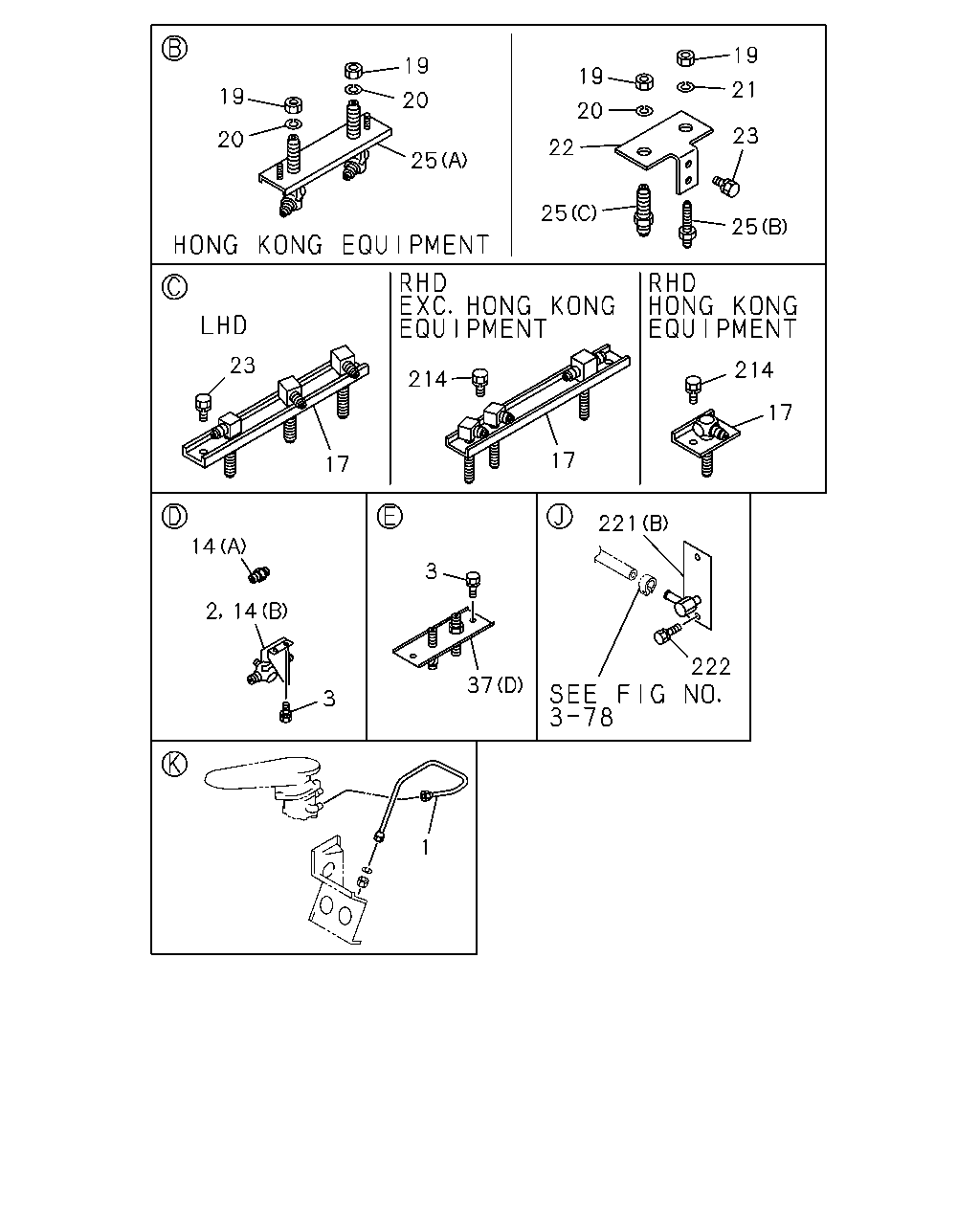

140 71 64 46 46 46 46 46 61 60 98 49 46 46 64 160 97 97 61 60 37 46 91 88 23 90 37 50 91 88 37 37 37 88 98 91 49 37 46 37 46 61 88 91 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●	●	●	●
23	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●	●	●	●
23	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-	●	●	●	●
23	BOLT; UNION BRKT CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204				●
23	BOLT; UNION BRKT CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306				●
23	BOLT; UNION BRKT CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	02	1	9307-				●
37	UNION; AIR PIPE (A)	9-09233-015-1	01	1	9002-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 5400MM(54W) (A)	9-09233-015-1	01	1	9002-		●		●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	9-09233-015-1	01	1	9002-			●	●
37	UNION; AIR PIPE (F)	9-09235-212-1	01	1	9002-	●	●	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	9-09235-215-1	01	1	9002-	●	●	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09654-148-1	01	1	9002-	●	●	●	●
37	UNION; AIR PIPE (D)	1-47470-188-1	01	1	9002-			●	●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A)	9-09233-010-1	02	1	9002-9306			●	●
37	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> (A)	9-09233-010-1	01	1	9307-		●		●
37	UNION; AIR PIPE CONCRETE PUMP<RA5> (A)	9-09233-012-1	03	1	9002-				●
37	UNION; AIR PIPE CONCRETE PUMP<RA5> (E)	9-09233-312-1	01	1	9002-				●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M14 L=41	9-09223-008-0	01	1	9002-9003	●
46	NIPPLE; AIR PIPE WHEEL BASE 5400MM(54W) HONG KONG EQUIPMENT(PQ1) (C) M14 L=41	9-09223-008-0	01	1	9002-9003		●
46	NIPPLE; AIR PIPE (C) M14 L=41	9-09223-008-0	01	1	9002-9003		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M14 L=41	9-09223-008-0	01	1	9002-9003				●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M14 L=41	9-09223-008-1	01	1	9004-	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M14 L=41	9-09223-008-1	01	1	9004-		●		●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (D) M14	1-09650-085-1	01	1	9002-	●	●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M20XM20 PT3/8 3WAY	1-09656-403-1	01	1	9002-	●	●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M22	9-09223-015-1	01	1	9002-	●	●
46	NIPPLE; AIR PIPE (C) M20 STRAIGHT	9-09233-012-1	01	1	9002-	●	●	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M27	1-09650-250-0	01	1	9002-9305	●	●	●	●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M27	1-09650-250-0	01	1	9002-9305	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M27	1-09650-250-0	01	1	9306-9306	●	●	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M27	1-09650-250-0	01	1	9306-9306	●	●	●	●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M27	1-09650-250-0	01	1	9306-9306	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20XM20 ELBOW	1-09650-251-1	01	1	9002-	●	●	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M27	1-09650-100-1	01	1	9002-9305	●	●	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M20XM14 ELBOW	1-09650-272-2	01	1	9002-	●	●	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E) M14XM14XM12 FLARE ELBOW	1-09654-176-2	01	1	9002-	●	●	●	●
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M27	1-09650-250-0	01	1	9307-		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) MM16 L=42	9-09233-010-1	01	1	9002-		●		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MM27	1-09650-250-0	02	1	9307-		●		●
49	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=22.5	9-09150-522-0	01	1	9002-9312	●	●	●	●
49	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=20.2	9-09150-520-0	01	1	9002-	●	●	●	●
50	NUT; UNION BRKT CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-				●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	01	1	9002-	●	●	●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M22	9-09111-422-0	01	1	9002-	●	●	●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M12	9-99110-412-0	01	1	9002-9304	●	●	●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M12	9-99110-512-0	01	1	9305-9306	●	●	●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99110-512-0	01	1	9307-		●		●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=12.2	9-09150-512-0	01	1	9002-9312	●	●	●	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=20.2	9-09150-520-0	01	1	9002-	●	●	●	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=22.5	9-09150-522-0	01	1	9002-9312	●	●	●	●
64	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9002-	●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17.5	9-09572-515-0	02	1	9002-	●	●	●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=17.5	9-09572-515-0	02	1	9002-	●	●	●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=550	0-07909-550-0	01	1	9002-	●	●	●	●
88	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	9002-	●	●	●	●
88	WASHER; LK,PIPE UNION EXC. CONCRETE PUMP<RA5> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●	●	●
88	WASHER; LK,PIPE UNION CONCRETE PUMP<RA5> ID=20.2	9-09150-520-0	02	1	9002-				●
90	BRACKET; PIPE UNION CONCRETE PUMP<RA5>	1-47475-313-1	01	1	9002-				●
91	NUT; PIPE UNION M20	9-99111-420-0	01	1	9002-	●	●	●	●
91	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99110-412-0	01	1	9002-9304	●	●	●	●
91	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99110-512-0	01	1	9305-	●	●	●	●
91	NUT; PIPE UNION CONCRETE PUMP<RA5> M20	9-99111-420-0	02	1	9002-				●
97	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M22	1-09656-099-1	01	1	9002-	●	●
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-09654-216-1	01	1	9002-	●	●
97	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-09654-216-1	01	1	9002-			●	●
98	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	9-09111-422-0	01	1	9002-	●	●	●	●
98	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M20	9-99111-420-0	01	1	9002-	●	●	●	●
140	BRACKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=50	1-47475-299-2	01	1	9002-9306	●	●	●	●
160	HOSE; FLEX,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=550	0-07909-550-0	01	1	9002-	●	●	●	●

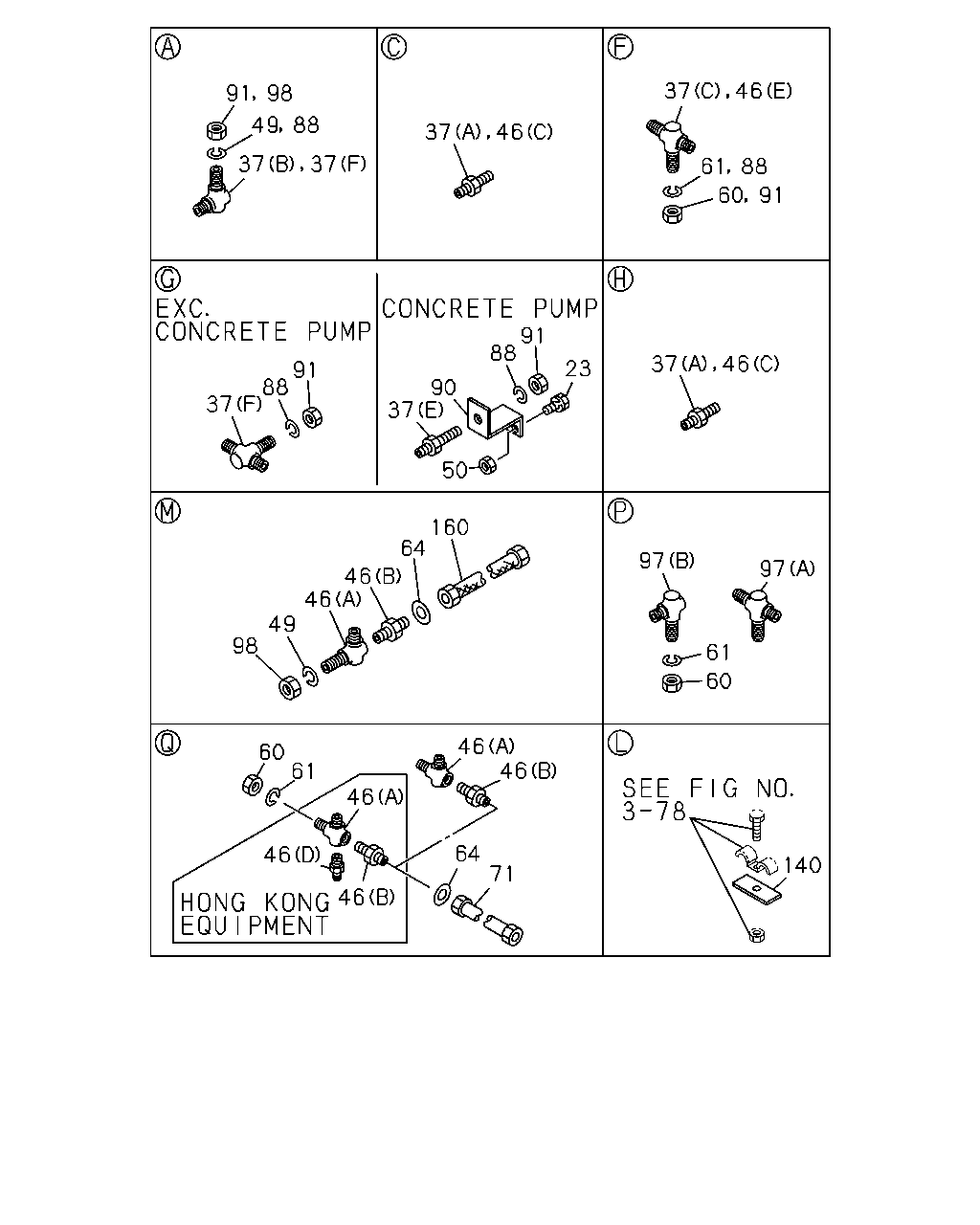

55 52 113 51 104 51 51 104 113 52 55 51 103 48 87 59 101 102 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
48	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9002-	●	●	●	●
51	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1092 SERVICED BY L=1100	1-47437-991-0	01	1	9002-9306	●		●
51	PIPE; AIR,UNION TO UNION WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2040 SERVICED BY L=2250	1-47437-998-0	01	1	9002-		●		●
51	PIPE; AIR,UNION TO UNION WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1372 SERVICED BY L=1500	1-47434-492-0	01	1	9002-		●		●
51	PIPE; AIR,UNION TO UNION WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1368	1-47446-552-0	01	1	9002-		●		●
52	PIPE; AIR,UNION TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1881 SERVICED BY L=2000	1-47434-493-0	01	1	9002-	●	●	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1260 SERVICED BY L=1300	1-47434-486-0	01	1	9002-9306	●	●	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1260 SERVICED BY L=1450	1-49111-447-0	01	1	9307-		●		●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. CONCRETE PUMP<RA5> L=1139 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9306	●	●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. CONCRETE PUMP<RA5> L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-		●		●
59	PIPE; AIR,UNION TO FLEX HOSE CONCRETE PUMP<RA5> L=2259 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306				●
59	PIPE; AIR,UNION TO FLEX HOSE CONCRETE PUMP<RA5> L=2259 SERVICED BY L=2500	1-49111-452-0	01	1	9307-				●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=668 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306	●	●	●	●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=668 SERVICED BY L=700	1-49111-439-0	01	1	9307-		●		●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=996 SERVICED BY L=1000	1-47434-485-0	01	1	9002-9306			●	●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1011 SERVICED BY L=1100	1-49111-444-0	01	1	9307-				●
87	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=417	1-47447-440-1	01	1	9002-9212				●
87	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=417	1-47498-041-0	01	1	9301-9306				●
87	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=417 SERVICED BY L=500	1-49111-435-0	01	1	9307-				●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2156 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9306	●	●	●	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2156 SERVICED BY L=2250	1-49111-451-0	01	1	9307-		●		●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1699 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306			●	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1699 SERVICED BY L=1800	1-49111-449-0	01	1	9307-				●
92	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1807 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9012				●
92	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1736 SERVICED BY L=2000	1-47437-986-0	01	1	9101-9306				●
92	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1851 SERVICED BY L=2000	1-49111-450-0	01	1	9307-				●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. CONCRETE PUMP<RA5> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●	●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. CONCRETE PUMP<RA5> L=1180 SERVICED BY L=1250	1-47426-416-0	01	1	9307-		●		●
101	PIPE; AIR,FLEX HOSE TO UNION CONCRETE PUMP<RA5> L=1999 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306				●
101	PIPE; AIR,FLEX HOSE TO UNION CONCRETE PUMP<RA5> L=1999 SERVICED BY L=2000	1-49111-450-0	01	1	9307-				●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1510 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●	●	●	●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1514 SERVICED BY L=1550	1-47426-419-0	01	1	9307-		●		●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1828 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9306			●	●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1828 SERVICED BY L=1900	1-47426-421-0	01	1	9307-				●
102	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1179 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9103				●
102	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1183 SERVICED BY L=1300	1-47434-486-0	01	1	9104-9306				●
102	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1183 SERVICED BY L=1200	1-49111-445-0	01	1	9307-				●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1668 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9306	●		●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1284 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306		●		●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1284 SERVICED BY L=1300	1-47426-417-0	01	1	9307-		●		●
103	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1923 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306				●
103	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1988 SERVICED BY L=2000	1-49111-450-0	01	1	9307-				●
104	PIPE; AIR,UNION TO UNION WHEEL BASE 5400MM(54W) HONG KONG EQUIPMENT(PQ1) L=1259 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306		●
104	PIPE; AIR,UNION TO UNION WHEEL BASE 5400MM(54W) HONG KONG EQUIPMENT(PQ1) L=1259 SERVICED BY L=2500	1-47426-423-0	01	1	9307-		●
104	PIPE; AIR,UNION TO UNION WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1436 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306		●		●
104	PIPE; AIR,UNION TO UNION WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1436 SERVICED BY L=1550	1-47426-419-0	01	1	9307-		●		●
104	PIPE; AIR,UNION TO UNION WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HONG KONG EQUIPMENT(PQ1) L=2186 SERVICED BY L=2500	1-47434-479-0	01	1	9002-9306		●		●
104	PIPE; AIR,UNION TO UNION WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HONG KONG EQUIPMENT(PQ1) L=2186 SERVICED BY L=2500	1-47426-423-0	01	1	9307-		●		●
113	PIPE; AIR,UNION TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1927 SERVICED BY L=2100	1-47437-972-0	01	1	9002-9306	●	●	●	●
113	PIPE; AIR,UNION TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1927 SERVICED BY L=2100	1-47426-422-0	01	1	9307-		●		●

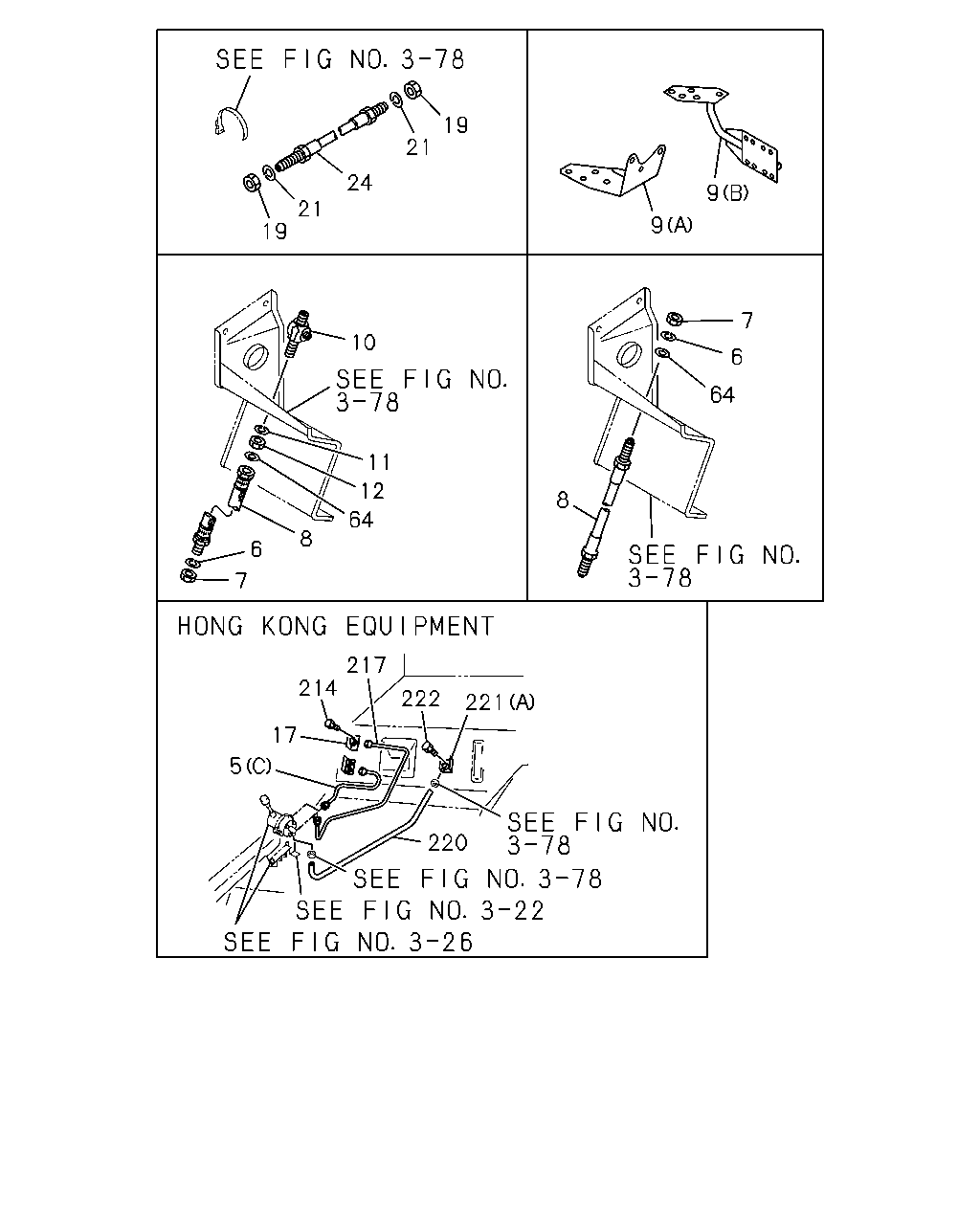

18 18 5 5 220 217 26 26 206 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=502	1-47448-021-0	01	1	9002-9306	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=521	1-47446-018-1	01	1	9002-9306	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=502	1-47495-933-0	01	1	9307-		●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=522	1-47495-932-0	01	1	9307-		●
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (C) L=548 SERVICED BY L=550	1-47437-963-0	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (C) L=548 SERVICED BY L=600	1-47426-408-0	01	1	9307-9307		●
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (C)	1-49112-617-0	01	1	9308-		●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) L=430	1-47445-967-2	01	1	9002-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) L=430	1-47495-965-0	01	1	9301-	●	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1) (A) L=283	1-47446-021-0	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1) (A) L=284	1-47495-968-0	01	1	9307-		●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=431	1-47445-569-1	01	1	9002-9306			●	●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=431	1-47495-978-0	01	1	9307-				●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=240	1-47445-570-1	01	1	9002-9306			●	●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=256	1-47495-979-0	01	1	9307-				●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (B) L=994 SERVICED BY L=1000	1-47437-956-0	01	1	9002-9306	●	●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (B) L=994 SERVICED BY L=1100	1-47426-387-0	01	1	9307-		●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (A) L=1240 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●	●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (A) L=1240 SERVICED BY L=1300	1-47426-417-0	01	1	9307-		●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=1616 SERVICED BY L=1800	1-47434-413-0	01	1	9002-9306			●	●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1722 SERVICED BY L=1950	1-47426-393-0	01	1	9307-				●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=1616 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9306			●	●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1617 SERVICED BY L=1700	1-47426-420-0	01	1	9307-				●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=935	1-47447-729-1	01	1	9002-9306	●	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=935	1-47495-962-0	01	1	9307-		●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1677	1-47481-086-0	01	1	9002-9306	●	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1677	1-47495-973-0	01	1	9307-		●
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (A) L=1521 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306	●	●	●	●
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=1522	1-47495-972-0	01	1	9307-		●		●
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (B) L=1488	1-47447-663-2	01	1	9002-9306	●	●	●	●
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HONG KONG EQUIPMENT(PQ1) (B) L=1489	1-47495-961-0	01	1	9307-		●		●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=446	1-47445-575-1	01	1	9002-9306	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=446	1-47495-944-0	01	1	9307-		●
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=552 SERVICED BY L=600	9-47415-382-0	01	1	9002-9306	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=552 SERVICED BY L=570	1-47426-378-0	01	1	9307-9307		●
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=800	1-49112-618-0	01	1	9308-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV HONG KONG EQUIPMENT(PQ1) L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. HONG KONG EQUIPMENT(PQ1),BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-			●	●

1 222 221 37 3 3 2 14 14 17 23 214 17 214 17 25 23 21 19 19 20 22 25 25 20 19 19 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=502	1-47448-021-0	01	1	9002-9306	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=521	1-47446-018-1	01	1	9002-9306	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=502	1-47495-933-0	01	1	9307-		●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=522	1-47495-932-0	01	1	9307-		●
2	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-47470-175-2	01	1	9002-			●	●
2	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-189-3	01	1	9002-			●	●
3	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204			●	●
3	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301			●	●
3	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302			●	●
3	BOLT; PIPE UNION M6X16 FLANGE	0-28080-616-0	02	1	9303-9306			●	●
3	BOLT; PIPE UNION M6X16	1-09980-296-0	02	1	9002-			●	●
3	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-				●
14	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	01	1	9002-			●	●
14	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B)	1-47470-175-2	01	1	9002-			●	●
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1)	1-47470-205-1	01	1	9002-	●	●
17	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1)	1-47470-182-4	01	1	9002-	●	●
17	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-47470-170-4	01	1	9002-			●	●
19	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6	9-09110-406-0	02	1	9002-	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M14	9-99111-414-0	02	1	9002-	●	●	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16	9-99111-416-0	02	1	9002-	●	●	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M14	9-99111-414-0	01	1	9002-	●	●	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M16	9-99111-416-0	01	1	9002-	●	●	●	●
20	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=6.1	9-09150-506-0	02	1	9002-	●	●
20	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) ID=16.2	9-09150-516-0	01	1	9002-	●	●	●	●
21	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●
21	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=16.2	9-09150-516-0	02	1	9002-	●	●	●	●
21	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) ID=14.2	9-09150-514-0	01	1	9002-	●	●	●	●
22	BRACKET; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1)	1-47475-259-0	01	1	9002-	●	●	●	●
23	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●	●	●	●
23	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●	●	●	●
23	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-	●	●	●	●
23	BOLT; UNION BRKT CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204				●
23	BOLT; UNION BRKT CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306				●
23	BOLT; UNION BRKT CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	02	1	9307-				●
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-47470-185-2	01	1	9002-	●	●
25	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (B)	9-09223-308-1	01	1	9002-	●	●	●	●
25	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (C)	9-09233-210-1	01	1	9002-	●	●	●	●
37	UNION; AIR PIPE (A)	9-09233-015-1	01	1	9002-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 5400MM(54W) (A)	9-09233-015-1	01	1	9002-		●		●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	9-09233-015-1	01	1	9002-			●	●
37	UNION; AIR PIPE (F)	9-09235-212-1	01	1	9002-	●	●	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	9-09235-215-1	01	1	9002-	●	●	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09654-148-1	01	1	9002-	●	●	●	●
37	UNION; AIR PIPE (D)	1-47470-188-1	01	1	9002-			●	●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A)	9-09233-010-1	02	1	9002-9306			●	●
37	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> (A)	9-09233-010-1	01	1	9307-		●		●
37	UNION; AIR PIPE CONCRETE PUMP<RA5> (A)	9-09233-012-1	03	1	9002-				●
37	UNION; AIR PIPE CONCRETE PUMP<RA5> (E)	9-09233-312-1	01	1	9002-				●
214	BOLT; PIPE UNION M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●	●
214	BOLT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204			●	●
214	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●	●
214	BOLT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302			●	●
214	BOLT; PIPE UNION M6X16 FLANGE	0-28080-616-0	02	1	9303-	●	●
214	BOLT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	02	1	9303-			●	●
221	CONNECTOR; EXH HONG KONG EQUIPMENT(PQ1) (A)	1-47470-195-0	01	1	9002-	●	●
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47470-165-1	01	1	9002-	●	●
221	CONNECTOR; EXH EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-47470-165-1	01	1	9002-			●	●
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005	●	●
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9302	●	●
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●	●
222	BOLT; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204			●	●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●	●
222	BOLT; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302			●	●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-9312	●	●
222	BOLT; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	02	1	9303-9312			●	●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE	0-28080-620-0	02	1	9401-		●
222	BOLT; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 FLANGE	0-28080-620-0	02	1	9401-				●

18 18 220 5 5 26 26 201 203 4 13 203 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	PIPE; AIR,UNION TO BRK VLV L=608 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306			●	●
4	PIPE; AIR,UNION TO BRK VLV L=608 SERVICED BY L=660	1-49111-438-0	01	1	9307-				●
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (C) L=548 SERVICED BY L=550	1-47437-963-0	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (C) L=548 SERVICED BY L=600	1-47426-408-0	01	1	9307-9307		●
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (C)	1-49112-617-0	01	1	9308-		●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) L=430	1-47445-967-2	01	1	9002-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) L=430	1-47495-965-0	01	1	9301-	●	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1) (A) L=283	1-47446-021-0	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1) (A) L=284	1-47495-968-0	01	1	9307-		●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=431	1-47445-569-1	01	1	9002-9306			●	●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=431	1-47495-978-0	01	1	9307-				●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=240	1-47445-570-1	01	1	9002-9306			●	●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=256	1-47495-979-0	01	1	9307-				●
13	PIPE; AIR,BRK VLV TO UNION L=648 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306			●	●
13	PIPE; AIR,BRK VLV TO UNION L=649 SERVICED BY L=700	1-47426-410-0	01	1	9307-				●
16	PIPE; AIR,UNION TO FLEX HOSE L=1203 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306			●	●
16	PIPE; AIR,UNION TO FLEX HOSE L=1203 SERVICED BY L=1300	1-47426-417-0	01	1	9307-				●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (B) L=994 SERVICED BY L=1000	1-47437-956-0	01	1	9002-9306	●	●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (B) L=994 SERVICED BY L=1100	1-47426-387-0	01	1	9307-		●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (A) L=1240 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●	●
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (A) L=1240 SERVICED BY L=1300	1-47426-417-0	01	1	9307-		●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=1616 SERVICED BY L=1800	1-47434-413-0	01	1	9002-9306			●	●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1722 SERVICED BY L=1950	1-47426-393-0	01	1	9307-				●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=1616 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9306			●	●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1617 SERVICED BY L=1700	1-47426-420-0	01	1	9307-				●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=935	1-47447-729-1	01	1	9002-9306	●	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=935	1-47495-962-0	01	1	9307-		●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1677	1-47481-086-0	01	1	9002-9306	●	●
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1677	1-47495-973-0	01	1	9307-		●
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (A) L=1521 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306	●	●	●	●
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=1522	1-47495-972-0	01	1	9307-		●		●
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (B) L=1488	1-47447-663-2	01	1	9002-9306	●	●	●	●
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HONG KONG EQUIPMENT(PQ1) (B) L=1489	1-47495-961-0	01	1	9307-		●		●
201	PIPE; AIR,FLEX HOSE TO UNION L=843 SERVICED BY L=900	1-47437-981-0	01	1	9002-9306			●	●
201	PIPE; AIR,FLEX HOSE TO UNION L=843 SERVICED BY L=900	1-49111-442-0	01	1	9307-				●
203	PIPE; AIR,UNION TO UNION (A) L=446 SERVICED BY L=450	1-47437-962-0	01	1	9002-9306			●	●
203	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B) L=644	1-47446-008-1	01	1	9002-9306			●	●
203	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> (B) L=675 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306			●	●
203	PIPE; AIR,UNION TO UNION (A) L=446	1-47495-946-0	01	1	9307-				●
203	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B) L=644	1-47495-936-0	01	1	9307-				●
203	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> (B) L=681	1-47495-935-0	01	1	9307-				●
220	HOSE; VINYL,EXH,PARKING BRK VLV HONG KONG EQUIPMENT(PQ1) L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. HONG KONG EQUIPMENT(PQ1),BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-			●	●

220 221 222 217 214 17 5 7 6 8 64 12 11 10 19 21 24 21 19 9 9 7 6 64 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (C) L=548 SERVICED BY L=550	1-47437-963-0	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (C) L=548 SERVICED BY L=600	1-47426-408-0	01	1	9307-9307		●
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (C)	1-49112-617-0	01	1	9308-		●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) L=430	1-47445-967-2	01	1	9002-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) L=430	1-47495-965-0	01	1	9301-	●	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1) (A) L=283	1-47446-021-0	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1) (A) L=284	1-47495-968-0	01	1	9307-		●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=431	1-47445-569-1	01	1	9002-9306			●	●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=431	1-47495-978-0	01	1	9307-				●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=240	1-47445-570-1	01	1	9002-9306			●	●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=256	1-47495-979-0	01	1	9307-				●
6	WASHER; LK,FLEX HOSE DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	01	1	9002-	●	●
6	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	02	1	9002-	●	●
6	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	9002-			●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9002-	●	●	●	●
7	NUT; FLEX HOSE DUAL AIR GAUGE<UG2> M20	9-99111-420-0	01	1	9002-	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9002-	●	●	●	●
7	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M20	9-99111-420-0	02	1	9002-	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> SUPPLY L=770	1-09363-329-4	01	1	9002-	●	●
8	HOSE; FLEX,AIR,CAB SIDE DELIVERY L=850	0-07424-850-0	01	1	9002-9408	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE DELIVERY L=830	0-07424-830-0	01	1	9409-		●		●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> SUPPLY L=850	0-07706-850-0	01	1	9002-9409	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> SUPPLY L=830	0-07706-830-0	01	1	9410-		●		●
9	BRACKET; FLEX HOSE,CAB SIDE (A)	1-47475-473-2	01	1	9002-	●	●
9	BRACKET; FLEX HOSE,CAB SIDE (B)	1-47475-603-0	01	1	9002-			●	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2>	1-09656-359-1	01	1	9002-	●	●
11	WASHER; LK,CONNECTOR DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	01	1	9002-	●	●
12	NUT; CONNECTOR DUAL AIR GAUGE<UG2>	9-99111-420-0	01	1	9002-	●	●
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1)	1-47470-205-1	01	1	9002-	●	●
17	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1)	1-47470-182-4	01	1	9002-	●	●
17	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-47470-170-4	01	1	9002-			●	●
19	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6	9-09110-406-0	02	1	9002-	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M14	9-99111-414-0	02	1	9002-	●	●	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16	9-99111-416-0	02	1	9002-	●	●	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M14	9-99111-414-0	01	1	9002-	●	●	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M16	9-99111-416-0	01	1	9002-	●	●	●	●
21	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●
21	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=16.2	9-09150-516-0	02	1	9002-	●	●	●	●
21	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) ID=14.2	9-09150-514-0	01	1	9002-	●	●	●	●
24	HOSE; FLEX,PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=580	0-07404-580-0	01	1	9002-	●	●	●	●
24	HOSE; FLEX,PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=590	0-07424-590-0	01	1	9002-	●	●	●	●
64	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9002-	●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17.5	9-09572-515-0	02	1	9002-	●	●	●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=17.5	9-09572-515-0	02	1	9002-	●	●	●	●
214	BOLT; PIPE UNION M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●	●
214	BOLT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204			●	●
214	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●	●
214	BOLT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302			●	●
214	BOLT; PIPE UNION M6X16 FLANGE	0-28080-616-0	02	1	9303-	●	●
214	BOLT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	02	1	9303-			●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=552 SERVICED BY L=600	9-47415-382-0	01	1	9002-9306	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=552 SERVICED BY L=570	1-47426-378-0	01	1	9307-9307		●
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=800	1-49112-618-0	01	1	9308-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV HONG KONG EQUIPMENT(PQ1) L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. HONG KONG EQUIPMENT(PQ1),BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-			●	●
221	CONNECTOR; EXH HONG KONG EQUIPMENT(PQ1) (A)	1-47470-195-0	01	1	9002-	●	●
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47470-165-1	01	1	9002-	●	●
221	CONNECTOR; EXH EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-47470-165-1	01	1	9002-			●	●
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005	●	●
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9302	●	●
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●	●
222	BOLT; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204			●	●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●	●
222	BOLT; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302			●	●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-9312	●	●
222	BOLT; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	02	1	9303-9312			●	●
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE	0-28080-620-0	02	1	9401-		●
222	BOLT; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 FLANGE	0-28080-620-0	02	1	9401-				●

118 87 101 102 92 59 101 59 93 92 103 102 118 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
59	PIPE; AIR,UNION TO FLEX HOSE EXC. CONCRETE PUMP<RA5> L=1139 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9306	●	●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. CONCRETE PUMP<RA5> L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-		●		●
59	PIPE; AIR,UNION TO FLEX HOSE CONCRETE PUMP<RA5> L=2259 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306				●
59	PIPE; AIR,UNION TO FLEX HOSE CONCRETE PUMP<RA5> L=2259 SERVICED BY L=2500	1-49111-452-0	01	1	9307-				●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=668 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306	●	●	●	●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=668 SERVICED BY L=700	1-49111-439-0	01	1	9307-		●		●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=996 SERVICED BY L=1000	1-47434-485-0	01	1	9002-9306			●	●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1011 SERVICED BY L=1100	1-49111-444-0	01	1	9307-				●
87	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=417	1-47447-440-1	01	1	9002-9212				●
87	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=417	1-47498-041-0	01	1	9301-9306				●
87	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=417 SERVICED BY L=500	1-49111-435-0	01	1	9307-				●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2156 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9306	●	●	●	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2156 SERVICED BY L=2250	1-49111-451-0	01	1	9307-		●		●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1699 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306			●	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1699 SERVICED BY L=1800	1-49111-449-0	01	1	9307-				●
92	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1807 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9012				●
92	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1736 SERVICED BY L=2000	1-47437-986-0	01	1	9101-9306				●
92	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1851 SERVICED BY L=2000	1-49111-450-0	01	1	9307-				●
93	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1158 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9103				●
93	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1161 SERVICED BY L=1300	1-47434-486-0	01	1	9104-9306				●
93	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1161 SERVICED BY L=1200	1-49111-445-0	01	1	9307-				●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. CONCRETE PUMP<RA5> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●	●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. CONCRETE PUMP<RA5> L=1180 SERVICED BY L=1250	1-47426-416-0	01	1	9307-		●		●
101	PIPE; AIR,FLEX HOSE TO UNION CONCRETE PUMP<RA5> L=1999 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306				●
101	PIPE; AIR,FLEX HOSE TO UNION CONCRETE PUMP<RA5> L=1999 SERVICED BY L=2000	1-49111-450-0	01	1	9307-				●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1510 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●	●	●	●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1514 SERVICED BY L=1550	1-47426-419-0	01	1	9307-		●		●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1828 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9306			●	●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1828 SERVICED BY L=1900	1-47426-421-0	01	1	9307-				●
102	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1179 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9103				●
102	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1183 SERVICED BY L=1300	1-47434-486-0	01	1	9104-9306				●
102	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1183 SERVICED BY L=1200	1-49111-445-0	01	1	9307-				●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1668 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9306	●		●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1284 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306		●		●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1284 SERVICED BY L=1300	1-47426-417-0	01	1	9307-		●		●
103	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1923 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306				●
103	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1988 SERVICED BY L=2000	1-49111-450-0	01	1	9307-				●
118	PIPE; AIR,UNION TO AIR MASTER MAF5D M/T(X4G) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> L=1098 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306			●	●
118	PIPE; AIR,UNION TO AIR MASTER MAF5D M/T(X4G) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1098 SERVICED BY L=1100	1-47426-415-0	01	1	9307-				●
118	PIPE; AIR,UNION TO AIR MASTER MAF6Q M/T(X3U) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1133 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306			●	●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> L=1133 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306			●
118	PIPE; AIR,UNION TO AIR MASTER MAF6Q M/T(X3U) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1133 SERVICED BY L=1250	1-47426-416-0	01	1	9307-				●
118	PIPE; AIR,UNION TO AIR MASTER CONCRETE PUMP<RA5> L=448	1-47447-445-1	01	1	9002-9212				●
118	PIPE; AIR,UNION TO AIR MASTER CONCRETE PUMP<RA5> L=448	1-47498-130-0	01	1	9301-9306				●
118	PIPE; AIR,UNION TO AIR MASTER CONCRETE PUMP<RA5> L=488 SERVICED BY L=500	1-49111-435-0	01	1	9307-				●

155 33 28 27 30 171 157 153 31 31 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
27	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=3188 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306	●	●	●	●
27	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=3188 SERVICED BY L=3300	1-47426-426-0	01	1	9307-		●		●
28	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=2953 SERVICED BY L=3300	1-47434-416-0	01	1	9002-9002	●	●	●	●
28	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=2971 SERVICED BY L=3300	1-47434-416-0	01	1	9003-9009	●	●	●	●
28	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=2978 SERVICED BY L=3300	1-47434-416-0	01	1	9010-9306	●	●	●	●
28	PIPE; AIR,FLEX HOSE TO UNION L=3074 SERVICED BY L=3300	1-47426-398-0	01	1	9307-		●
28	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=3017 SERVICED BY L=3300	1-47426-398-0	01	1	9307-				●
30	PIPE; AIR,AIR TANK TO JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9002-	●	●	●	●
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=733 SERVICED BY L=800	1-47434-406-0	01	1	9002-9306	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4600MM(46W) HONG KONG EQUIPMENT(PQ1) (B) L=733 SERVICED BY L=800	1-47434-406-0	01	1	9002-9306		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4600MM(46W) HONG KONG EQUIPMENT(PQ1) (B) L=733 SERVICED BY L=800	1-47426-383-0	01	1	9307-		●
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (D) L=1137 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (D) L=668	1-47449-294-0	01	1	9002-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4600MM(46W) HONG KONG EQUIPMENT(PQ1) (D) L=668	1-47449-294-0	01	1	9002-		●
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=767	1-47449-804-0	01	1	9002-9306	●
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=2087 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306		●
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=2087 SERVICED BY L=2400	1-47426-395-0	01	1	9307-		●
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1716	1-47482-281-0	01	1	9002-		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5400MM(54W) HONG KONG EQUIPMENT(PQ1) (B) L=1477 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5400MM(54W) HONG KONG EQUIPMENT(PQ1) (B) L=1477 SERVICED BY L=1550	1-47426-390-0	01	1	9307-		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5400MM(54W) HONG KONG EQUIPMENT(PQ1) (D) L=1418	1-47483-072-0	01	1	9002-		●
31	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (C) L=1772 SERVICED BY L=1800	1-47434-413-0	01	1	9002-9306		●		●
31	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HONG KONG EQUIPMENT(PQ1) (C) L=1772 SERVICED BY L=1950	1-47426-393-0	01	1	9307-		●		●
33	PIPE; AIR,UNION TO CONT VLV EXC. HONG KONG EQUIPMENT(PQ1) L=2164 SERVICED BY L=2400	1-47437-959-0	01	1	9002-9306	●
33	PIPE; AIR,UNION TO CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=2164 SERVICED BY L=2400	1-47437-959-0	01	1	9002-9306			●
33	PIPE; AIR,UNION TO CONT VLV WHEEL BASE 4600MM(46W) EXC. HONG KONG EQUIPMENT(PQ1) L=1335 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306		●
33	PIPE; AIR,UNION TO CONT VLV WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=1335 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306				●
33	PIPE; AIR,UNION TO CONT VLV WHEEL BASE 5400MM(54W) EXC. HONG KONG EQUIPMENT(PQ1) L=2085 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306		●
33	PIPE; AIR,UNION TO CONT VLV WHEEL BASE 5400MM(54W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=2085 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306				●
33	PIPE; AIR,UNION TO CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL BASE 5400MM(54W) EXC. HONG KONG EQUIPMENT(PQ1) L=2085 SERVICED BY L=2400	1-47426-395-0	01	1	9307-		●		●
33	PIPE; AIR,UNION TO CONT VLV WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HONG KONG EQUIPMENT(PQ1) L=1335 SERVICED BY L=1550	1-47426-390-0	01	1	9307-		●		●
153	PIPE; AIR,RELAY VLV TO DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) L=665 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306	●	●
153	PIPE; AIR,RELAY VLV TO DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) L=665 SERVICED BY L=730	1-47426-382-0	01	1	9307-		●
155	PIPE; AIR,UNION TO CONT VLV EXC. HONG KONG EQUIPMENT(PQ1) L=249 SERVICED BY L=300	1-47426-372-0	01	1	9002-9306	●	●
155	PIPE; AIR,UNION TO CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=249 SERVICED BY L=300	1-47426-372-0	01	1	9002-9306			●	●
155	PIPE; AIR,UNION TO CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. HONG KONG EQUIPMENT(PQ1) L=248 SERVICED BY L=250	1-47426-371-0	01	1	9307-		●		●
157	PIPE; AIR,FLEX HOSE TO DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) L=372 SERVICED BY L=400	9-47415-378-0	01	1	9002-9306	●	●
157	PIPE; AIR,FLEX HOSE TO DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) L=372 SERVICED BY L=400	1-47426-374-0	01	1	9307-		●
171	PIPE; AIR,DBL CHECK VLV TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=301 SERVICED BY L=350	9-47415-377-0	01	1	9002-9306	●	●
171	PIPE; AIR,DBL CHECK VLV TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=301 SERVICED BY L=350	1-47426-341-0	01	1	9307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
