◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10944 - FVZ(THAI)EURO2 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#30267) — 23 parça

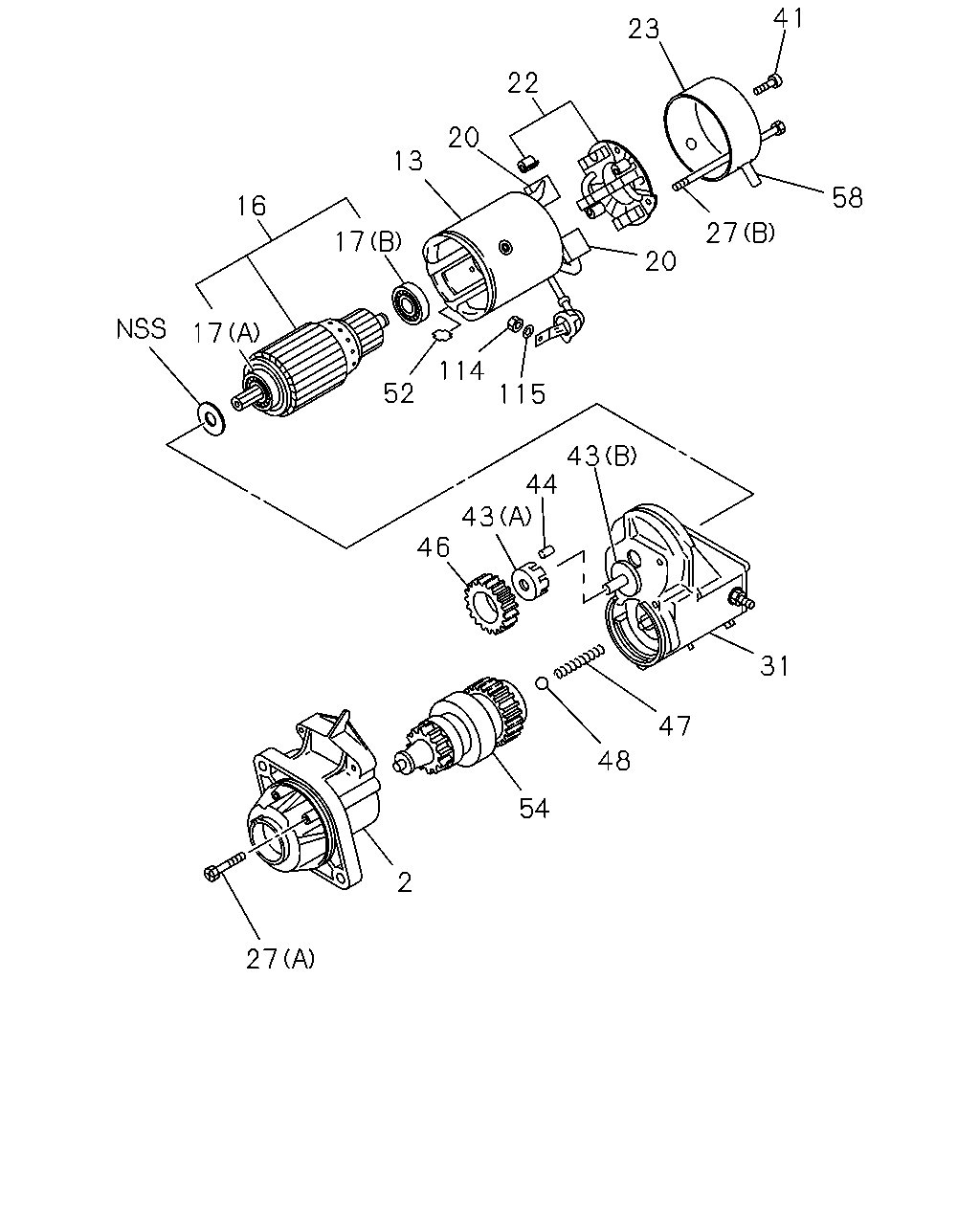

çizim 83540
41 23 22 20 13 58 16 27 17 20 17 114 52 115 43 44 43 46 31 47 48 54 2 27
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-119-0 01 1 -
13 YOKE; STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-060-0 01 1 -
16 ARMATURE; STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-061-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A), THA ASM PART: A = 8-97915-995-1 		8-97921-078-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B), THA ASM PART: A = 8-97915-995-1 		8-97921-117-0 01 1 -
20 BRUSH; (+),STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-080-0 02 1 -
22 HOLDER; BRUSH STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-114-0 01 1 -
23 COVER; RR COVER STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-121-0 01 1 -
27 BOLT; THROUGH,STARTER
(A), THA ASM PART: A = 8-97915-995-1 		8-97921-073-0 02 1 -
27 BOLT; THROUGH,STARTER
(B), THA ASM PART: A = 8-97915-995-1 		8-97921-122-0 03 1 -
31 SWITCH; ENGAGE STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-120-0 01 1 -
41 SCREW; RR COVER,STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-075-0 02 1 -
43 RETAINER; PINION STARTER
(A), THA ASM PART: A = 8-97915-995-1 		8-97921-071-0 01 1 -
43 RETAINER; PINION STARTER
(B), THA ASM PART: A = 8-97915-995-1 		8-97921-076-0 01 1 -
44 ROLLER; PINION STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-070-0 05 1 -
46 GEAR; CLU STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-069-0 01 1 -
47 SPRING; PINION STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-068-0 01 1 -
48 BALL; PINION,STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-067-0 01 1 -
52 PLATE; LK,STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-077-0 01 1 -
54 CLUTCH; PINION,STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-111-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
THA ASM PART: A = 8-97915-995-1 		8-97921-072-0 01 1 -
114 NUT; TERMINAL
THA ASM PART: A = 8-97915-995-1 		8-97921-118-0 01 1 -
115 WASHER; TERMINAL
THA ASM PART: A = 8-97915-995-1 		8-97921-081-0 01 1 -
