◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#3026) — 160 parça
çizim 4507
5 1 87 61 76 70 62
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=671 SERVICED BY L=1000 		1-47434-491-0 01 1 9002- ● ● ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=621 SERVICED BY L=660 		1-47437-978-0 01 1 9002-9306 ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=621 SERVICED BY L=700 		1-49111-439-0 01 1 9307- ●
1 PIPE; AIR,AIR TANK TO UNION
CONCRETE PUMP<RA5> L=804 		1-47447-446-0 01 1 9002-9212 ●
1 PIPE; AIR,AIR TANK TO UNION
CONCRETE PUMP<RA5> L=804 		1-47498-199-0 01 1 9301-9306 ●
1 PIPE; AIR,AIR TANK TO UNION
CONCRETE PUMP<RA5> L=804 SERVICED BY L=900 		1-47426-413-0 01 1 9307- ●
5 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1837 		1-47483-167-1 01 1 9002-9003 ● ● ● ●
5 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1849 		1-47491-194-0 01 1 9004- ● ● ● ●
5 PIPE; AIR,UNION TO UNION
EXC. CONCRETE PUMP<RA5> (B) L=1972 SERVICED BY L=2000 		1-47437-986-0 01 1 9002-9306 ● ● ● ●
5 PIPE; AIR,UNION TO UNION
EXC. CONCRETE PUMP<RA5> (B) L=1972 SERVICED BY L=2250 		1-49111-451-0 01 1 9307- ● ●
5 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) L=1599 SERVICED BY L=1600 		1-47437-985-0 01 1 9002-9002 ● ●
5 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) L=1607 SERVICED BY L=1800 		1-47434-487-0 01 1 9003-9306 ● ●
5 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) L=1607 L=1607 SERVICED BY L=1800 		1-49111-449-0 01 1 9307- ●
5 PIPE; AIR,UNION TO UNION
CONCRETE PUMP<RA5> L=1246 SERVICED BY L=1300 		1-47434-486-0 01 1 9002-9306 ●
5 PIPE; AIR,UNION TO UNION
CONCRETE PUMP<RA5> L=1246 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ●
61 PIPE; AIR,UNION TO UNION
CONCRETE PUMP<RA5> L=1653 SERVICED BY L=1800 		1-47434-487-0 01 1 9002-9306 ●
61 PIPE; AIR,UNION TO UNION
CONCRETE PUMP<RA5> L=1653 SERVICED BY L=1800 		1-49111-449-0 01 1 9307- ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. CONCRETE PUMP<RA5> L=2259 SERVICED BY L=2500 		1-47434-488-0 01 1 9002-9306 ● ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. CONCRETE PUMP<RA5> L=2259 SERVICED BY L=2500 		1-49111-452-0 01 1 9307- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
CONCRETE PUMP<RA5> L=1143 SERVICED BY L=1200 		1-47437-983-0 01 1 9002-9306 ●
62 PIPE; AIR,UNION TO FLEX HOSE
CONCRETE PUMP<RA5> L=1125 SERVICED BY L=1300 		1-49111-446-0 01 1 9307- ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. CONCRETE PUMP<RA5> L=1999 SERVICED BY L=2000 		1-47437-986-0 01 1 9002-9306 ● ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. CONCRETE PUMP<RA5> L=1999 SERVICED BY L=2250 		1-49111-451-0 01 1 9307- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
CONCRETE PUMP<RA5> L=1170 SERVICED BY L=1250 		1-47437-968-0 01 1 9002-9306 ●
70 PIPE; AIR,FLEX HOSE TO UNION
CONCRETE PUMP<RA5> L=1151 SERVICED BY L=1250 		1-47426-416-0 01 1 9307- ●
76 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1231 SERVICED BY L=1300 		1-47434-486-0 01 1 9002-9306 ● ●
76 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1231 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ●
76 PIPE; AIR,UNION TO UNION
CONCRETE PUMP<RA5> L=1687 SERVICED BY L=1700 		1-47434-478-0 01 1 9002-9306 ●
76 PIPE; AIR,UNION TO UNION
CONCRETE PUMP<RA5> L=1687 SERVICED BY L=1900 		1-47426-421-0 01 1 9307- ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=616 SERVICED BY L=660 		1-47437-978-1 01 1 9002-9306 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=542 SERVICED BY L=600 		1-49111-437-0 01 1 9307- ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> L=846 SERVICED BY L=900 		1-47437-981-0 01 1 9002-9306 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
CONCRETE PUMP<RA5> L=998 SERVICED BY L=1100 		1-47437-967-0 01 1 9002-9306 ●
87 PIPE; AIR,UNION TO AIR MASTER
CONCRETE PUMP<RA5> L=998 SERVICED BY L=1100 		1-47426-415-0 01 1 9307- ●

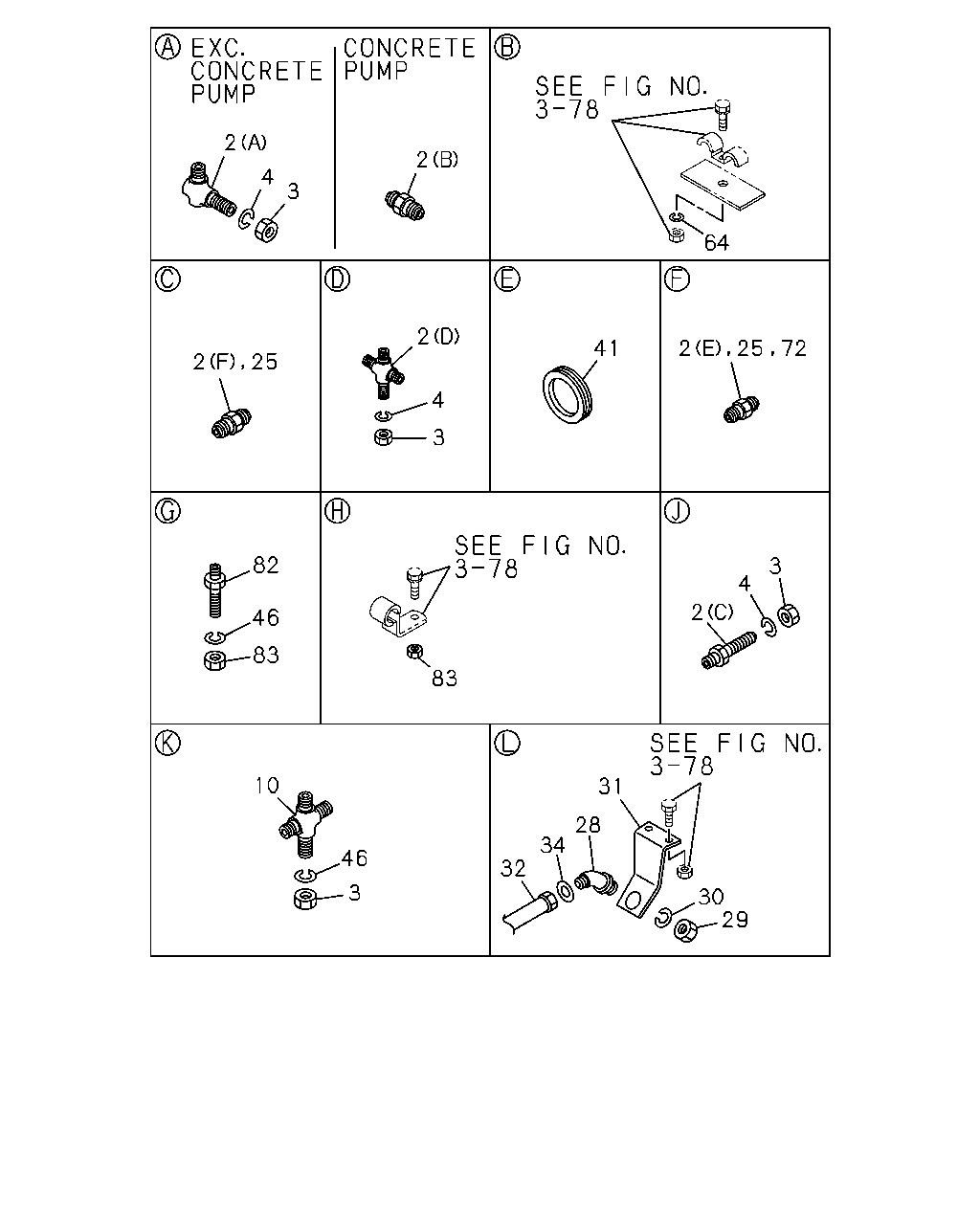

çizim 36362
29 30 31 28 34 32 3 46 10 83 46 82 83 2 4 3 72 25 2 41 3 4 2 2 25 2 4 3 2 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 UNION; AIR PIPE
(B) 		9-09233-012-1 01 1 9002- ● ● ● ●
2 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) 		9-09233-012-1 01 1 9002- ● ●
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		9-09233-315-1 01 1 9002- ● ● ● ●
2 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (D) 		1-09654-218-1 01 1 9002- ● ●
2 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) 		9-09235-212-1 01 1 9002- ● ●
2 UNION; AIR PIPE
CONCRETE PUMP<RA5> (F) 		1-09654-177-1 01 1 9002- ●
2 UNION; AIR PIPE
CONCRETE PUMP<RA5> (B) 		9-09233-010-1 01 1 9002- ●
3 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22 		9-09111-422-0 01 1 9002- ● ● ● ●
3 NUT; PIPE UNION
EXC. CONCRETE PUMP<RA5> M14 		9-99110-414-0 01 1 9002- ● ● ● ●
3 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M20 		9-99111-420-0 01 1 9002- ● ●
4 WASHER; LK,PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=22.5 		9-09150-522-0 01 1 9002-9312 ● ● ● ●
4 WASHER; LK,PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 		9-09150-514-0 01 1 9002-9312 ● ●
4 WASHER; LK,PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=20.2 		9-09150-520-0 01 1 9002- ● ●
10 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09656-390-1 01 1 9002- ● ● ● ●
25 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=42 		9-09233-010-1 01 1 9002- ● ● ● ●
25 UNION; AIR PIPE
CONCRETE PUMP<RA5> M20 STRAIGHT 		9-09233-012-1 01 1 9002- ●
28 NIPPLE; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		1-09654-174-1 02 1 9002- ● ● ● ●
29 NUT; NIPPLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-99111-420-0 02 1 9002- ● ● ● ●
30 WASHER; LK,NIPPLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2 		9-09150-520-0 02 1 9002- ● ● ● ●
31 BRACKET; NIPPLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47475-106-0 02 1 9002- ● ● ● ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=530 		0-07847-530-1 02 1 9002- ● ● ● ●
34 GASKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18 		9-09572-510-0 04 1 9002- ● ● ● ●
41 GROMMET; AIR PIPE
CONCRETE PUMP<RA5> ID=28 OD=35 T=17 		9-09956-256-1 02 1 9002- ●
46 WASHER; LK,PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 		9-09150-514-0 01 1 9002-9312 ● ● ● ●
46 WASHER; LK,PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=20.2 		9-09150-520-0 01 1 9002- ● ●
64 WASHER; LK,FLEX HOSE
ID=10.2 		9-09150-510-0 04 1 9002- ● ●
64 WASHER; LK,FLEX HOSE
ID=10.2 		9-09150-510-0 03 1 9002- ● ●
72 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 & M16 2 WAY 		1-09654-177-1 01 1 9002- ● ● ● ●
72 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> 		9-09233-012-1 01 1 9002- ● ●
72 UNION; AIR PIPE
CONCRETE PUMP<RA5> 		9-09233-010-1 01 1 9002- ●
82 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M20 & M20 		9-09233-312-1 01 1 9002- ● ●
83 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8 		9-09110-408-0 01 1 9002- ● ●
83 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M20 		9-99110-420-0 01 1 9002- ● ●
çizim 36934
102 121 97 113 102 113 121 97 111
BalonParca AdiParca NoAdetTipApplied Date A B C D
97 PIPE; AIR,BRK VLV TO UNION
L=1083 SERVICED BY L=1100 		1-47437-982-0 01 1 9002-9306 ● ●
97 PIPE; AIR,BRK VLV TO UNION
L=1083 SERVICED BY L=1100 		1-49111-444-0 01 1 9307- ●
97 PIPE; AIR,BRK VLV TO UNION
L=422 SERVICED BY L=550 		1-47437-976-0 01 1 9002-9306 ● ●
97 PIPE; AIR,BRK VLV TO UNION
L=423 SERVICED BY L=500 		1-49111-435-0 01 1 9307- ●
102 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=1511 SERVICED BY L=1600 		1-47437-985-0 01 1 9002-9306 ● ●
102 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=1512 SERVICED BY L=1600 		1-49111-448-0 01 1 9307- ●
102 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=372 		1-47448-184-0 01 1 9002-9306 ● ●
102 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=373 		1-47495-941-0 01 1 9307- ●
111 PIPE; AIR,CONN TO UNION
DUAL AIR GAUGE<UG2> L=1481 SERVICED BY L=1600 		1-47437-985-0 01 1 9002-9306 ● ●
111 PIPE; AIR,CONN TO UNION
DUAL AIR GAUGE<UG2> L=1481 SERVICED BY L=1600 		1-49111-448-0 01 1 9307- ●
111 PIPE; AIR,CONN TO UNION
DUAL AIR GAUGE<UG2> L=352 		1-47448-196-0 01 1 9002-9306 ● ●
111 PIPE; AIR,CONN TO UNION
DUAL AIR GAUGE<UG2> L=352 		1-47495-942-0 01 1 9307- ●
113 PIPE; AIR,UNION TO BRK VLV
L=925 SERVICED BY L=1000 		1-47434-485-0 01 1 9002-9306 ● ●
113 PIPE; AIR,UNION TO BRK VLV
L=925 SERVICED BY L=1000 		1-49111-443-0 01 1 9307- ●
113 PIPE; AIR,UNION TO BRK VLV
L=493 		1-47447-681-0 01 1 9002-9306 ● ●
113 PIPE; AIR,UNION TO BRK VLV
L=494 		1-47495-943-0 01 1 9307- ●
121 PIPE; AIR,UNION TO FLEX HOSE
L=1386 SERVICED BY L=1450 		1-47437-984-0 01 1 9002-9306 ● ●
121 PIPE; AIR,UNION TO FLEX HOSE
L=1387 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ●
121 PIPE; AIR,UNION TO FLEX HOSE
L=675 SERVICED BY L=730 		1-47437-979-0 01 1 9002-9306 ● ●
121 PIPE; AIR,UNION TO FLEX HOSE
L=611 SERVICED BY L=660 		1-49111-438-0 01 1 9307- ●

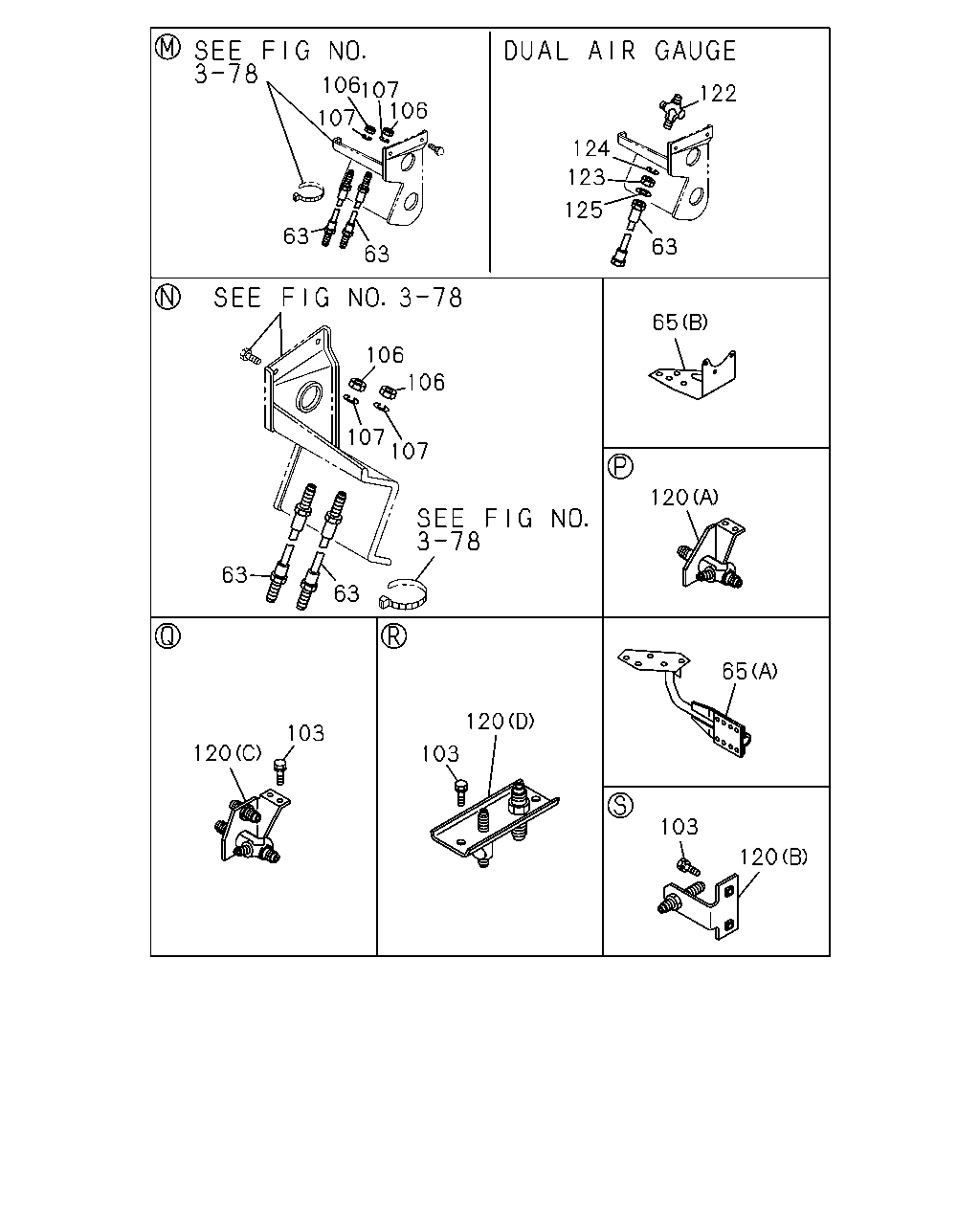

çizim 36957
120 103 65 120 103 103 120 63 63 120 65 106 106 107 107 63 125 123 124 122 63 63 107 106 107 106
BalonParca AdiParca NoAdetTipApplied Date A B C D
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=850 		0-07706-850-0 01 1 9002-9408 ● ● ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=850 		0-07706-850-0 01 1 9002-9408 ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> L=850 		0-07706-850-0 01 1 9002-9408 ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=830 		0-07706-830-0 01 1 9409- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> L=830 		0-07706-830-0 01 1 9409- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
DUAL AIR GAUGE<UG2> L=770 		1-09363-329-4 01 1 9002- ● ●
65 BRACKET; FLEX HOSE
(A) 		1-47475-583-1 01 1 9002- ● ●
65 BRACKET; FLEX HOSE
(B) 		1-47475-582-0 01 1 9002- ● ●
103 BOLT; PIPE UNION
M6X16 		1-09980-296-0 02 1 9002- ● ●
103 BOLT; PIPE UNION
M6X16 W/LK WASHER 		0-50000-616-0 02 1 9002-9204 ● ● ● ●
103 BOLT; PIPE UNION
M6X16 W/LK WASHER 		0-50080-616-0 02 1 9205-9301 ● ● ● ●
103 BOLT; PIPE UNION
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9302-9302 ● ● ● ●
103 BOLT; PIPE UNION
M6X16 FLANGE 		0-28080-616-0 02 1 9303-9306 ● ● ● ●
103 BOLT; PIPE UNION
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9307- ● ●
106 NUT; FLEX HOSE 9-99111-420-0 02 1 9002- ● ● ● ●
106 NUT; FLEX HOSE 9-99111-420-0 02 1 9002- ● ●
106 NUT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		9-99111-420-0 02 1 9002- ● ●
106 NUT; FLEX HOSE
DUAL AIR GAUGE<UG2> 		9-99111-420-0 01 1 9002- ● ●
107 WASHER; LK,FLEX HOSE
ID=20.2 		9-09150-520-0 02 1 9002- ● ● ● ●
107 WASHER; LK,FLEX HOSE
ID=20.2 		9-09150-520-0 02 1 9002- ● ●
107 WASHER; LK,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> ID=20.2 		9-09150-520-0 02 1 9002- ● ●
107 WASHER; LK,FLEX HOSE
DUAL AIR GAUGE<UG2> ID=20.2 		9-09150-520-0 01 1 9002- ● ●
120 UNION; AIR PIPE
(B) 		1-47470-184-2 01 1 9002- ● ●
120 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (A) 		1-47470-175-2 01 1 9002- ● ●
120 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> (C) 		1-47470-181-2 01 1 9002- ● ●
120 UNION; AIR PIPE
(D) 		1-47470-187-2 01 1 9002- ● ●
122 CONNECTOR; FLEX HOSE
DUAL AIR GAUGE<UG2> 		1-09656-359-1 01 1 9002- ● ●
123 NUT; HOSE CONNECTOR
DUAL AIR GAUGE<UG2> M20 		9-99111-420-0 01 1 9002- ● ●
124 WASHER; LK,CONNECTOR
DUAL AIR GAUGE<UG2> ID=20.2 		9-09150-520-0 01 1 9002- ● ●
125 GASKET; FLEX HOSE
DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9002- ● ●
çizim 37177
5 21 24 43 62 70 21 26 1 5 5 81 76 62 70 5 1 87
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=671 SERVICED BY L=1000 		1-47434-491-0 01 1 9002- ● ● ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=621 SERVICED BY L=660 		1-47437-978-0 01 1 9002-9306 ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=621 SERVICED BY L=700 		1-49111-439-0 01 1 9307- ●
1 PIPE; AIR,AIR TANK TO UNION
CONCRETE PUMP<RA5> L=804 		1-47447-446-0 01 1 9002-9212 ●
1 PIPE; AIR,AIR TANK TO UNION
CONCRETE PUMP<RA5> L=804 		1-47498-199-0 01 1 9301-9306 ●
1 PIPE; AIR,AIR TANK TO UNION
CONCRETE PUMP<RA5> L=804 SERVICED BY L=900 		1-47426-413-0 01 1 9307- ●
5 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1837 		1-47483-167-1 01 1 9002-9003 ● ● ● ●
5 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1849 		1-47491-194-0 01 1 9004- ● ● ● ●
5 PIPE; AIR,UNION TO UNION
EXC. CONCRETE PUMP<RA5> (B) L=1972 SERVICED BY L=2000 		1-47437-986-0 01 1 9002-9306 ● ● ● ●
5 PIPE; AIR,UNION TO UNION
EXC. CONCRETE PUMP<RA5> (B) L=1972 SERVICED BY L=2250 		1-49111-451-0 01 1 9307- ● ●
5 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) L=1599 SERVICED BY L=1600 		1-47437-985-0 01 1 9002-9002 ● ●
5 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) L=1607 SERVICED BY L=1800 		1-47434-487-0 01 1 9003-9306 ● ●
5 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) L=1607 L=1607 SERVICED BY L=1800 		1-49111-449-0 01 1 9307- ●
5 PIPE; AIR,UNION TO UNION
CONCRETE PUMP<RA5> L=1246 SERVICED BY L=1300 		1-47434-486-0 01 1 9002-9306 ●
5 PIPE; AIR,UNION TO UNION
CONCRETE PUMP<RA5> L=1246 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ●
21 PIPE; AIR,UNION TO RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1436 SERVICED BY L=1550 		1-47437-970-0 01 1 9002-9306 ● ● ● ●
21 PIPE; AIR,UNION TO RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1436 SERVICED BY L=1550 		1-47426-419-0 01 1 9307- ● ●
21 PIPE; AIR,UNION TO RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1289 SERVICED BY L=1350 		1-47437-995-0 01 1 9002- ● ● ● ●
24 PIPE; AIR,RELAY VLV TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1752 SERVICED BY L=1900 		1-47437-971-0 01 1 9002-9306 ● ● ● ●
24 PIPE; AIR,RELAY VLV TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1750 SERVICED BY L=1900 		1-47426-421-0 01 1 9307- ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1294 SERVICED BY L=1400 		1-47437-969-0 01 1 9002-9306 ● ● ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1295 SERVICED BY L=1300 		1-47426-417-0 01 1 9307- ● ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1309 SERVICED BY L=1400 		1-47437-969-0 01 1 9002-9209 ● ● ● ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1308 SERVICED BY L=1400 		1-47426-418-0 01 1 9210- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. CONCRETE PUMP<RA5> L=2259 SERVICED BY L=2500 		1-47434-488-0 01 1 9002-9306 ● ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. CONCRETE PUMP<RA5> L=2259 SERVICED BY L=2500 		1-49111-452-0 01 1 9307- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
CONCRETE PUMP<RA5> L=1143 SERVICED BY L=1200 		1-47437-983-0 01 1 9002-9306 ●
62 PIPE; AIR,UNION TO FLEX HOSE
CONCRETE PUMP<RA5> L=1125 SERVICED BY L=1300 		1-49111-446-0 01 1 9307- ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. CONCRETE PUMP<RA5> L=1999 SERVICED BY L=2000 		1-47437-986-0 01 1 9002-9306 ● ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. CONCRETE PUMP<RA5> L=1999 SERVICED BY L=2250 		1-49111-451-0 01 1 9307- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
CONCRETE PUMP<RA5> L=1170 SERVICED BY L=1250 		1-47437-968-0 01 1 9002-9306 ●
70 PIPE; AIR,FLEX HOSE TO UNION
CONCRETE PUMP<RA5> L=1151 SERVICED BY L=1250 		1-47426-416-0 01 1 9307- ●
76 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1231 SERVICED BY L=1300 		1-47434-486-0 01 1 9002-9306 ● ●
76 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1231 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ●
76 PIPE; AIR,UNION TO UNION
CONCRETE PUMP<RA5> L=1687 SERVICED BY L=1700 		1-47434-478-0 01 1 9002-9306 ●
76 PIPE; AIR,UNION TO UNION
CONCRETE PUMP<RA5> L=1687 SERVICED BY L=1900 		1-47426-421-0 01 1 9307- ●
81 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=2159 SERVICED BY L=2250 		1-47437-987-0 01 1 9002-9306 ● ●
81 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=2159 SERVICED BY L=2250 		1-49111-451-0 01 1 9307- ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=616 SERVICED BY L=660 		1-47437-978-1 01 1 9002-9306 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=542 SERVICED BY L=600 		1-49111-437-0 01 1 9307- ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> L=846 SERVICED BY L=900 		1-47437-981-0 01 1 9002-9306 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
CONCRETE PUMP<RA5> L=998 SERVICED BY L=1100 		1-47437-967-0 01 1 9002-9306 ●
87 PIPE; AIR,UNION TO AIR MASTER
CONCRETE PUMP<RA5> L=998 SERVICED BY L=1100 		1-47426-415-0 01 1 9307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
