Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10944 - FVZ(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶

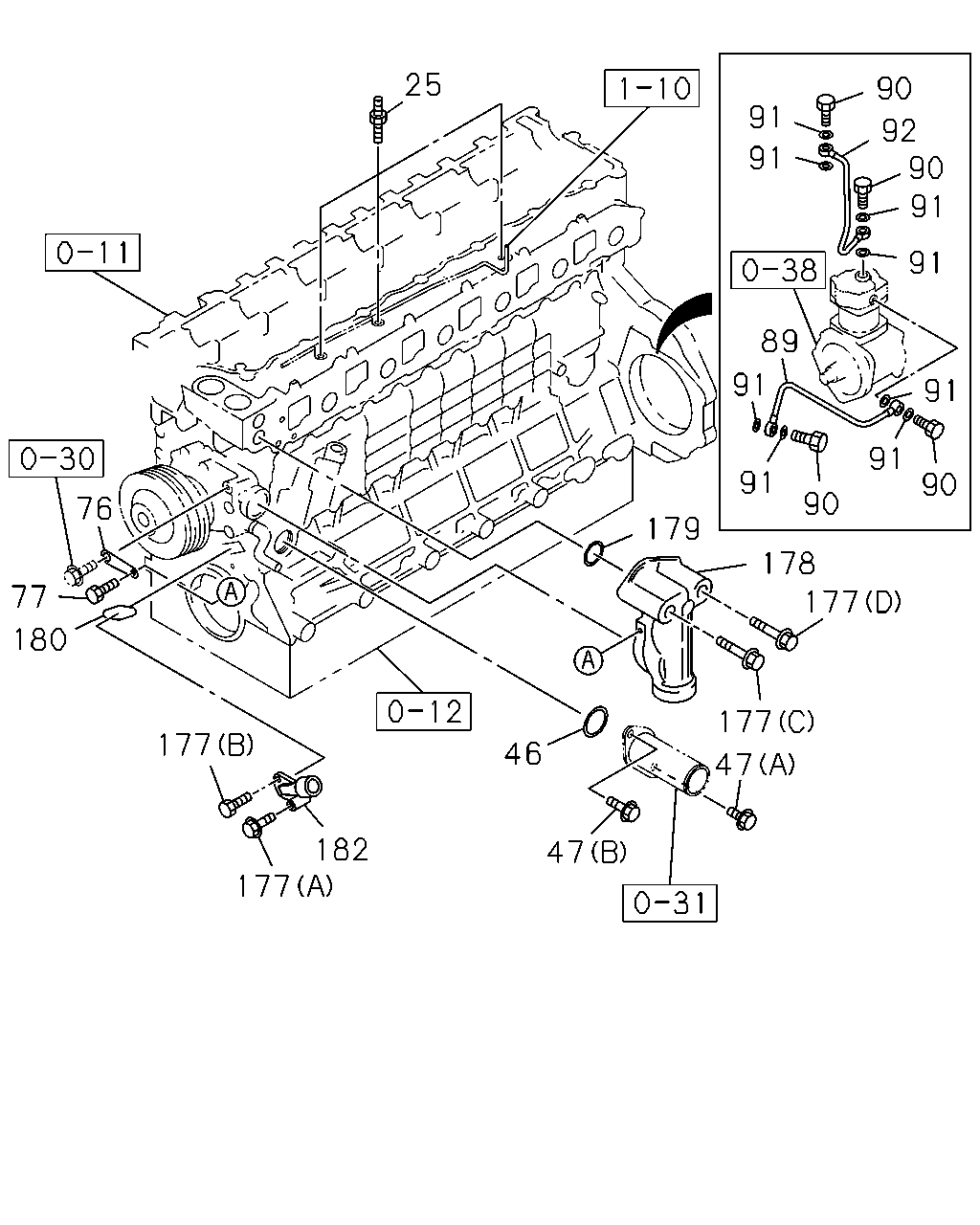

0-32 — WATER PIPING; ENGINE
(#30254) — 23 parça
25
90
91
92
90
91
91
91
89
91
91
76
91
91
90
90
179
178
177
77
180
177
177
46
47
182
177
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BOLT; WATER PIPE
M8X14,M8X14 L=33
1-09300-058-1
02
1
0407-
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
0407-
47
BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE
0-28080-845-0
01
1
0407-0512
47
BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE THA
0-28050-845-0
01
1
0601-
47
BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE
0-28680-825-0
01
1
0407-0512
47
BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE THA
0-28650-825-0
01
1
0601-
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
0407-
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28080-850-0
01
1
0407-0512
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE THA
0-28050-850-0
01
1
0601-
89
PIPE; WATER,AIR CMPR,IN
8-94391-037-0
01
1
0407-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
0407-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
0407-
92
PIPE; WATER,AIR CMPR,OUT
8-97603-546-0
01
1
0407-
177
BOLT; WATER DUCT
(C) M8X80 FLANGE
0-28080-880-0
01
1
0407-0512
177
BOLT; WATER DUCT
(C) M8X80 FLANGE THA
0-28050-880-0
01
1
0601-
177
BOLT; WATER DUCT
(B) M8X25 FLANGE
0-28680-825-0
01
1
0407-0512
177
BOLT; WATER DUCT
(B) M8X25 FLANGE THA
0-28650-825-0
01
1
0601-
177
BOLT; WATER DUCT
(A) M8X65 FLANGE
1-09044-072-1
01
1
0407-
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-1
01
1
0407-
178
DUCT; WATER,BYPASS
8-94396-627-2
01
1
0407-
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-94396-679-0
01
1
0407-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
0407-
182
DUCT; WATER,HTR
8-94390-283-0
01
1
0407-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
