Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10944 - FVZ(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

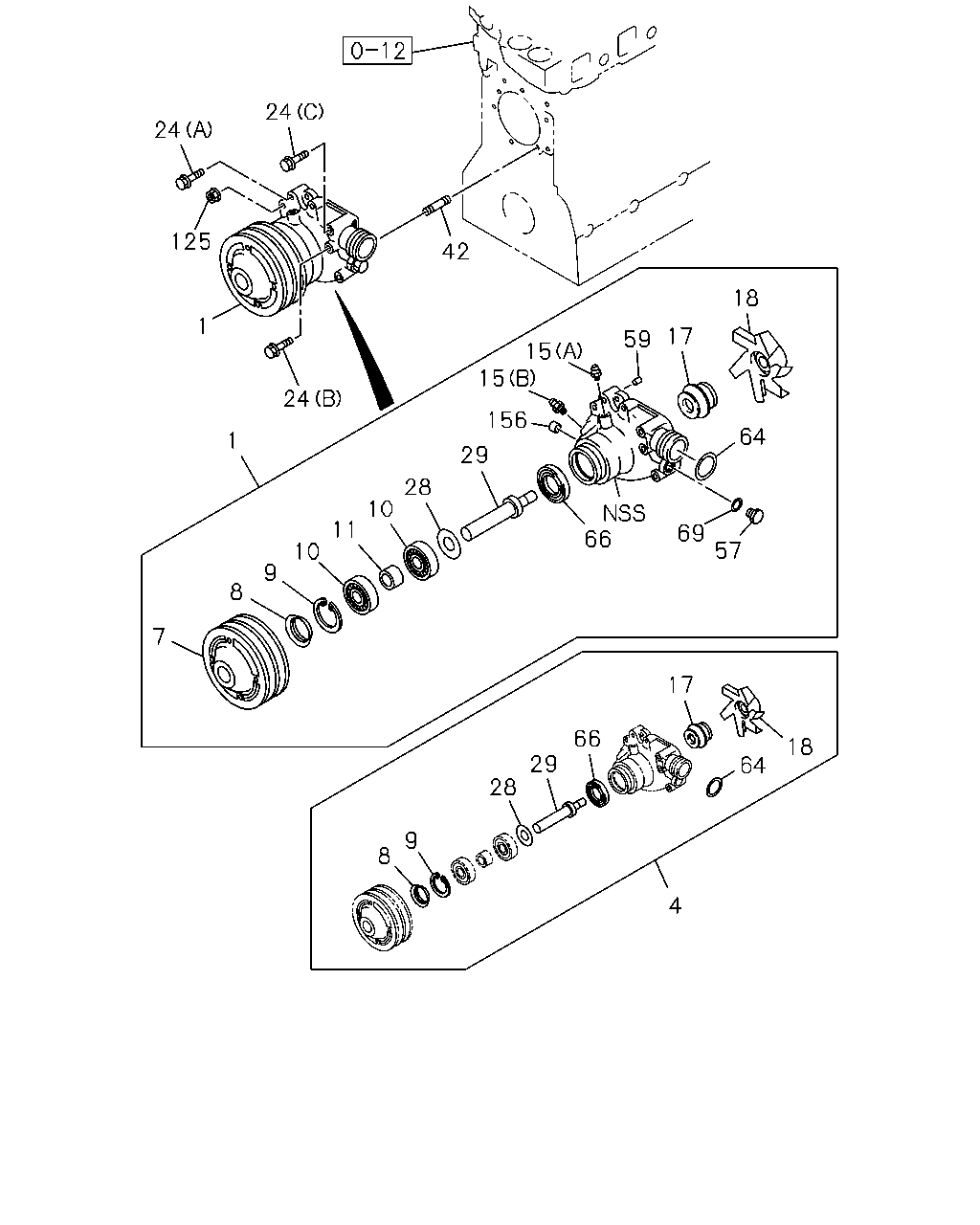

0-30 — WATER PUMP AND CORROSION RESISTOR
(#30252) — 32 parça
24
24
125
42
18
1
17
59
15
15
24
156
64
1
29
28
10
66
11
69
57
10
9
8
7
17
66
18
29
64
28
9
8
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
8-97602-773-0
01
1
0407-0801
1
PUMP ASM; WATER,W/GASKET
8-97627-355-1
01
1
0802-
4
REPAIR KIT; WATER PUMP
1-87812-029-1
01
1
0407-0801
4
REPAIR KIT; WATER PUMP
1-87813-358-0
01
1
0802-
7
PULLEY; WATER PUMP
2-GROOVE
8-94394-826-0
01
1
0407-
8
THROWER; DUST,WATER PUMP
8-94399-457-0
01
1
0407-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
0407-
10
BEARING; WATER PUMP
1-09800-011-0
02
1
0407-
11
SPACER; BRG,WATER PUMP
1-13634-025-0
01
1
0407-
15
NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT
1-09380-002-0
01
1
0407-
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
9-09031-010-0
01
1
0407-0512
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
0-90301-410-0
01
1
0601-
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0407-
18
IMPELLER; WATER PUMP
8-94392-922-0
01
1
0407-
24
BOLT; WATER PUMP
(B) M8X80 FLANGE
0-28080-880-0
01
1
0407-0512
24
BOLT; WATER PUMP
(B) M8X80 FLANGE THA
0-28050-880-0
01
1
0601-
24
BOLT; WATER PUMP
(A) M8X58 FLANGE THA
8-94130-055-1
03
1
0407-
24
BOLT; WATER PUMP
(C) M10X85 FLANGE
8-94397-359-1
01
1
0407-
28
WASHER; WATER PUMP
ID=25.5 OD=50
8-94397-097-0
01
1
0407-
29
SHAFT; WATER PUMP
8-94397-374-0
01
1
0407-
42
STUD; WATER PUMP
M8X30 L=46
9-04010-830-0
01
1
0407-0604
42
STUD; WATER PUMP
M8X30 L=46
0-40110-830-0
01
1
0605-
57
PLUG; HTR,WATER PUMP
M20
9-99202-320-0
01
1
0407-
59
DOWEL; WATER PUMP
9-13119-022-0
02
1
0407-0801
59
DOWEL; WATER PUMP
OD=12 L=9
1-13119-003-0
02
1
0802-
64
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7
1-09623-383-0
01
1
0407-
66
SEAL; SECONDARY
1-09625-437-0
01
1
0407-0801
66
SEAL; SECONDARY
8-98084-780-0
01
1
0802-
69
GASKET; PLUG,HTR
ID=20.5 OD=28.0
9-09571-420-0
01
1
0407-
125
NUT; WATER PUMP
M8 FLANGE
0-91150-108-0
04
1
0407-0602
125
NUT; WATER PUMP
M8 FLANGE THA
0-91180-108-0
04
1
0603-
156
CUP; SEALING
OD=25
1-09600-016-0
01
1
0407-
