3-70 — BRAKE PIPING; AIR,AIR MASTER (#3025) — 378 parça

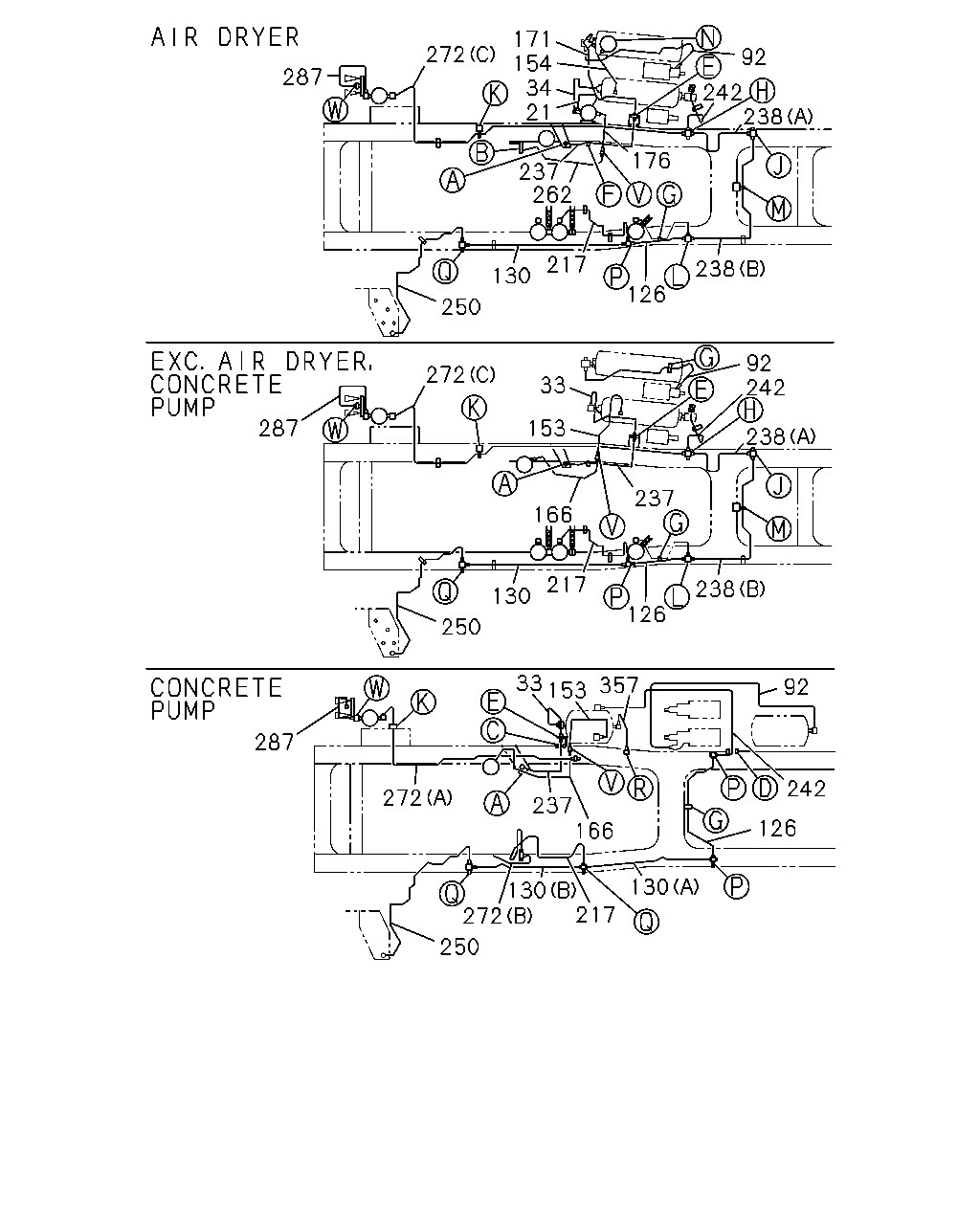

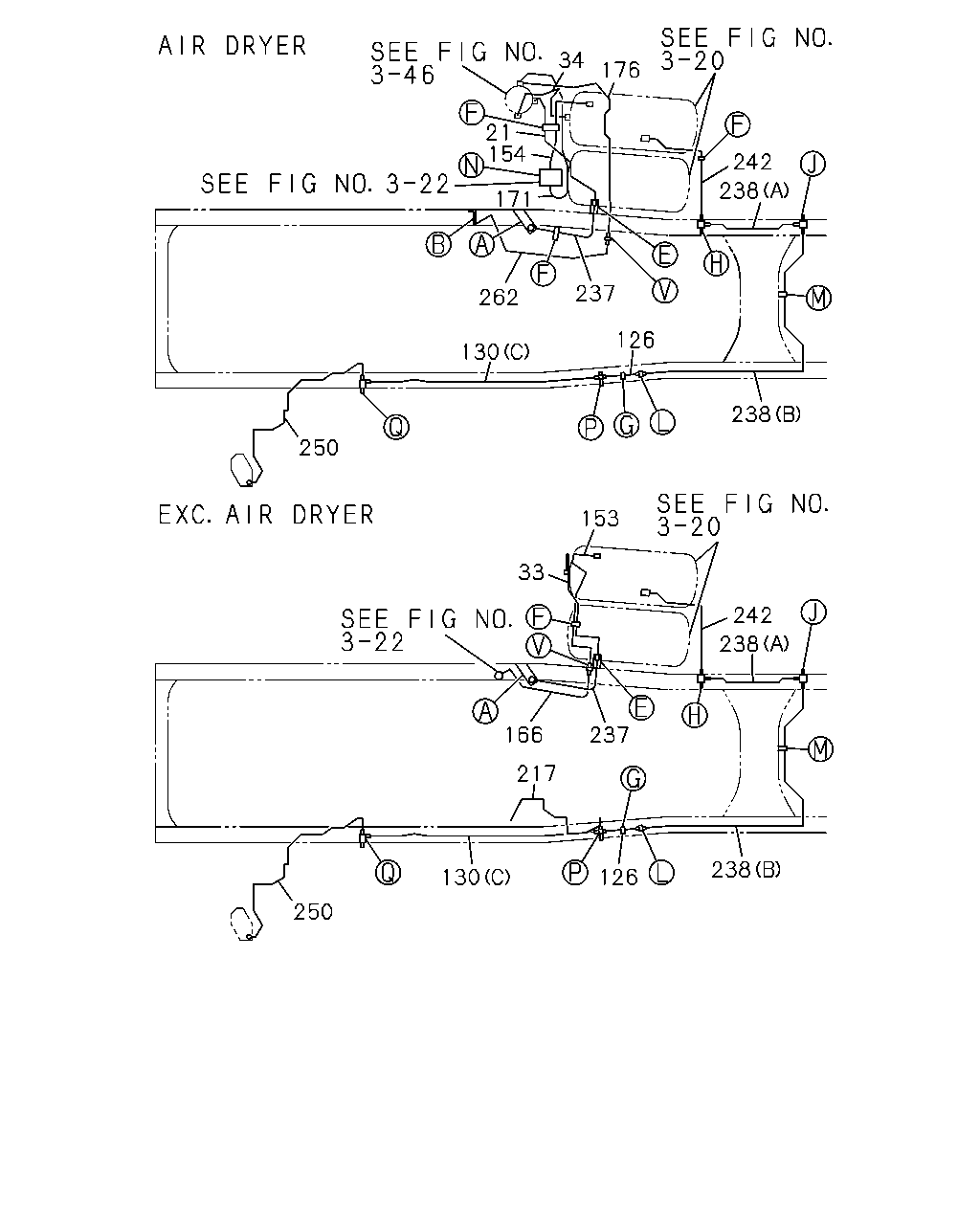

130 217 130 272 250 166 237 272 287 33 153 357 92 242 126 238 126 217 130 250 166 237 238 242 92 153 33 272 287 250 130 217 126 238 176 262 237 21 34 154 171 272 287 92 242 238

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=827	1-47487-501-0	01	1	9002-	●	●	●	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=691 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306				●
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-47482-402-0	01	1	9002-	●	●
33	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-47482-402-0	01	1	9002-			●	●
33	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> L=882 SERVICED BY L=1000	1-47434-491-1	01	1	9002-			●	●
33	PIPE; AIR,UNION TO AIR TANK CONCRETE PUMP<RA5> L=224	1-47444-965-1	01	1	9002-				●
34	PIPE; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-47434-485-1	01	1	9002-9306	●	●	●	●
34	PIPE; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-49111-443-0	01	1	9307-		●		●
34	PIPE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=735 SERVICED BY L=800	1-47437-980-0	01	1	9002-9306				●
92	PIPE; AIR,AIR TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1150 SERVICED BY L=1200	1-47437-993-0	01	1	9002-			●	●
92	PIPE; AIR,AIR TANK TO AIR MASTER CONCRETE PUMP<RA5> L=1988	1-47482-233-0	01	1	9002-				●
126	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> L=471	1-47488-493-0	01	1	9002-9306	●	●	●	●
126	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) L=477 SERVICED BY L=500	9-47415-350-0	01	1	9002-	●	●	●	●
126	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1136 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9202				●
126	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1160 SERVICED BY L=1200	1-47434-388-0	01	1	9203-				●
130	PIPE; AIR,UNION TO UNION (C) L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306	●	●
130	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (C) L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306			●	●
130	PIPE; AIR,UNION TO UNION (C) L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-		●
130	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (C) L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-				●
130	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> (A) L=894 SERVICED BY L=900	1-47434-385-0	01	1	9002-				●
130	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> (B) L=1268 SERVICED BY L=1370	1-47434-390-0	01	1	9002-				●
153	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=852 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306	●	●	●	●
153	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=997 SERVICED BY L=1000	1-47426-350-0	01	1	9307-		●		●
153	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> L=586 SERVICED BY L=600	9-47415-352-0	01	1	9002-			●	●
153	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=945	1-47444-325-0	01	1	9002-				●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-47487-299-0	01	1	9002-	●	●	●	●
166	PIPE; AIR,UNION TO GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2>	1-47485-195-0	01	1	9002-	●		●
166	PIPE; AIR,UNION TO GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-47485-195-0	01	1	9002-		●		●
166	PIPE; AIR,UNION TO GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> EXC. AIR DRYER<PS7>	1-47482-945-0	01	1	9002-9306	●		●
166	PIPE; AIR,UNION TO GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> EXC. AIR DRYER<PS7>	1-47487-521-0	01	1	9002-9306			●
166	PIPE; AIR,UNION TO GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>	1-47487-522-0	01	1	9002-9306			●	●
166	PIPE; AIR,UNION TO GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-47487-522-0	01	1	9307-				●
166	PIPE; AIR,UNION TO GOV CONCRETE PUMP<RA5>	1-47449-813-0	01	1	9002-9308				●
166	PIPE; AIR,UNION TO GOV CONCRETE PUMP<RA5>	1-49111-218-0	01	1	9309-				●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=992	1-47487-300-0	01	1	9002-	●	●	●	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=696 SERVICED BY L=800	1-47426-348-0	01	1	9002-9306			●	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1209 SERVICED BY L=1250	1-47434-389-0	01	1	9002-	●	●	●	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=603 SERVICED BY L=650	9-47415-353-0	01	1	9002-9306			●	●
217	PIPE; VAC,UNION TO MAG VLV MIXER TRUCK<RA2> L=1089 SERVICED BY L=1100	1-47434-387-0	01	1	9002-9306	●		●
217	PIPE; VAC,UNION TO MAG VLV EXC. MIXER TRUCK<RA2> L=1176 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306	●		●
217	PIPE; VAC,UNION TO MAG VLV EXC. CONCRETE PUMP<RA5> L=1176 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306		●		●
217	PIPE; VAC,UNION TO MAG VLV EXC. CONCRETE PUMP<RA5> L=1003 SERVICED BY L=1100	1-47426-351-0	01	1	9307-		●		●
217	PIPE; VAC,UNION TO MAG VLV CONCRETE PUMP<RA5> L=1286 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306				●
217	PIPE; VAC,UNION TO MAG VLV CONCRETE PUMP<RA5> L=1263 SERVICED BY L=1370	1-47426-354-0	01	1	9307-				●
237	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2>	1-47482-400-0	01	1	9002-	●	●	●	●
237	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2>	1-47485-191-0	01	1	9002-9306	●		●
237	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2>	1-47487-559-0	01	1	9002-9306			●
237	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>	1-47487-558-0	01	1	9002-			●	●
237	PIPE; AIR,FLEX HOSE TO UNION CONCRETE PUMP<RA5>	1-47444-964-0	01	1	9002-				●
238	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> (A) L=619 SERVICED BY L=660	1-47437-964-0	01	1	9002-9007	●	●	●	●
238	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> (A) L=490 SERVICED BY L=500	1-47434-472-0	01	1	9008-9306	●	●	●	●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> (B) L=1367 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●	●	●
238	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. CONCRETE PUMP<RA5>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=1919 SERVICED BY L=2000	1-47426-359-0	01	1	9002-	●	●	●	●
238	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=1360 SERVICED BY L=1370	1-47434-390-0	01	1	9002-	●	●	●	●
238	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> (A) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-		●		●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=964 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●	●	●	●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=964 SERVICED BY L=1000	1-47426-414-0	01	1	9307-		●		●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=663 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306			●	●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=656 SERVICED BY L=660	1-47426-409-0	01	1	9307-				●
242	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=1781 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9306				●
242	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=1781 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9309				●
242	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=1803 SERVICED BY L=1900	1-47426-421-0	01	1	9310-				●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1391 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9308	●	●	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-		●		●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. MIXER TRUCK<RA2> L=935 SERVICED BY L=1000	1-47434-386-0	01	1	9002-	●	●	●	●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> L=945 SERVICED BY L=1000	1-47434-386-0	01	1	9002-9306	●		●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> MIXER TRUCK<RA2> L=920 SERVICED BY L=1000	1-47434-386-0	01	1	9002-9306			●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. MIXER TRUCK<RA2> L=881 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306			●	●
272	PIPE; AIR,MAG VLV TO UNION (C) L=1102 SERVICED BY L=1200	1-47434-388-0	01	1	9002-	●	●
272	PIPE; AIR,MAG VLV TO UNION FIRE TRUCK<RA9> (D) L=431 SERVICED BY L=460	9-47415-349-0	01	1	9002-9306		●		●
272	PIPE; AIR,MAG VLV TO UNION EXC. CONCRETE PUMP<RA5> (C) L=2828 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306			●	●
272	PIPE; AIR,MAG VLV TO UNION EXC. CONCRETE PUMP<RA5> (C) L=2870 SERVICED BY L=2900	1-47426-364-0	01	1	9307-				●
272	PIPE; AIR,MAG VLV TO UNION CONCRETE PUMP<RA5> (B) L=520 SERVICED BY L=550	1-47413-548-0	01	1	9002-				●
272	PIPE; AIR,MAG VLV TO UNION CONCRETE PUMP<RA5> (A) L=2634 SERVICED BY L=2650	1-47434-399-0	01	1	9002-				●
287	PIPE; AIR,MAG VLV	1-47444-990-2	01	1	9002-9212	●	●
287	PIPE; AIR,MAG VLV	1-47496-263-0	01	1	9301-	●	●
287	PIPE; AIR,MAG VLV	1-47488-299-0	01	1	9002-9306			●	●
287	PIPE; AIR,MAG VLV	1-47496-264-0	01	1	9307-				●
357	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=392 SERVICED BY L=460	9-47415-349-0	01	1	9002-				●

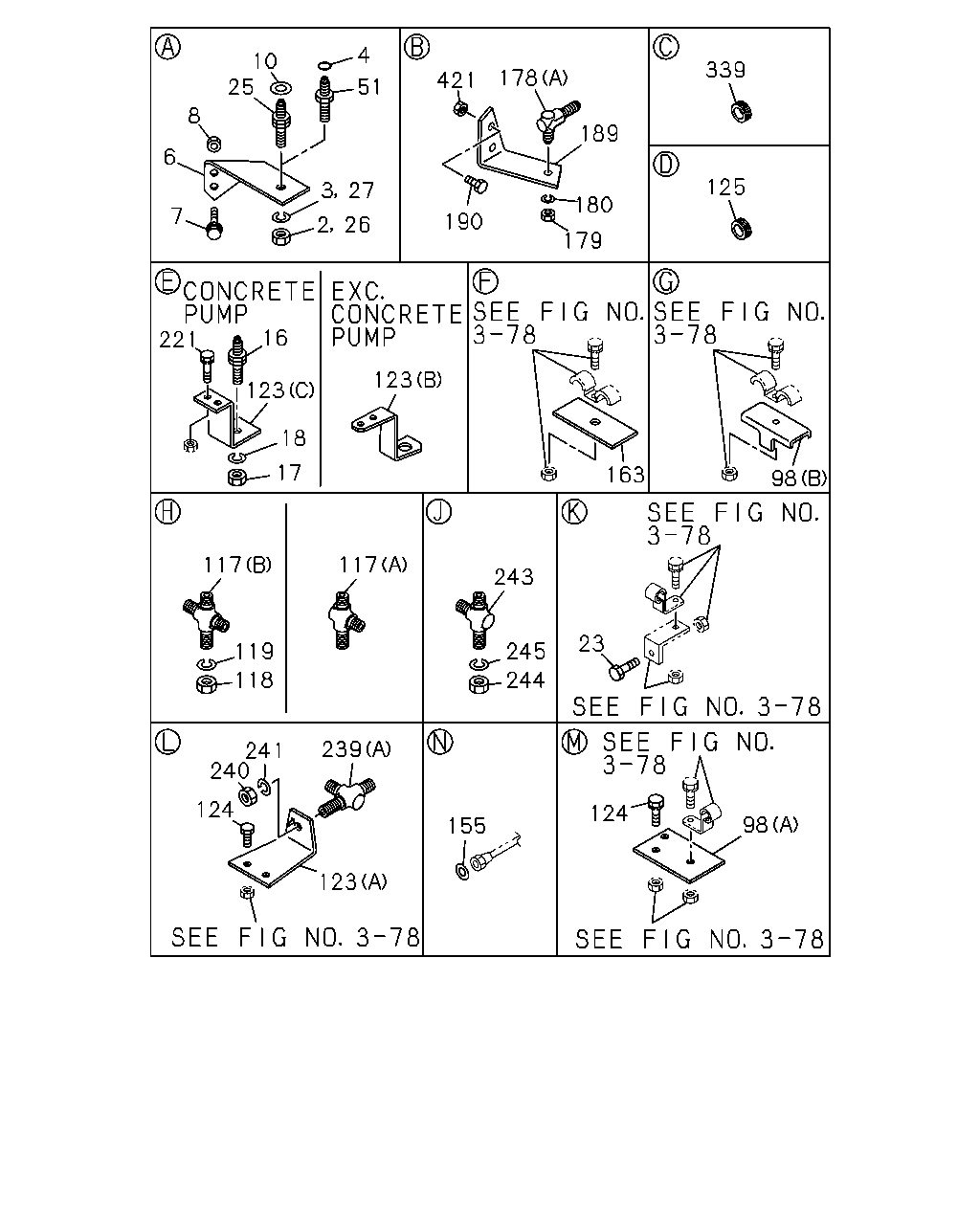

98 124 155 123 124 240 241 239 118 119 117 117 243 245 244 23 98 163 123 17 18 123 16 221 7 6 8 25 10 4 51 3 27 2 26 190 179 180 189 178 421 339 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M20	9-99111-420-0	01	1	9002-	●	●	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9002-	●	●	●	●
4	GASKET; FLEX HOSE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	01	1	9002-	●	●	●	●
4	GASKET; FLEX HOSE EXC. AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●	●	●
6	BRACKET; FLEX HOSE,AIR TANK EXC. CONCRETE PUMP<RA5>	1-47475-572-0	01	1	9002-	●	●	●	●
6	BRACKET; FLEX HOSE,AIR TANK CONCRETE PUMP<RA5>	1-47475-571-0	01	1	9002-				●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9307-		●		●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9002-	●	●	●	●
10	GASKET; CHECK VLV EXC. CONCRETE PUMP<RA5> ID=11 OD=18	9-09572-510-0	01	1	9002-	●	●	●	●
16	UNION; AIR PIPE M22	9-09233-315-1	01	1	9002-	●	●	●	●
17	NUT; UNION M22	9-09111-422-0	01	1	9002-	●	●	●	●
18	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9002-	●	●	●	●
23	BOLT; BRKT,AIR PIPE M8X28 W/LK WASHER	9-01900-828-0	01	1	9002-9204	●	●
23	BOLT; BRKT,AIR PIPE M8X28 W/LK WASHER	0-50040-828-0	01	1	9205-9302	●	●
23	BOLT; BRKT,AIR PIPE M8X30 FLANGE	0-28080-830-0	01	1	9303-9306	●	●
23	BOLT; BRKT,AIR PIPE EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01910-825-0	01	1	9002-9005			●	●
23	BOLT; BRKT,AIR PIPE EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	01	1	9006-9302			●	●
23	BOLT; BRKT,AIR PIPE EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9303-9306			●	●
25	VALVE; CHECK EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5>	1-48410-138-1	01	1	9002-	●	●	●	●
26	NUT; CHECK VLV EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> M20	9-99111-420-0	01	1	9002-	●	●	●	●
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> ID=20.2	9-09150-520-0	01	1	9002-	●	●	●	●
51	UNION AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9002-	●	●	●	●
98	BRACKET; AIR PIPE (B)	1-47475-427-1	01	1	9003-	●	●	●	●
98	BRACKET; AIR PIPE EXC. CONCRETE PUMP<RA5> (A)	1-47475-303-1	01	1	9002-	●	●	●	●
117	UNION; AIR PIPE FULLER M/T<X9B> (A) M12 & M16X2 3WAY	1-09654-086-1	01	1	9002-9306	●	●
117	UNION; AIR PIPE ISUZU M/T<X9A> (A) M16	9-09228-910-0	01	1	9002-9103	●	●
117	UNION; AIR PIPE ISUZU M/T<X9A> (A) M16 3WAY	9-09238-910-1	01	1	9104-9306	●	●
117	UNION; AIR PIPE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B)	1-09656-426-1	01	1	9307-		●
117	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> (B)	1-09656-426-1	01	1	9307-				●
117	UNION; AIR PIPE EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP) (A) M16 3WAY	9-09238-910-1	01	1	9307-		●
117	UNION; AIR PIPE FULLER M/T<X9B> (B)	1-09656-444-1	01	1	9002-9306			●	●
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. CONCRETE PUMP<RA5> (B)	1-09656-426-1	01	1	9002-9306			●	●
118	NUT; UNION M12	9-09840-280-0	01	1	9002-	●	●
118	NUT; UNION EXC. CONCRETE PUMP<RA5> M16	9-99111-416-0	01	1	9002-	●	●	●	●
118	NUT; UNION EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> M12	9-99110-412-0	01	1	9002-9304			●	●
118	NUT; UNION EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> M12	9-99110-512-0	01	1	9305-			●	●
118	NUT; UNION CONCRETE PUMP<RA5> M12	9-99111-412-0	02	1	9002-				●
119	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9002-9312	●	●
119	WASHER; LK,UNION EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9002-9312			●	●
119	WASHER; LK,UNION CONCRETE PUMP<RA5> ID=12.2	9-09150-512-0	01	1	9002-9312				●
119	WASHER; LK,UNION EXC. CONCRETE PUMP<RA5> ID=16.2	9-09150-516-0	01	1	9002-9312	●	●	●	●
123	BRACKET; UNION EXC. CONCRETE PUMP<RA5> (B)	1-47475-857-1	01	1	9002-	●	●	●	●
123	BRACKET; UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-47475-432-3	01	1	9002-	●	●	●	●
123	BRACKET; UNION FULLER M/T<X9B> (A)	1-47475-432-3	01	1	9002-	●	●	●	●
123	BRACKET; UNION CONCRETE PUMP<RA5> (C)	1-47465-542-1	01	1	9002-				●
124	BOLT; BRKT EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●	●	●
124	BOLT; BRKT EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●	●	●	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●	●
124	BOLT; BRKT FULLER M/T<X9B> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●	●	●
124	BOLT; BRKT FULLER M/T<X9B> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●	●	●
124	BOLT; BRKT EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	02	1	9307-		●		●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE	0-28080-825-0	02	1	9307-		●		●
125	GROMMET; UNION CONCRETE PUMP<RA5> ID=28 OD=35 T=17	9-09956-256-1	01	1	9002-				●
155	GASKET; AIR PIPE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	03	1	9002-	●	●	●	●
163	BRACKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=50	1-47475-299-2	06	1	9002-9005	●	●	●	●
163	BRACKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=50	1-47475-299-2	05	1	9006-9306	●	●	●	●
163	BRACKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=50	1-47475-299-2	02	1	9307-		●		●
163	BRACKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9002-	●	●	●	●
178	UNION; AIR PIPE AIR DRYER<PS7> (A) M12	1-09654-087-1	01	1	9002-	●	●	●	●
178	UNION; AIR PIPE AIR DRYER<PS7> (B) M12 L=66.5	9-09223-306-1	01	1	9002-	●	●	●	●
179	NUT; UNION AIR DRYER<PS7> M12	9-09840-280-0	02	1	9002-	●	●	●	●
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	02	1	9002-9306	●	●	●	●
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	02	1	9307-9312		●		●
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9401-		●		●
189	BRACKET; FLEX HOSE AIR DRYER<PS7>	1-47475-874-0	01	1	9002-	●	●	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●	●	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	02	1	9307-		●		●
221	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●	●
221	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●	●	●
239	UNION; AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12	9-09228-306-1	01	1	9002-	●	●
239	UNION; AIR PIPE ISUZU M/T<X9A> EXC. CONCRETE PUMP<RA5>,TRANSMISSION SIDE PTO WO/LEVER(SH5),DUAL AIR GAUGE<UG2> (A) M12	9-09228-306-1	01	1	9002-			●	●
239	UNION; AIR PIPE FULLER M/T<X9B> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09656-392-2	01	1	9002-9306	●	●	●	●
239	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 3WAY	9-09228-906-1	01	1	9002-	●	●	●	●
239	UNION; AIR PIPE ISUZU M/T<X9A> DUAL AIR GAUGE<UG2> EXC. CONCRETE PUMP<RA5>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 2WAY	1-09654-059-2	01	1	9002-			●	●
239	UNION; AIR PIPE CONCRETE PUMP<RA5> (B) M12 & M16X2 3WAY	1-09656-352-1	01	1	9002-				●
240	NUT; UNION,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-412-0	01	1	9002-9304	●	●	●	●
240	NUT; UNION,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-512-0	01	1	9305-	●	●	●	●
240	NUT; UNION,AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. CONCRETE PUMP<RA5> M12	9-09840-280-0	01	1	9002-	●	●	●	●
240	NUT; UNION,AIR PIPE FULLER M/T<X9B> M12	9-09840-280-0	01	1	9002-	●	●	●	●
240	NUT; UNION,AIR PIPE CONCRETE PUMP<RA5> M12	9-99111-412-0	01	1	9002-				●
241	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9002-9312	●	●	●	●
243	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5>	1-09654-220-1	01	1	9002-	●	●	●	●
244	NUT; UNION,AIR PIPE M12	9-99110-412-0	01	1	9002-9304	●	●	●	●
244	NUT; UNION,AIR PIPE M12	9-99110-512-0	01	1	9305-	●	●	●	●
245	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9002-9312	●	●	●	●
339	GROMMET; AIR PIPE CONCRETE PUMP<RA5> ID=32 OD=40 T=18	1-09891-003-0	01	1	9002-				●
421	NUT; BRKT AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-	●	●	●	●

287 272 169 137 287 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. DUAL AIR GAUGE<UG2> (A) L=840	1-09363-368-1	01	1	9002-	●	●	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B) L=660	0-07030-660-0	01	1	9307-		●
169	PIPE; AIR,UNION TO FLEX HOSE AIR SUSP DRIVER SEAT W/ARM REST(SGP) L=3024	1-47499-296-0	01	1	9307-		●
272	PIPE; AIR,MAG VLV TO UNION (C) L=1102 SERVICED BY L=1200	1-47434-388-0	01	1	9002-	●	●
272	PIPE; AIR,MAG VLV TO UNION FIRE TRUCK<RA9> (D) L=431 SERVICED BY L=460	9-47415-349-0	01	1	9002-9306		●		●
272	PIPE; AIR,MAG VLV TO UNION EXC. CONCRETE PUMP<RA5> (C) L=2828 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306			●	●
272	PIPE; AIR,MAG VLV TO UNION EXC. CONCRETE PUMP<RA5> (C) L=2870 SERVICED BY L=2900	1-47426-364-0	01	1	9307-				●
272	PIPE; AIR,MAG VLV TO UNION CONCRETE PUMP<RA5> (B) L=520 SERVICED BY L=550	1-47413-548-0	01	1	9002-				●
272	PIPE; AIR,MAG VLV TO UNION CONCRETE PUMP<RA5> (A) L=2634 SERVICED BY L=2650	1-47434-399-0	01	1	9002-				●
287	PIPE; AIR,MAG VLV	1-47444-990-2	01	1	9002-9212	●	●
287	PIPE; AIR,MAG VLV	1-47496-263-0	01	1	9301-	●	●
287	PIPE; AIR,MAG VLV	1-47488-299-0	01	1	9002-9306			●	●
287	PIPE; AIR,MAG VLV	1-47496-264-0	01	1	9307-				●

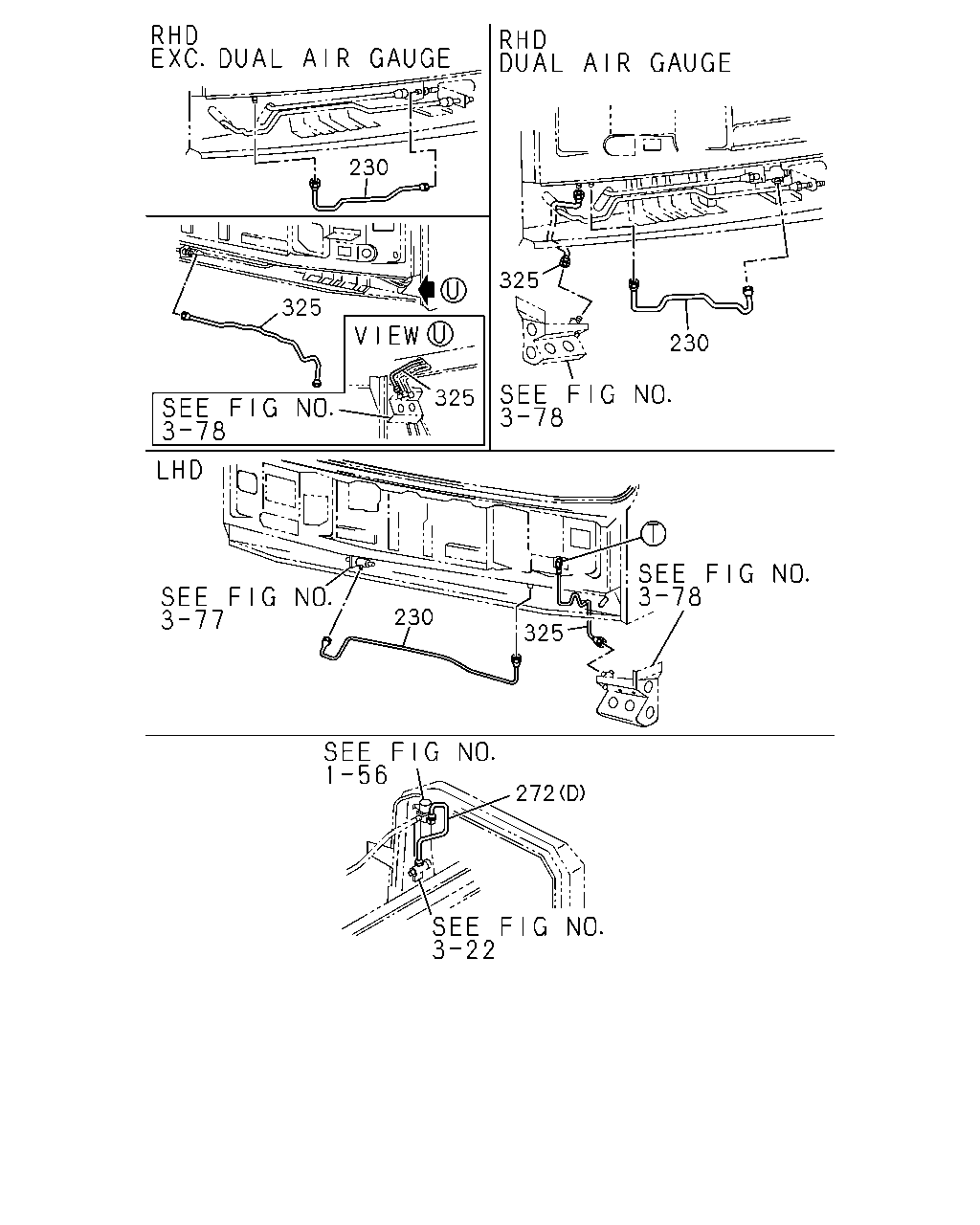

325 230 230 325 325 230 325 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> L=667	1-47448-466-1	01	1	9002-	●	●
230	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2>,CAB SUSPENSION RIGID<W71> L=638	1-47448-468-1	01	1	9002-	●	●
230	PIPE; AIR,UNION TO UNION CAB SUSPENSION RIGID<W71> EXC. DUAL AIR GAUGE<UG2> L=622 SERVICED BY L=695	9-47416-729-0	01	1	9002-9306		●
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> L=964	1-47448-808-0	01	1	9002-			●	●
272	PIPE; AIR,MAG VLV TO UNION (C) L=1102 SERVICED BY L=1200	1-47434-388-0	01	1	9002-	●	●
272	PIPE; AIR,MAG VLV TO UNION FIRE TRUCK<RA9> (D) L=431 SERVICED BY L=460	9-47415-349-0	01	1	9002-9306		●		●
272	PIPE; AIR,MAG VLV TO UNION EXC. CONCRETE PUMP<RA5> (C) L=2828 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306			●	●
272	PIPE; AIR,MAG VLV TO UNION EXC. CONCRETE PUMP<RA5> (C) L=2870 SERVICED BY L=2900	1-47426-364-0	01	1	9307-				●
272	PIPE; AIR,MAG VLV TO UNION CONCRETE PUMP<RA5> (B) L=520 SERVICED BY L=550	1-47413-548-0	01	1	9002-				●
272	PIPE; AIR,MAG VLV TO UNION CONCRETE PUMP<RA5> (A) L=2634 SERVICED BY L=2650	1-47434-399-0	01	1	9002-				●
325	PIPE; AIR,FLEX HOSE TO UNION DUAL AIR GAUGE<UG2> L=530	1-47445-586-1	01	1	9002-	●	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>,CAB SUSPENSION RIGID<W71> L=1594	1-47448-029-2	01	1	9002-	●	●
325	PIPE; AIR,FLEX HOSE TO UNION CAB SUSPENSION RIGID<W71> EXC. DUAL AIR GAUGE<UG2> L=1575	1-47484-560-1	01	1	9002-9306		●
325	PIPE; AIR,FLEX HOSE TO UNION DUAL AIR GAUGE<UG2> L=577	1-47448-182-0	01	1	9002-			●	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=720	1-47448-807-1	01	1	9002-			●	●

169 320 319 137 319 320 258 100 235 236 234 158 179 159 180 178 156 131 131 119 118 127 127 239 129 241 128 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
100	CONNECTOR; AIR PIPE M14	1-09650-031-0	01	1	9002-9103	●	●	●	●
100	CONNECTOR; AIR PIPE M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-	●	●	●	●
118	NUT; UNION M12	9-09840-280-0	01	1	9002-	●	●
118	NUT; UNION EXC. CONCRETE PUMP<RA5> M16	9-99111-416-0	01	1	9002-	●	●	●	●
118	NUT; UNION EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> M12	9-99110-412-0	01	1	9002-9304			●	●
118	NUT; UNION EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> M12	9-99110-512-0	01	1	9305-			●	●
118	NUT; UNION CONCRETE PUMP<RA5> M12	9-99111-412-0	02	1	9002-				●
119	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9002-9312	●	●
119	WASHER; LK,UNION EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9002-9312			●	●
119	WASHER; LK,UNION CONCRETE PUMP<RA5> ID=12.2	9-09150-512-0	01	1	9002-9312				●
119	WASHER; LK,UNION EXC. CONCRETE PUMP<RA5> ID=16.2	9-09150-516-0	01	1	9002-9312	●	●	●	●
127	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12	9-09228-306-1	01	1	9002-	●	●
127	UNION; AIR PIPE FULLER M/T<X9B> (B) M12	9-09228-306-1	01	1	9002-	●	●
127	UNION; AIR PIPE FULLER M/T<X9B> EXC. DUAL AIR GAUGE<UG2> (B) M12	9-09228-306-1	01	1	9002-			●	●
127	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (B) M12	9-09228-306-1	01	1	9002-			●	●
127	UNION; AIR PIPE FULLER M/T<X9B> DUAL AIR GAUGE<UG2> (A) M12 2WAY	1-09654-059-2	01	1	9002-			●	●
127	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. CONCRETE PUMP<RA5> (A) M12 2WAY	1-09654-059-2	01	1	9002-			●	●
127	UNION; AIR PIPE CONCRETE PUMP<RA5> (A) M12 2WAY	1-09654-059-2	01	1	9002-				●
128	NUT; PIPE UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-412-0	01	1	9002-9304	●	●	●	●
128	NUT; PIPE UNION FULLER M/T<X9B> M12	9-99110-412-0	01	1	9002-9304	●	●	●	●
128	NUT; PIPE UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-512-0	01	1	9305-9306	●	●	●	●
128	NUT; PIPE UNION FULLER M/T<X9B> M12	9-99110-512-0	01	1	9305-9306	●	●	●	●
128	NUT; PIPE UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-512-0	01	1	9307-		●		●
128	NUT; PIPE UNION CONCRETE PUMP<RA5> M12	9-99111-412-0	01	1	9002-				●
129	WASHER; LK,PIPE UNION FULLER M/T<X9B> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●	●	●
129	WASHER; LK,PIPE UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. CONCRETE PUMP<RA5> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●	●	●
129	WASHER; LK,PIPE UNION CONCRETE PUMP<RA5> ID=12.2	9-09150-512-0	01	1	9002-9312				●
131	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (A) M12 ELBOW	9-09225-206-1	01	1	9002-	●	●
131	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A) M12 3WAY	9-09228-906-1	01	1	9002-	●	●
131	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (B) M12 2WAY	1-09654-059-2	01	1	9002-			●	●
131	UNION; AIR PIPE CONCRETE PUMP<RA5> (B) M12 2WAY	1-09654-059-2	01	1	9002-				●
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. DUAL AIR GAUGE<UG2> (A) L=840	1-09363-368-1	01	1	9002-	●	●	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B) L=660	0-07030-660-0	01	1	9307-		●
156	UNION; AIR PIPE EXC. AIR DRYER<PS7> M12 L=66.5	9-09223-306-1	01	1	9002-	●	●	●	●
158	NUT; UNION,AIR PIPE EXC. AIR DRYER<PS7> M12	9-09840-280-0	01	1	9002-	●	●	●	●
159	WASHER; LK,UNION,AIR PIPE EXC. AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●	●	●
169	PIPE; AIR,UNION TO FLEX HOSE AIR SUSP DRIVER SEAT W/ARM REST(SGP) L=3024	1-47499-296-0	01	1	9307-		●
178	UNION; AIR PIPE AIR DRYER<PS7> (A) M12	1-09654-087-1	01	1	9002-	●	●	●	●
178	UNION; AIR PIPE AIR DRYER<PS7> (B) M12 L=66.5	9-09223-306-1	01	1	9002-	●	●	●	●
179	NUT; UNION AIR DRYER<PS7> M12	9-09840-280-0	02	1	9002-	●	●	●	●
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	02	1	9002-9306	●	●	●	●
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	02	1	9307-9312		●		●
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9401-		●		●
234	UNION; AIR PIPE CONCRETE PUMP<RA5> M12 ELBOW	9-09225-206-1	01	1	9002-				●
235	NUT; PIPE UNION CONCRETE PUMP<RA5> M12	9-09840-280-0	01	1	9002-				●
236	WASHER; LK,UNION,PIPE CONCRETE PUMP<RA5> ID=12.2	9-09150-512-0	01	1	9002-				●
239	UNION; AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12	9-09228-306-1	01	1	9002-	●	●
239	UNION; AIR PIPE ISUZU M/T<X9A> EXC. CONCRETE PUMP<RA5>,TRANSMISSION SIDE PTO WO/LEVER(SH5),DUAL AIR GAUGE<UG2> (A) M12	9-09228-306-1	01	1	9002-			●	●
239	UNION; AIR PIPE FULLER M/T<X9B> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09656-392-2	01	1	9002-9306	●	●	●	●
239	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 3WAY	9-09228-906-1	01	1	9002-	●	●	●	●
239	UNION; AIR PIPE ISUZU M/T<X9A> DUAL AIR GAUGE<UG2> EXC. CONCRETE PUMP<RA5>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 2WAY	1-09654-059-2	01	1	9002-			●	●
239	UNION; AIR PIPE CONCRETE PUMP<RA5> (B) M12 & M16X2 3WAY	1-09656-352-1	01	1	9002-				●
240	NUT; UNION,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-412-0	01	1	9002-9304	●	●	●	●
240	NUT; UNION,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-512-0	01	1	9305-	●	●	●	●
240	NUT; UNION,AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. CONCRETE PUMP<RA5> M12	9-09840-280-0	01	1	9002-	●	●	●	●
240	NUT; UNION,AIR PIPE FULLER M/T<X9B> M12	9-09840-280-0	01	1	9002-	●	●	●	●
240	NUT; UNION,AIR PIPE CONCRETE PUMP<RA5> M12	9-99111-412-0	01	1	9002-				●
241	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9002-9312	●	●	●	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-09660-599-1	01	1	9206-9306			●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B)	1-09660-626-0	01	1	9307-		●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9002-	●	●	●	●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9002-	●	●	●	●
319	NUT; FLEX HOSE,CAB SIDE AIR SUSP DRIVER SEAT W/ARM REST(SGP) M12	9-09840-280-0	02	1	9307-		●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9002-	●	●	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9002-	●	●	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE AIR SUSP DRIVER SEAT W/ARM REST(SGP) ID=12.2	9-09150-512-0	02	1	9307-		●

434 434 319 320 137 320 319 325 231 231 231 232 233 231 336 231 233 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. DUAL AIR GAUGE<UG2> (A) L=840	1-09363-368-1	01	1	9002-	●	●	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B) L=660	0-07030-660-0	01	1	9307-		●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (A)	1-09654-180-3	02	1	9002-	●	●
231	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-09654-180-3	01	1	9002-	●	●
231	UNION; AIR PIPE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-09654-180-3	01	1	9002-			●	●
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (E)	1-09656-167-1	01	1	9206-9302			●	●
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (D)	1-09656-161-1	01	1	9303-9306			●	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B)	1-47470-194-1	01	1	9002-			●	●
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09660-565-0	01	1	9303-9306				●
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	9002-	●	●
232	NUT; UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9002-	●	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	9002-			●	●
233	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	9002-	●	●
233	WASHER; LK,UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9002-	●	●
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	9002-			●	●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9002-	●	●	●	●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9002-	●	●	●	●
319	NUT; FLEX HOSE,CAB SIDE AIR SUSP DRIVER SEAT W/ARM REST(SGP) M12	9-09840-280-0	02	1	9307-		●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9002-	●	●	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9002-	●	●	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE AIR SUSP DRIVER SEAT W/ARM REST(SGP) ID=12.2	9-09150-512-0	02	1	9307-		●
325	PIPE; AIR,FLEX HOSE TO UNION DUAL AIR GAUGE<UG2> L=530	1-47445-586-1	01	1	9002-	●	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>,CAB SUSPENSION RIGID<W71> L=1594	1-47448-029-2	01	1	9002-	●	●
325	PIPE; AIR,FLEX HOSE TO UNION CAB SUSPENSION RIGID<W71> EXC. DUAL AIR GAUGE<UG2> L=1575	1-47484-560-1	01	1	9002-9306		●
325	PIPE; AIR,FLEX HOSE TO UNION DUAL AIR GAUGE<UG2> L=577	1-47448-182-0	01	1	9002-			●	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=720	1-47448-807-1	01	1	9002-			●	●
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204			●	●
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301			●	●
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302			●	●
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306			●	●
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-				●
434	CLIP DUAL AIR GAUGE<UG2> (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9002-	●	●	●	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B) ID=14	8-94157-443-0	01	1	9307-	●	●	●	●

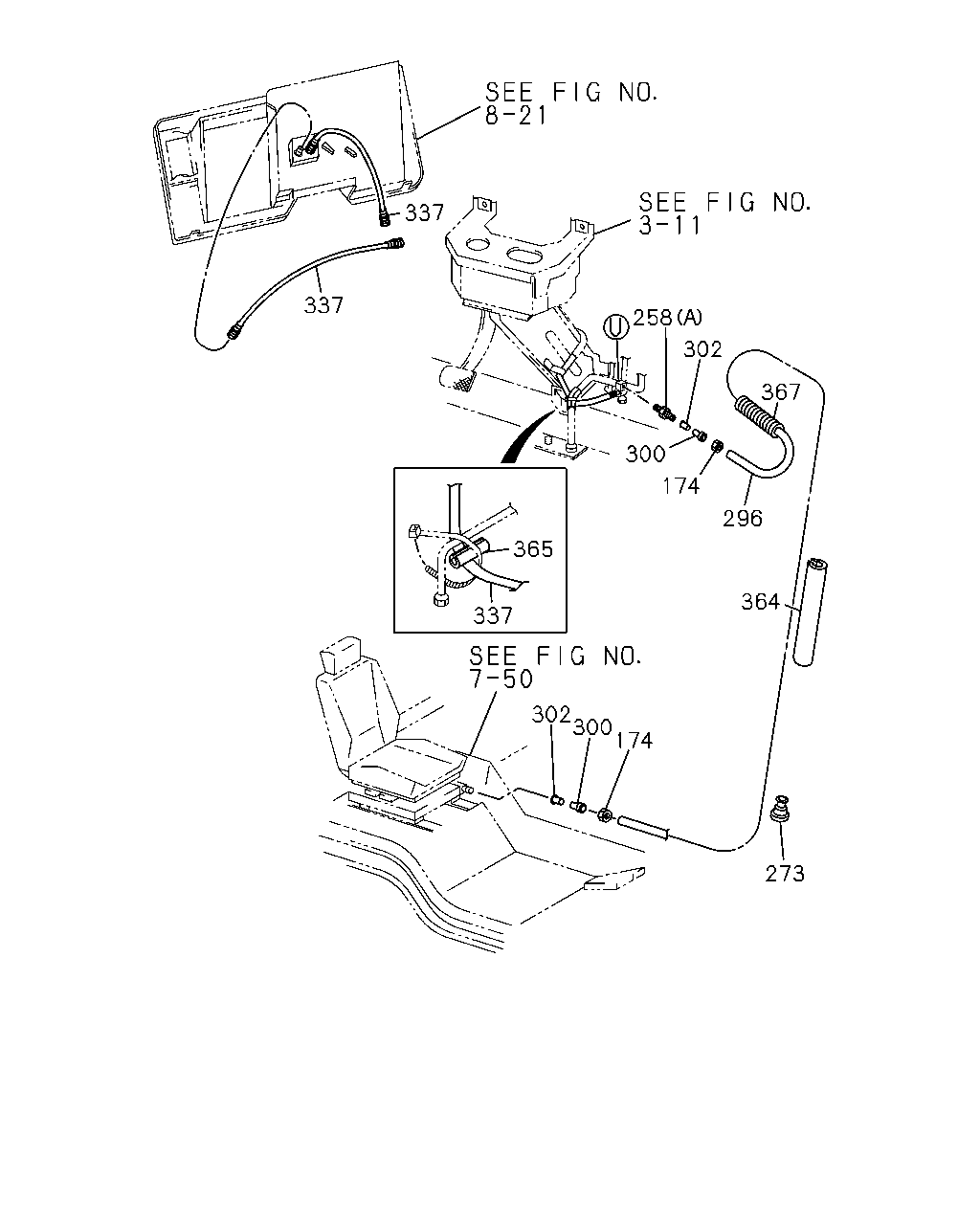

273 174 300 302 364 296 174 300 365 337 367 302 258 337 337

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
174	NUT; SLEEVE,AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA)	1-09660-589-0	02	1	9206-9306			●	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-09660-599-1	01	1	9206-9306			●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B)	1-09660-626-0	01	1	9307-		●
273	GROMMET AIR SUSP DRIVER SEAT W/ARM REST(SGP)	1-09332-102-0	01	1	9307-		●
296	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9206-9306			●	●
300	SLEEVE; TUBE DRIVER ISRINGHAUSEN SEAT(SJA)	1-09666-064-0	02	1	9206-9306			●	●
302	RING; INSERT DRIVER ISRINGHAUSEN SEAT(SJA)	1-09669-106-0	02	1	9206-9306			●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	02	1	9002-	●	●	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	01	1	9002-	●	●	●	●
364	PROTECTOR; AIR GAUGE HOSE DUAL AIR GAUGE<UG2> L=240	1-71998-400-0	01	1	9002-	●	●	●	●
365	SLEEVE; RUBBER,FLEX HOSE DUAL AIR GAUGE<UG2> ID=10 OD=14 L=30	9-09956-682-0	02	1	9002-			●	●
365	SLEEVE; RUBBER,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=10 OD=14 L=30	9-09956-682-0	01	1	9002-			●	●
367	TUBE; CORRUGATE DUAL AIR GAUGE<UG2> L=350 SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	9307-			●	●
367	TUBE; CORRUGATE EXC. DUAL AIR GAUGE<UG2> L=350 SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9307-			●	●

238 126 130 250 217 166 237 238 242 153 33 250 130 126 237 262 171 154 21 34 176 242 238 238

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=827	1-47487-501-0	01	1	9002-	●	●	●	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=691 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306				●
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-47482-402-0	01	1	9002-	●	●
33	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-47482-402-0	01	1	9002-			●	●
33	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> L=882 SERVICED BY L=1000	1-47434-491-1	01	1	9002-			●	●
33	PIPE; AIR,UNION TO AIR TANK CONCRETE PUMP<RA5> L=224	1-47444-965-1	01	1	9002-				●
34	PIPE; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-47434-485-1	01	1	9002-9306	●	●	●	●
34	PIPE; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-49111-443-0	01	1	9307-		●		●
34	PIPE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=735 SERVICED BY L=800	1-47437-980-0	01	1	9002-9306				●
126	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> L=471	1-47488-493-0	01	1	9002-9306	●	●	●	●
126	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) L=477 SERVICED BY L=500	9-47415-350-0	01	1	9002-	●	●	●	●
126	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1136 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9202				●
126	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1160 SERVICED BY L=1200	1-47434-388-0	01	1	9203-				●
130	PIPE; AIR,UNION TO UNION (C) L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306	●	●
130	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (C) L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306			●	●
130	PIPE; AIR,UNION TO UNION (C) L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-		●
130	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (C) L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-				●
130	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> (A) L=894 SERVICED BY L=900	1-47434-385-0	01	1	9002-				●
130	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> (B) L=1268 SERVICED BY L=1370	1-47434-390-0	01	1	9002-				●
153	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=852 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306	●	●	●	●
153	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=997 SERVICED BY L=1000	1-47426-350-0	01	1	9307-		●		●
153	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> L=586 SERVICED BY L=600	9-47415-352-0	01	1	9002-			●	●
153	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=945	1-47444-325-0	01	1	9002-				●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-47487-299-0	01	1	9002-	●	●	●	●
166	PIPE; AIR,UNION TO GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2>	1-47485-195-0	01	1	9002-	●		●
166	PIPE; AIR,UNION TO GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-47485-195-0	01	1	9002-		●		●
166	PIPE; AIR,UNION TO GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> EXC. AIR DRYER<PS7>	1-47482-945-0	01	1	9002-9306	●		●
166	PIPE; AIR,UNION TO GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> EXC. AIR DRYER<PS7>	1-47487-521-0	01	1	9002-9306			●
166	PIPE; AIR,UNION TO GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>	1-47487-522-0	01	1	9002-9306			●	●
166	PIPE; AIR,UNION TO GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-47487-522-0	01	1	9307-				●
166	PIPE; AIR,UNION TO GOV CONCRETE PUMP<RA5>	1-47449-813-0	01	1	9002-9308				●
166	PIPE; AIR,UNION TO GOV CONCRETE PUMP<RA5>	1-49111-218-0	01	1	9309-				●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=992	1-47487-300-0	01	1	9002-	●	●	●	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=696 SERVICED BY L=800	1-47426-348-0	01	1	9002-9306			●	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1209 SERVICED BY L=1250	1-47434-389-0	01	1	9002-	●	●	●	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=603 SERVICED BY L=650	9-47415-353-0	01	1	9002-9306			●	●
217	PIPE; VAC,UNION TO MAG VLV MIXER TRUCK<RA2> L=1089 SERVICED BY L=1100	1-47434-387-0	01	1	9002-9306	●		●
217	PIPE; VAC,UNION TO MAG VLV EXC. MIXER TRUCK<RA2> L=1176 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306	●		●
217	PIPE; VAC,UNION TO MAG VLV EXC. CONCRETE PUMP<RA5> L=1176 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306		●		●
217	PIPE; VAC,UNION TO MAG VLV EXC. CONCRETE PUMP<RA5> L=1003 SERVICED BY L=1100	1-47426-351-0	01	1	9307-		●		●
217	PIPE; VAC,UNION TO MAG VLV CONCRETE PUMP<RA5> L=1286 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306				●
217	PIPE; VAC,UNION TO MAG VLV CONCRETE PUMP<RA5> L=1263 SERVICED BY L=1370	1-47426-354-0	01	1	9307-				●
237	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2>	1-47482-400-0	01	1	9002-	●	●	●	●
237	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2>	1-47485-191-0	01	1	9002-9306	●		●
237	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2>	1-47487-559-0	01	1	9002-9306			●
237	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>	1-47487-558-0	01	1	9002-			●	●
237	PIPE; AIR,FLEX HOSE TO UNION CONCRETE PUMP<RA5>	1-47444-964-0	01	1	9002-				●
238	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> (A) L=619 SERVICED BY L=660	1-47437-964-0	01	1	9002-9007	●	●	●	●
238	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> (A) L=490 SERVICED BY L=500	1-47434-472-0	01	1	9008-9306	●	●	●	●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> (B) L=1367 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●	●	●
238	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. CONCRETE PUMP<RA5>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=1919 SERVICED BY L=2000	1-47426-359-0	01	1	9002-	●	●	●	●
238	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=1360 SERVICED BY L=1370	1-47434-390-0	01	1	9002-	●	●	●	●
238	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> (A) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-		●		●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=964 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●	●	●	●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=964 SERVICED BY L=1000	1-47426-414-0	01	1	9307-		●		●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=663 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306			●	●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=656 SERVICED BY L=660	1-47426-409-0	01	1	9307-				●
242	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=1781 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9306				●
242	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=1781 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9309				●
242	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> L=1803 SERVICED BY L=1900	1-47426-421-0	01	1	9310-				●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1391 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9308	●	●	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-		●		●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. MIXER TRUCK<RA2> L=935 SERVICED BY L=1000	1-47434-386-0	01	1	9002-	●	●	●	●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> L=945 SERVICED BY L=1000	1-47434-386-0	01	1	9002-9306	●		●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> MIXER TRUCK<RA2> L=920 SERVICED BY L=1000	1-47434-386-0	01	1	9002-9306			●
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. MIXER TRUCK<RA2> L=881 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
