Isuzu WW
▶
BUSES
▶
LT
▶
10892 - LT134-RHD EXC.EURO4
▶
0 - Engine, Emission, Engine Electrical
▶

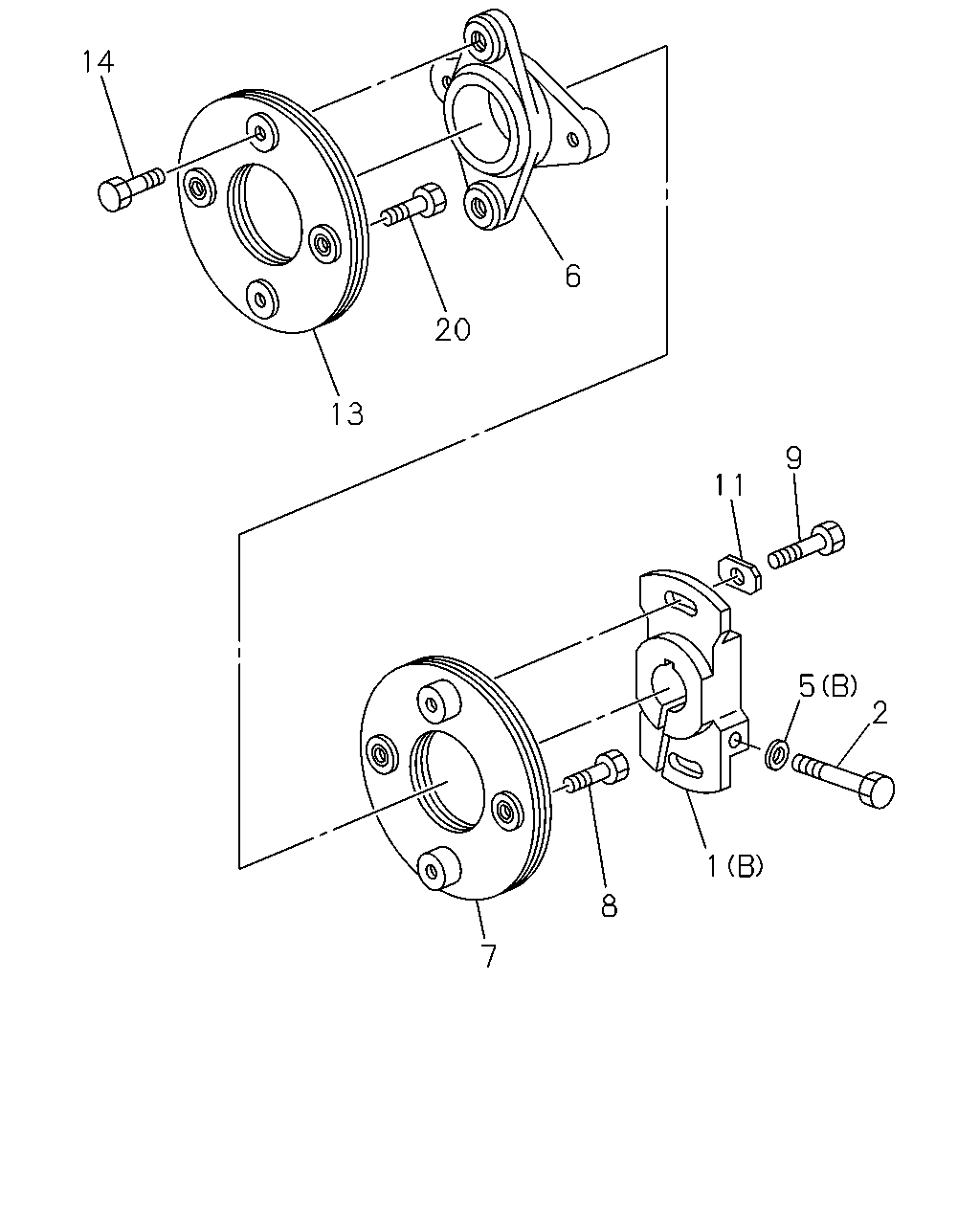

0-87 - COUPLING; INJECTION PUMP
▶
0-87 — COUPLING; INJECTION PUMP
(#30246) — 18 parça
◀
[087A] DAMPER ASM;INJ PUMP (5 parça)
[087A] COMPONENT;INJ PUMP DRIVE COUPLING (13 parça)
▶
5
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COUPLING; INJ PUMP DRIVE
(B)
1-15781-041-0
01
1
0107-
1
COUPLING; INJ PUMP DRIVE
(A)
1-15781-046-0
01
1
0107-
3
NUT; COUPLING FIX,INJ PUMP
1-15619-132-0
01
1
0107-
5
WASHER; COUPLING FIX,INJ PUMP
(B)
1-15789-021-0
01
1
0107-
5
WASHER; COUPLING FIX,INJ PUMP
(A)
1-15619-131-0
01
1
0107-
14
6
20
13
9
11
5
2
1
8
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COUPLING; INJ PUMP DRIVE
(B)
1-15781-041-0
01
1
0107-
1
COUPLING; INJ PUMP DRIVE
(A)
1-15781-046-0
01
1
0107-
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-162-0
01
1
0107-
5
WASHER; COUPLING FIX,INJ PUMP
(B)
1-15789-021-0
01
1
0107-
5
WASHER; COUPLING FIX,INJ PUMP
(A)
1-15619-131-0
01
1
0107-
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-161-0
01
1
0107-
7
PLATE; COUPLING,COUPLING SIDE
1-15789-189-1
01
1
0107-
8
BOLT; PLATE TO CROSS COUPLING
1-15619-183-0
02
1
0107-
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-163-0
02
1
0107-
11
WASHER; PLATE TO COUPLING,INJ PUMP
1-15789-188-0
02
1
0107-
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15619-181-0
01
1
0107-
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15619-183-0
02
1
0107-
20
BOLT; COUPLING TO INJ PUMP
1-15619-183-0
02
1
0107-
