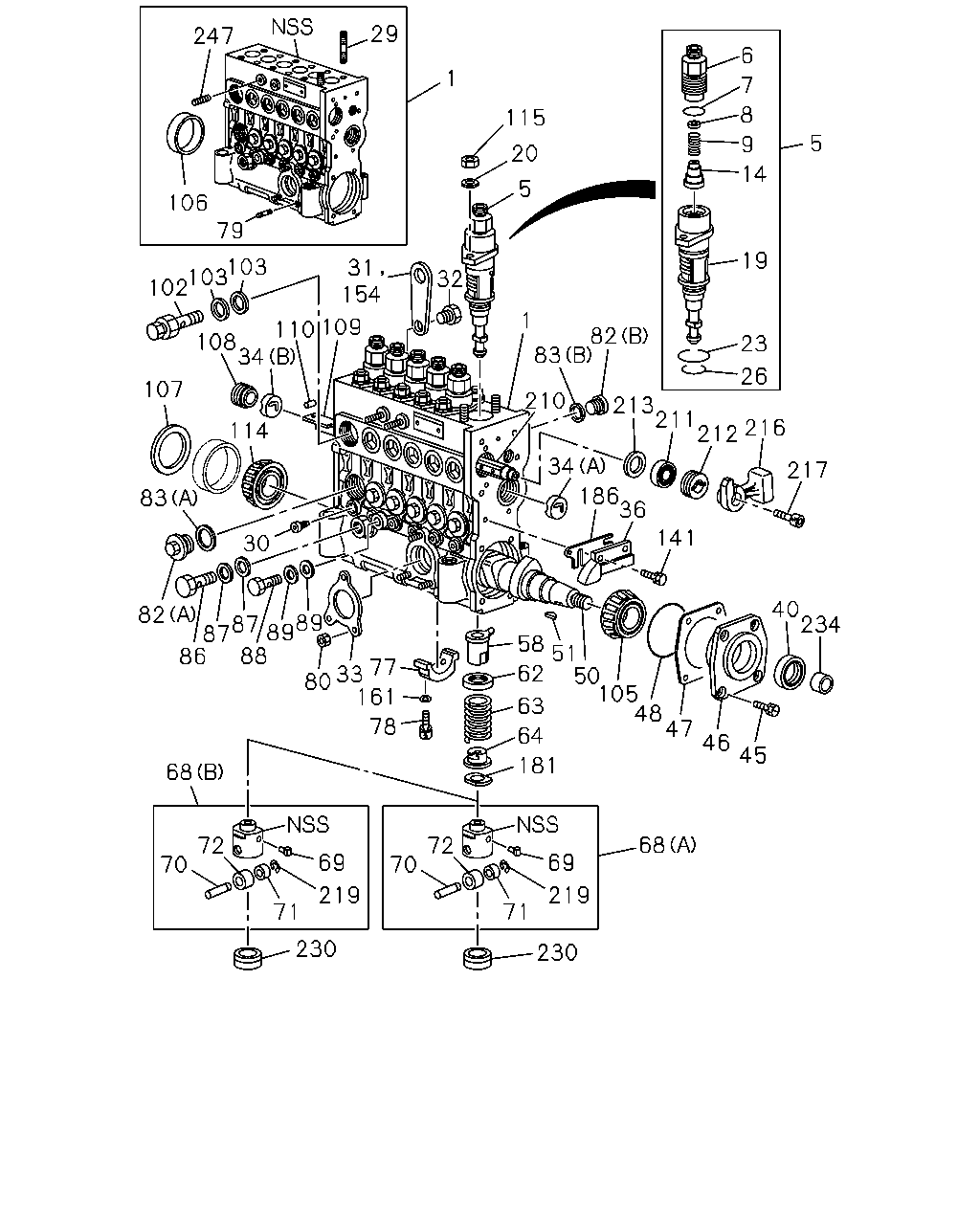

1 |
HOUSING; PUMP,FUEL INJ
ASM PART: A = 8-97601-717-3
|
1-15611-212-0 |
01 |
1 |
- |
| |
5 |
PLUNGER COMPL; INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15631-231-0 |
06 |
1 |
- |
| |
6 |
HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15644-018-0 |
06 |
1 |
- |
| |
7 |
GASKET; HOLDER,DELIVERY VLV
ASM PART: A = 8-97601-717-3
|
1-15619-456-0 |
06 |
1 |
- |
| |
8 |
STOPPER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15639-104-0 |
06 |
1 |
- |
| |
9 |
SPRING; DELIVERY VLV
ASM PART: A = 8-97601-717-3
|
1-15643-012-0 |
06 |
1 |
- |
| |
14 |
VALVE; DELIVERY,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15619-453-0 |
06 |
1 |
- |
| |
19 |
PLUNGER ASM; INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15632-066-0 |
06 |
1 |
- |
| |
20 |
WASHER; PLUNGER BARREL
ASM PART: A = 8-97601-717-3
|
1-15639-020-0 |
12 |
1 |
- |
| |
23 |
GASKET; PLUNGER,BARREL SIDE
ASM PART: A = 8-97601-717-3
|
1-15629-131-0 |
06 |
1 |
- |
| |
26 |
GASKET; PLUNGER UPR
ASM PART: A = 8-97601-717-3
|
1-15629-132-0 |
06 |
1 |
- |
| |
29 |
STUD; PLUNGER FIX,PUMP HSG
ASM PART: A = 8-97601-717-3
|
1-15619-426-0 |
12 |
1 |
- |
| |
30 |
PLUG; SCREW,INJ PUMP HSG
ASM PART: A = 8-97601-717-3
|
9-81215-130-0 |
06 |
1 |
- |
| |
31 |
HANGER; FRT,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15619-347-0 |
01 |
1 |
- |
| |
32 |
BOLT; HANGER TO INJ PUMP
ASM PART: A = 8-97601-717-3
|
9-02341-012-0 |
02 |
1 |
- |
| |
33 |
GASKET; FUEL FEED PUMP,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15619-320-0 |
01 |
1 |
- |
| |
34 |
BUSHING; CONT RACK,INJ PUMP
(A) ASM PART: A = 8-97601-717-3
|
1-15619-493-0 |
01 |
1 |
- |
| |
34 |
BUSHING; CONT RACK,INJ PUMP
(B) ASM PART: A = 8-97601-717-3
|
1-15619-510-0 |
01 |
1 |
- |
| |
36 |
POINTER; TIMING,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15619-304-0 |
01 |
1 |
- |
| |
40 |
SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15749-498-0 |
01 |
1 |
- |
| |
45 |
BOLT; FRT COVER TO HSG
ASM PART: A = 8-97601-717-3
|
1-15619-338-0 |
04 |
1 |
- |
| |
46 |
COVER; FRT,PUMP HSG
ASM PART: A = 8-97601-717-3
|
1-15612-063-0 |
01 |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.10
ASM PART: A = 8-97601-717-3
|
1-15639-166-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.12
ASM PART: A = 8-97601-717-3
|
1-15639-167-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.14
ASM PART: A = 8-97601-717-3
|
1-15639-168-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.16
ASM PART: A = 8-97601-717-3
|
1-15639-169-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.18
ASM PART: A = 8-97601-717-3
|
1-15639-170-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.30
ASM PART: A = 8-97601-717-3
|
1-15639-171-0 |
AR |
1 |
- |
| |
47 |
SHIM; FRT COVER,INJ PUMP HSG
T=0.50
ASM PART: A = 8-97601-717-3
|
1-15639-172-0 |
AR |
1 |
- |
| |
48 |
GASKET; FRT COVER TO HSG
ASM PART: A = 8-97601-717-3
|
1-15619-318-0 |
01 |
1 |
- |
| |
50 |
CAMSHAFT; INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15621-116-0 |
01 |
1 |
- |
| |
51 |
KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15629-009-0 |
01 |
1 |
- |
| |
58 |
SLEEVE; CONT,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15635-006-0 |
06 |
1 |
- |
| |
62 |
SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15634-020-0 |
06 |
1 |
- |
| |
63 |
SPRING; PLUNGER,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15634-022-0 |
06 |
1 |
- |
| |
64 |
SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15634-021-0 |
06 |
1 |
- |
| |
68 |
TAPPET; CM/SHF,INJ PUMP
(A) PLUNGER NO.1,4,5,6
ASM PART: A = 8-97601-717-3
|
1-15622-014-0 |
04 |
1 |
- |
| |
68 |
TAPPET; CM/SHF,INJ PUMP
(B) PLUNGER NO.2,3
ASM PART: A = 8-97601-717-3
|
1-15622-015-0 |
02 |
1 |
- |
| |
69 |
GUIDE; TAPPET,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15629-134-0 |
06 |
1 |
- |
| |
70 |
PIN; TAPPET ROLLER,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15619-431-0 |
06 |
1 |
- |
| |
71 |
BUSHING; TAPPET ROLLER,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15629-133-0 |
06 |
1 |
- |
| |
72 |
ROLLER; TAPPET,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15619-430-0 |
06 |
1 |
- |
| |
77 |
BEARING; CM/SHF CENTER,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15619-433-0 |
03 |
1 |
- |
| |
78 |
BOLT; CENTER BRG,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-09054-030-0 |
06 |
1 |
- |
| |
79 |
STUD; FUEL FEED PUMP TO HSG
ASM PART: A = 8-97601-717-3
|
9-81215-115-0 |
03 |
1 |
- |
| |
80 |
NUT; FUEL FEED PUMP FIX
ASM PART: A = 8-97601-717-3
|
8-94171-110-0 |
03 |
1 |
- |
| |
82 |
PLUG; HSG,INJ PUMP
(A) ASM PART: A = 8-97601-717-3
|
1-15619-436-0 |
06 |
1 |
- |
| |
82 |
PLUG; HSG,INJ PUMP
(B) ASM PART: A = 8-97601-717-3
|
1-15619-437-0 |
07 |
1 |
- |
| |
83 |
GASKET; HSG PLUG
(B) ASM PART: A = 8-97601-717-3
|
1-15619-102-0 |
07 |
1 |
- |
| |
83 |
GASKET; HSG PLUG
(A) ASM PART: A = 8-97601-717-3
|
5-15729-021-0 |
06 |
1 |
- |
| |
86 |
BOLT; EYE,OIL RETURN,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15619-457-0 |
01 |
1 |
- |
| |
87 |
GASKET; OIL RETURN BOLT,INJ PUMP
ID=14.2 OD=19.2
ASM PART: A = 8-97601-717-3
|
1-09630-085-0 |
02 |
1 |
- |
| |
88 |
BOLT; EYE,OIL FEED,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15619-092-0 |
01 |
1 |
- |
| |
89 |
GASKET; OIL FEED BOLT,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15719-093-0 |
02 |
1 |
- |
| |
102 |
VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15619-447-0 |
01 |
1 |
- |
| |
103 |
GASKET; OVERFLOW VLV,INJ PUMP
ID=14.2 OD=19.2
ASM PART: A = 8-97601-717-3
|
1-09630-085-0 |
02 |
1 |
- |
| |
105 |
BEARING; CM/SHF RR,INJ PUMP
ASM PART: A = 8-97601-717-3
|
9-81225-068-0 |
01 |
1 |
- |
| |
106 |
RING; HSG,INJ PUMP
ASM PART: A = 8-97601-717-3
|
9-81225-064-0 |
01 |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=0.60
ASM PART: A = 8-97601-717-3
|
1-15639-019-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=1.50
ASM PART: A = 8-97601-717-3
|
9-81215-176-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=1.80
ASM PART: A = 8-97601-717-3
|
9-81215-177-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=2.00
ASM PART: A = 8-97601-717-3
|
9-81215-178-0 |
AR |
1 |
- |
| |
107 |
SHIM; RR BEARING,CM/SHF
T=1.20
ASM PART: A = 8-97601-717-3
|
9-88410-441-0 |
AR |
1 |
- |
| |
108 |
BUSHING; CONT RACK END,INJ PUMP
ASM PART: A = 8-97601-717-3
|
9-81215-125-0 |
01 |
1 |
- |
| |
109 |
RACK; CONT,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15637-055-0 |
01 |
1 |
- |
| |
110 |
PIN; CONT RACK,INJ PUMP
ASM PART: A = 8-97601-717-3
|
9-88410-440-0 |
01 |
1 |
- |
| |
114 |
BEARING; CM/SHF FRT,INJ PUMP
ASM PART: A = 8-97601-717-3
|
9-81225-068-0 |
01 |
1 |
- |
| |
115 |
NUT; PLUNGER FIX,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15619-337-0 |
12 |
1 |
- |
| |
141 |
BOLT; POINTER
M6X14 W/LK WASHER
ASM PART: A = 8-97601-717-3
|
9-01900-614-0 |
02 |
1 |
- |
| |
154 |
HANGER; RR,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15619-347-0 |
01 |
1 |
- |
| |
161 |
GASKET; SCREW,CENTER BRG
ASM PART: A = 8-97601-717-3
|
5-15729-099-0 |
06 |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.500
ASM PART: A = 8-97601-717-3
|
1-15639-106-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.525
ASM PART: A = 8-97601-717-3
|
1-15639-107-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.550
ASM PART: A = 8-97601-717-3
|
1-15639-108-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.575
ASM PART: A = 8-97601-717-3
|
1-15639-109-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.600
ASM PART: A = 8-97601-717-3
|
1-15639-110-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.625
ASM PART: A = 8-97601-717-3
|
1-15639-111-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.650
ASM PART: A = 8-97601-717-3
|
1-15639-112-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.675
ASM PART: A = 8-97601-717-3
|
1-15639-113-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.700
ASM PART: A = 8-97601-717-3
|
1-15639-114-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.725
ASM PART: A = 8-97601-717-3
|
1-15639-115-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.750
ASM PART: A = 8-97601-717-3
|
1-15639-116-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.775
ASM PART: A = 8-97601-717-3
|
1-15639-117-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.800
ASM PART: A = 8-97601-717-3
|
1-15639-118-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.825
ASM PART: A = 8-97601-717-3
|
1-15639-119-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.850
ASM PART: A = 8-97601-717-3
|
1-15639-120-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.875
ASM PART: A = 8-97601-717-3
|
1-15639-121-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.900
ASM PART: A = 8-97601-717-3
|
1-15639-122-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.925
ASM PART: A = 8-97601-717-3
|
1-15639-123-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.950
ASM PART: A = 8-97601-717-3
|
1-15639-124-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=0.975
ASM PART: A = 8-97601-717-3
|
1-15639-125-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.000
ASM PART: A = 8-97601-717-3
|
1-15639-126-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.025
ASM PART: A = 8-97601-717-3
|
1-15639-127-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.050
ASM PART: A = 8-97601-717-3
|
1-15639-128-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.075
ASM PART: A = 8-97601-717-3
|
1-15639-129-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.100
ASM PART: A = 8-97601-717-3
|
1-15639-130-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.125
ASM PART: A = 8-97601-717-3
|
1-15639-131-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.150
ASM PART: A = 8-97601-717-3
|
1-15639-132-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.175
ASM PART: A = 8-97601-717-3
|
1-15639-133-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.200
ASM PART: A = 8-97601-717-3
|
1-15639-134-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.225
ASM PART: A = 8-97601-717-3
|
1-15639-135-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.250
ASM PART: A = 8-97601-717-3
|
1-15639-136-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.275
ASM PART: A = 8-97601-717-3
|
1-15639-137-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.300
ASM PART: A = 8-97601-717-3
|
1-15639-138-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.325
ASM PART: A = 8-97601-717-3
|
1-15639-139-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.350
ASM PART: A = 8-97601-717-3
|
1-15639-140-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.375
ASM PART: A = 8-97601-717-3
|
1-15639-141-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.400
ASM PART: A = 8-97601-717-3
|
1-15639-142-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.425
ASM PART: A = 8-97601-717-3
|
1-15639-143-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.450
ASM PART: A = 8-97601-717-3
|
1-15639-144-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.475
ASM PART: A = 8-97601-717-3
|
1-15639-145-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.500
ASM PART: A = 8-97601-717-3
|
1-15639-146-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.525
ASM PART: A = 8-97601-717-3
|
1-15639-147-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.550
ASM PART: A = 8-97601-717-3
|
1-15639-148-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.575
ASM PART: A = 8-97601-717-3
|
1-15639-149-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.600
ASM PART: A = 8-97601-717-3
|
1-15639-150-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.625
ASM PART: A = 8-97601-717-3
|
1-15639-151-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.650
ASM PART: A = 8-97601-717-3
|
1-15639-152-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.675
ASM PART: A = 8-97601-717-3
|
1-15639-153-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.700
ASM PART: A = 8-97601-717-3
|
1-15639-154-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.725
ASM PART: A = 8-97601-717-3
|
1-15639-155-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.750
ASM PART: A = 8-97601-717-3
|
1-15639-156-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.775
ASM PART: A = 8-97601-717-3
|
1-15639-157-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.800
ASM PART: A = 8-97601-717-3
|
1-15639-158-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.825
ASM PART: A = 8-97601-717-3
|
1-15639-159-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.850
ASM PART: A = 8-97601-717-3
|
1-15639-160-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.875
ASM PART: A = 8-97601-717-3
|
1-15639-161-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.900
ASM PART: A = 8-97601-717-3
|
1-15639-162-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.925
ASM PART: A = 8-97601-717-3
|
1-15639-163-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.950
ASM PART: A = 8-97601-717-3
|
1-15639-164-0 |
AR |
1 |
- |
| |
181 |
SHIM; TAPPET,INJ PUMP
T=1.975
ASM PART: A = 8-97601-717-3
|
1-15639-165-0 |
AR |
1 |
- |
| |
186 |
SHIM; POINTER
T=0.20
ASM PART: A = 8-97601-717-3
|
1-15639-093-0 |
AR |
1 |
- |
| |
186 |
SHIM; POINTER
T=0.30
ASM PART: A = 8-97601-717-3
|
1-15639-094-0 |
AR |
1 |
- |
| |
186 |
SHIM; POINTER
T=0.50
ASM PART: A = 8-97601-717-3
|
1-15639-095-0 |
AR |
1 |
- |
| |
186 |
SHIM; POINTER
T=1.00
ASM PART: A = 8-97601-717-3
|
1-15639-096-0 |
AR |
1 |
- |
| |
210 |
ROD; CONT
ASM PART: A = 8-97601-717-3
|
1-15637-032-0 |
01 |
1 |
- |
| |
211 |
BEARING; CONT ROD
ASM PART: A = 8-97601-717-3
|
1-15629-098-0 |
01 |
1 |
- |
| |
212 |
BUSHING; CONT ROD
ASM PART: A = 8-97601-717-3
|
1-15619-330-0 |
01 |
1 |
- |
| |
213 |
WASHER; CONT ROD
ASM PART: A = 8-97601-717-3
|
1-15619-336-0 |
01 |
1 |
- |
| |
216 |
CONNECTOR; CONT ROD
ASM PART: A = 8-97601-717-3
|
1-15619-428-0 |
01 |
1 |
- |
| |
217 |
BOLT; CONT ROD
ASM PART: A = 8-97601-717-3
|
1-15619-335-0 |
01 |
1 |
- |
| |
219 |
RING; SNAP,ROLLER
ASM PART: A = 8-97601-717-3
|
1-15619-432-0 |
06 |
1 |
- |
| |
230 |
PLUG; TAPPET
ASM PART: A = 8-97601-717-3
|
1-15619-435-0 |
06 |
1 |
- |
| |
234 |
SLEEVE; FRT COVER
ASM PART: A = 8-97601-717-3
|
1-15635-002-0 |
01 |
1 |
- |
| |
247 |
STUD; HOUSING,INJ PUMP
ASM PART: A = 8-97601-717-3
|
1-15619-427-0 |
02 |
1 |
- |
