Sayfa 0-66 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10892 - LT134-RHD EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶

0-66 — GENERATOR (#30242) — 76 parça

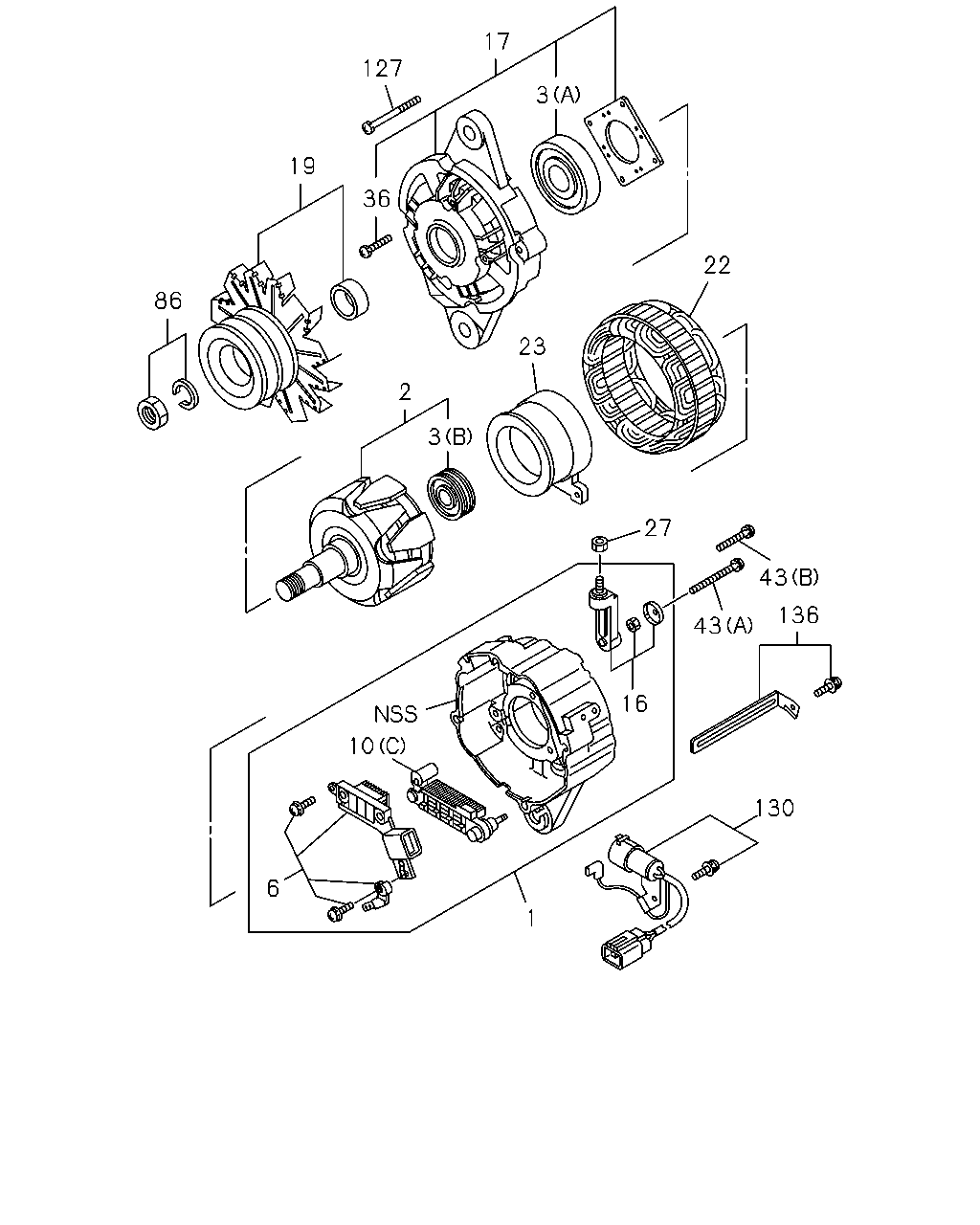

17 127 3 19 36 22 86 23 2 3 27 43 136 43 16 10 130 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81214-364-2	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-599-5	1-81222-135-2	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-599-5	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81221-106-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-599-5	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-599-5	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-599-5	1-81260-017-1	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81260-018-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: B = 1-81200-599-5	1-81219-126-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81219-133-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81219-134-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 1-81200-599-5	1-81229-804-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-826-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-599-5	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81213-110-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-599-5	1-81222-130-2	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81222-150-3	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-599-5	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81211-132-1	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 1-81200-599-5	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81212-020-1	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: B = 1-81200-599-5	1-81229-772-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-821-0	01	1	-
36	SCREW; FRT COVER ASM PART: B = 1-81200-599-5	1-81229-768-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-814-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: B = 1-81200-599-5	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 1-81200-594-2, B = 1-81200-599-5, C = 1-81200-636-2	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-817-0	01	1	-
43	SCREW; RR END COVER (C) ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-925-0	01	1	-
86	NUT SET; PULLEY,GEN ASM PART: A = 1-81200-594-2, B = 1-81200-599-5, C = 1-81200-636-2	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: B = 1-81200-599-5	1-81229-767-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 1-81200-599-5	1-81229-808-0	01	1	-
130	CONNECTOR; GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-829-0	01	1	-
136	CLAMP; GENERATOR ASM PART: B = 1-81200-599-5	1-81229-775-0	01	1	-

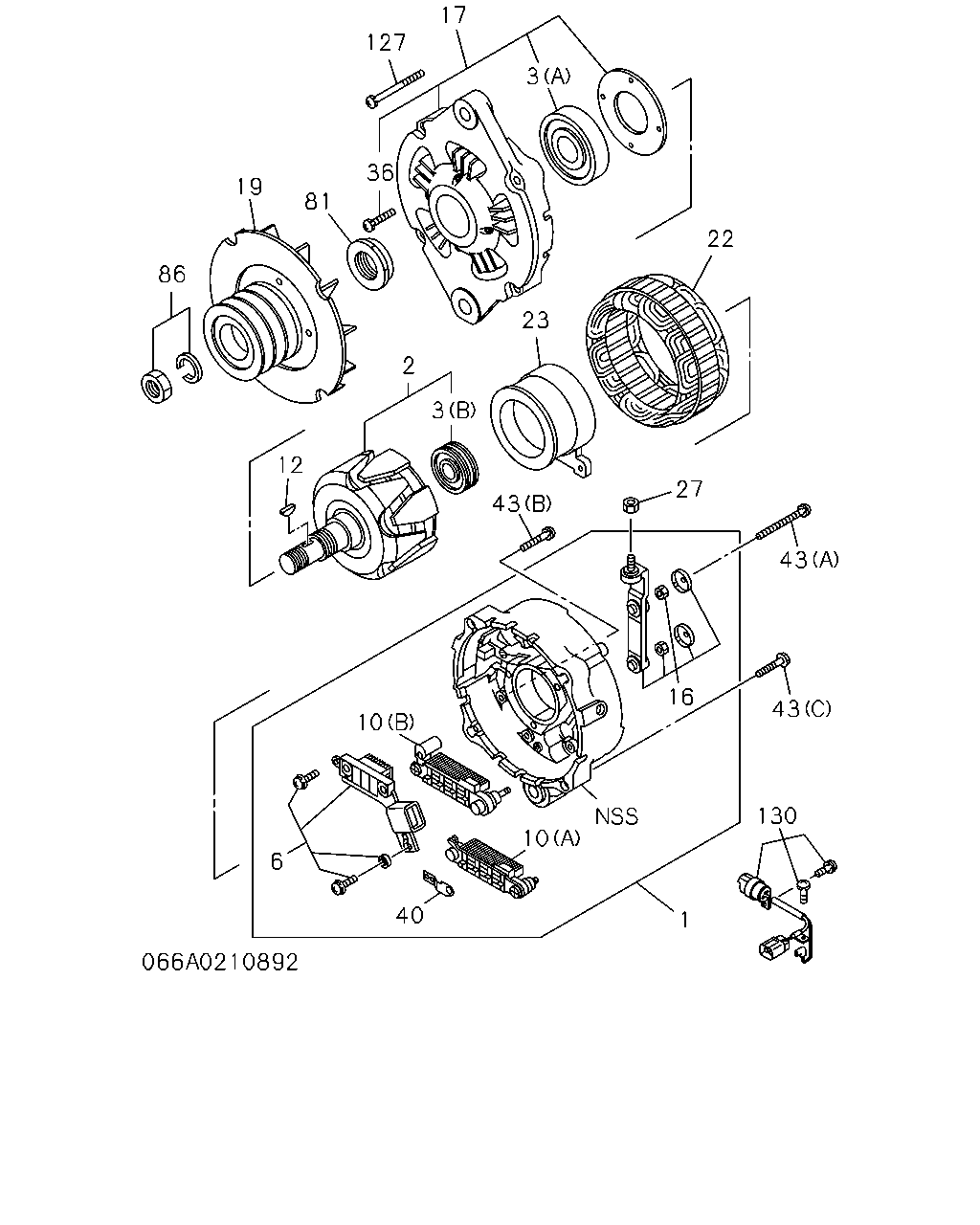

17 127 3 36 19 81 22 86 23 2 3 12 27 43 43 16 43 10 130 10 6 40 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81214-364-2	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-599-5	1-81222-135-2	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-599-5	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81221-106-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-599-5	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-599-5	1-81229-770-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-599-5	1-81260-017-1	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81260-018-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: B = 1-81200-599-5	1-81219-126-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81219-133-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81219-134-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-822-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 1-81200-599-5	1-81229-804-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-826-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-599-5	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81213-110-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-599-5	1-81222-130-2	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81222-150-3	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-599-5	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81211-132-1	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 1-81200-599-5	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81212-020-1	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: B = 1-81200-599-5	1-81229-772-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-821-0	01	1	-
36	SCREW; FRT COVER ASM PART: B = 1-81200-599-5	1-81229-768-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-814-0	01	1	-
40	PLATE; RR COVER ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81222-148-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: B = 1-81200-599-5	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 1-81200-594-2, B = 1-81200-599-5, C = 1-81200-636-2	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-817-0	01	1	-
43	SCREW; RR END COVER (C) ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-925-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-813-0	01	1	-
86	NUT SET; PULLEY,GEN ASM PART: A = 1-81200-594-2, B = 1-81200-599-5, C = 1-81200-636-2	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: B = 1-81200-599-5	1-81229-767-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 1-81200-599-5	1-81229-808-0	01	1	-
130	CONNECTOR; GEN ASM PART: A = 1-81200-594-2, C = 1-81200-636-2	1-81229-829-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
