0-65 — STARTER (#30241) — 26 parça

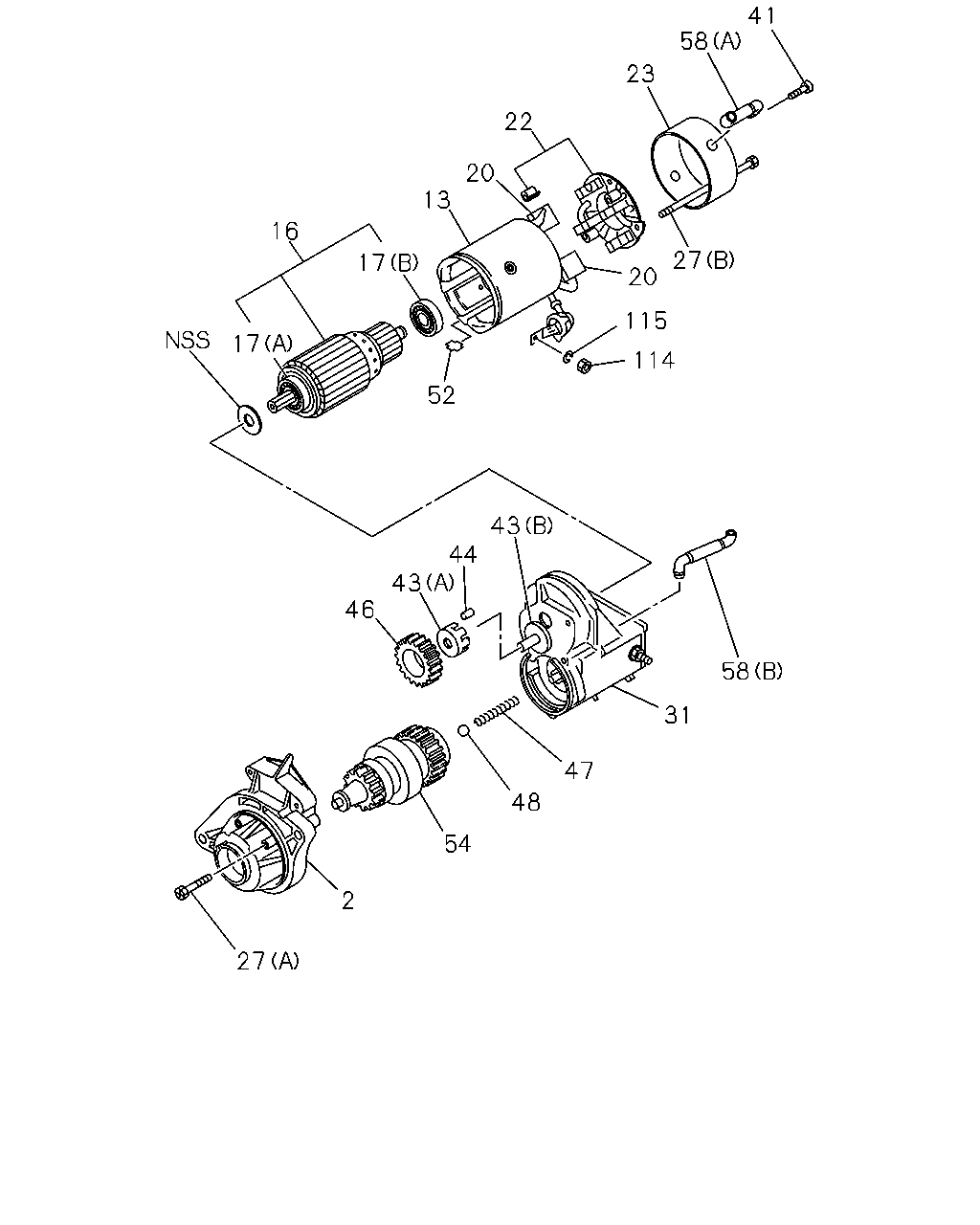

çizim 84782
41 58 23 22 20 13 16 27 17 20 115 17 114 52 43 44 43 46 58 31 47 48 54 2 27
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		1-81129-697-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		1-81129-696-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		1-81121-055-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		1-81129-626-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B) ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		5-09800-081-0 01 1 -
20 BRUSH; (+),STARTER
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		8-94171-853-0 02 1 -
22 HOLDER; BRUSH STARTER
DENSO ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		5-81118-013-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		1-81115-220-0 01 1 -
27 BOLT; THROUGH,STARTER
(B) ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		1-81129-698-0 02 1 -
27 BOLT; THROUGH,STARTER
(A) ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		8-94167-434-0 03 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-94394-151-2 		1-81151-099-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: B = 8-97602-169-1 		1-81151-126-0 01 1 -
41 SCREW; RR COVER,STARTER
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		5-81129-130-0 02 1 -
43 RETAINER; PINION STARTER
(A) ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		5-81129-121-0 01 1 -
43 RETAINER; PINION STARTER
(B) ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		5-81129-127-0 01 1 -
44 ROLLER; PINION STARTER
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		5-81129-120-0 05 1 -
46 GEAR; CLU STARTER
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		5-81123-018-0 01 1 -
47 SPRING; PINION STARTER
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		5-81129-119-0 01 1 -
48 BALL; PINION,STARTER
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		5-81129-092-0 01 1 -
52 PLATE; LK,STARTER
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		5-81129-136-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		1-81122-049-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
(A) ASM PART: A = 8-94394-151-2 		1-81129-677-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
(A) ASM PART: B = 8-97602-169-1 		1-81129-924-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
(B) ASM PART: B = 8-97602-169-1 		1-81129-925-0 01 1 -
114 NUT; TERMINAL
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		5-81129-126-0 01 1 -
115 WASHER; TERMINAL
ASM PART: A = 8-94394-151-2, B = 8-97602-169-1 		5-81129-134-0 01 1 -
