3-58 — FIXING PARTS; OIL PIPING (#3024) — 81 parça

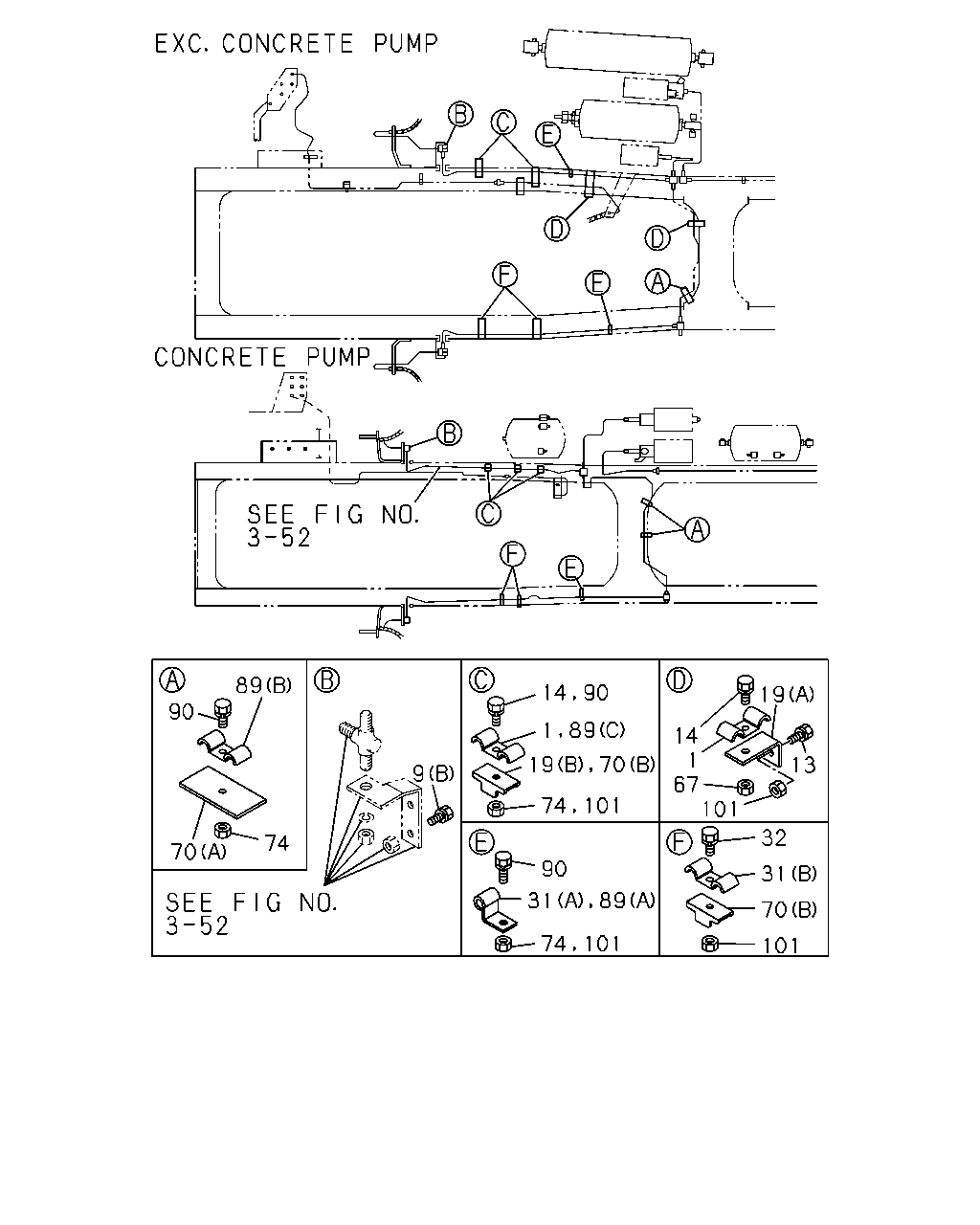

101 70 31 32 101 67 1 14 19 13 101 74 31 89 90 101 74 19 70 89 1 14 90 9 74 70 90 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> 7X7	1-09700-652-0	01	1	9002-	●	●
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> 9X7	1-09700-653-0	02	1	9002-	●	●
9	BOLT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> (A) M8X16 FLANGE	0-28080-816-0	02	1	9307-		●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE	0-28080-825-0	02	1	9307-		●
13	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01910-825-0	01	1	9002-9005	●	●
13	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	01	1	9006-9306	●	●
13	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9307-		●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	03	1	9002-9204	●	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-	●	●
19	BRACKET; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) L=55	1-47475-304-0	01	1	9002-	●	●
19	BRACKET; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-47475-427-1	01	1	9002-	●	●
31	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●	●
31	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) 7X7	1-09700-652-0	03	1	9002-	●	●
31	CLIP; OIL PIPE CONCRETE PUMP<RA5> (B) 11X7	1-09700-659-0	03	1	9002-		●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9306	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9307-		●
32	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204		●
32	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-		●
32	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	03	1	9002-9204		●
32	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-		●
67	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-	●	●
70	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=50	1-47475-299-2	01	1	9002-	●	●
70	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-47475-427-1	02	1	9002-	●	●
70	BRACKET; CLIP CONCRETE PUMP<RA5> (B)	1-47475-427-1	06	1	9002-		●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-	●	●
74	NUT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9002-		●
89	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●	●
89	CLIP; OIL PIPE CONCRETE PUMP<RA5> (B) ID=7 & 7 L=15 & 15	1-09700-652-0	03	1	9002-		●
89	CLIP; OIL PIPE CONCRETE PUMP<RA5> (C) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-		●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
90	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204		●
90	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-		●
90	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	03	1	9002-9204		●
90	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-		●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	03	1	9002-	●	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	07	1	9002-	●	●
101	NUT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-		●

114 80 112 113 113 112 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	BRACKET; CLIP,OIL PIPE CONCRETE PUMP<RA5>	1-47475-427-1	01	1	9002-		●
112	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-9306	●
112	CLIP; OIL PIPE CONCRETE PUMP<RA5> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9002-		●
112	CLIP; OIL PIPE CONCRETE PUMP<RA5> (B) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9002-		●
112	CLIP; OIL PIPE WHEEL BASE 5400MM(54W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	04	1	9002-		●
113	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●
113	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●
113	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	02	1	9002-9204		●
113	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
113	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204		●
113	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9302		●
113	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X50 FLANGE	0-28080-850-0	01	1	9303-		●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	03	1	9002-9204		●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	03	1	9205-		●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5400MM(54W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	04	1	9002-9204		●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5400MM(54W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	04	1	9205-		●
114	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-9306	●
114	NUT; CLIP,OIL PIPE WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	03	1	9002-		●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5400MM(54W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9002-		●

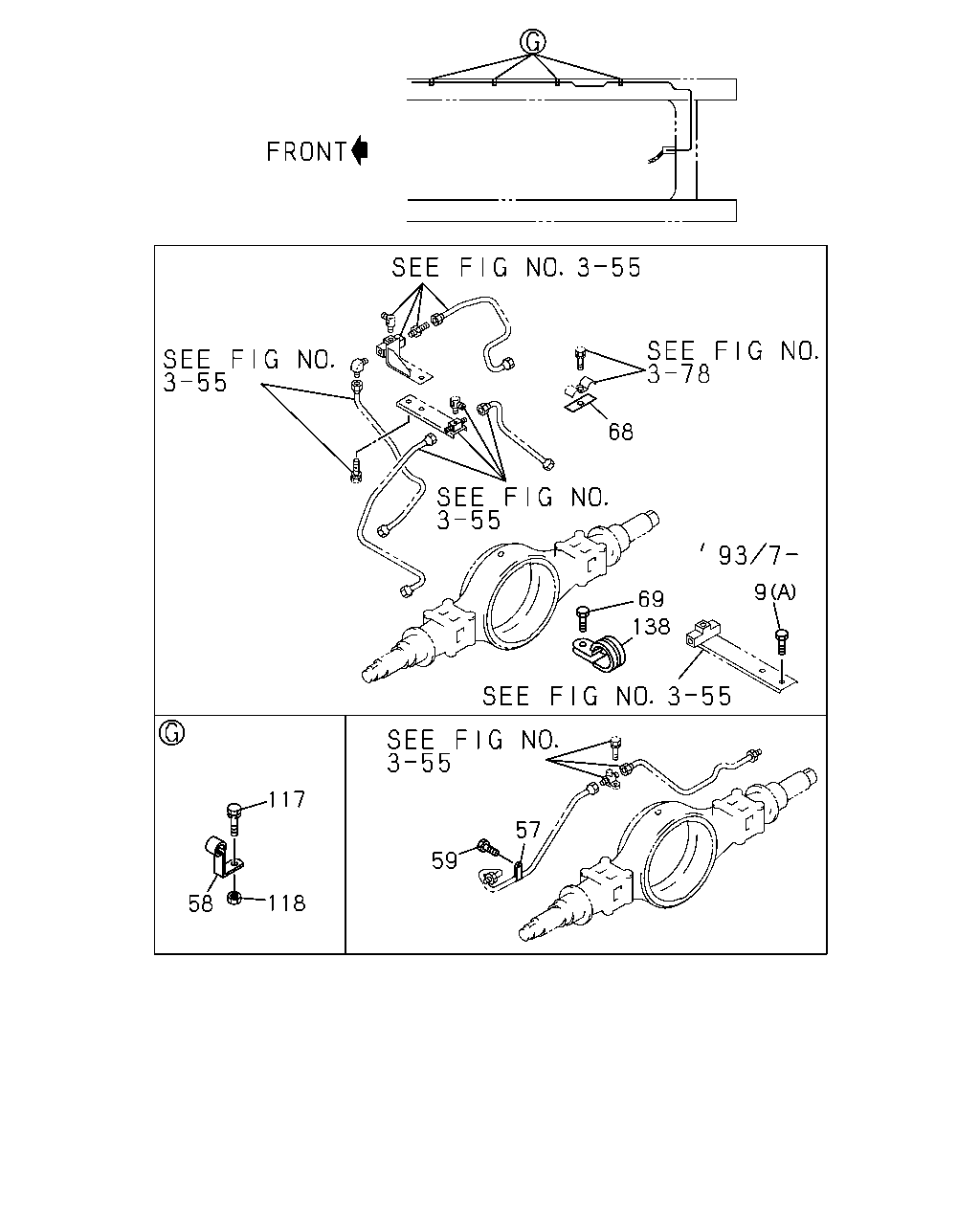

57 59 118 58 117 138 69 9 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	BOLT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> (A) M8X16 FLANGE	0-28080-816-0	02	1	9307-		●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE	0-28080-825-0	02	1	9307-		●
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	04	1	9002-	●	●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9002-	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	9-01900-812-0	04	1	9002-9010	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	04	1	9011-	●	●
68	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-47466-005-0	02	1	9002-9006	●	●	●	●
68	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=50	1-47475-299-2	02	1	9007-9306	●	●	●	●
68	BRACKET; CLIP BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-47466-005-0	01	1	9002-9006	●	●
68	BRACKET; CLIP BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=50	1-47475-299-2	01	1	9007-9306	●	●
69	BOLT; CLIP BRAKE POWER CHAMBER FORWARD<BCQ> M8X12 W/LK WASHER	0-50040-812-0	01	1	9307-		●	●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28010-830-0	04	1	9002-9204	●	●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	04	1	9205-	●	●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9002-	●	●
138	CLIP; TUBE BRAKE POWER CHAMBER FORWARD<BCQ> ID=25 L=50	1-09701-019-0	01	1	9307-		●	●
