Isuzu WW
▶
BUSES
▶
LT
▶
10892 - LT134-RHD EXC.EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#30239) — 57 parça
◀

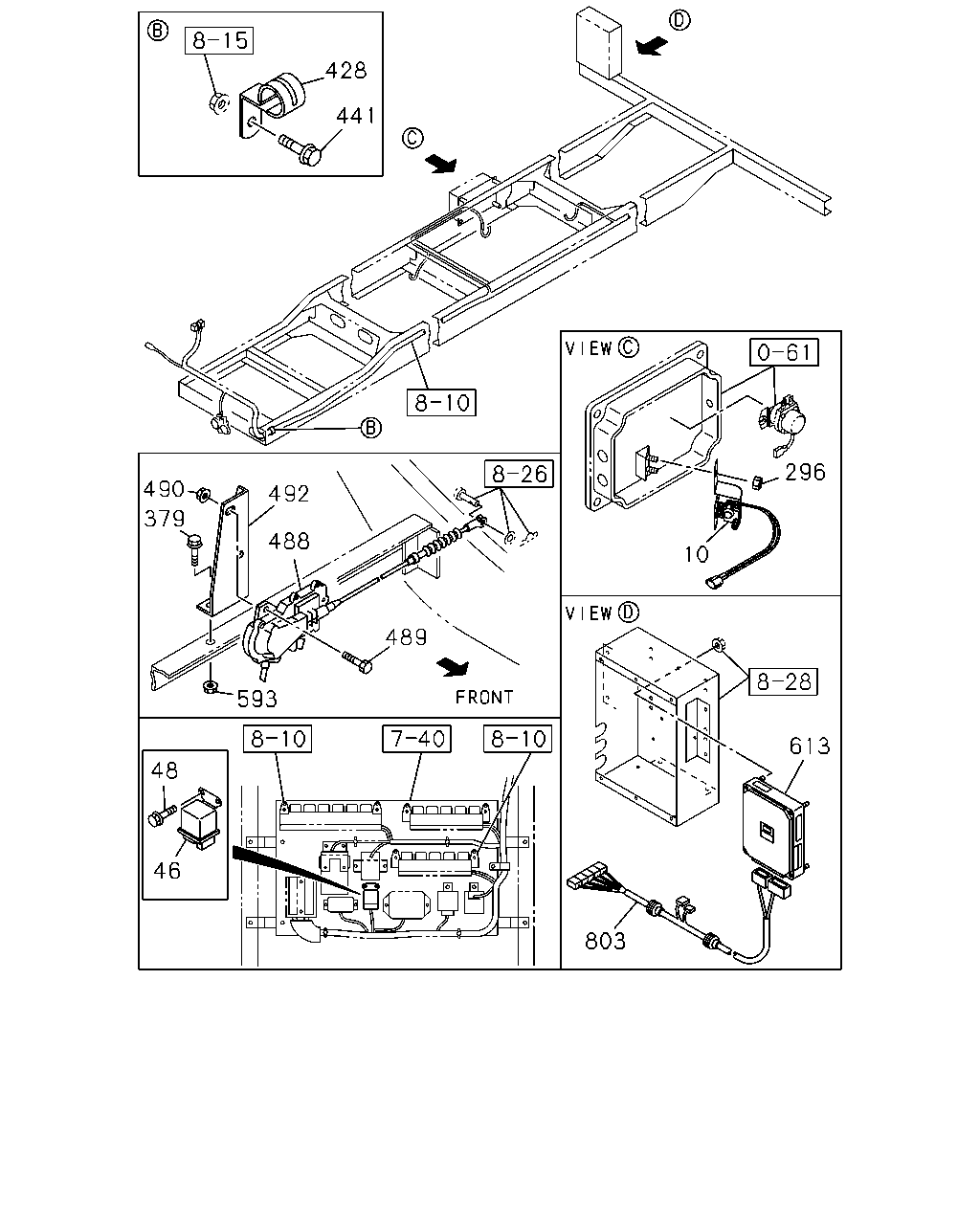

[060A] FIXING;ENG CONT UNIT,ENG STOPPER,RELAY (21 parça)

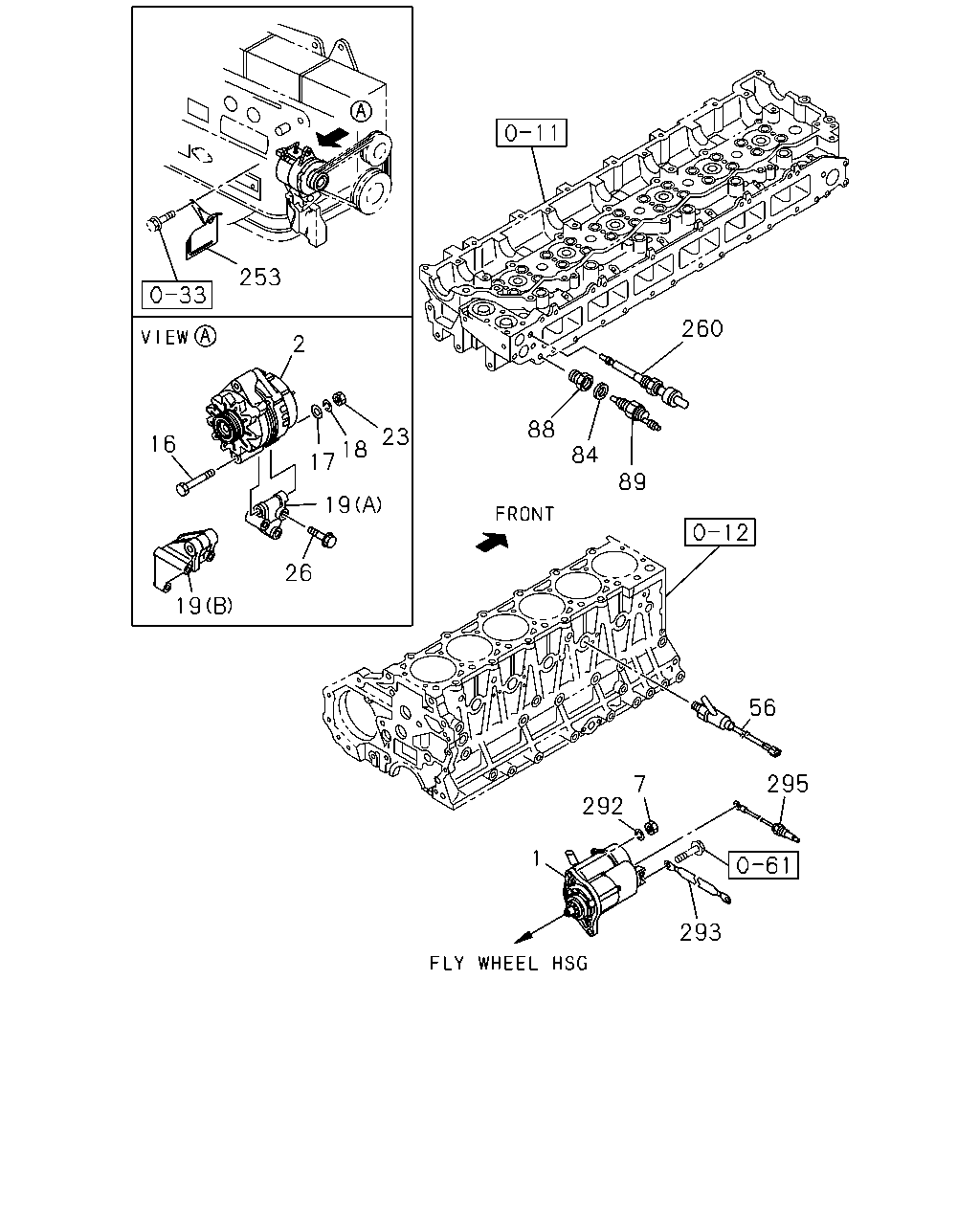

[060A] FIXING;STARTER,GENERATOR,SENSOR,SWITCH (36 parça)
▶
428
441
296
490
492
379
488
10
489
593
613
48
46
803
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
HITACHI
1-81171-088-0
01
1
0107-
46
RELAY; GLOW PLUG
8-94258-014-0
01
1
0107-
48
BOLT; GLOW PLUG RELAY
M6X16 FLANGE
0-28680-616-0
02
1
0107-0512
48
BOLT; GLOW PLUG RELAY
M6X16 FLANGE
0-28650-616-0
02
1
0601-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
0107-0602
296
NUT; RELAY,STARTER
M8 FLANGE
0-91180-108-0
02
1
0603-
379
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
02
1
0107-0512
379
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0601-
428
CLIP; HARNESS
ID=31.5 H=23 L=25
1-09701-017-0
01
1
0107-
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28680-825-0
01
1
0107-0512
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28650-825-0
01
1
0601-
488
STOPPER; ENG
1-82840-136-1
01
1
0107-
489
BOLT; ENG STOPPER
M8X25 FLANGE
0-28680-825-0
02
1
0107-0512
489
BOLT; ENG STOPPER
M8X25 FLANGE
0-28650-825-0
02
1
0601-
490
NUT; ENG STOP
M8 FLANGE
0-91150-108-0
02
1
0107-0602
490
NUT; ENG STOP
M8 FLANGE
0-91180-108-0
02
1
0603-
492
BRACKET; ENG STOPPER
1-47479-224-0
01
1
0107-
593
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0107-0602
593
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
613
CONTROL UNIT; ENG
8-97601-782-2
01
1
0107-
803
HARNESS; GOVERNOR
EURO3 SPECIFICATION<NJX>
1-82641-172-1
01
1
0107-
253
260
2
88
23
16
18
17
84
89
19
26
19
56
295
7
292
1
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO
8-94394-151-2
01
1
0107-0108
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO
8-97602-169-1
01
1
0109-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) 24V 120A MITSUBISHI
1-81200-594-2
01
1
0107-0305
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) 24V 120A MITSUBISHI
1-81200-636-2
01
1
0306-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) 24V 50A MITSUBISHI
1-81200-599-5
01
1
0107-
7
NUT; STARTER
M14
9-99110-414-0
02
1
0107-0512
7
NUT; STARTER
M14
0-91110-514-0
02
1
0601-
16
BOLT; GEN
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) M14X157
1-09000-071-1
01
1
0107-
16
BOLT; GEN
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) M14X135
1-09000-133-1
01
1
0107-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0107-0605
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0606-
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
0107-0603
18
WASHER; LK,GEN
ID=14.2
0-91510-514-0
01
1
0604-
19
BRACKET; GEN
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) (B)
8-94399-351-0
01
1
0107-
19
BRACKET; GEN
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A)
8-94396-297-0
01
1
0107-0112
19
BRACKET; GEN
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A)
8-97602-318-0
01
1
0201-
23
NUT; GEN
M14
9-99110-414-0
01
1
0107-0512
23
NUT; GEN
M14
0-91110-514-0
01
1
0601-
26
BOLT; GEN BRKT
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) M10X45 FLANGE
0-28181-045-0
01
1
0107-0512
26
BOLT; GEN BRKT
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) M10X45 FLANGE
0-28151-045-0
01
1
0601-
26
BOLT; GEN BRKT
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ) M10X107 FLANGE
8-94399-488-1
02
1
0107-
26
BOLT; GEN BRKT
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) M10X40 FLANGE
0-28181-040-0
01
1
0107-0512
26
BOLT; GEN BRKT
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) M10X40 FLANGE
0-28151-040-0
01
1
0601-
26
BOLT; GEN BRKT
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) M10X80 FLANGE
0-28181-080-0
02
1
0107-0512
26
BOLT; GEN BRKT
GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) M10X80 FLANGE
0-28151-080-0
02
1
0601-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-0
02
1
0107-0109
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
0110-
84
GASKET; THERMO SW
ID=16.2
1-09630-086-0
01
1
0107-
88
ADAPTER; SW
8-97602-221-0
01
1
0107-
89
SWITCH; OVER HEAT WARNING
1-82450-013-0
01
1
0107-
253
PROTECTOR; HEAT,GEN
GENERATOR MITSUBISHI 24V-120A 3.4KW(NFJ)
8-97601-723-0
01
1
0107-
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
0107-
292
WASHER; LK,STARTER
ID=14.2
9-09150-514-0
02
1
0107-0603
292
WASHER; LK,STARTER
ID=14.2
0-91510-514-0
02
1
0604-
293
CABLE; STARTER EARTH
L=350
1-82650-240-0
01
1
0107-
295
HARNESS; STARTER
L=170
1-82640-382-2
01
1
0107-
